Sharp 13N-M150B
John S
May 26, 2025, 3:07 pm
May 26, 2025, 7:09 pm
May 26, 2025, 3:07 pm
May 26, 2025, 7:09 pm
Summary

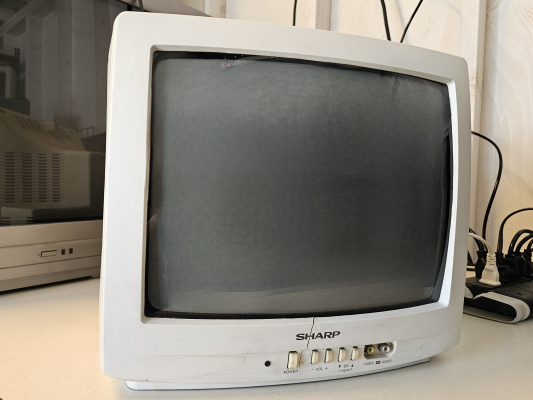

Small, no-frills budget TV with RF and mono A/V inputs. Gives a very clean picture with composite video.
Literature
Notes
While earlier versions of this TV can be modified for RGB, the jungle chip used in the N series uses digital RGB only and cannot be modified.
These TVs were sold with the contrast level set to maximum. Picture quality will improve significantly if the contrast is reduced to normal levels.

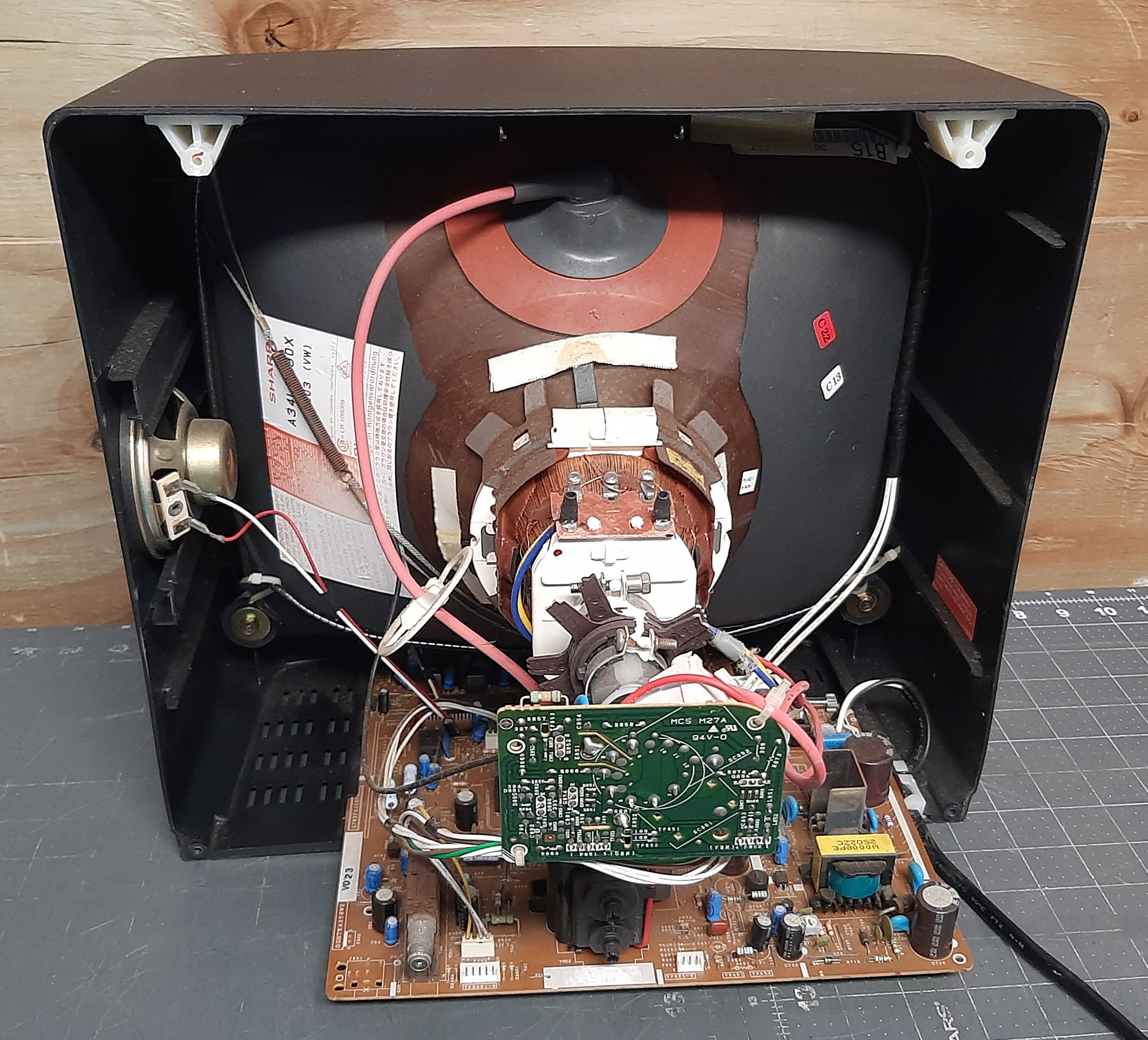

This TV also came in a black variant, the 13N-M100B.
Gallery



Specifications | |
---|---|
Brand: | Sharp |
Manufacturer: | Sharp |
Model: | 13N-M150B |
Series: | N |
Viewable Size: | 13" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle: | X3354CEN1 |
Comb Filtering: | None |
Flyback: | BSC21-2603S |
Tube: | A34EJM34X076 , A34EJM34X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | H0143PE-M |
Yoke Horz. Inductance: | 3.925 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 30.23 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 5.14 ohm |
Yoke Vert. Resistance: | 16.82 ohm |
Speakers: | Mono |

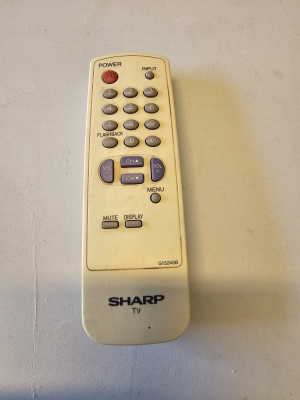

Remote: | RRMCG1324CESA |
Chassis: | SN-010 |
Weight: | 18.6 lbs (8.4 kg) |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2000 |
Country of Manufacture: | Malaysia |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
