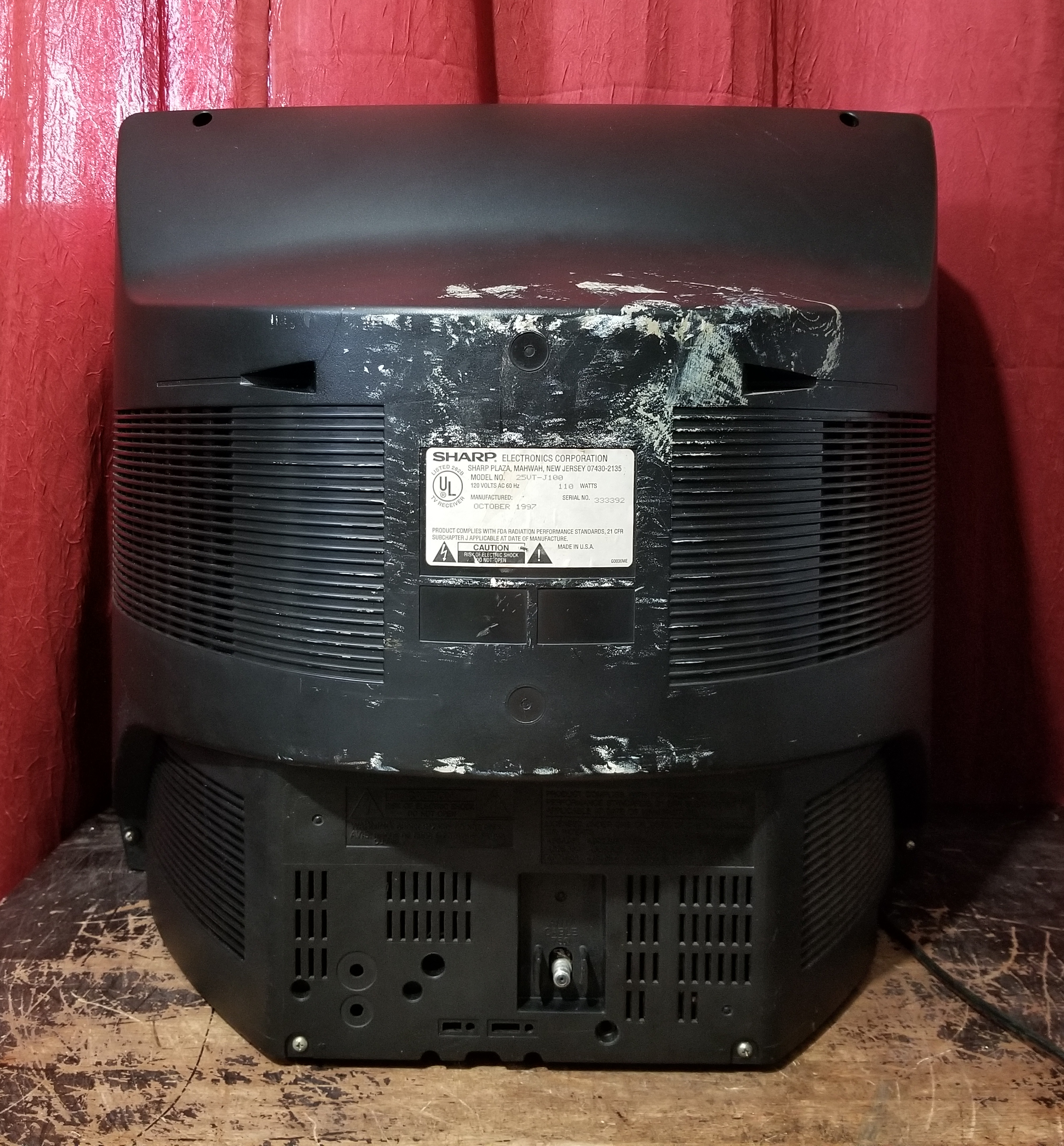

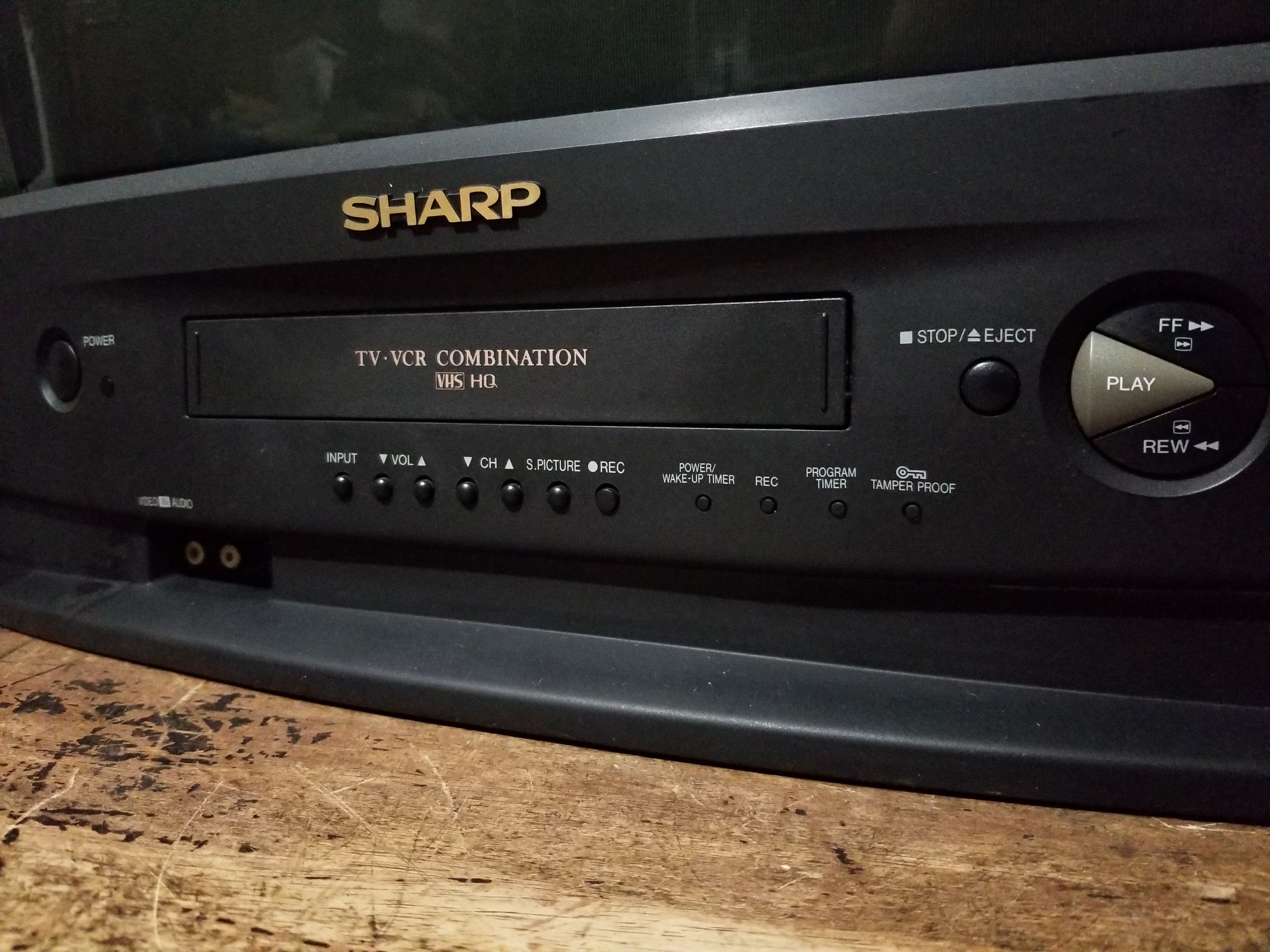

SHARP TV/VCR Combination - built for outstanding quality, reliability and performance.

Manuals

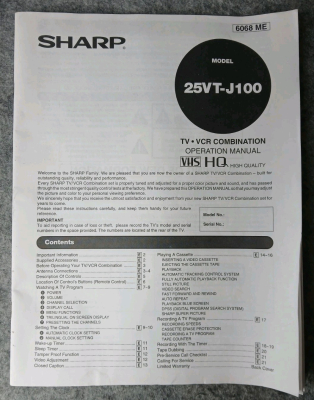

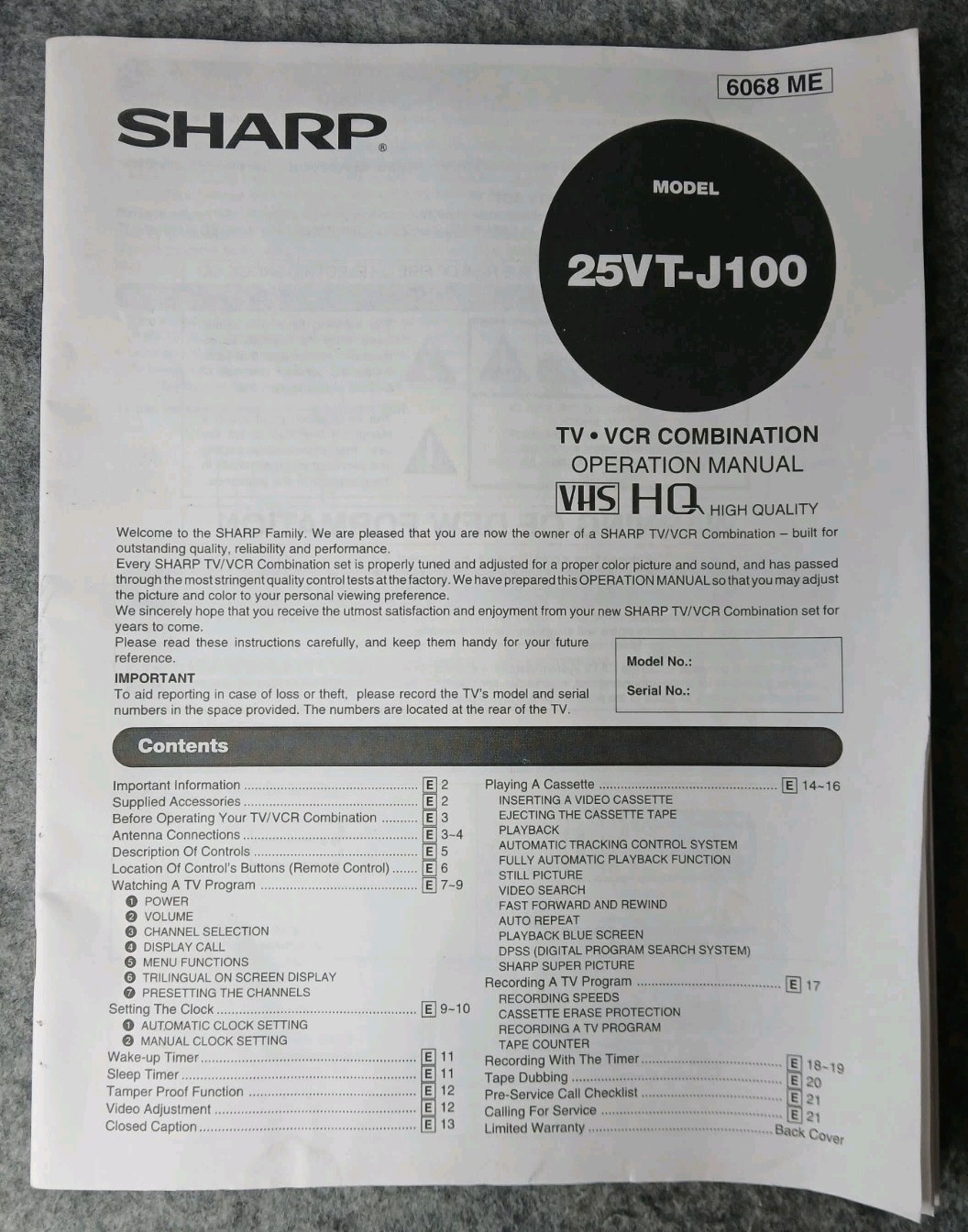

• Service Manual

Notes

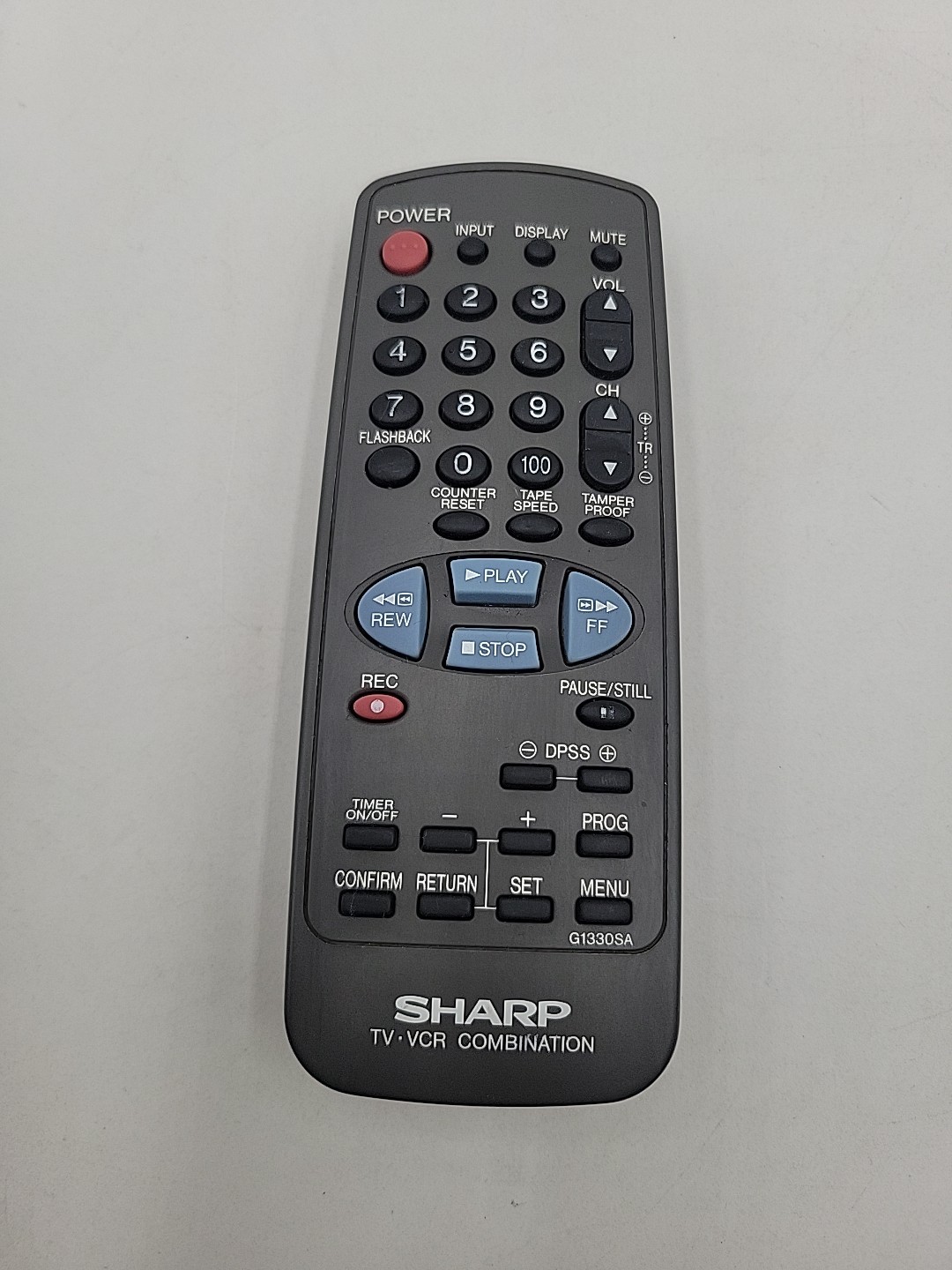

A remote with extra plus and minus buttons is needed to navigate the menu and adjust picture settings. I programmed a universal remote (Zenith MBR 3440, VCR code 208) to operate the TV and VCR and it could bring up the OSD user menu, but not navigate it.

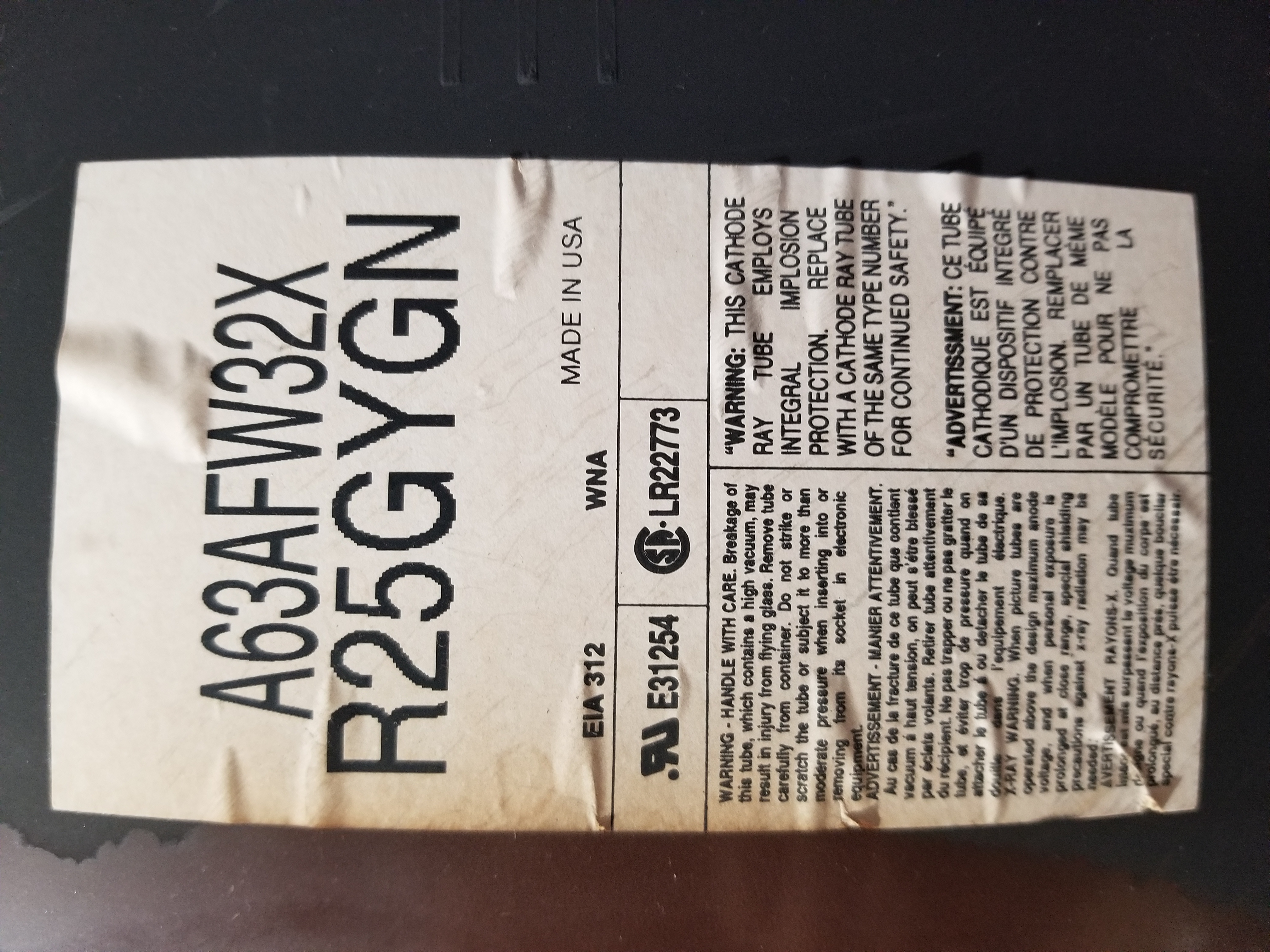

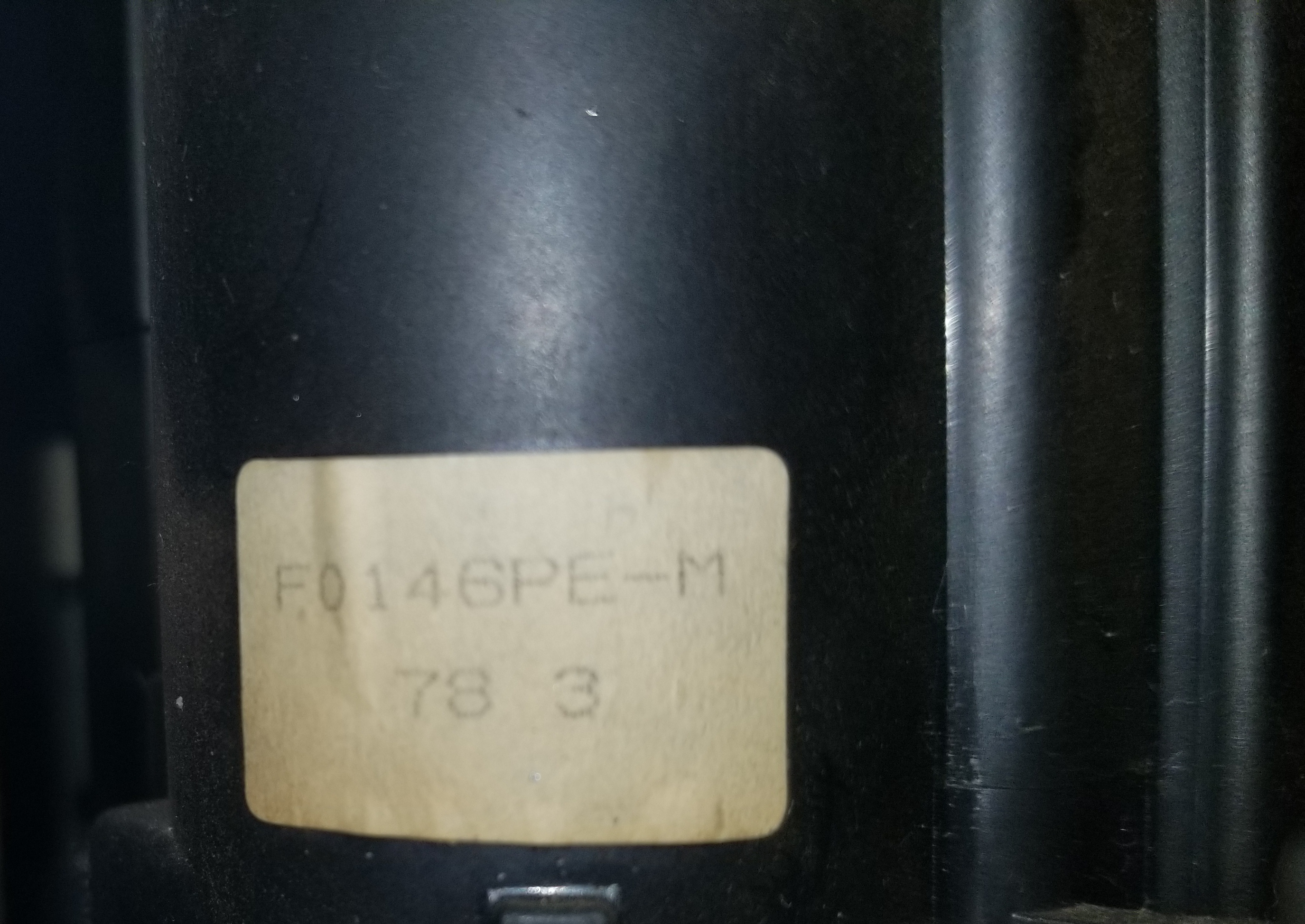

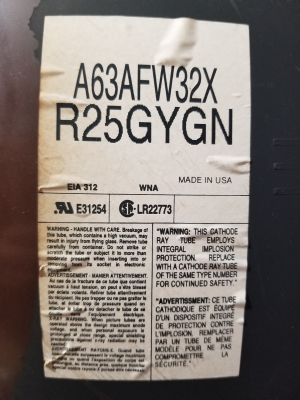

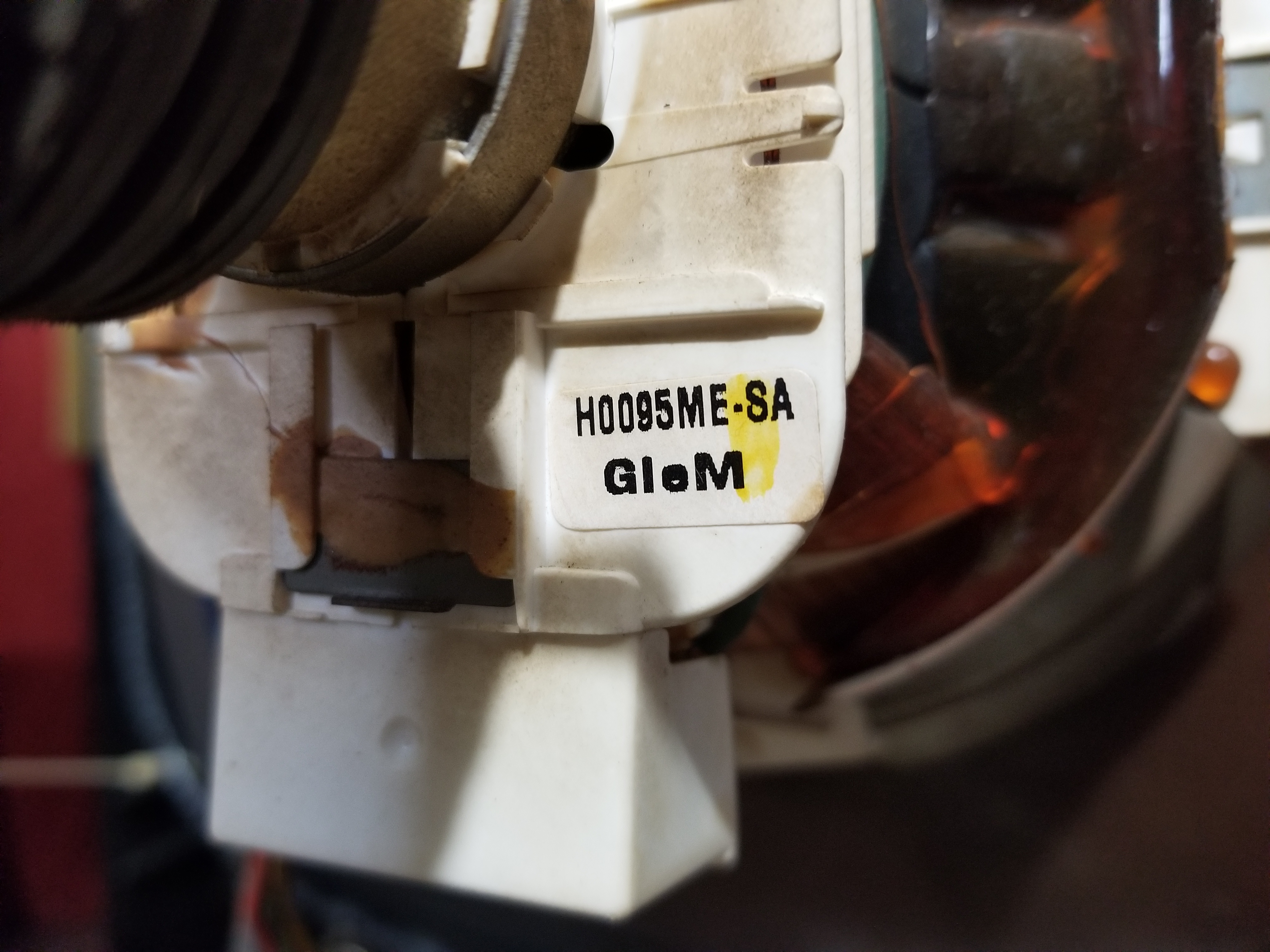

Repair Notes

• Unit would not turn on. 5VDC was missing from the power switch board and 16VDC was missing from pin 4 of IC701 due to C709 100μF 50V having gone open.

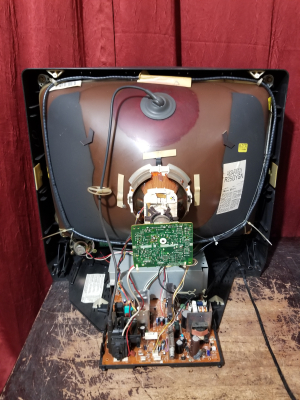

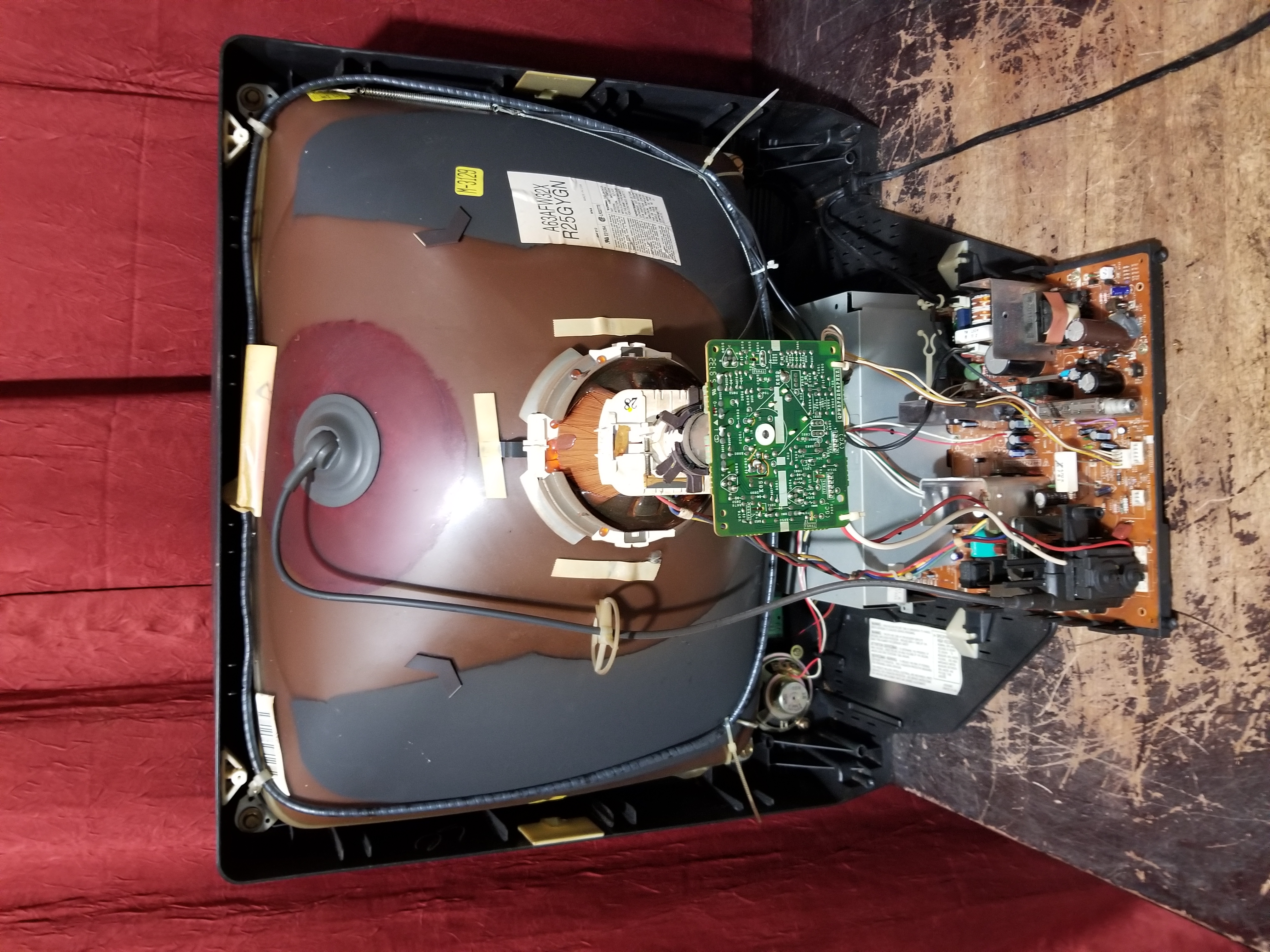

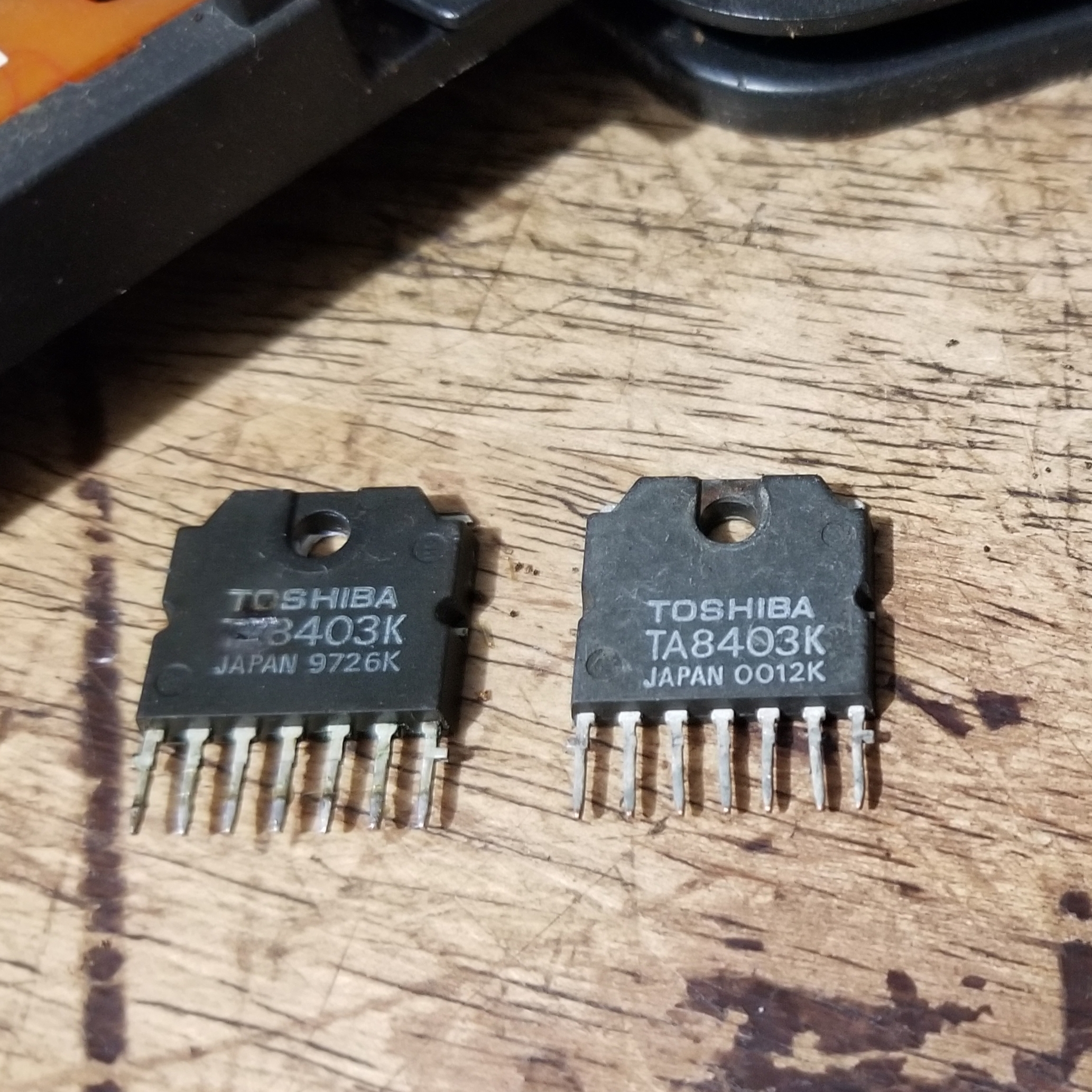

• After having replaced C709, unit then turned on but within less than a minute there was a pop sound and smoke came from the vertical IC which had visible burn mark and a piece missing from the package. It was replaced. C508 in the vertical section, also 100μF 50V, had gone open as well.
