Summary

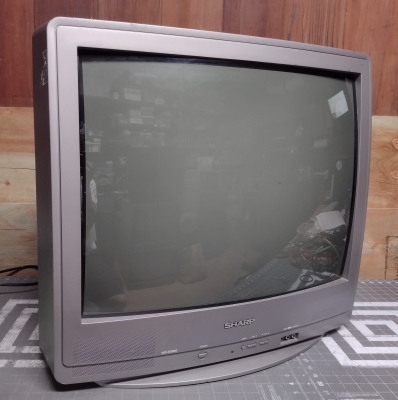

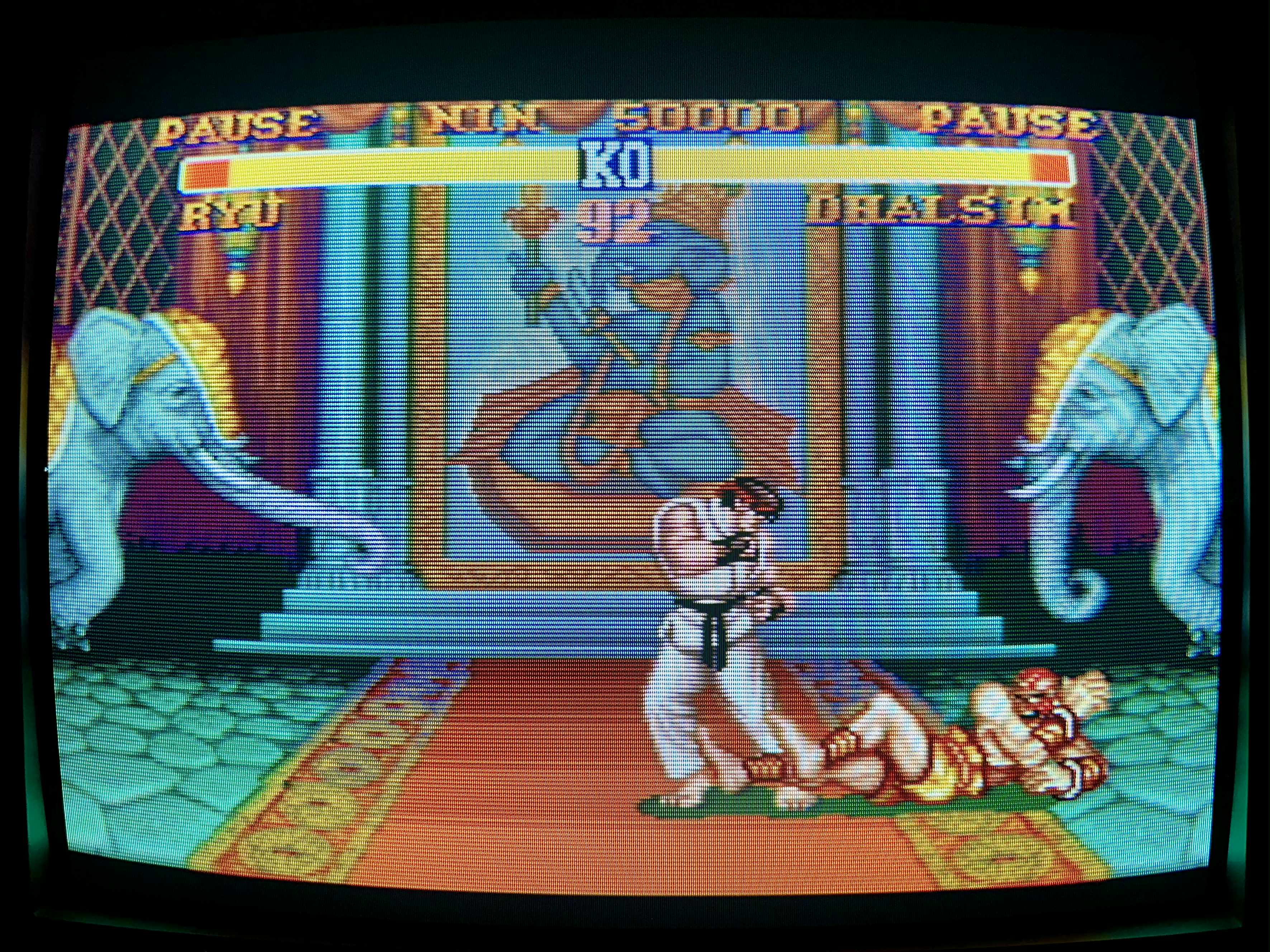

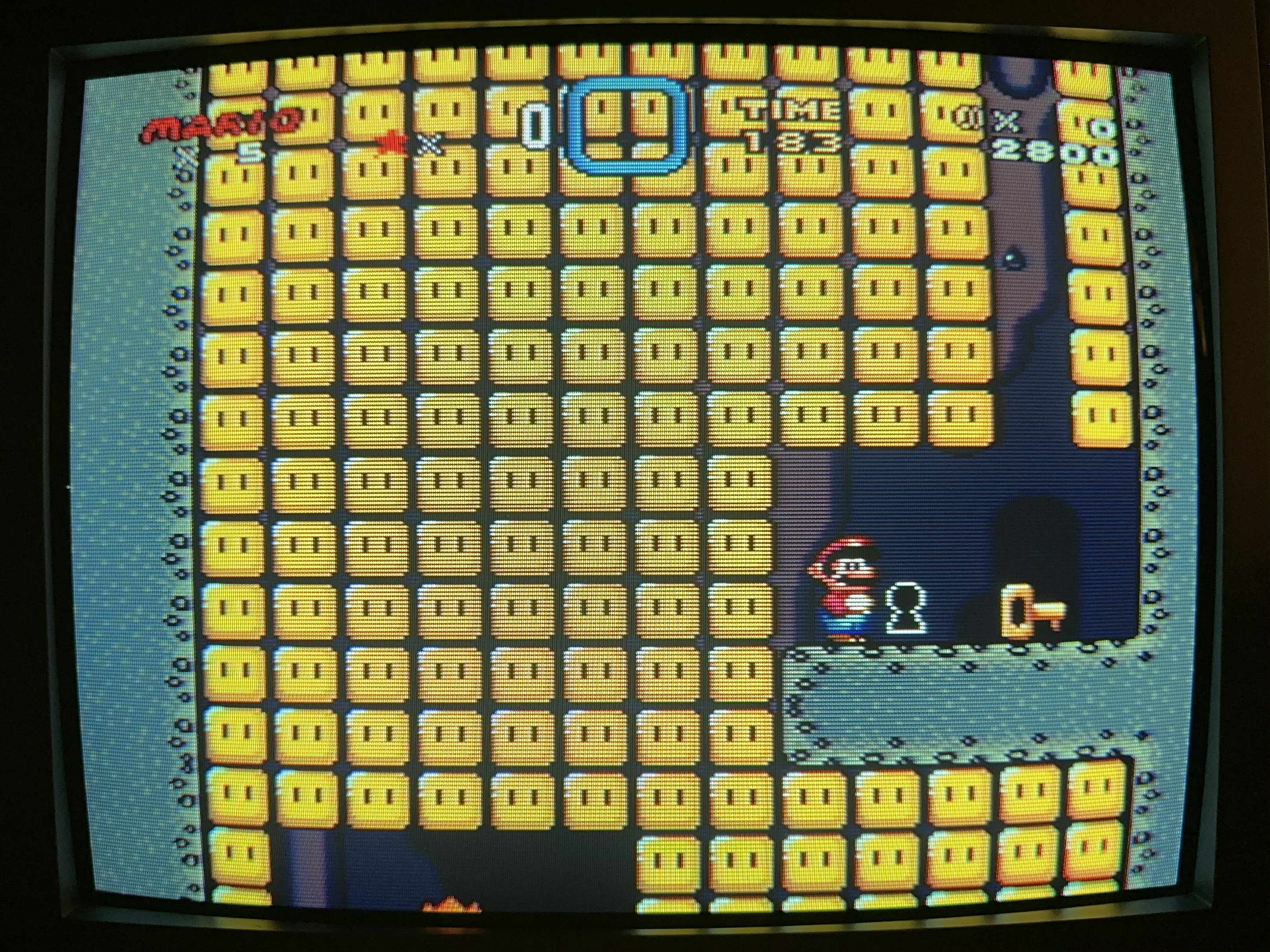

Basic 27" TV with composite and S-Video inputs. Give a very clean picture, especially through S-Video.
Literature
Notes
The jungle chip used in this TV uses digital RGB only, and cannot be modified.
These TVs were sold with the contrast level set to maximum. Picture quality will improve significantly if the contrast is reduced to normal levels.

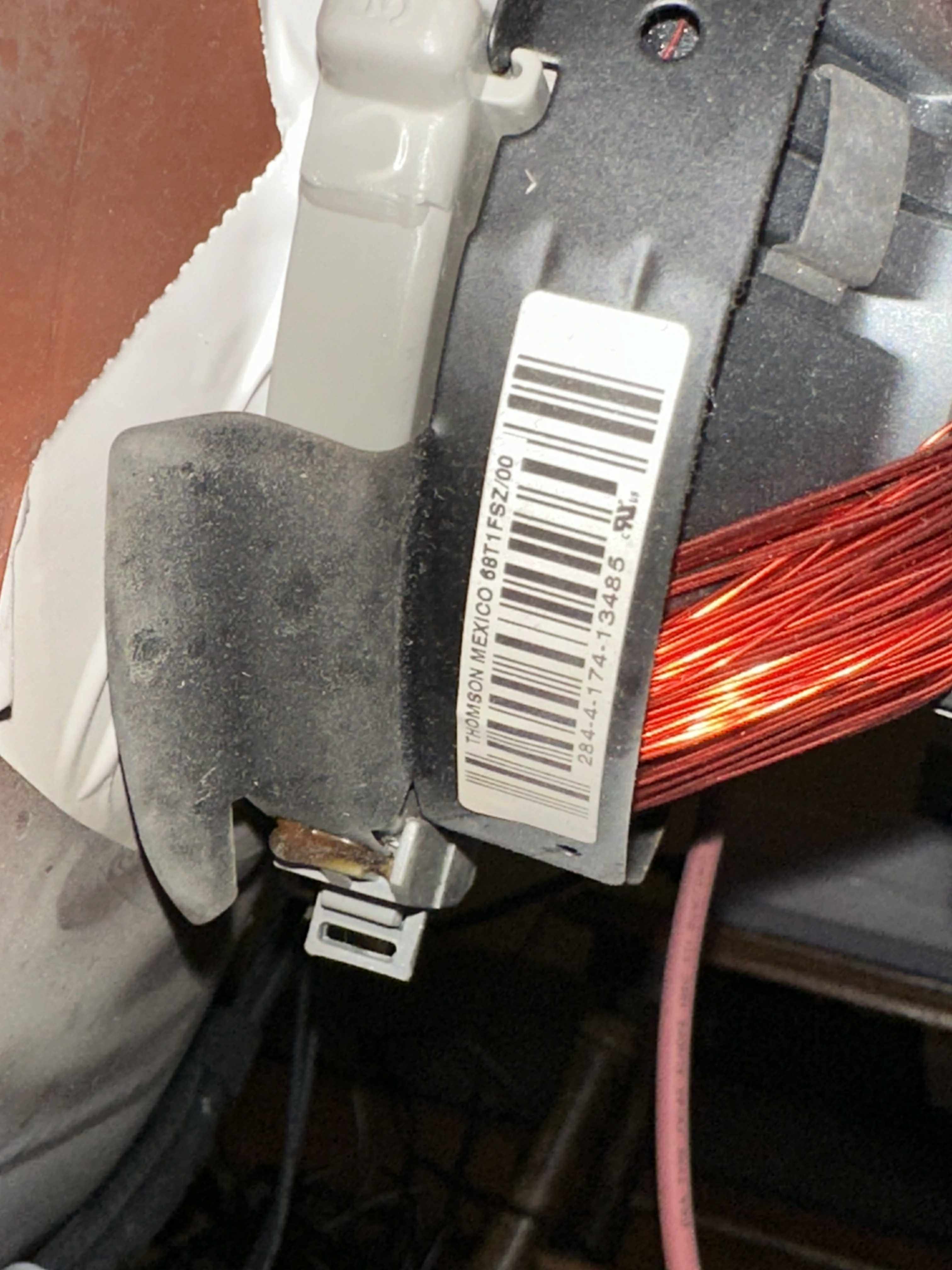

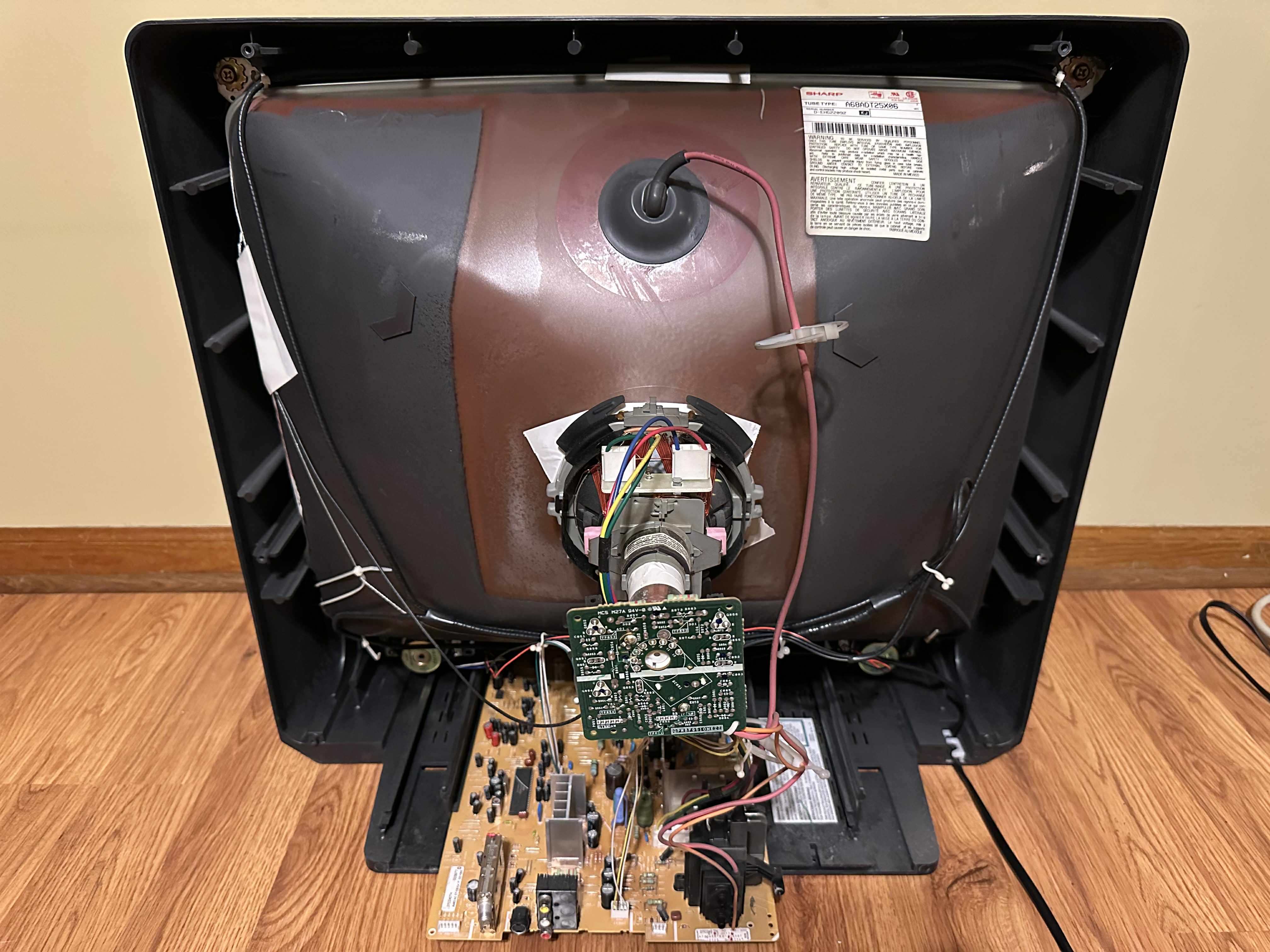

This TV uses an RCA/Thomson tube with a bonded yoke. This is the same tube used in many 27" JVC TVs, although the attached yoke may be different.

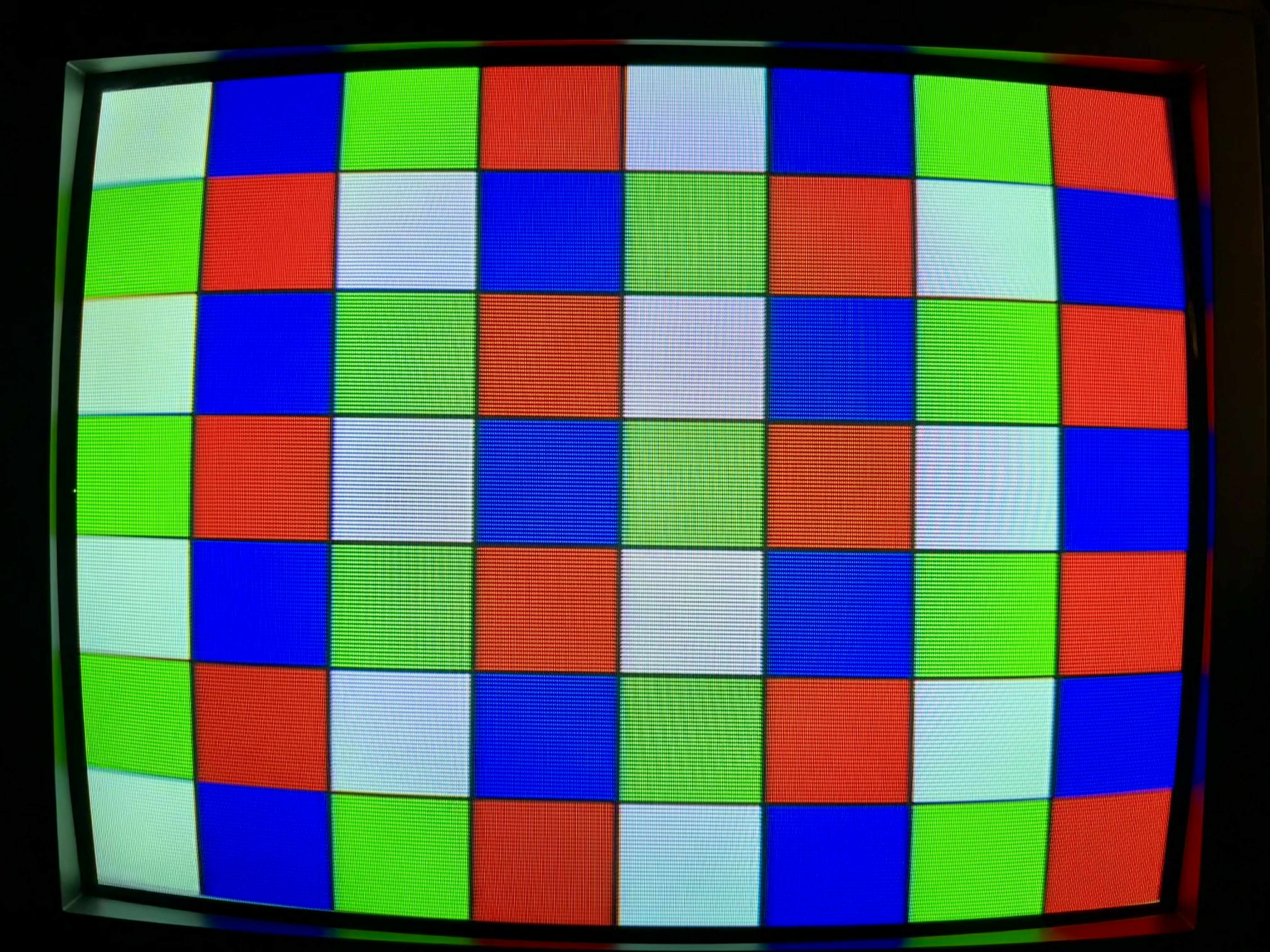

Gallery




















Specifications | |
---|---|
Brand: | Sharp |
Manufacturer: | Sharp |
Model: | 27C240 |
Series: | C |
Viewable Size: | 27" |

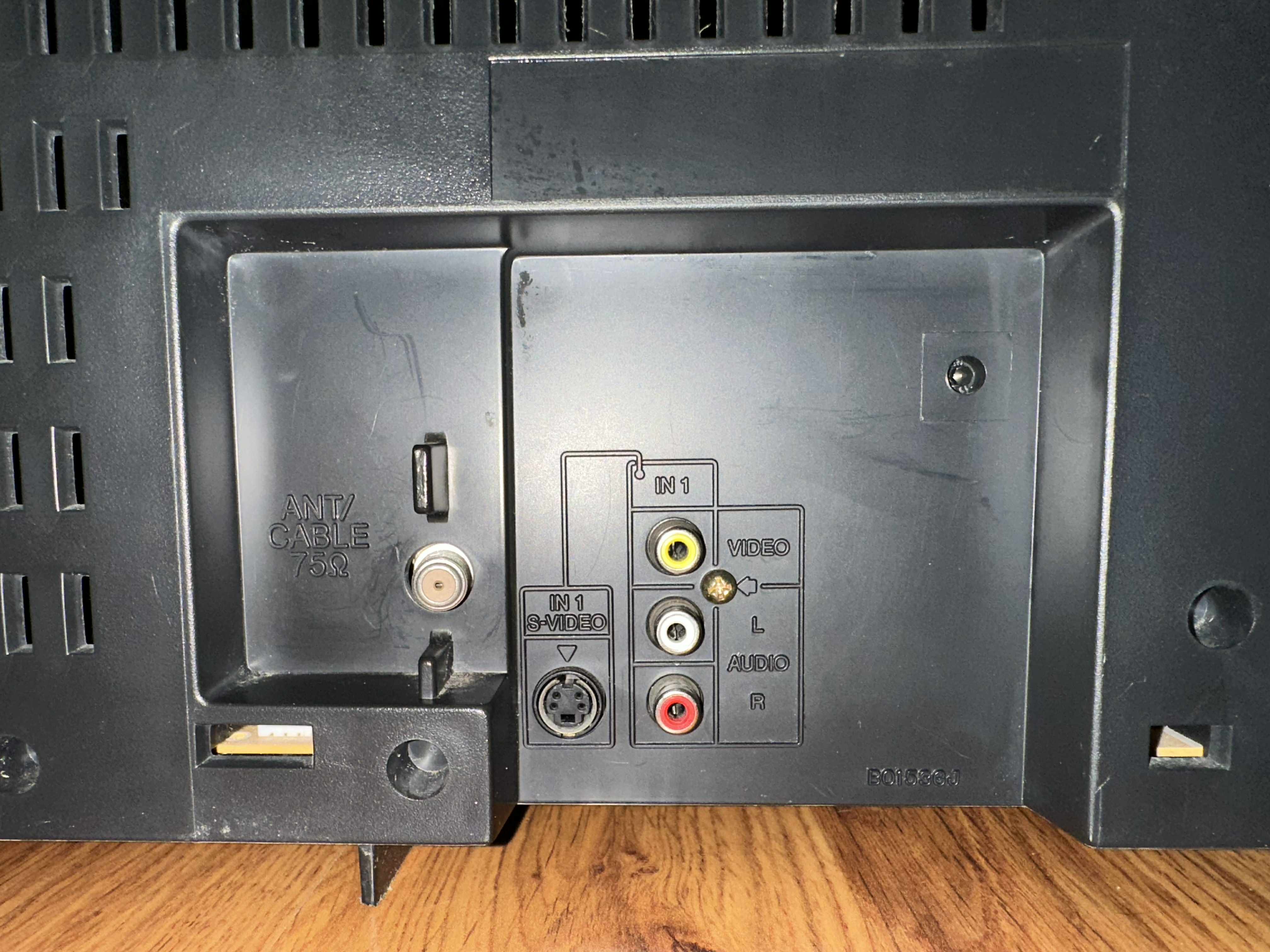

Inputs: | Composite, S-Video, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |

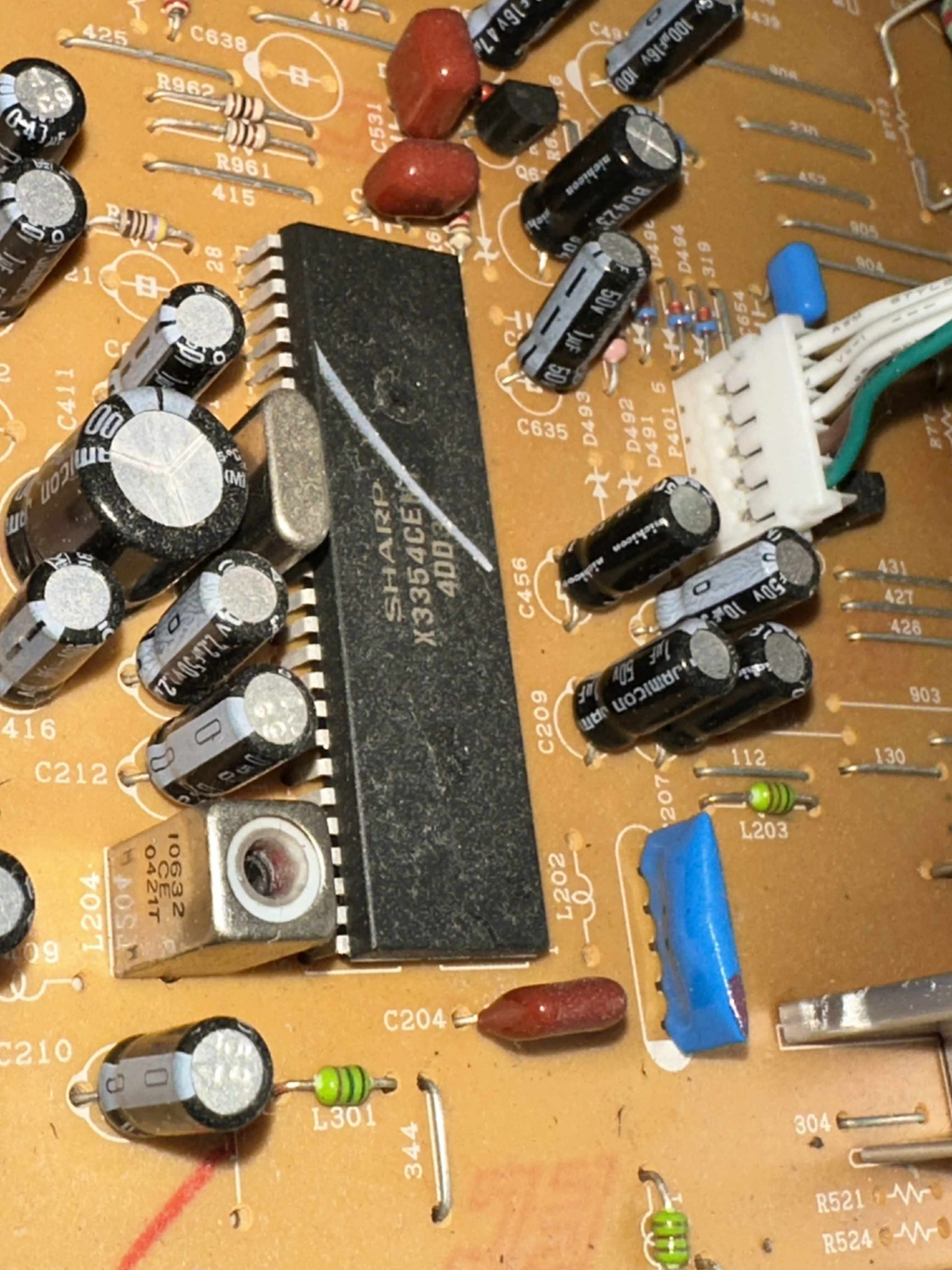

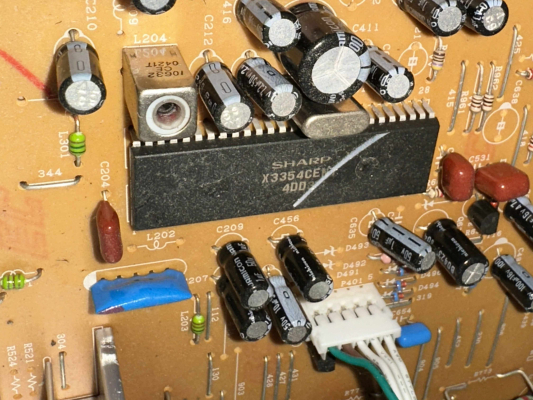

Jungle: | X3354CEN1 |

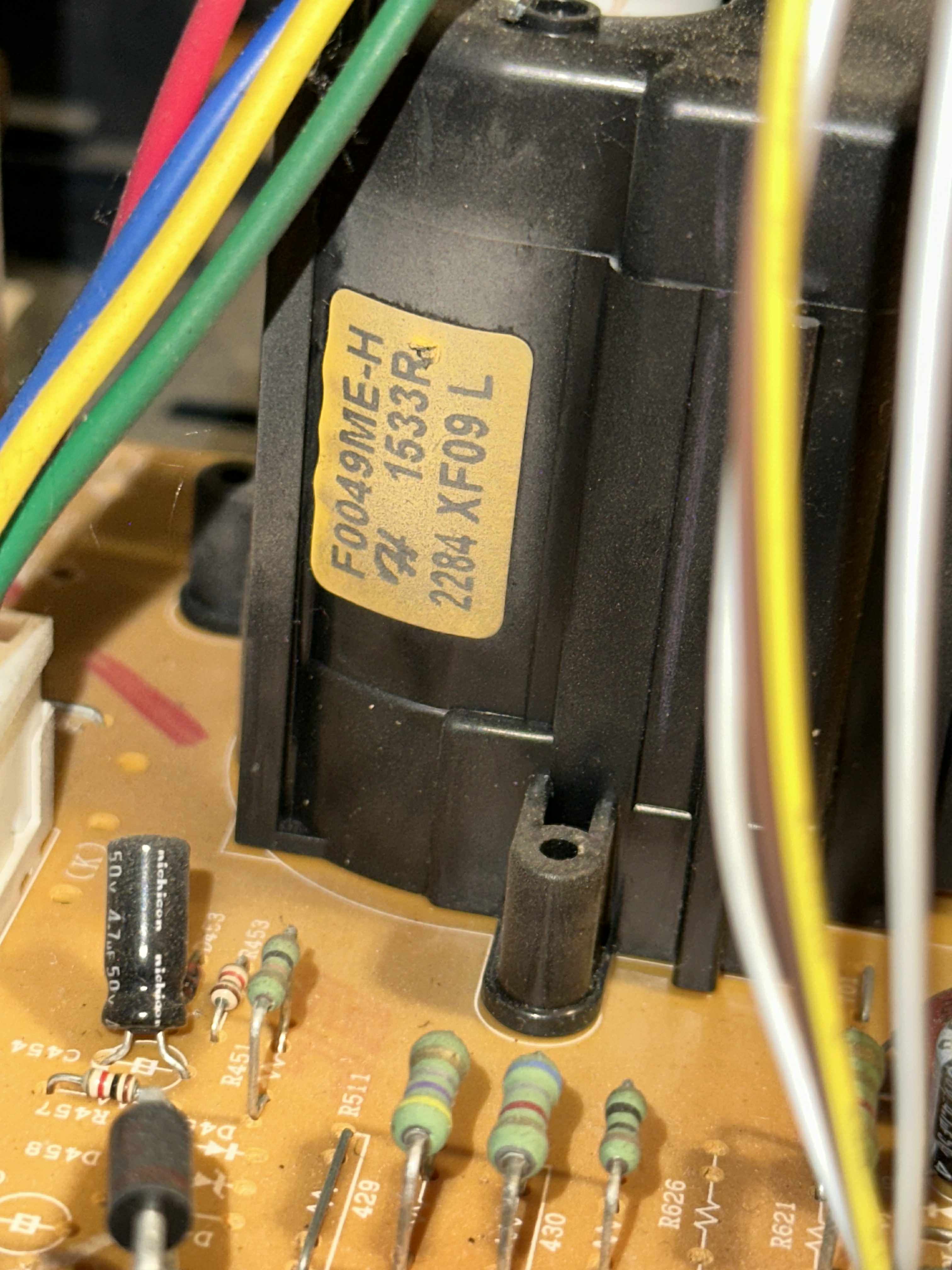

Flyback: | F0049ME-H |

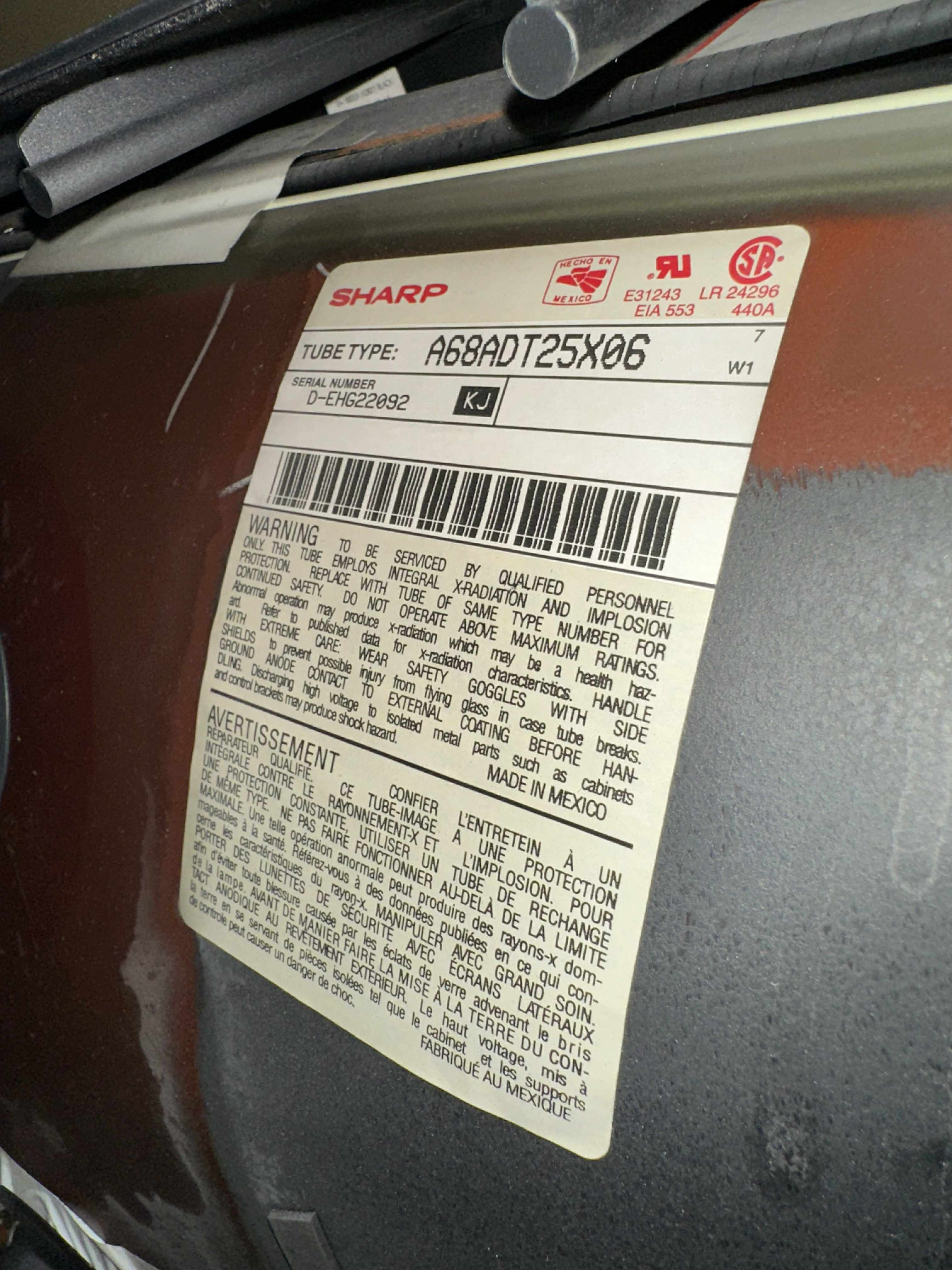

Tube: | Thomson , RCA , A68ADT25X , A68ADT25X06 |
Heater Voltage: | 6.3v |
Deflection: | 100° |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |

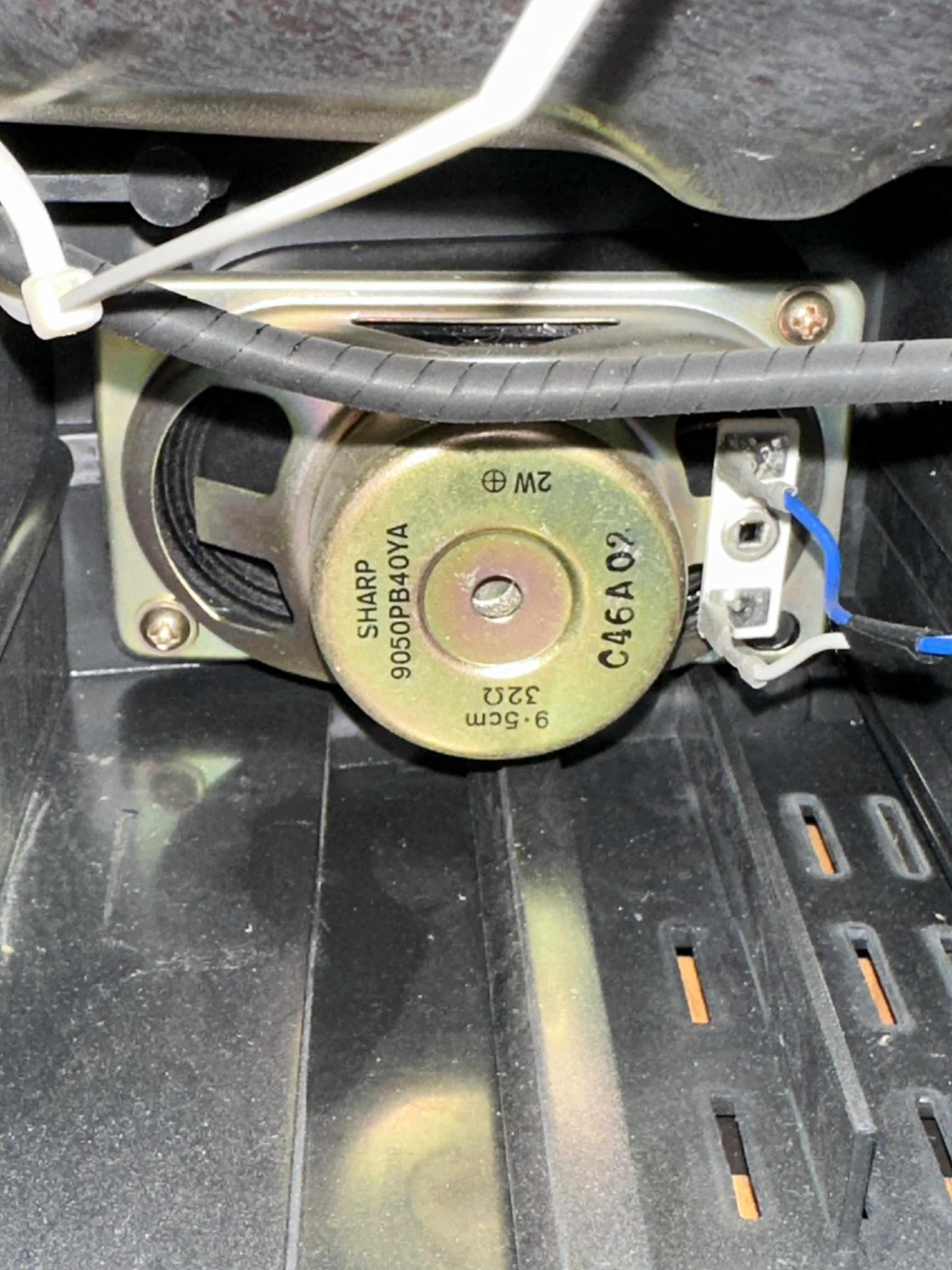

Speakers: | Stereo |
Chassis: | C/D-BM |
Weight: | 71 lbs (32.2 kg) |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2004 |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
