Summary

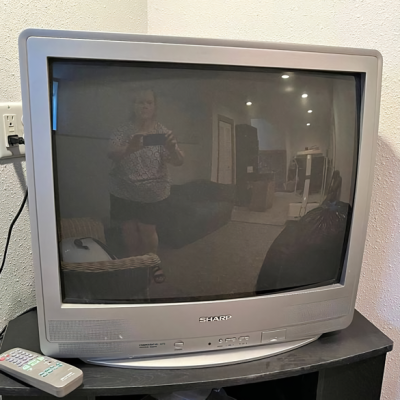

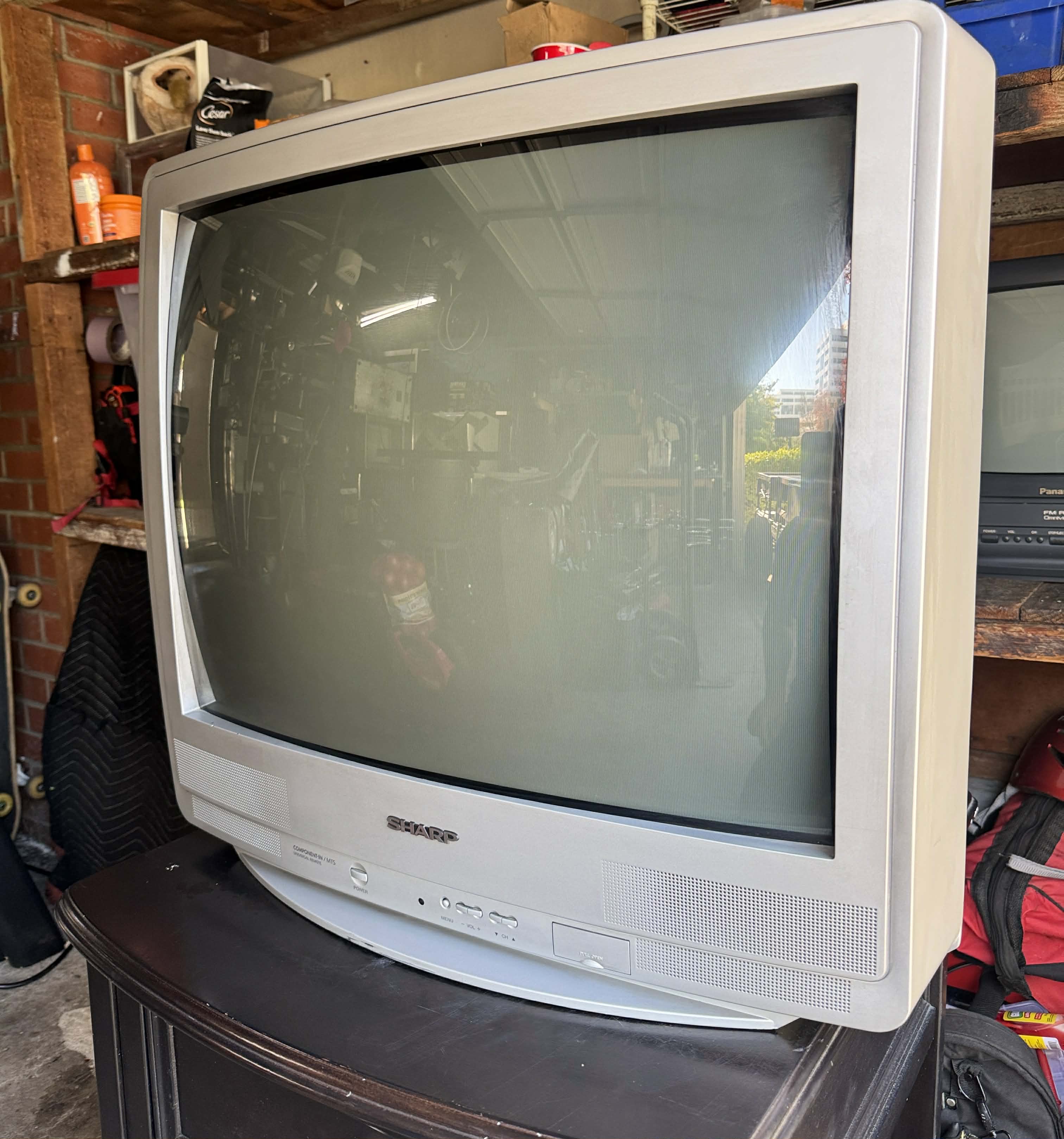

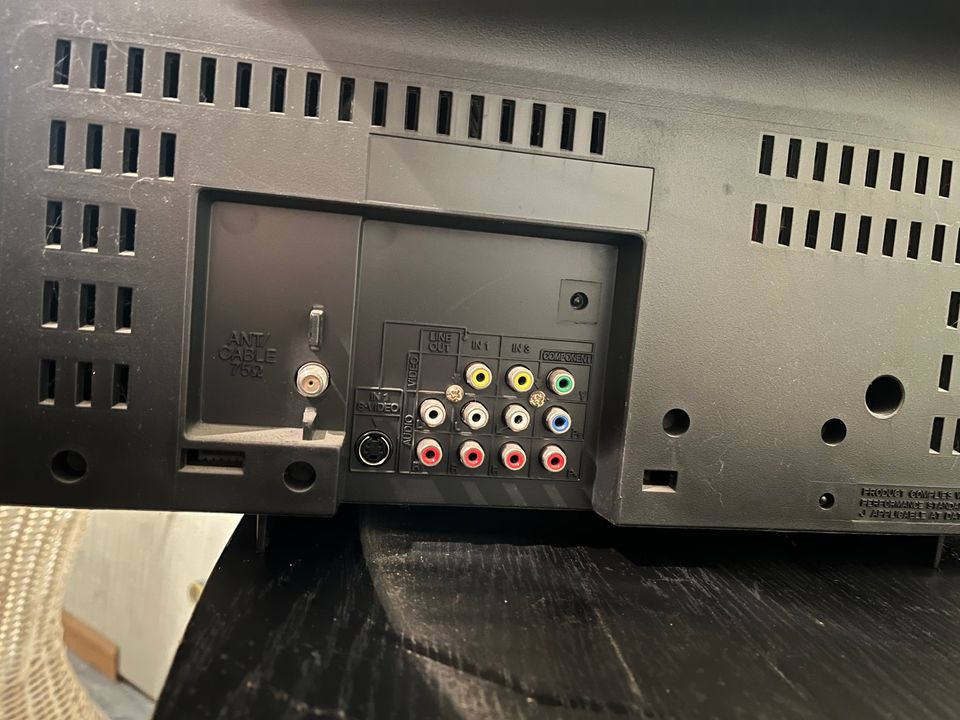

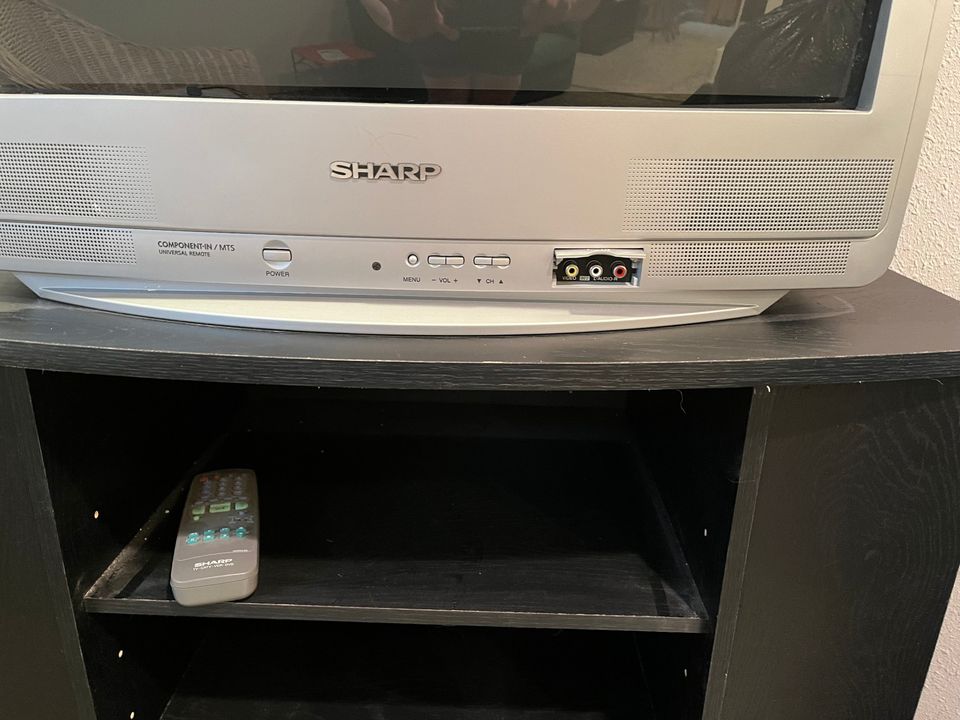

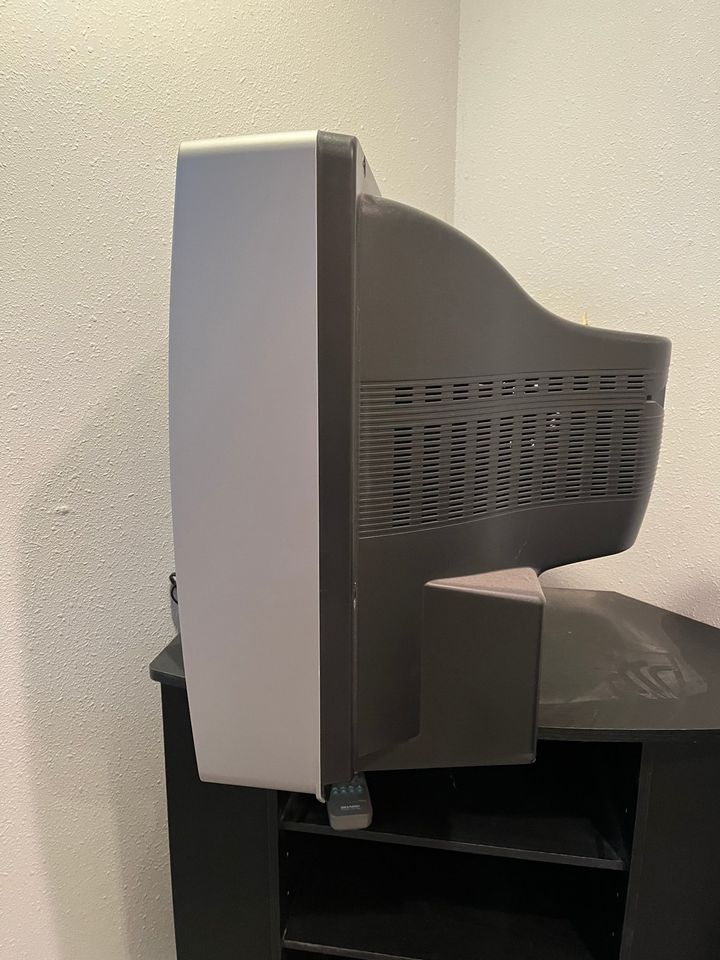

27" CRT by Sharp, made in Mexico in 2003. Has RF, composite, s-video, and component inputs with stereo sound.
(Special thanks to Felipe Ortiz for the pics!)
Manuals
Promo Materials
Notes
This set has velocity modulation. For a midrange curved-screen model, that was fairly uncommon.)

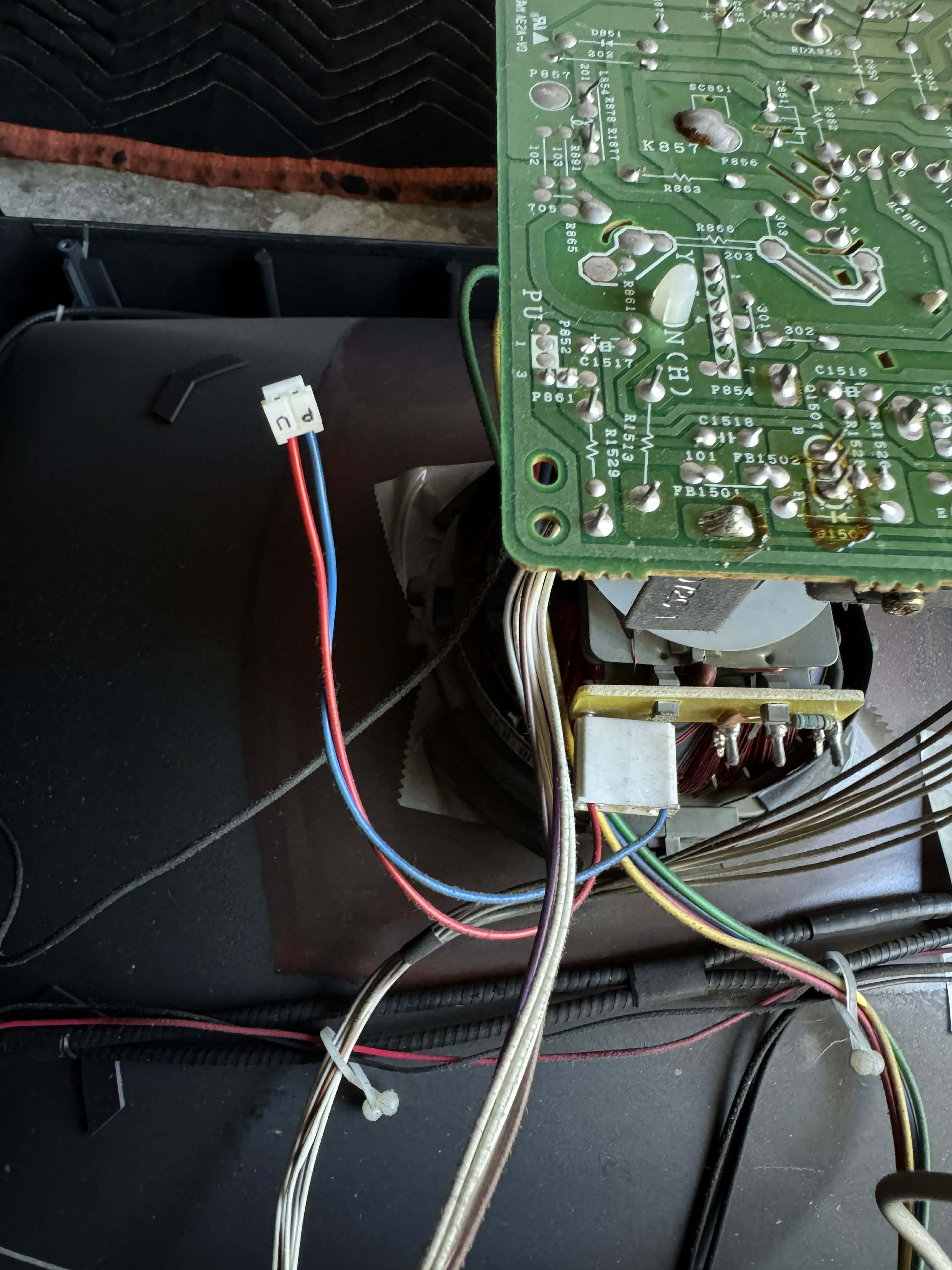

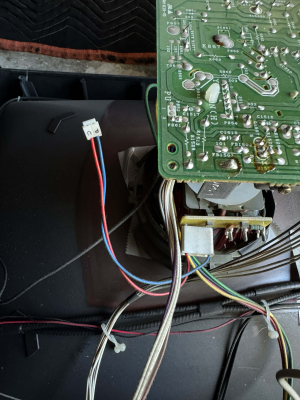

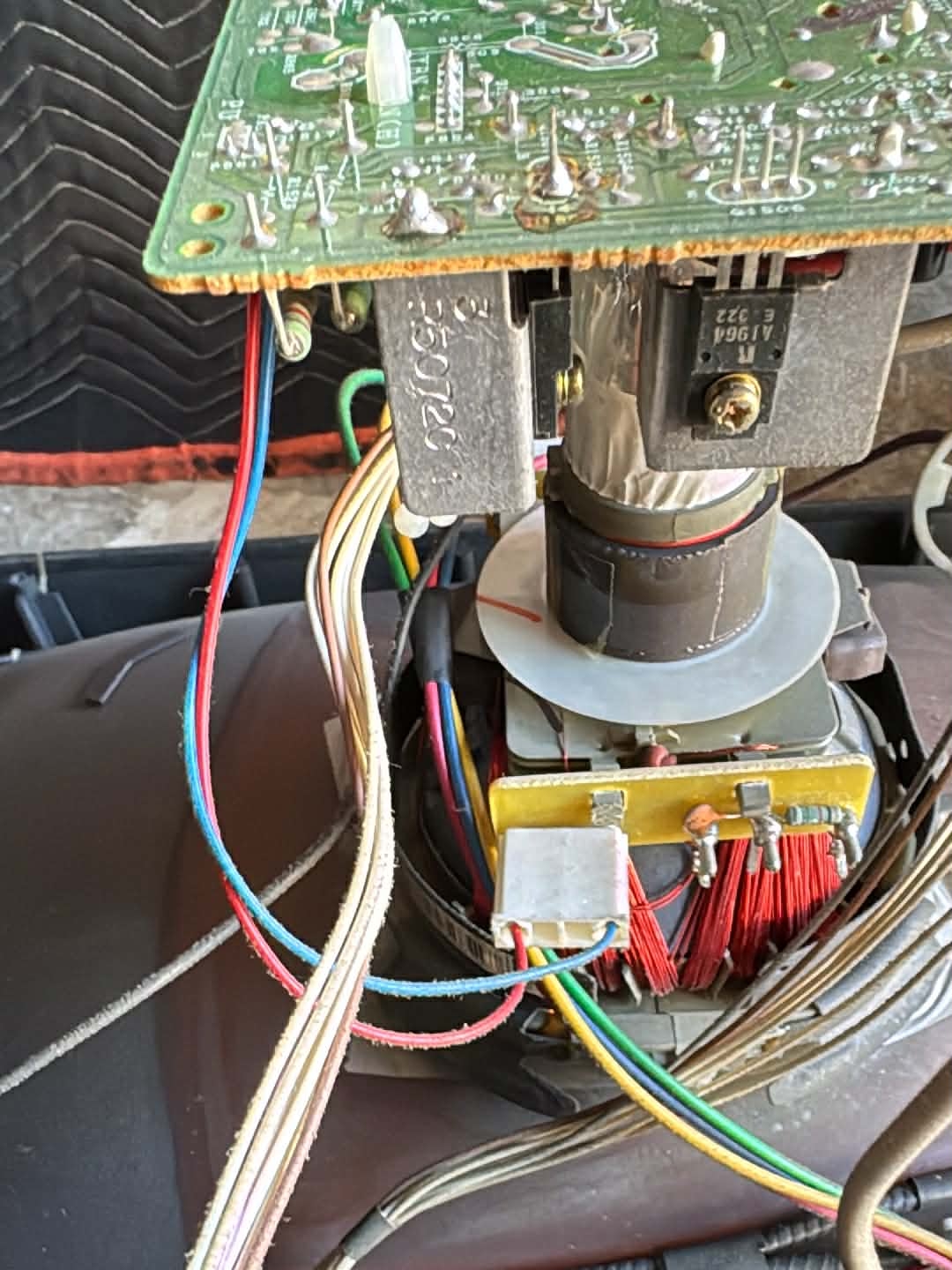

To disable it, pull the jumper connecting the yoke to the neckboard:

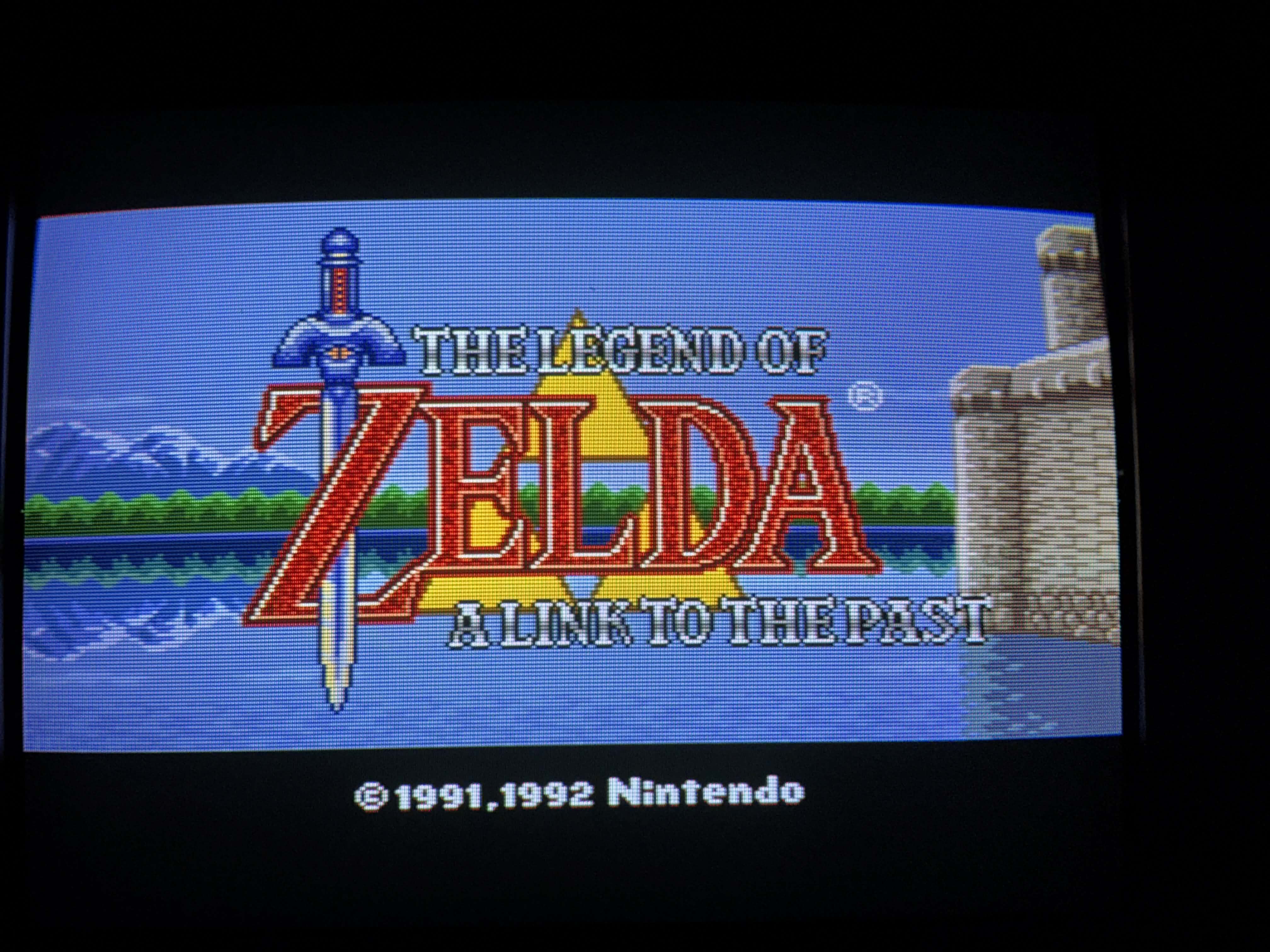

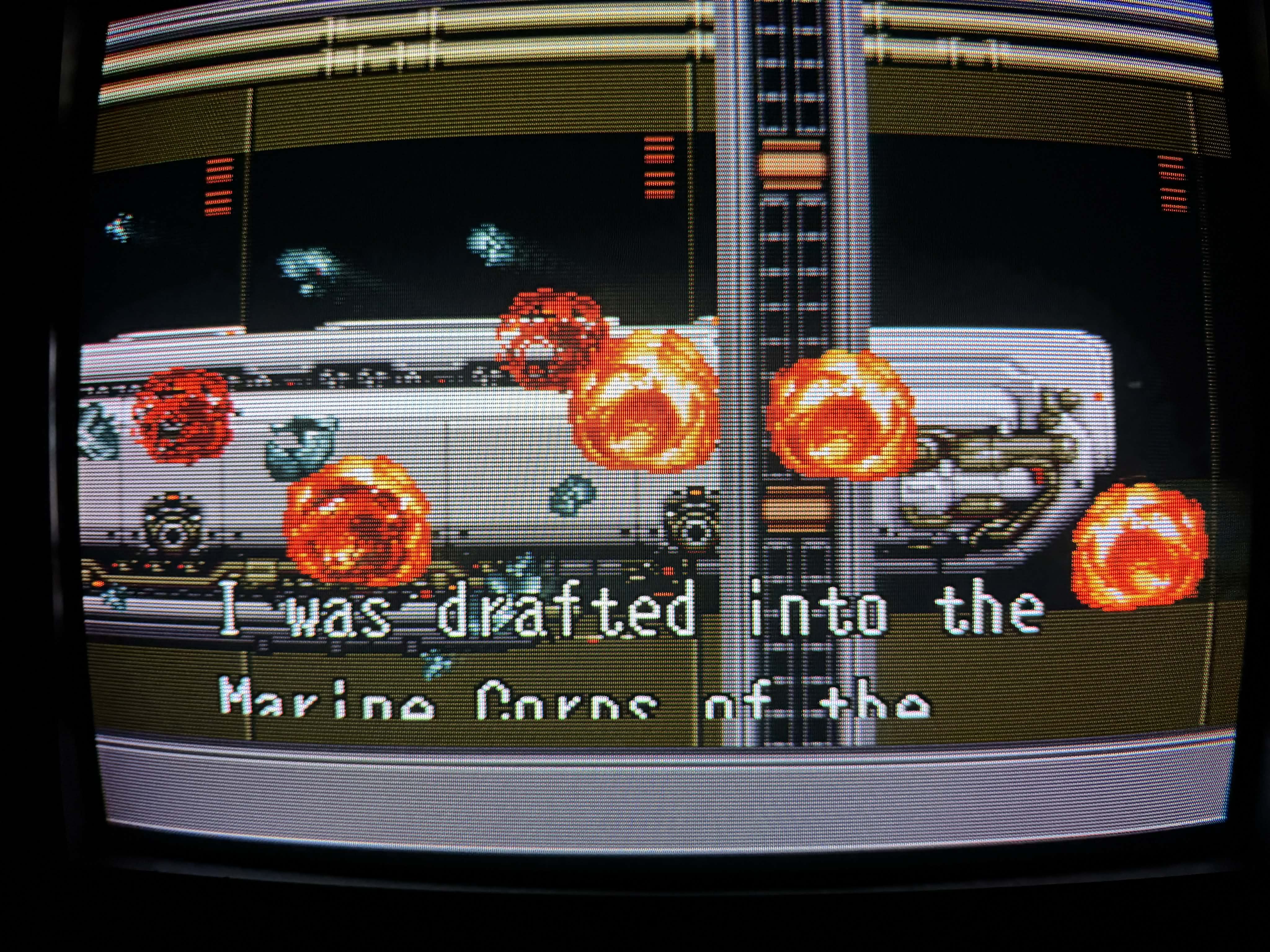

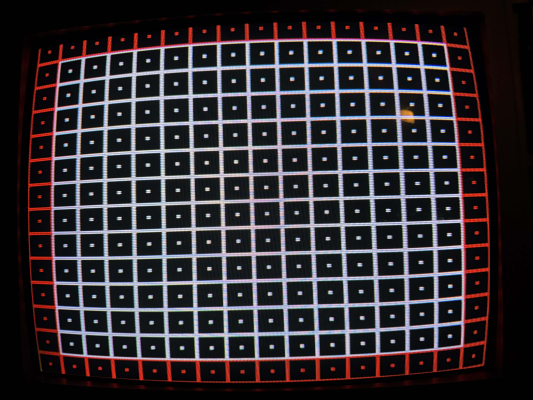

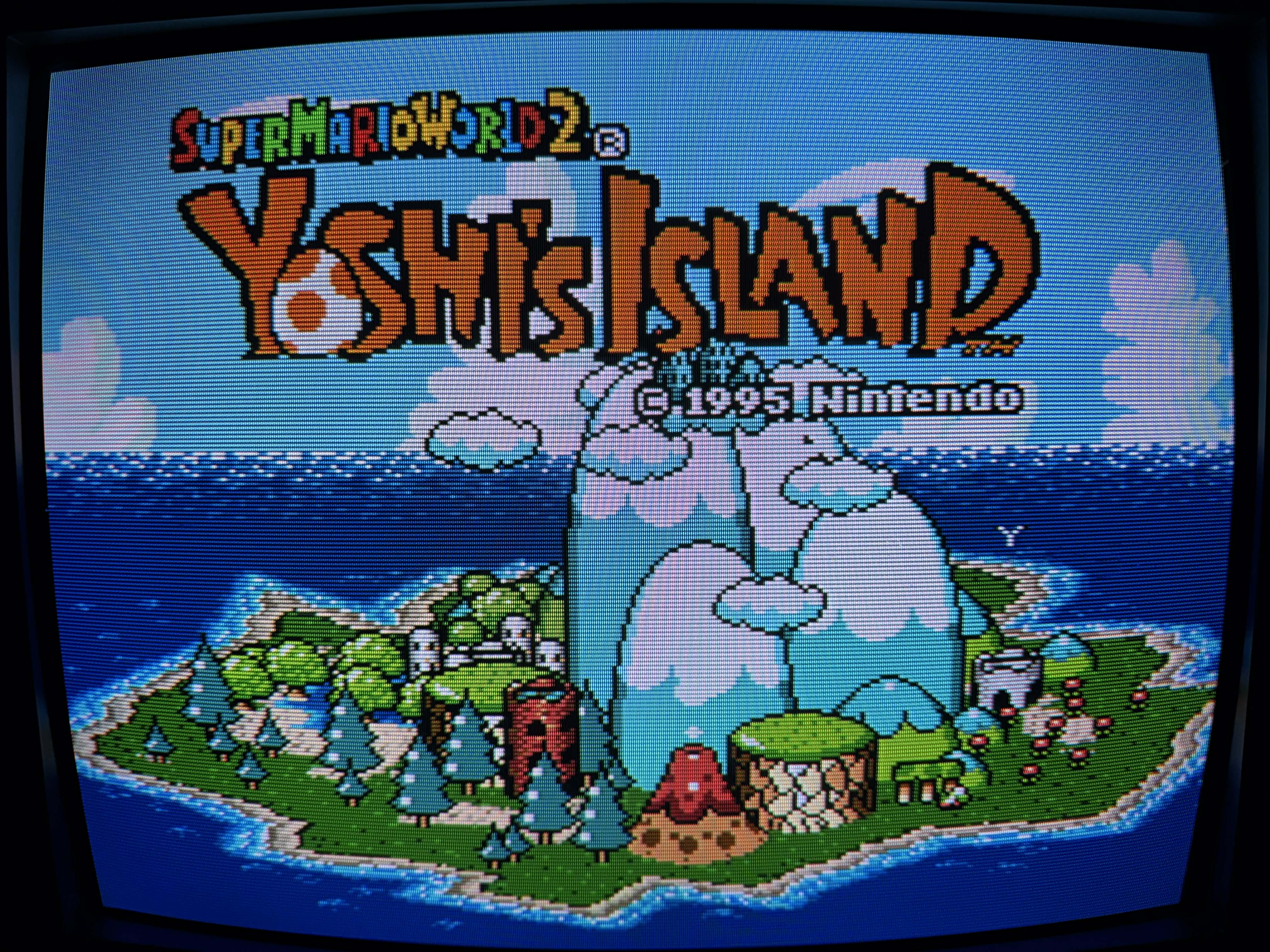

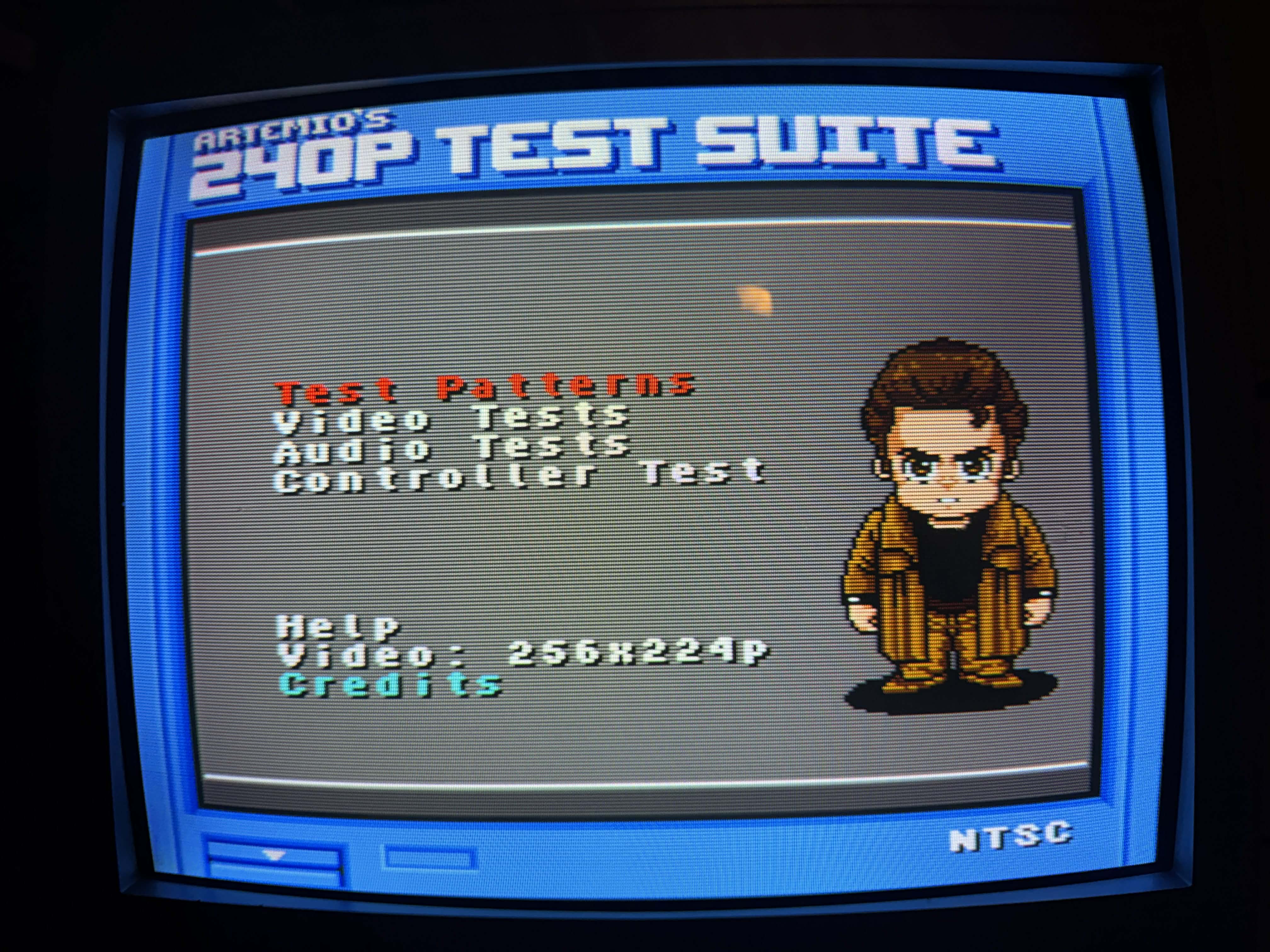

Gallery
| Specifications | |
|---|---|
| Brand: | Sharp |
| Manufacturer: | Sharp |
| Model: | 27C530 |
| Series: | C |
| Viewable Size: | 27" |
| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i, 288p, 576i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Sanyo, LA78041 |

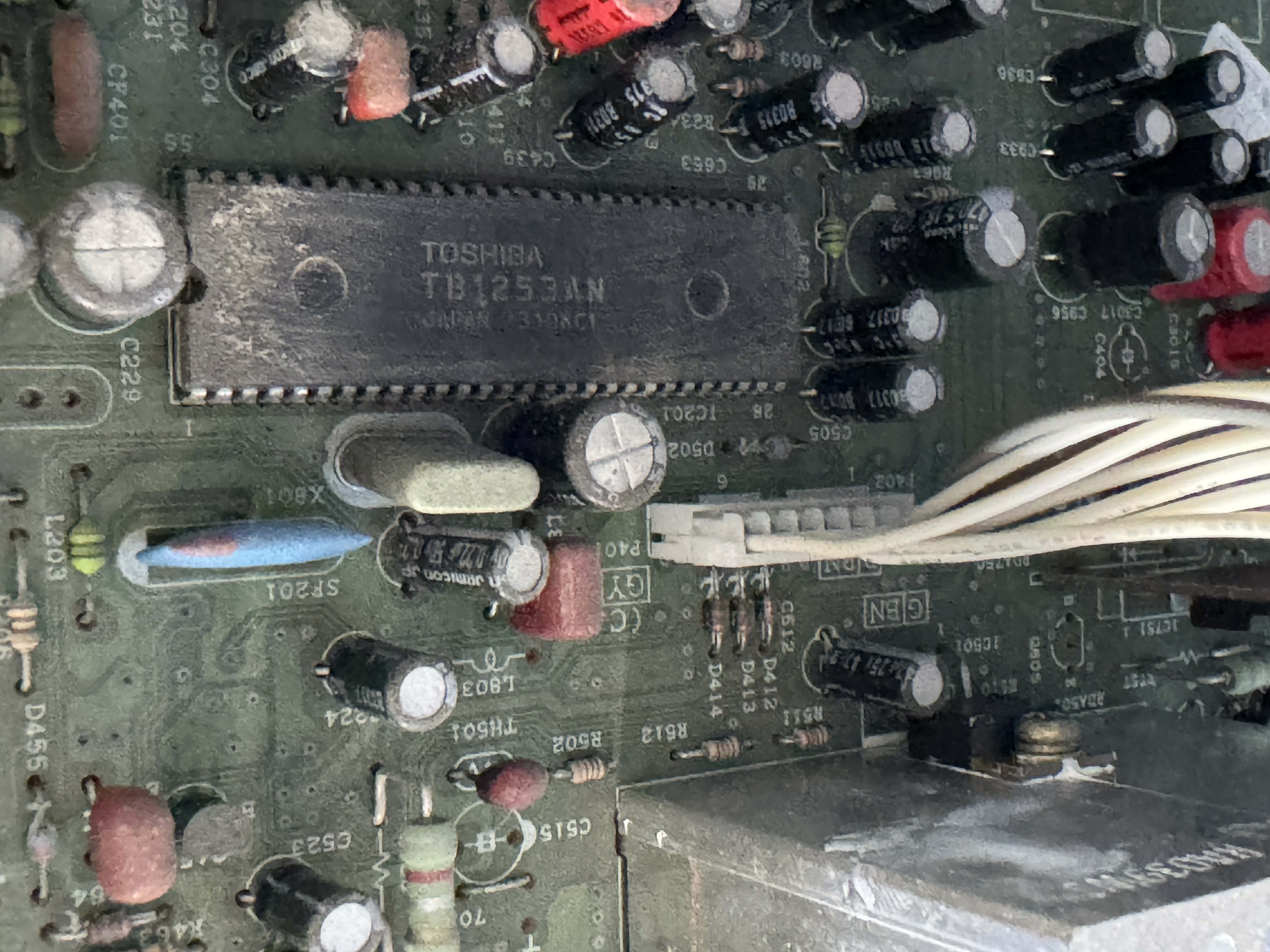

| Jungle IC: | Toshiba, TB1253AN, TB1253 |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | Toshiba, TC90A53F |
| Flyback: | RTRNFA037WJZZ |
| Focus Type: | Single |

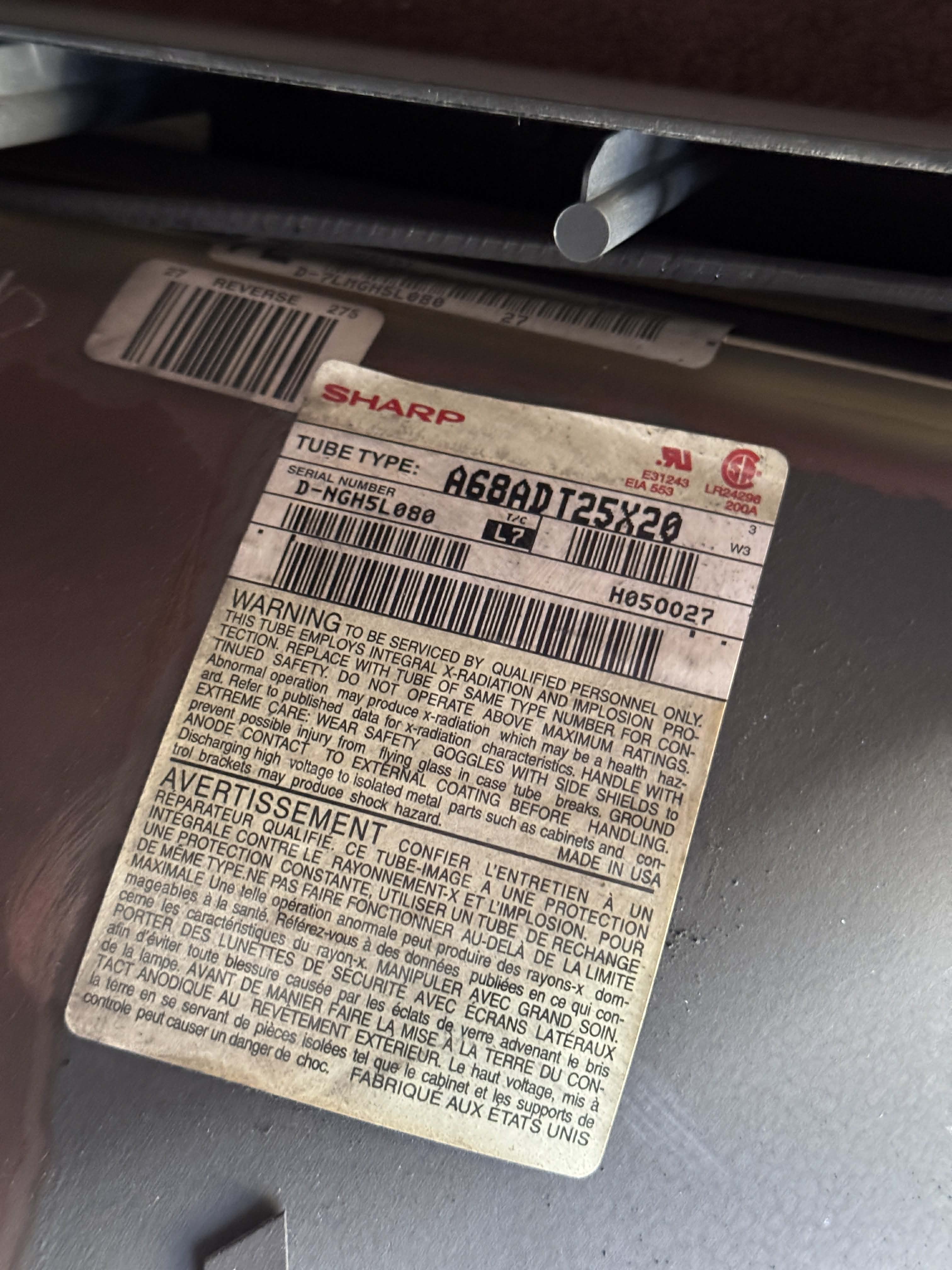

| Tube: | Thomson , RCA , A68ADT25X , A68ADT25X20 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 3W x 2 |
| Remote: | RMC2601, RRMCU0222CEZZ |
| Chassis: | GB-3U |
| Weight: | 70.56 lbs (32 kg) |
| Dimensions (W/H/D): |
654 x 599 x 525 mm
(25.7 x 23.5 x 20.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
