Summary
27" flat color TV from Sharp. Features a full set of inputs including RF, composite, s-video, and component
Literature
Notes

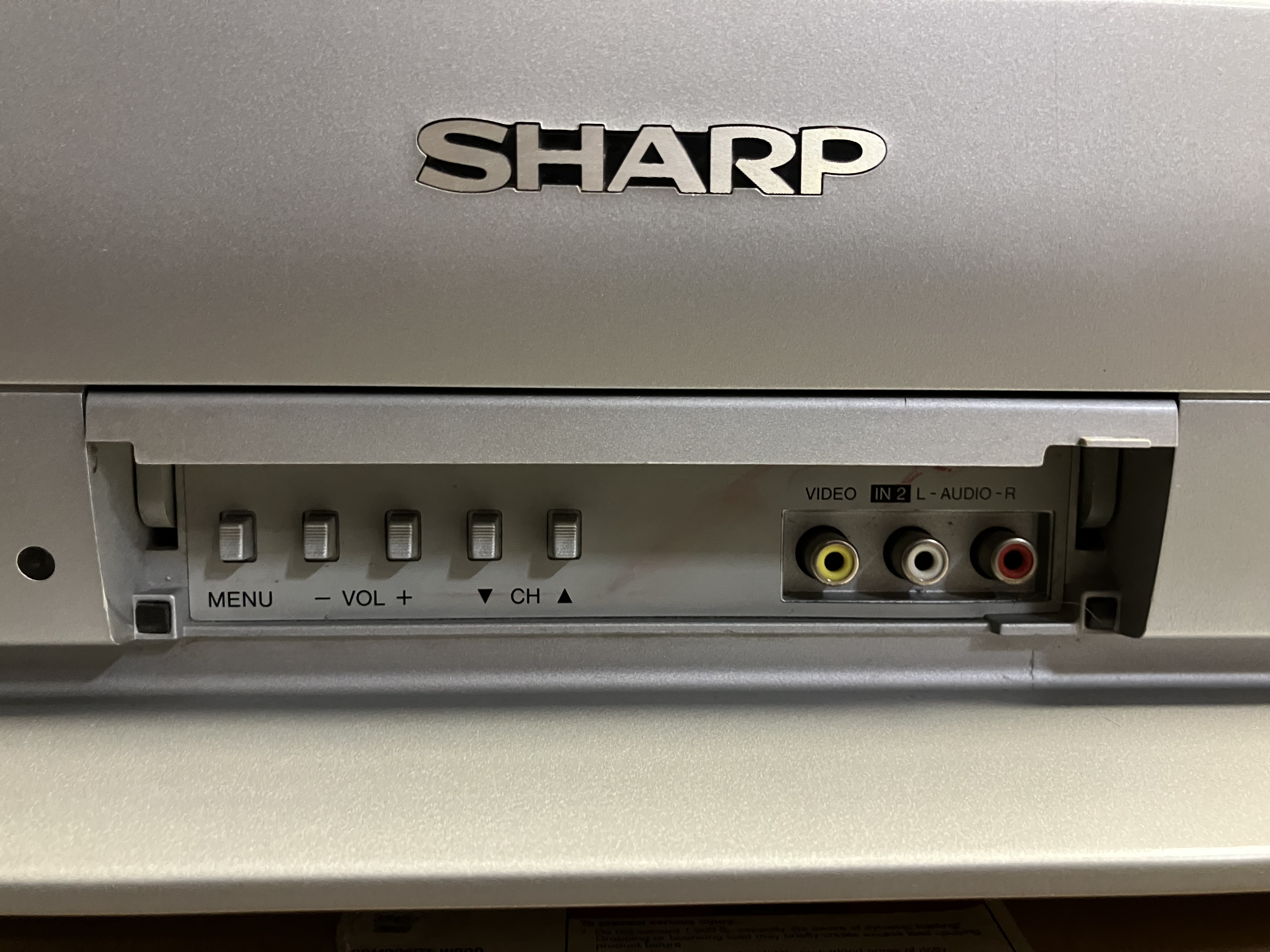

This TV does not have a discrete input select button on the chassis. However, the video inputs can be cycled through using the channel up/down buttons. Unlike most TVs, the service menu can be accessed and navigated without the use of a remote.
Gallery
| Specifications | |
|---|---|
| Brand: | Sharp |
| Manufacturer: | Sharp |
| Model: | 27F541 |
| Series: | F |
| Viewable Size: | 27" |

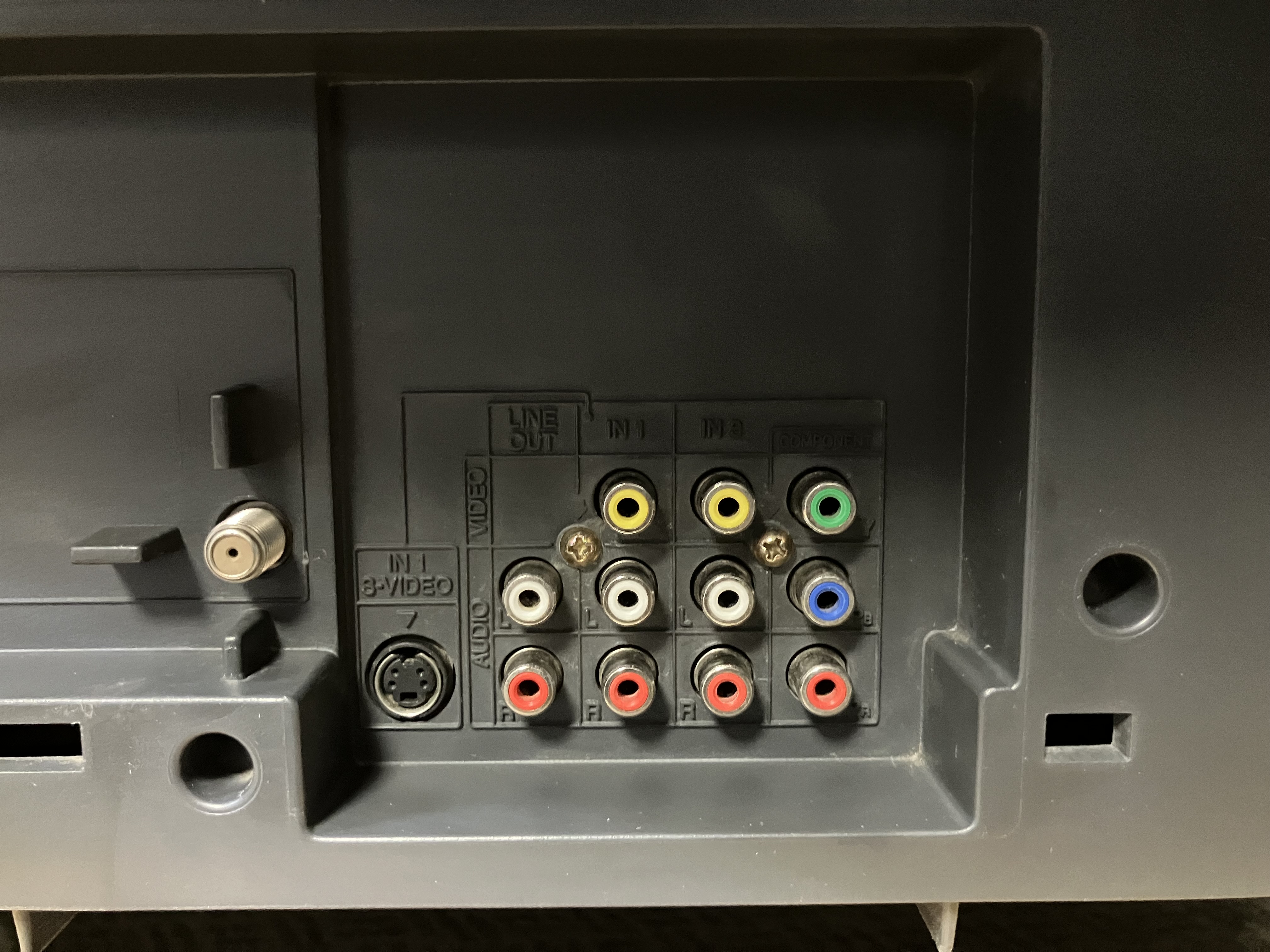

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Tube: | Thomson , A68ELH011X |
| Mask: |
Slot
|
| Tint: | Dark |
| Speakers: | Stereo, 5W x 2 |
| Chassis: | GB-3U |
| Weight: | 91.9 lbs (41.7 kg) |
| Dimensions (W/H/D): |
761 x 598.5 x 515 mm
(29.9 x 23.5 x 20.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
