Summary

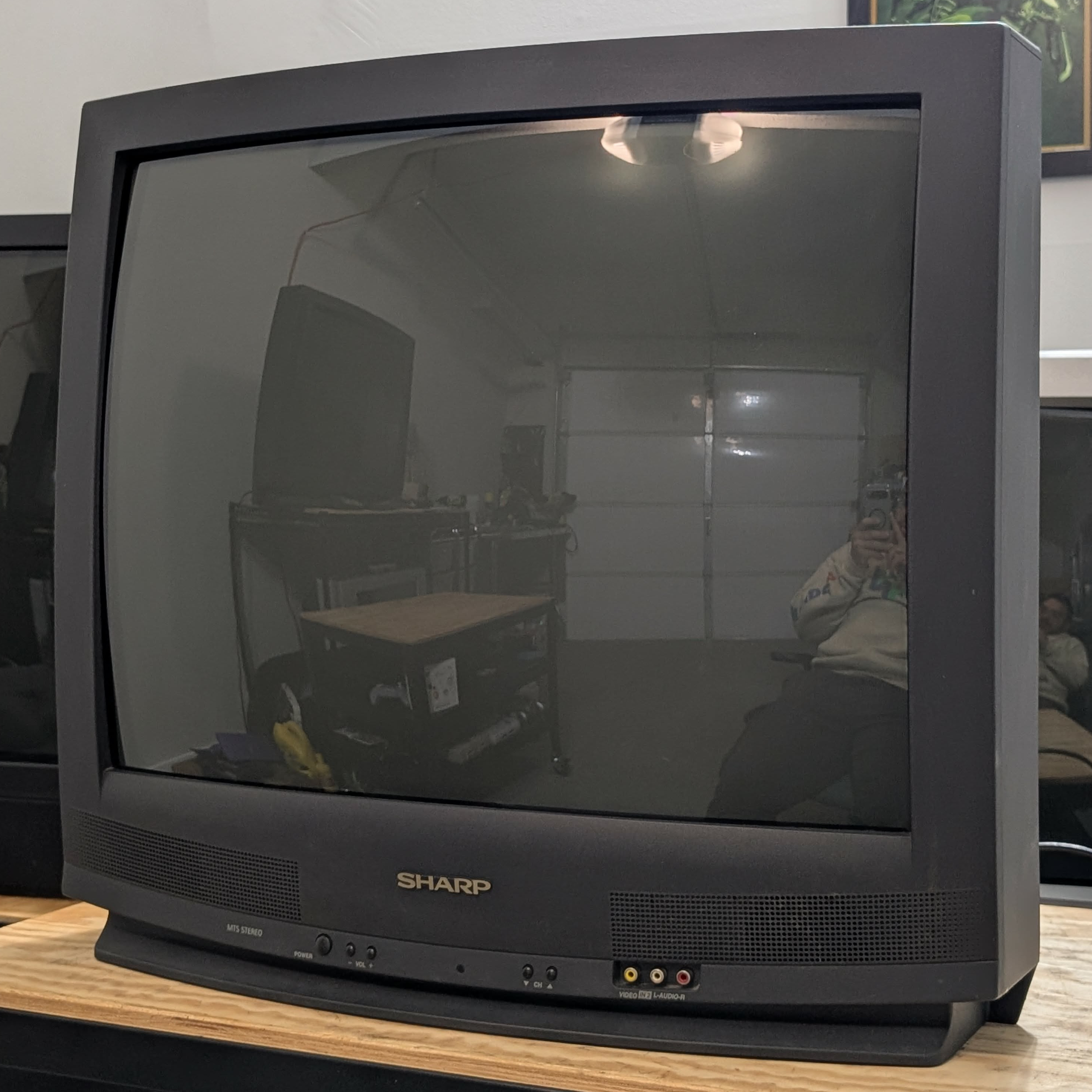

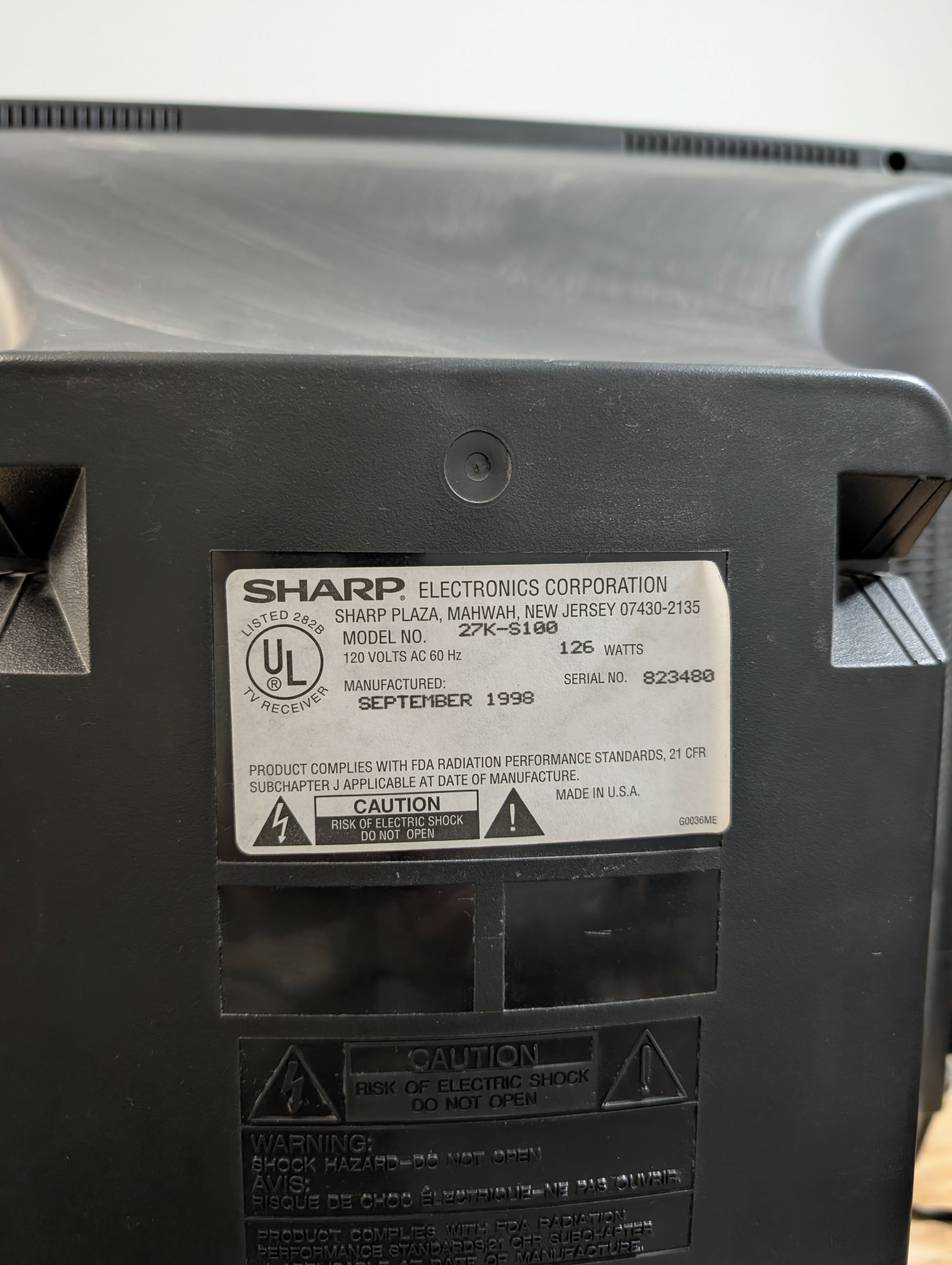

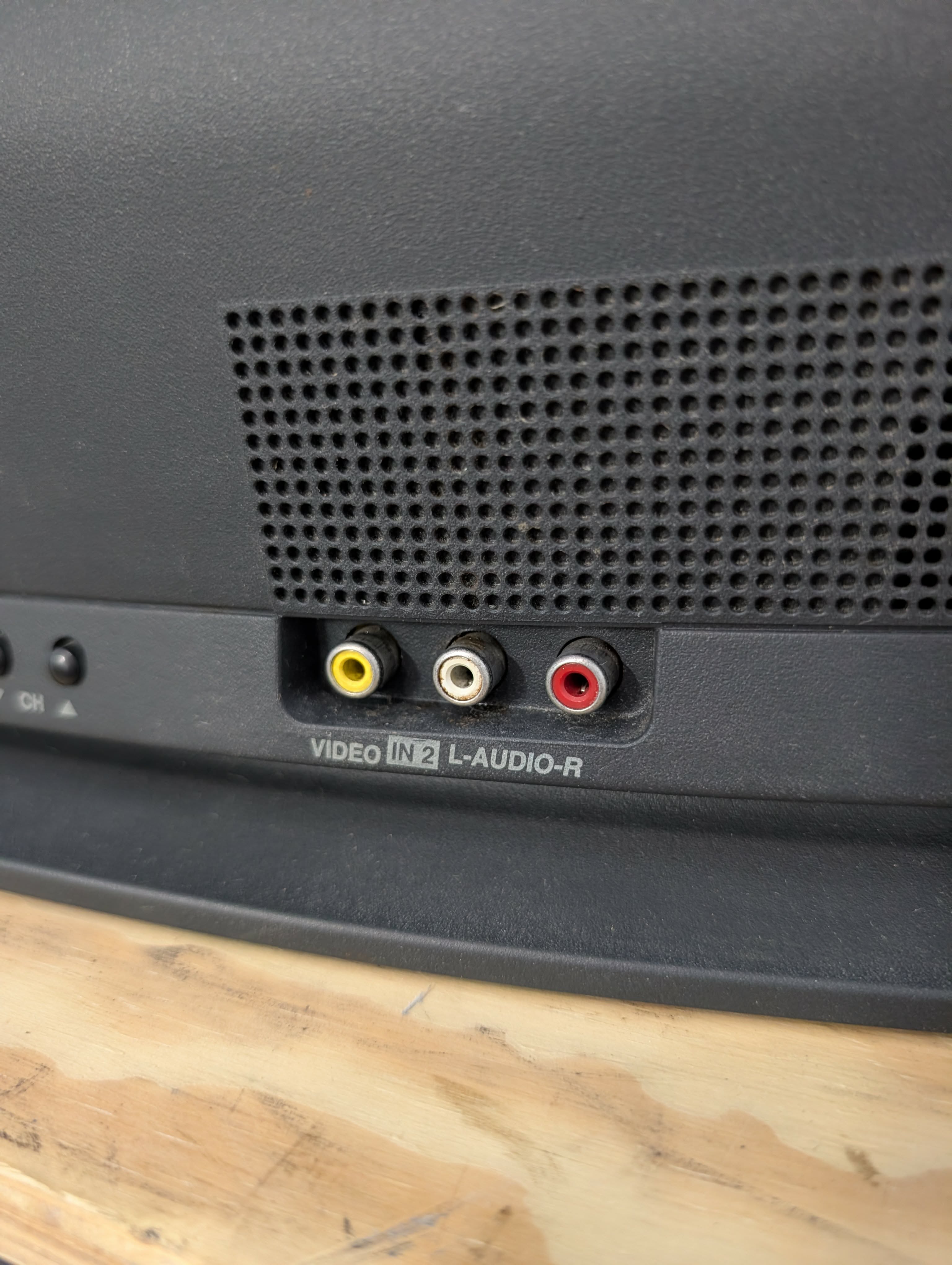

Lower-end 27" CRT by Sharp, made in Mexico in 1998. Has RF and composite inputs with stereo sound. (Canadian variant of this set is the CK27S10.)

(Special thanks to Michael Lopez for the pics and RGB mod instructions!)

Manuals

• Service Manual

Notes

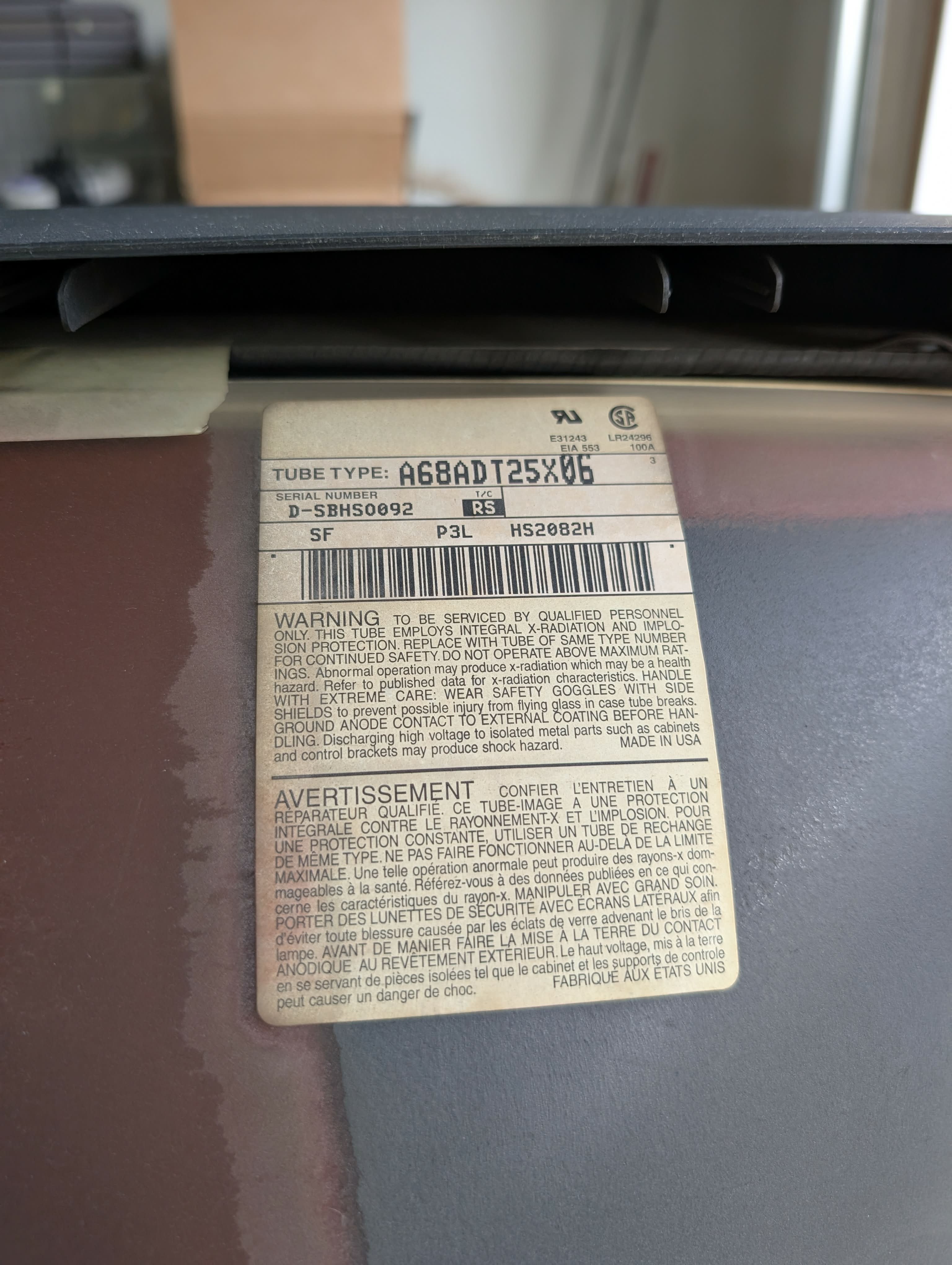

This set can be modded for RGB. The picture tube in this set is a common RCA model which has been known to wear out more quickly compared to other models, resulting in very blurry corners setting in.

RGB Mod

Written by SegaSaturn94

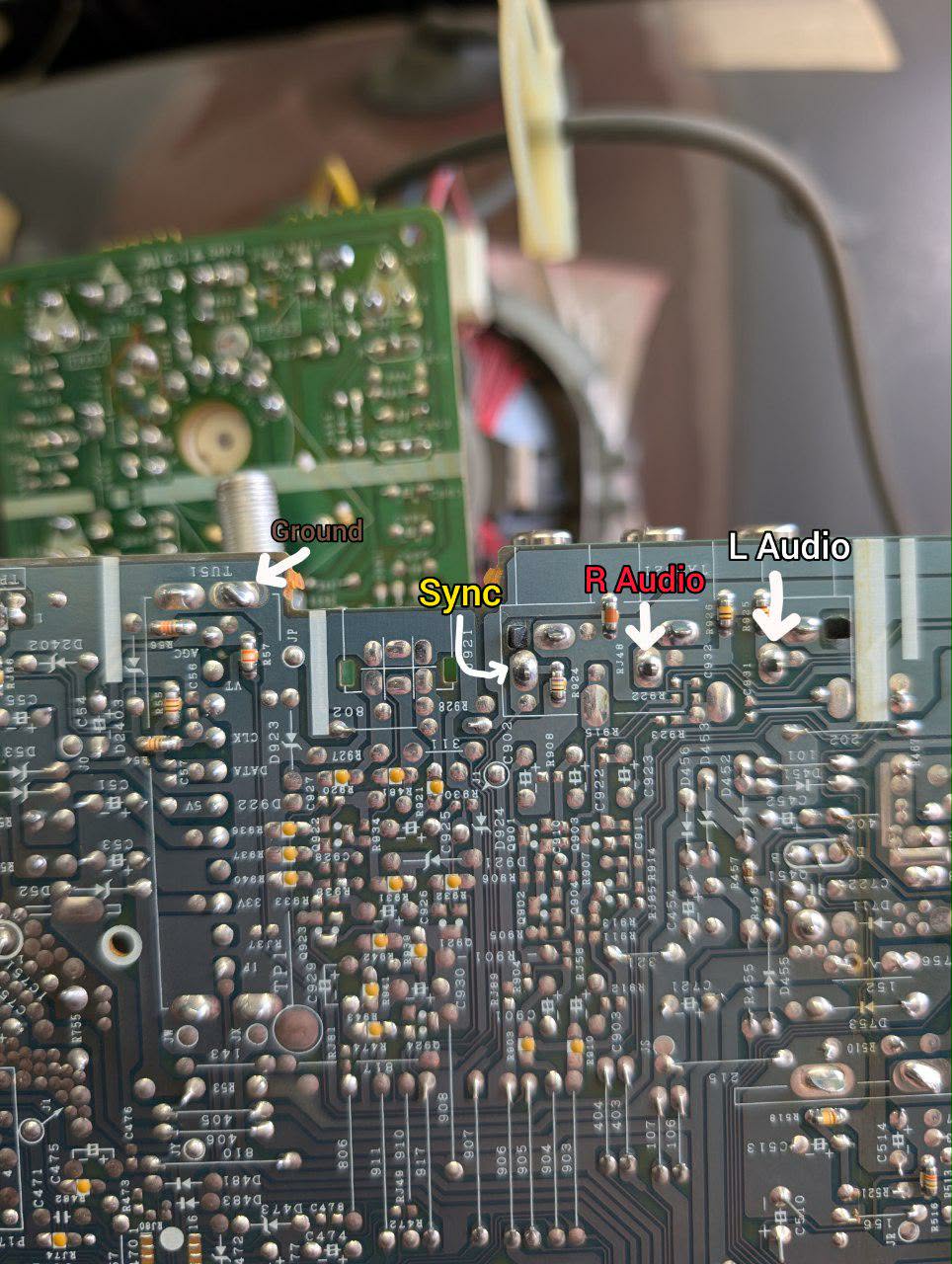

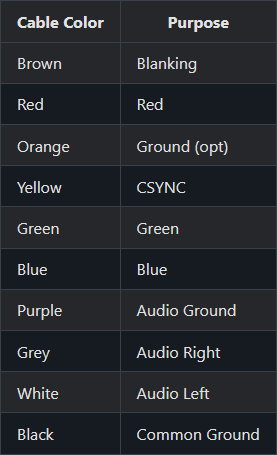

The OSD mux method uses Sunthar's color coding convention wired to a SCART connector:

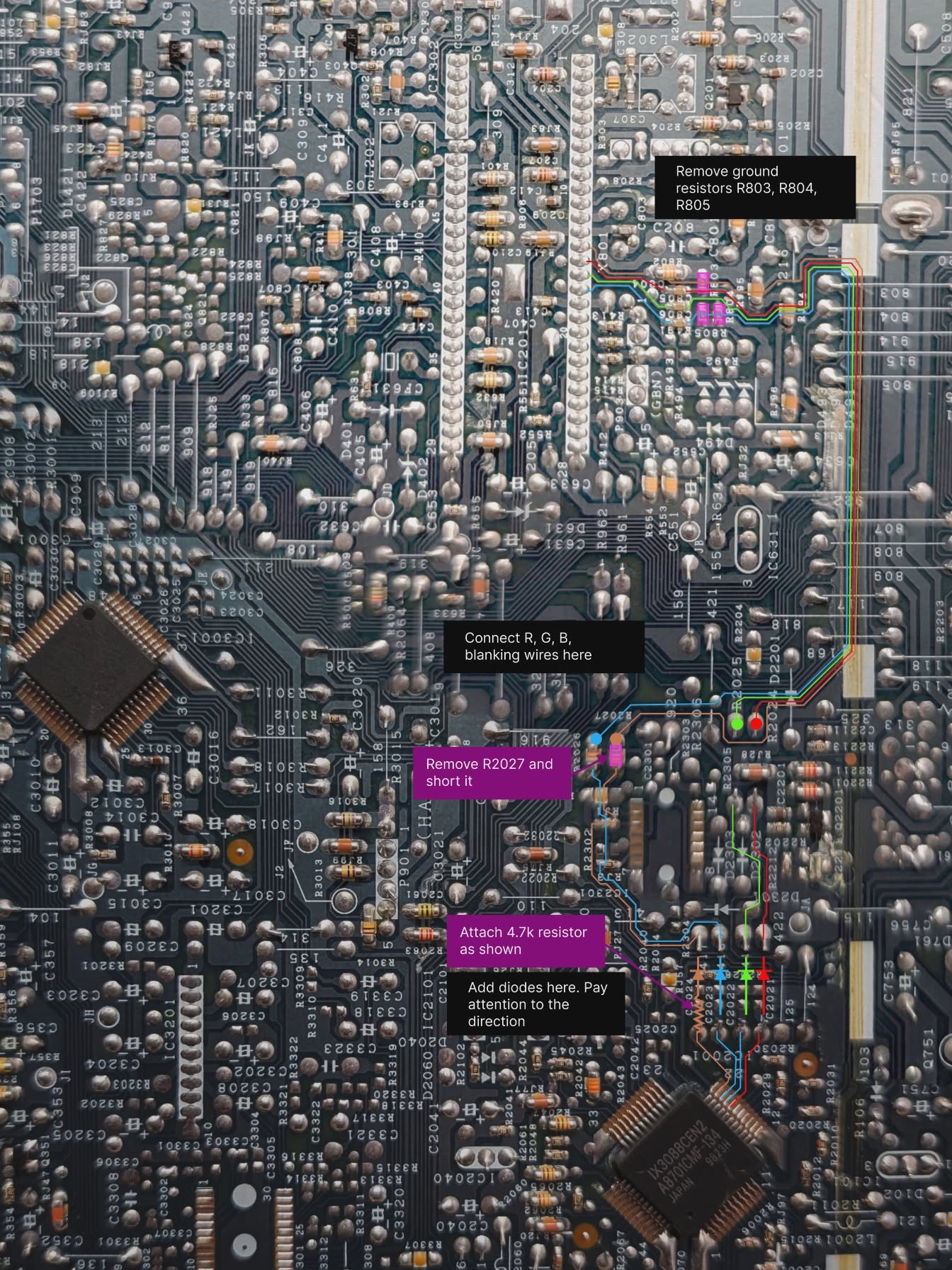

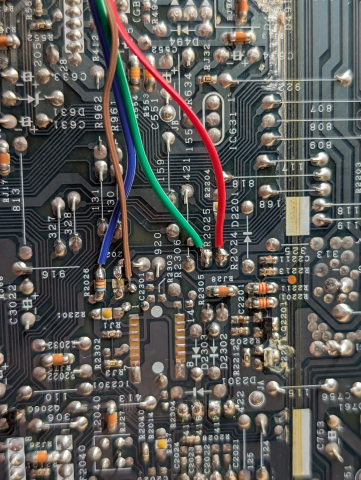

Follow these steps for what components to add/remove and where to inject your RGB signal:

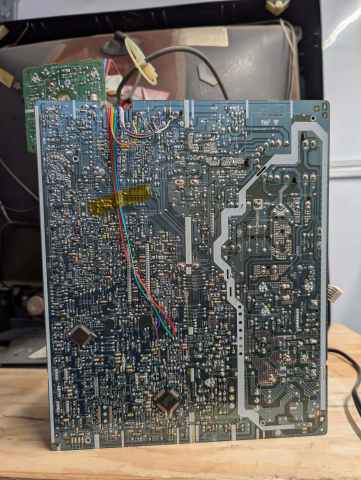

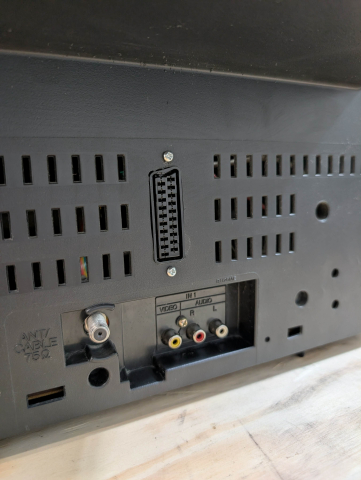

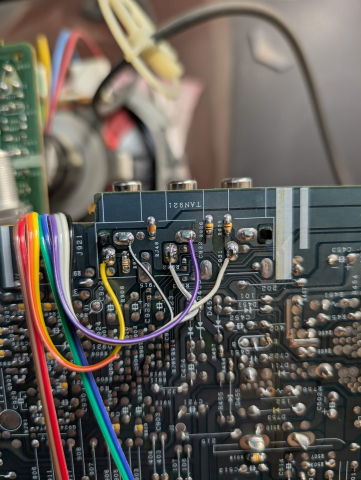

This is how the finished result for wiring should look, as well as the recommended location of the SCART connector:
