Summary

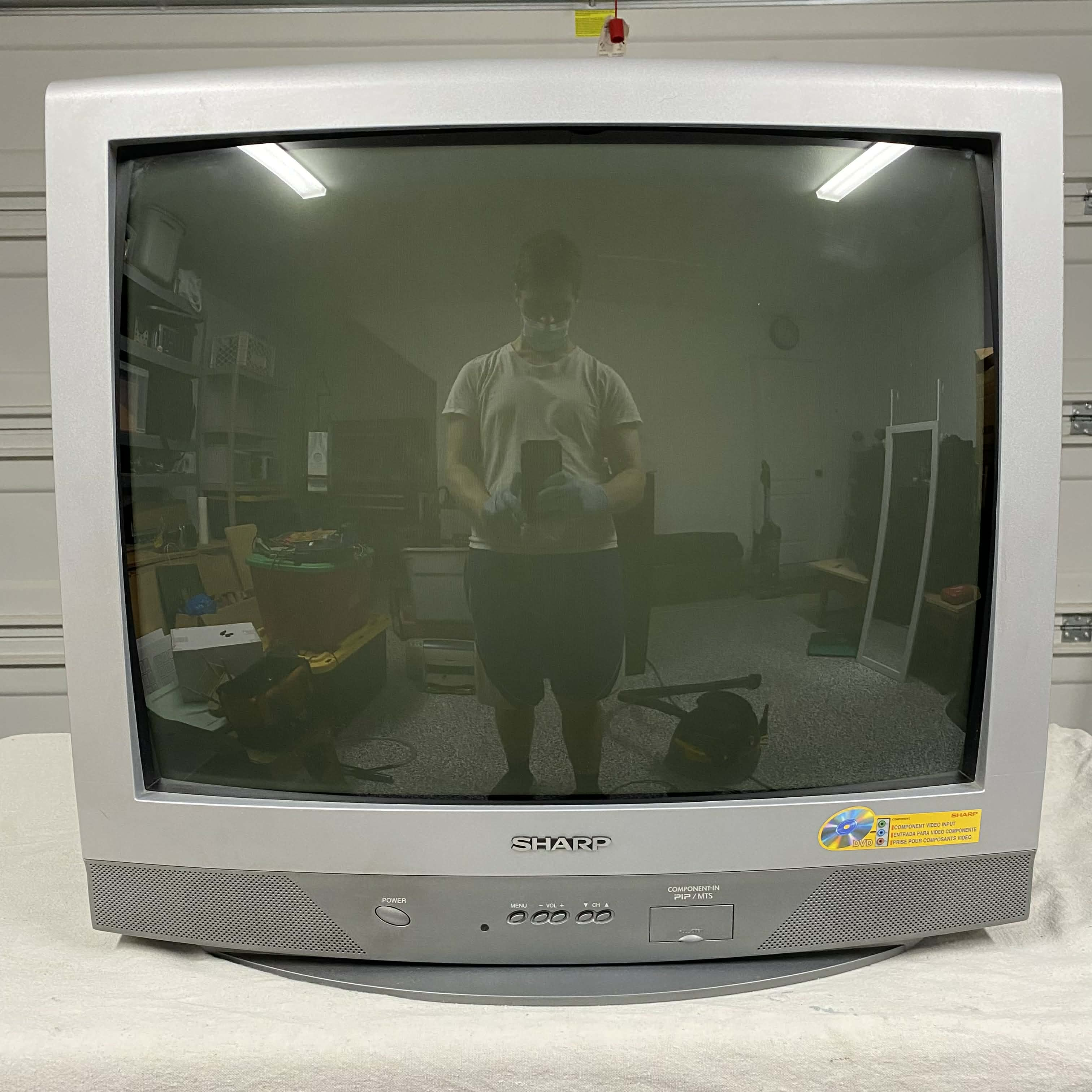

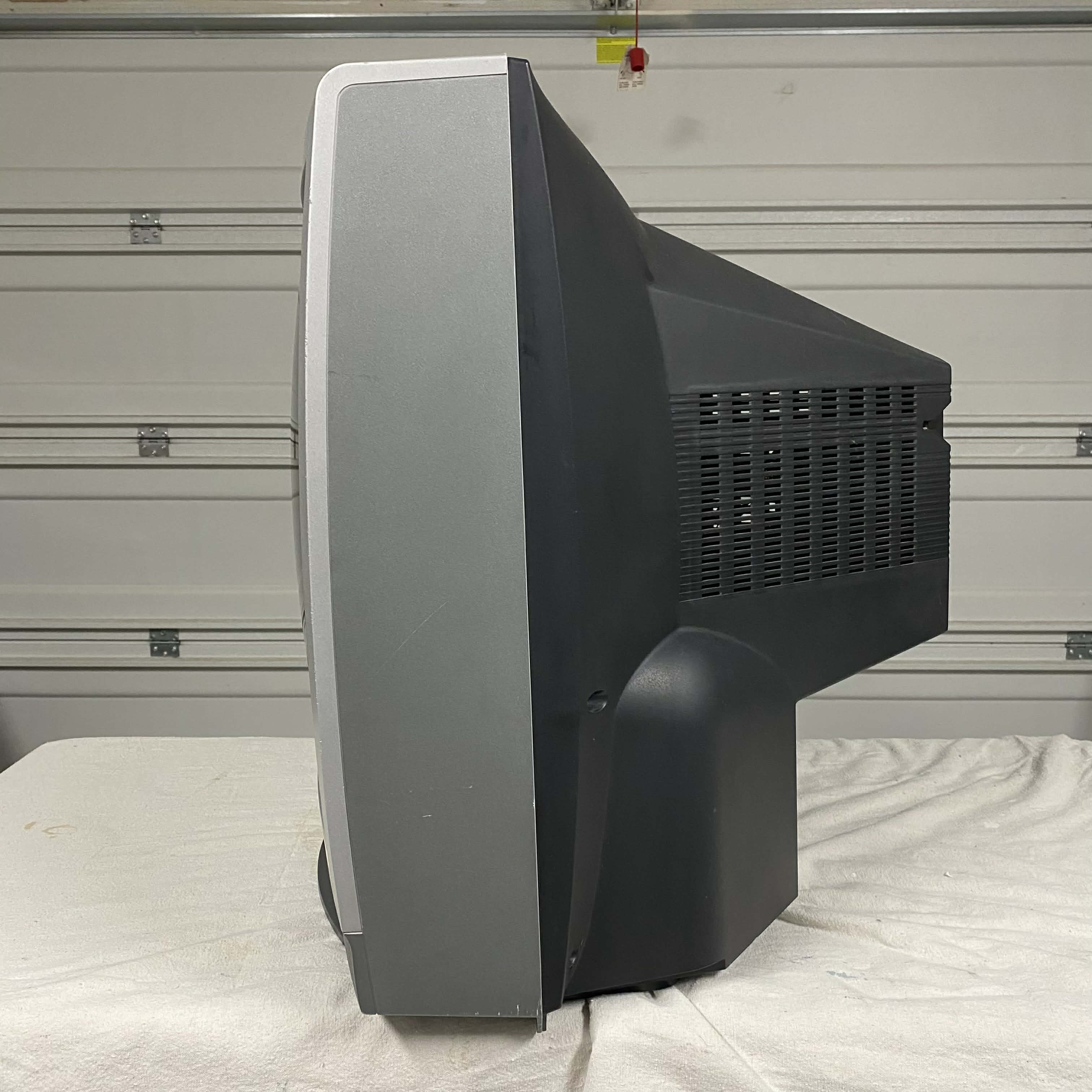

27" curved-screen CRT by Sharp, made in Mexico in 2002. Has RF, composite, s-video and component inputs with stereo sound.
(Special thanks to Kyle Mazabob for the pics!)
Manuals
Promo Materials
Notes

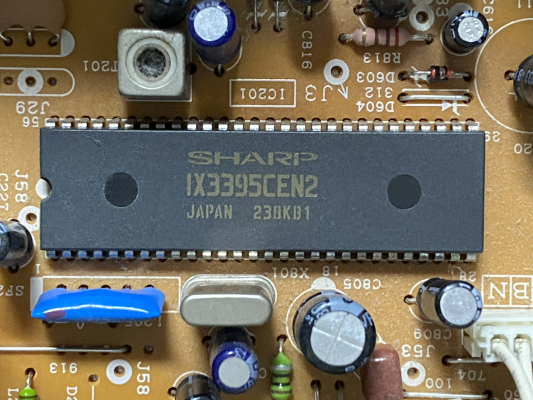

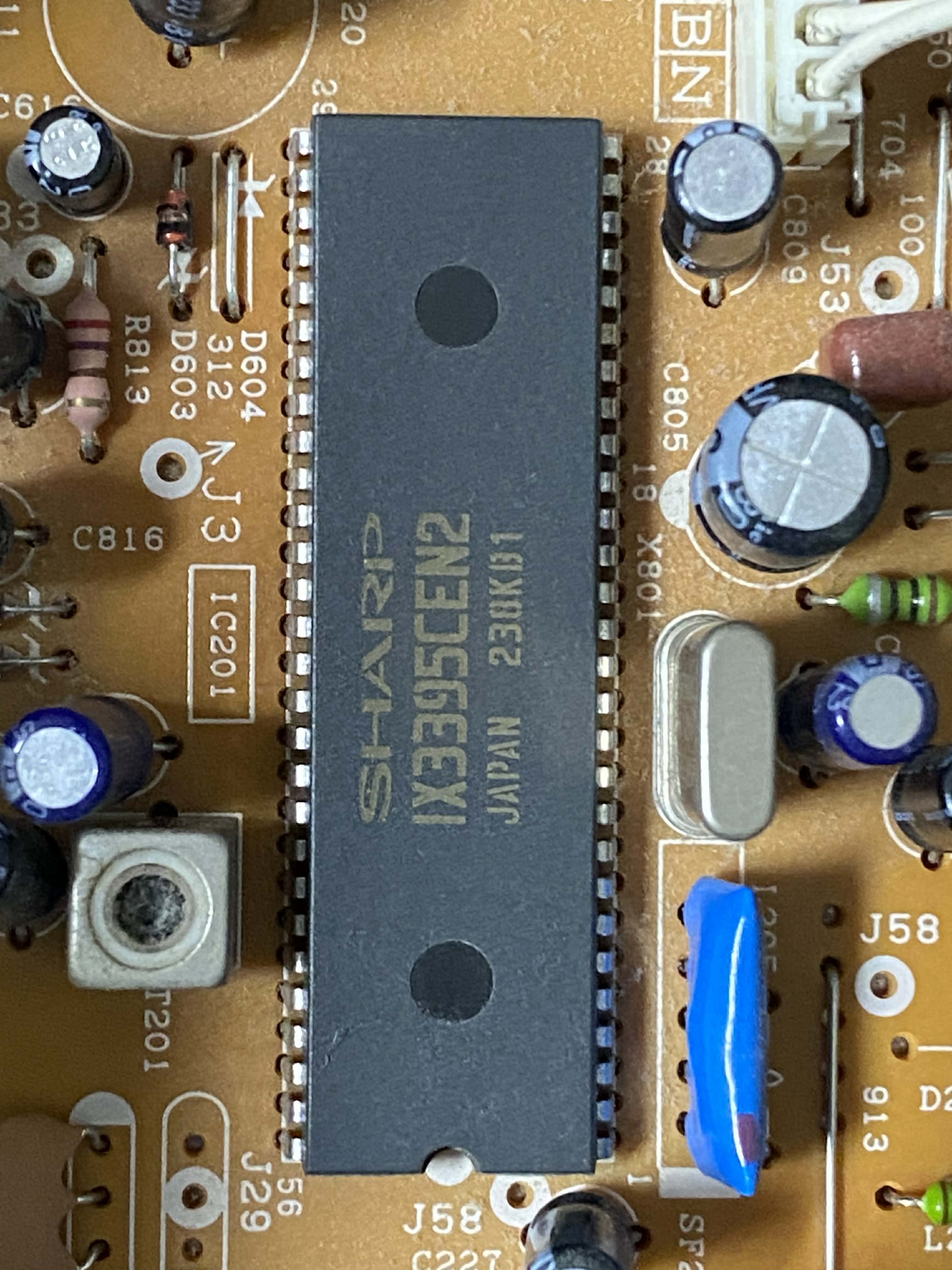

The jungle chip is branded as Sharp with its own model number, but its is actually a rebadged Toshiba TB1252CN. Component video quality is fairly underwhelming, not one of Toshiba's best chips in my opinion. It CAN be RGB modded, however.
Gallery
| Specifications | |
|---|---|
| Brand: | Sharp |
| Manufacturer: | Sharp |
| Model: | 27U-S600 |
| Series: | US |
| Viewable Size: | 27" |

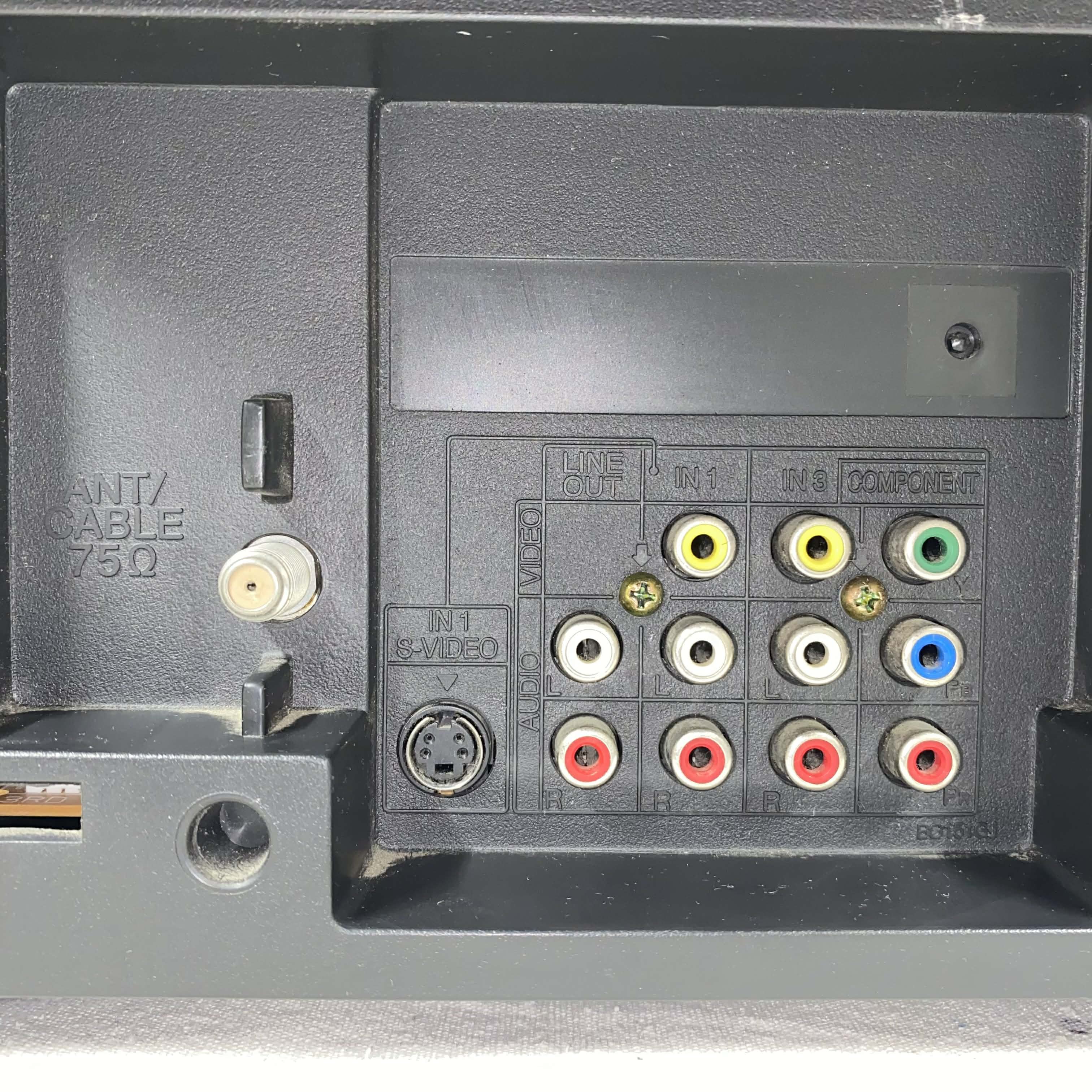

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | TA8427K, Toshiba |
| Jungle IC: | Toshiba, Sharp, TB1252CN, IX3395CEN2, TA1252 |
| Comb Filtering: | 2-Line Digital |
| Comb Filter IC: | Toshiba, TC90A45F |

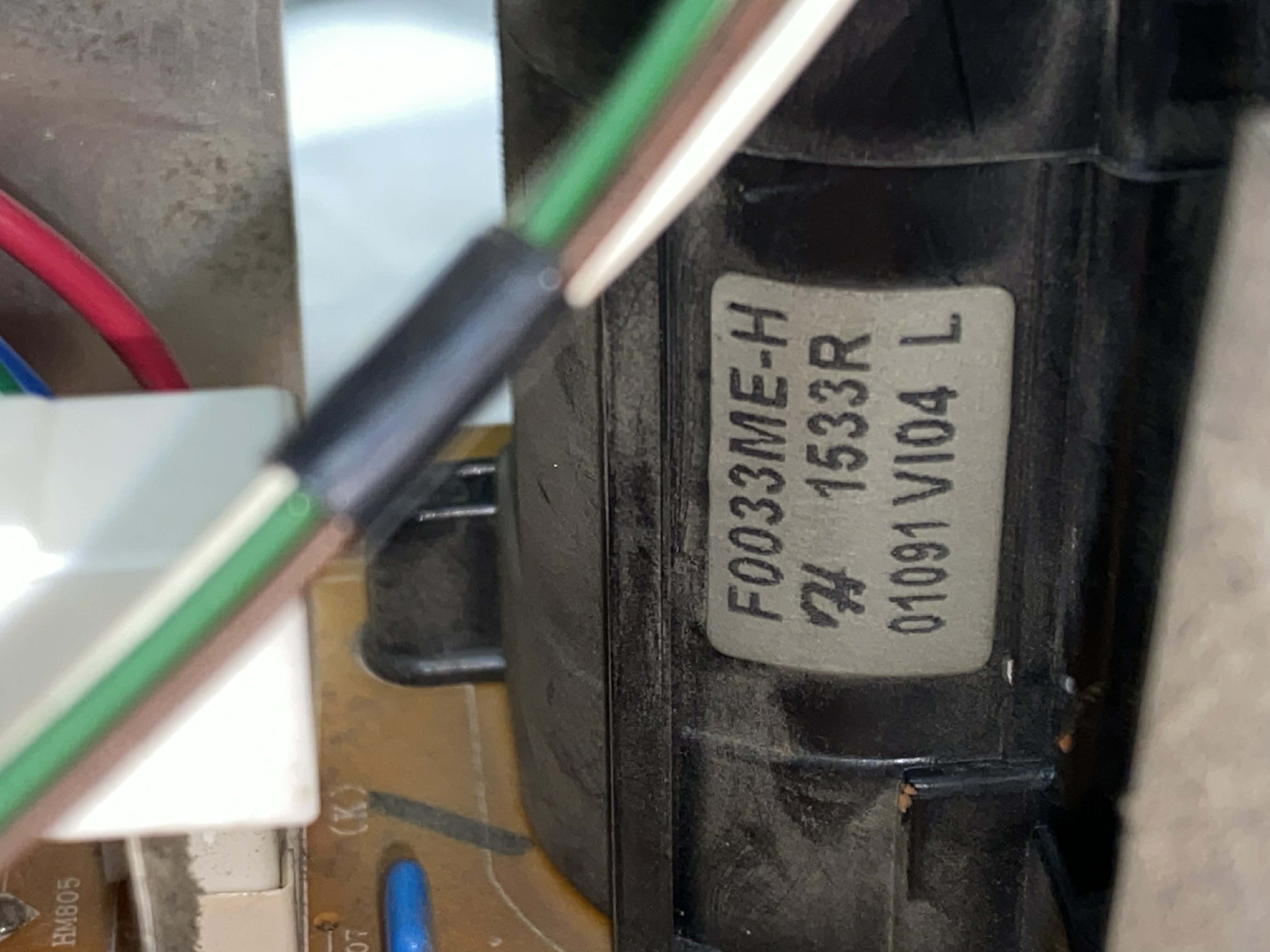

| Flyback: | F0033ME-H, RTRNF0033MEZZ |
| Focus Type: | Single |

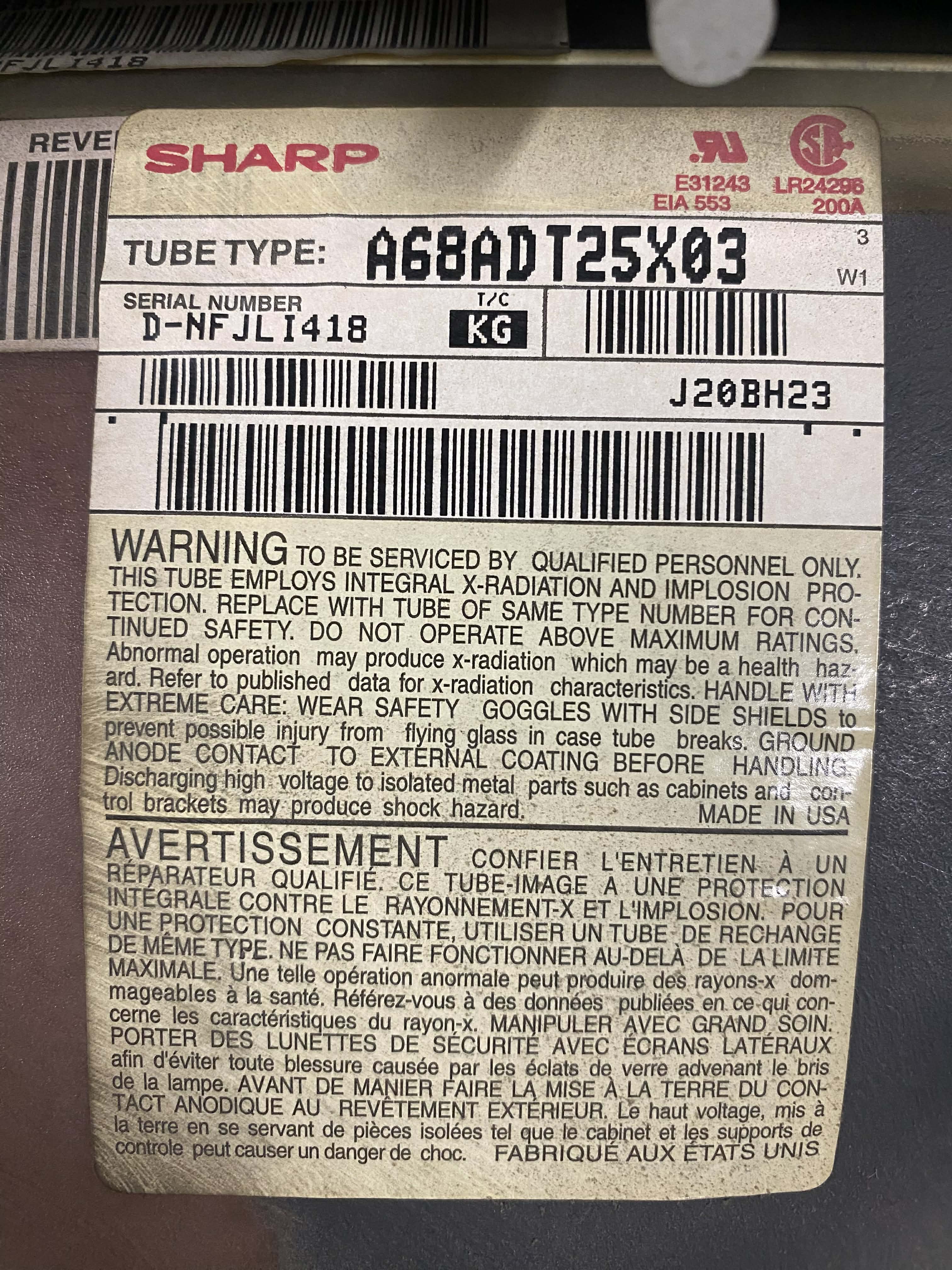

| Tube: | Thomson , RCA , A68ADT25X , A68ADT25X03 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

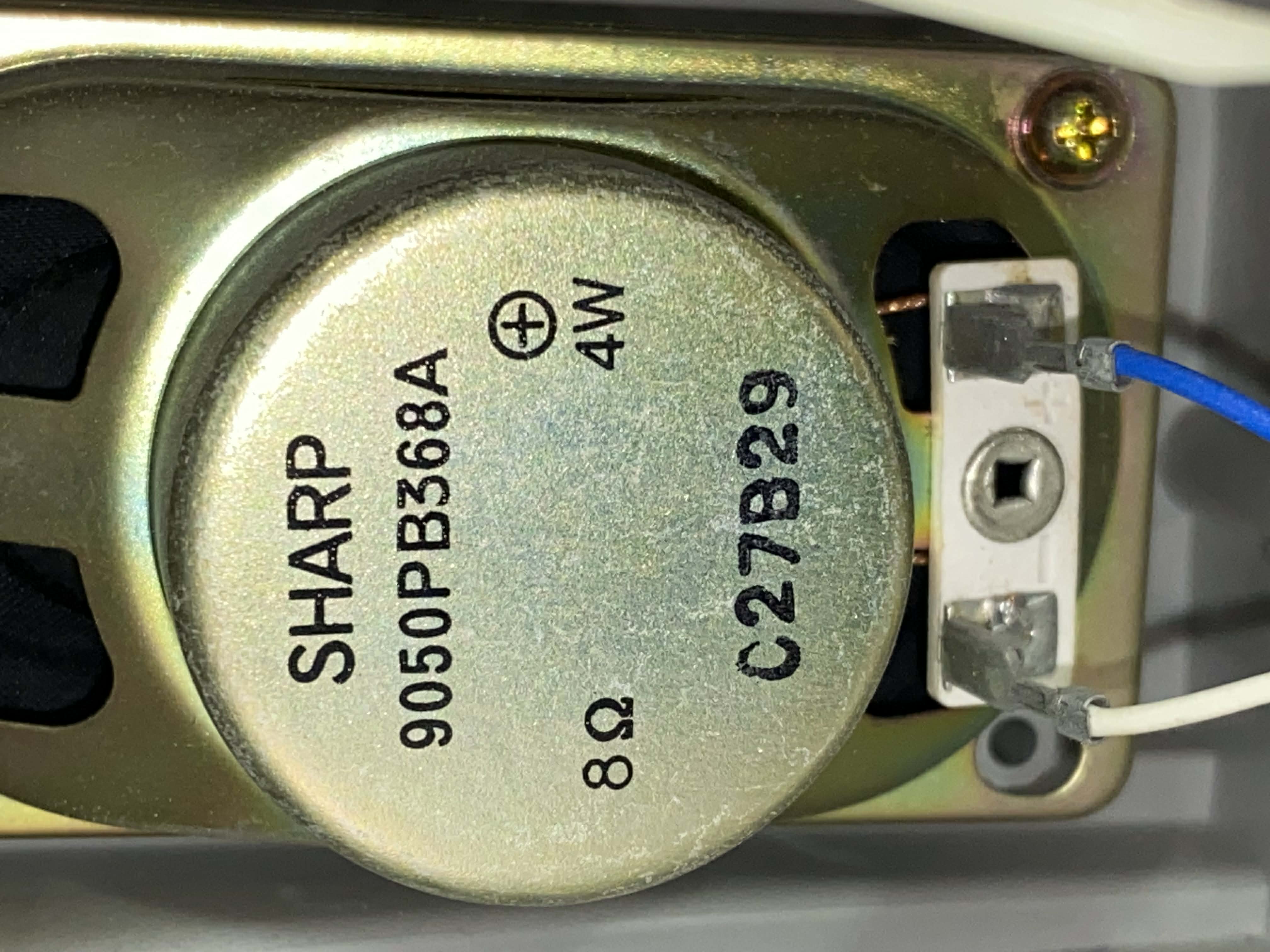

| Speakers: | Stereo, 3W x 2 |
| Remote: | GA027SA |
| Chassis: | GB-1 |
| Weight: | 70.6 lbs (32 kg) |
| Dimensions (W/H/D): |
648 x 597 x 538 mm
(25.5 x 23.5 x 21.1") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| MSRP: | 269 USD |

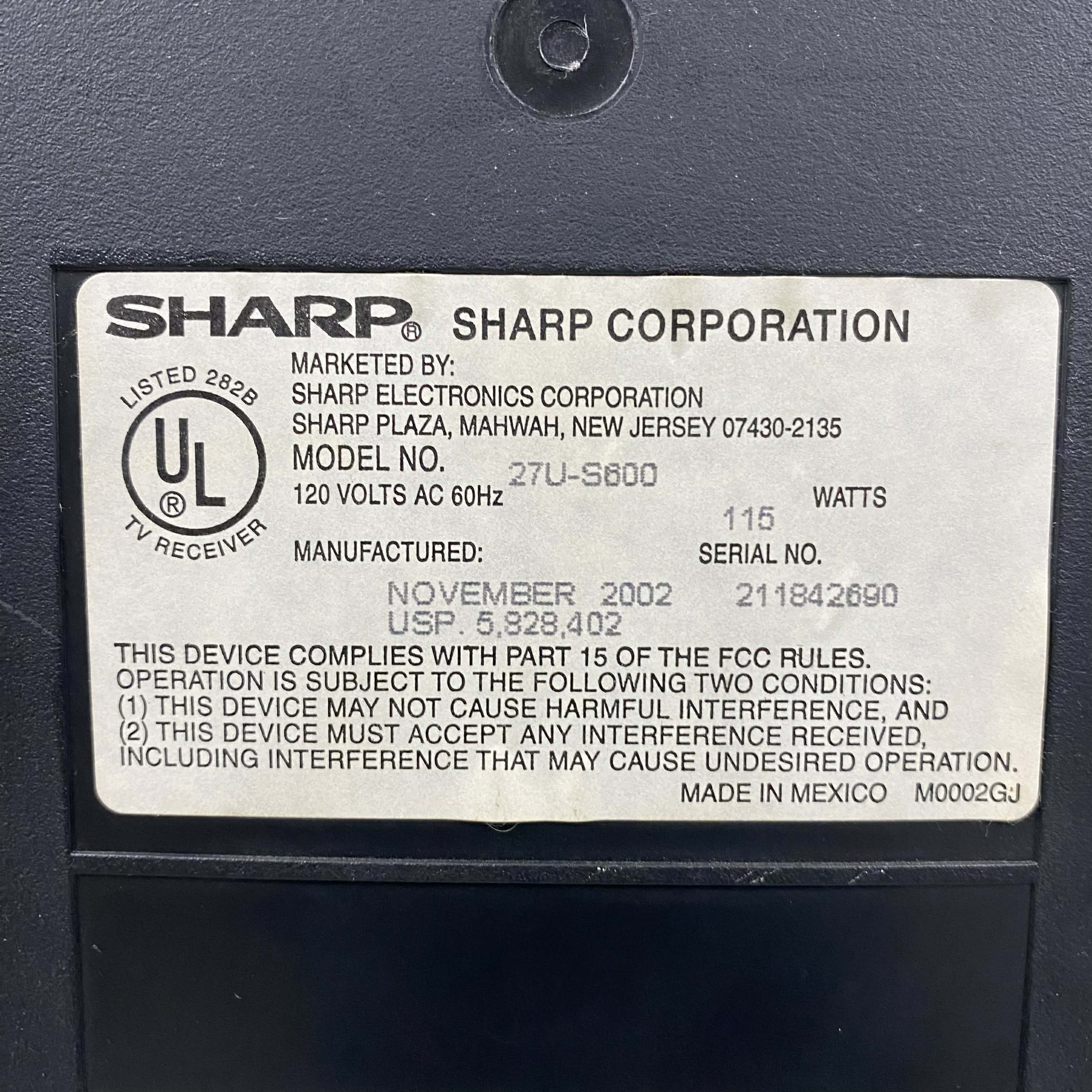

| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual |
