Summary
32" curved screen CRT by Sharp, originally manufactured in Mexico in 2003. Has a full set of inputs.
(Special thanks to Michael Lopez for the pics!)
Literature
Notes

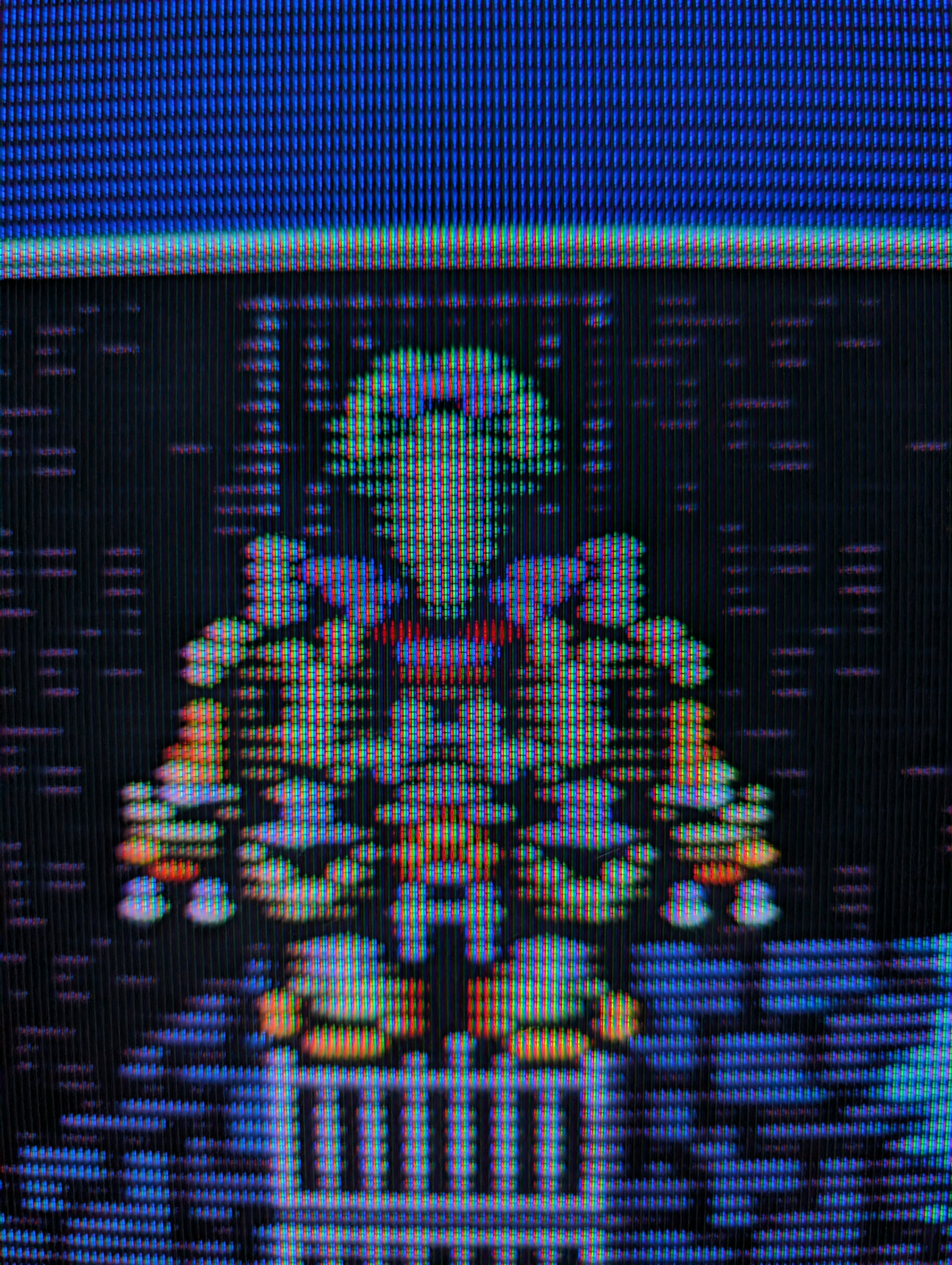

Picture quality is excellent thanks to the Toshiba jungle chip. Better yet, it supports 50hz and other oddball frequencies within the 15khz range. However, it will only be in color over component.

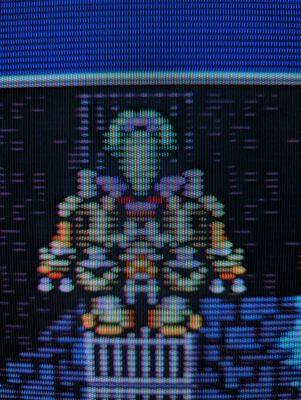

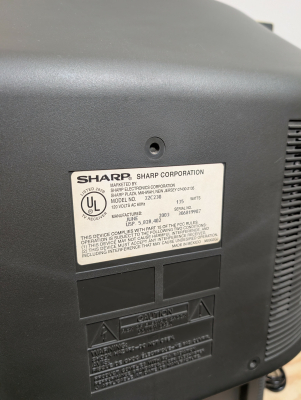

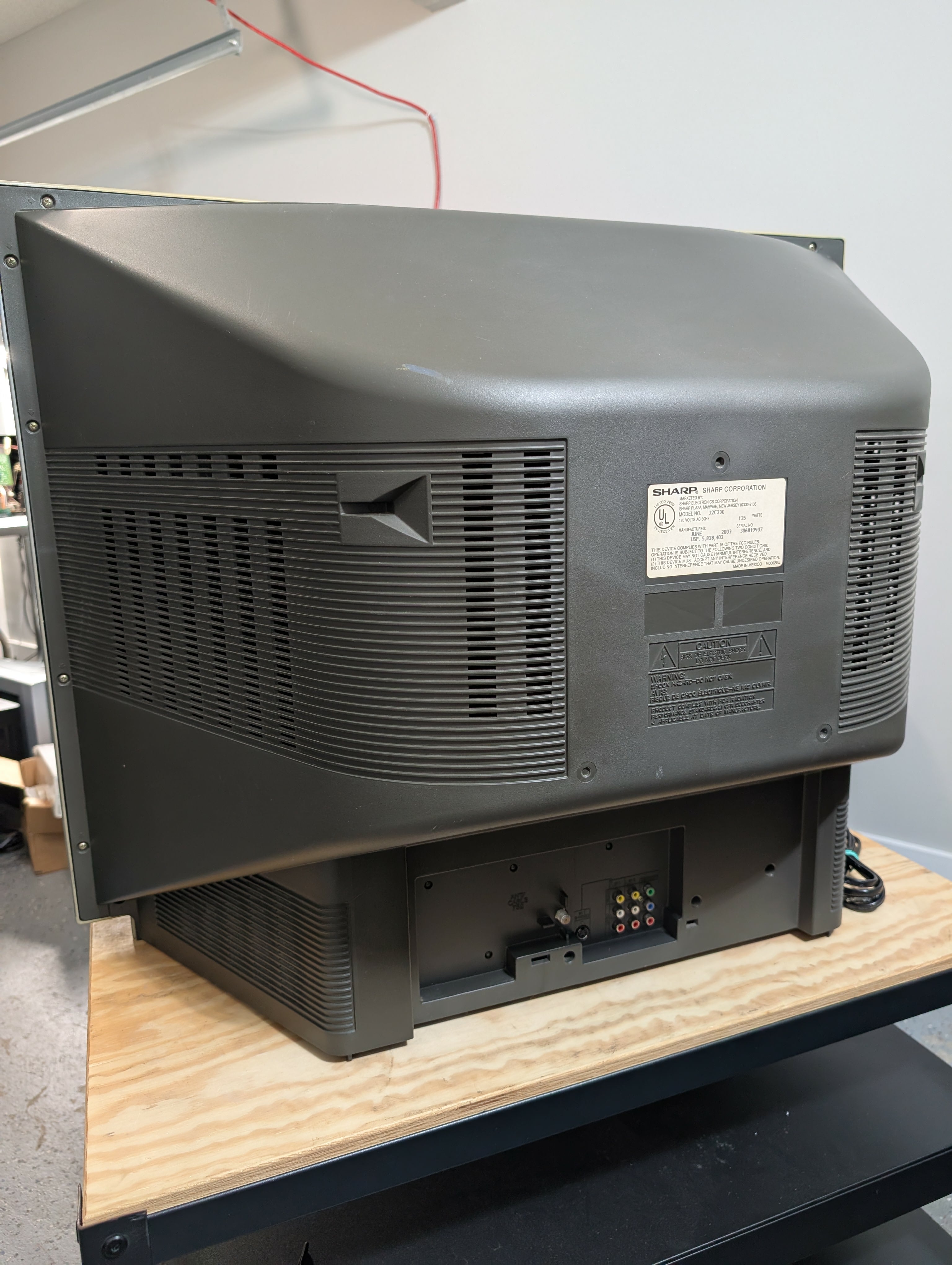

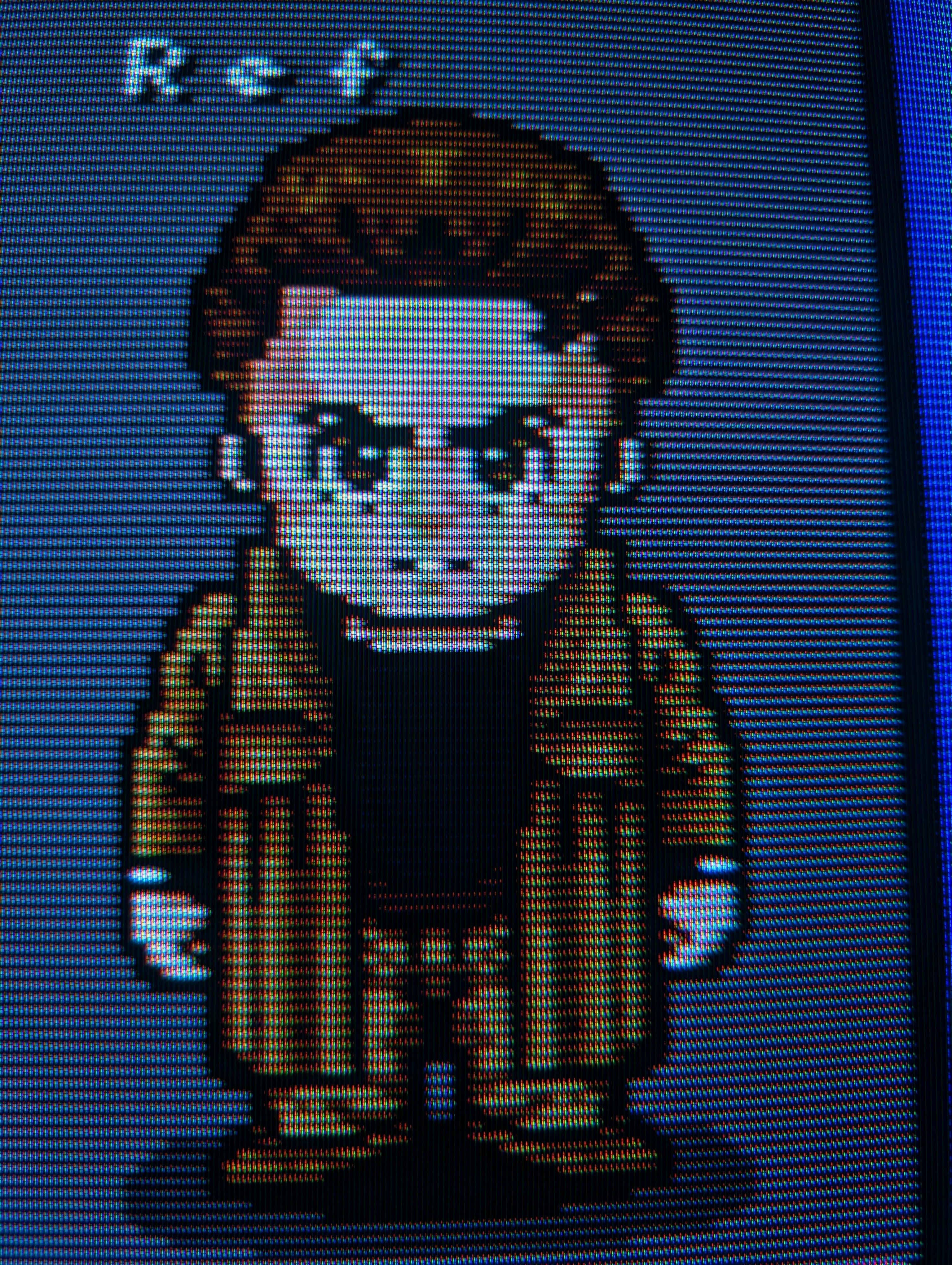

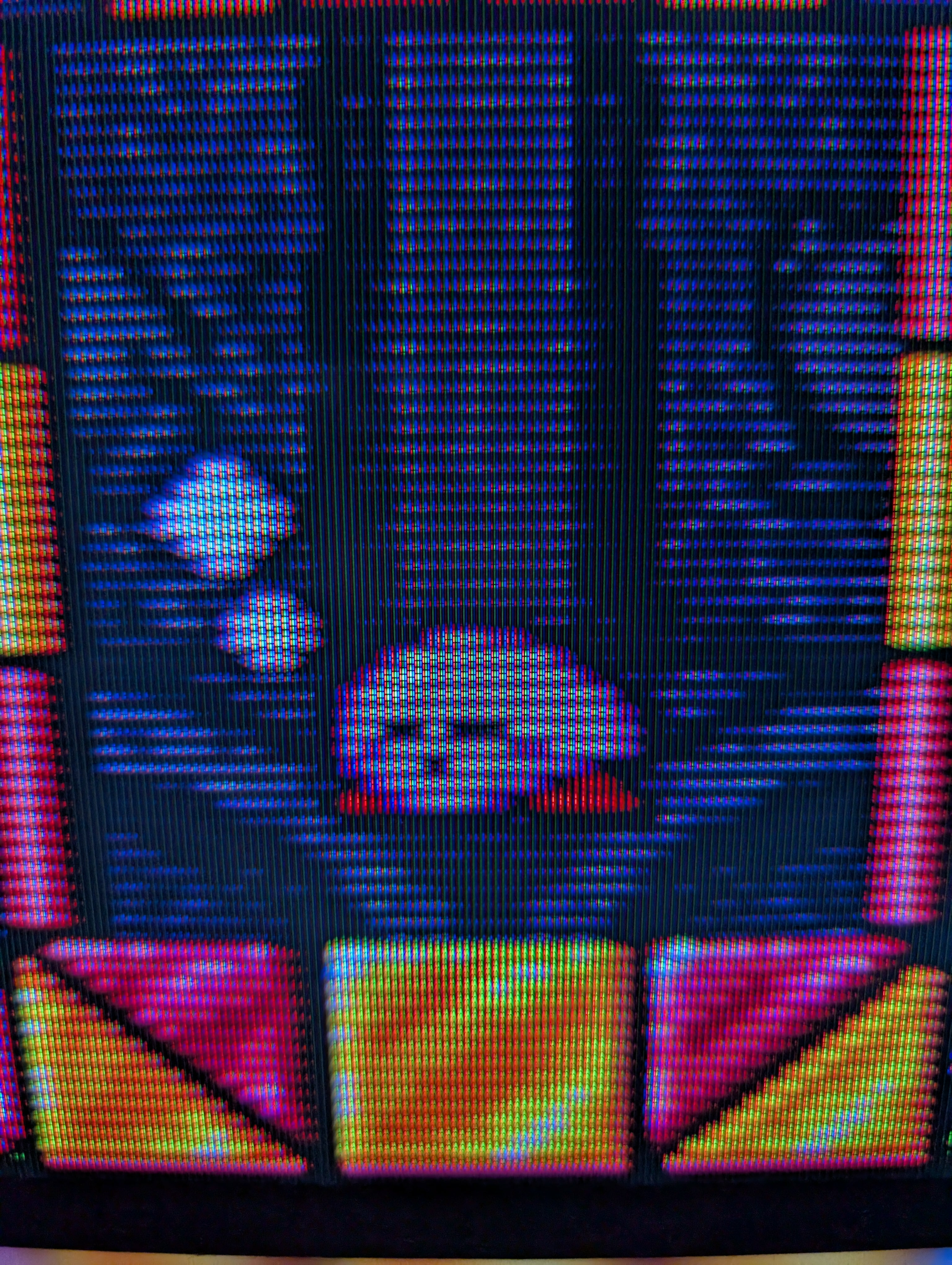

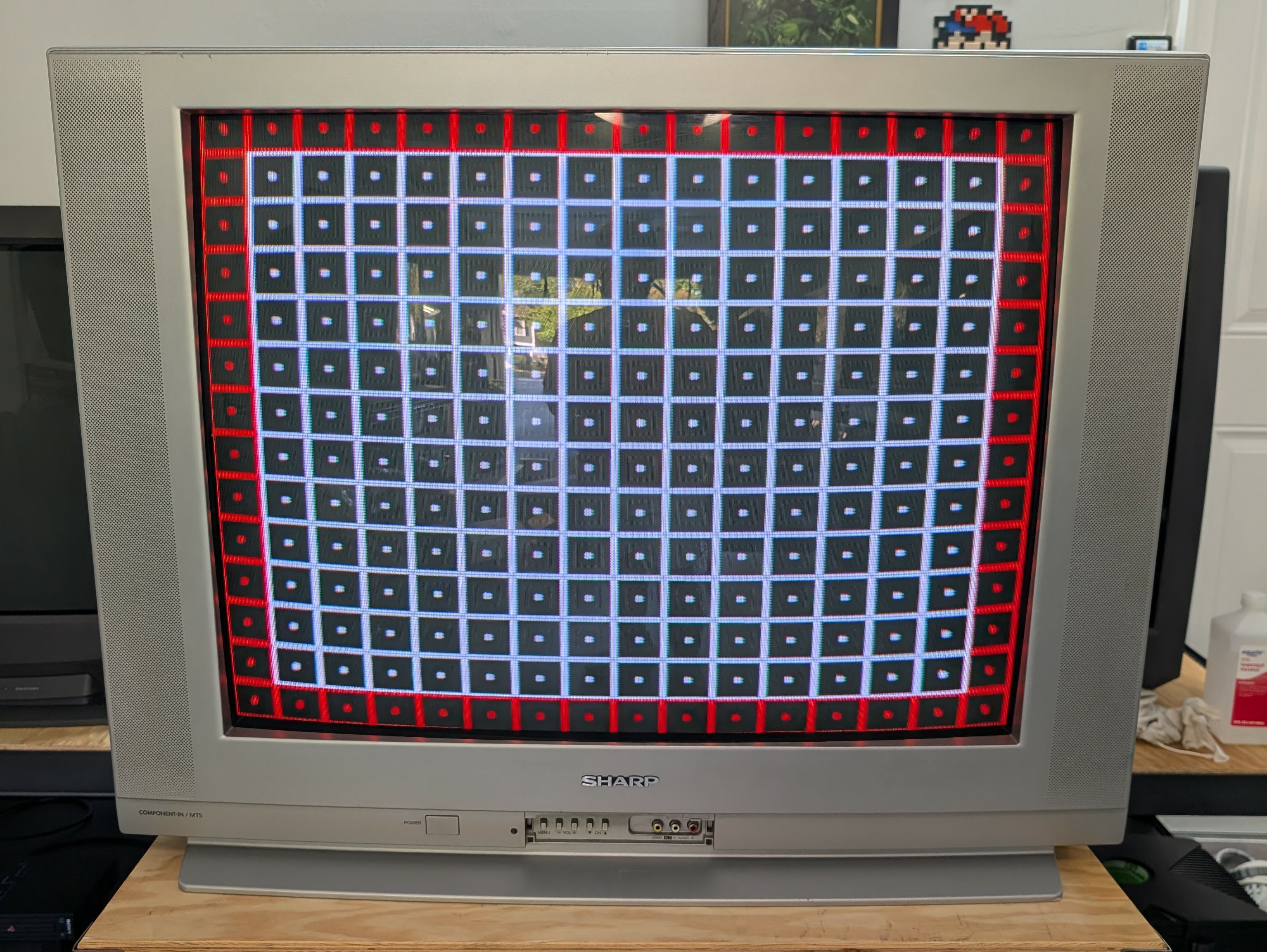

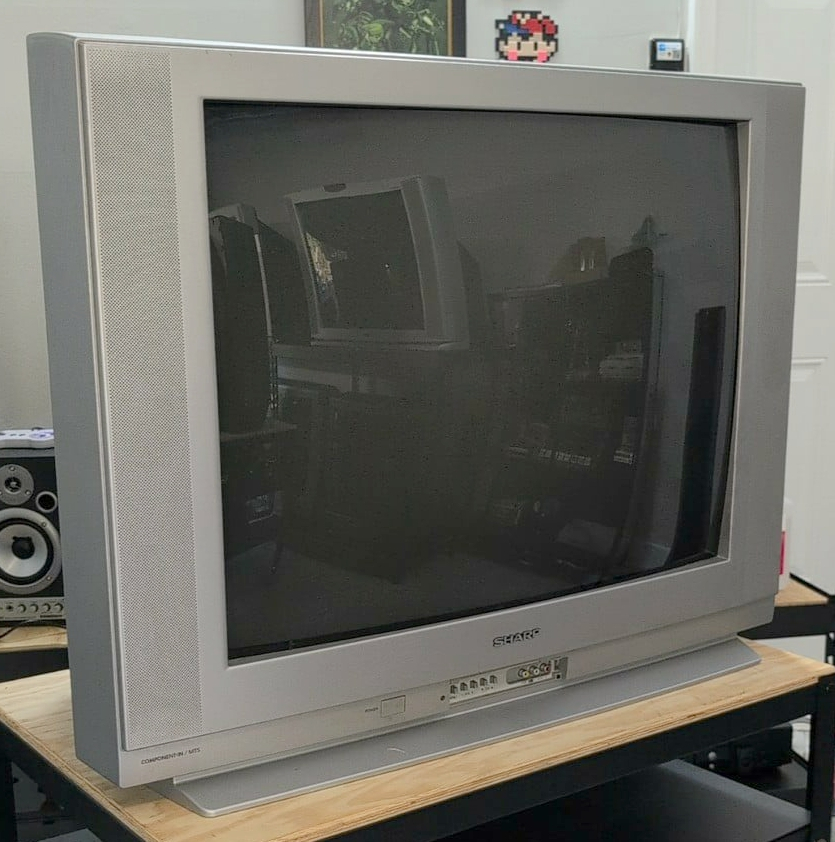

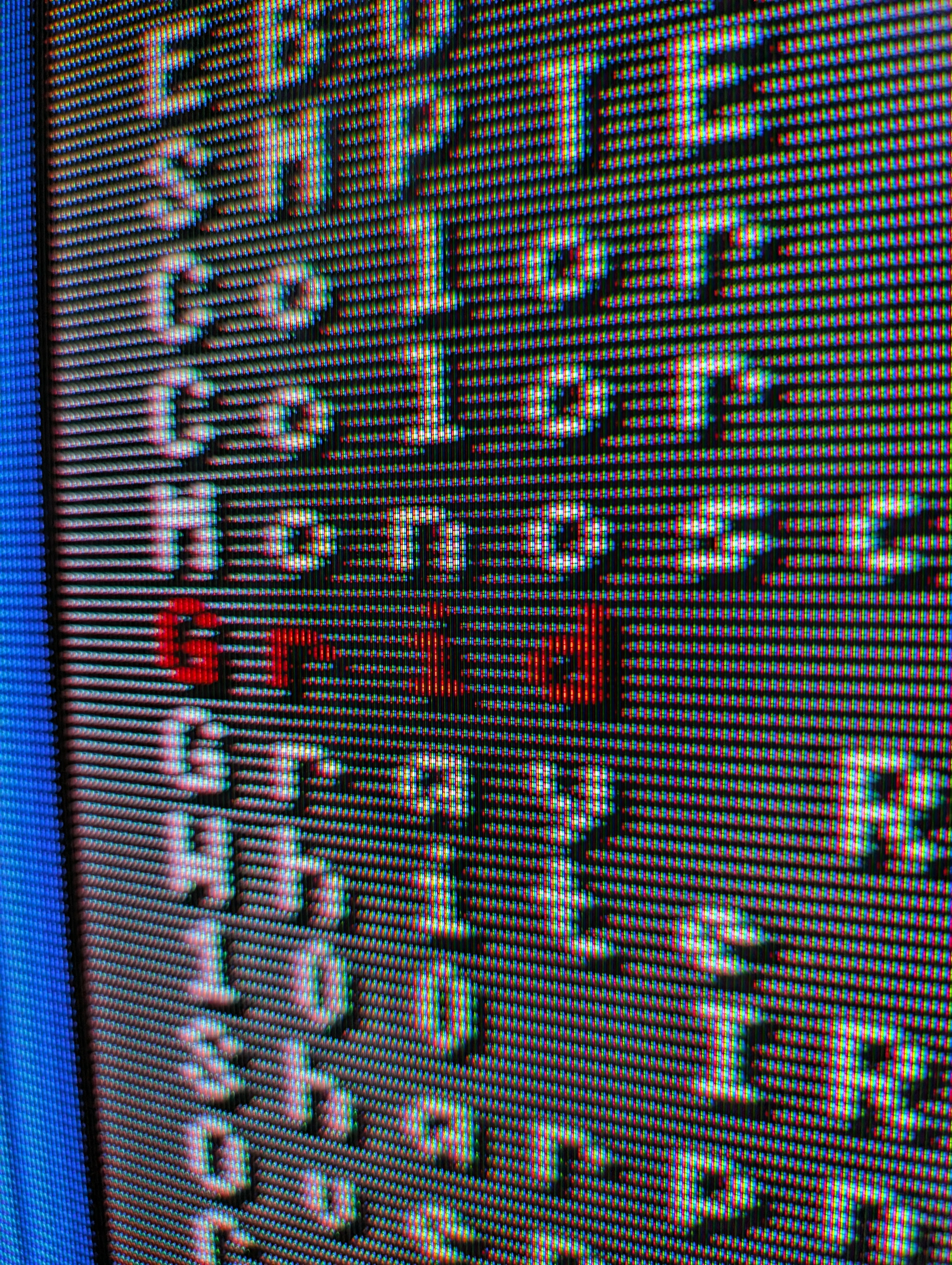

Gallery







Specifications | |
---|---|
Brand: | Sharp |
Manufacturer: | Sharp |
Model: | 32C230 |
Series: | C |
Viewable Size: | 32" |

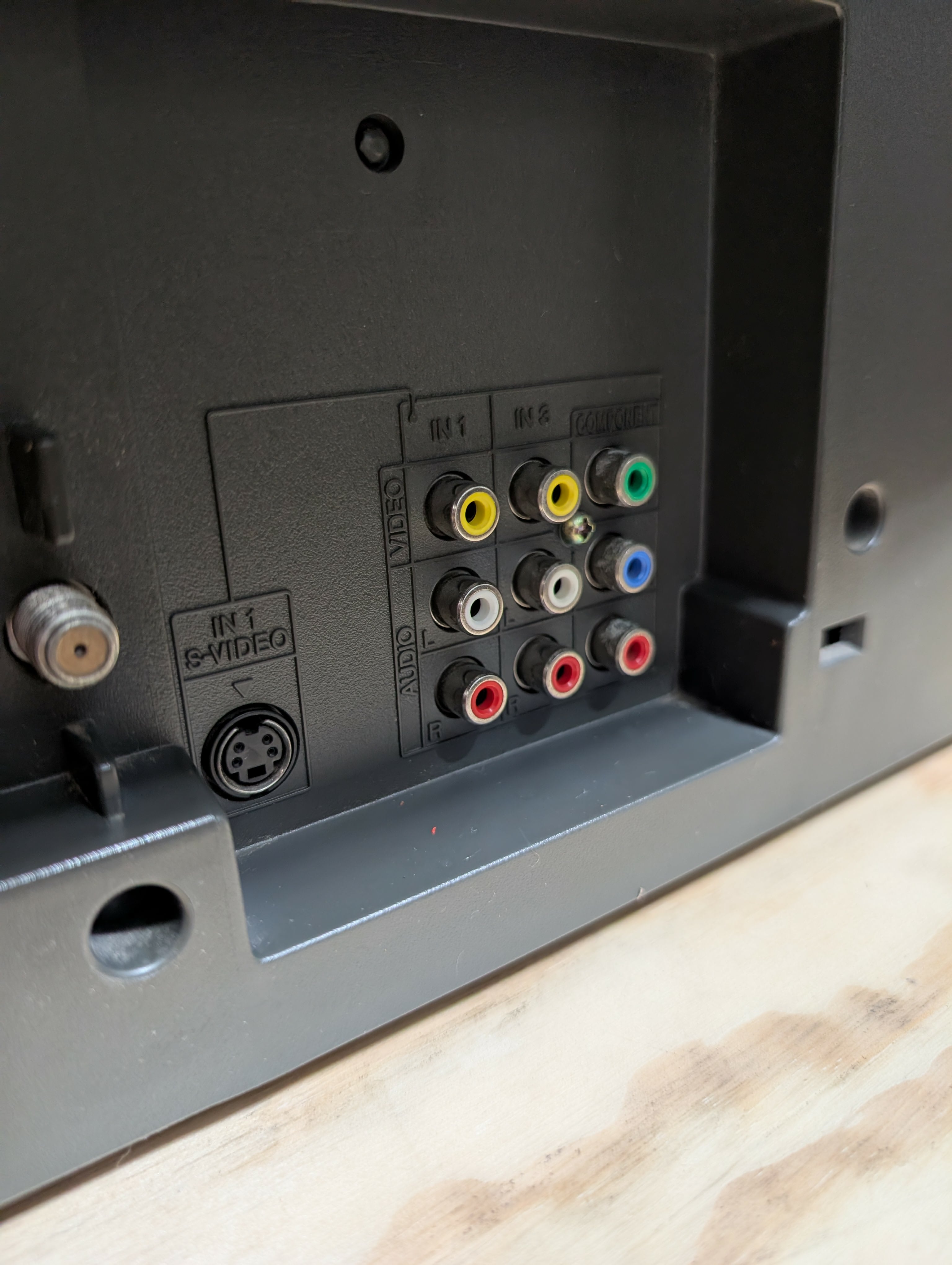

Inputs: | Composite, S-Video, RF, Component YPbPr |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 50 Hz, 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Vertical Output IC: | Philips, TDA8177 |
Jungle IC: | Toshiba, TB1253AN, TB1253 |
Comb Filtering: | 2-Line Digital |
Comb Filter IC: | Toshiba, TC90A45F |
Flyback: | RTRNFA038WJZZ |
Focus Type: | Single |
Tube: | Panasonic , M80JUA061X |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Speakers: | Stereo, 3W x 2 |
Remote: | G1324SC |
Chassis: | GB-3U |
Weight: | 110.7 lbs (50.2 kg) |
Dimensions (W/H/D): |
860 x 675 x 543 mm
(33.8 x 26.5 x 21.3") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2003 |
MSRP: | 399 USD |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Mods: | RGB via Mux |
Degaussing: | Automatic on Power-on |
