Sharp 32NL601

SegaSaturn94
March 22, 2026, 2:13 am
March 22, 2026, 6:13 am

Summary

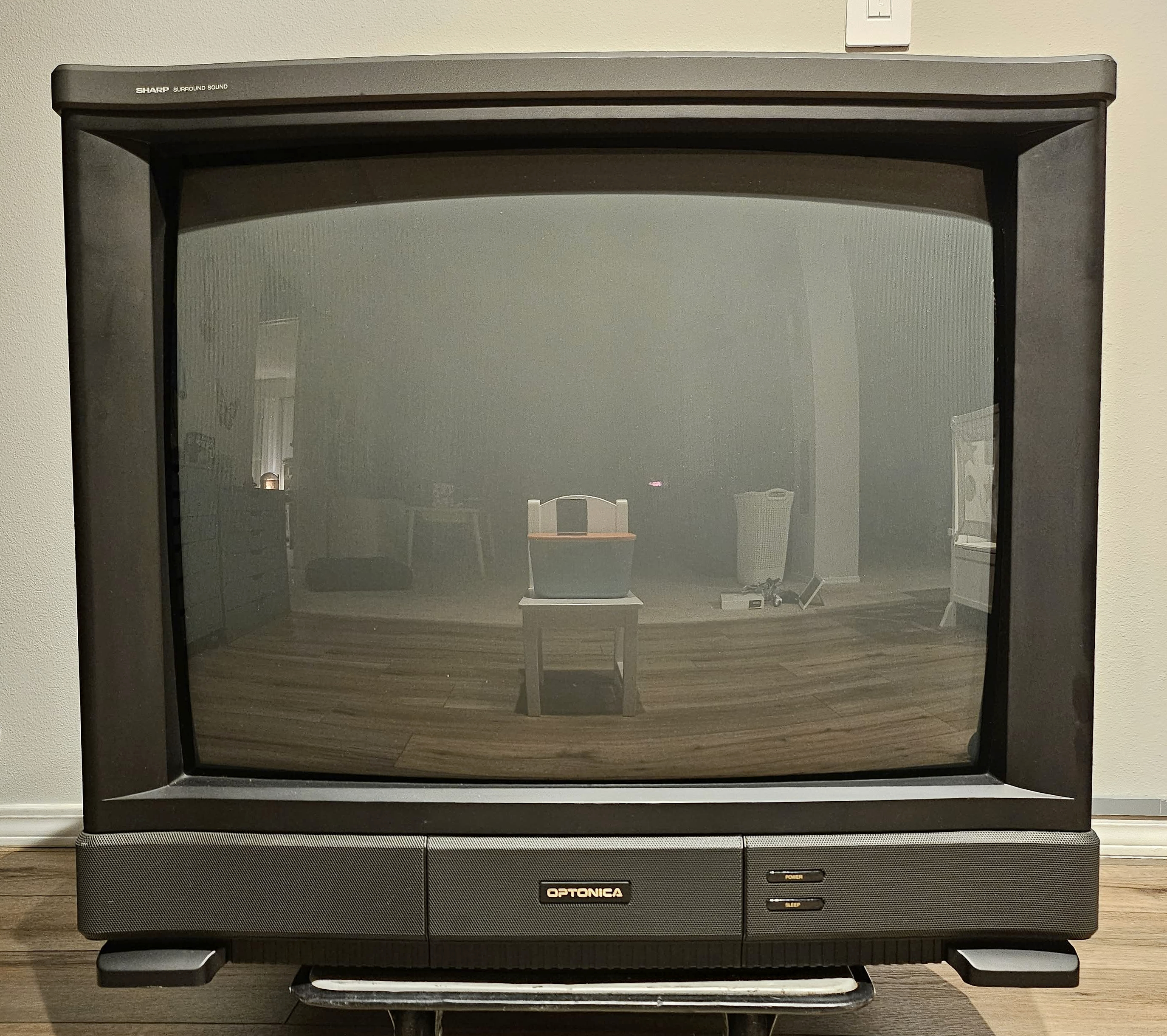

Higher-end 32" CRT by Sharp, part of their Optonica line. Has RF, composite, and s-video inputs with stereo sound. Originally manufactured in the USA in 1990.

(Special thanks to Austin Merath for the pics!)

Manuals

(None at this time.)

Notes

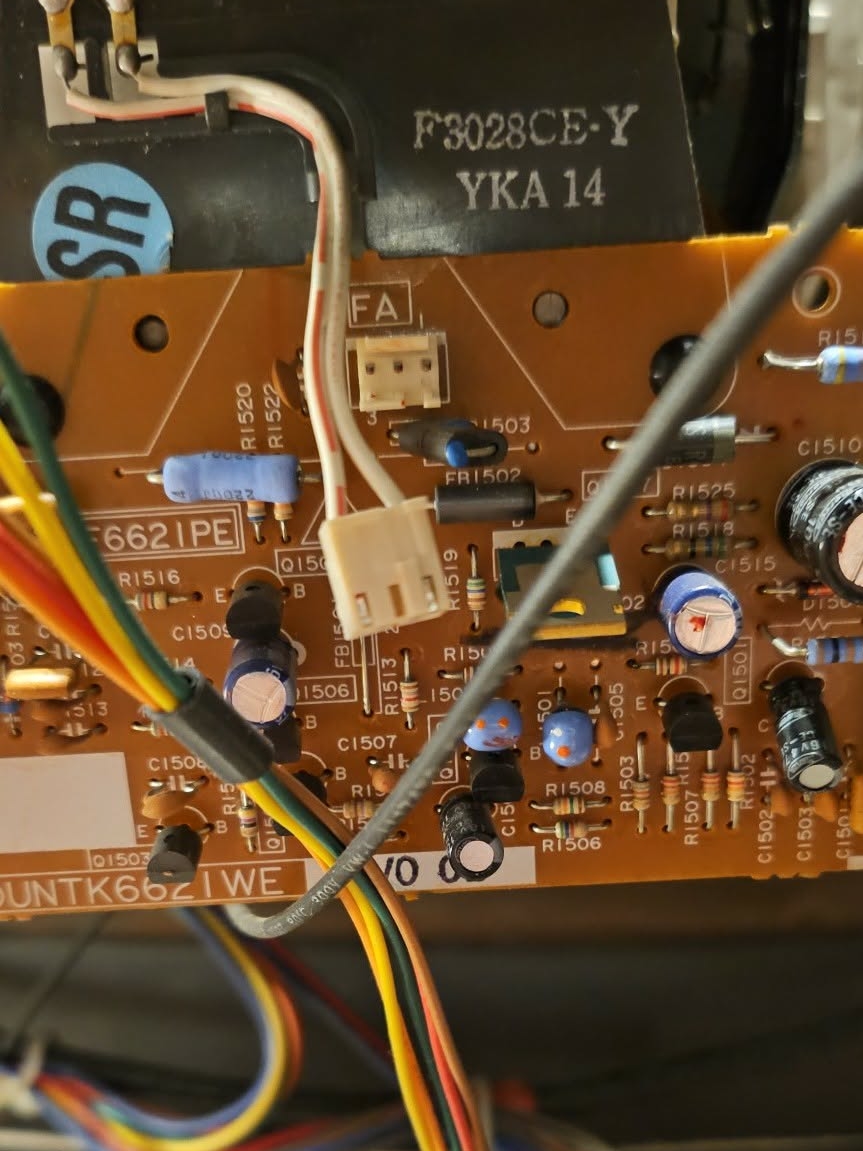

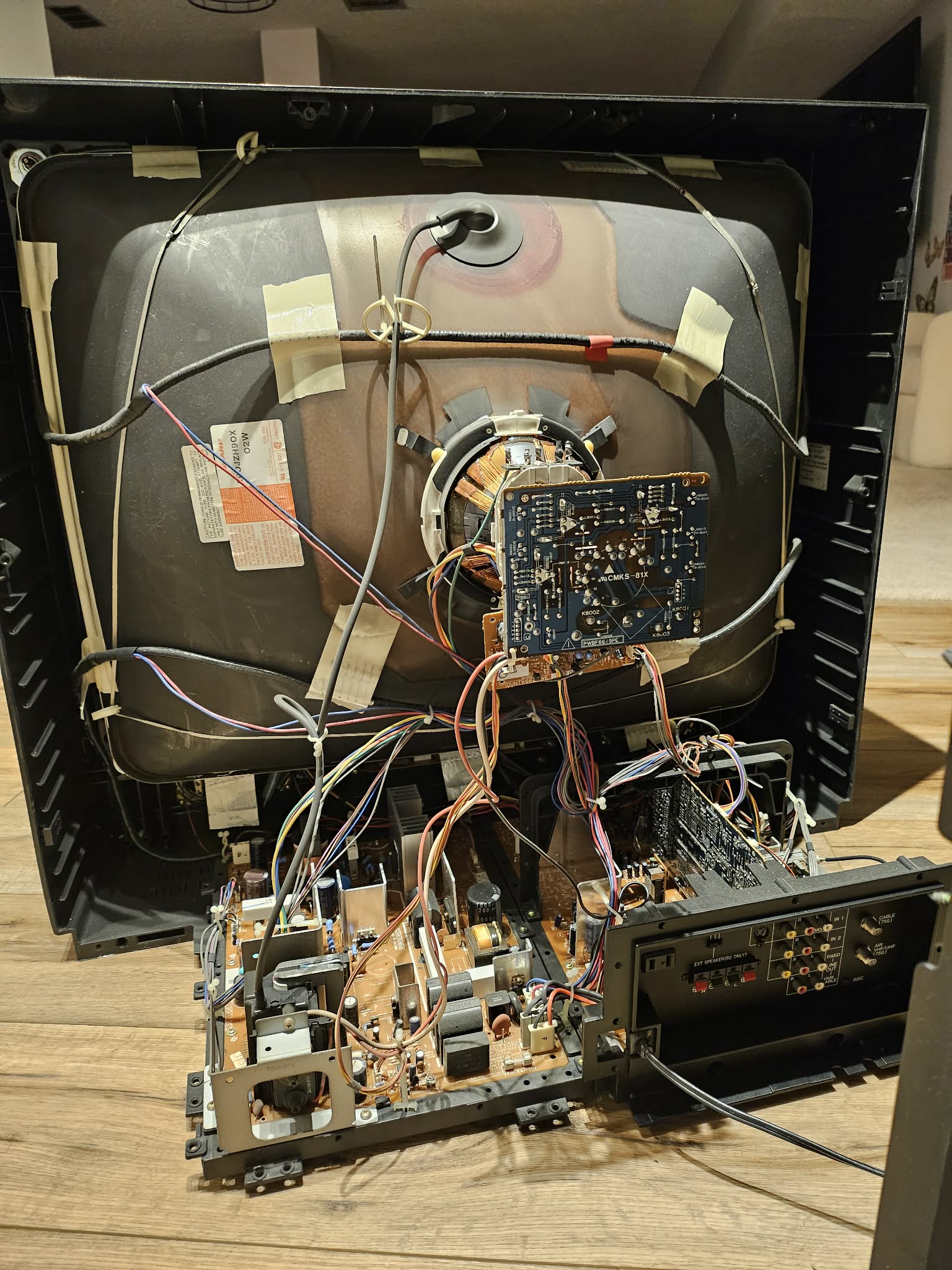

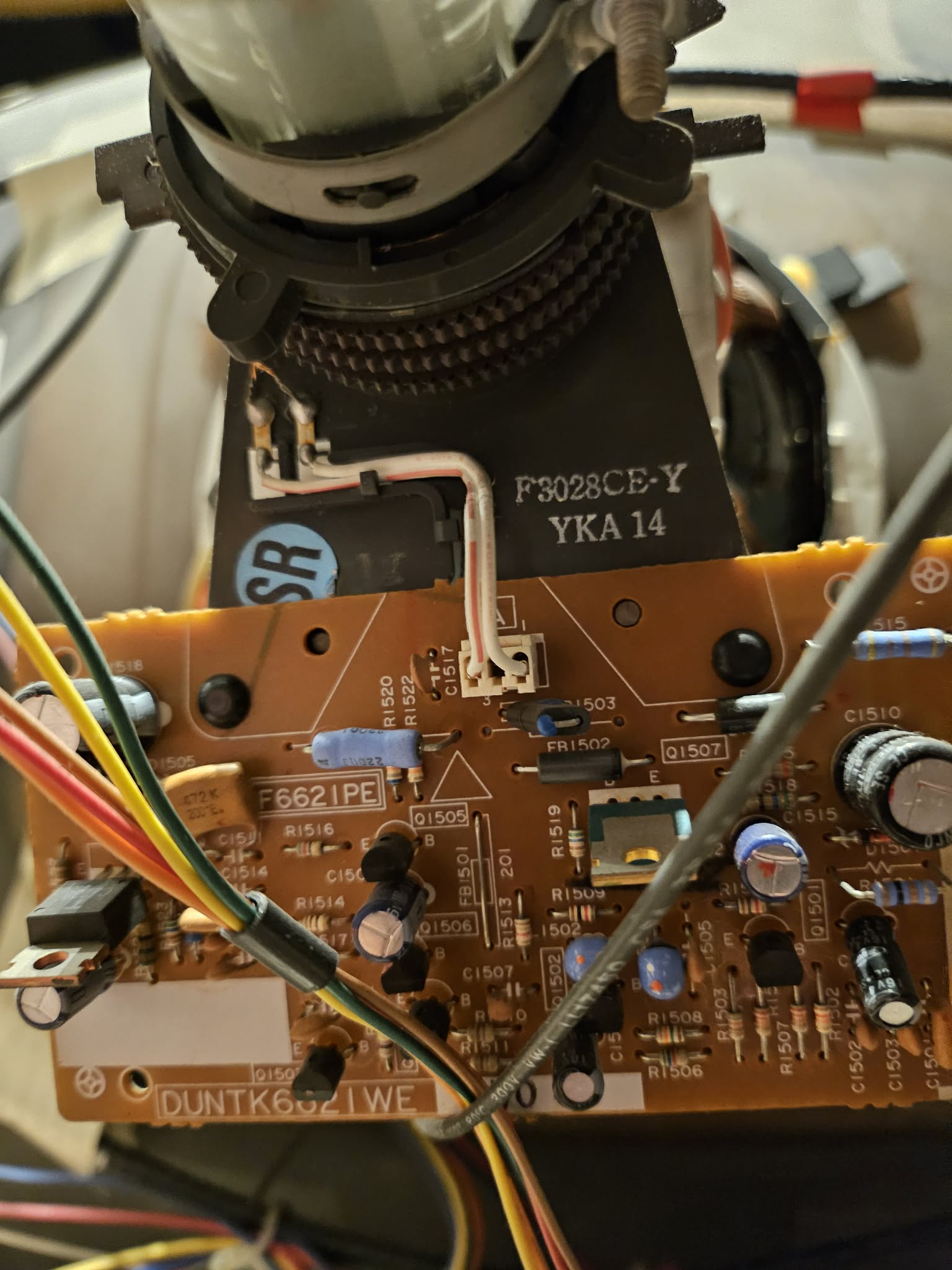

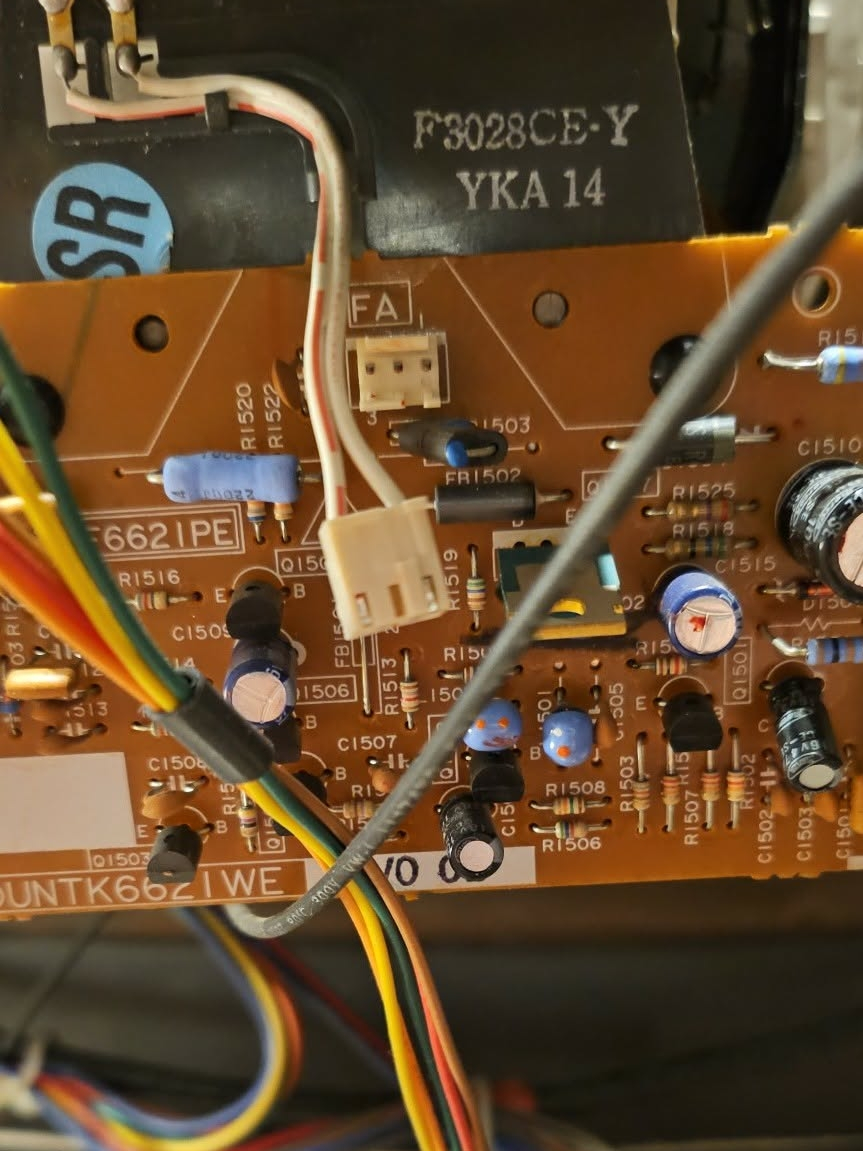

This TV has VM. To disable it, unplug the following jumper from the VM board:

kNiBgU8PM1BRgflS.

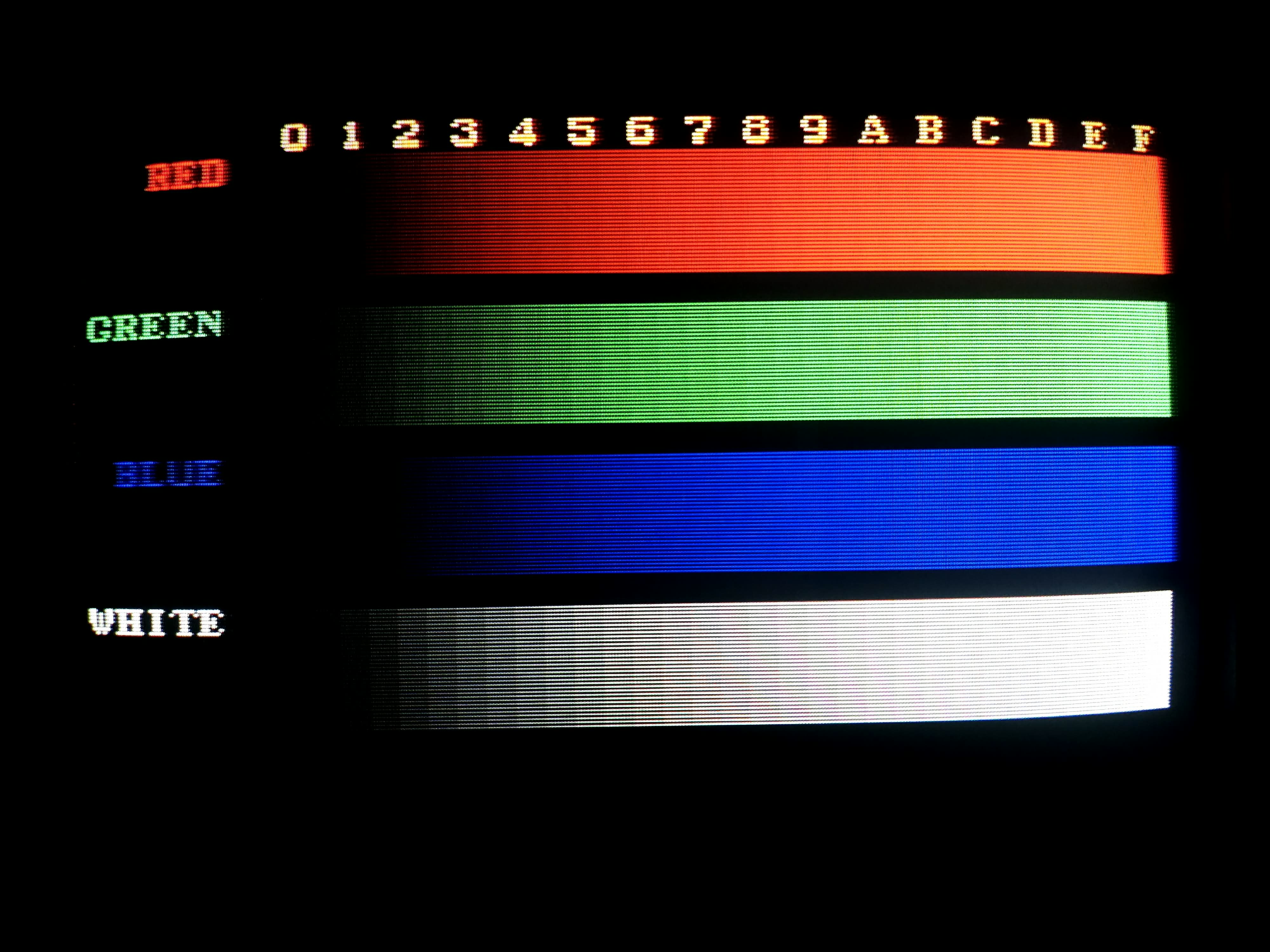

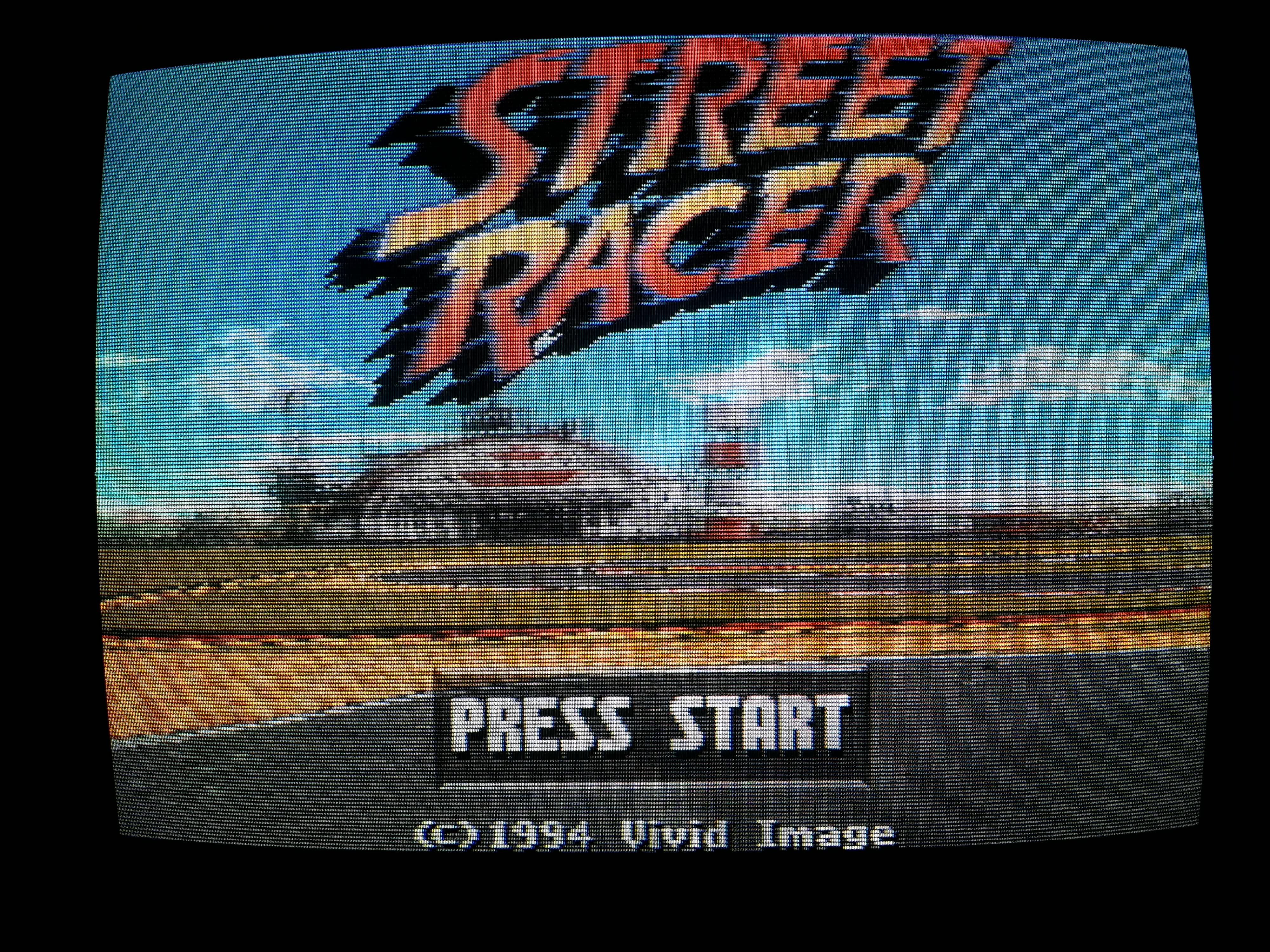

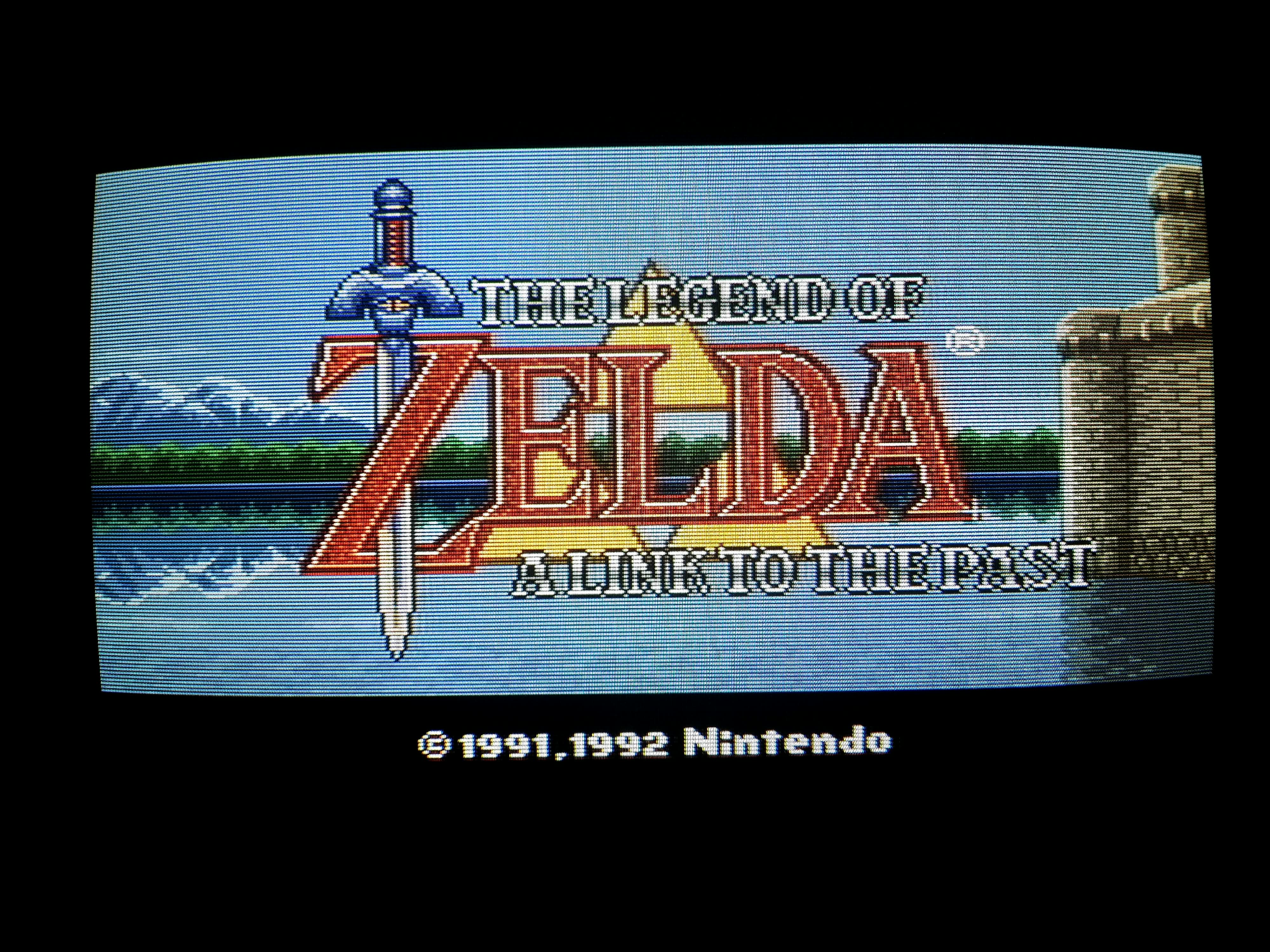

Gallery

Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601 Sharp 32NL601
Specifications
Brand: Sharp
Manufacturer: Sharp
Model: 32NL601
Series: Optonica
Viewable Size: 32"

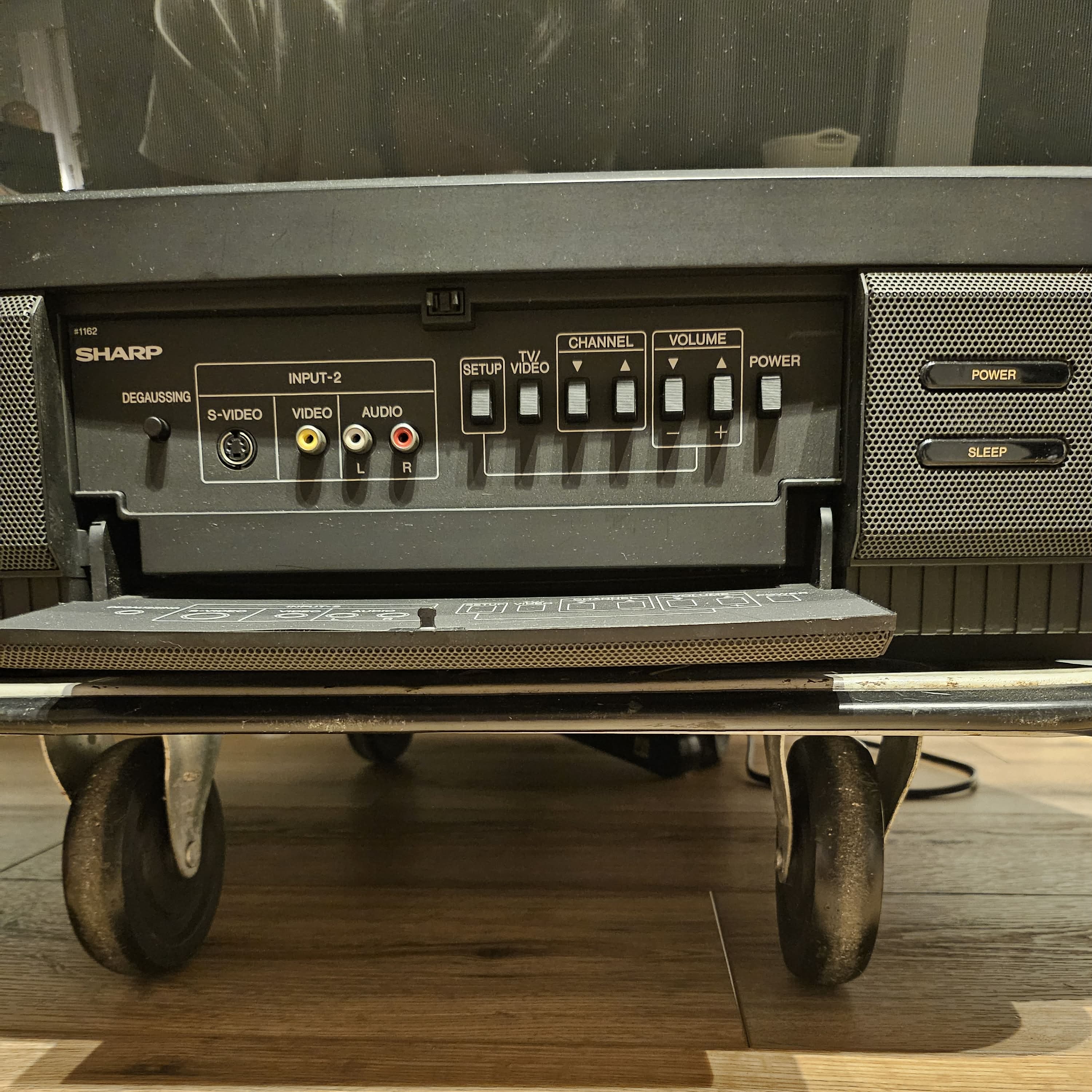

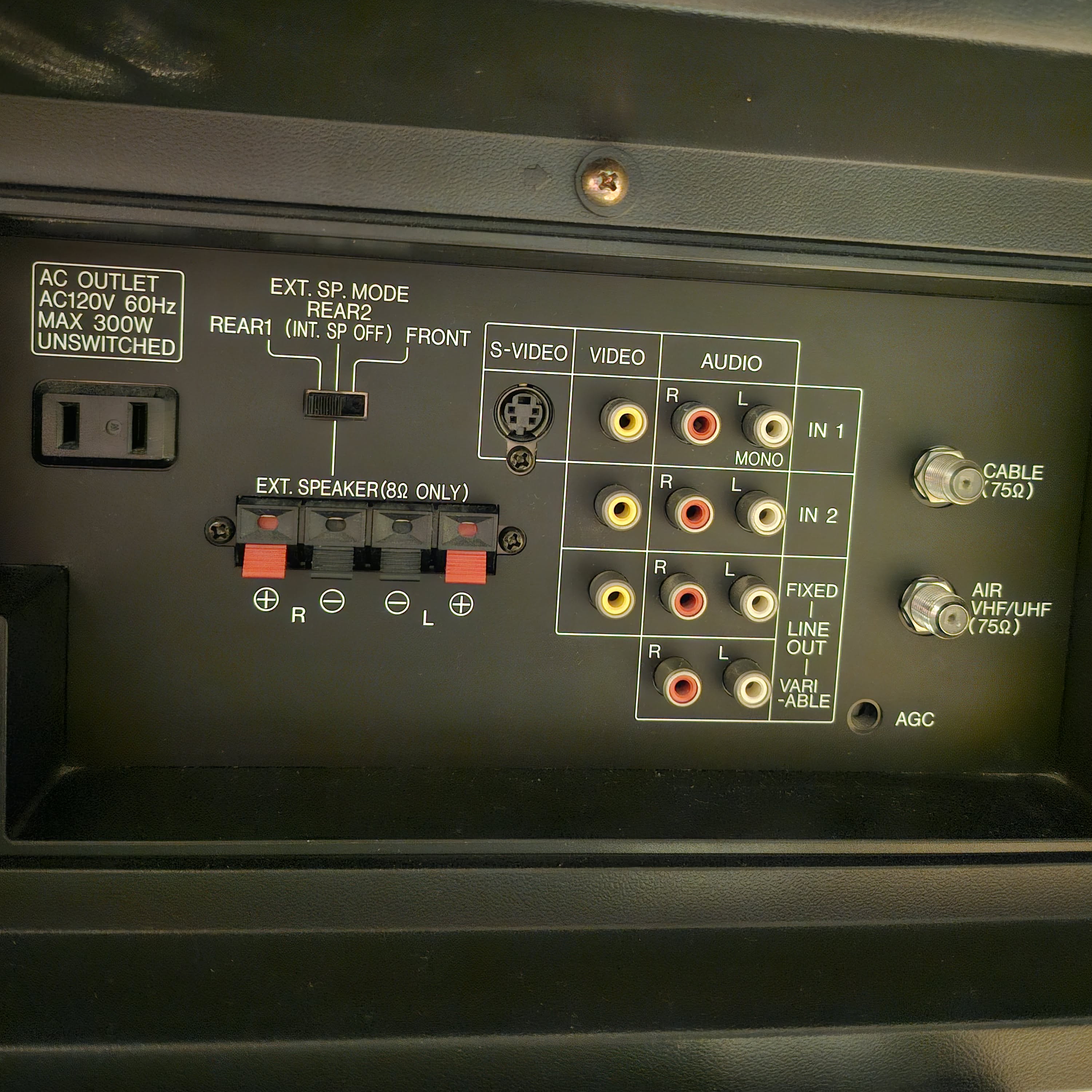

Input Signals: Composite, S-Video, RF
Native Resolutions: 240p, 480i
Horizontal Scan Range: 15 kHz
Vertical Scan Range: 60 Hz
Formats: NTSC
Aspect: 4:3
Adjustments: Internal Potentiometers, OSD Customer Controls

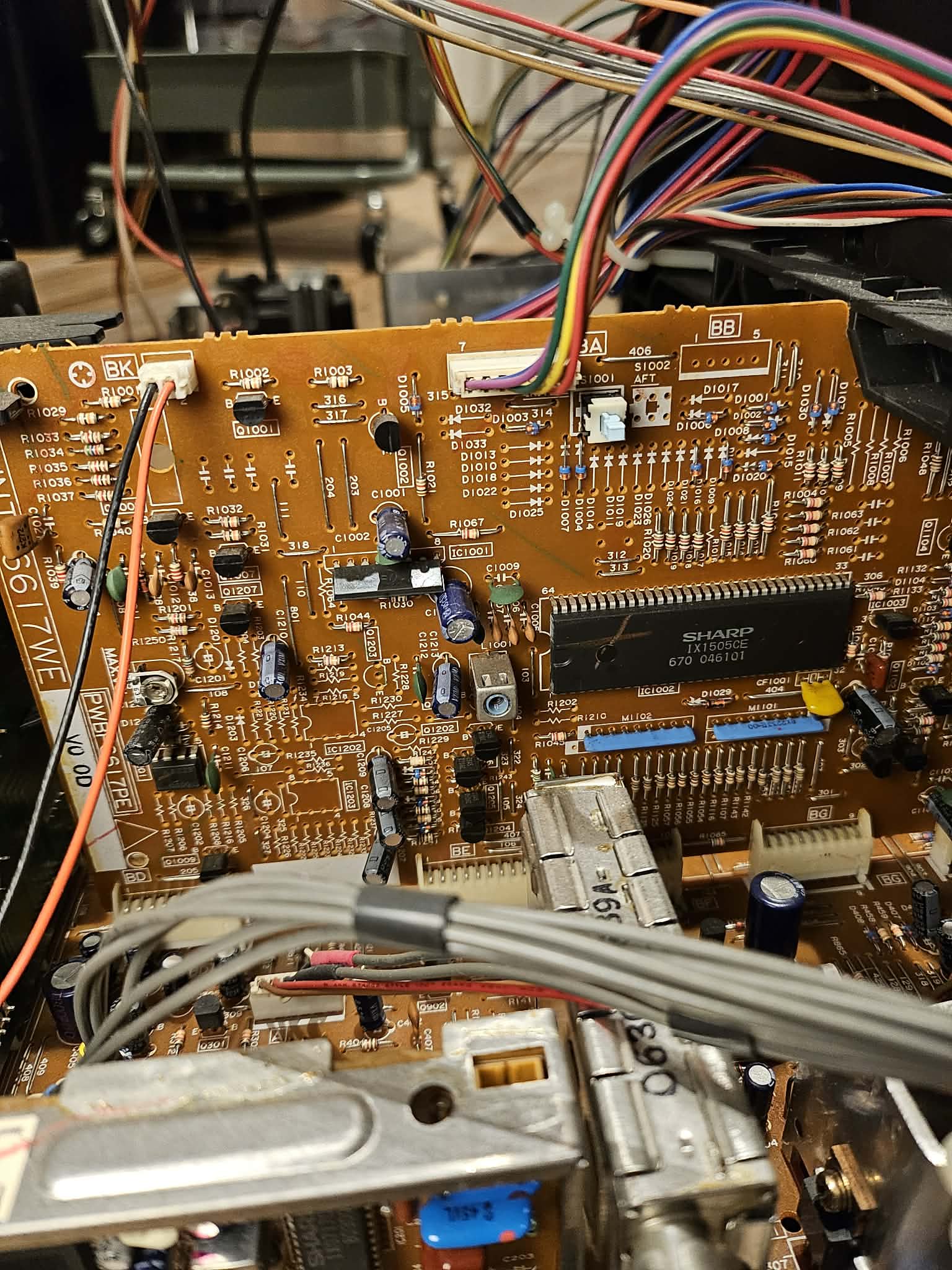

Jungle IC: Toshiba, Sharp, TA8601BN, X1078CE, TA8601
Comb Filtering: 2-Line Digital

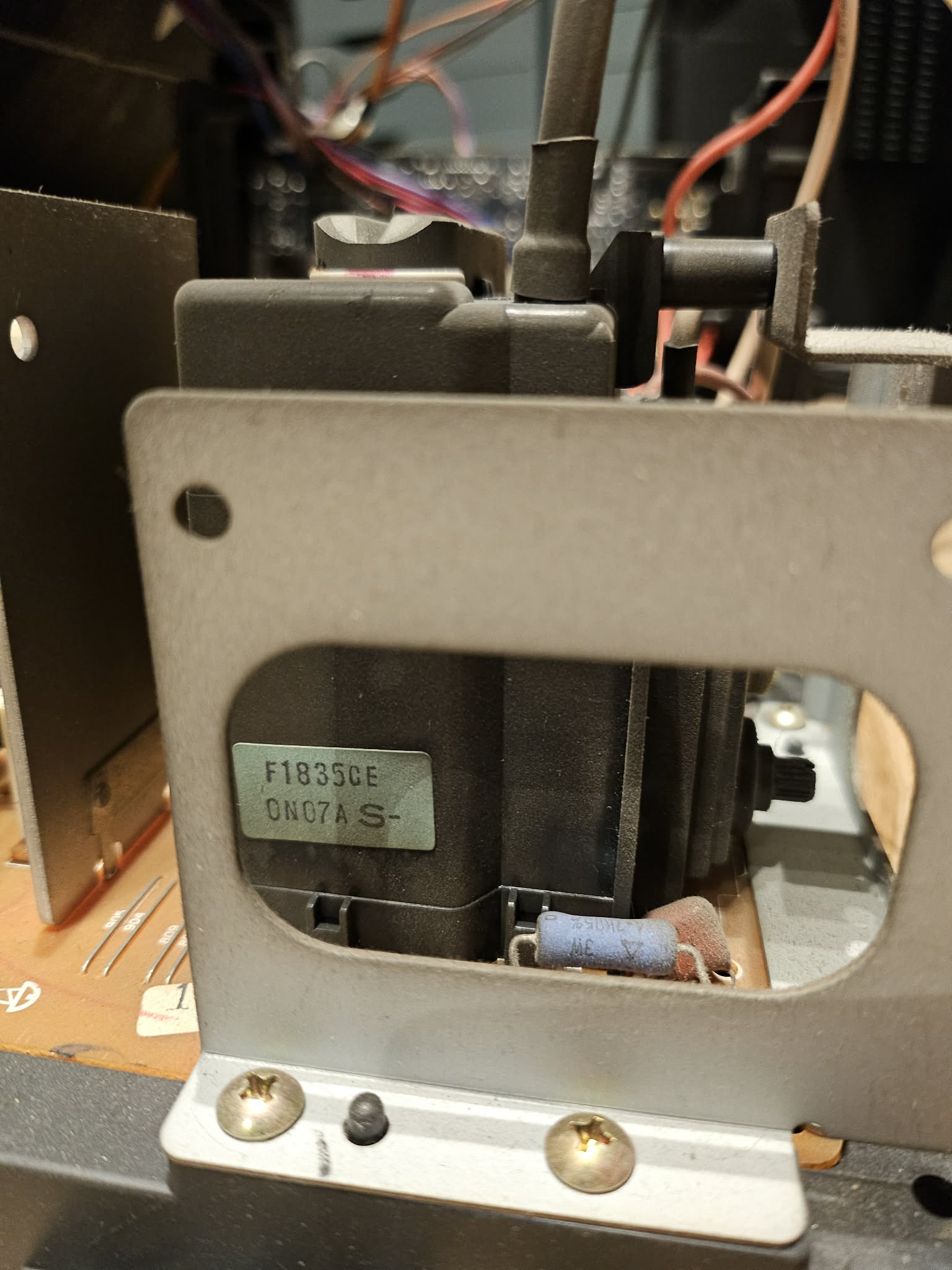

Flyback: F1835CE
Focus Type: Single

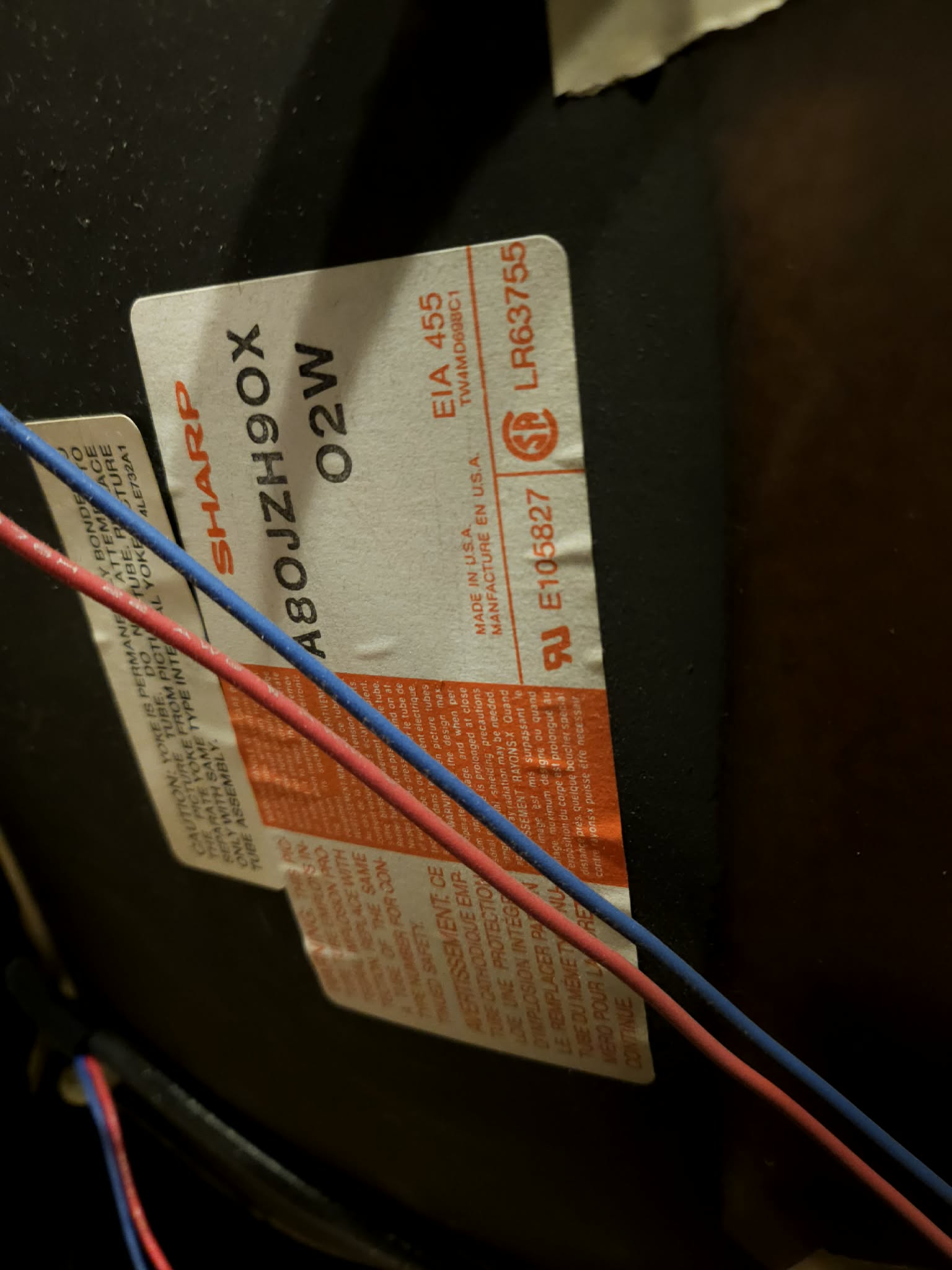

Tube: Toshiba , A80JZH90X , A80JZH90X02
Heater Voltage: 6.3v
Mask: Slot
Tint: Dark
Removable Glare Film: No

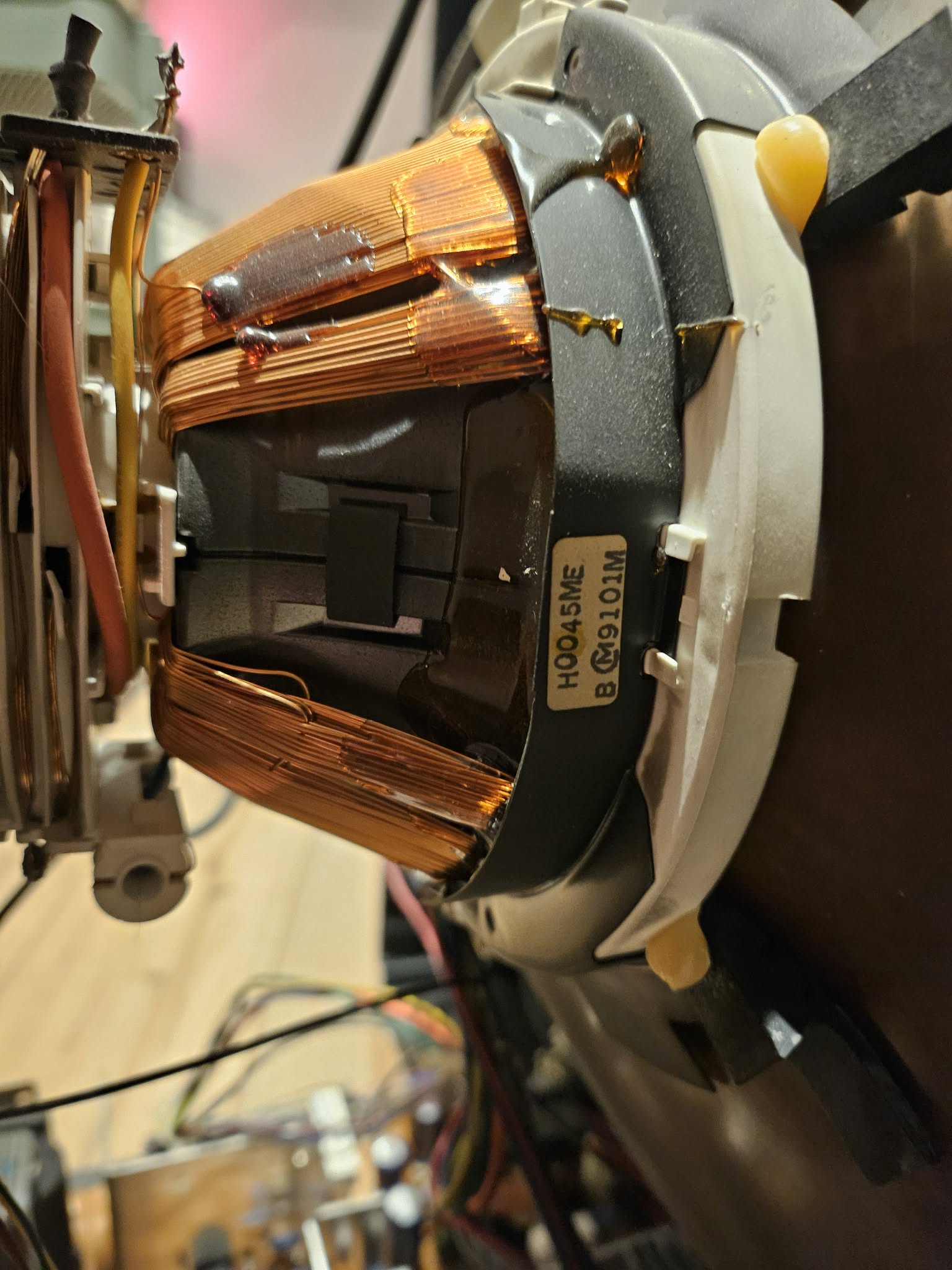

Yoke: H0045ME

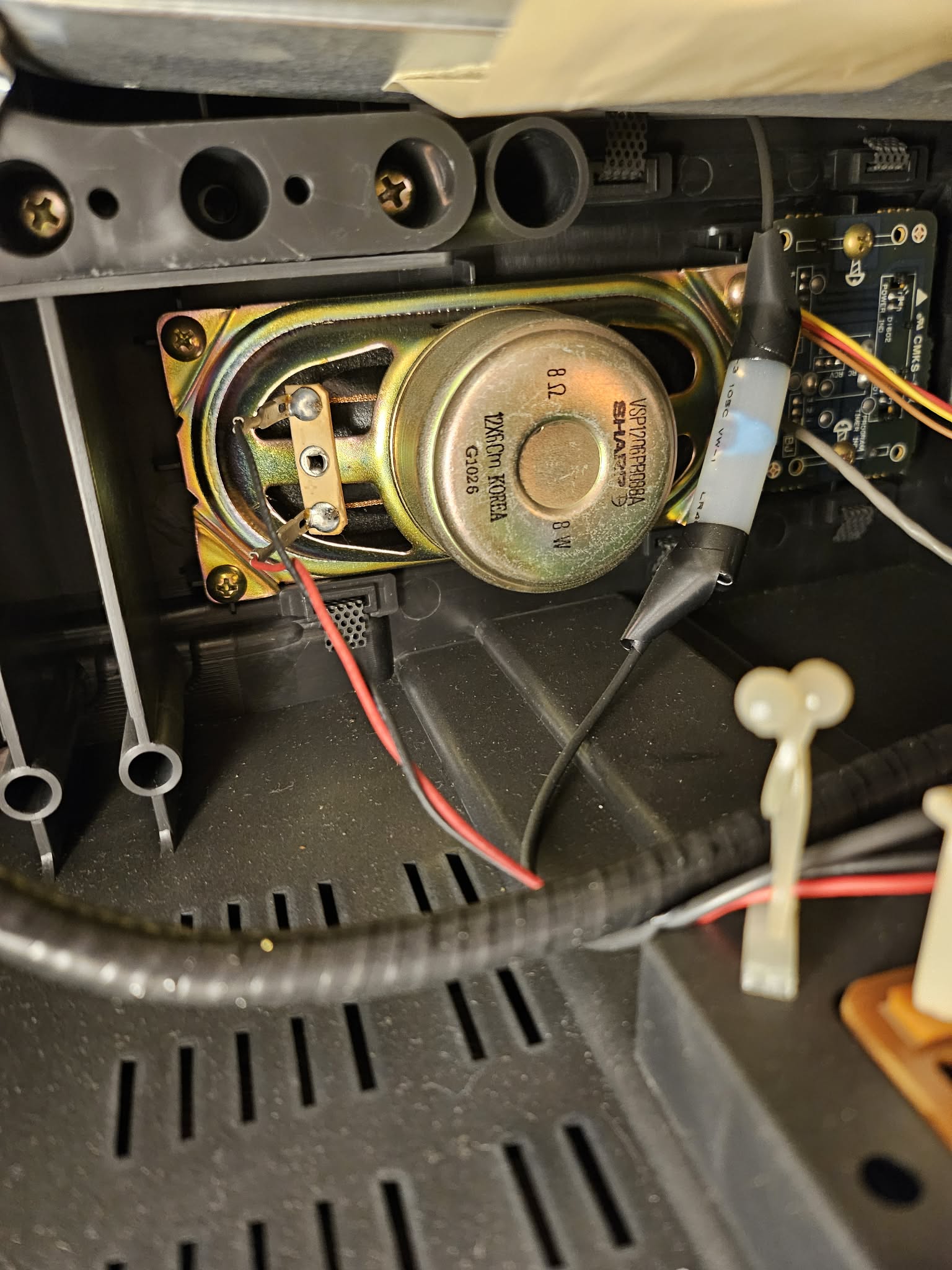

Speakers: Stereo, 8W x 2

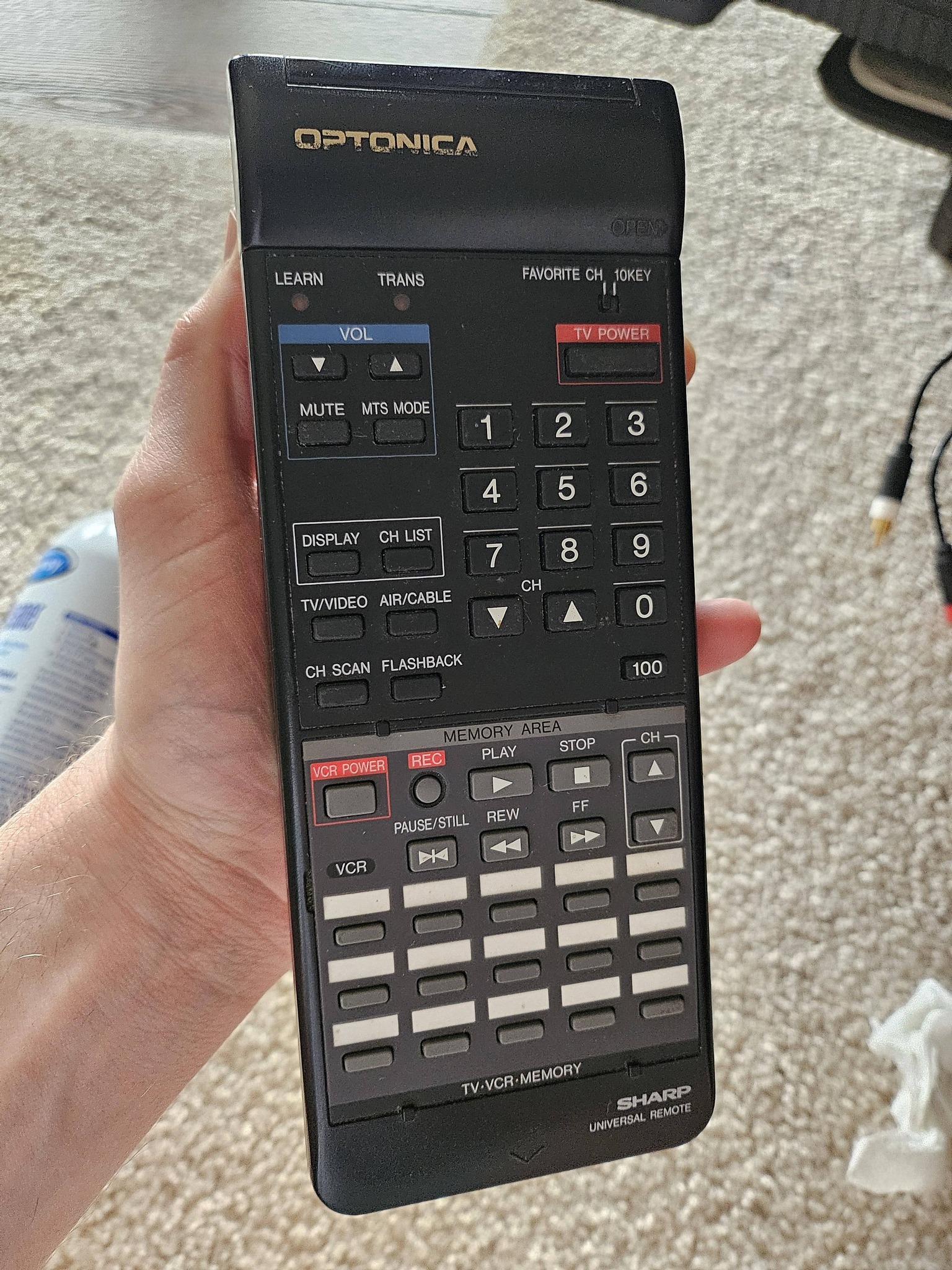

Remote: G07363A
Application: Consumer
Cabinet Material: Plastic
Launched: 1990
MSRP: 1700 USD
Country of Manufacture: USA
Market: North America
Power Standard: 120v
Mounting: Table Surface (Standard)
Tag: Needs Owners Manual, Needs Service Manual, Needs Measurements
