Summary

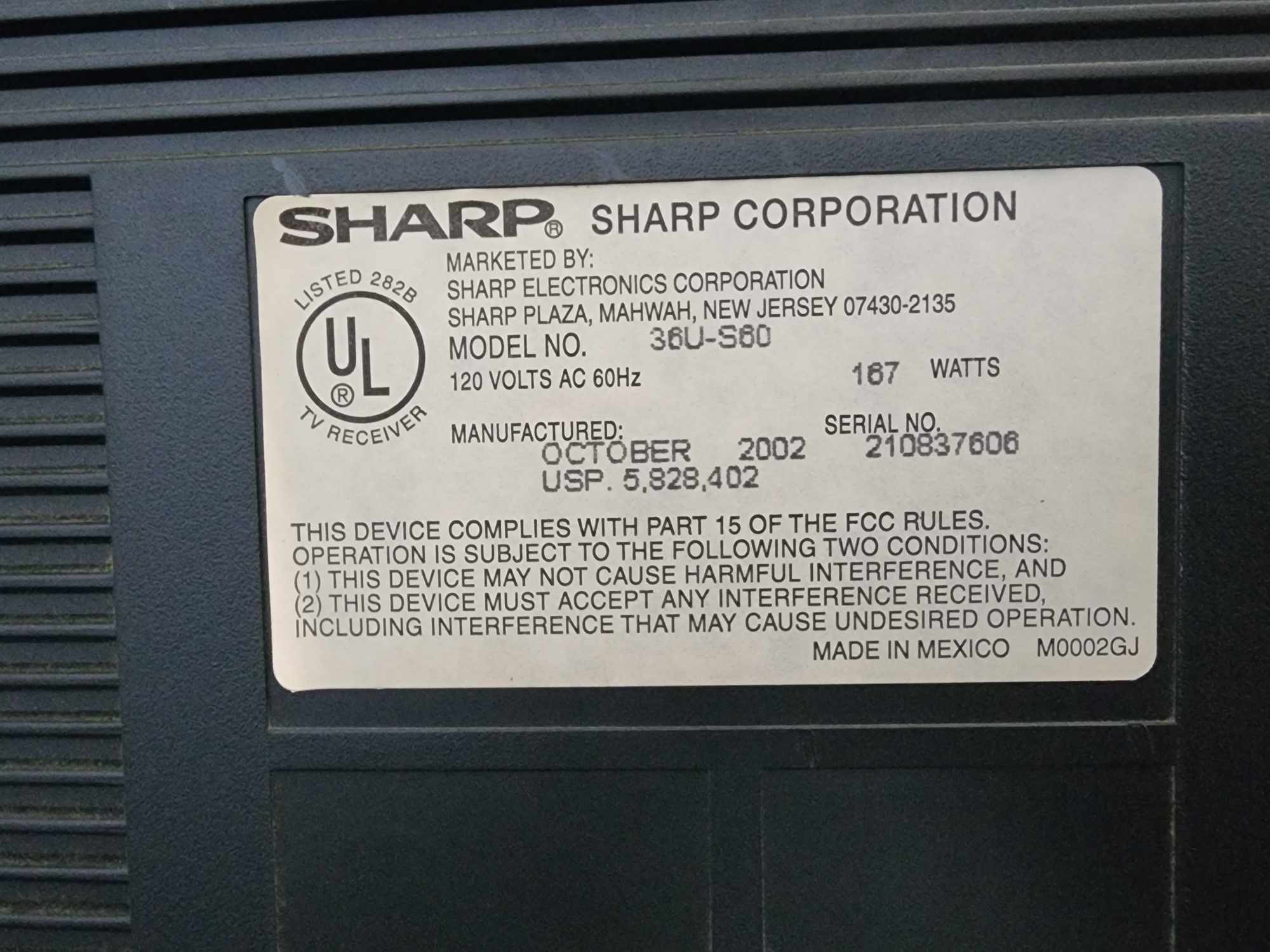

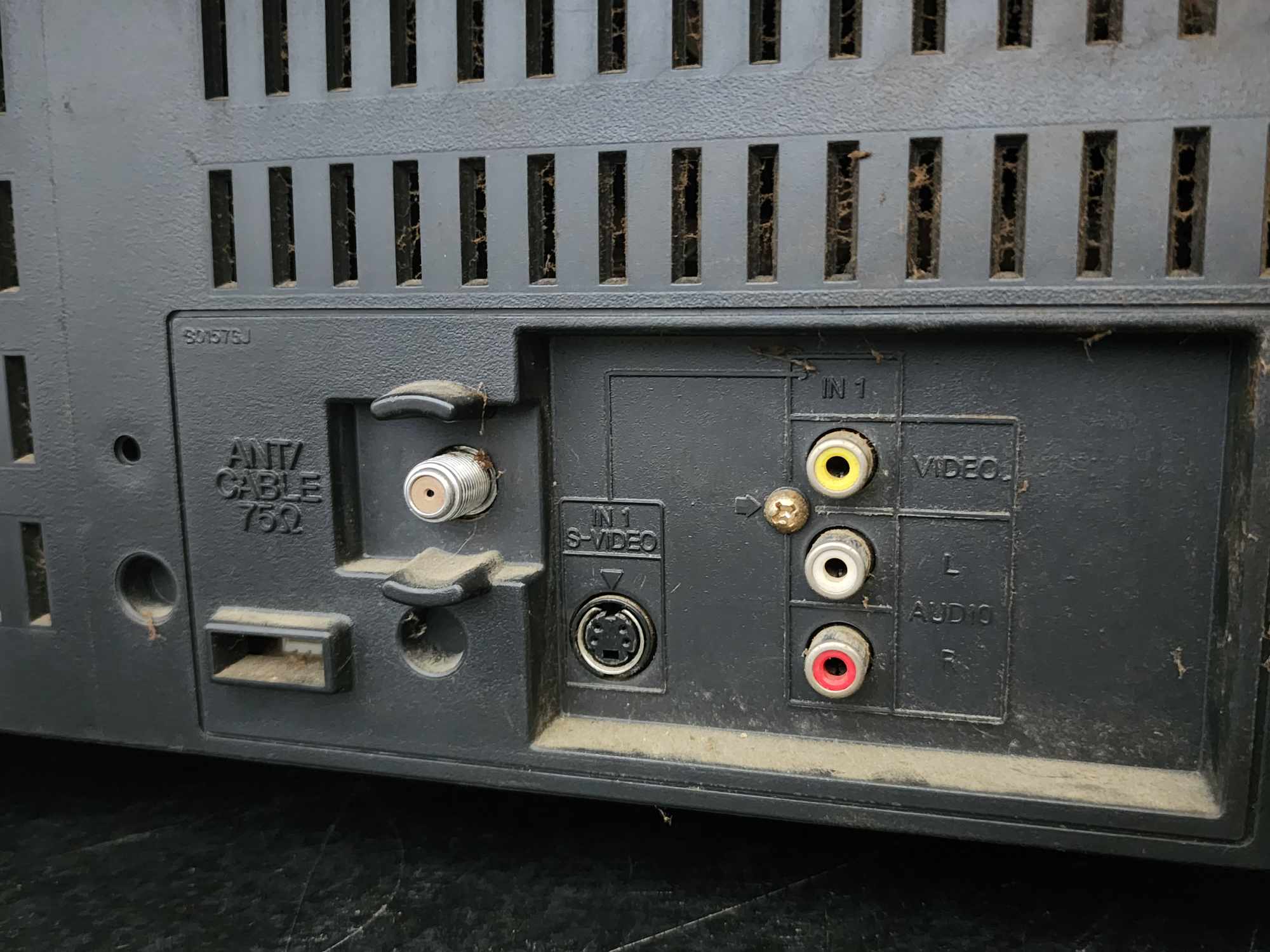

36" CRT by Sharp. Has RF, composite, and s-video. Made in Mexico in 2002.

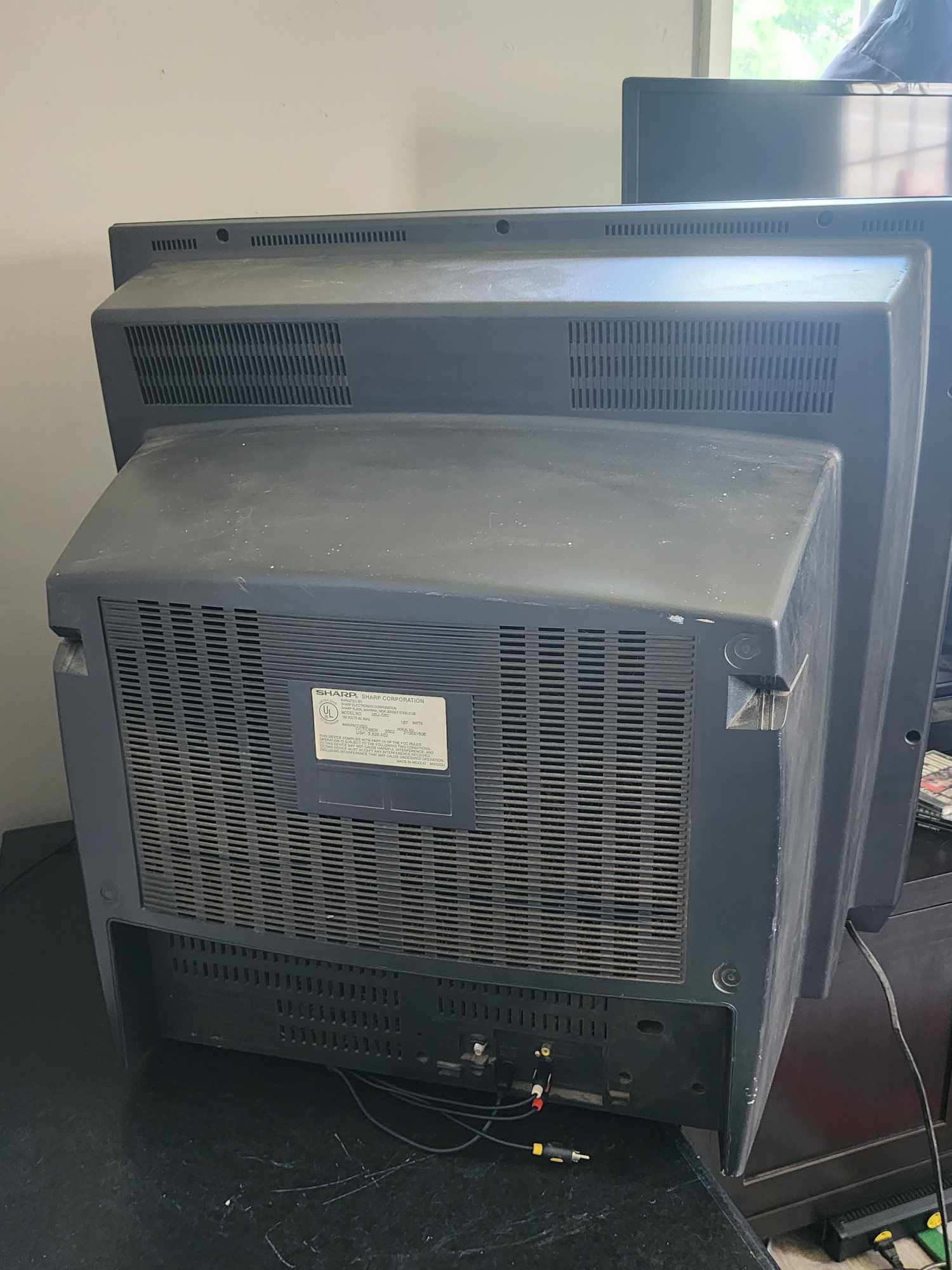

(Special thanks to Kenneth H. for the pics!)
Manuals
Notes
S-video quality is a bit flawed, as even when you turn sharpness down, you get haloing. The Toshiba jungle chips of this era (TA or TB1251/2/3) seem to have luma transition errors in the signal, resulting in haloing artifacts. Fortunately, it may be possible to mod for RGB.

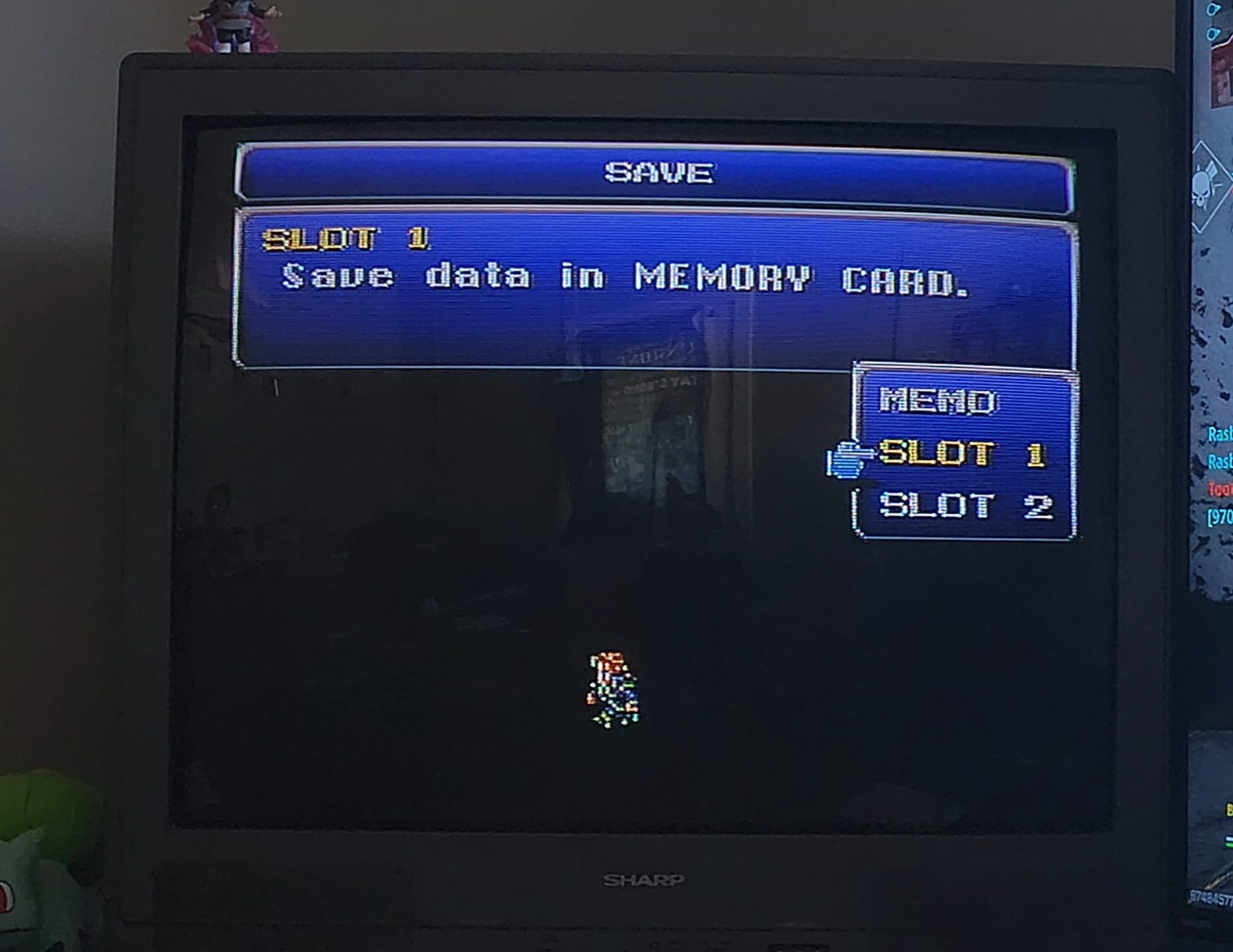

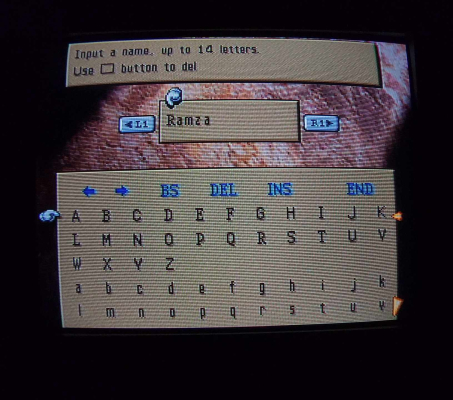

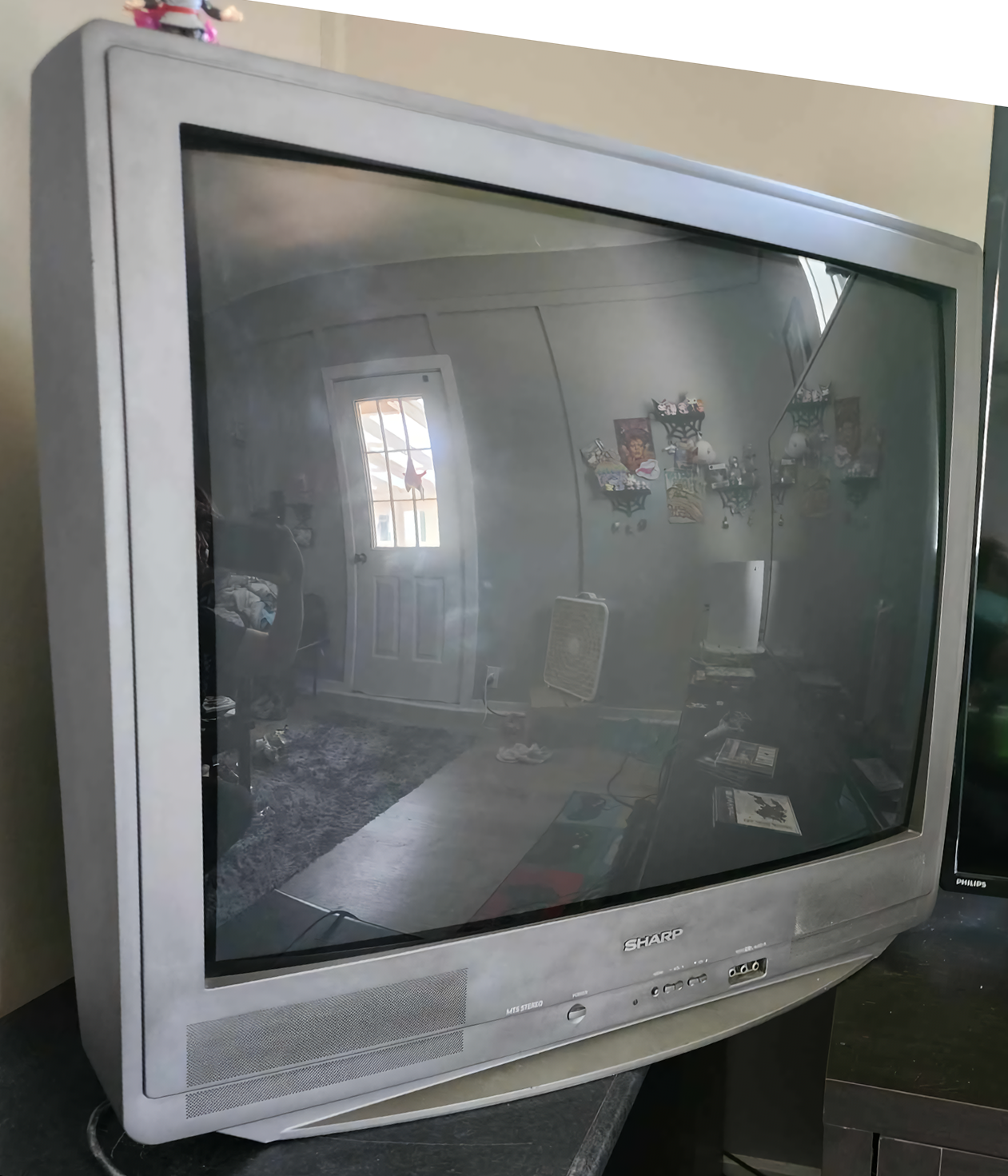

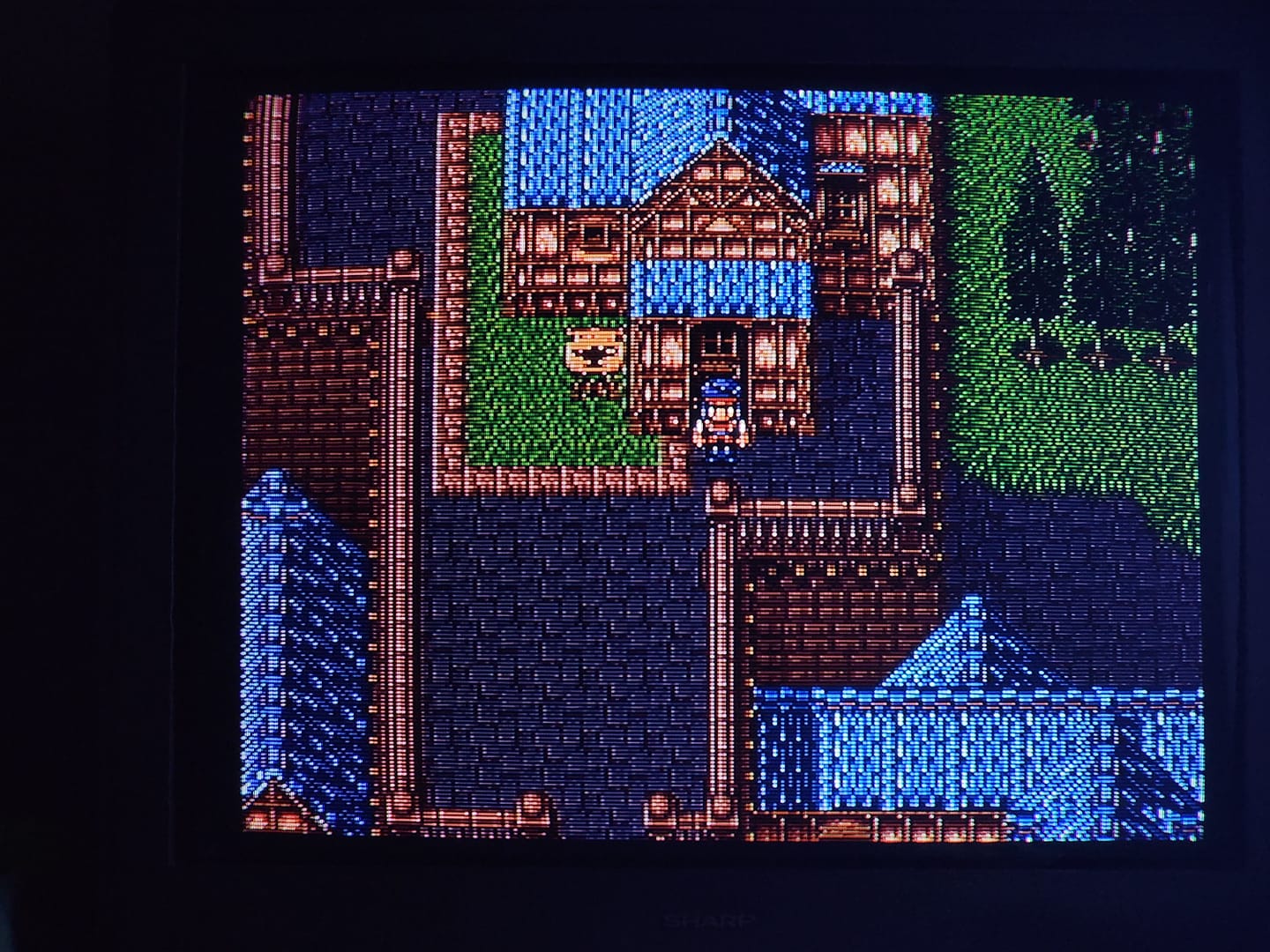

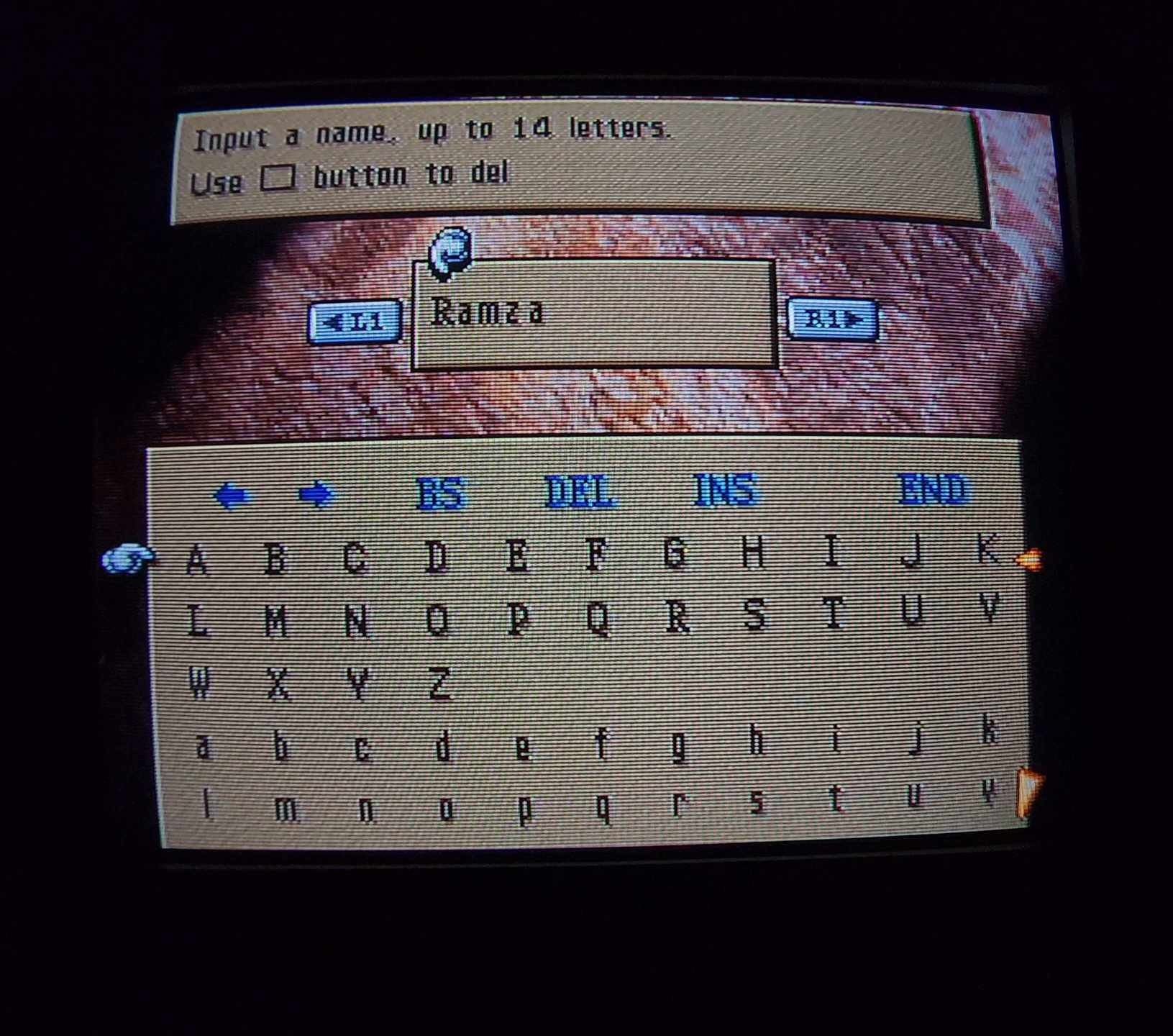

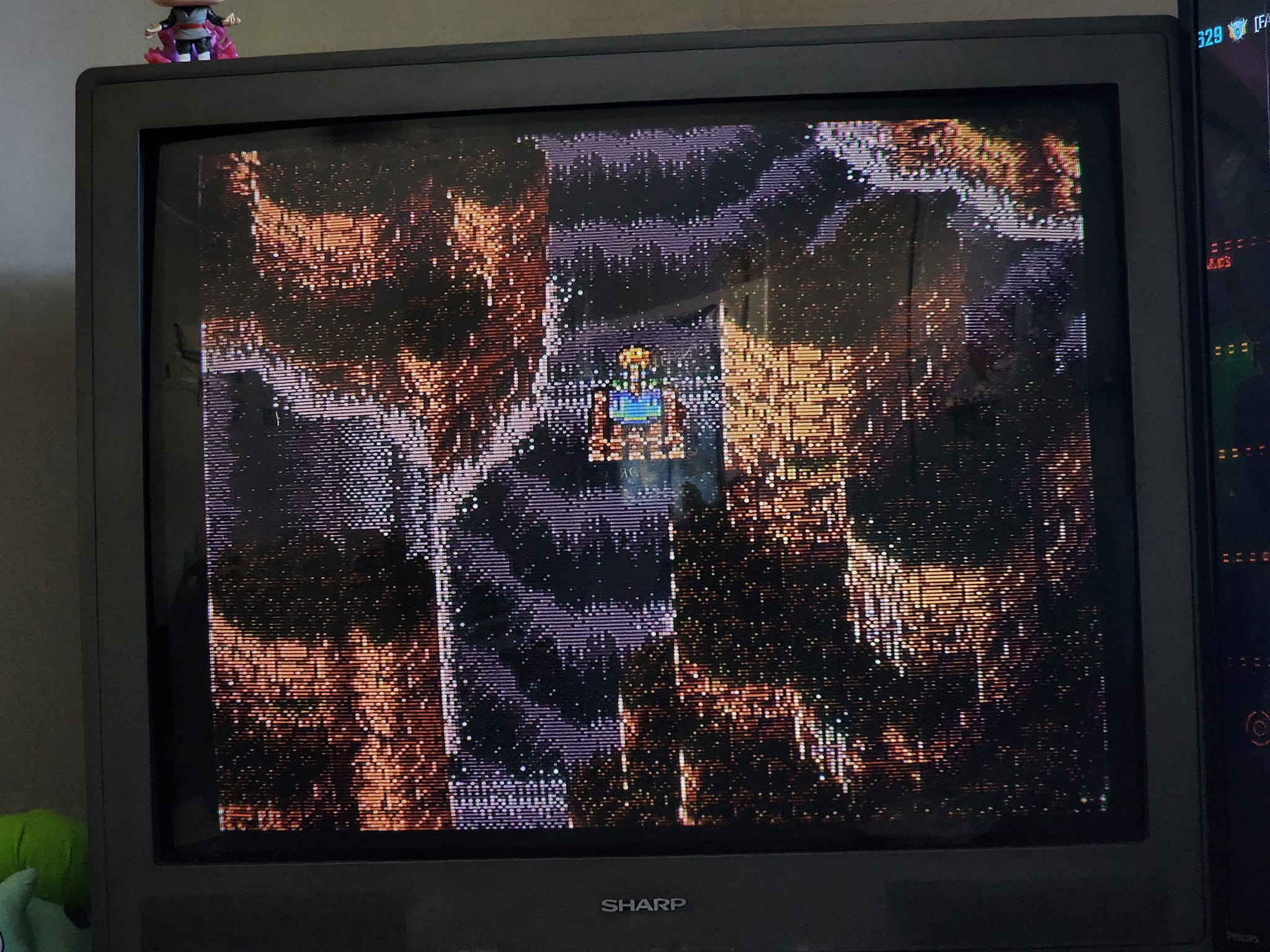

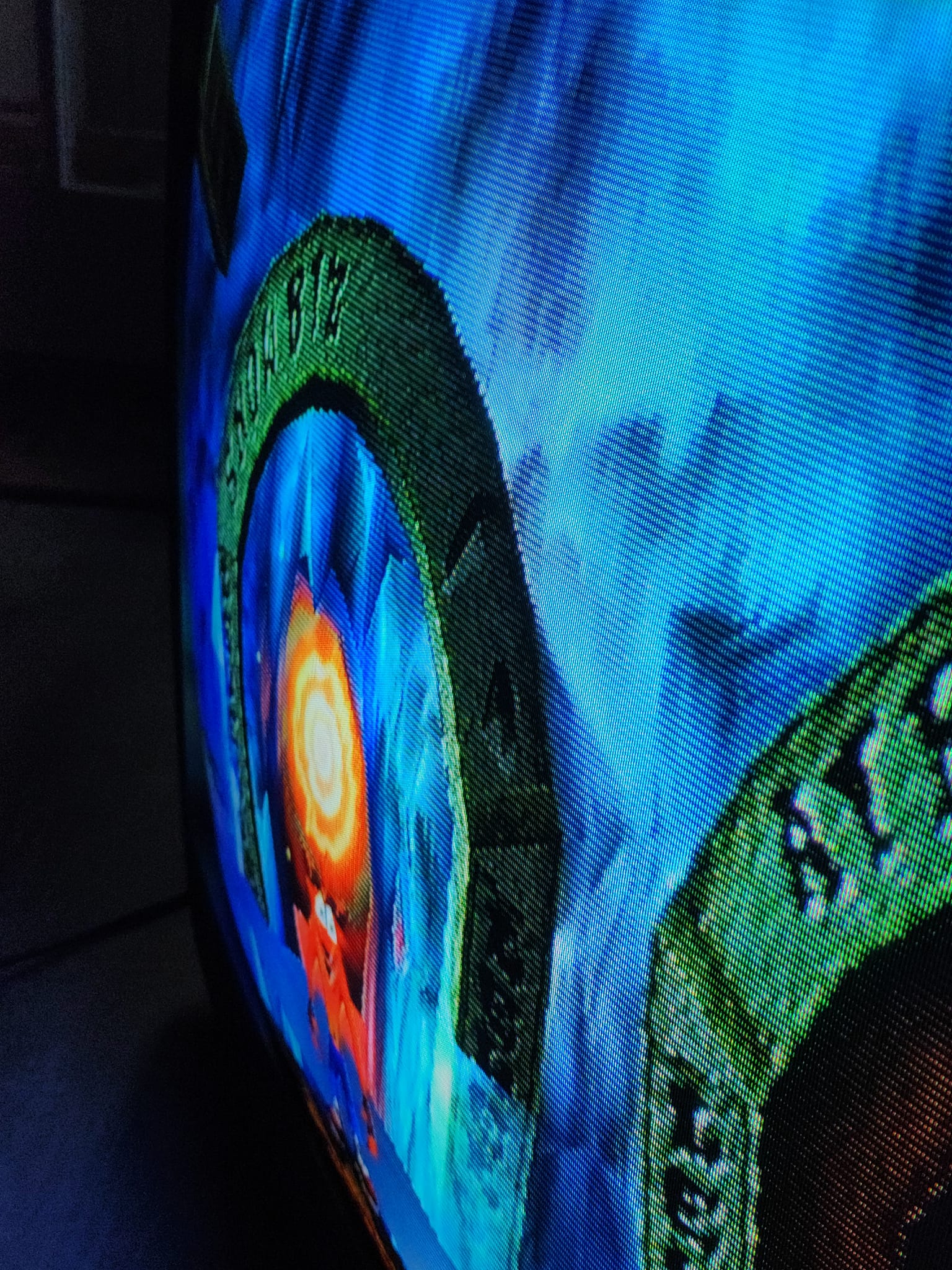

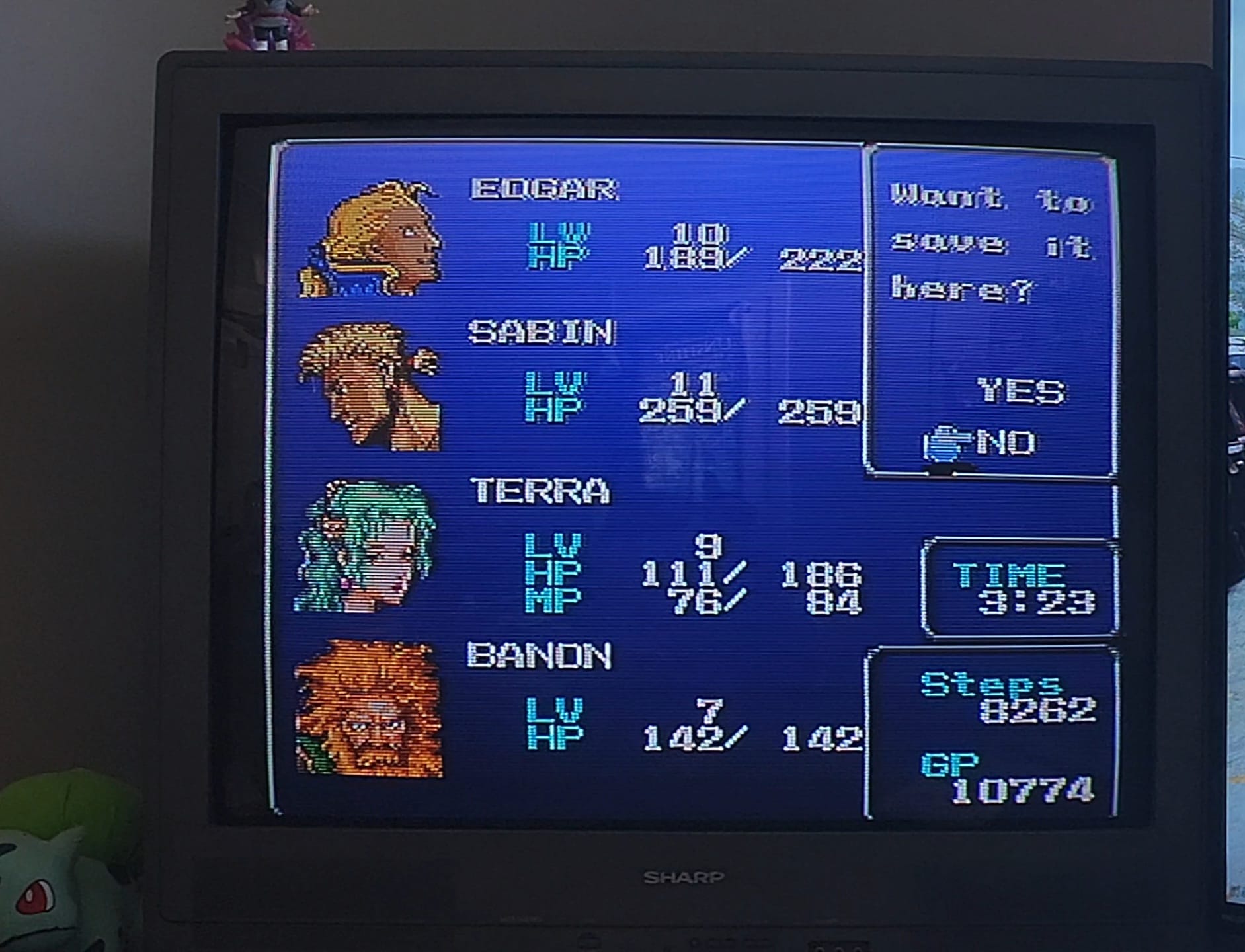

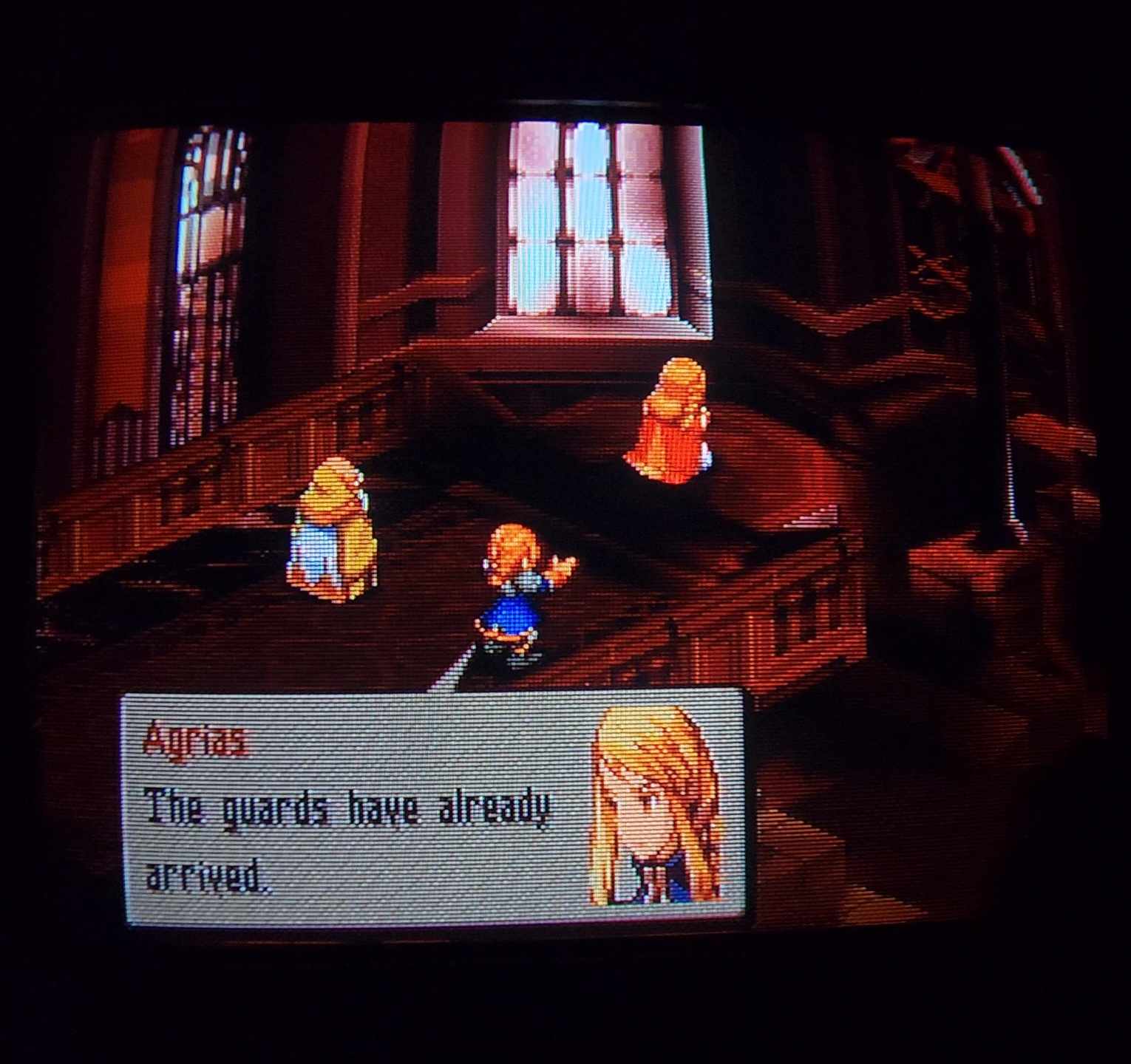

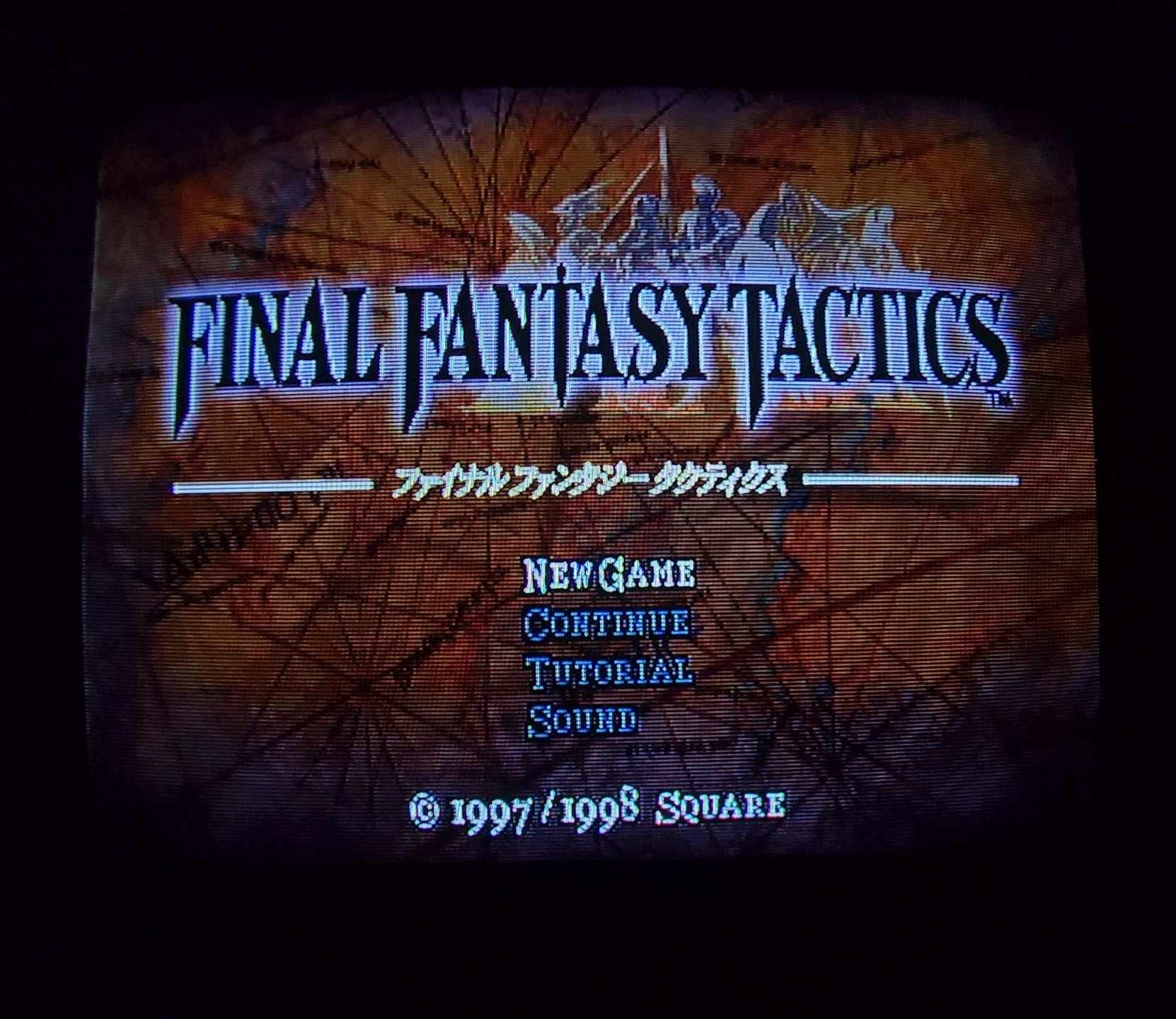

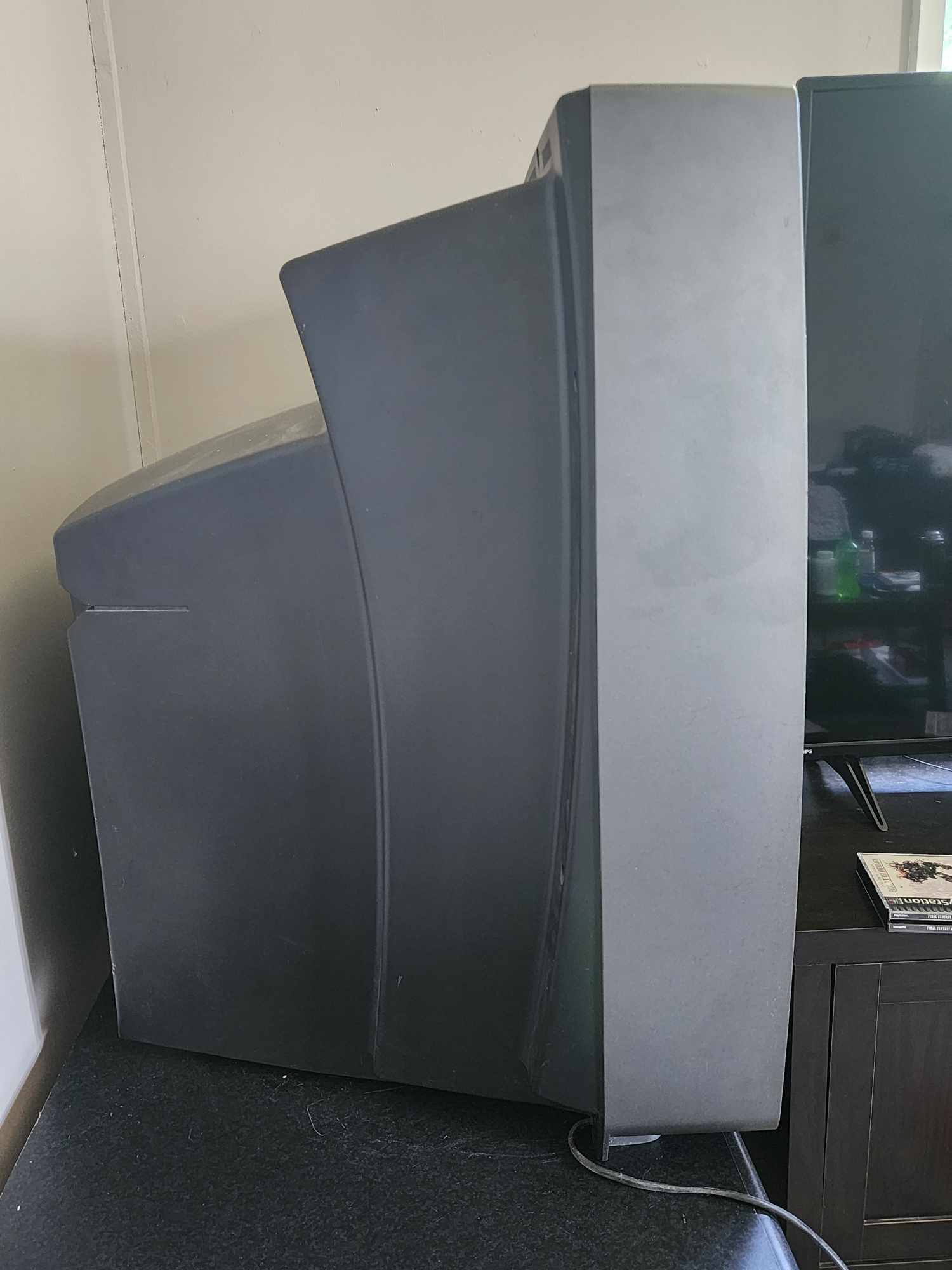

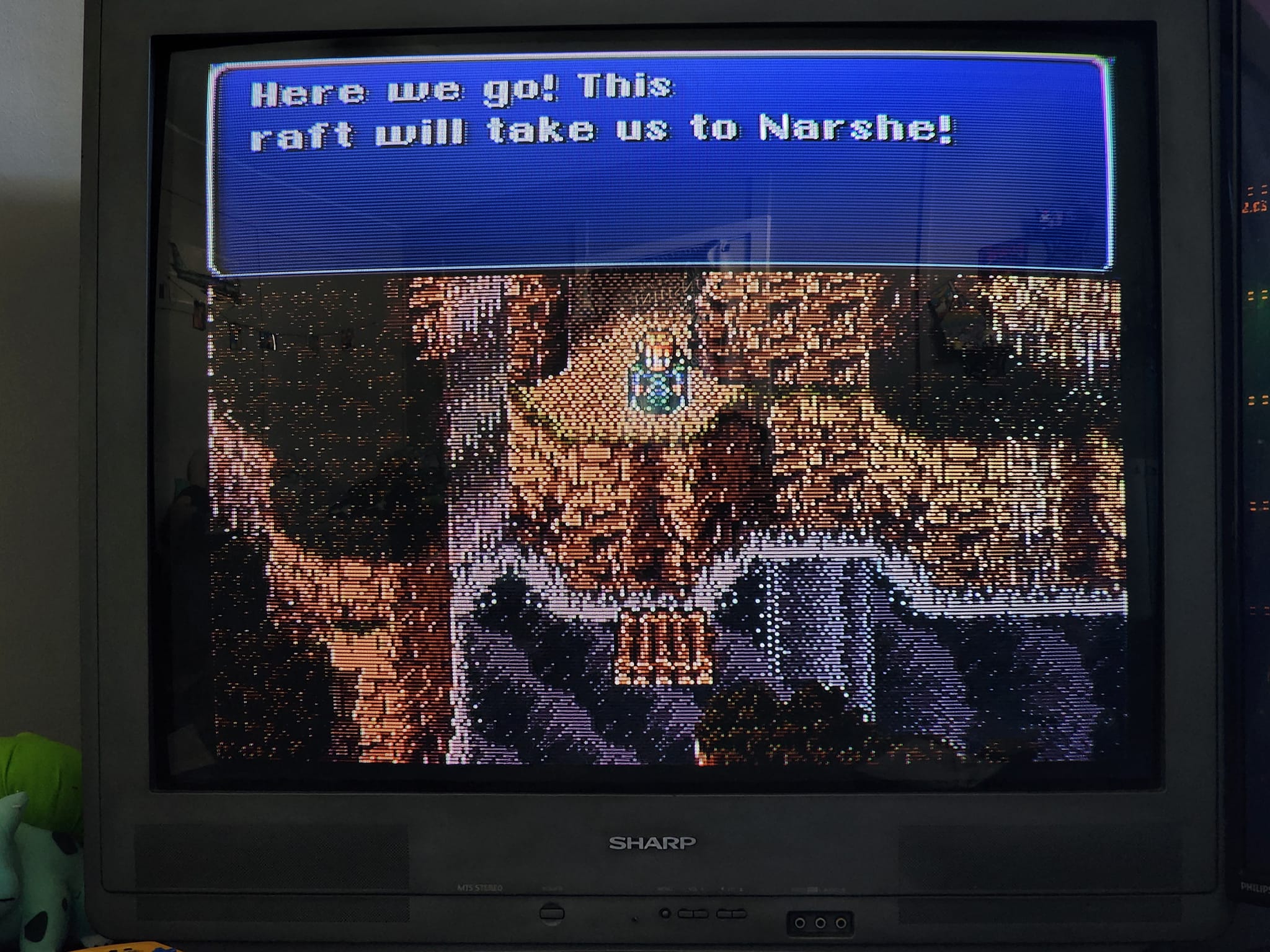

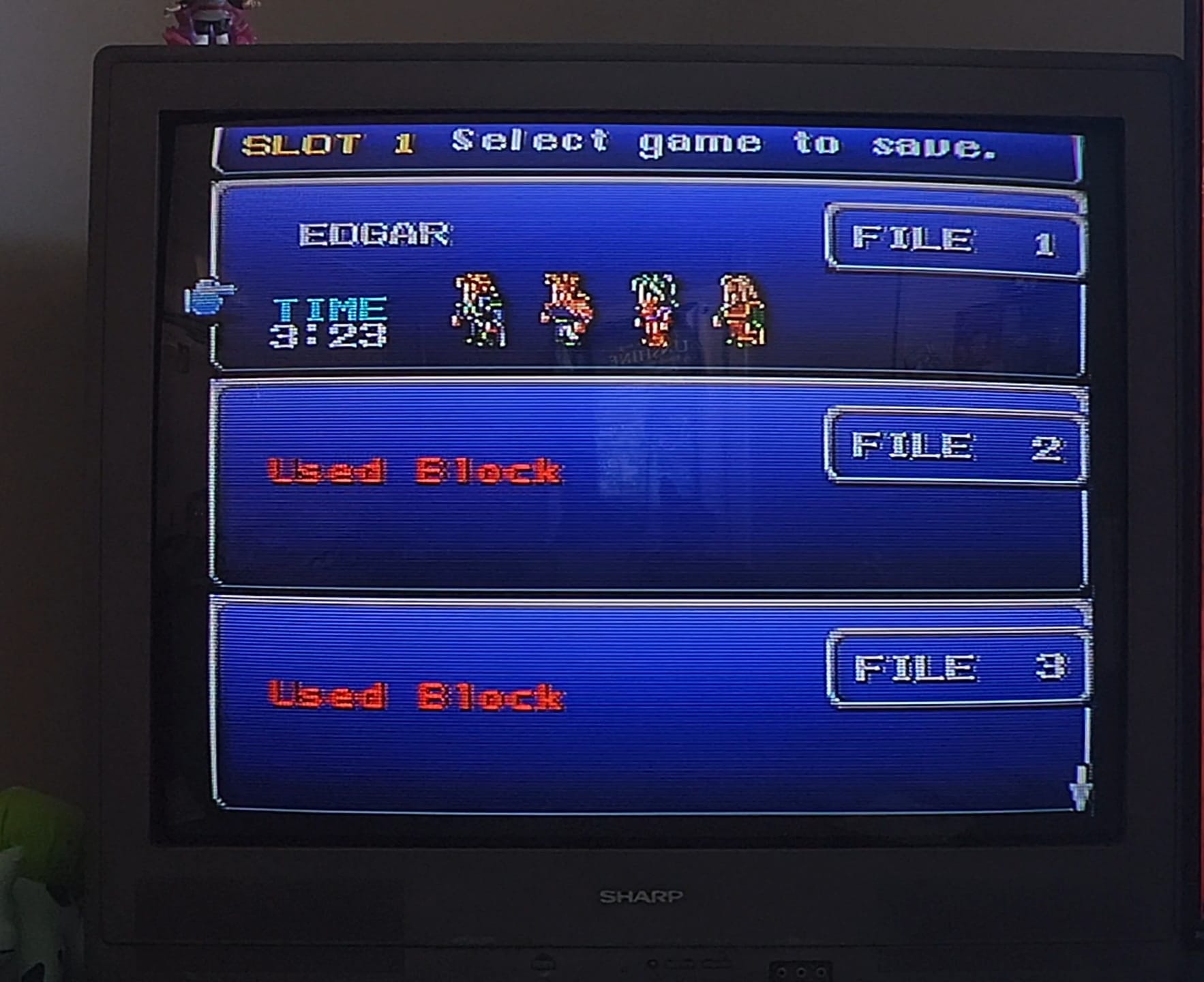

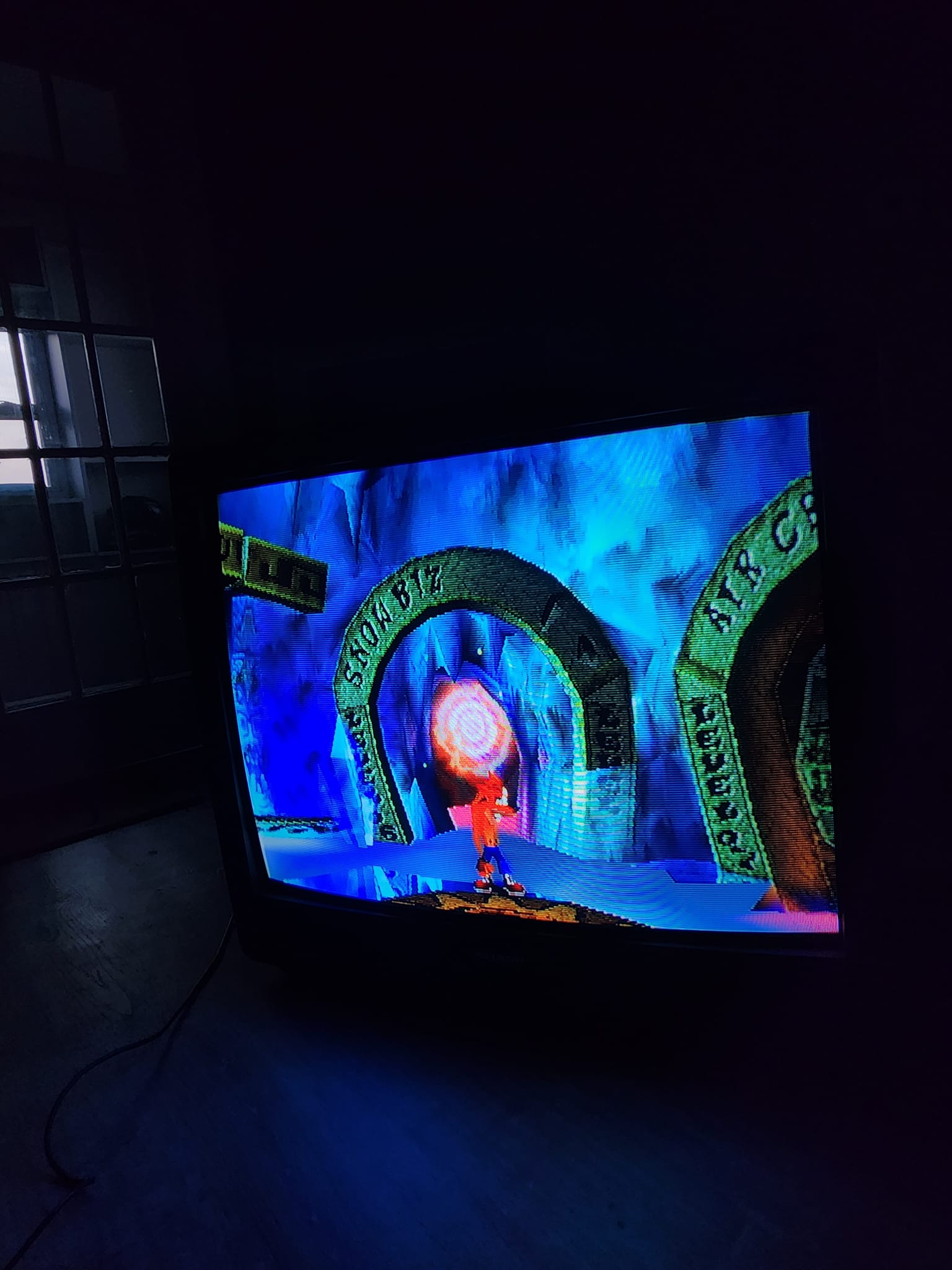

Gallery
















Specifications | |
---|---|
Brand: | Sharp |
Manufacturer: | Sharp |
Model: | 36U-S60 |
Series: | SU |
Viewable Size: | 36" |

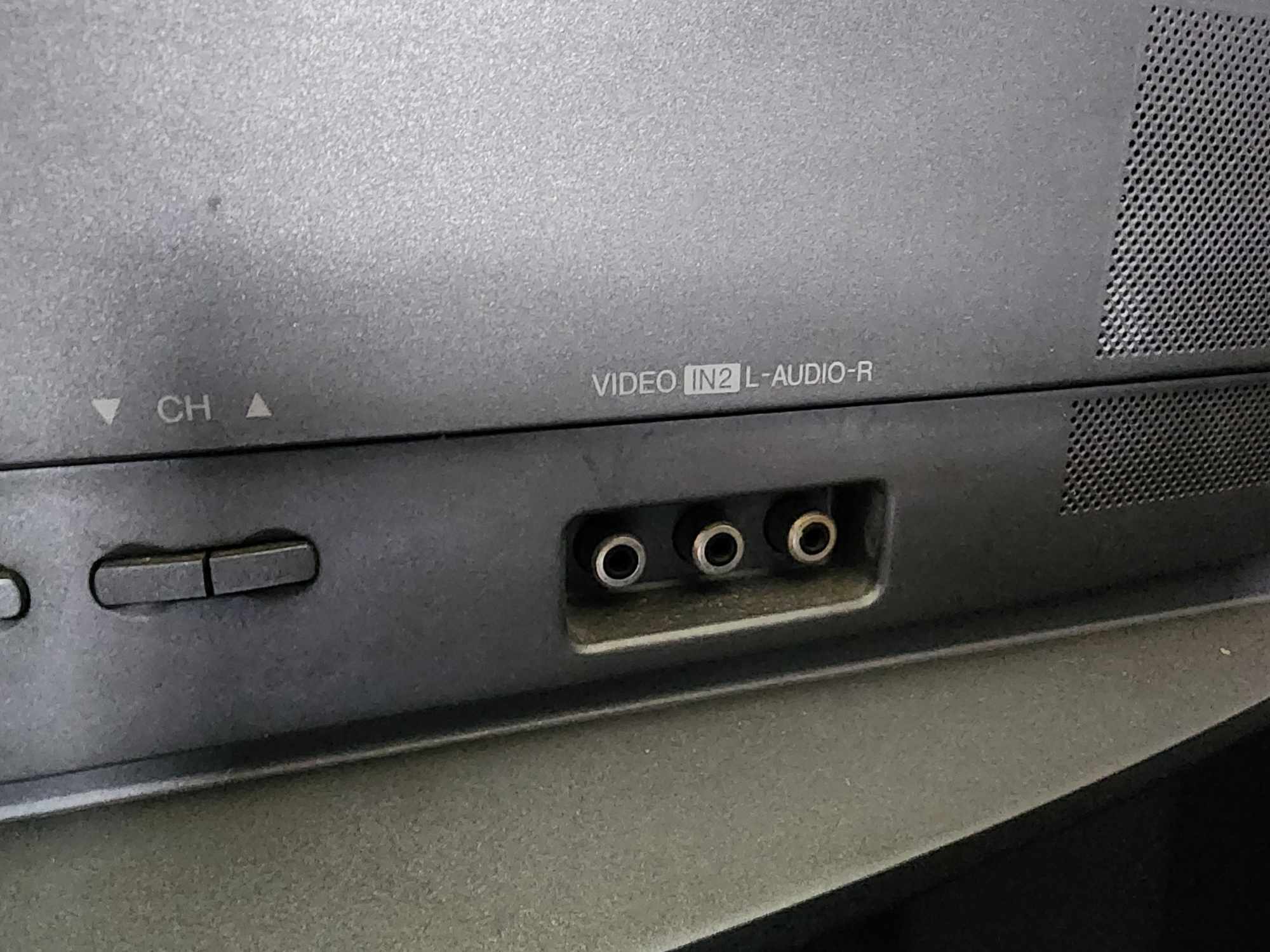

Inputs: | Composite, S-Video, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle: | Toshiba, TB1252CN, TB1252 |
Comb Filtering: | 2-Line Digital |
Comb Filter IC: | TC90A45F |
Flyback: | RTRNFA007WJZZ |
Focus Type: | Single |
Tube: | Toshiba , A90AKB50X , A90AKB90X01 |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Speakers: | Stereo, 3W x 2 |
Remote: | G1324SA |
Chassis: | MS-B |
Weight: | 152.1 lbs (69 kg) |
Dimensions (W/H/D): |
887 x 786 x 627 mm
(34.9 x 30.9 x 24.6") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2002 |
MSRP: | 599 USD |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
