Sony BVM-D32E1WU

Andy King, Nick Hoyle
March 4, 2025, 6:36 pm

Summary

Legendary 32" flat Trinitron widescreen broadcast monitor.

Manuals

Notes

1440i is not officially supported but the monitor accepts it just fine. It will be identified in the menus as 720p.

Gallery

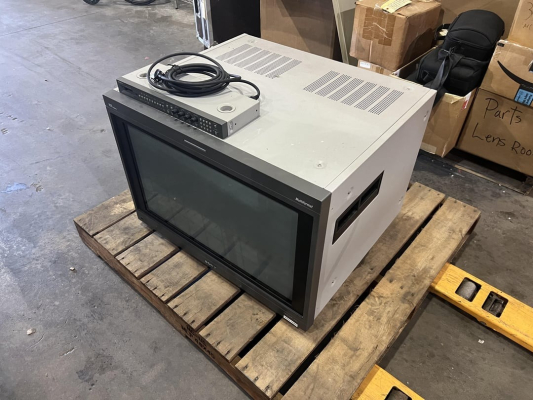

Sony BVM-D32E1WU Sony BVM-D32E1WU Sony BVM-D32E1WU Sony BVM-D32E1WU Sony BVM-D32E1WU Sony BVM-D32E1WU Sony BVM-D32E1WU Sony BVM-D32E1WU Sony BVM-D32E1WU Sony BVM-D32E1WU
Specifications
Brand: Sony
Manufacturer: Sony
Model: D32E1WU, D32E1WE
Series: BVM
Viewable Size: 30"
Inputs: Component YPbPr, RGB
Sync: CSYNC
Native Resolutions: 240p, 480i, 1080i, 1440i, 480p, 720p, 576p
Linecount: 1000 TVL
Horizontal Scan Range: 15 kHz, 45 kHz
Formats: NTSC, PAL, NTSC4.43, SECAM
Aspect: 16:9
Expansions: Input Cards
Adjustments: OSD Service Menu
Tube: Sony HR Trinitron , S76LTD20X , S76LTD21X
Mask: Aperture Grille
Pitch: 0.32 mm
Tint: None
Yoke: 1-451-521-11
Speakers: None
Remote: BKM-11R, BKM-10R
Weight: 206 lbs (93.4 kg)
Dimensions (W/H/D): 794 x 557 x 694 mm
(31.2 x 21.9 x 27.3")
Application: Professional
Cabinet Material: Metal
Launched: 2000
MSRP: 43000 USD
Country of Manufacture: Japan
Mounting: Rackable
Degaussing: Automatic on Power-on, Manual
Tag: Hall of Fame
