Summary

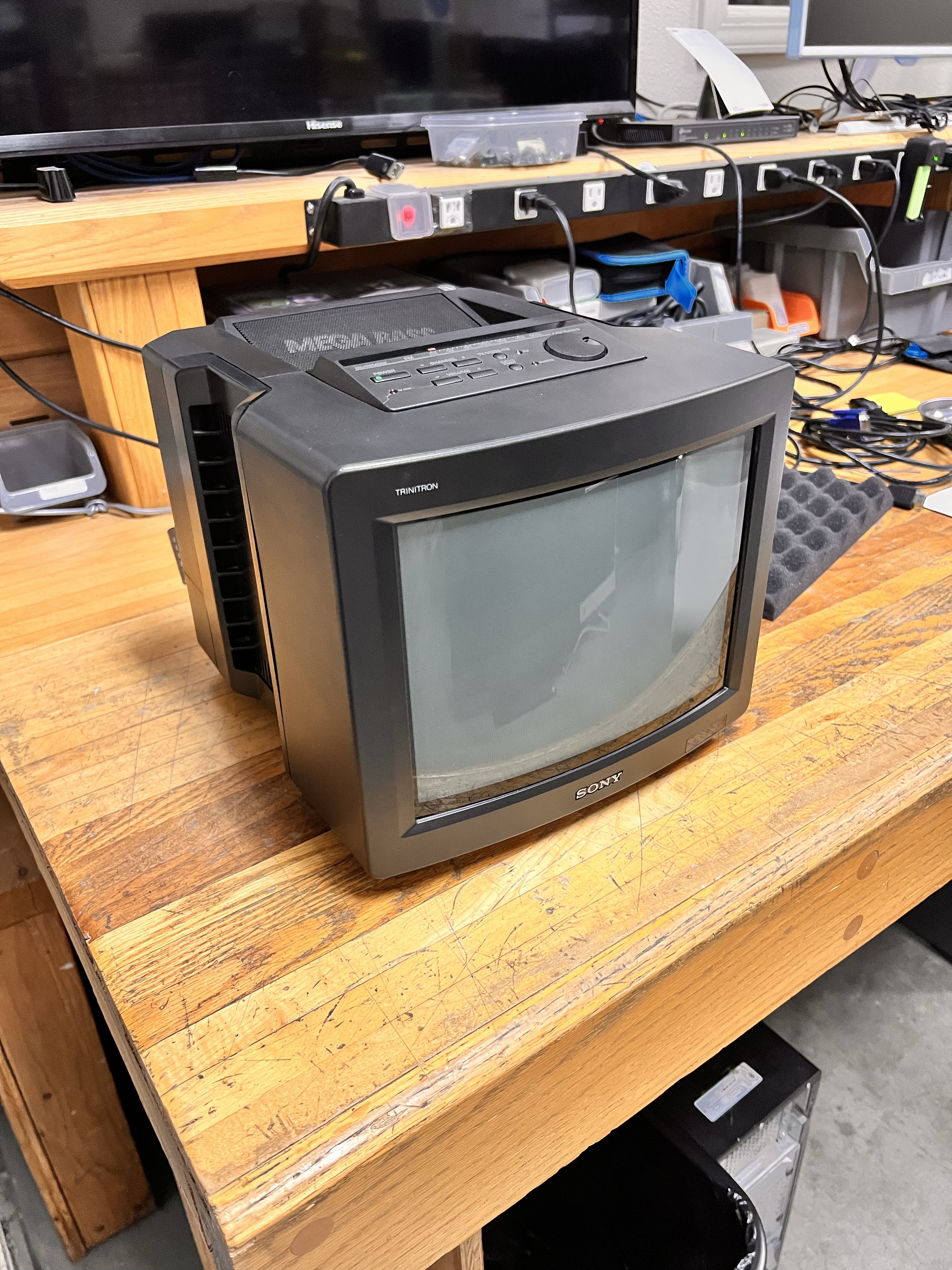

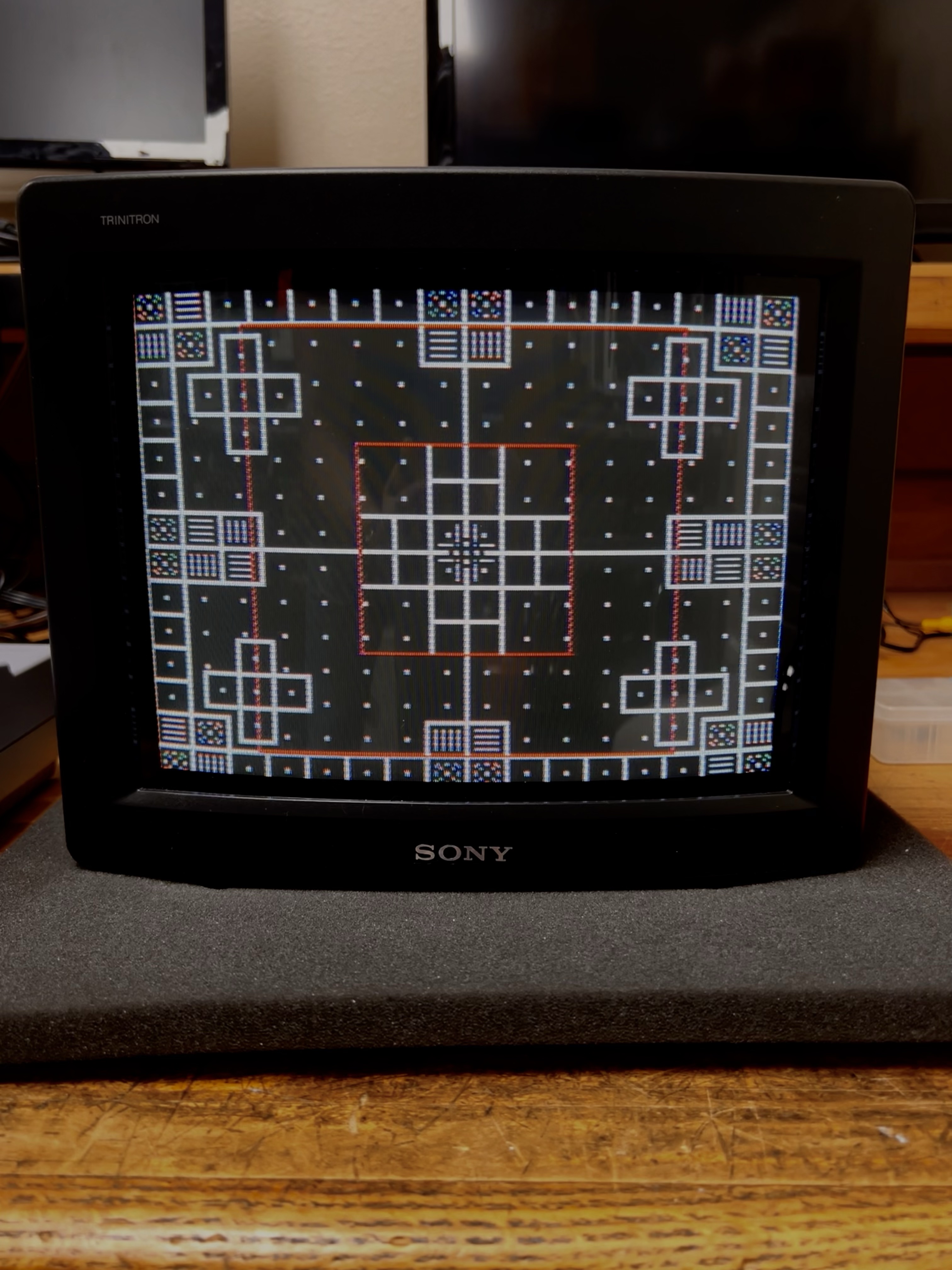

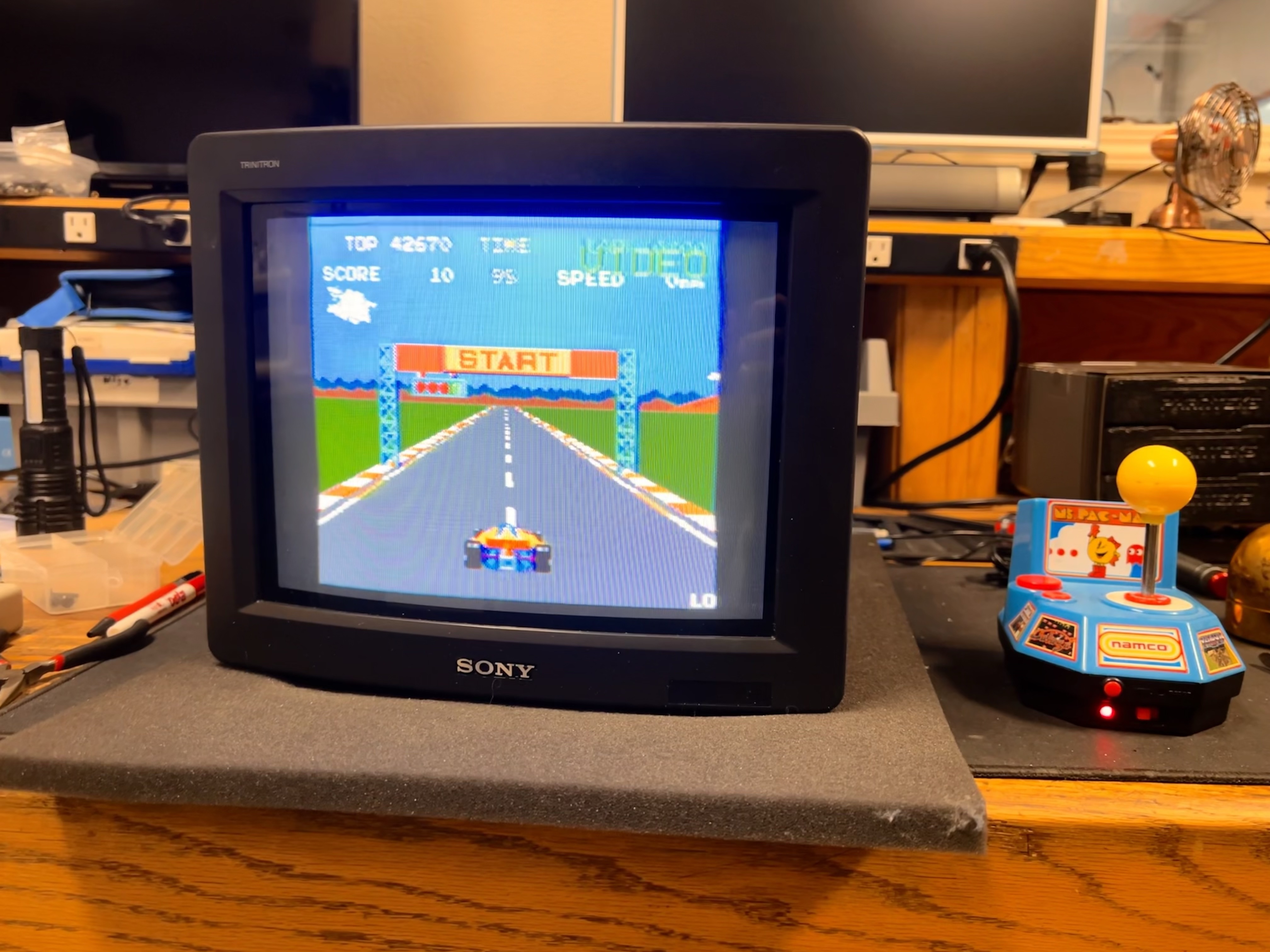

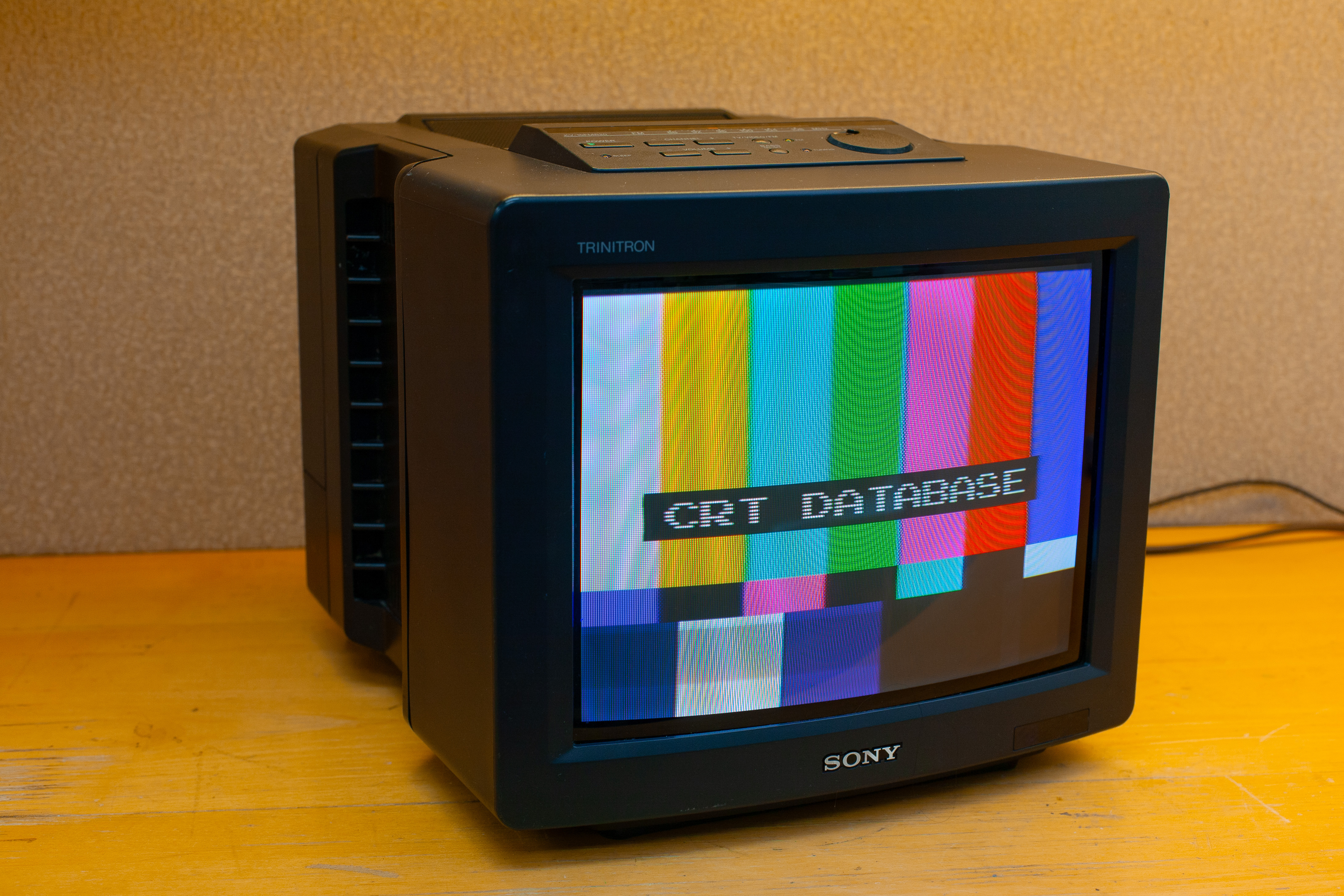

The Sony KV-10FMR20 is a small set with monitor/receiver capabilities and mega bass for a sound that is notable from such a small unit. This set will provide a solid picture in any room for a limited number of viewers. It is very effective for displaying video games and the sound can be piped through a pair of headphones.

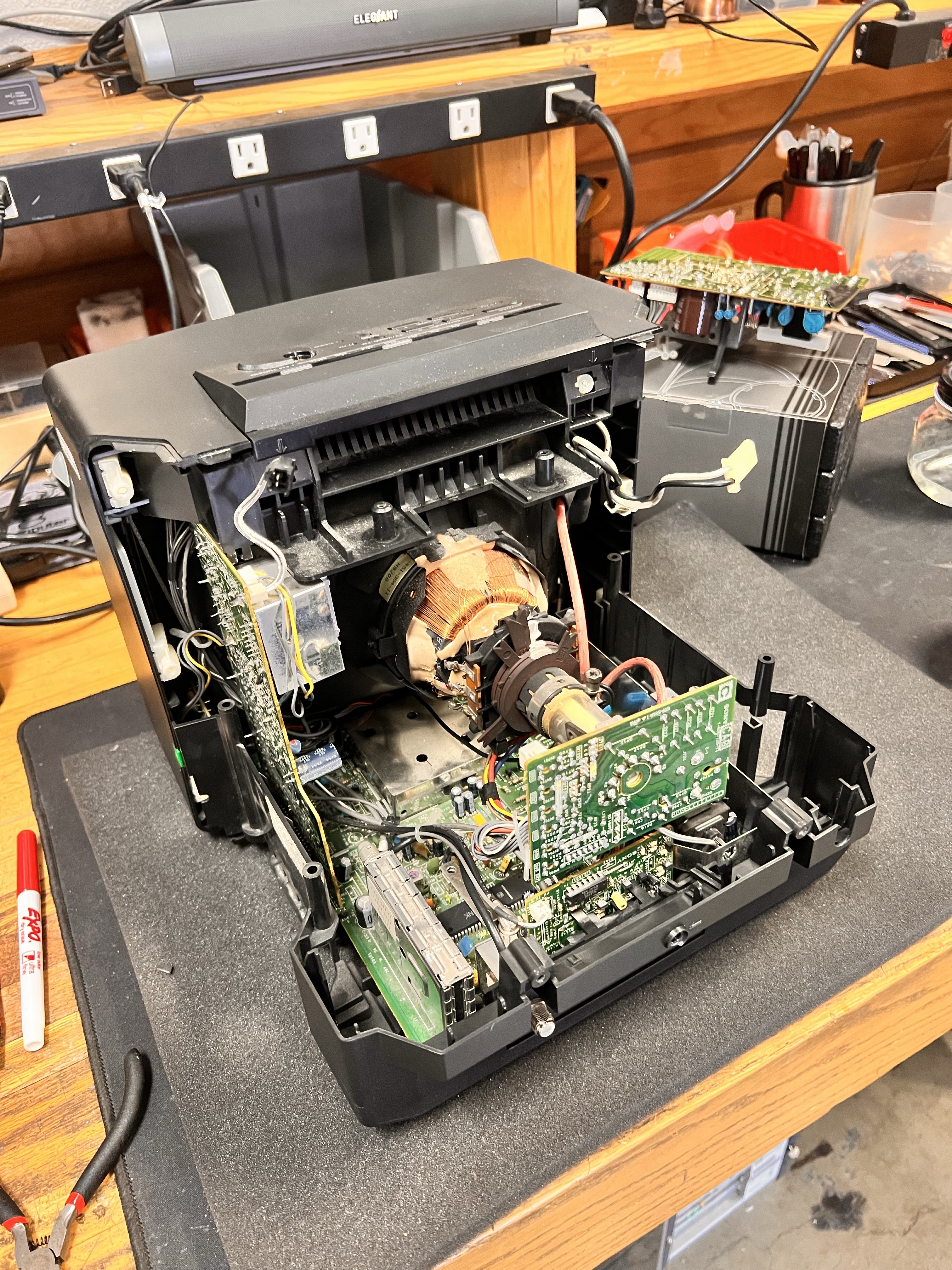

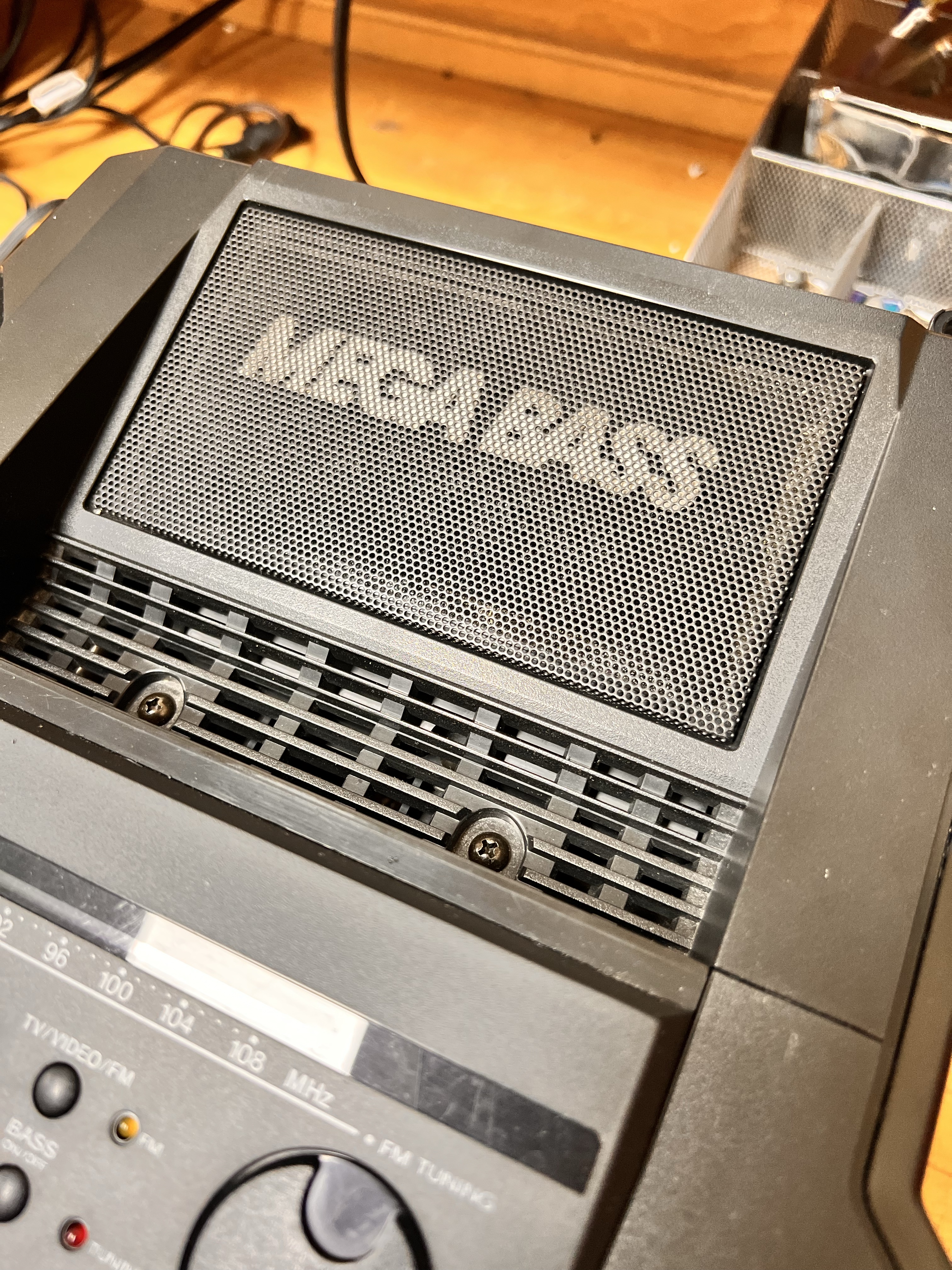

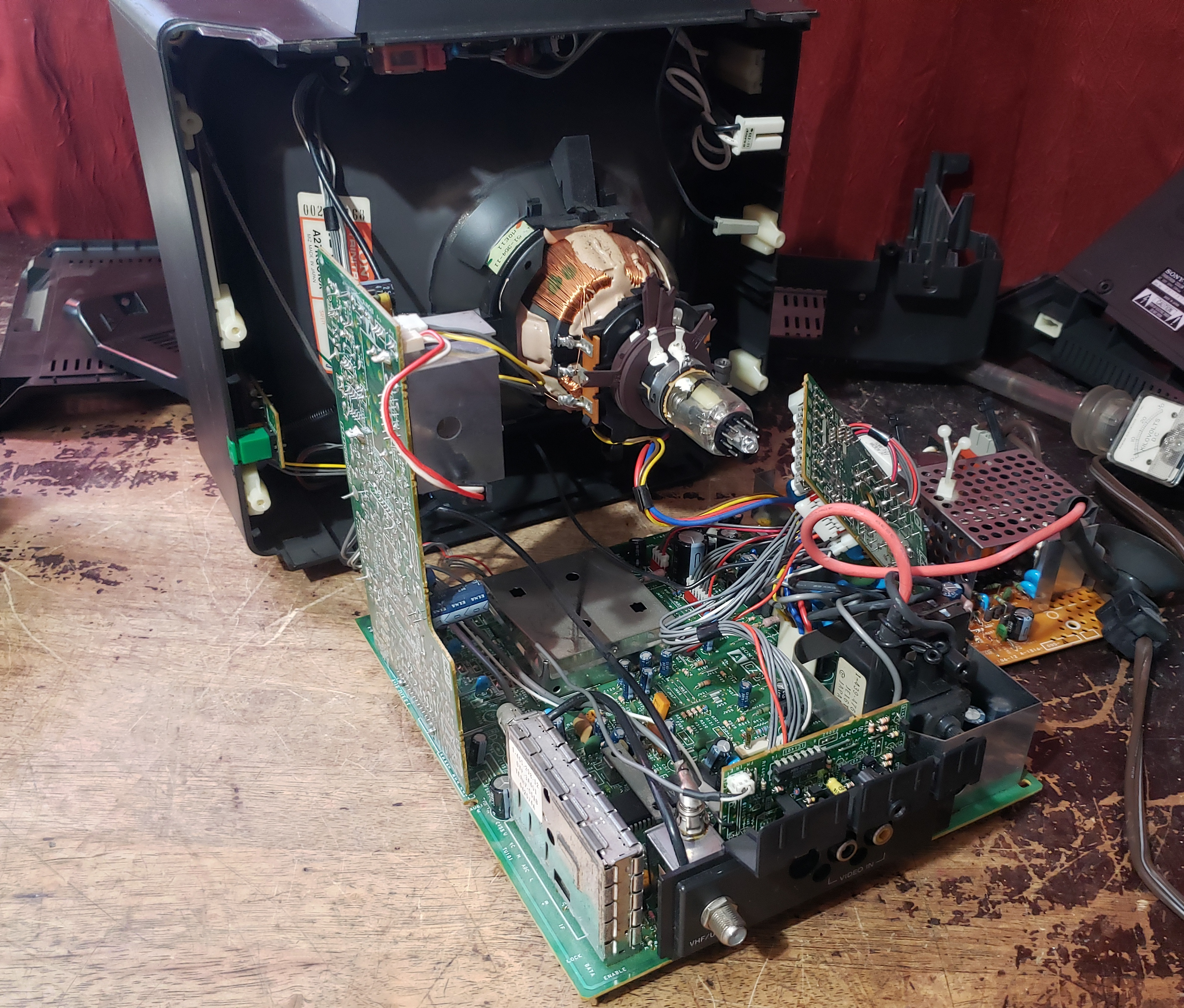

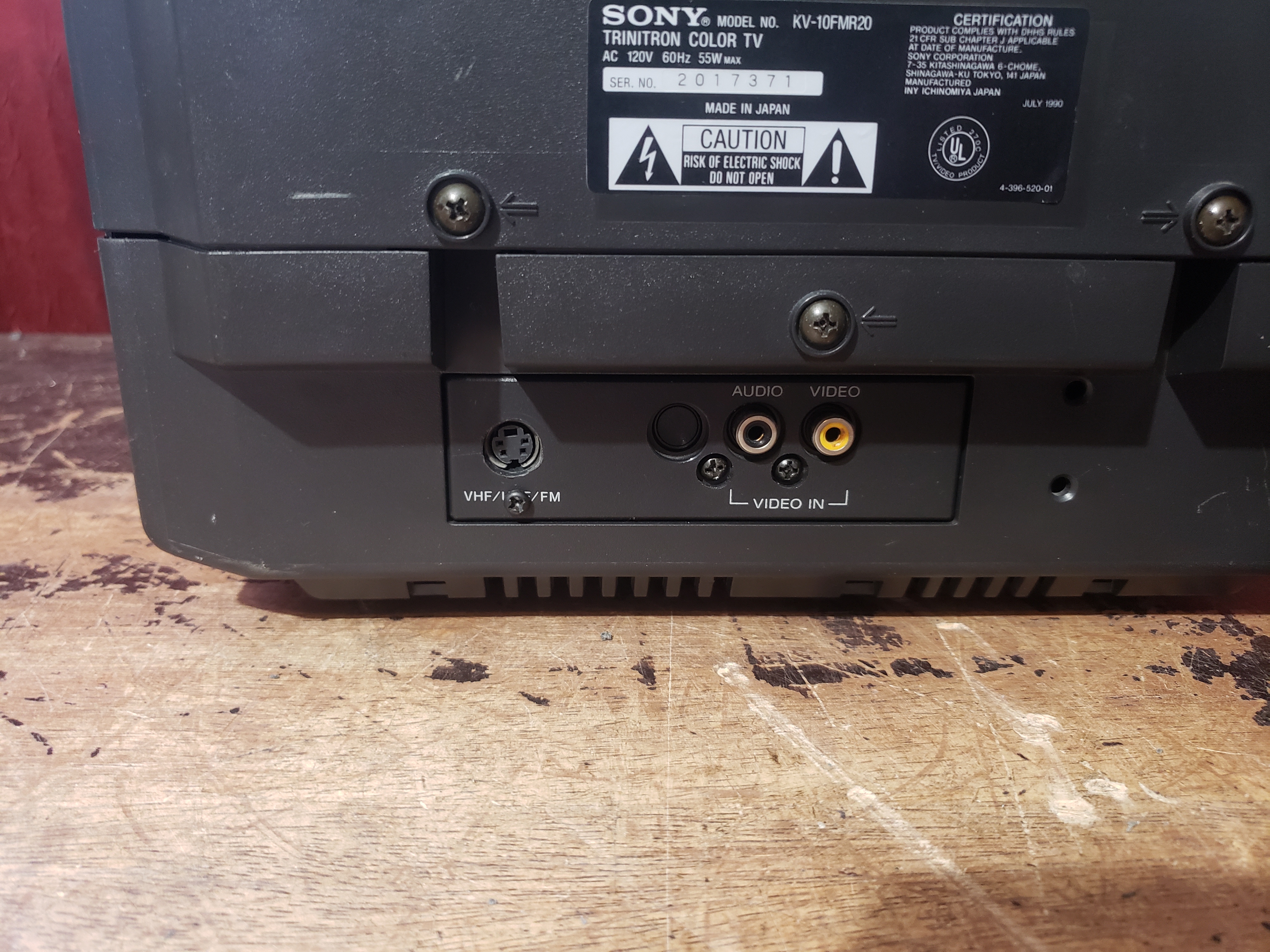

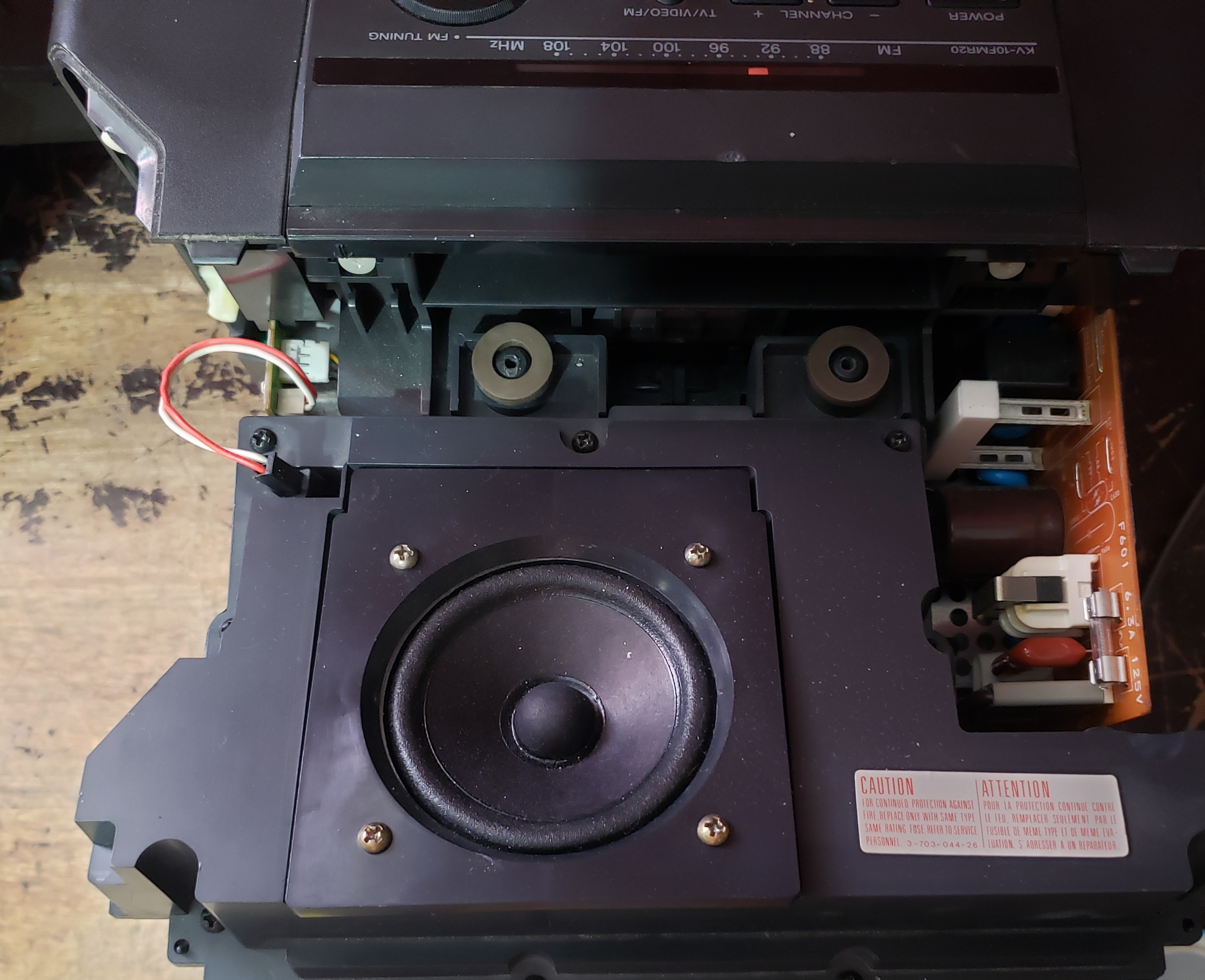

In addition to having composite video inputs and normal RF tuning, this also has a built in FM tuner for radio, but no AM. Sound has a MEGA BASS setting, but common for sets this old to have cracked speaker foam. Replacement speaker must be well shielded, as it sits near the purity/convergence rings and can crazily affect color and geometry.

Manuals

• Owner's Manual
• Service Manual

Mods and Repair Guides

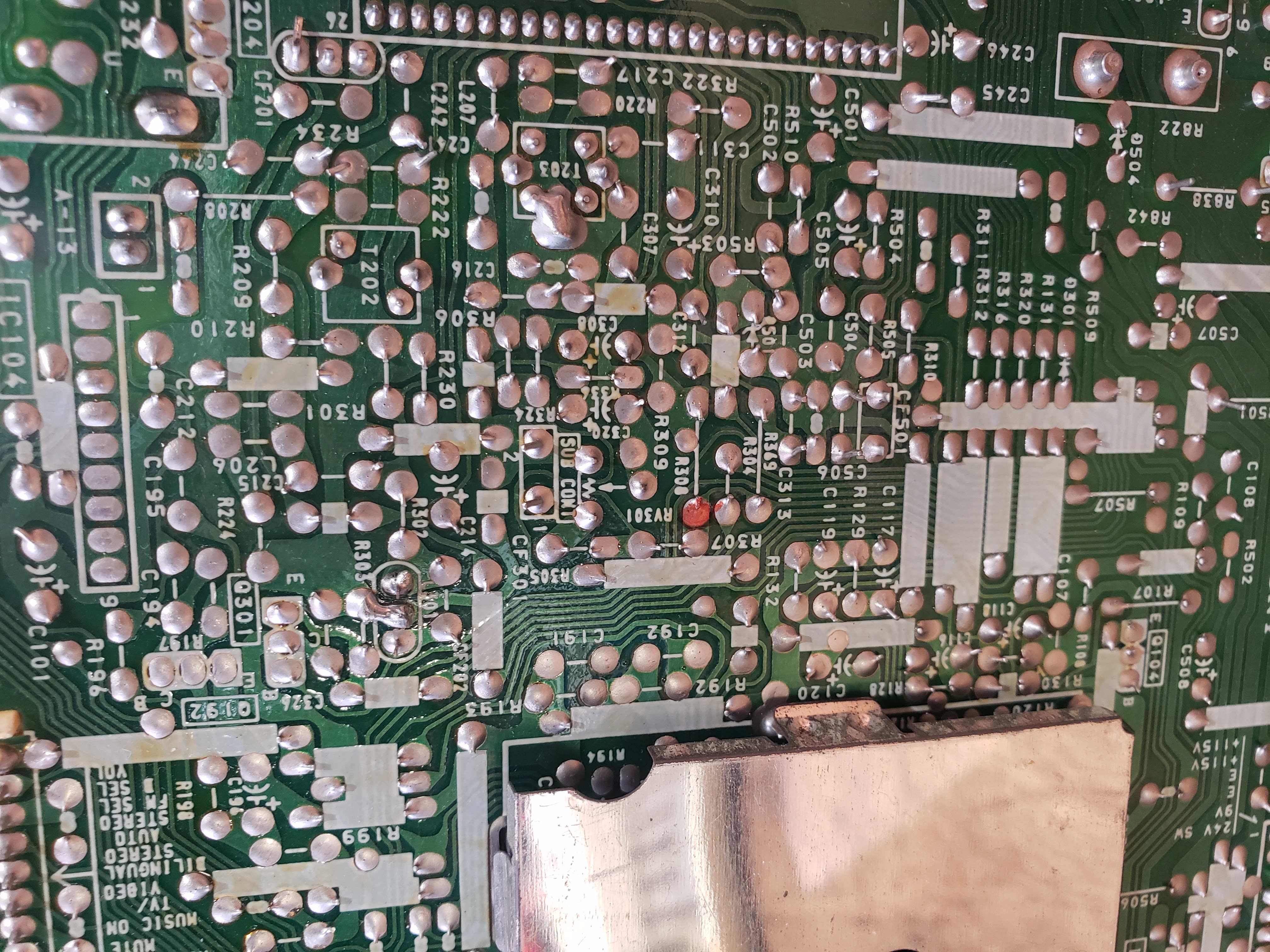

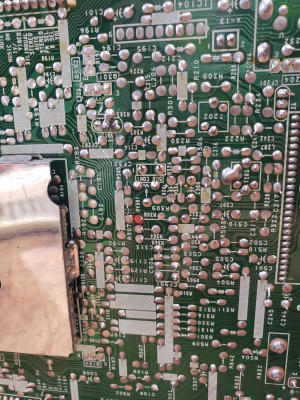

• A simple s-video mod can be achieved by sending luma to the composite input, lifting the input side of R308 and connecting chroma to it, and connecting s-video ground to cold-side ground. I marked the pad to lift from in marker on the bottom side of the main board in a pic in the gallery below. (-E.K.)

Media & Promo Materials

• Fry's Electronics Ad April 1990, $398
• Consumer Buying Guide 1990
• Consumer Buying Guide 1993
• Consumer Guide Best Buy Book 1993

Notes

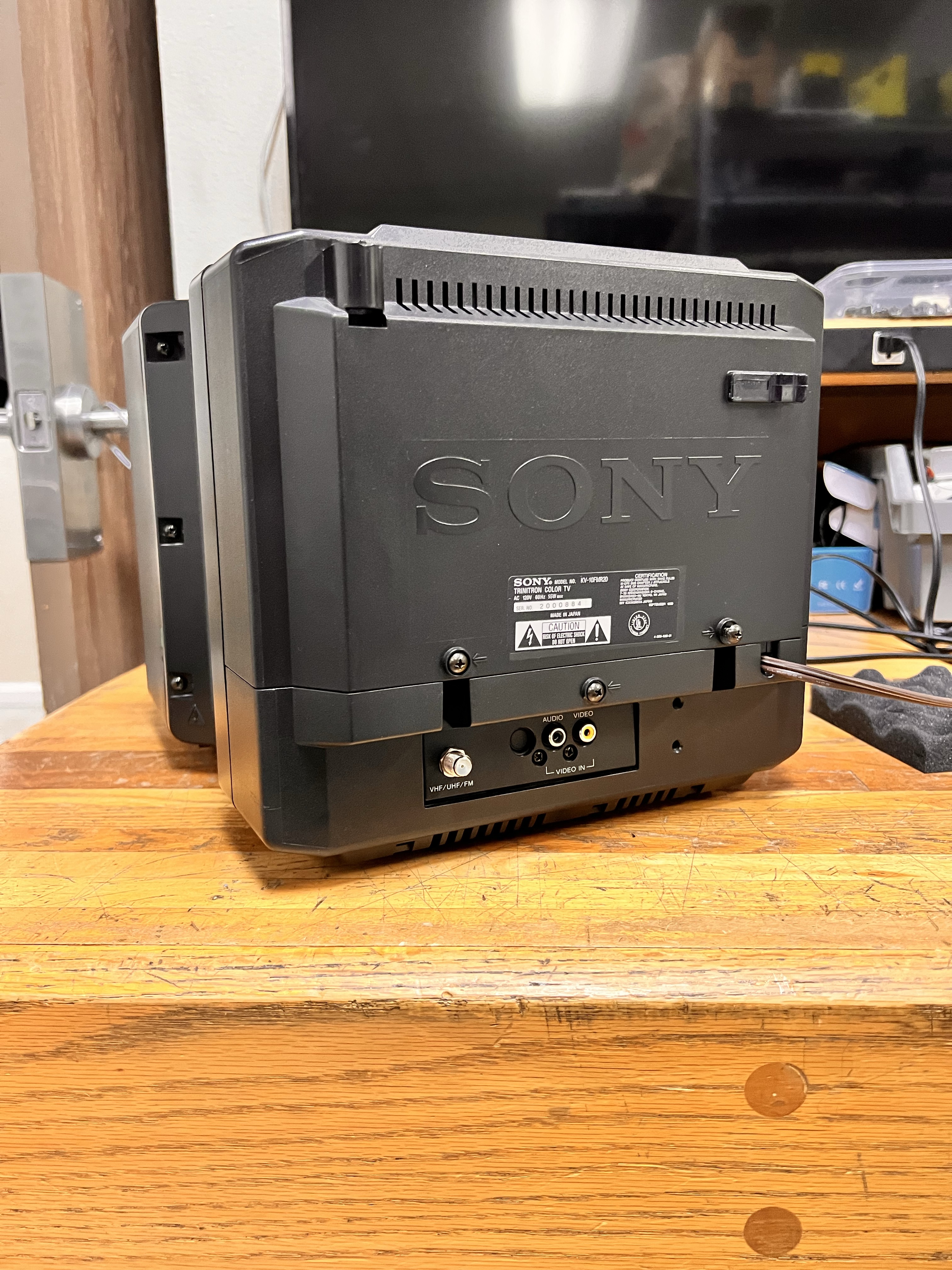

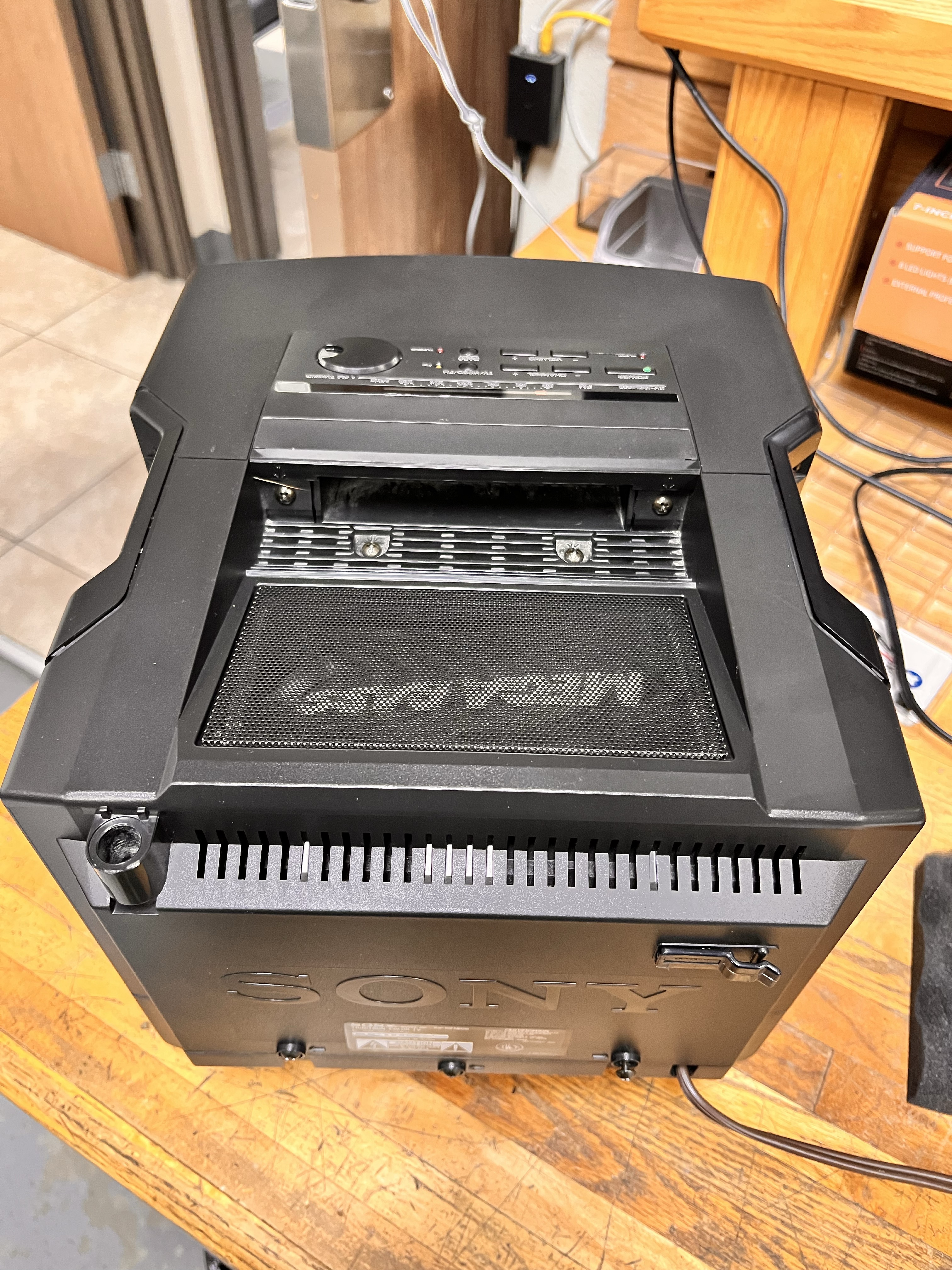

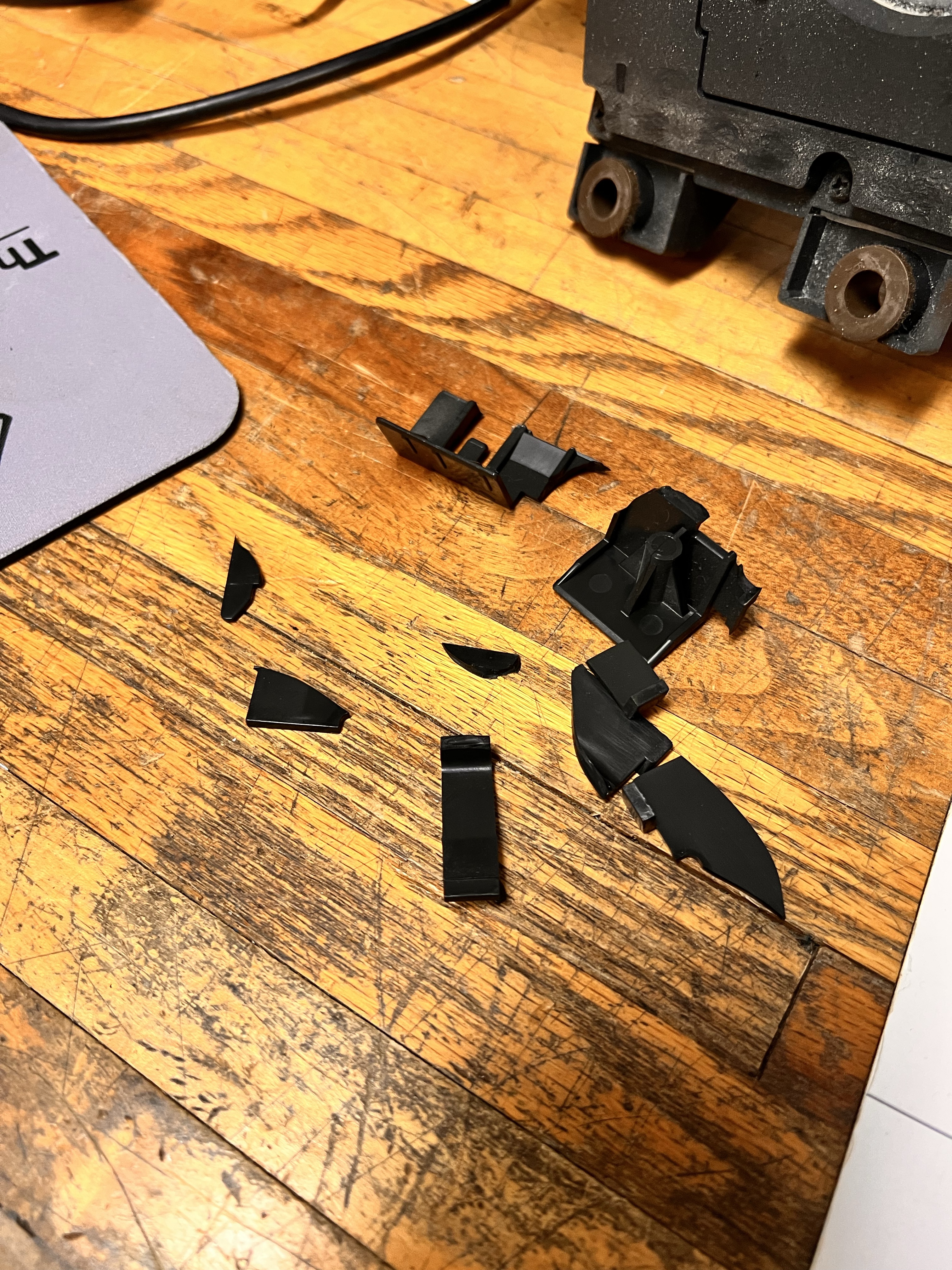

May suffer from brittle plastic on the input panel in the back and the button panel on top.

Baisc picture settings can only be adjusted with a remote. The lone speaker is attached to a large acoustic chamber.
