Summary
Portable 12" Trinitron by Sony, launched in 1980. Originally manufactured in Japan.

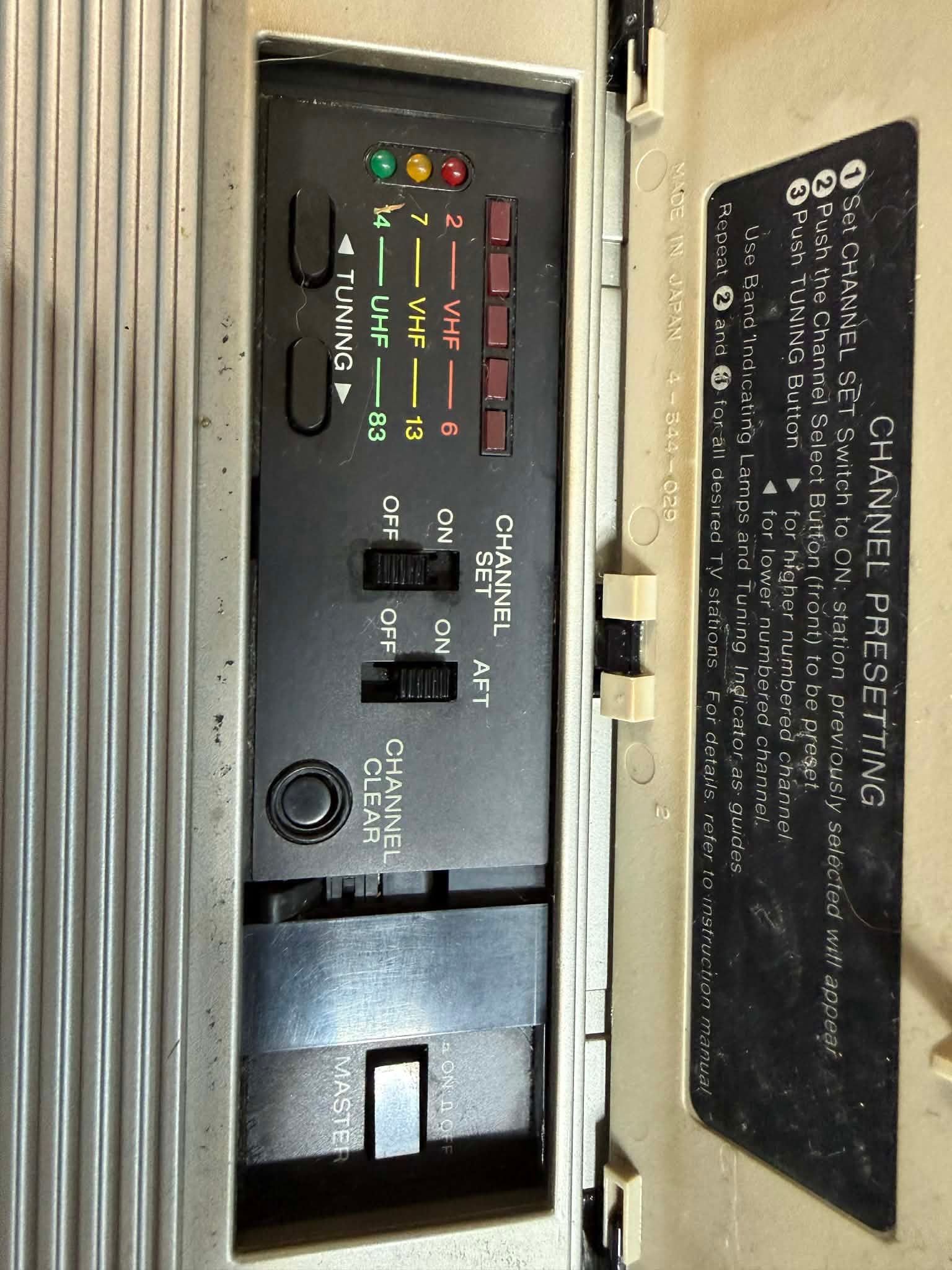

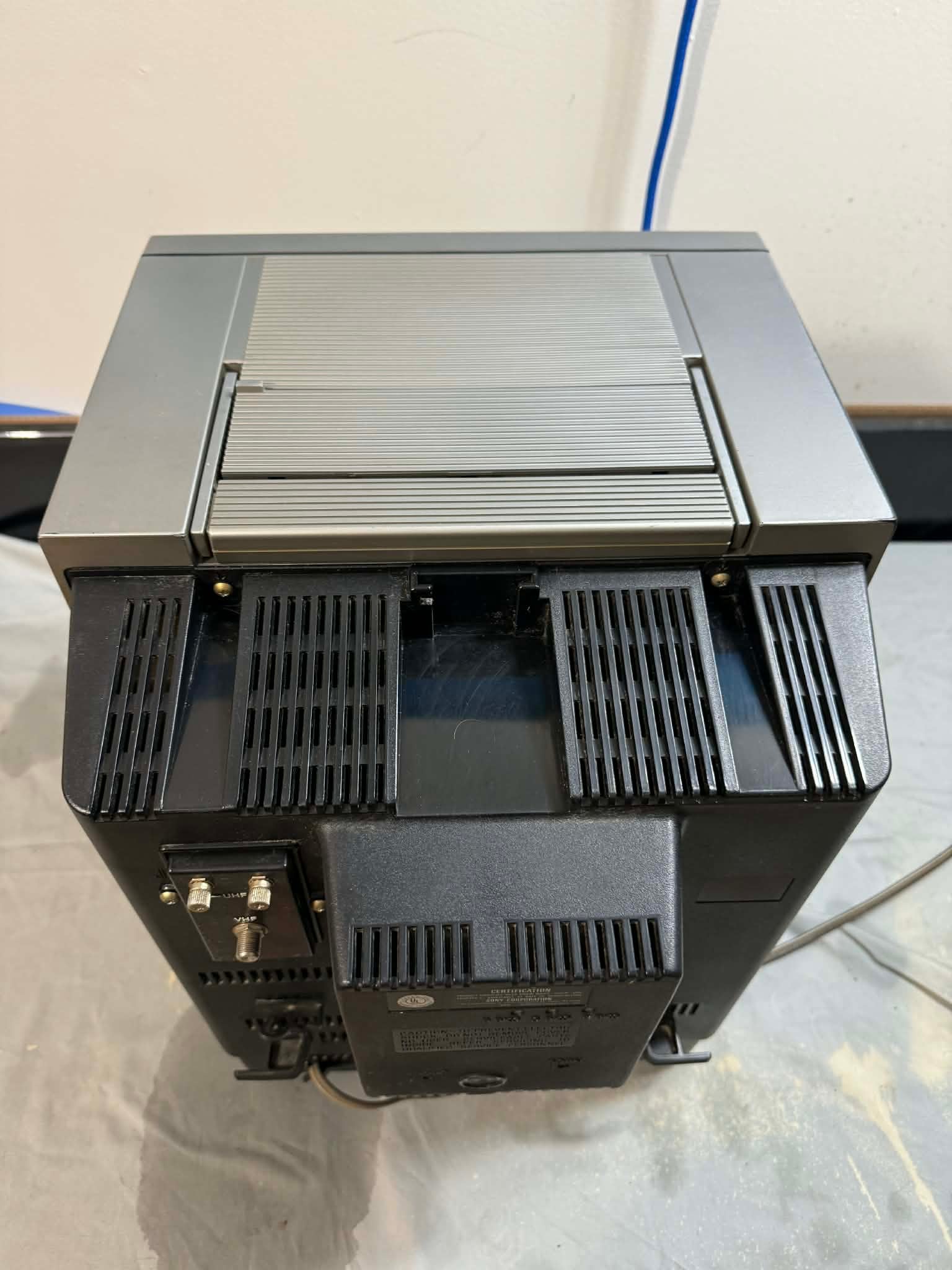

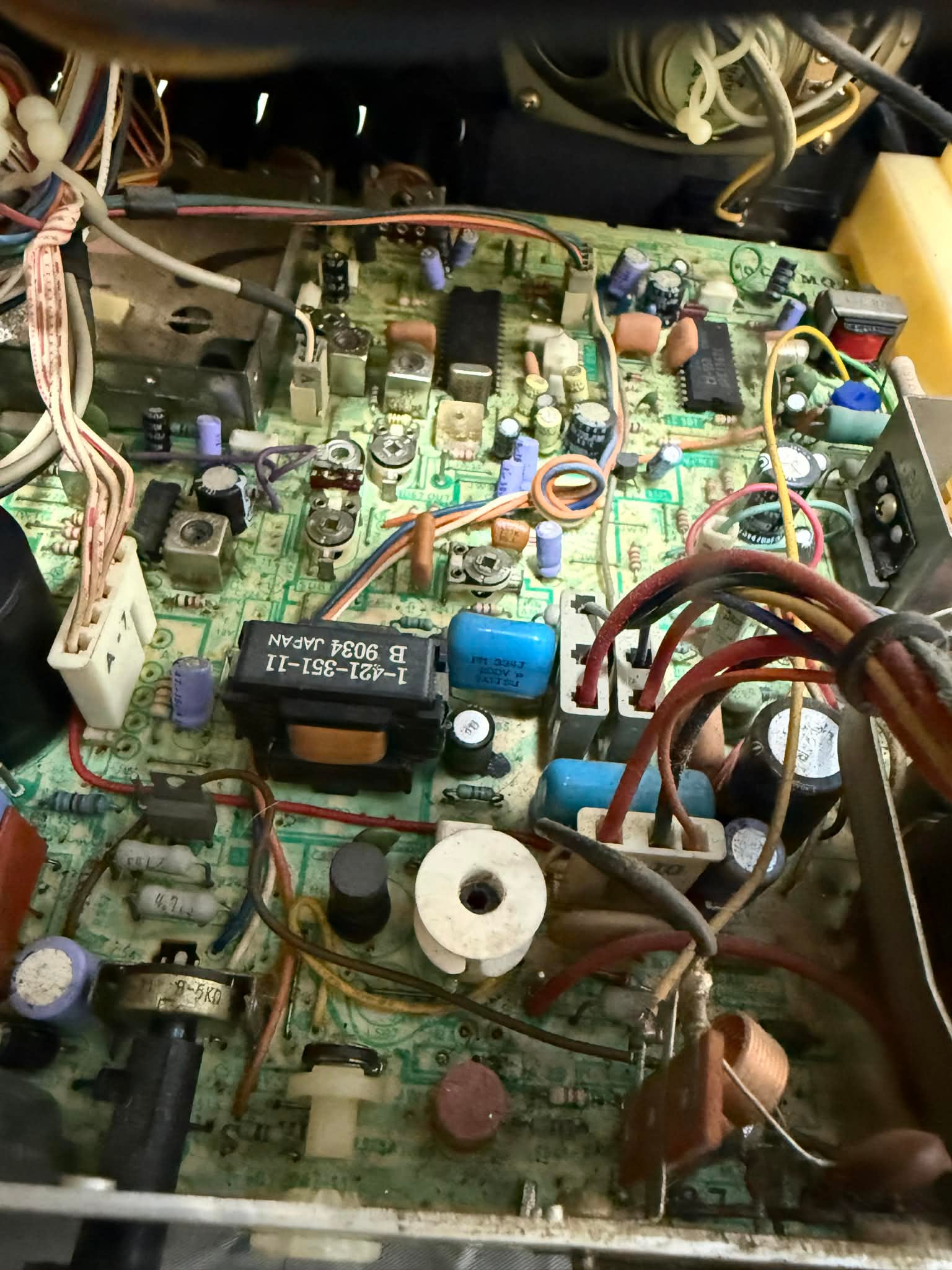

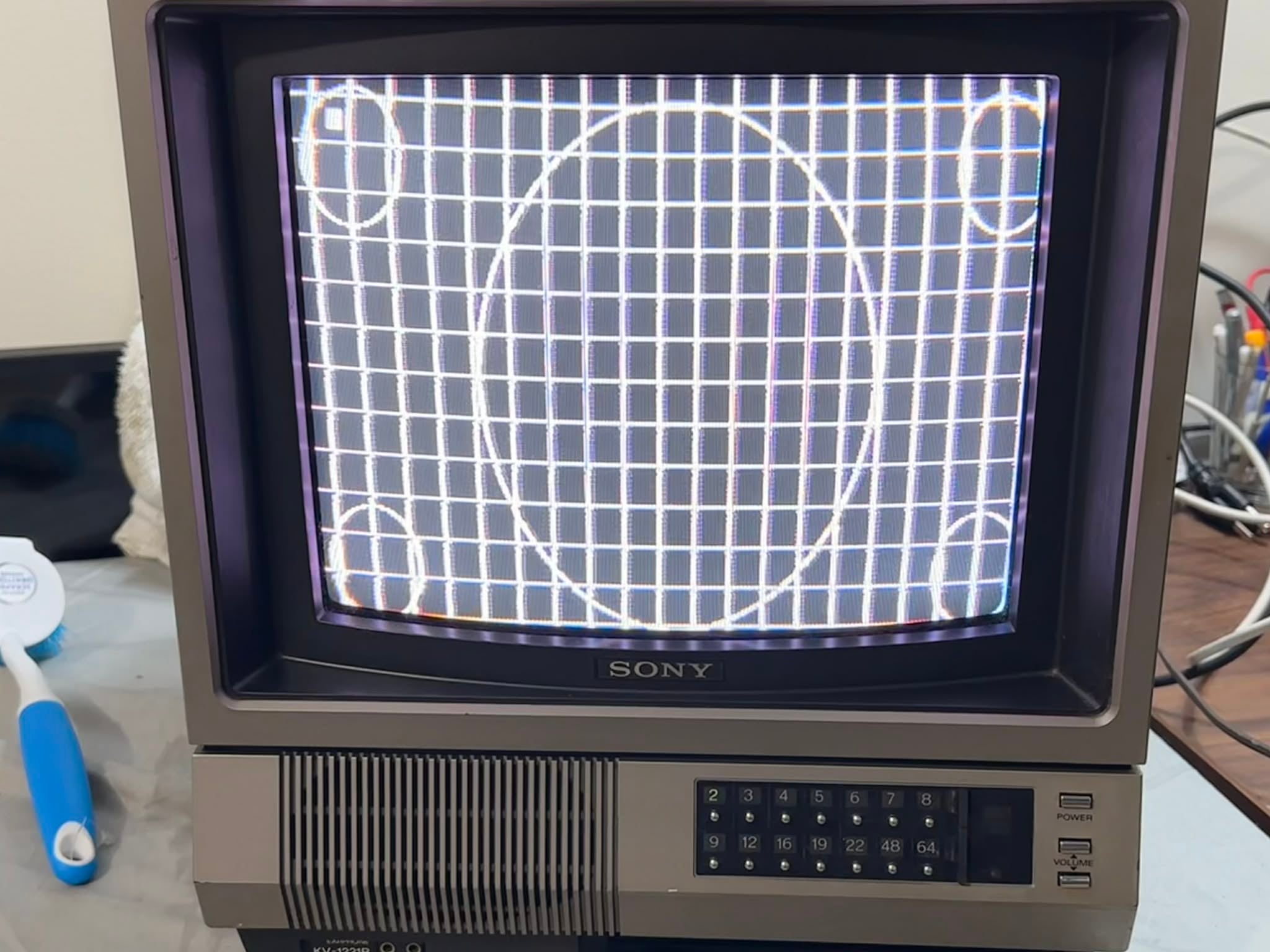

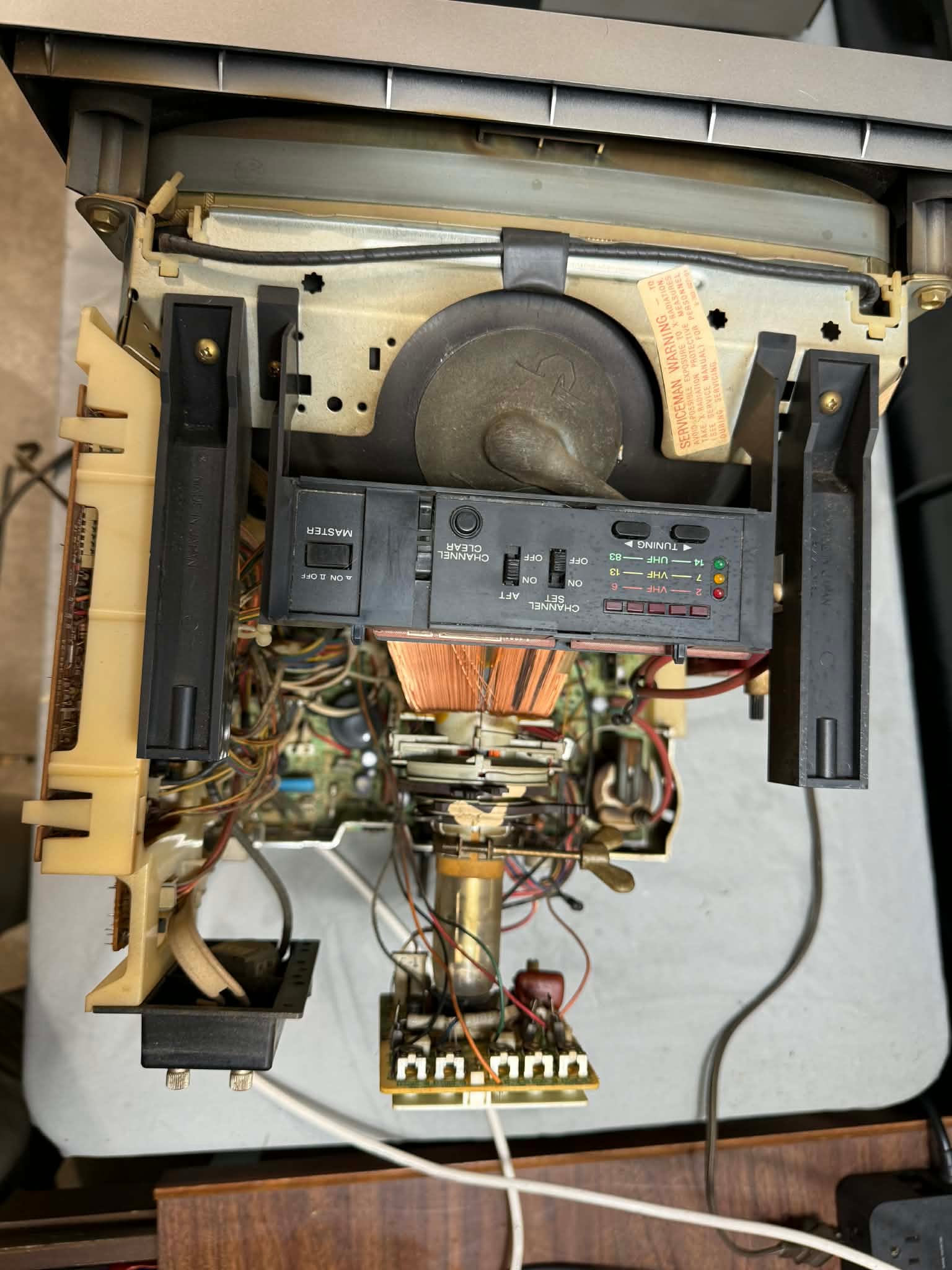

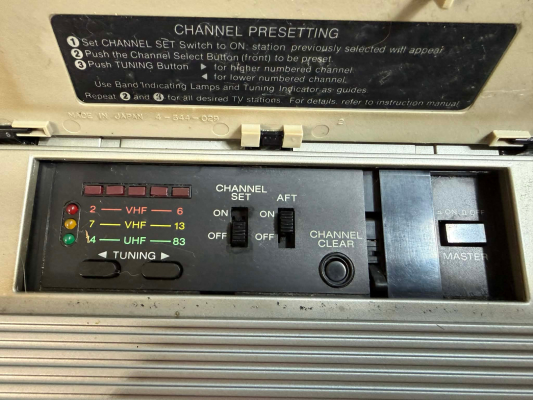

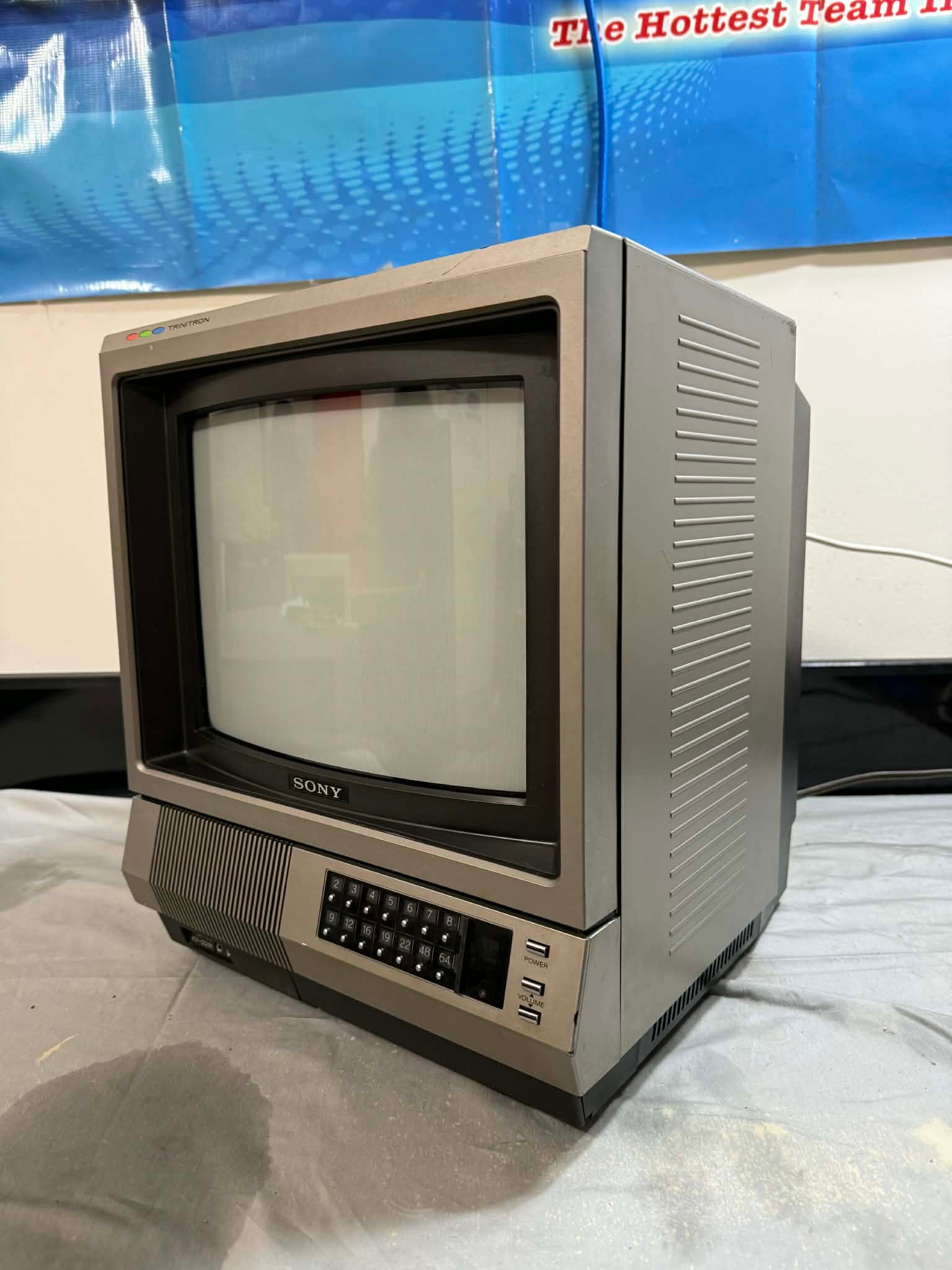

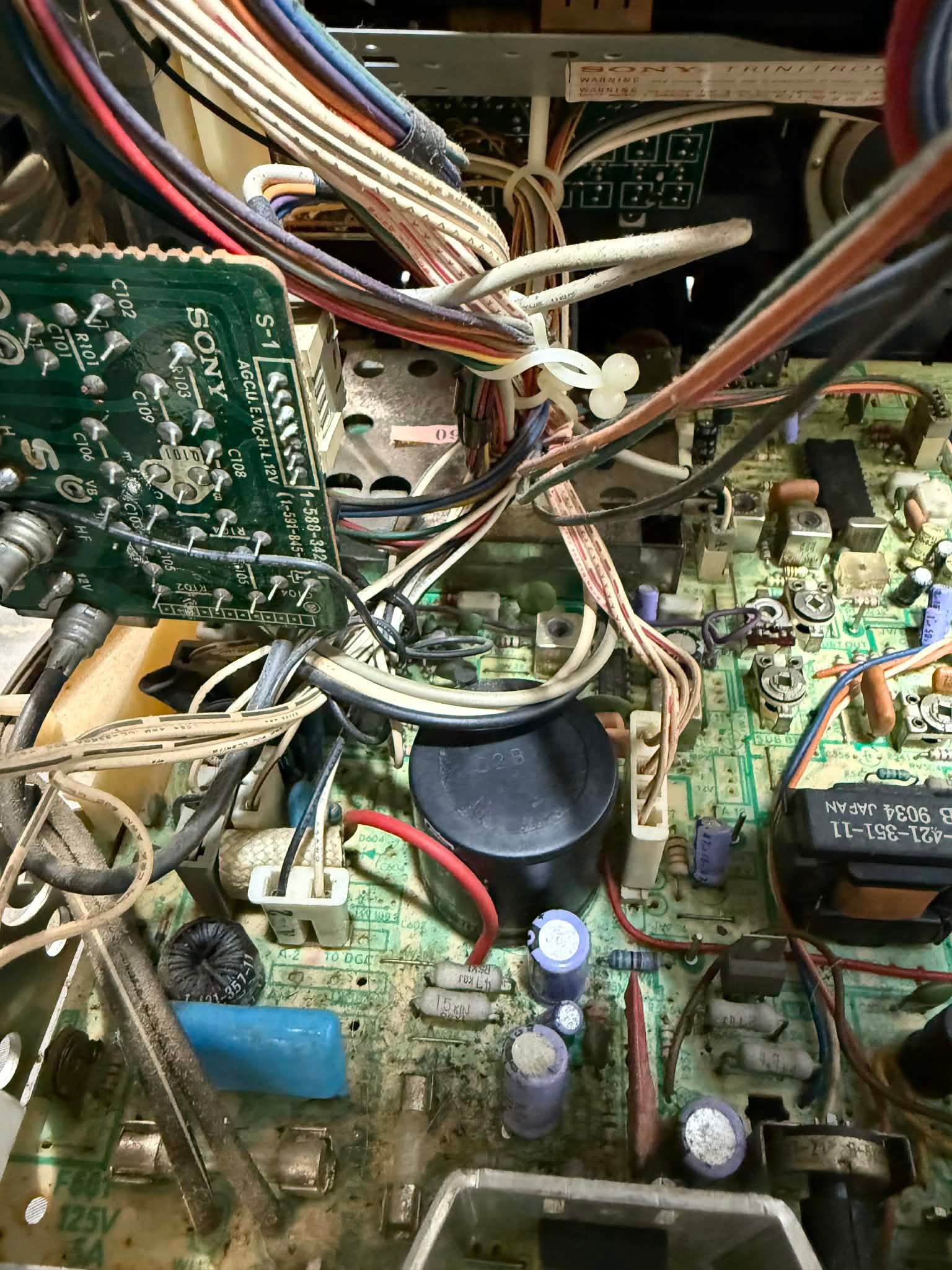

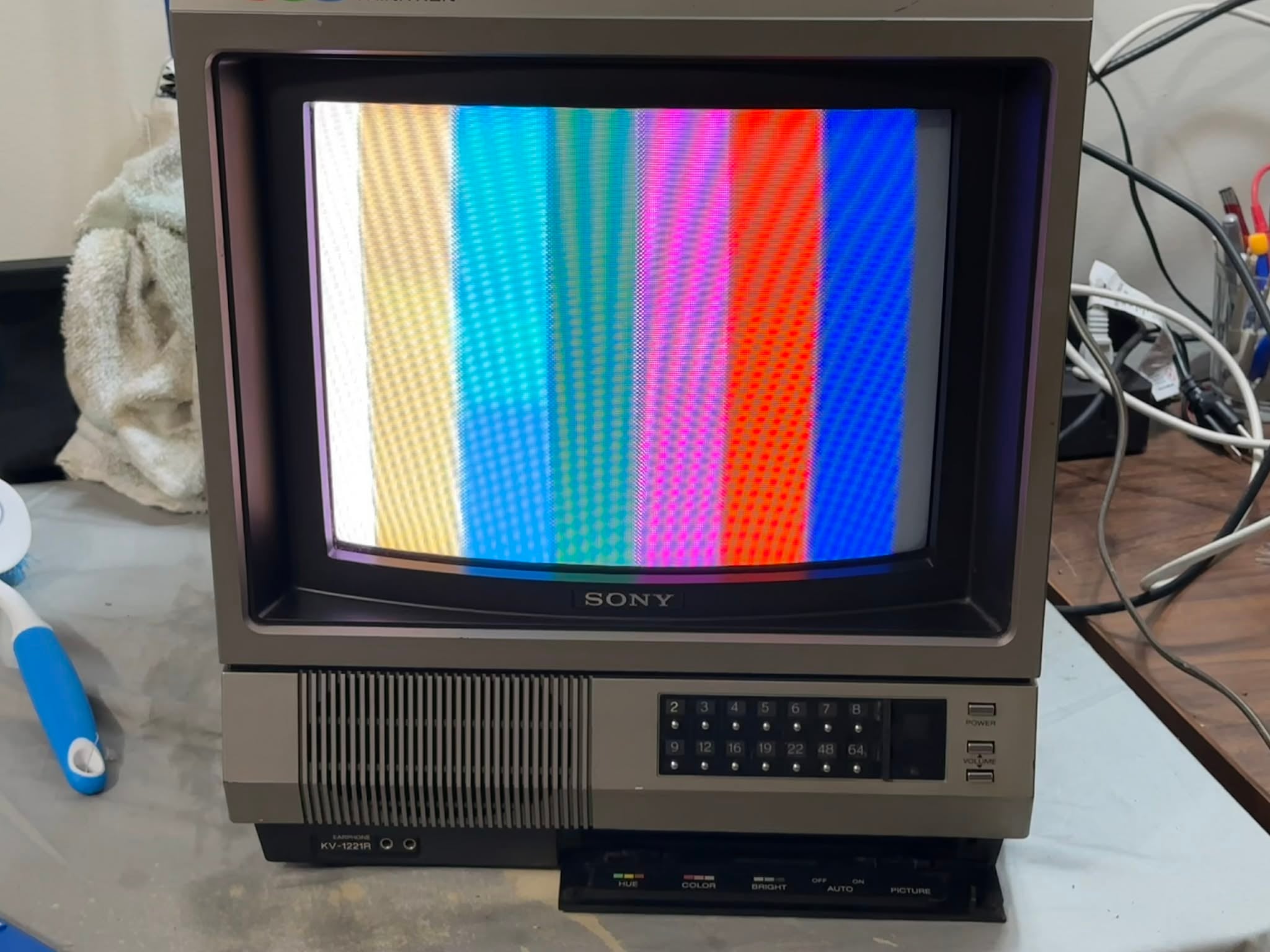

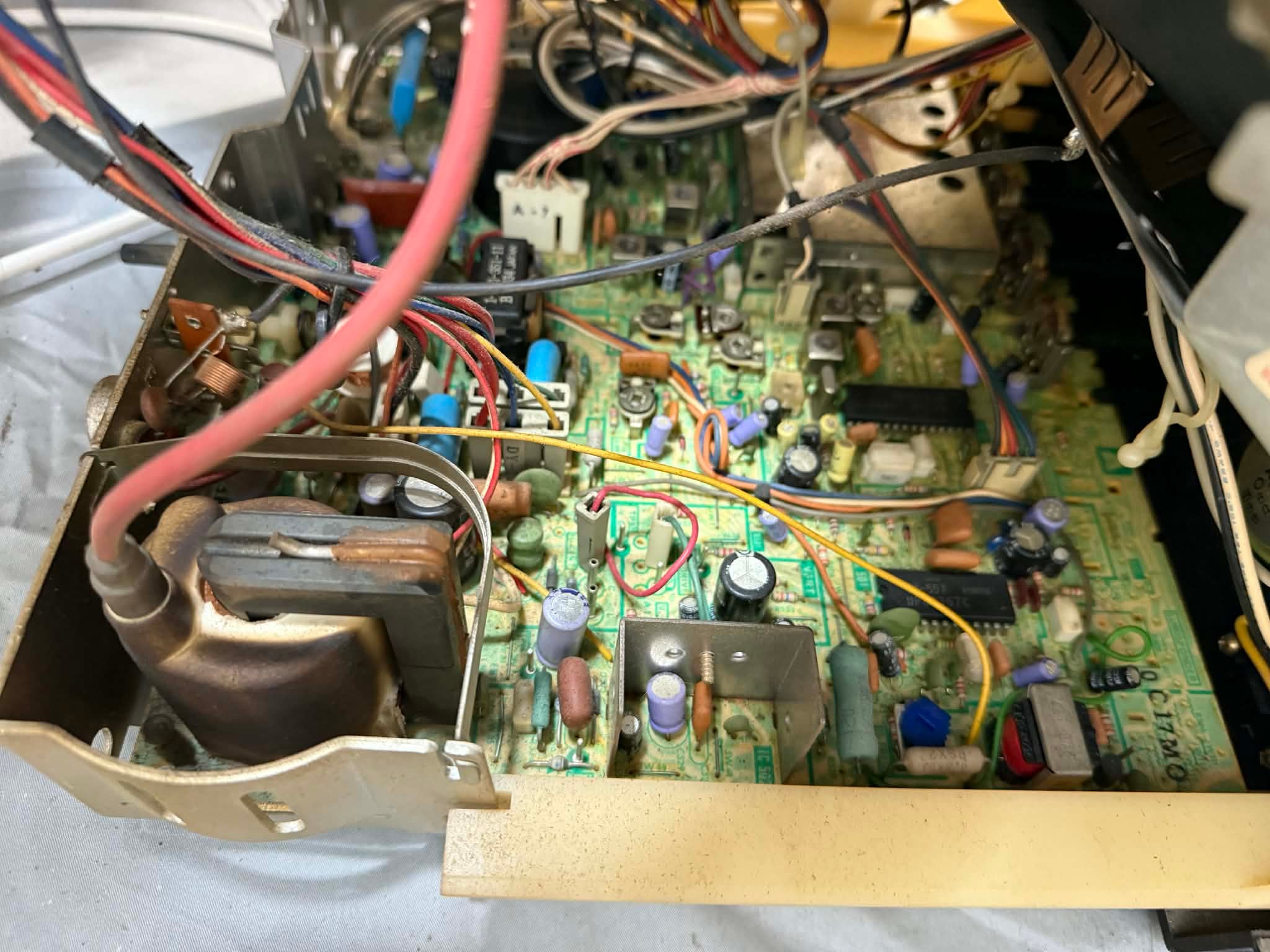

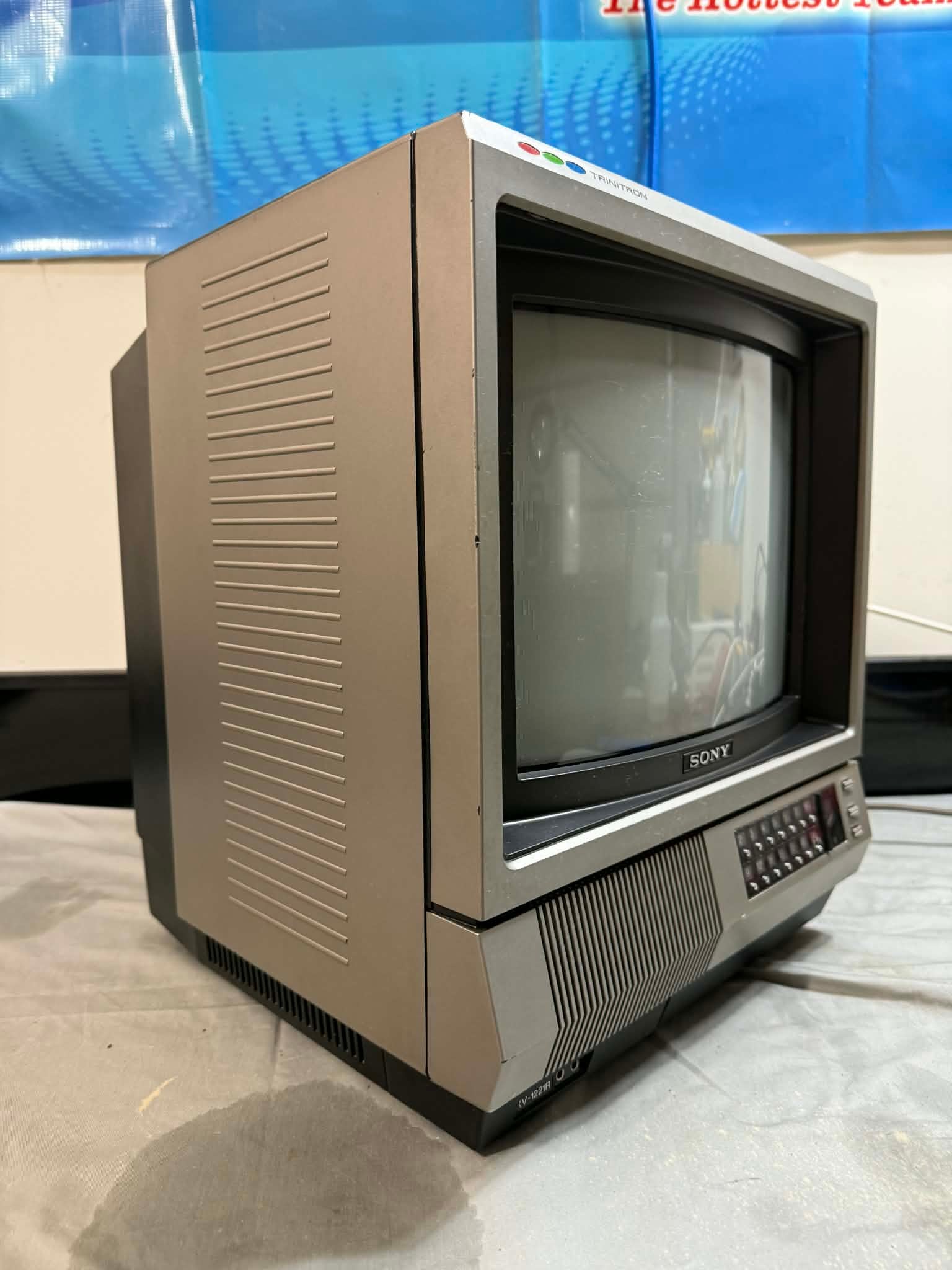

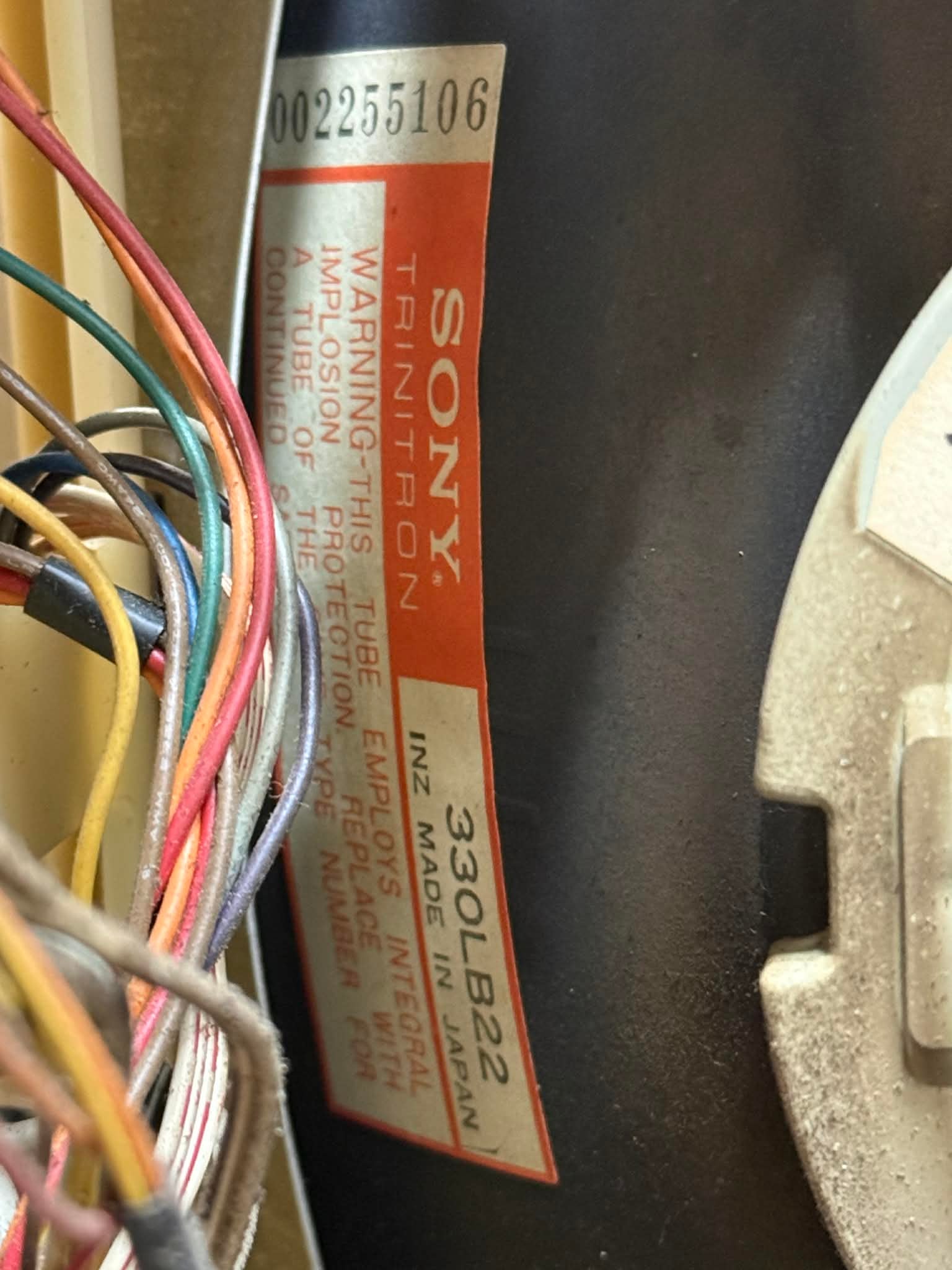

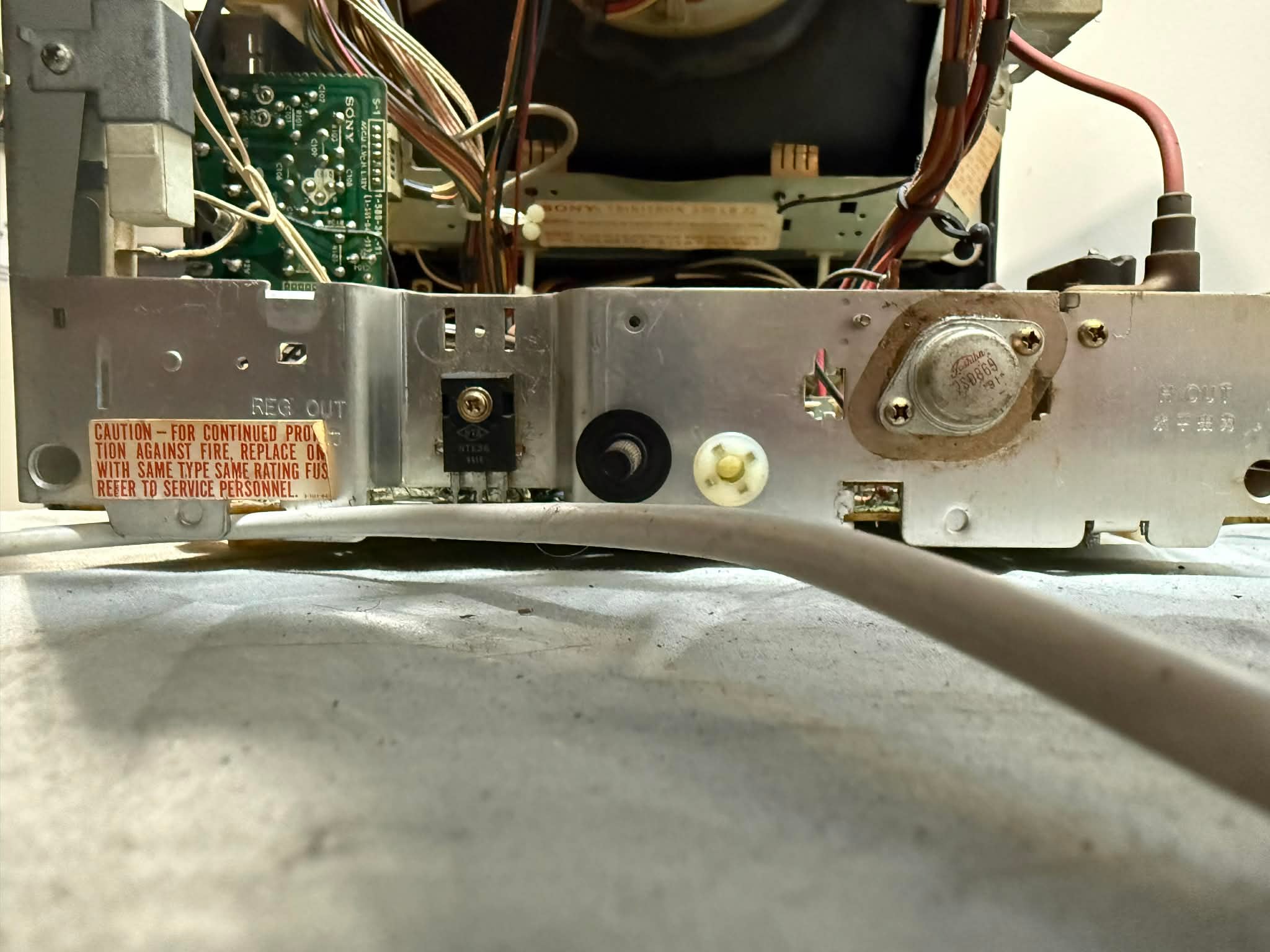

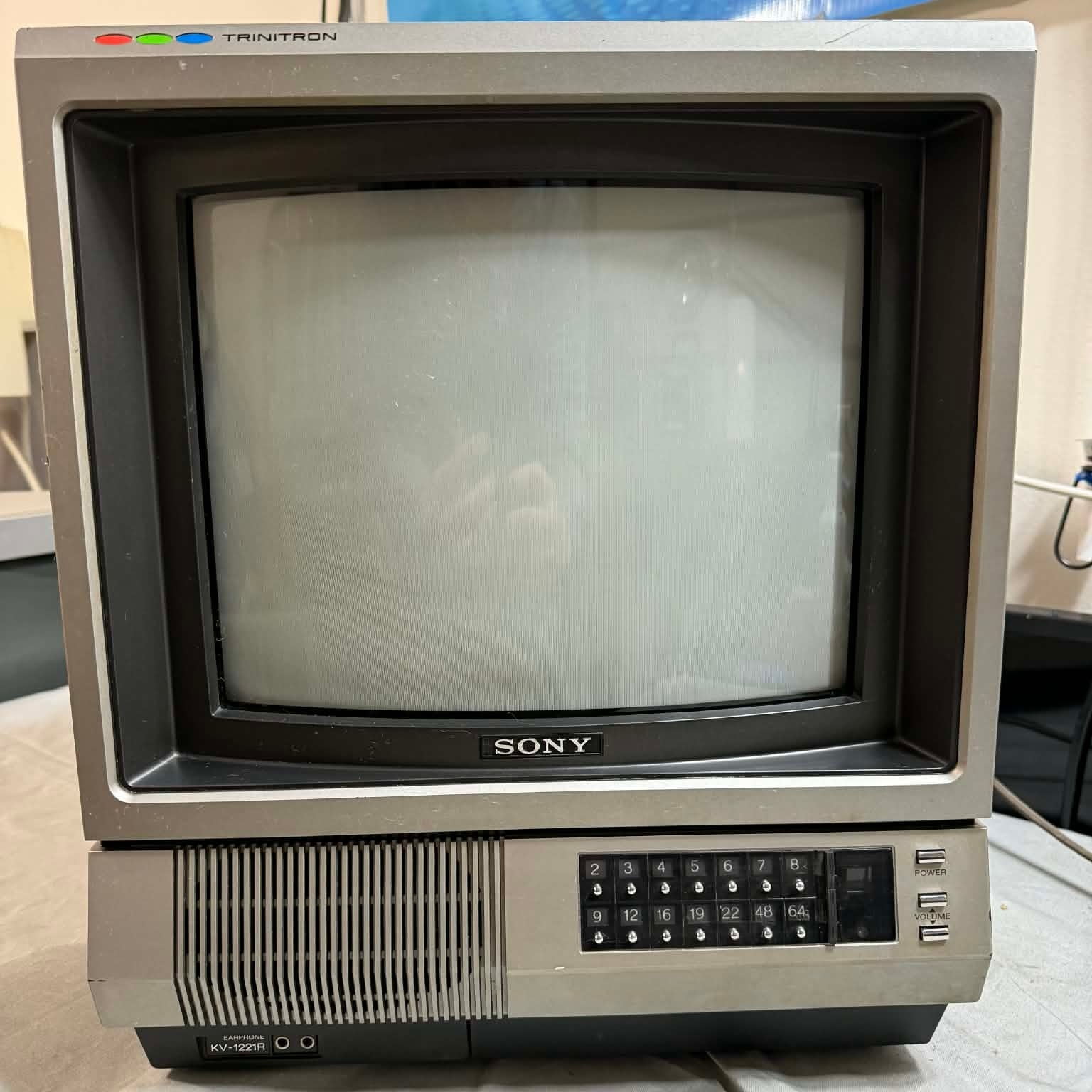

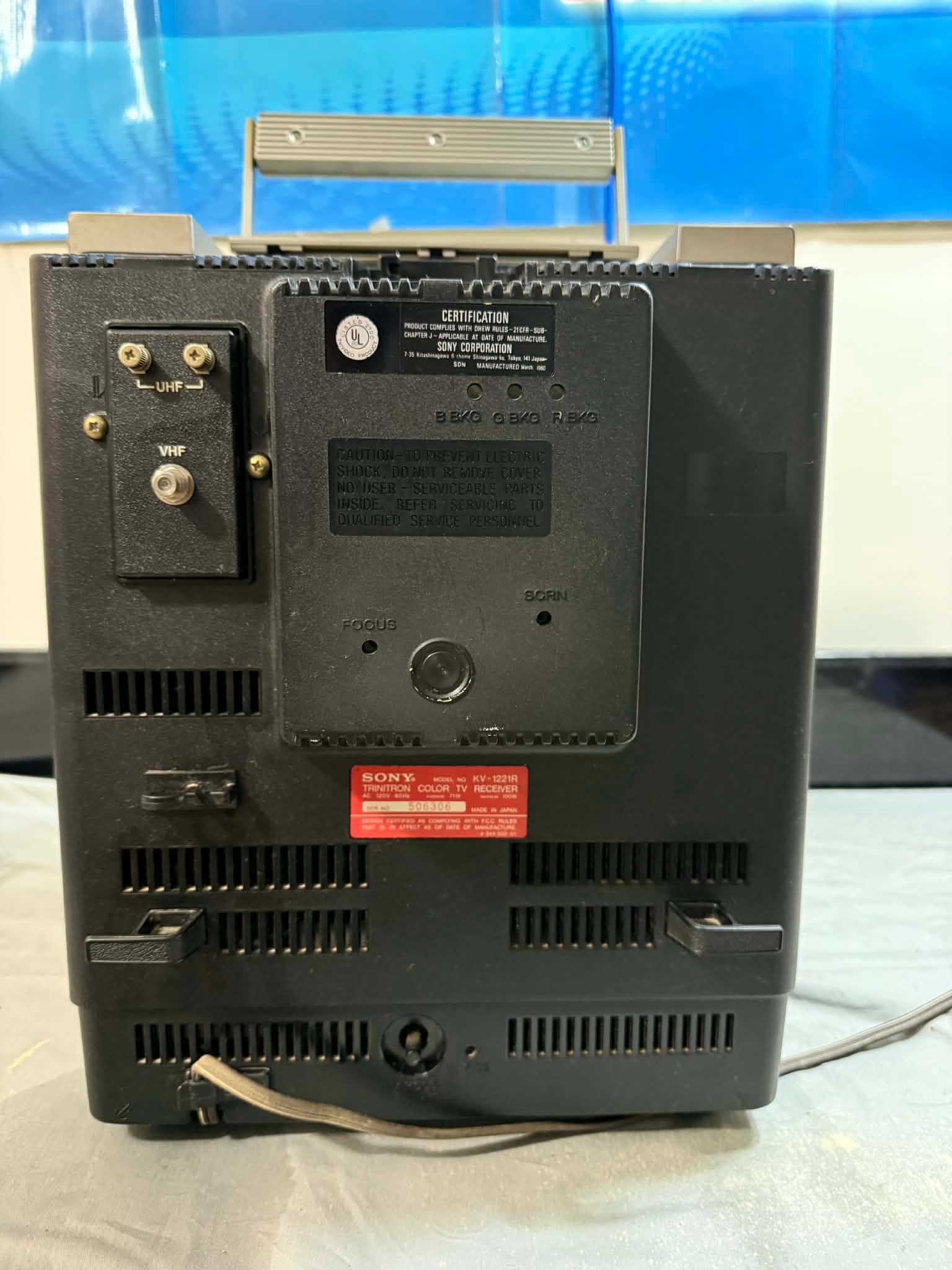

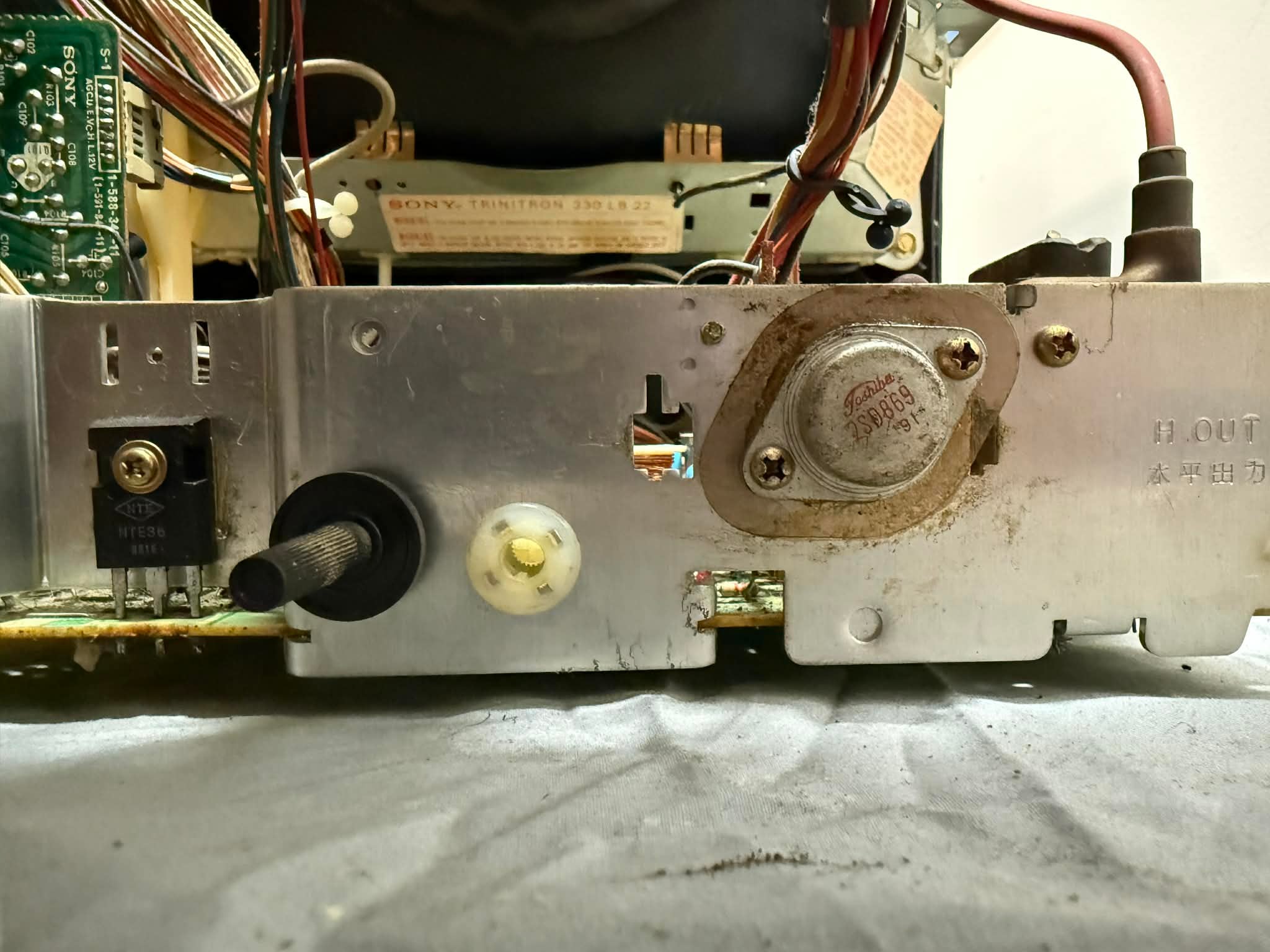

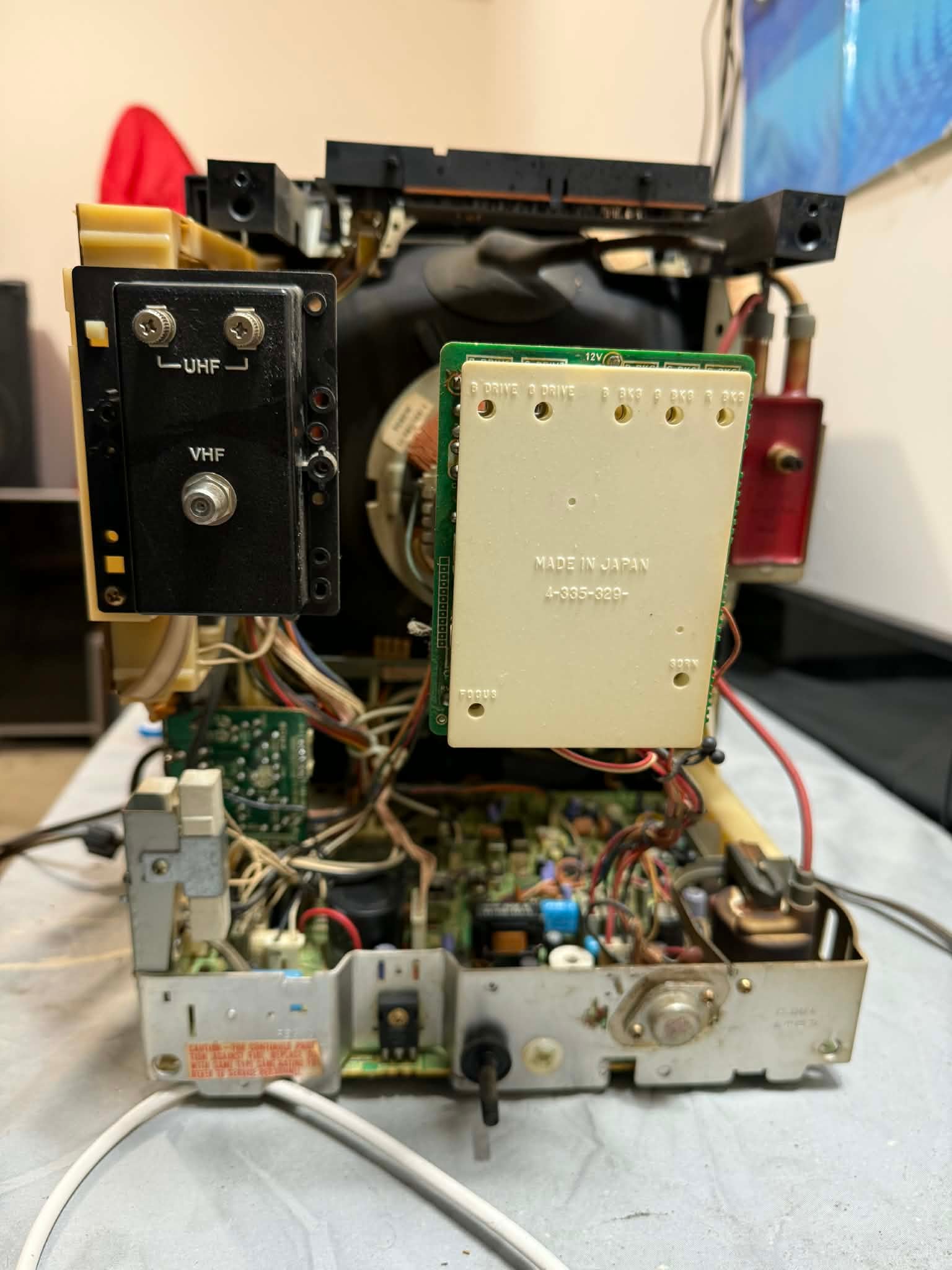

(Special thanks to Rhett Dziech for the pics!)
Manuals
Notes
This TV uses a hot chassis design.
This CRT is confirmed to be a hot chassis.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-1221R |
| Series: | KV |
| Viewable Size: | 19" |
| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Jungle IC: | Sony, CX-556, CX556 |
| Comb Filtering: | Notch |
| Flyback: | 1-439-250-00 |
| Focus Type: | Single |
| Tube: | Sony Trinitron , 330LB22 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Tint: | Light |
| Removable Glare Film: | No |
| Speakers: | Mono, 1.5W |
| Remote: | RM-702 |
| Chassis: | SCC-266C-A |
| Weight: | 27.5 lbs (12.5 kg) |
| Dimensions (W/H/D): |
336 x 397 x 400 mm
(13.2 x 15.6 x 15.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1980 |
| MSRP: | 549 USD |
| Country of Manufacture: | Japan |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
