Summary

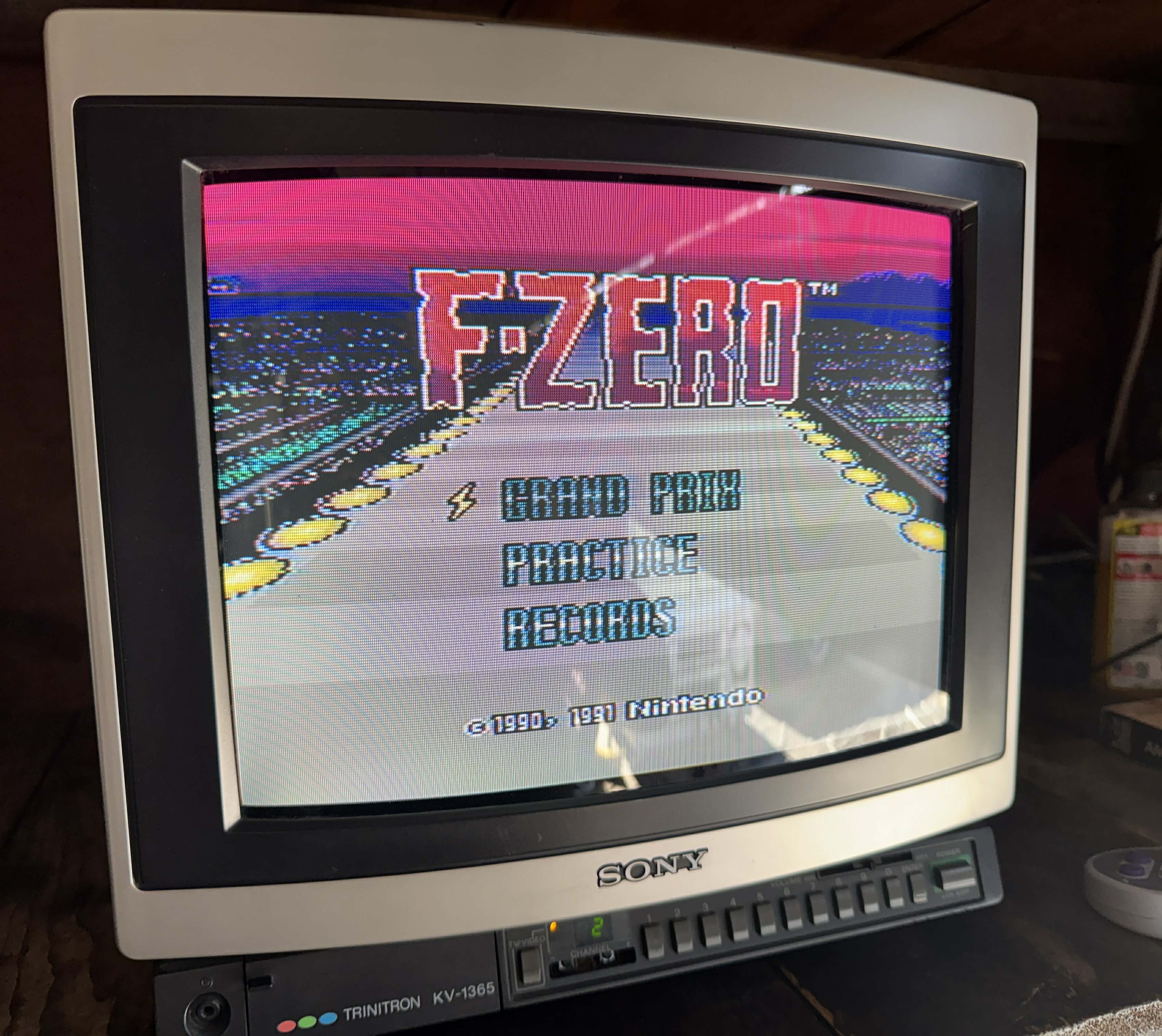

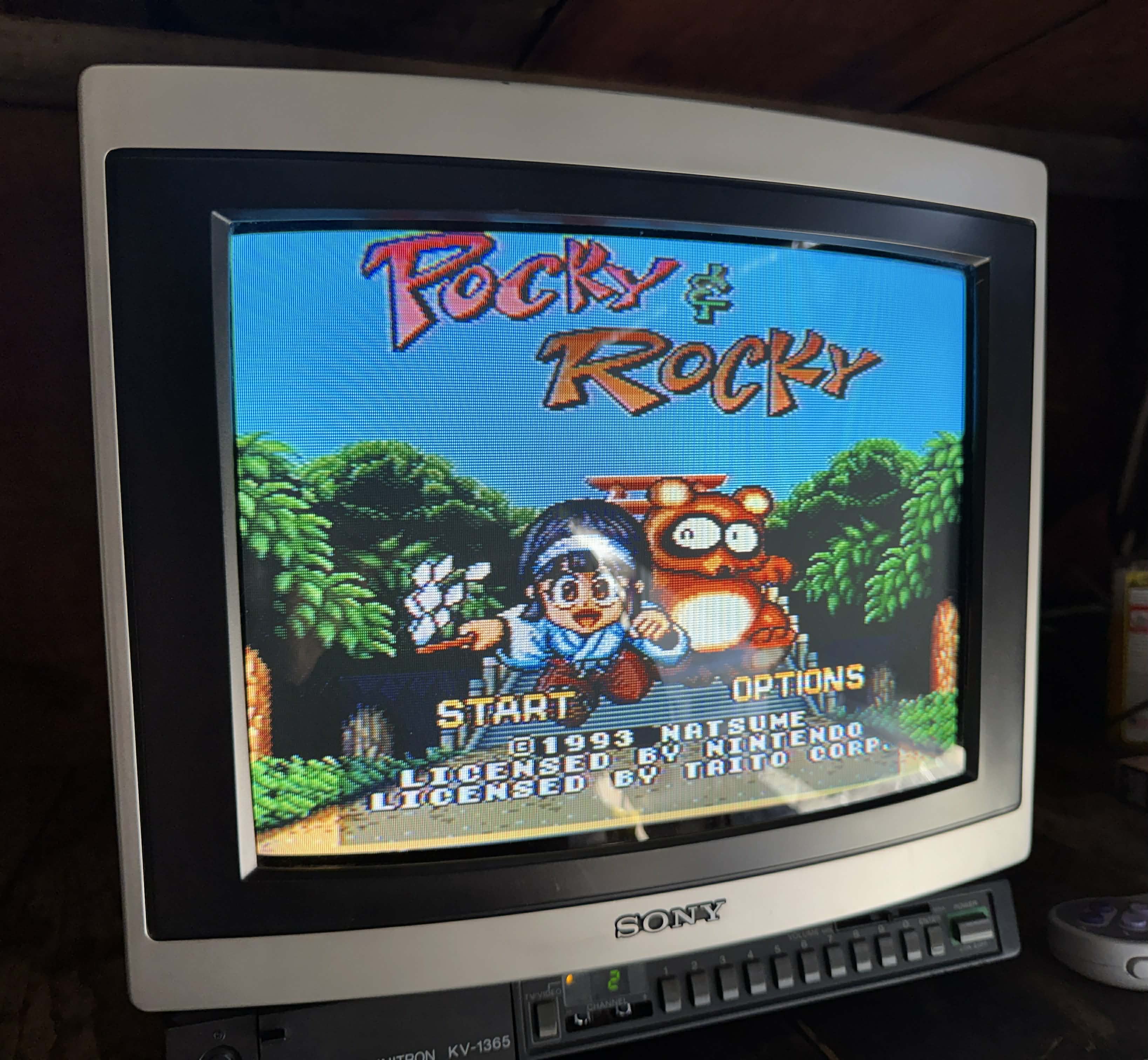

13" color TV by Sony, made in Japan in 1985. Has RF and composite inputs with mono sound.
(Special thanks to Felipe Ortiz and Richard Ortega for the pics!)
Manuals
(None at this time.)
Notes

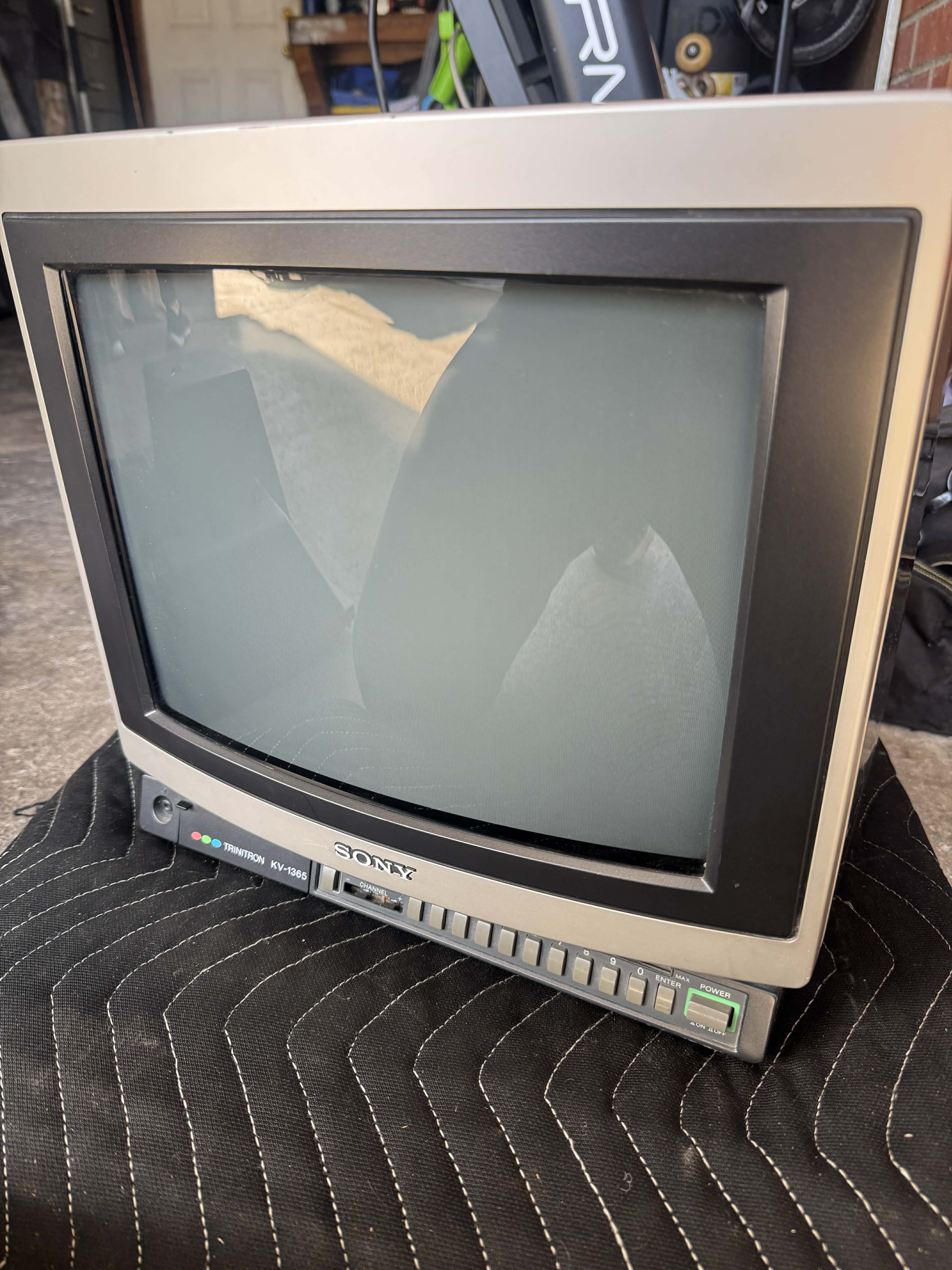

This set came in two design styles. Featured in this article is the gray bezel, silver trim, black panel, and woodgrain casing. The other design featured in Sunthar's article has a silver style:

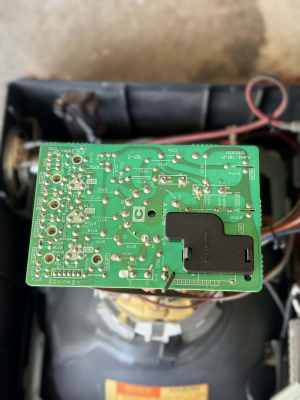

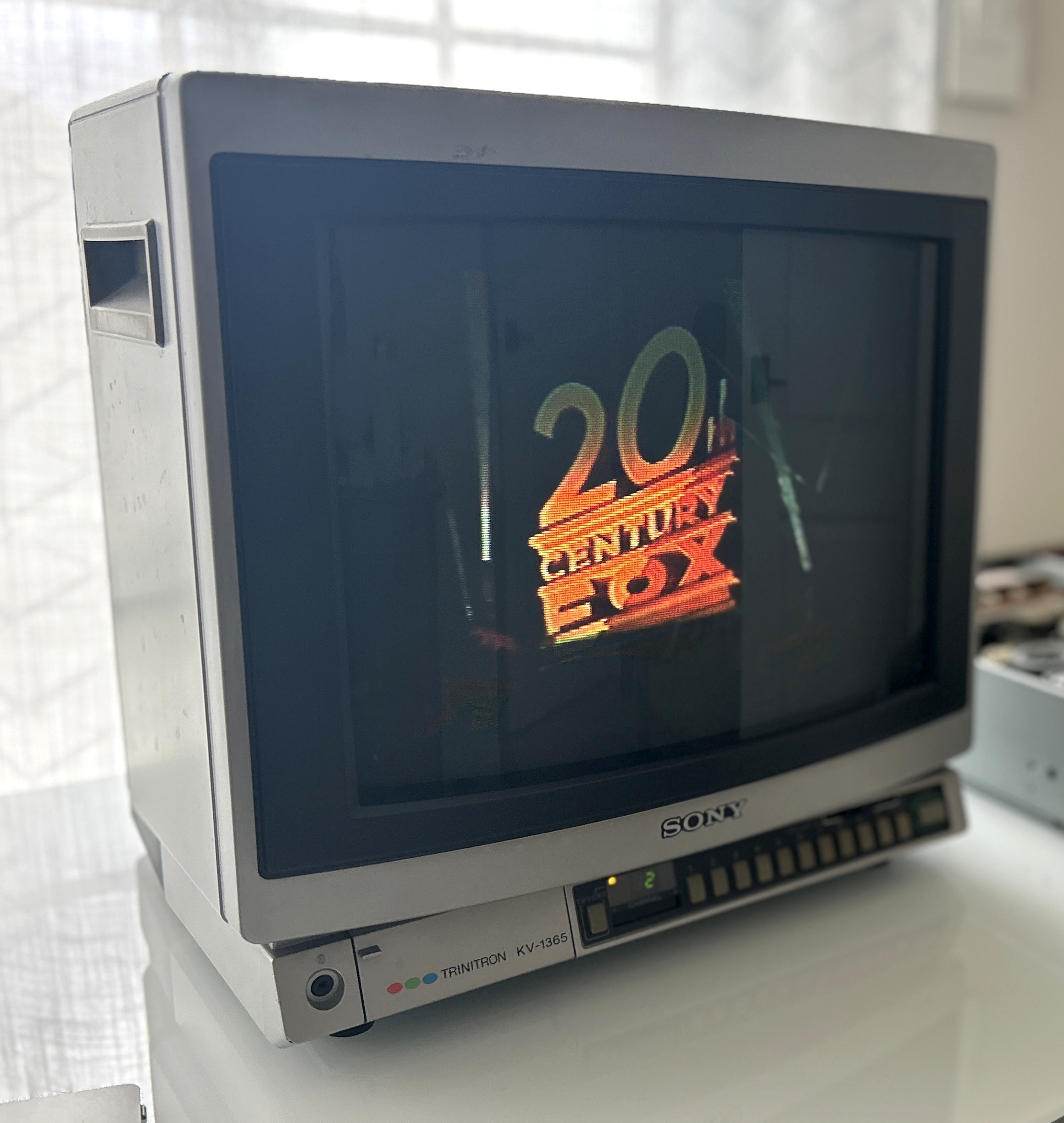

Despite having A/V inputs, this TV uses a hot chassis design. Instead of isolating the entire TV, a section of the input board is isolated via a small transformer and the signals are transmitted using optocouplers.
This CRT is confirmed to be a hot chassis.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.

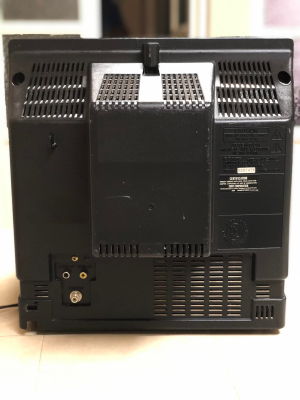

Gallery

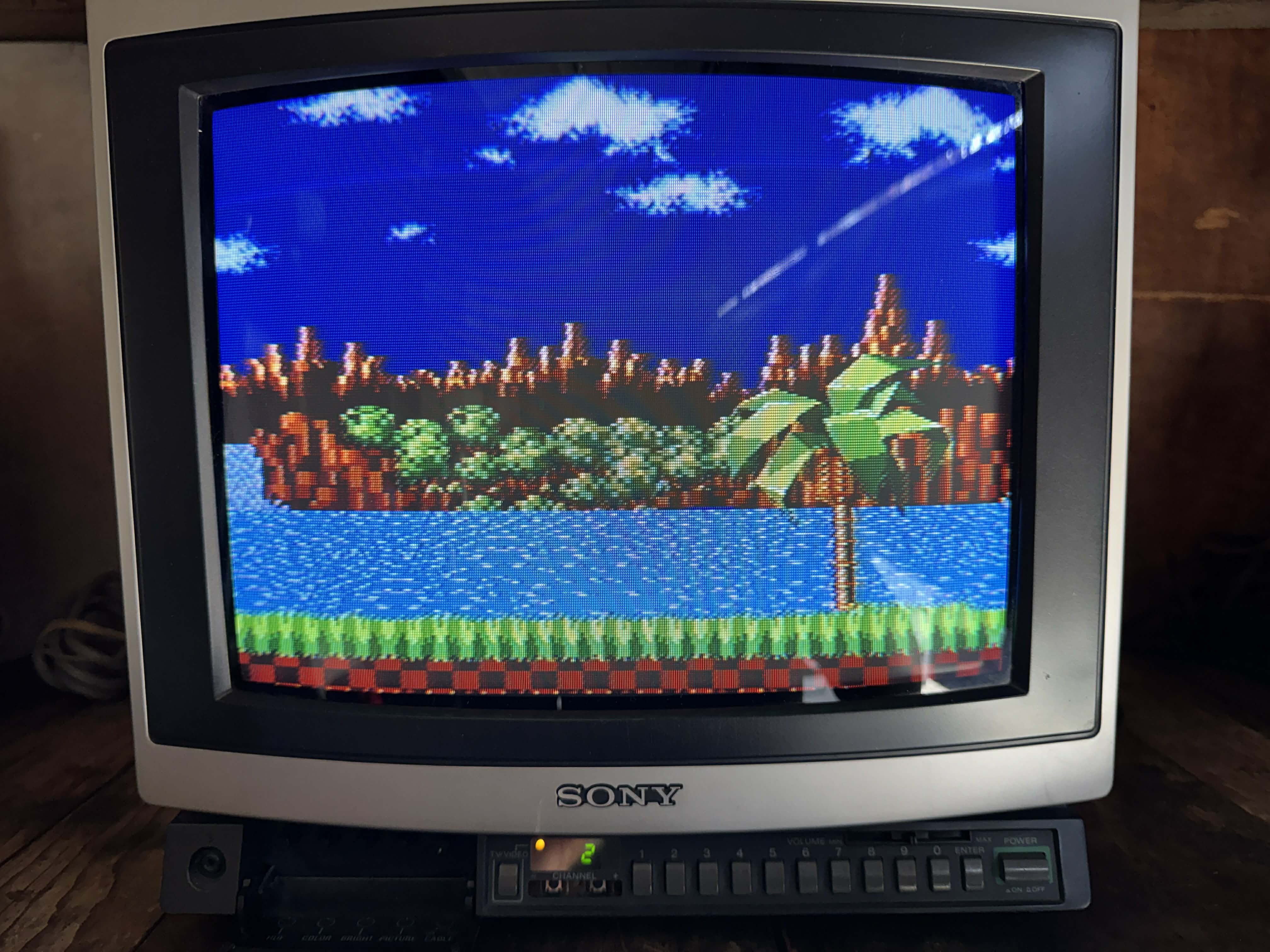

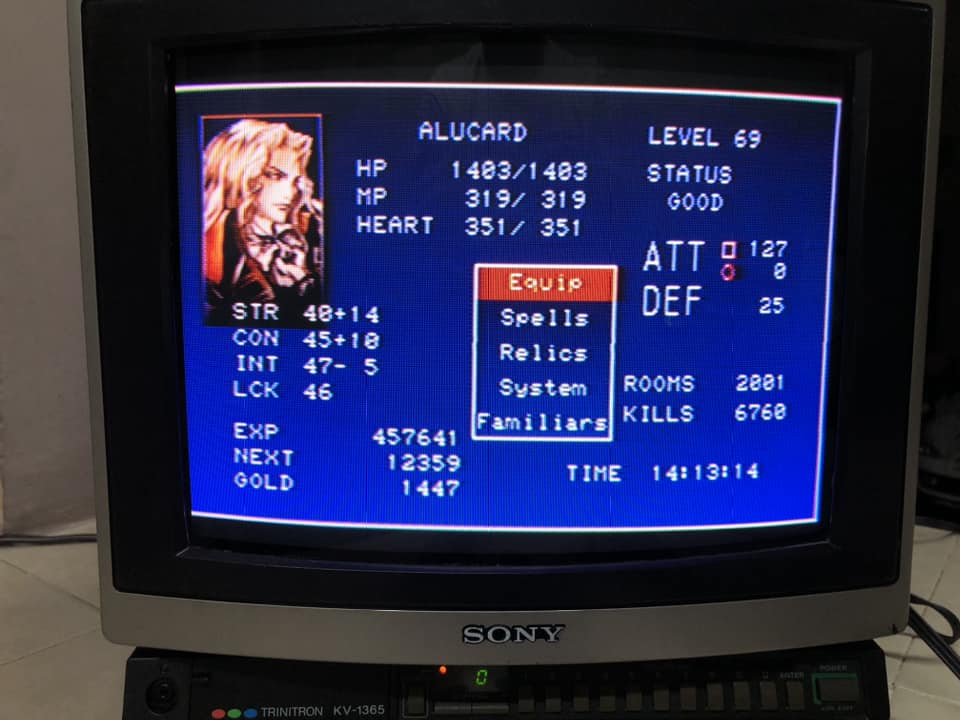

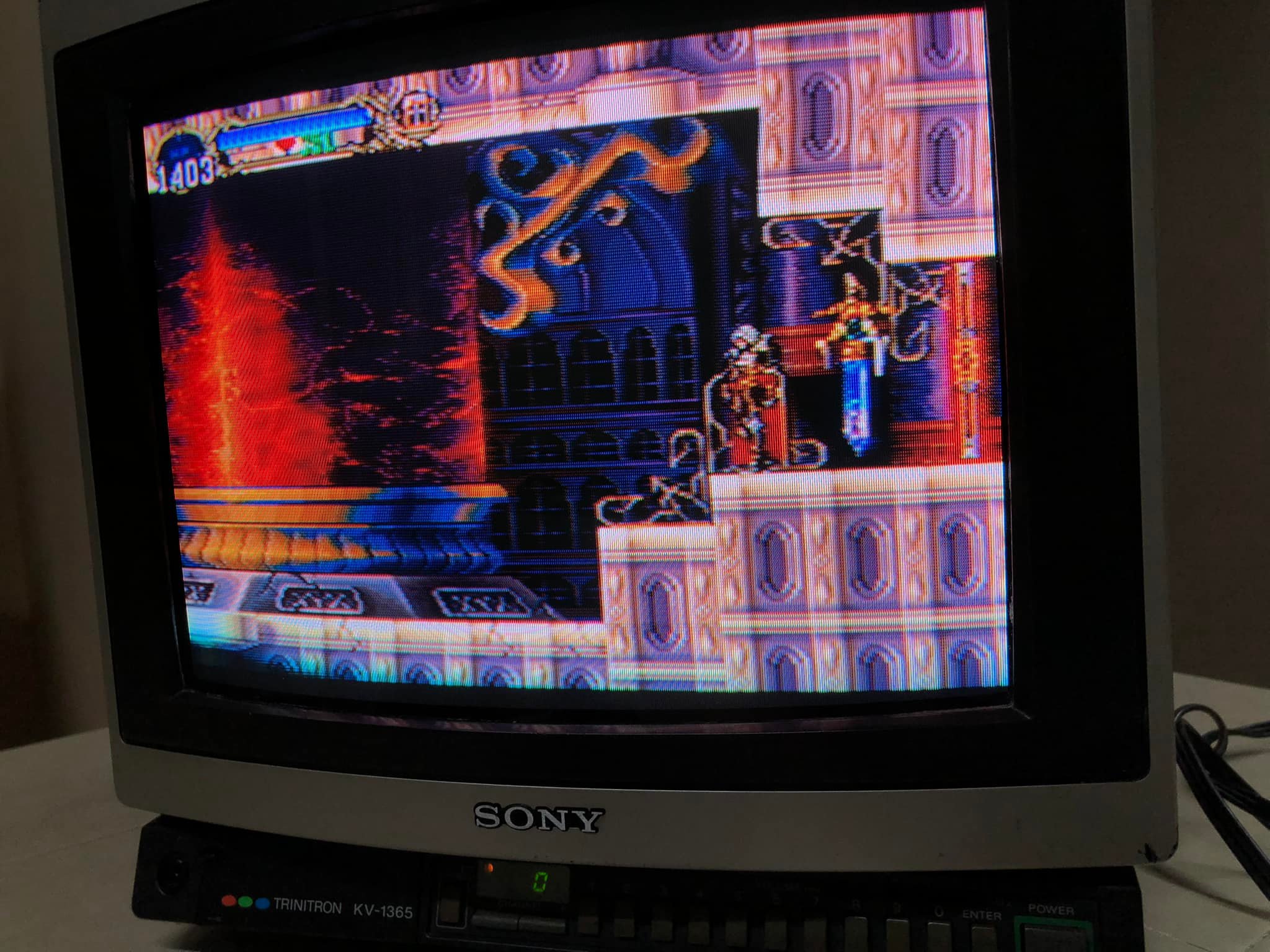

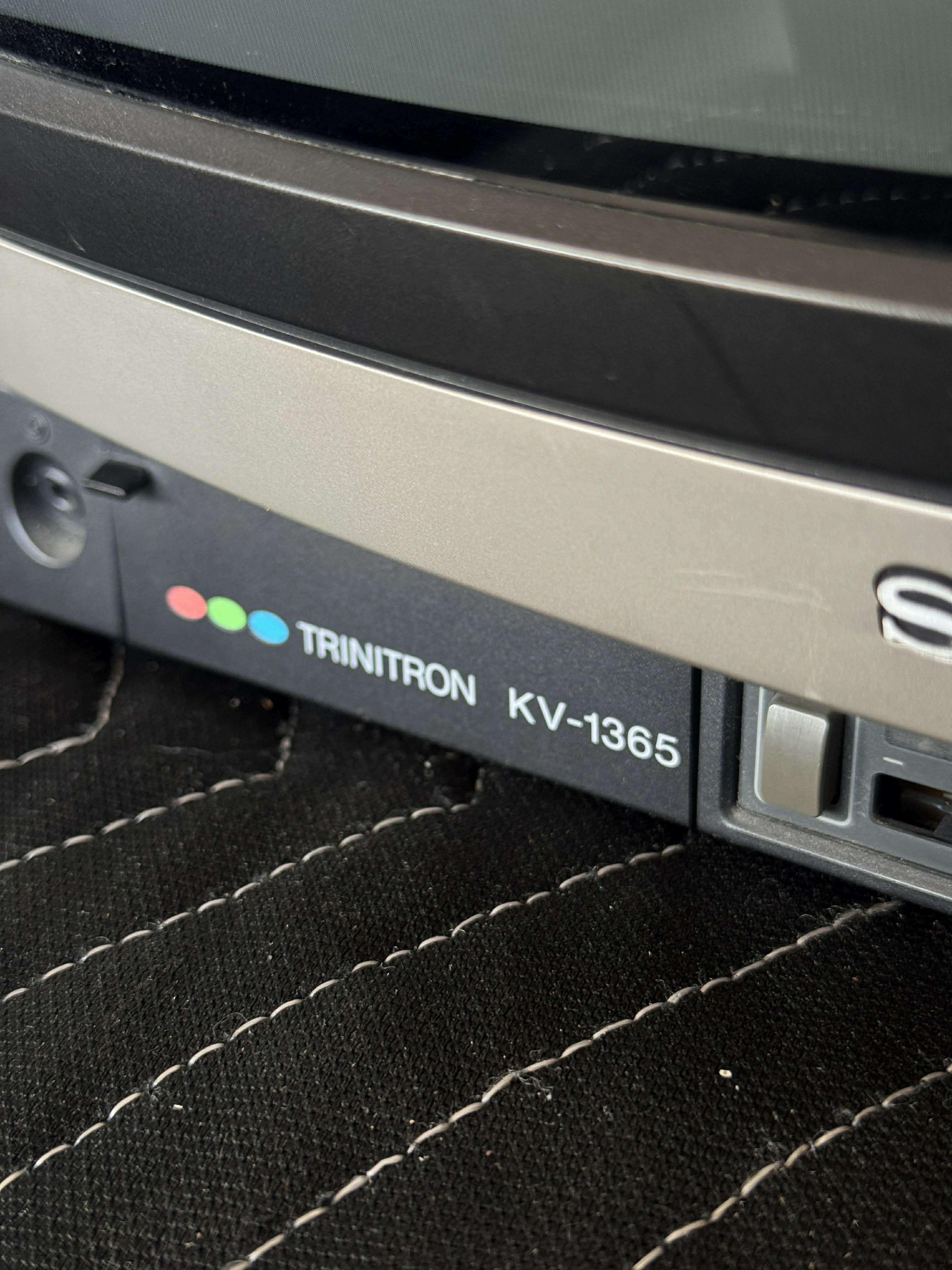

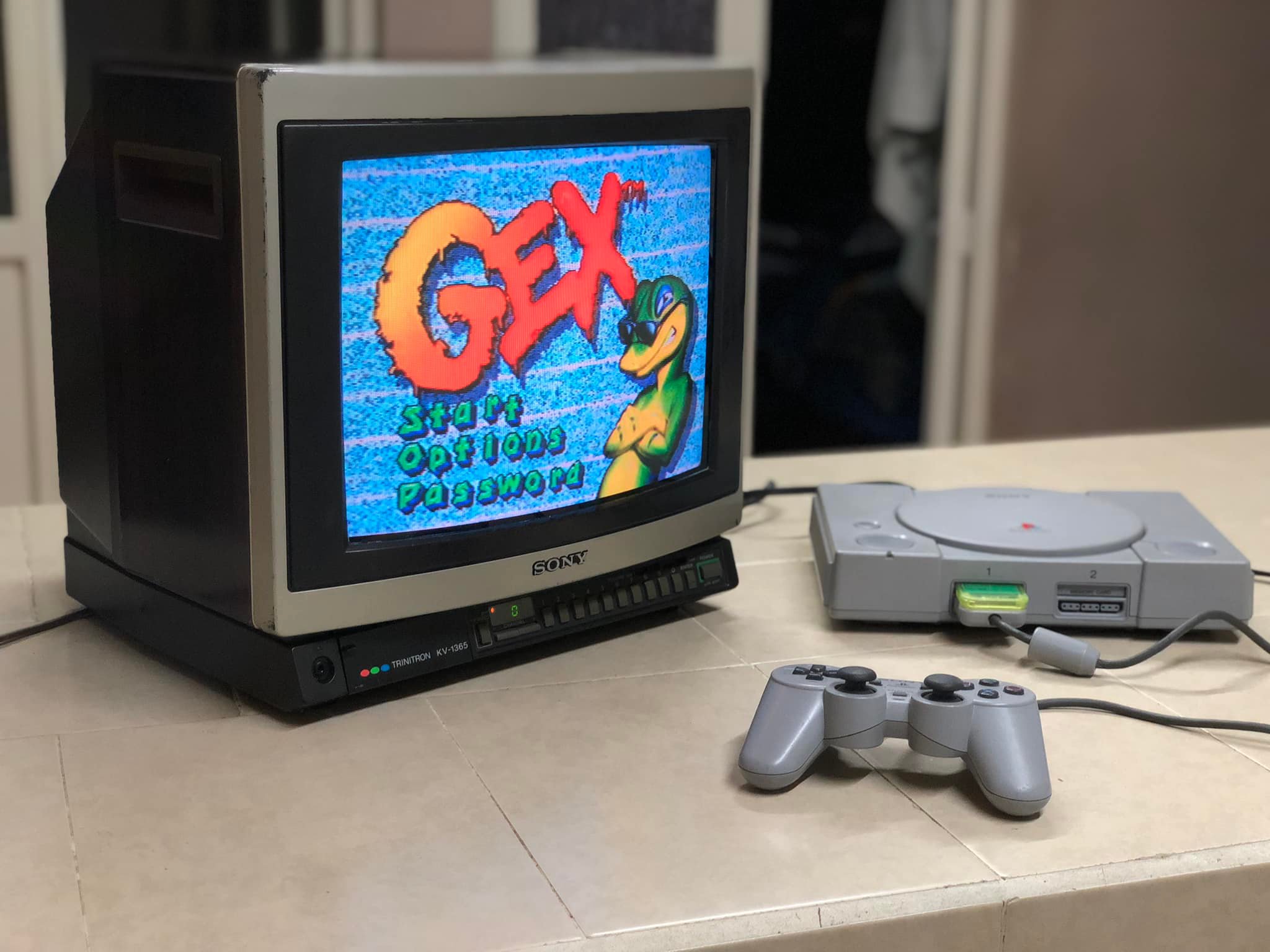

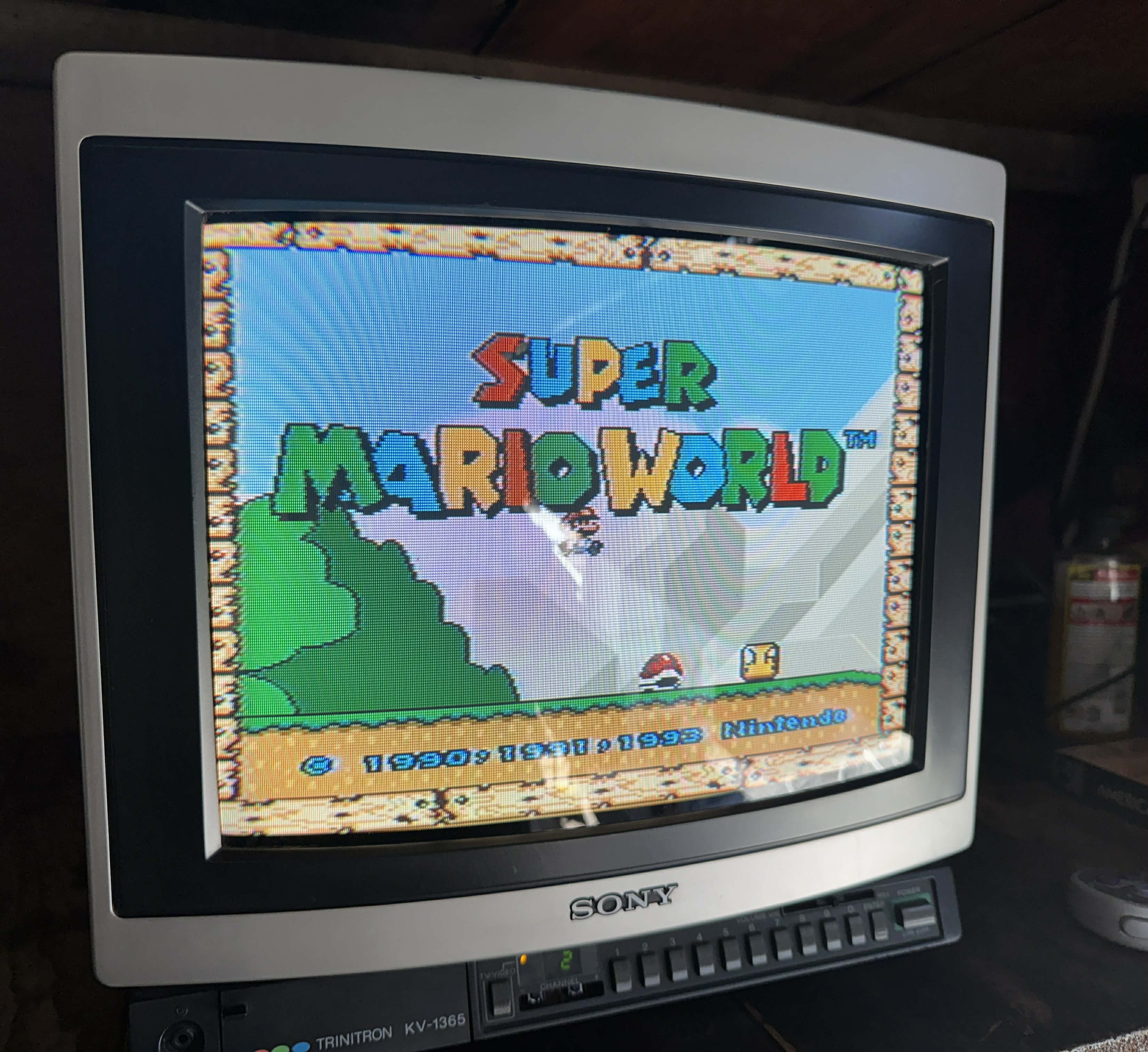

| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-1365 |
| Series: | KV |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Jungle IC: | Sony, CX20192 |
| Focus Type: | Single |

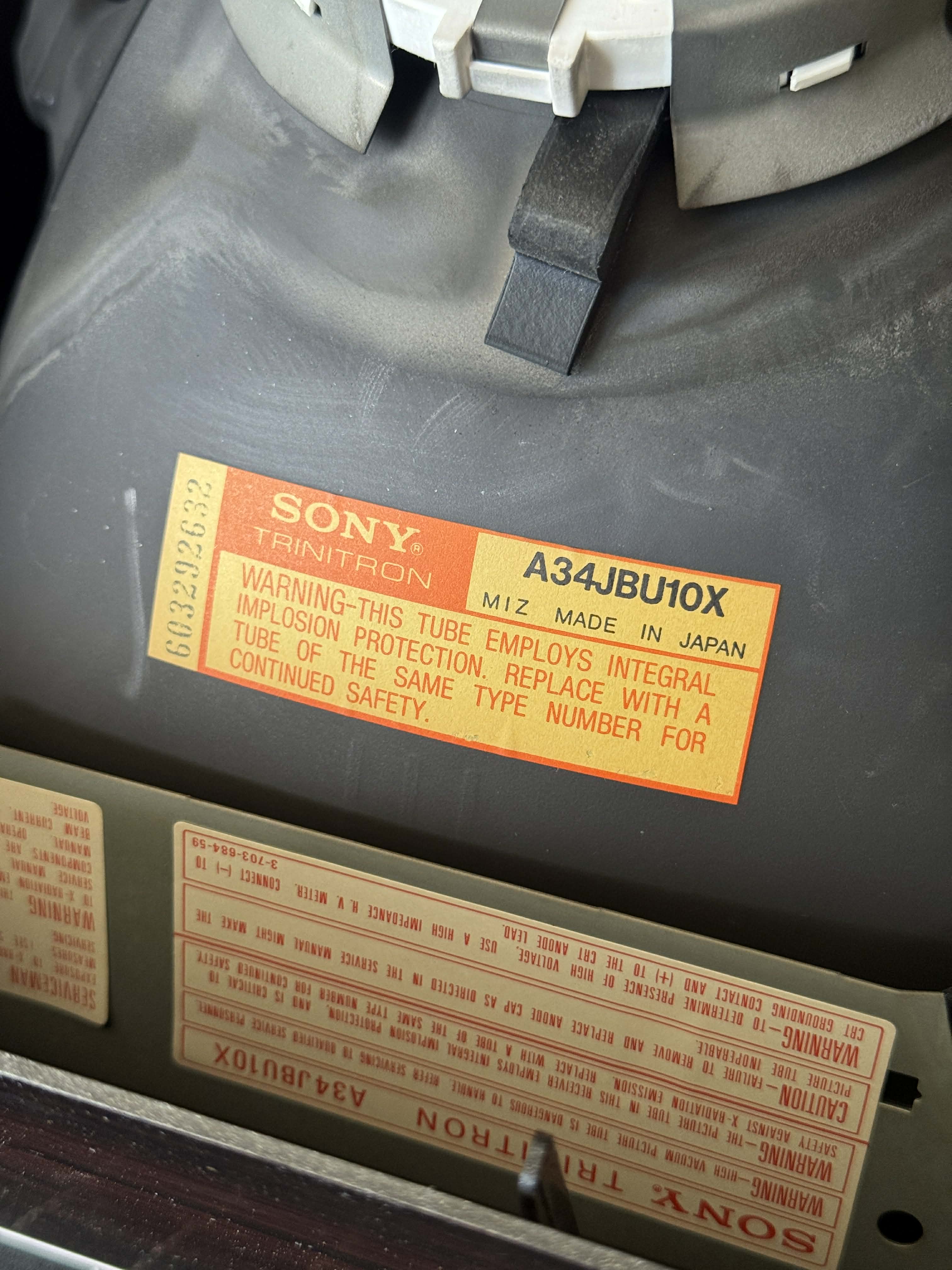

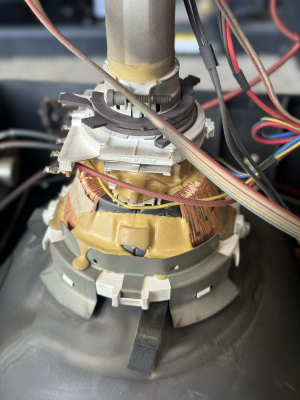

| Tube: | Sony Trinitron , A34JBU10X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Tint: | Light |
| Speakers: | Mono, 1.5W, Headphone Jack |
| Chassis: | P3, SCC-548X-A |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1985 |
| MSRP: | 399 USD |
| Country of Manufacture: | Japan |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
