Summary

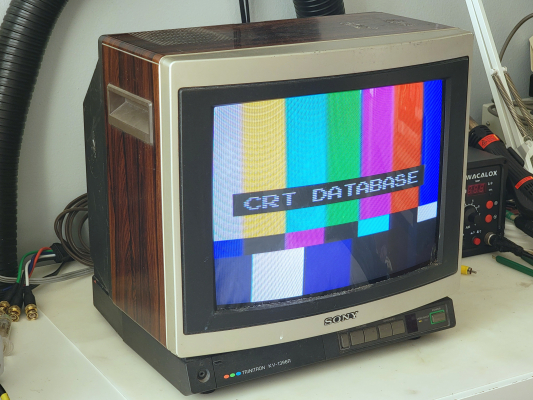

Standard 13" faux woodgrain consumer set from Sony. Has composite and RF input.
Literature
Notes
The "R" in the model number denotes a model which has support for remote control via IR remote.
Despite having A/V inputs, this TV uses a hot chassis design. Instead of isolating the entire TV, the input signals are transmitted using optocouplers.
This CRT is confirmed to be a hot chassis.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | 1396R |
| Series: | KV |
| Viewable Size: | 13" |
| Input Signals: | Composite, RF |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers, Front Mounted Buttons |
| Tube: | Sony Trinitron , A34JBU10X , A34JBU70X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Mono |
| Remote: | RM-729 |
| Application: | Consumer |
| Launched: | 1986 |
