Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony, LG |

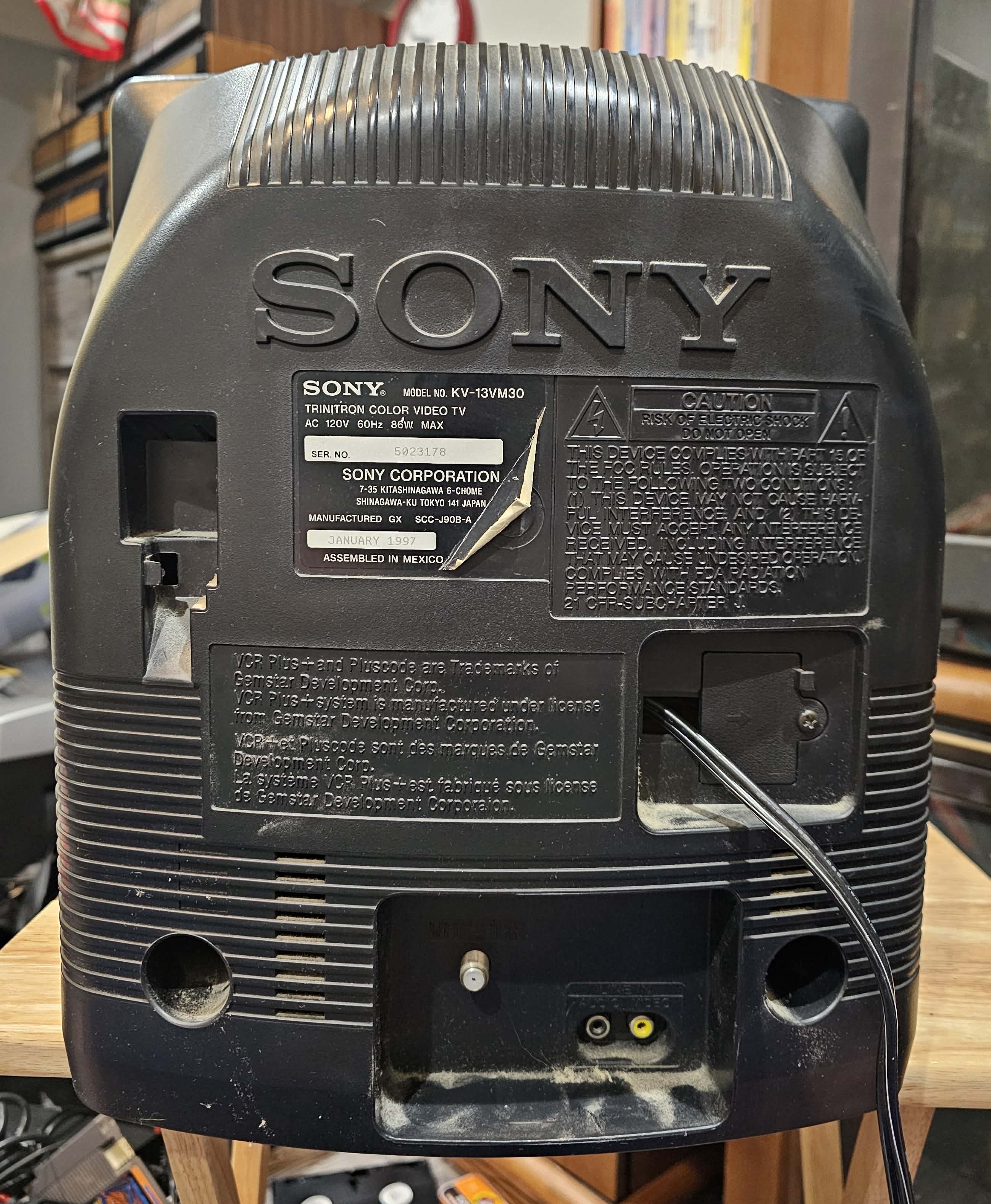

| Model: | KV-13VM30 |
| Series: | KV (VCR Combo) |
| Viewable Size: | 13" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD1878 |
| Vertical Output IC: | TA8445K |

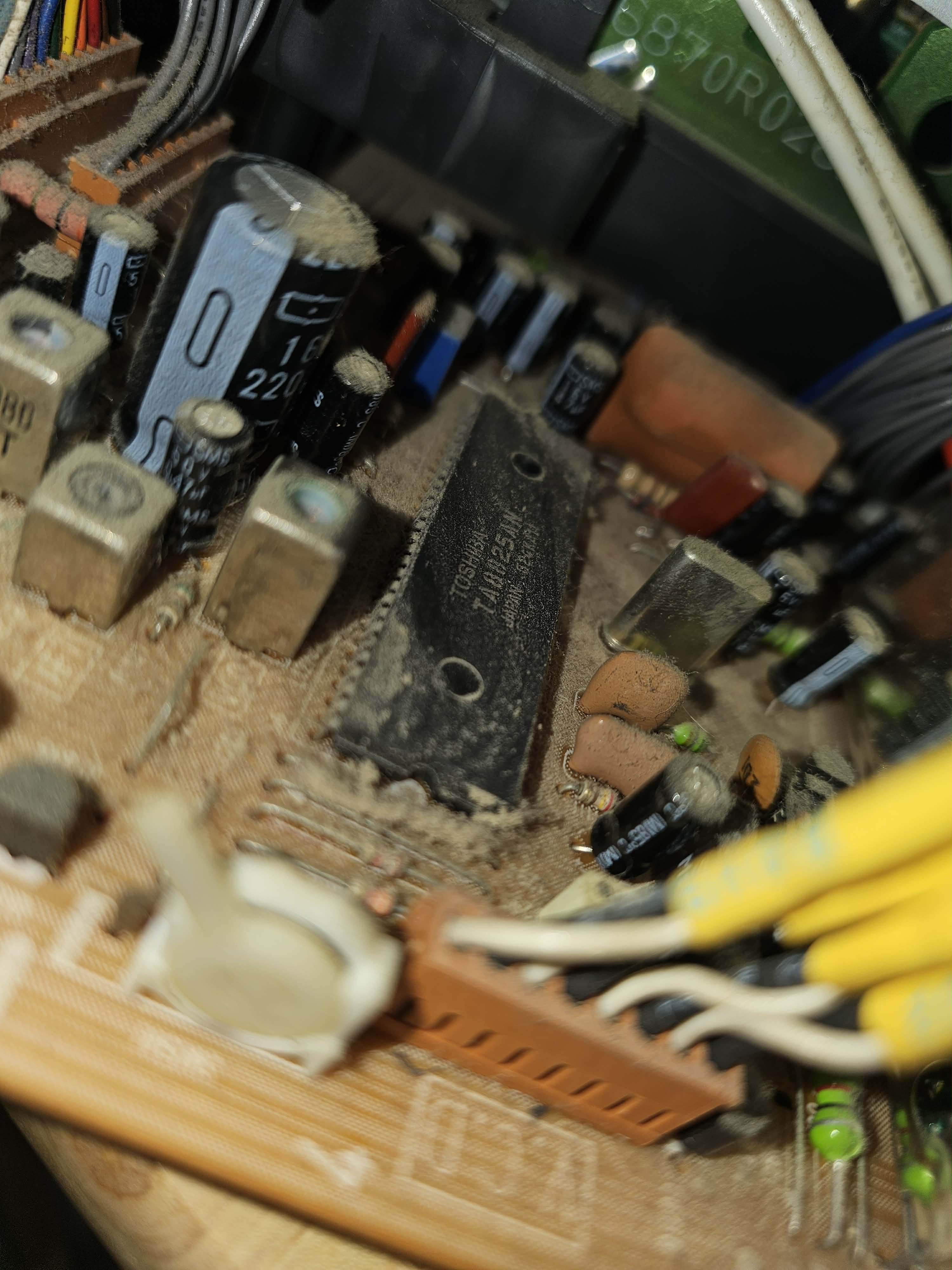

| Jungle IC: | Toshiba, TA8825AN |
| Comb Filtering: | None |

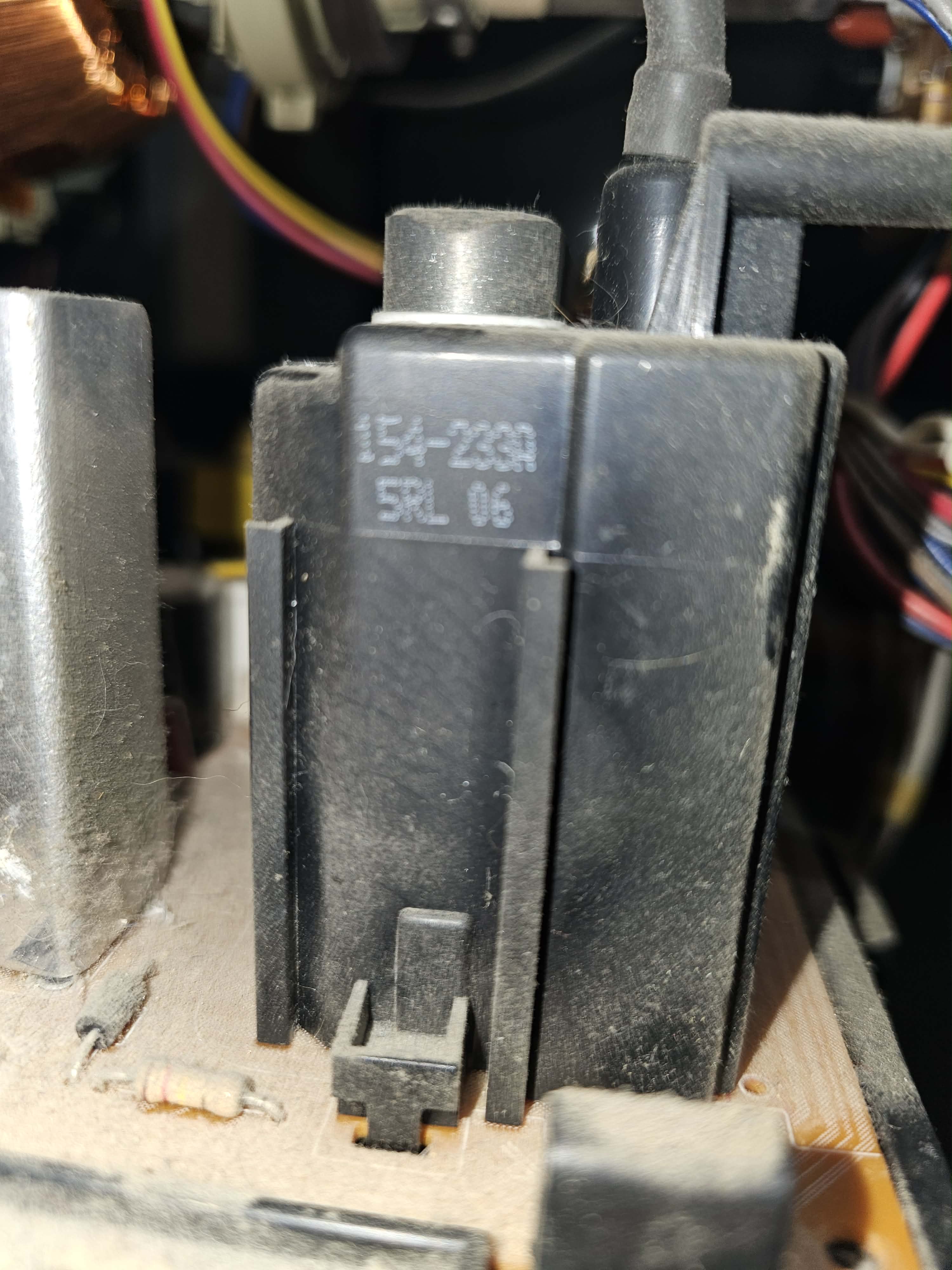

| Flyback: | 9-907-991-01 |
| Focus Type: | Single |

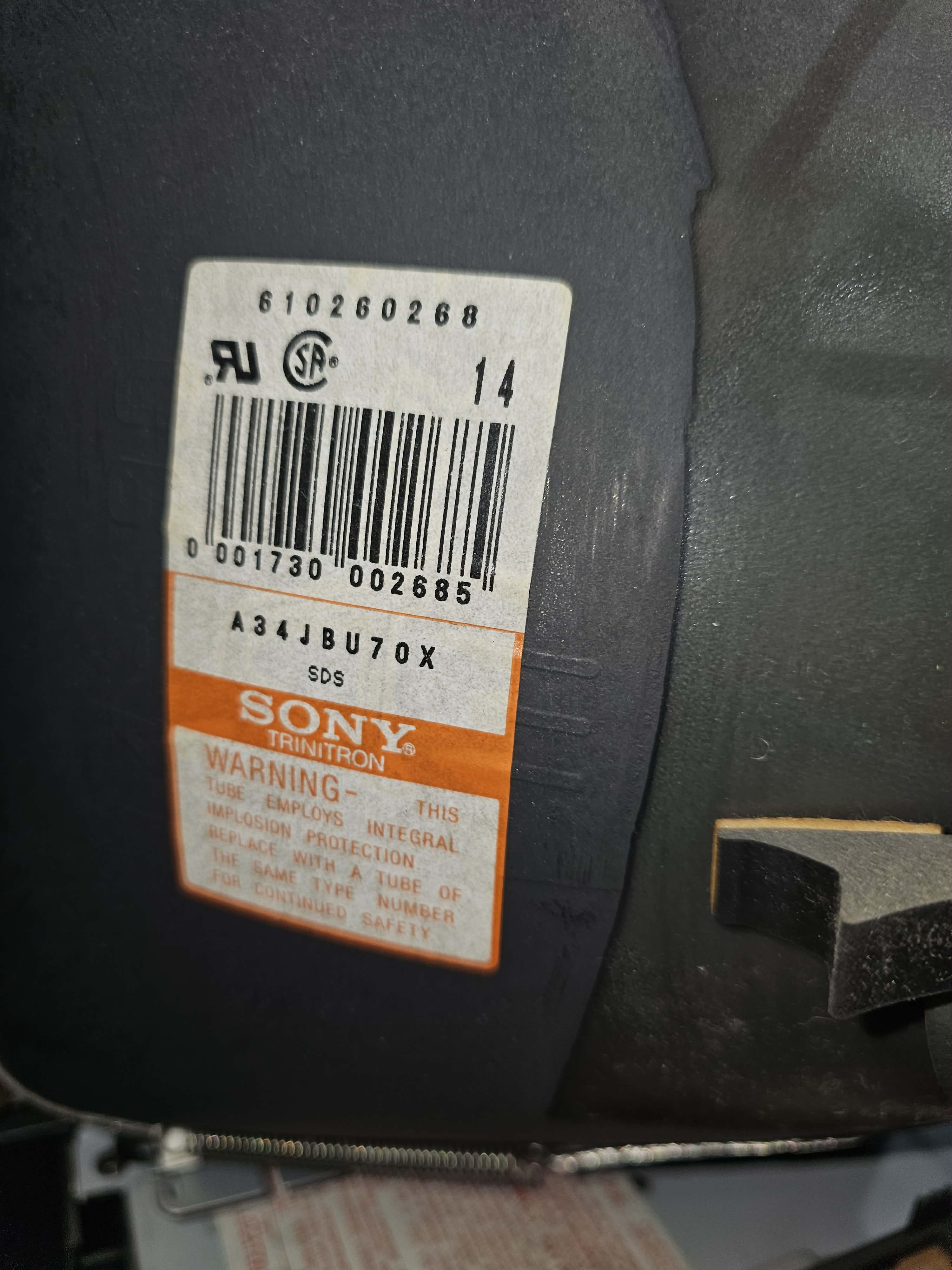

| Tube: | Sony Trinitron , A34JBU70X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |

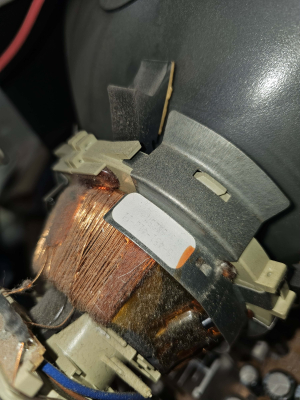

| Yoke: | 8-451-418-11 |

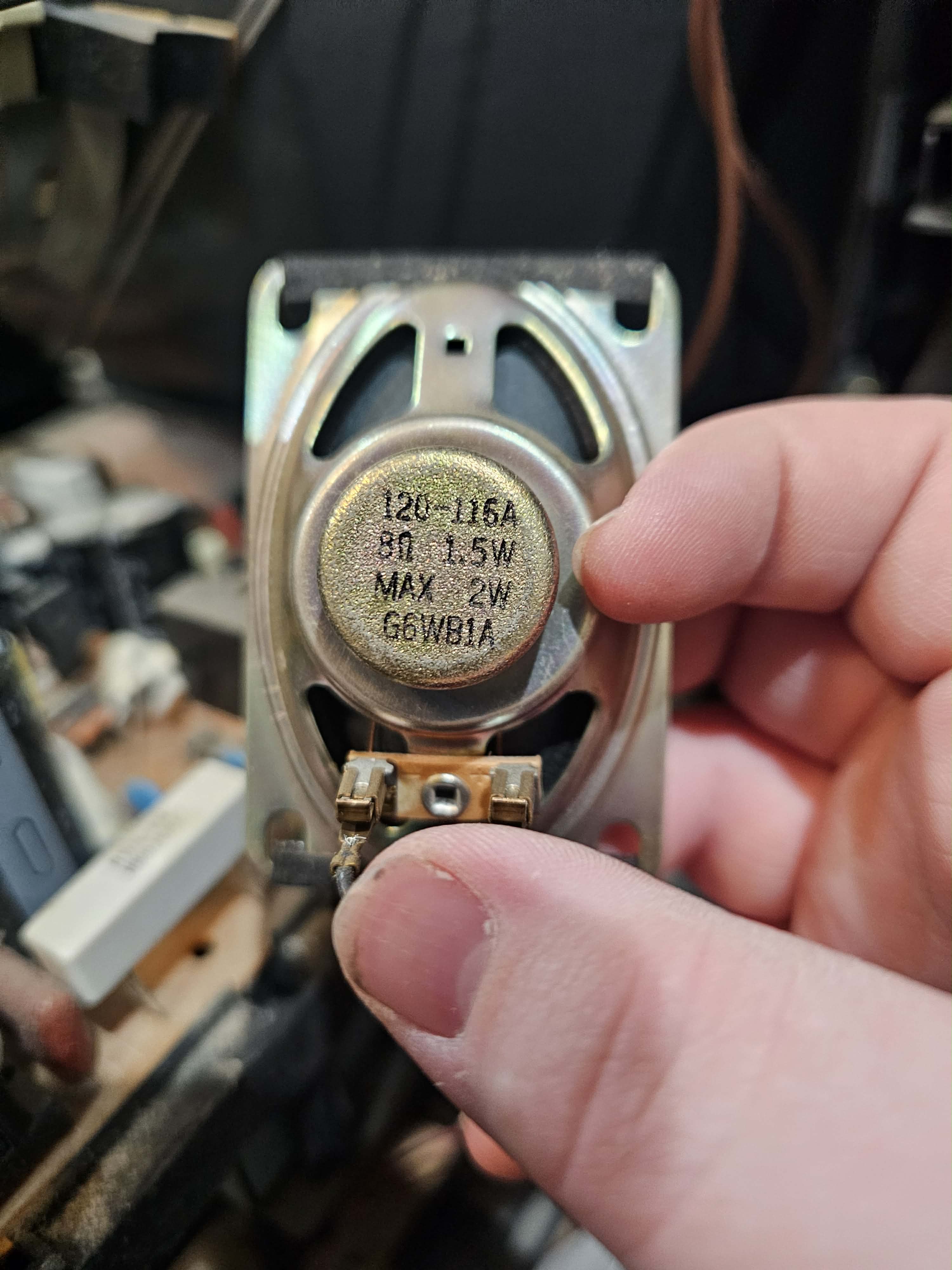

| Speakers: | Mono, Headphone Jack, 2W |
| Remote: | RM-Y138 |

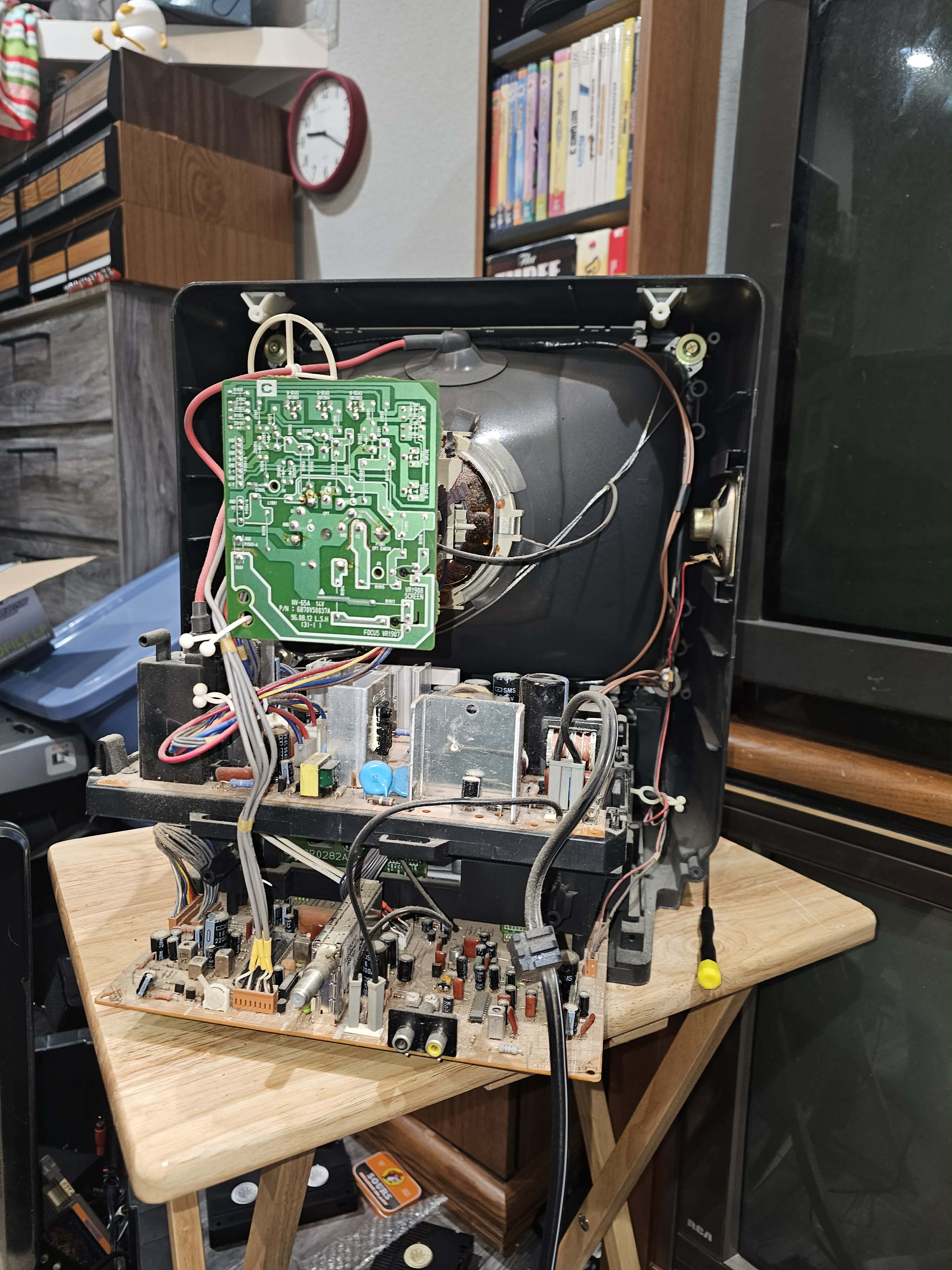

| Chassis: | SCC-J90B-A |
| Weight: | 33.3 lbs (15.1 kg) |
| Dimensions (W/H/D): |
382 x 407 x 411 mm
(15 x 16 x 16.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1996 |
| MSRP: | 499 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
