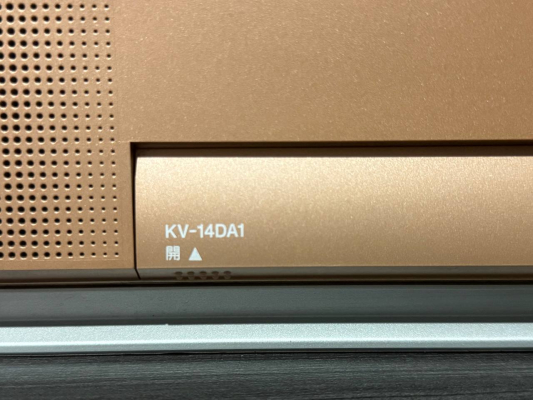

Sony KV-14DA1
Camden Hawkins
July 7, 2026, 10:50 am
July 7, 2026, 10:51 am
July 7, 2026, 10:50 am
July 7, 2026, 10:51 am
Summary

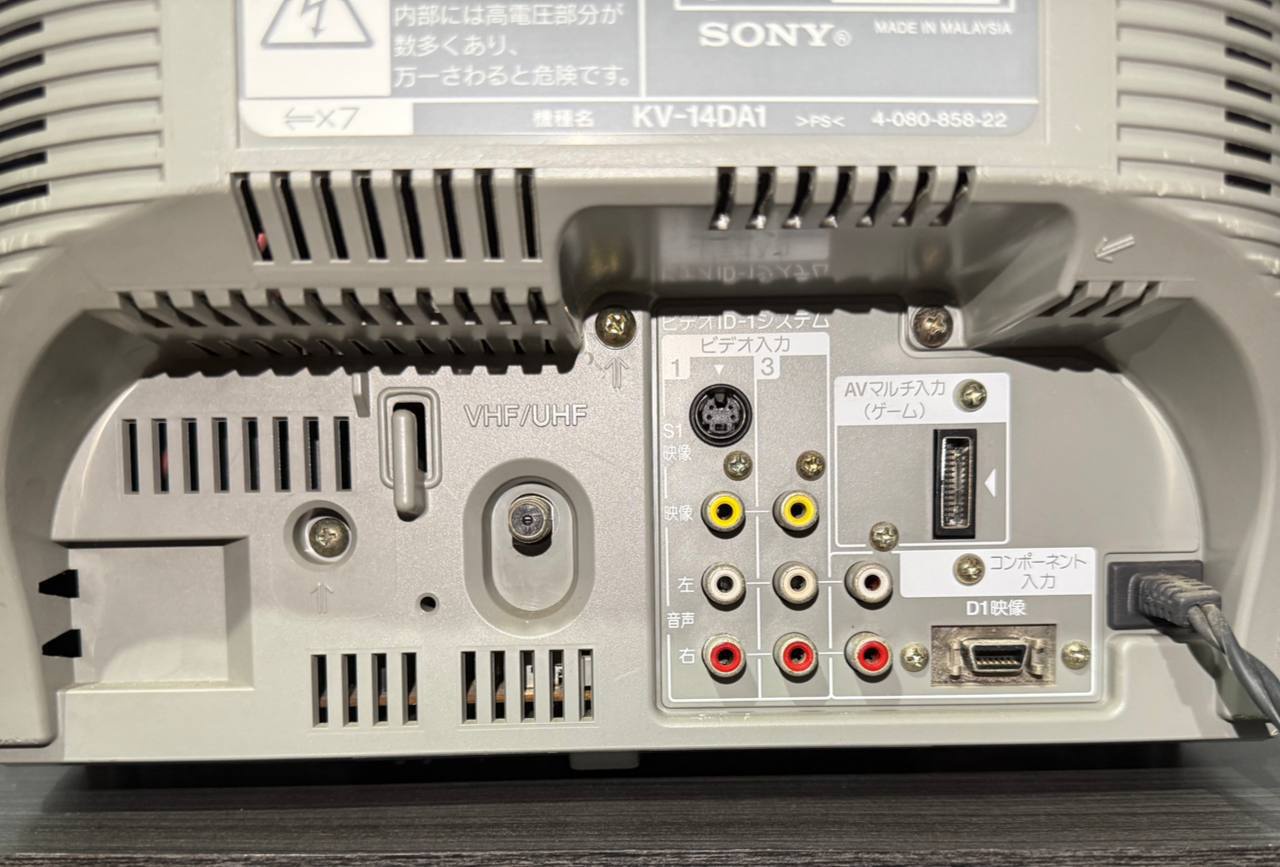

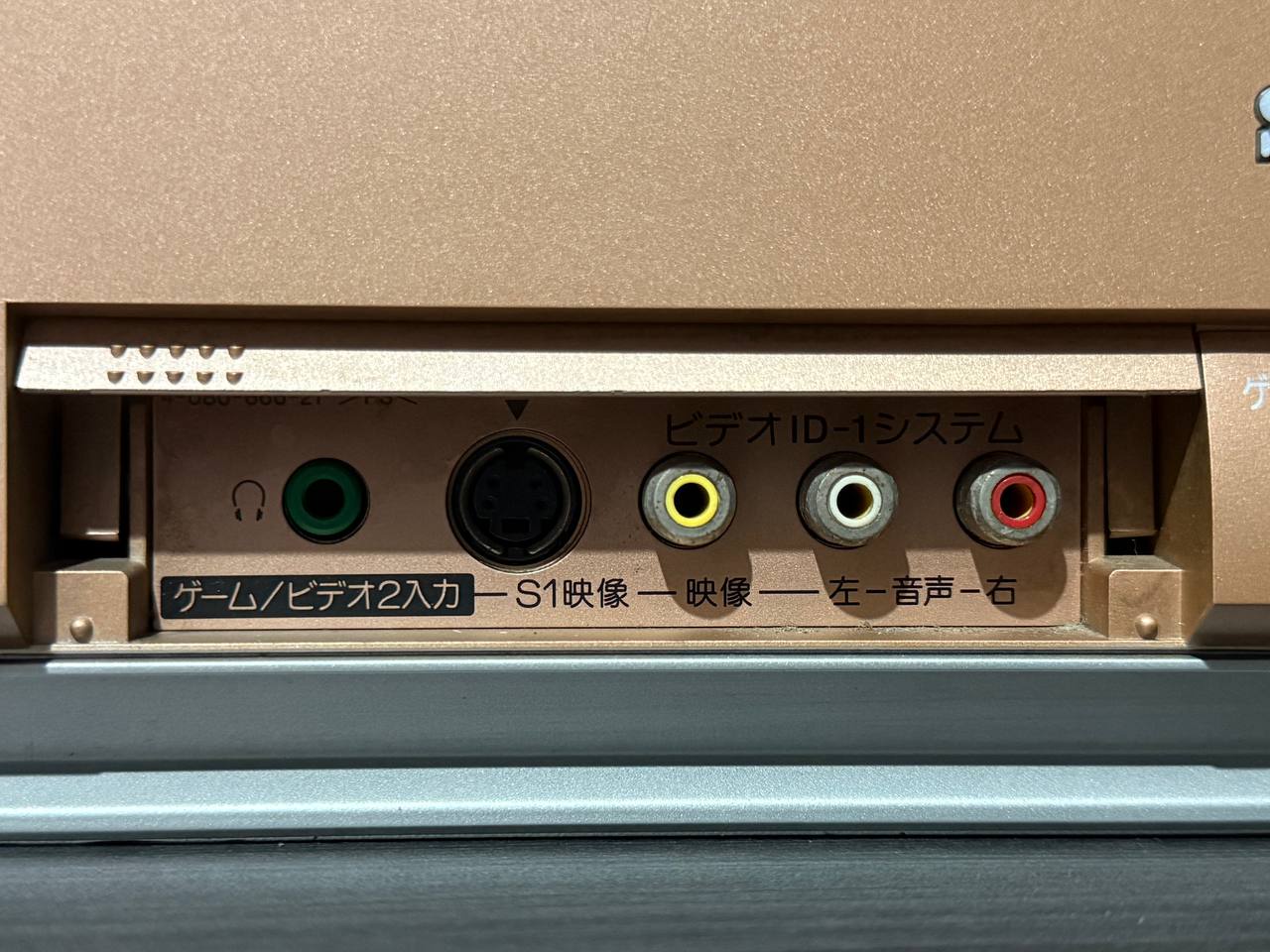

Has a wide variety of inputs including native RGB through the AV Multi port on the back. Can be used with official cables (model VMC-AVM250) with a PS1/PS2/PS3. A custom cable can be also made as the pin out has been documented online along with a guide written in Japanese. There is also a component input on the back through the D-Terminal port, which can be easily converted to RCA jacks.

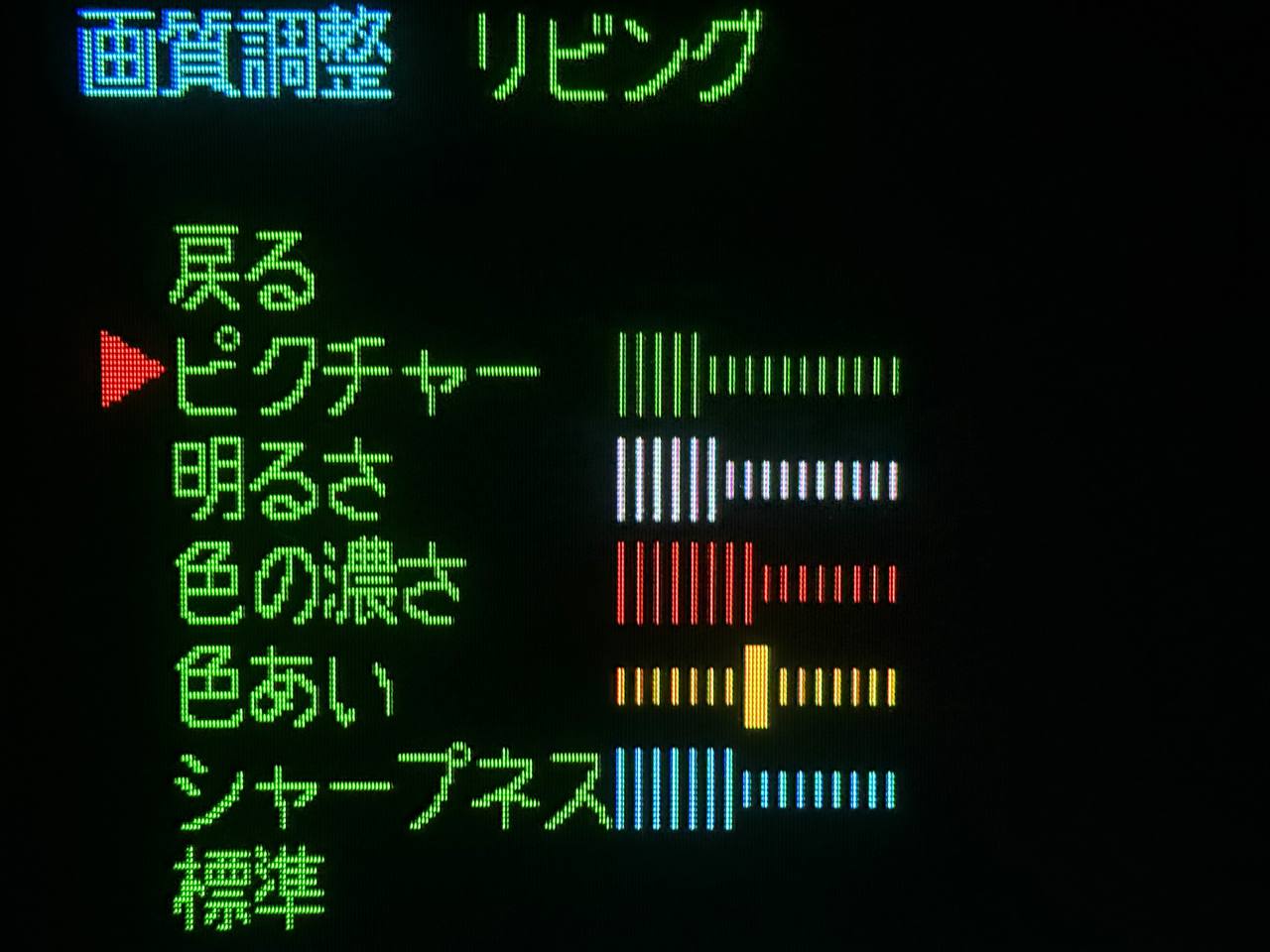

Tilt adjustments are available on the standard menu, along with a 16:9 toggle.
Notes

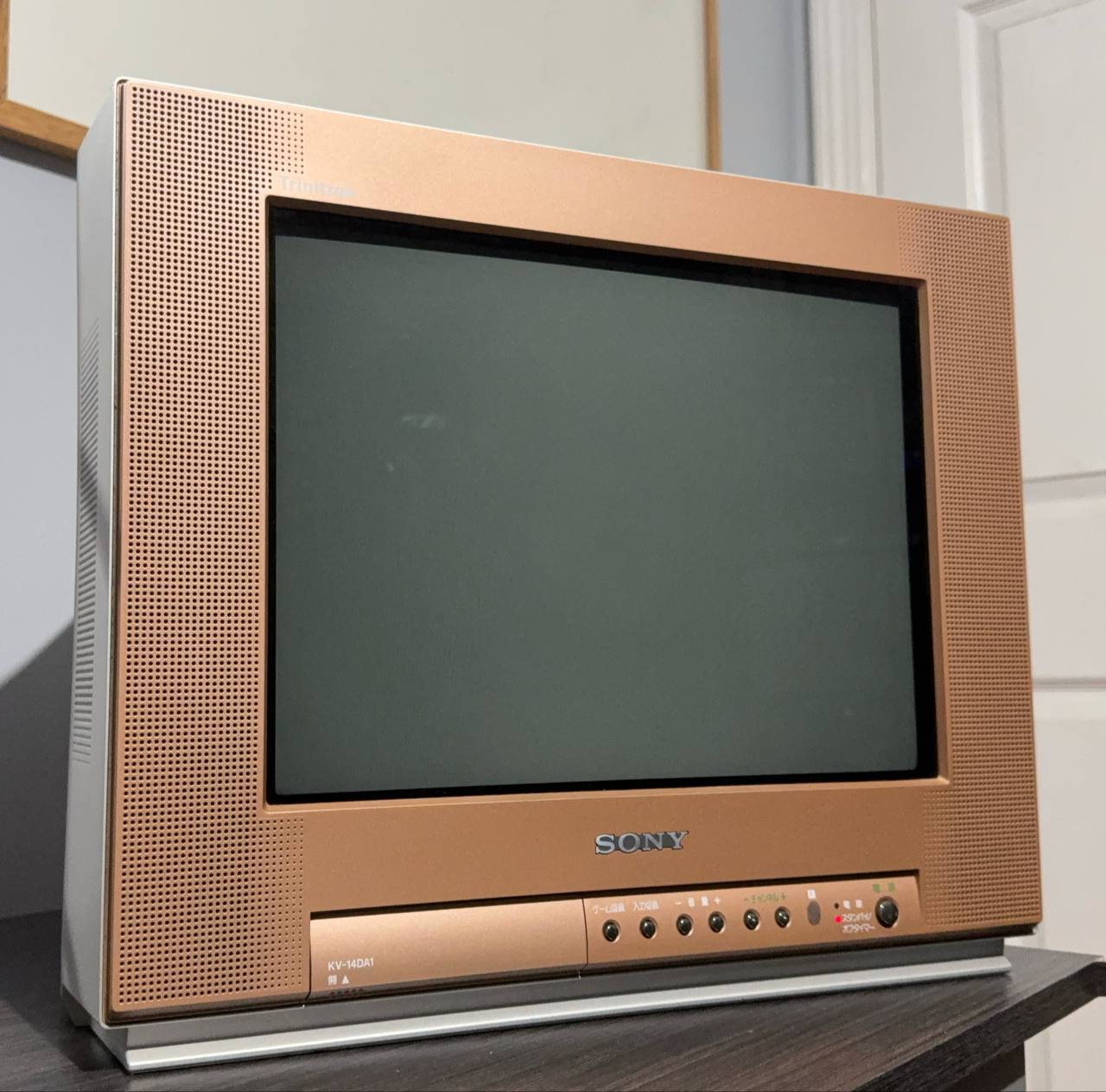

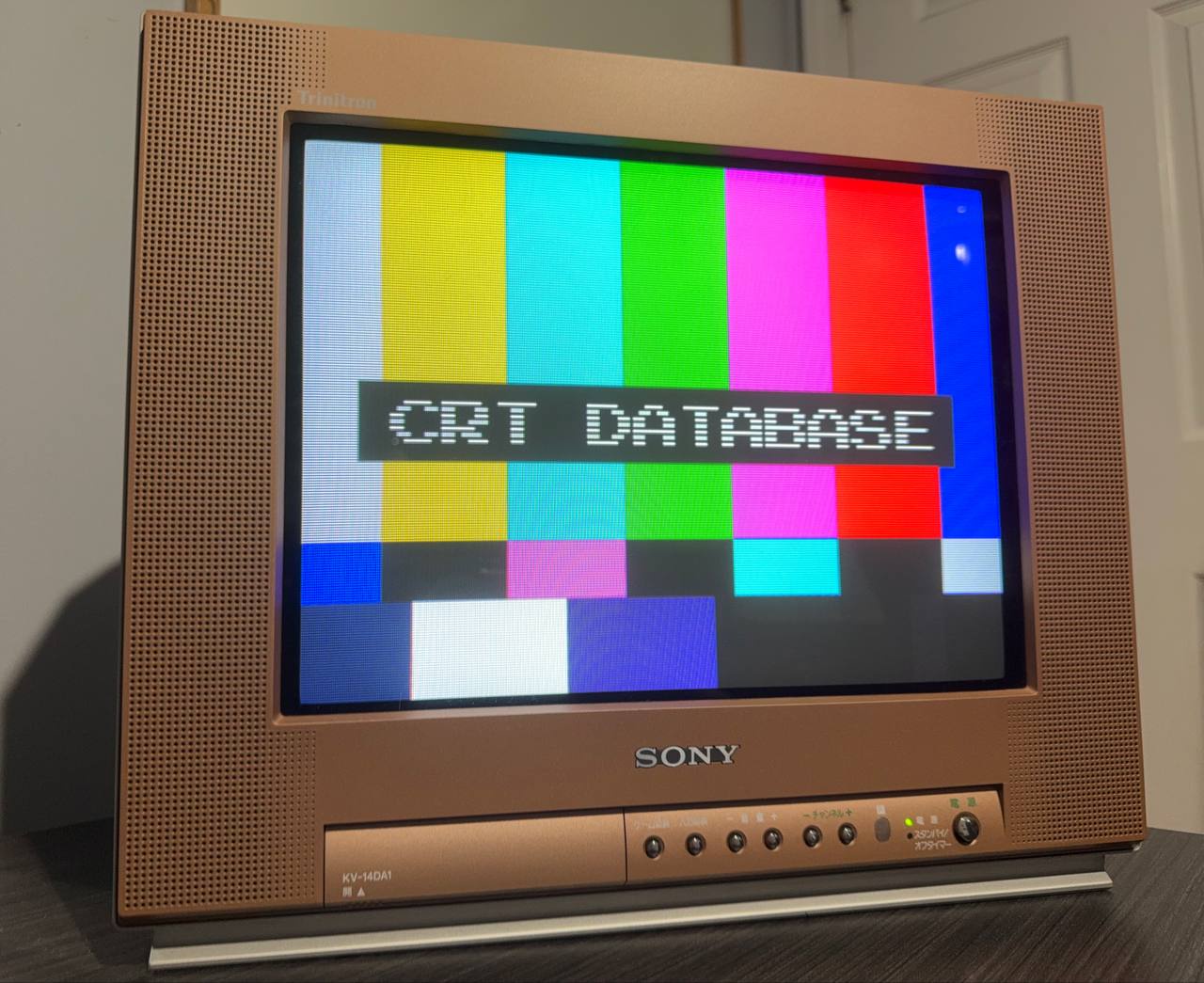

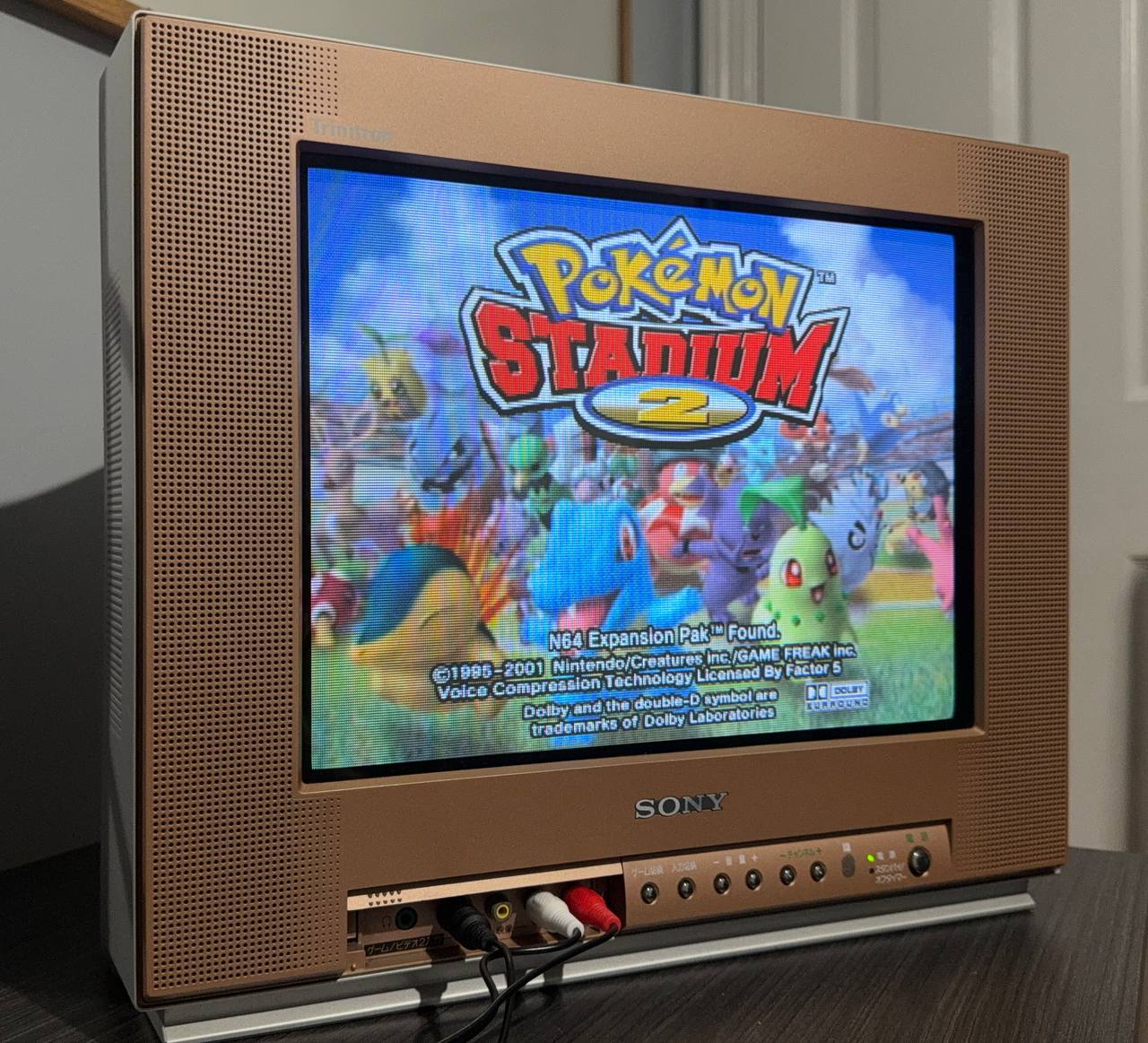

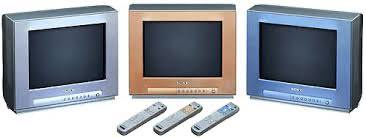

Came in three colors (silver, orange and blue). Service menu can be accessed the way you normally access it on Sony sets and an English remote can be used. Uses the same tube as the KV-13FS100 and KV-13FM12.
Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-14DA1 |
| Viewable Size: | 13" |
| Input Signals: | Composite, S-Video, RF, Component YPbPr, RGB, UHF, VHF |
| Native Resolutions: | 240p, 480i |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | 3-Line Digital |

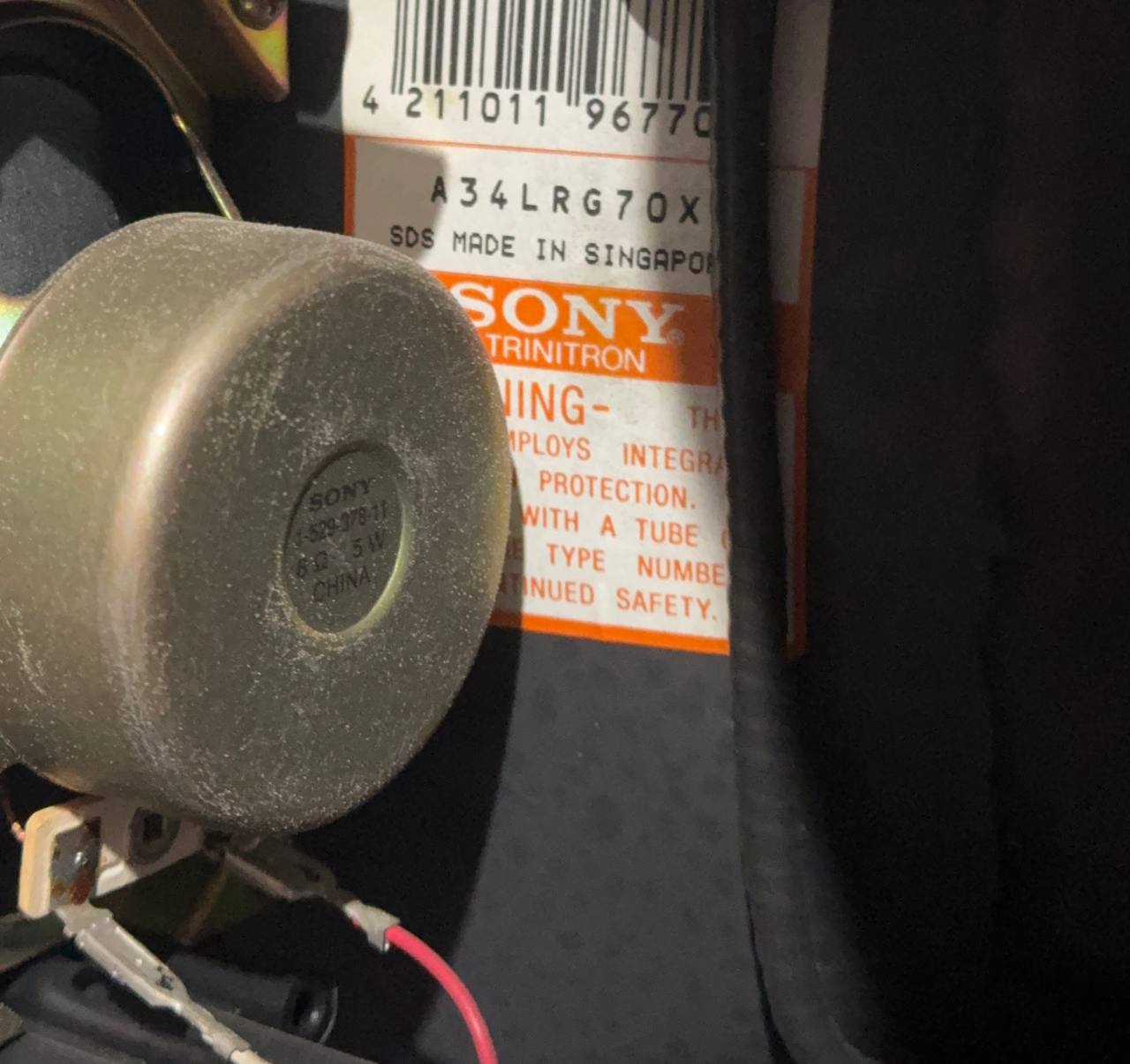

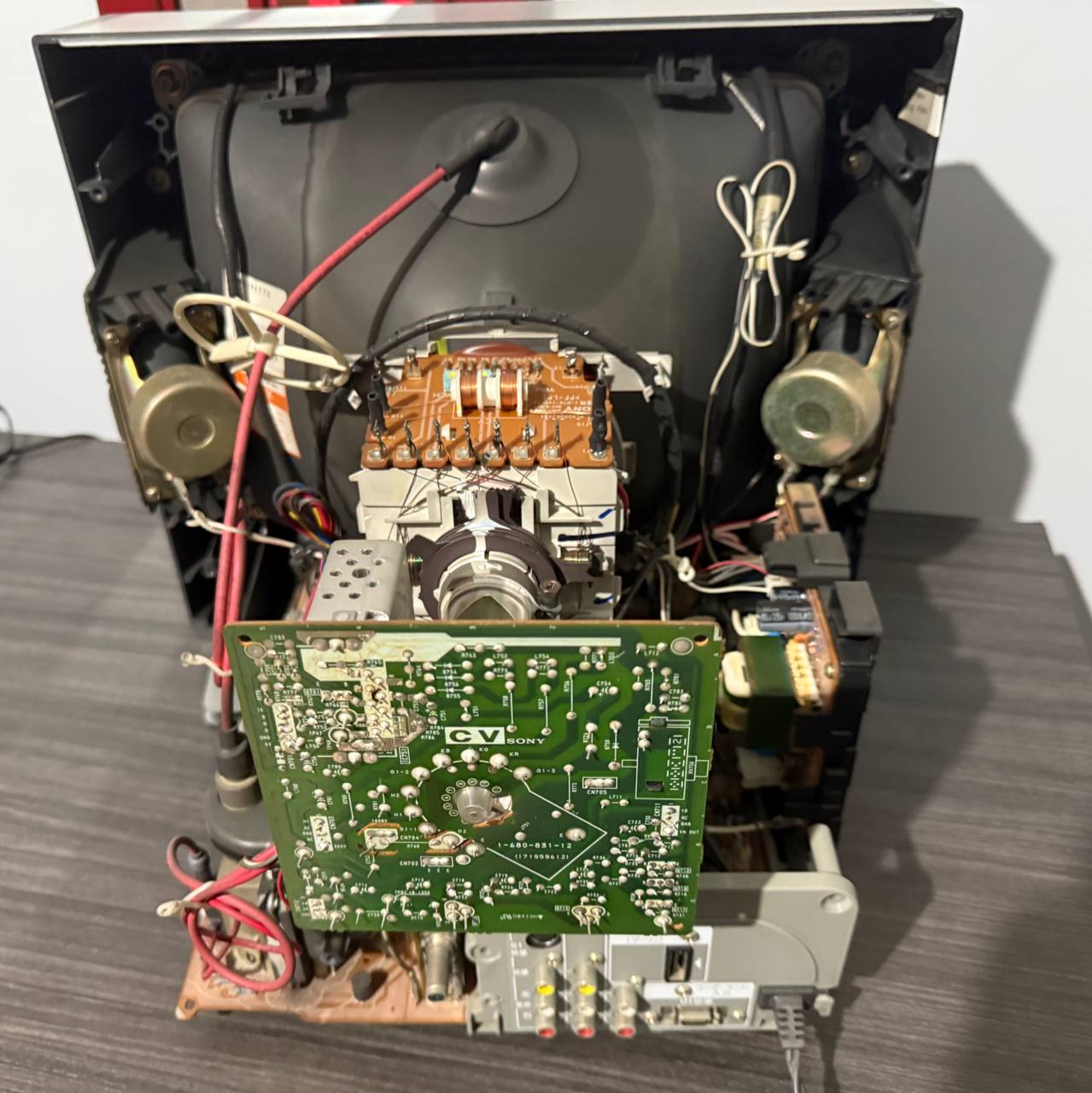

| Tube: | Sony Trinitron , A34LRG70X |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|

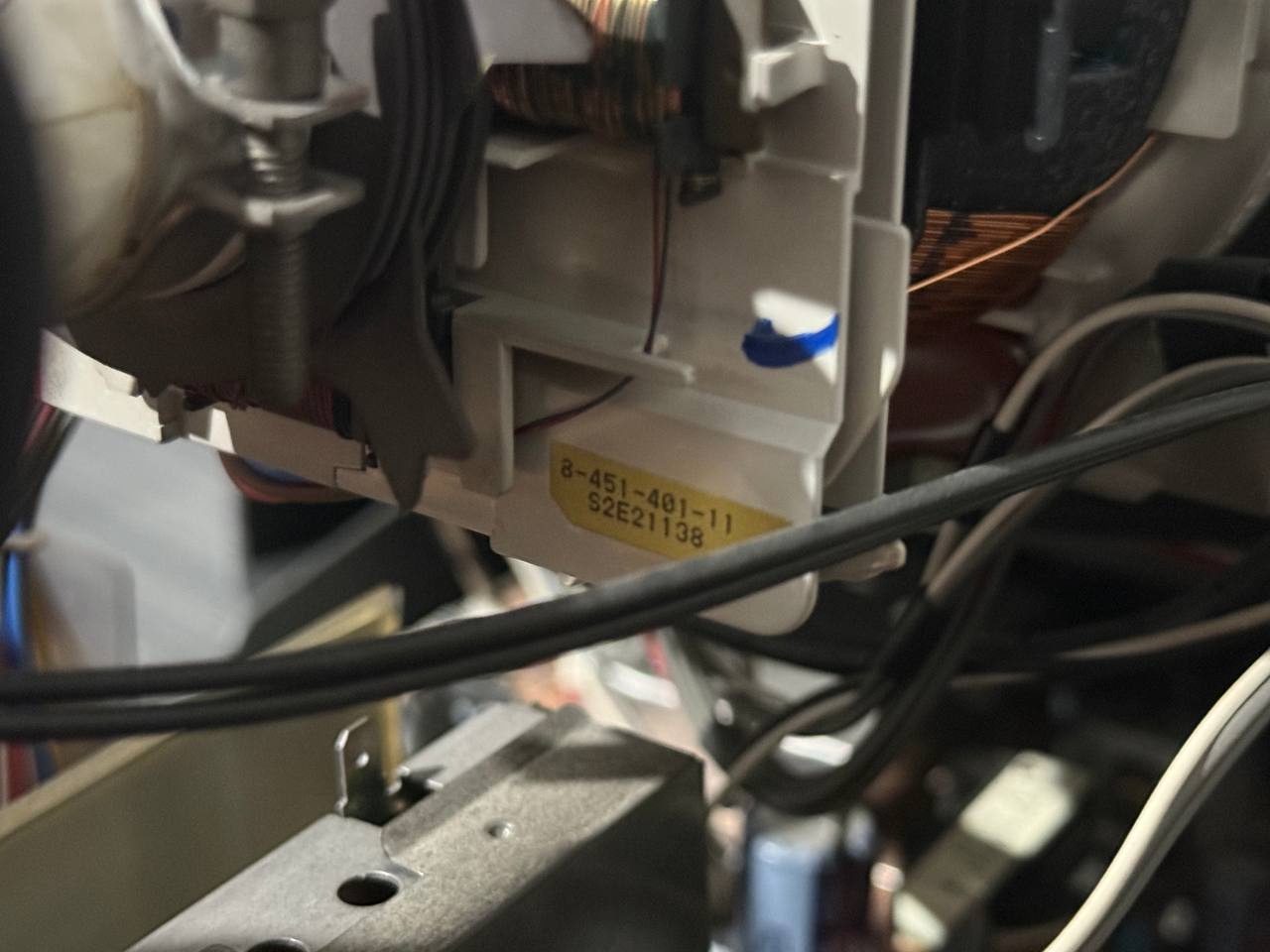

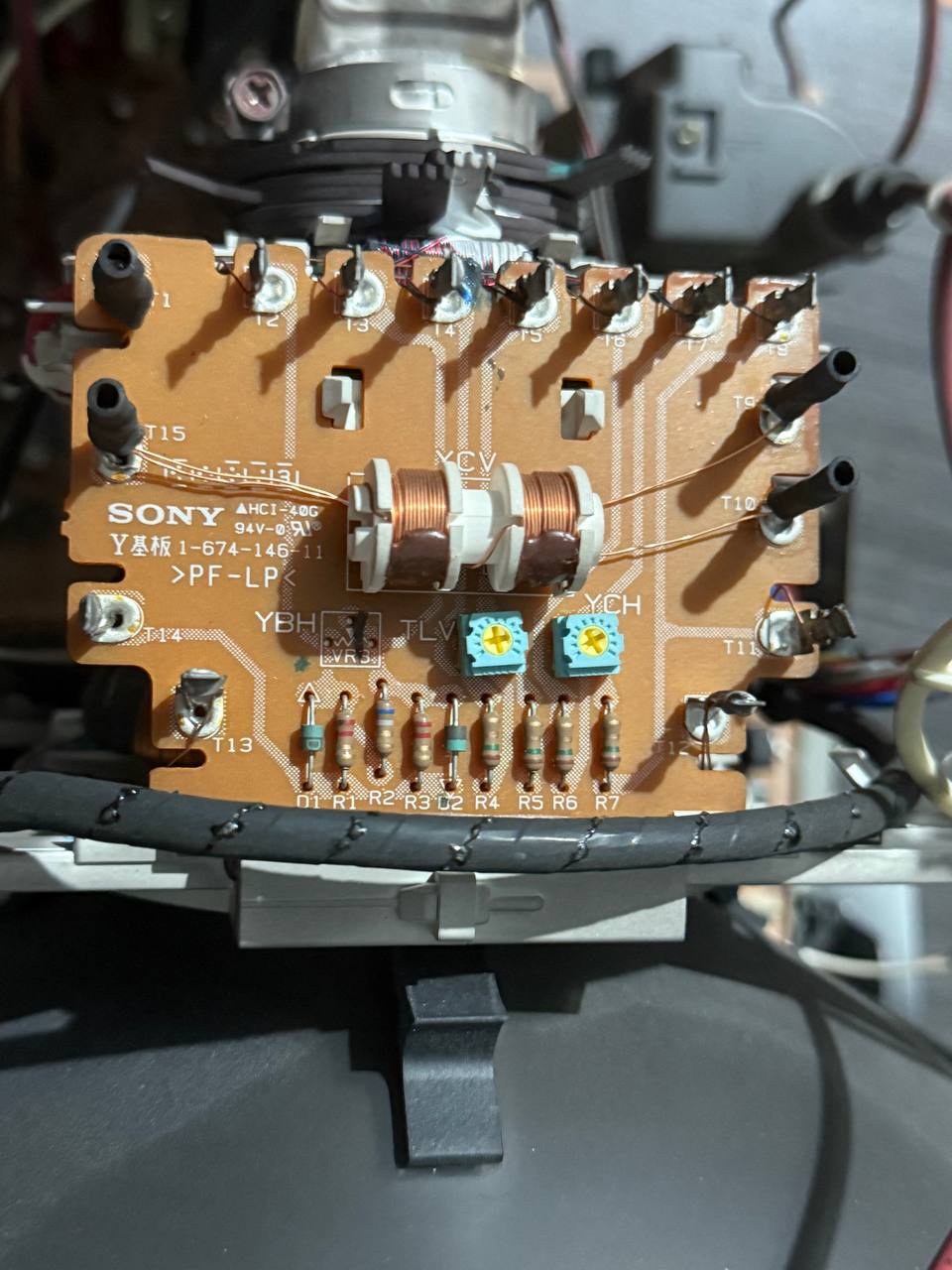

| Yoke: | 8-451-401-11 |
| Remote: | RM-J244 |
| Weight: | 28.2 lbs (12.8 kg) |
| Dimensions (W/H/D): |
393 x 337 x 411 mm
(15.4 x 13.2 x 16.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | Japan |
| Market: | Japan |
| Power Standard: | 100v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Community Submission, Needs Yoke Info |
