Summary

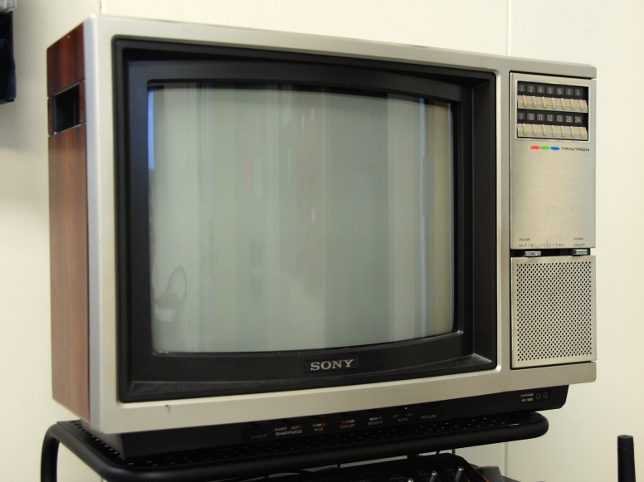

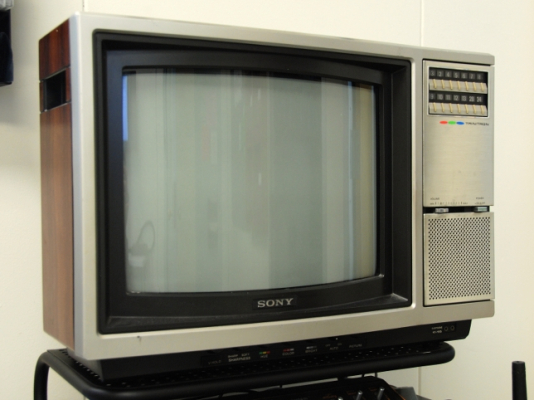

15" Trinitron from 1976. Made in Japan.
(Special thanks to Tyler Ashton for the pics!)
Manuals
(None at this time.)
Notes

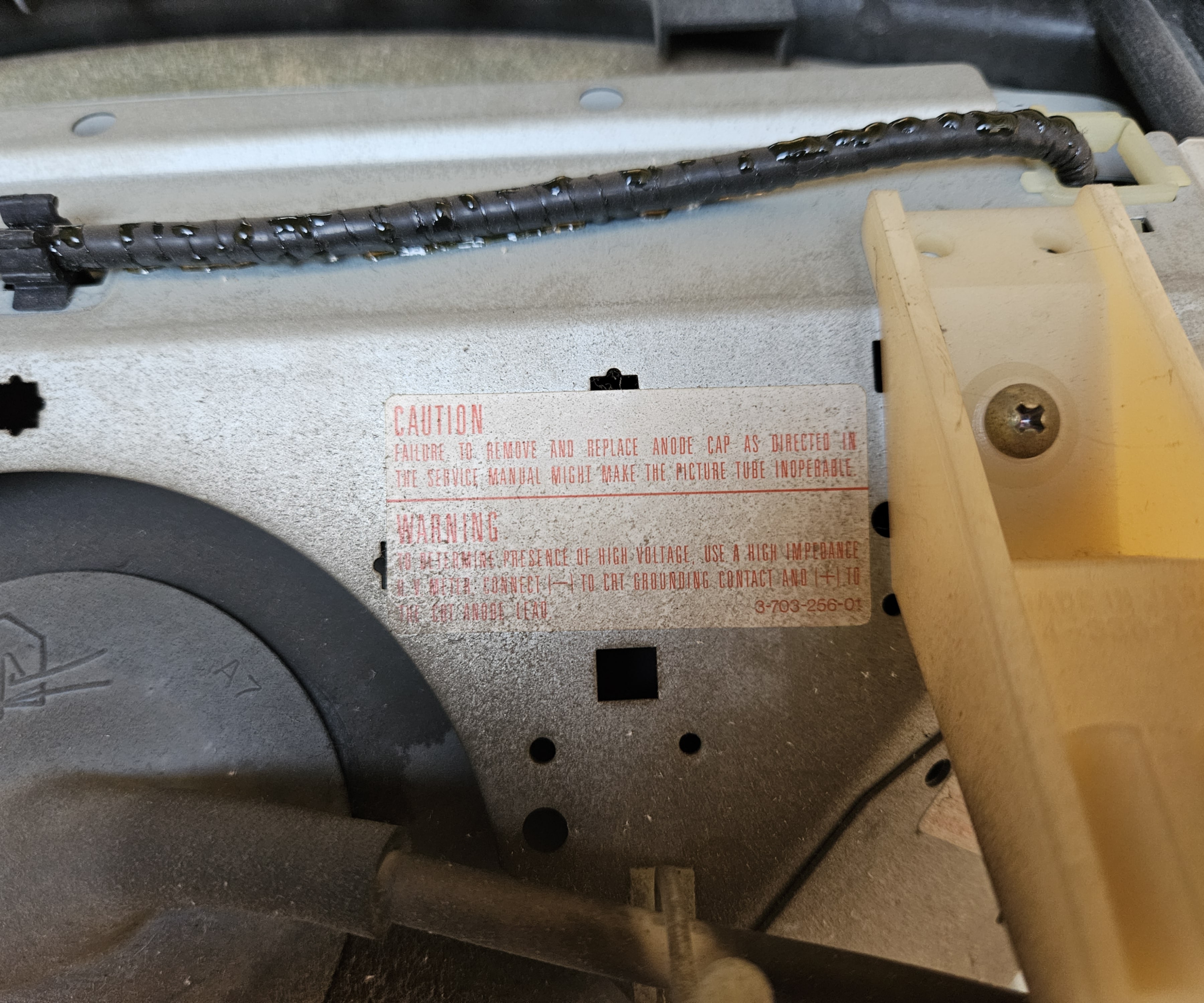

This TV has a hot chassis and should not be modified for additional inputs.
This CRT is confirmed to be a hot chassis.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.
Hot Chassis means that "ground" on the chassis is tied to one side of the AC input from the wall, and touching it with your hand will complete a live circuit through your body to earth ground if the CRT is plugged into an AC outlet. The proper way to avoid this danger is to use an isolation transformer to isolate the CRT from earth ground and prevent electrocuting yourself.

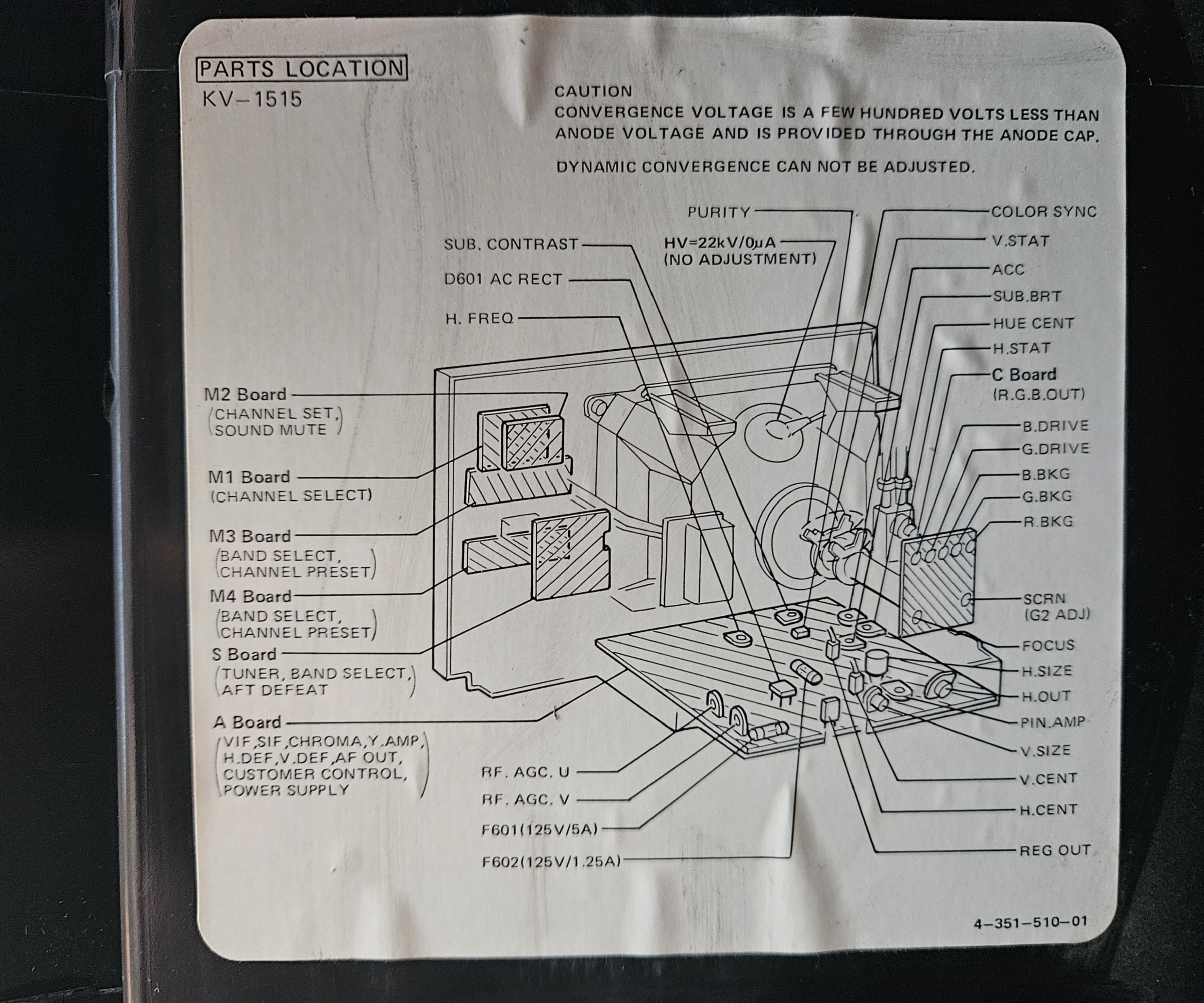

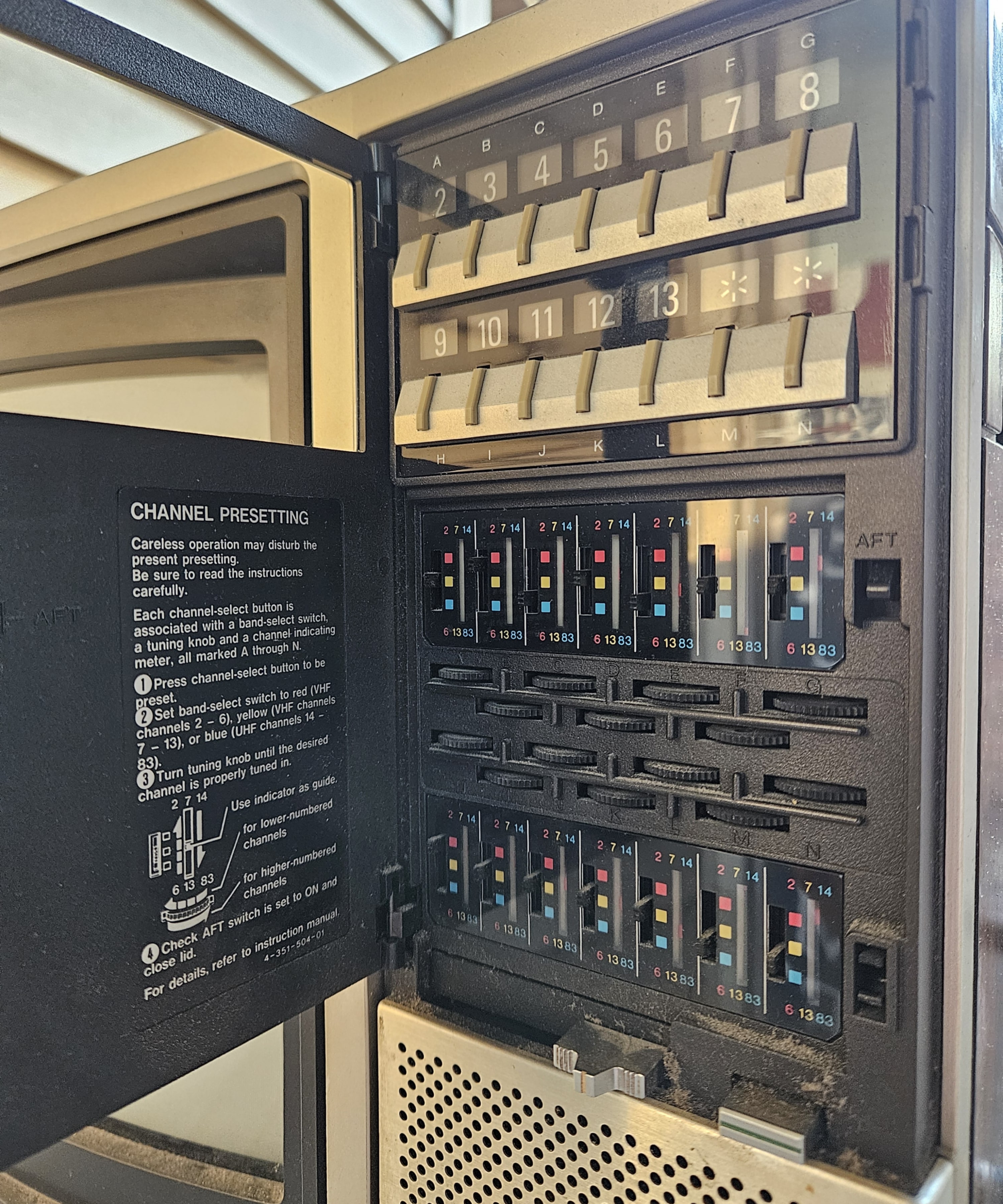

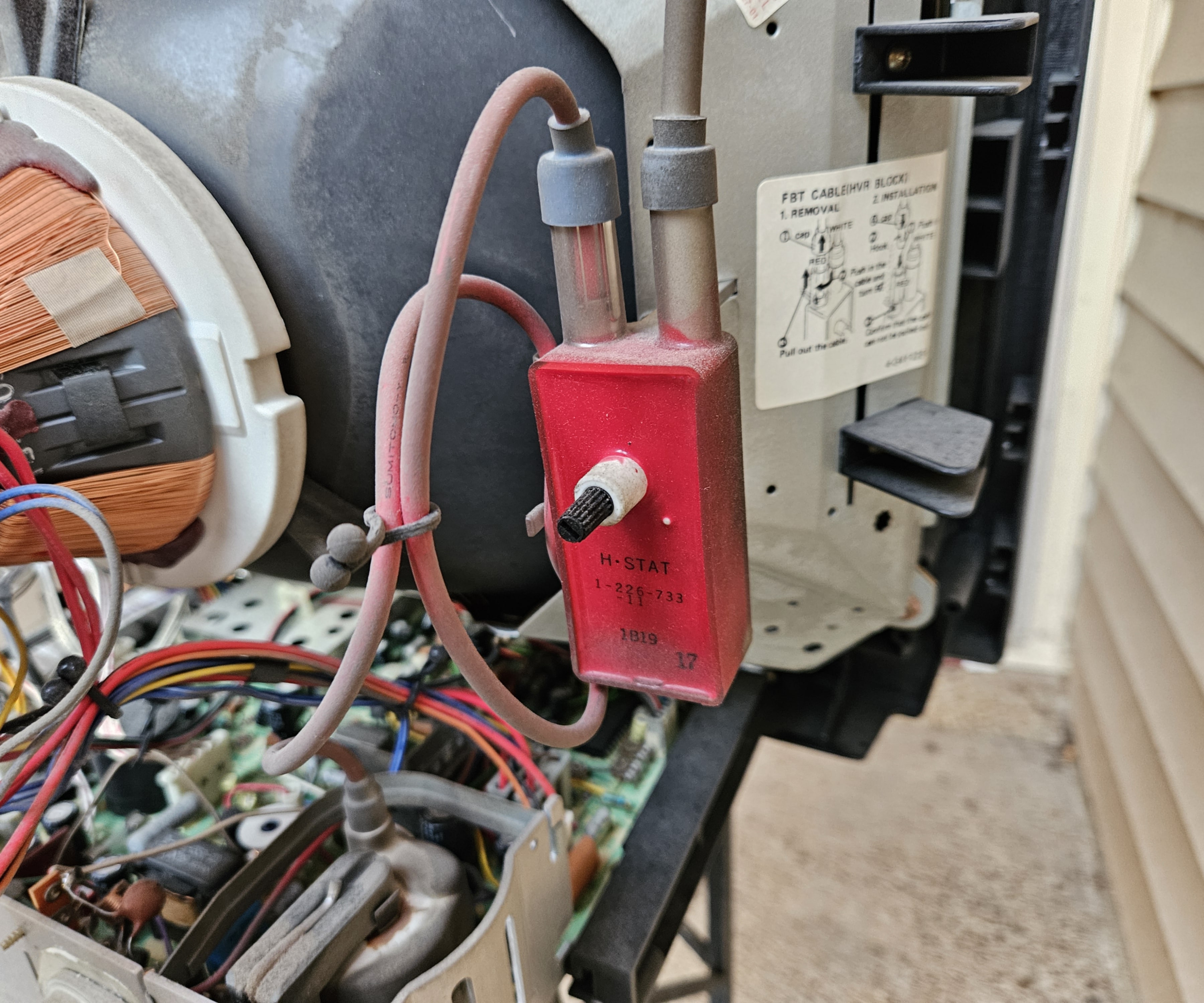

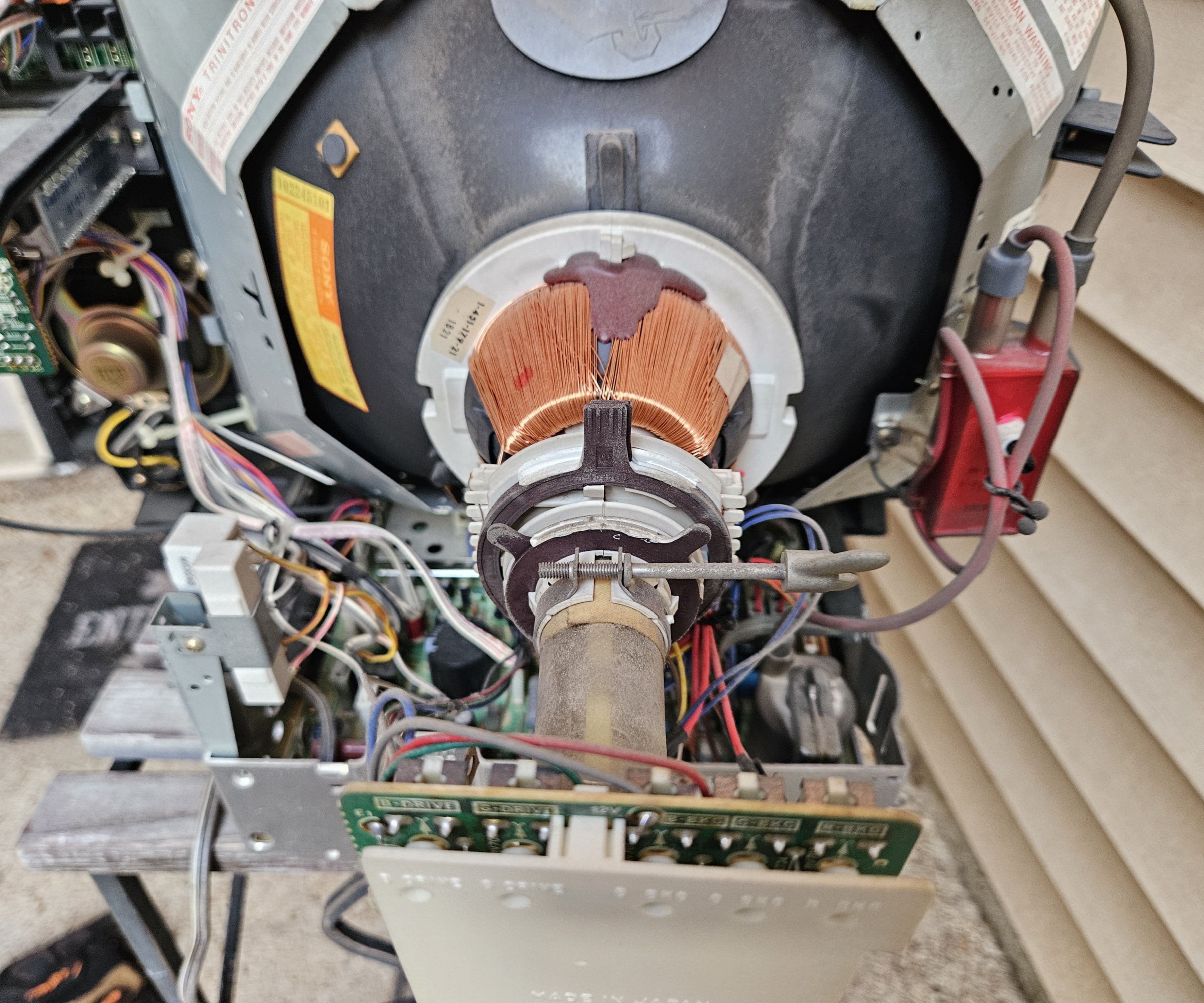

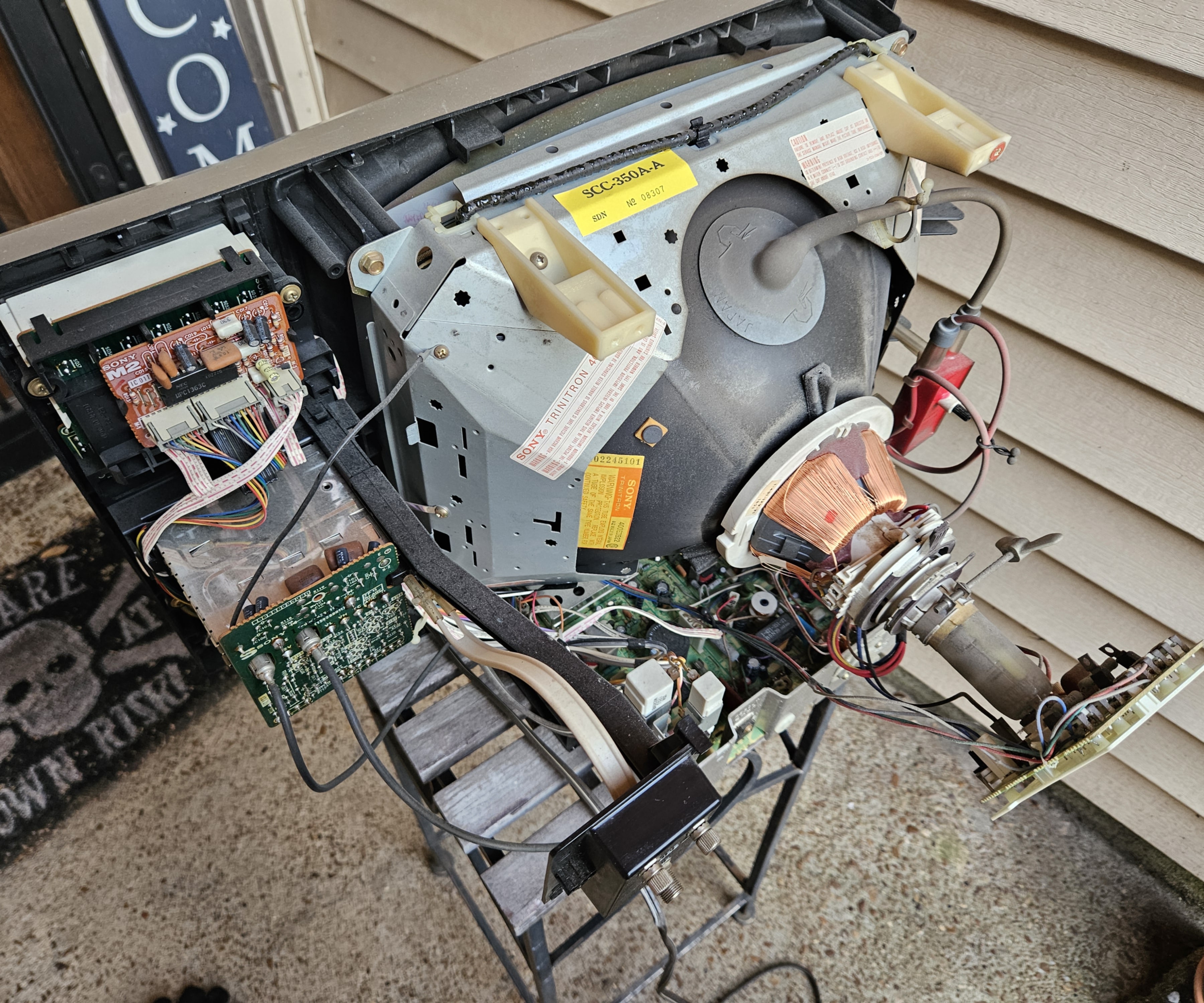

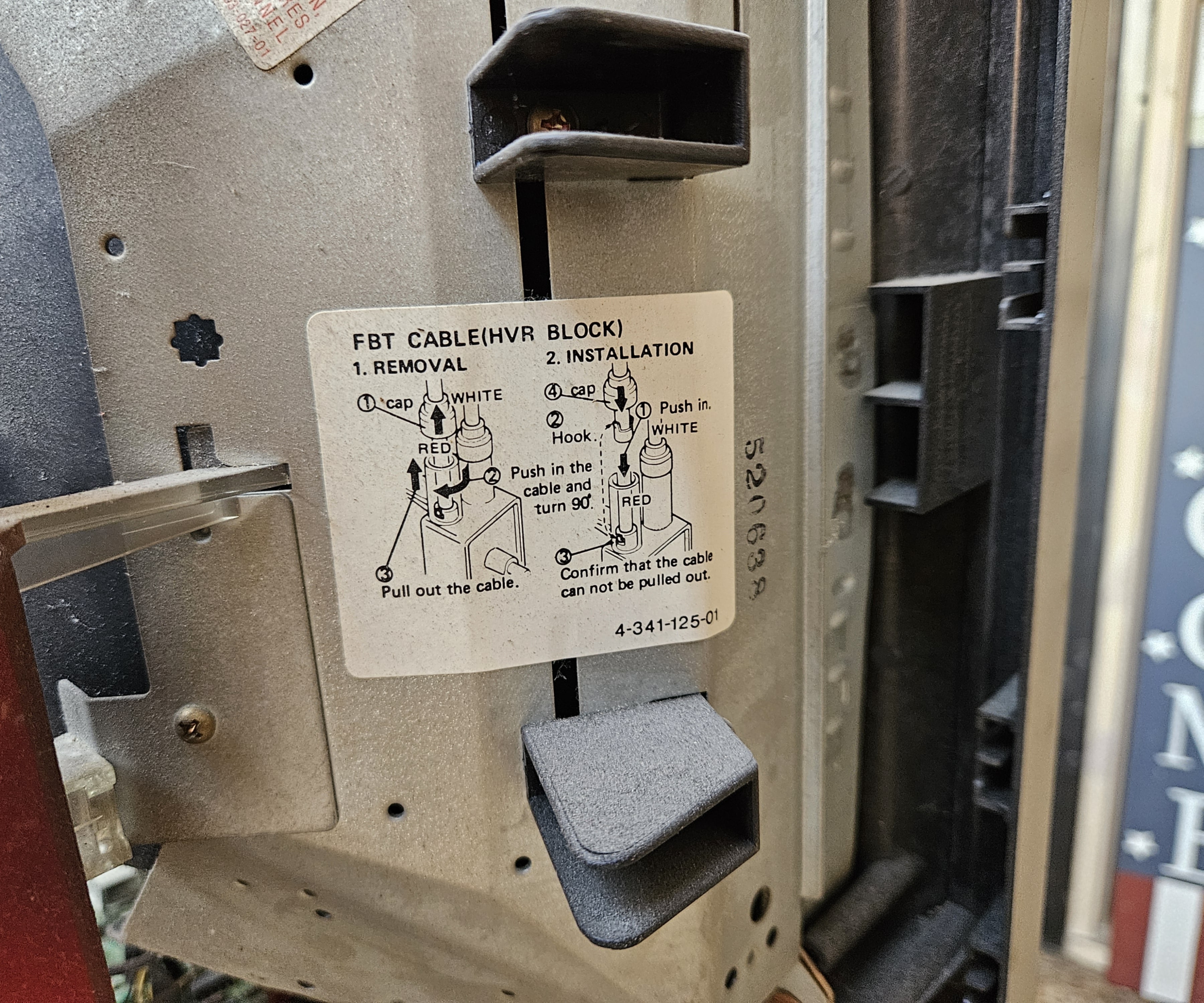

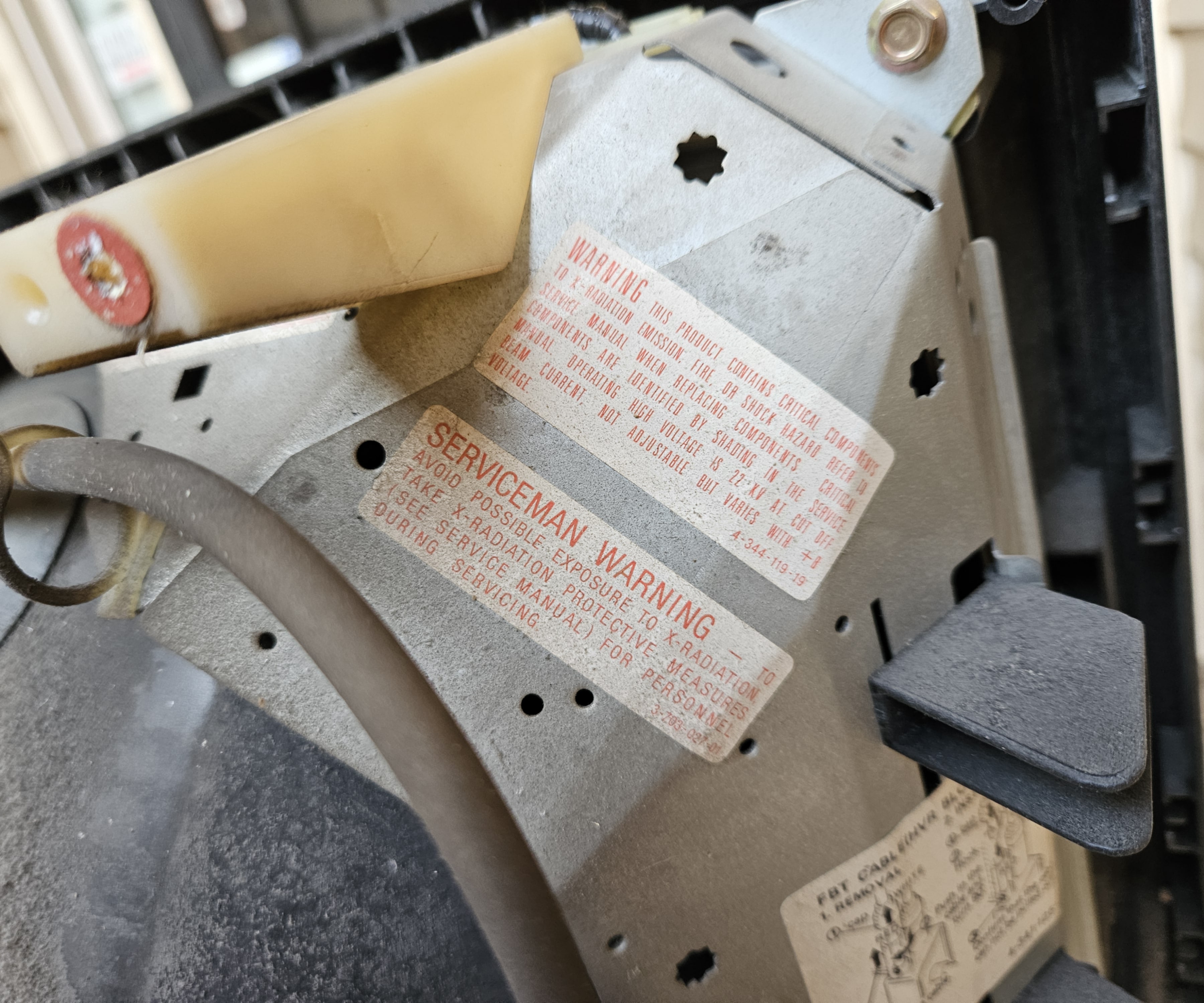

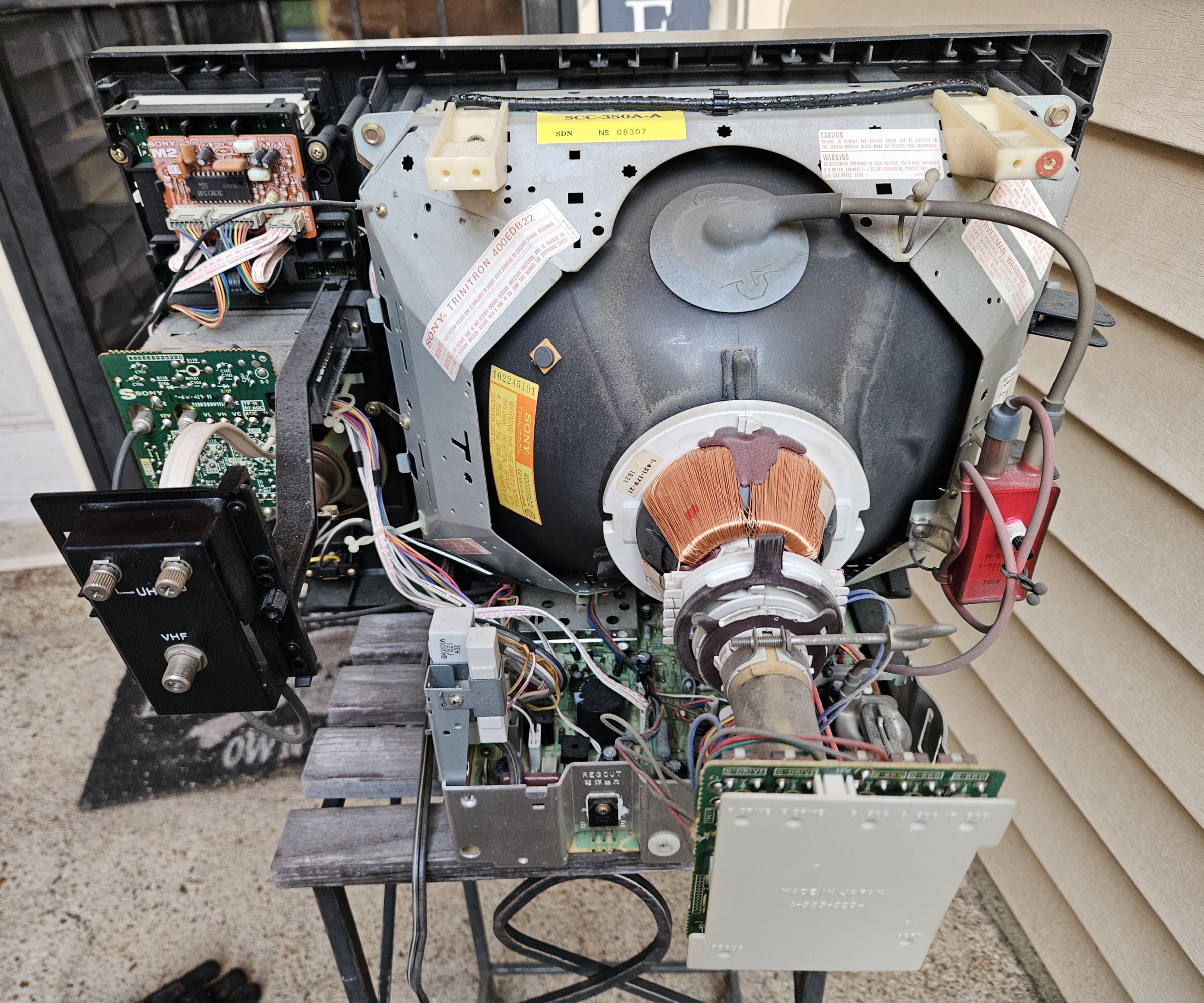

Gallery

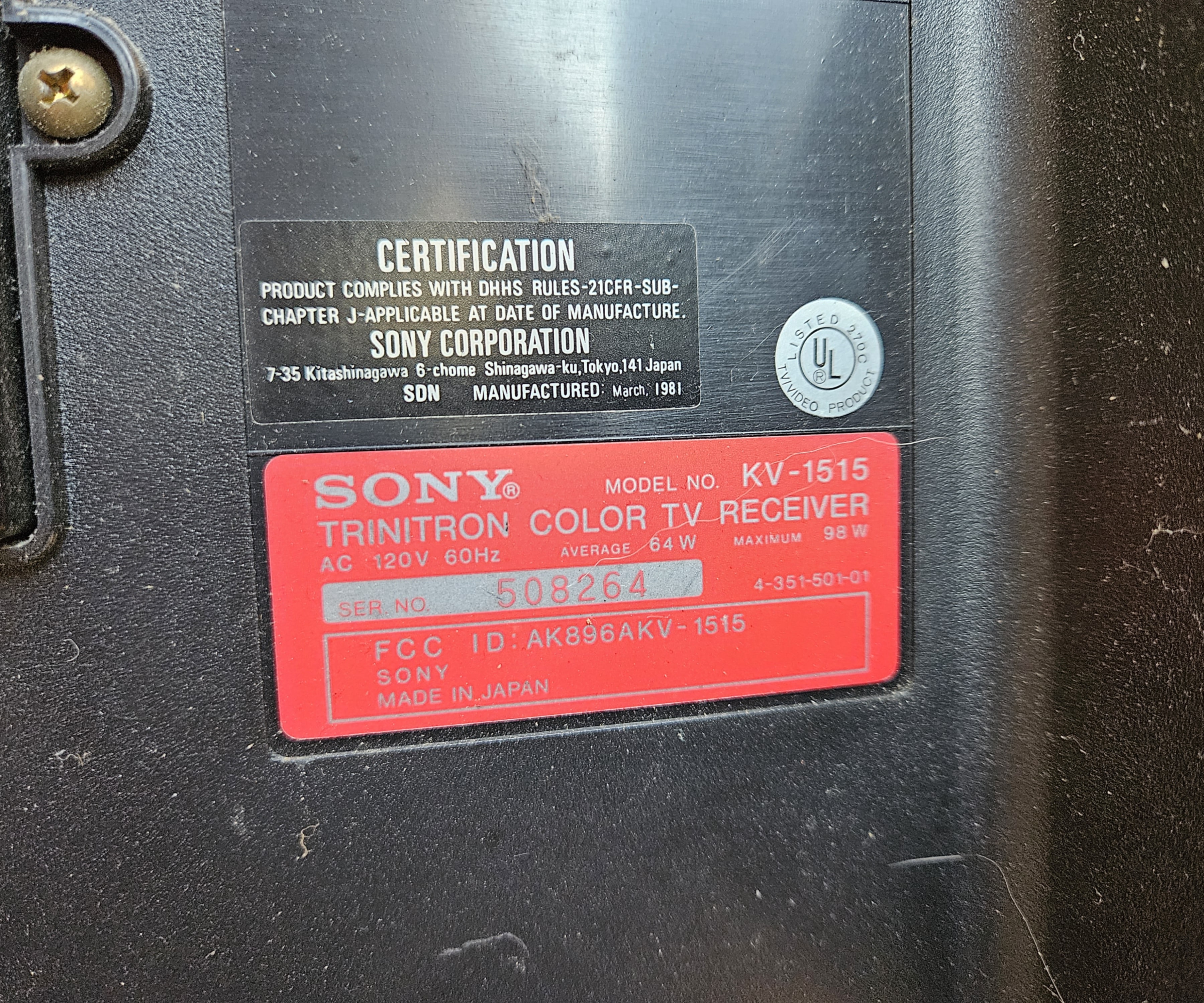

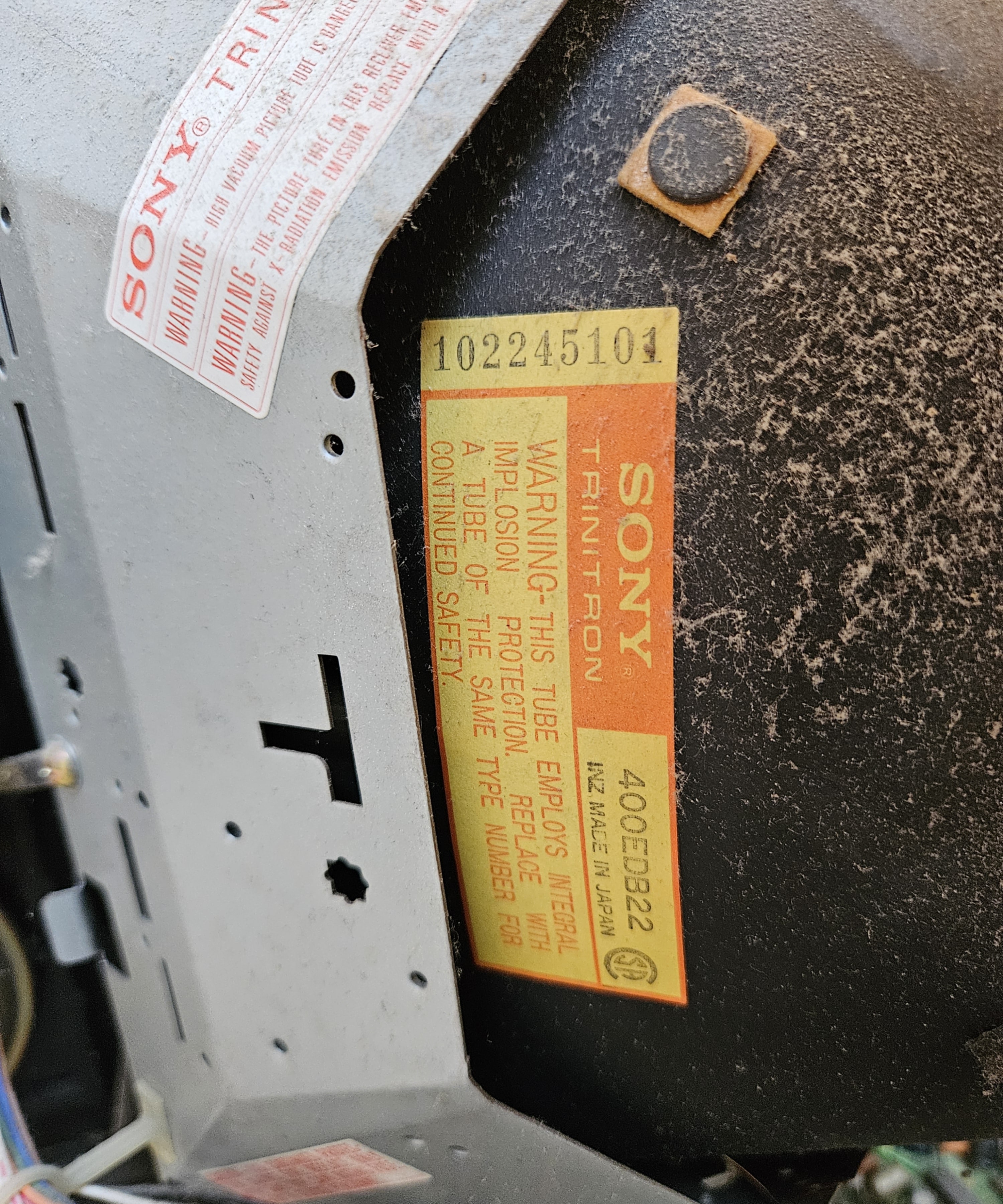

| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-1515 |
| Series: | KV |
| Viewable Size: | 15" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers, Front Mounted Buttons |
| Comb Filtering: | None |
| Focus Type: | Single |
| Tube: | Sony Trinitron , 400EDB22 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|

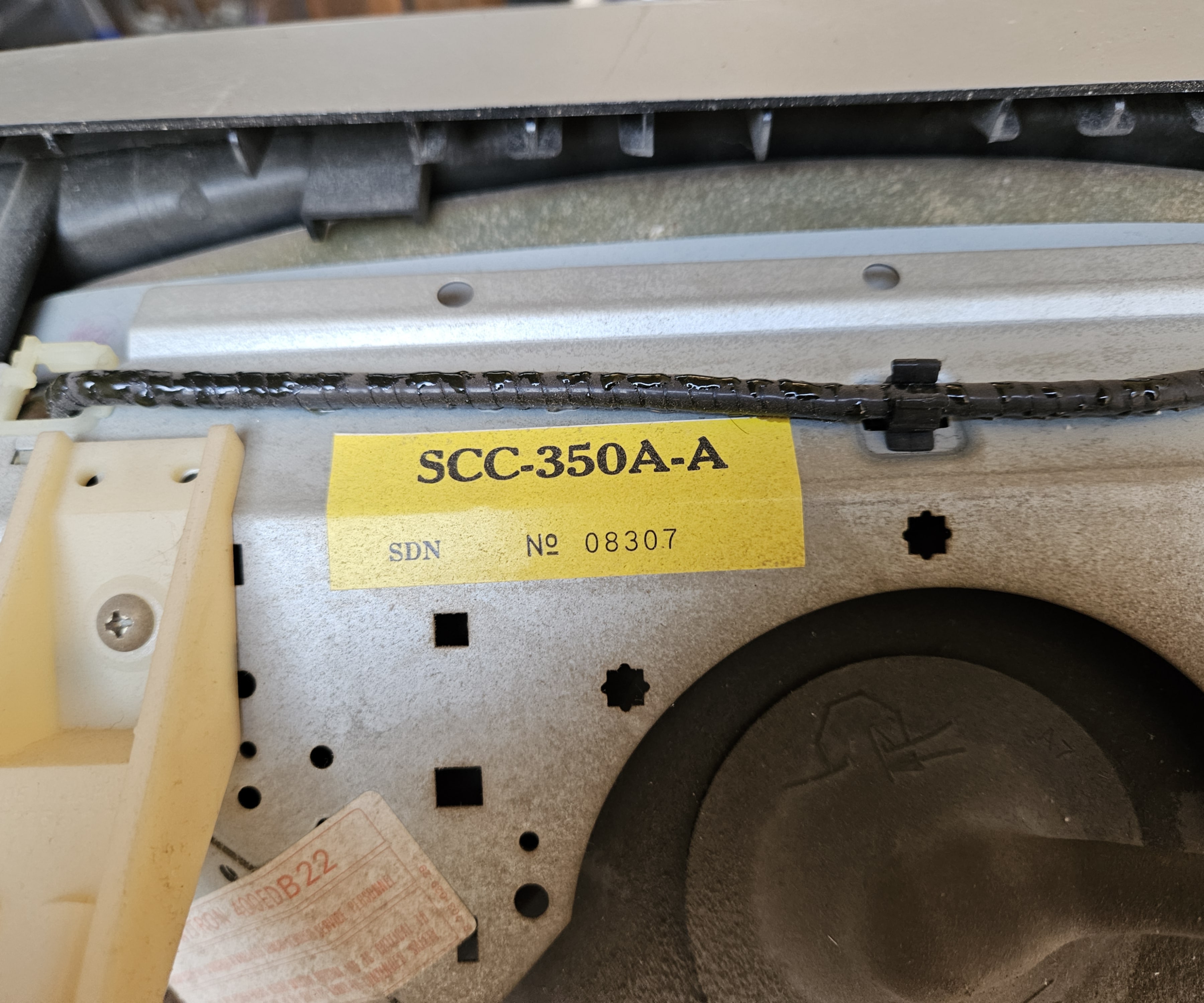

| Tint: | Light |
| Removable Glare Film: | No |
| Yoke: | 1-451-179-21 |
| Speakers: | Mono, Headphone Jack |
| Chassis: | 30P, SCC-350A-A |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1976 |
| Country of Manufacture: | Japan |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
