Summary

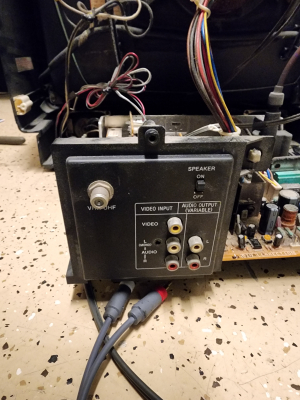

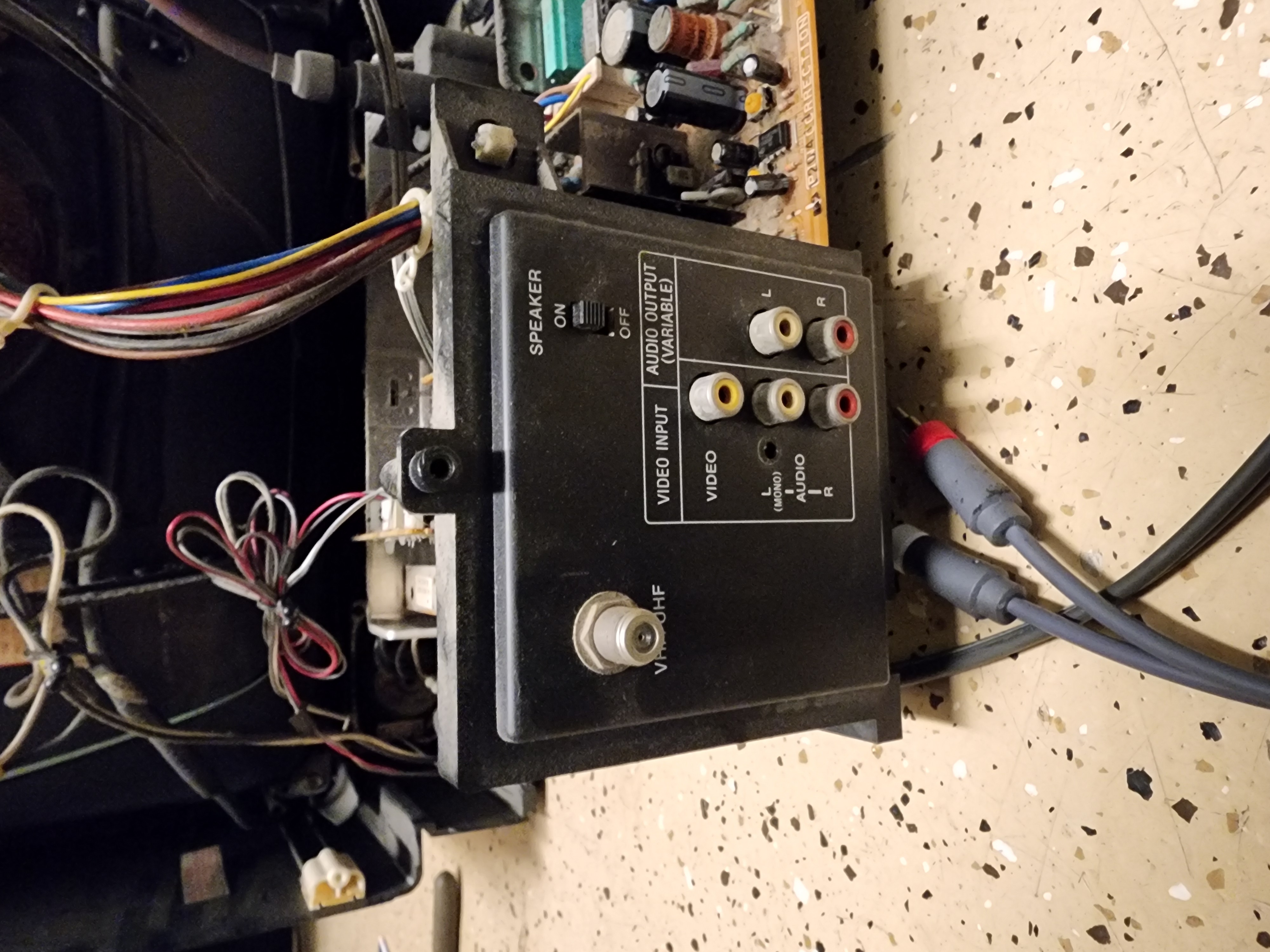

A standard 19" Sony Trinitron TV from 1989. Has 1 composite input with extra Left and Right audio jacks for external stereo. Also has a switch for enabling or disabling built-in speakers.
Manuals & Promo Materials
Notes

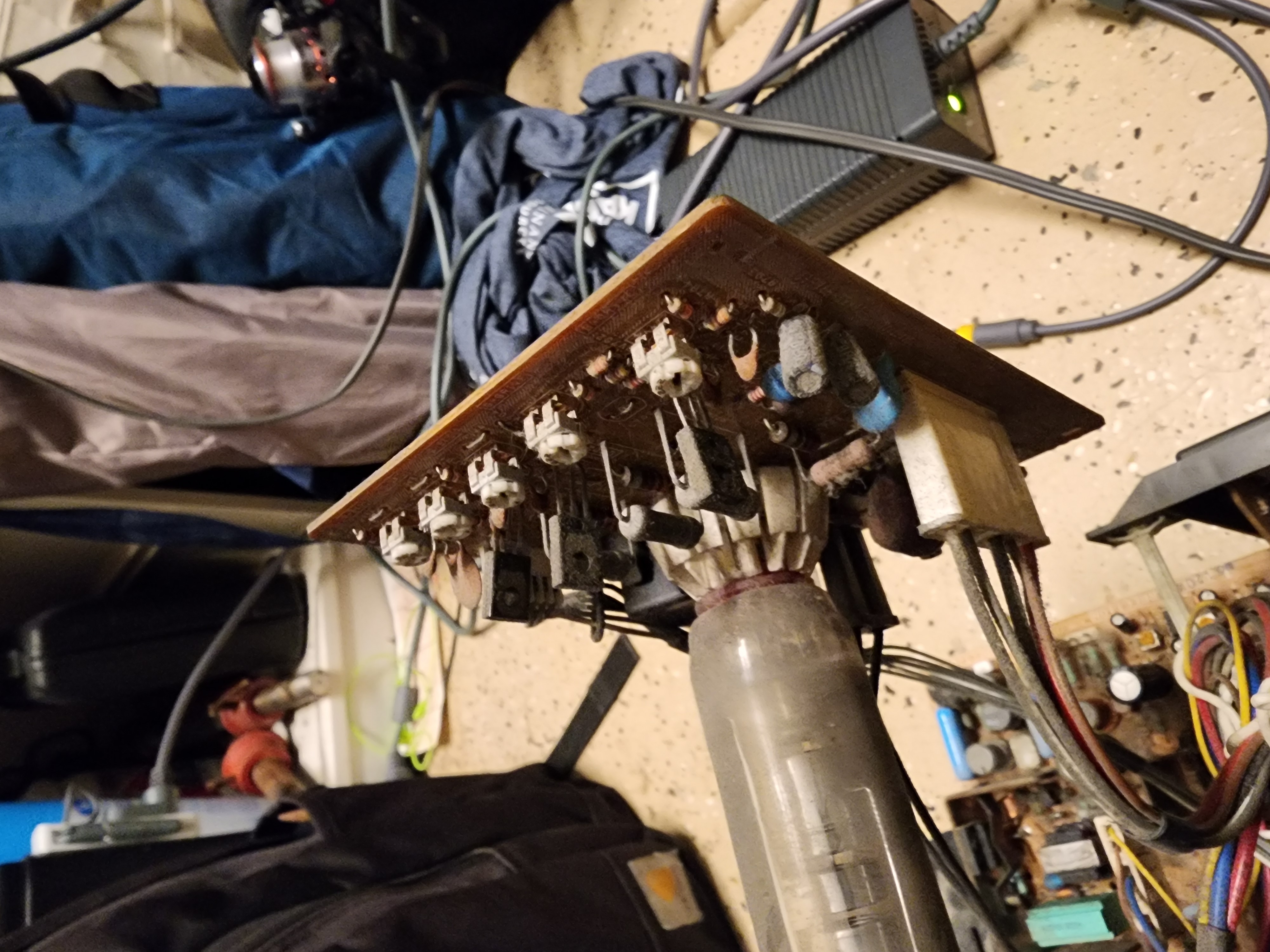

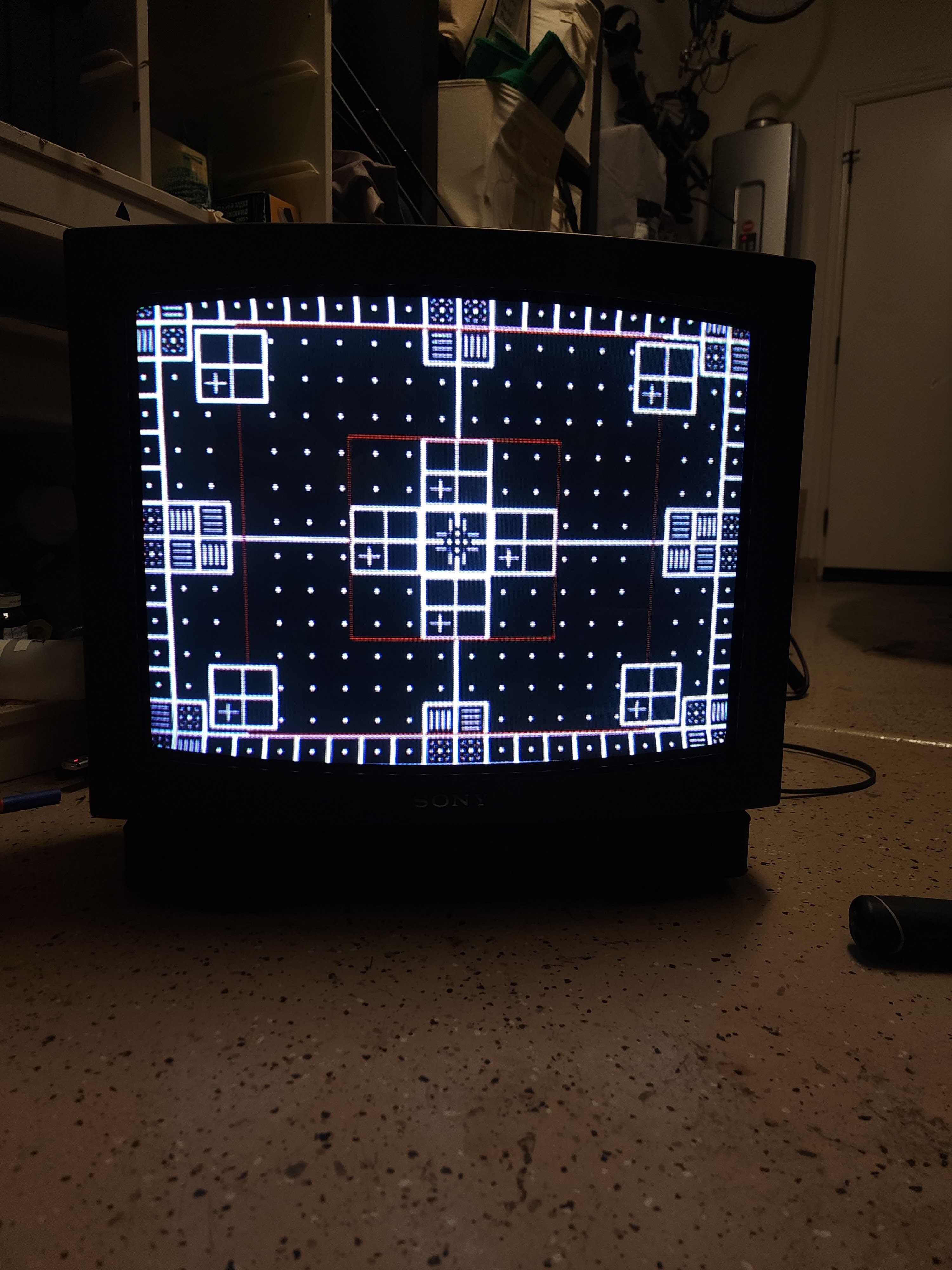

There is NO service menu for this model so you will have to explore the sea of potentiometers to adjust anything related to geometry and some picture.
Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-19TS20 |
| Series: | KV |
| Viewable Size: | 19" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Focus Type: | Single |

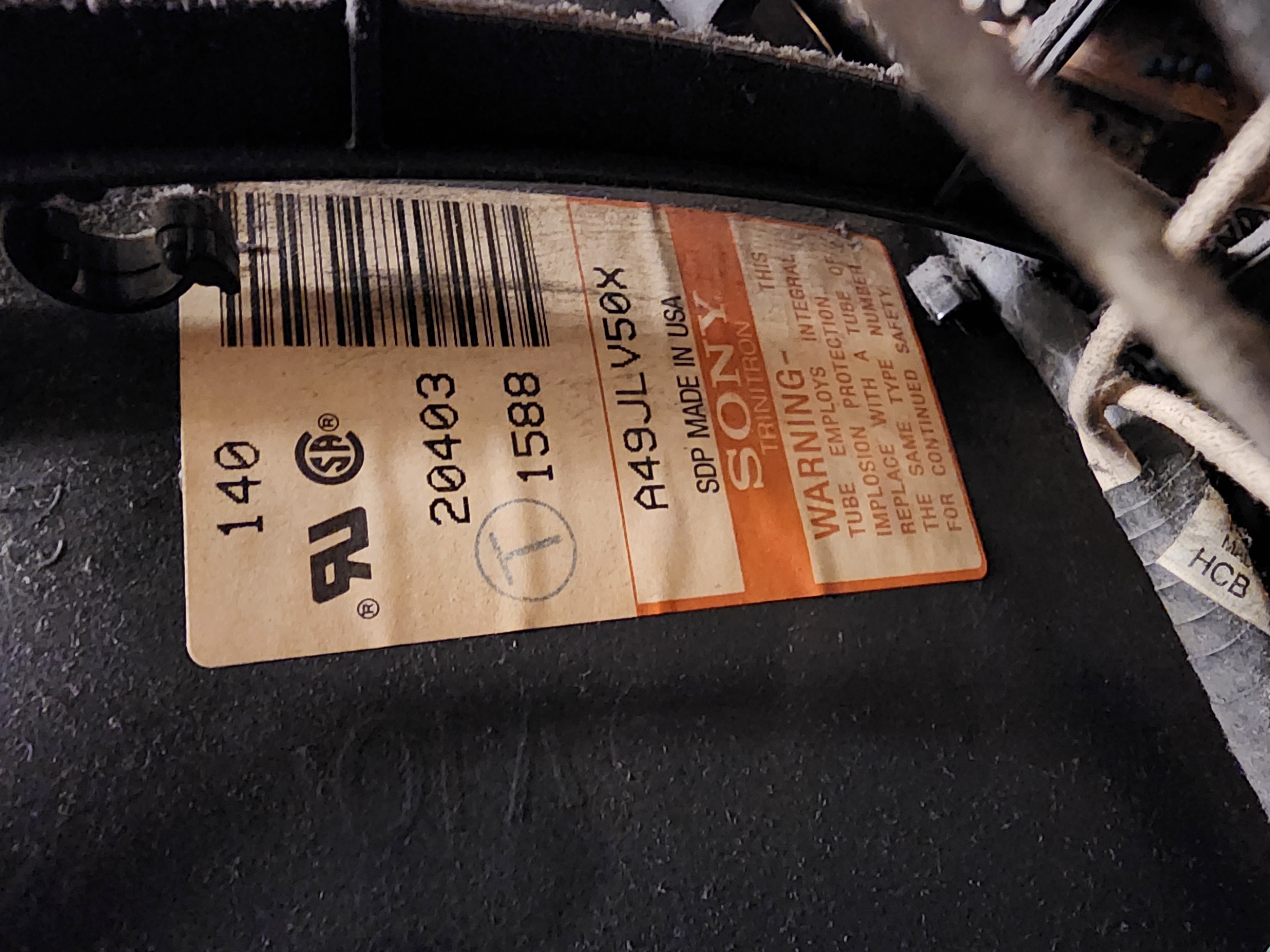

| Tube: | Sony Trinitron , A49JLV50X |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Tint: | Light |
| Removable Glare Film: | No |
| Speakers: | Stereo, 2W x 2 |
| Remote: | RM-783 |
| Weight: | 43 lbs (19.5 kg) |
| Dimensions (W/H/D): |
500 x 445 x 463 mm
(19.7 x 17.5 x 18.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1989 |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
| Tag: | Community Submission |
