| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |

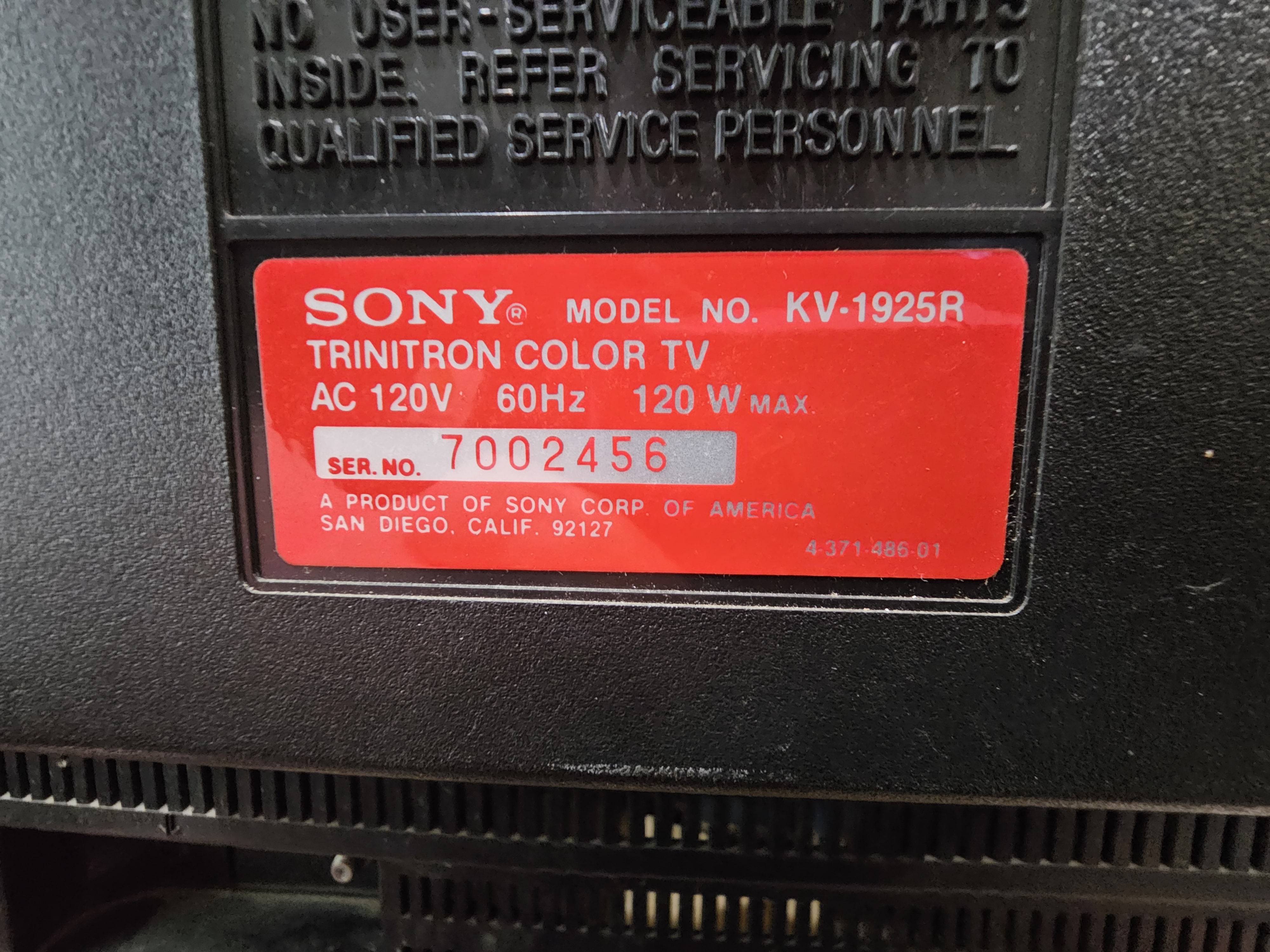

| Model: | KV-1925R |
| Series: | KV |
| Viewable Size: | 19" |

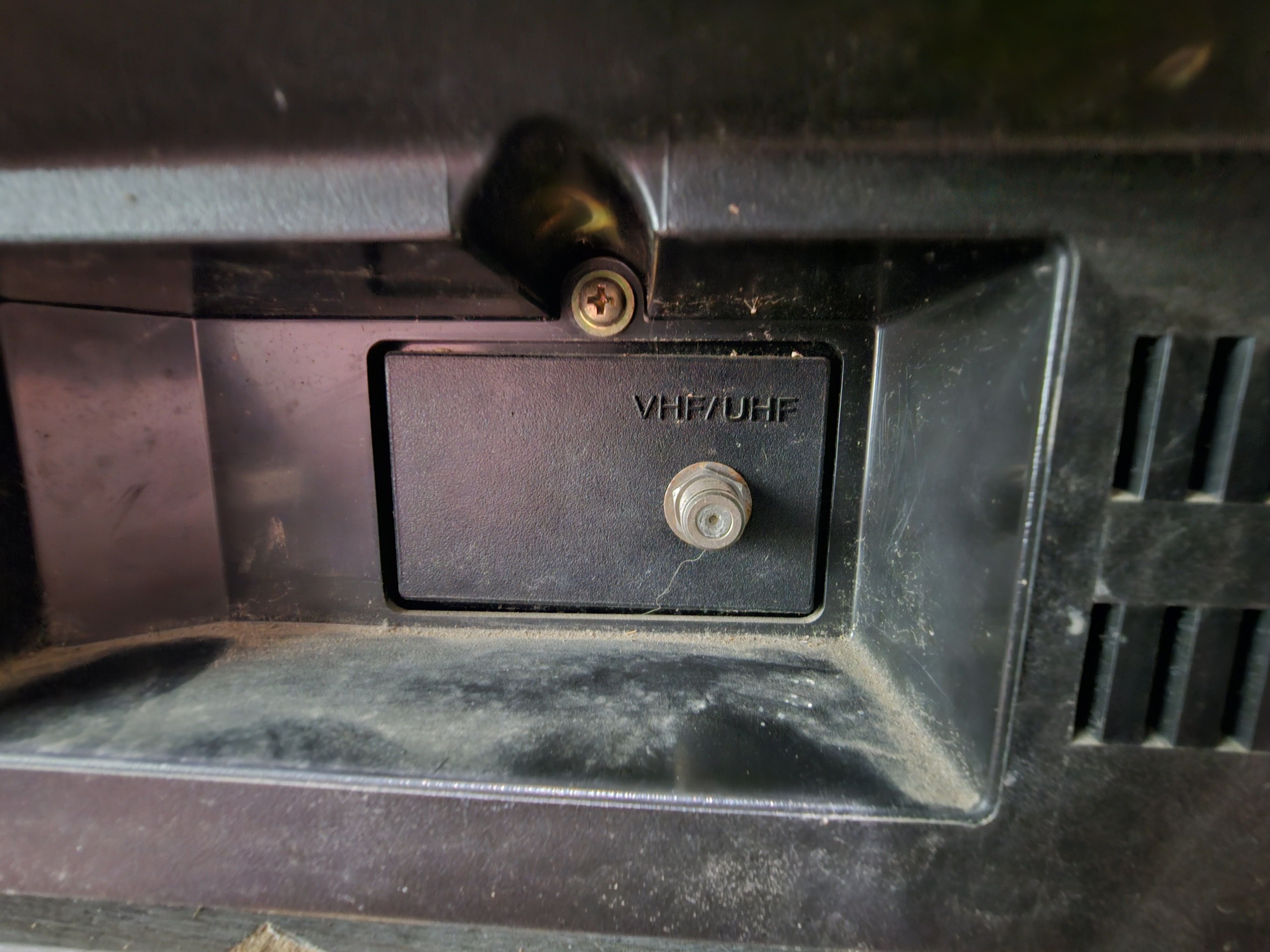

| Input Signals: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

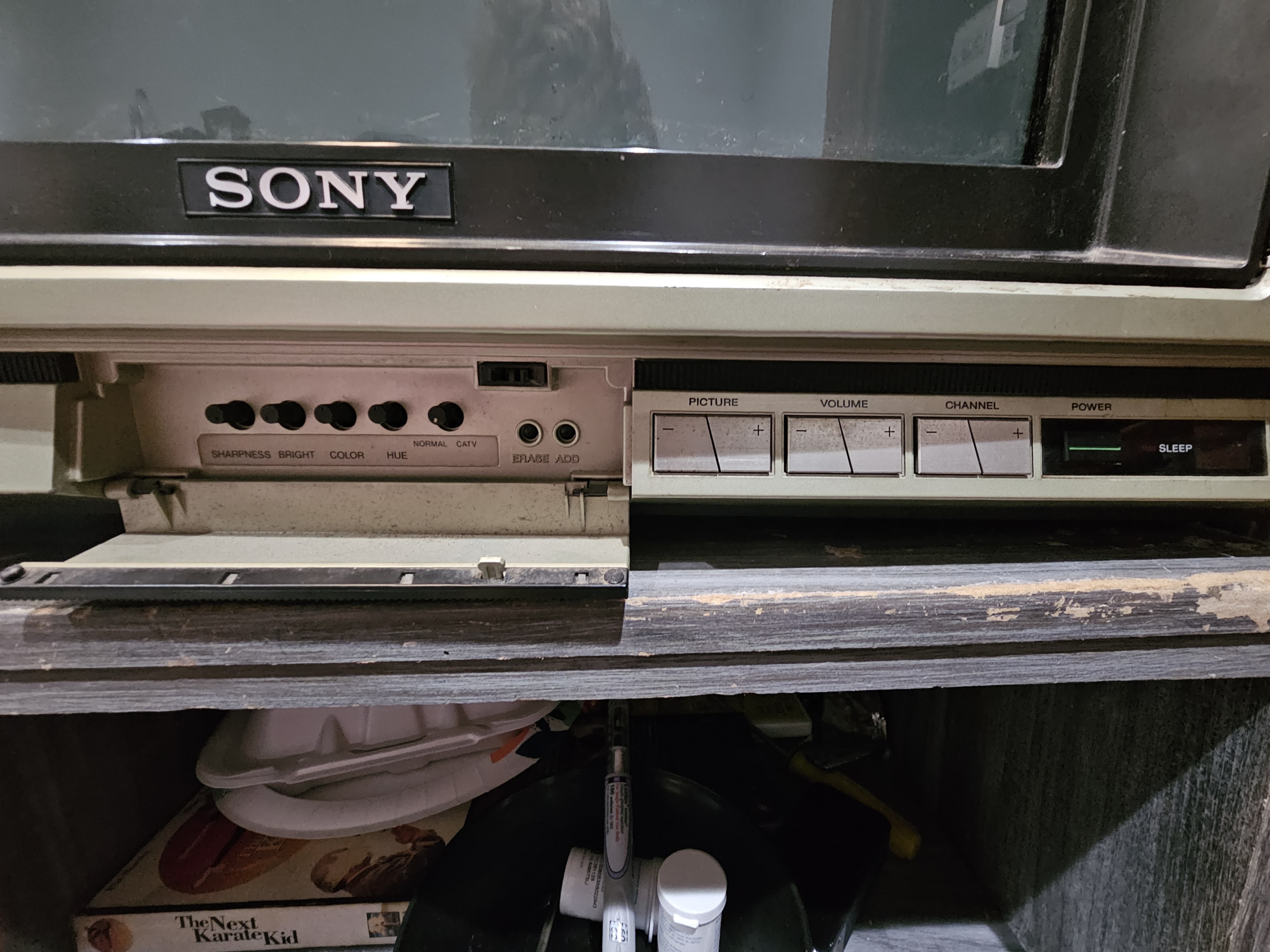

| Adjustments: | Internal Potentiometers, External Potentiometers, Front Mounted Buttons |

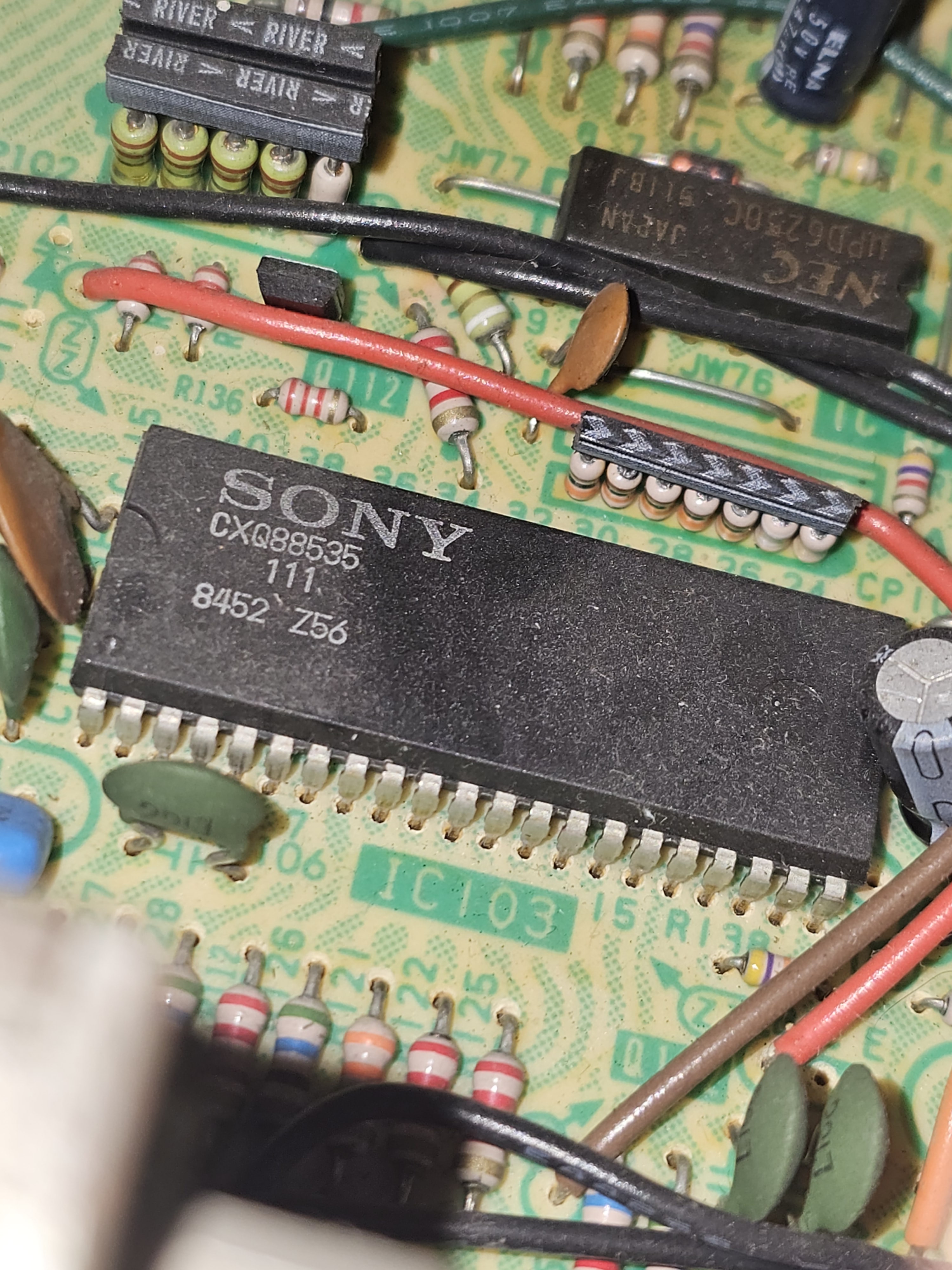

| Jungle IC: | Sony, CXQ88535 |
| Comb Filtering: | None |

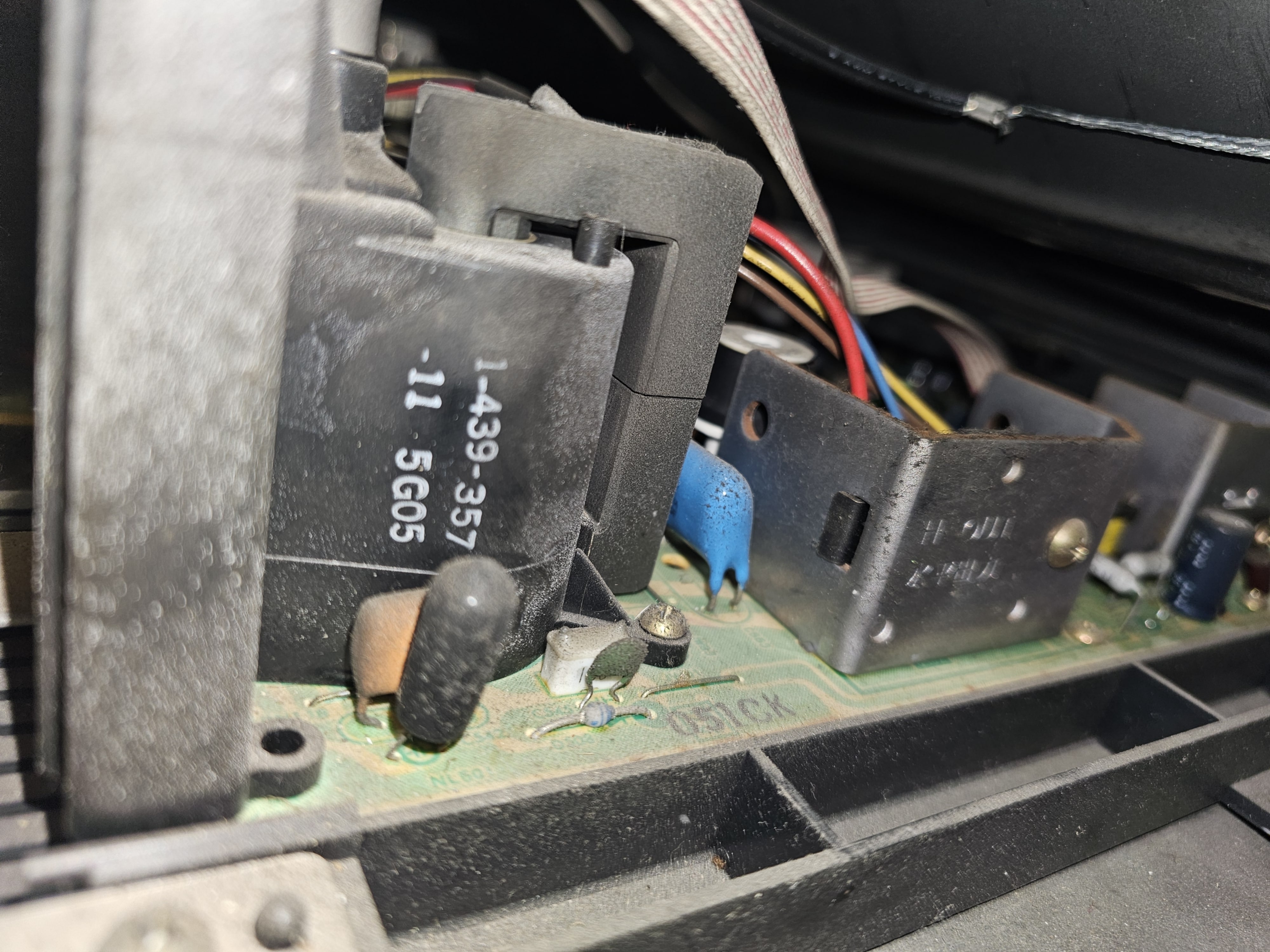

| Flyback: | 1-439-357-11 |
| Focus Type: | Single |

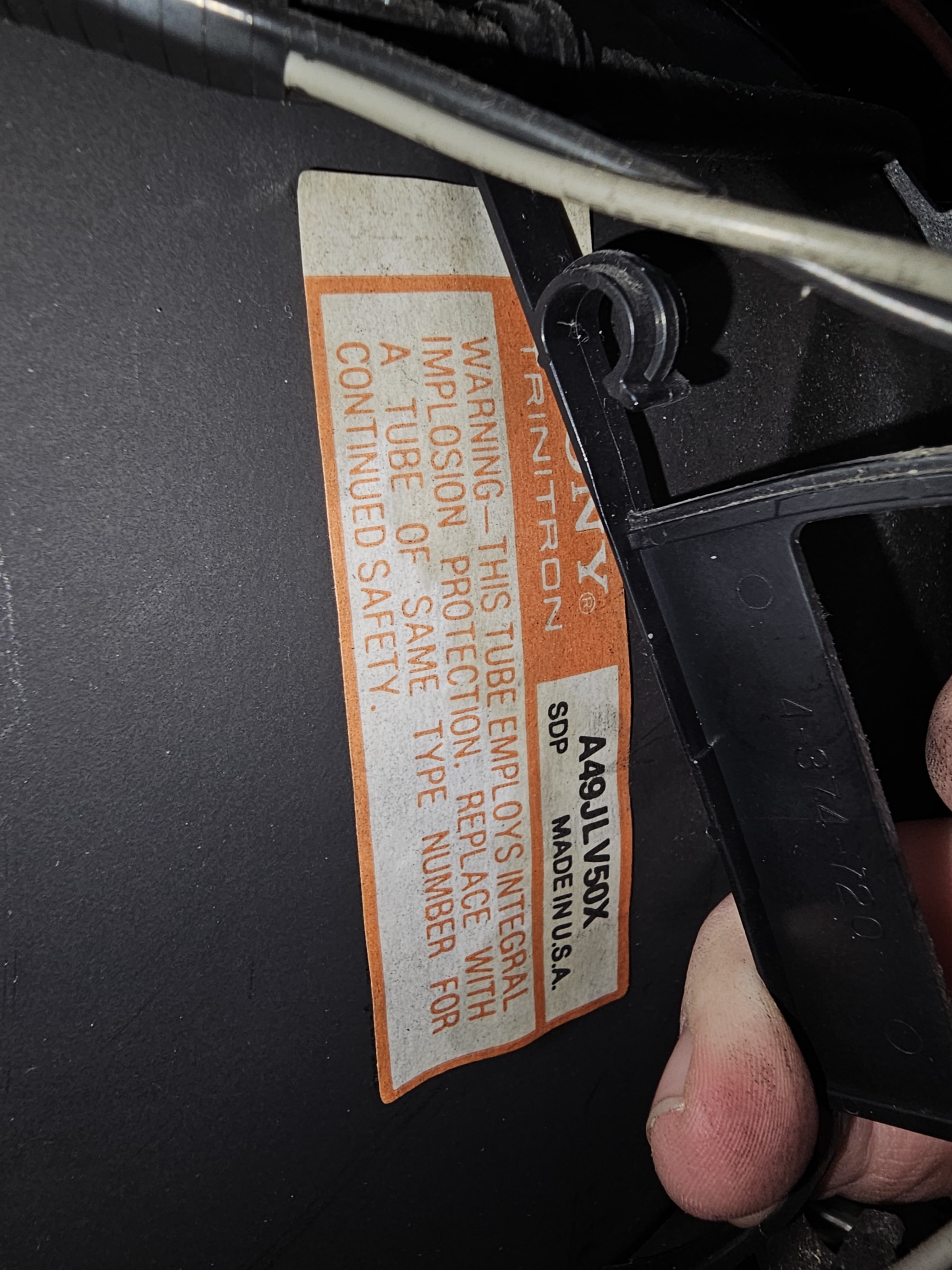

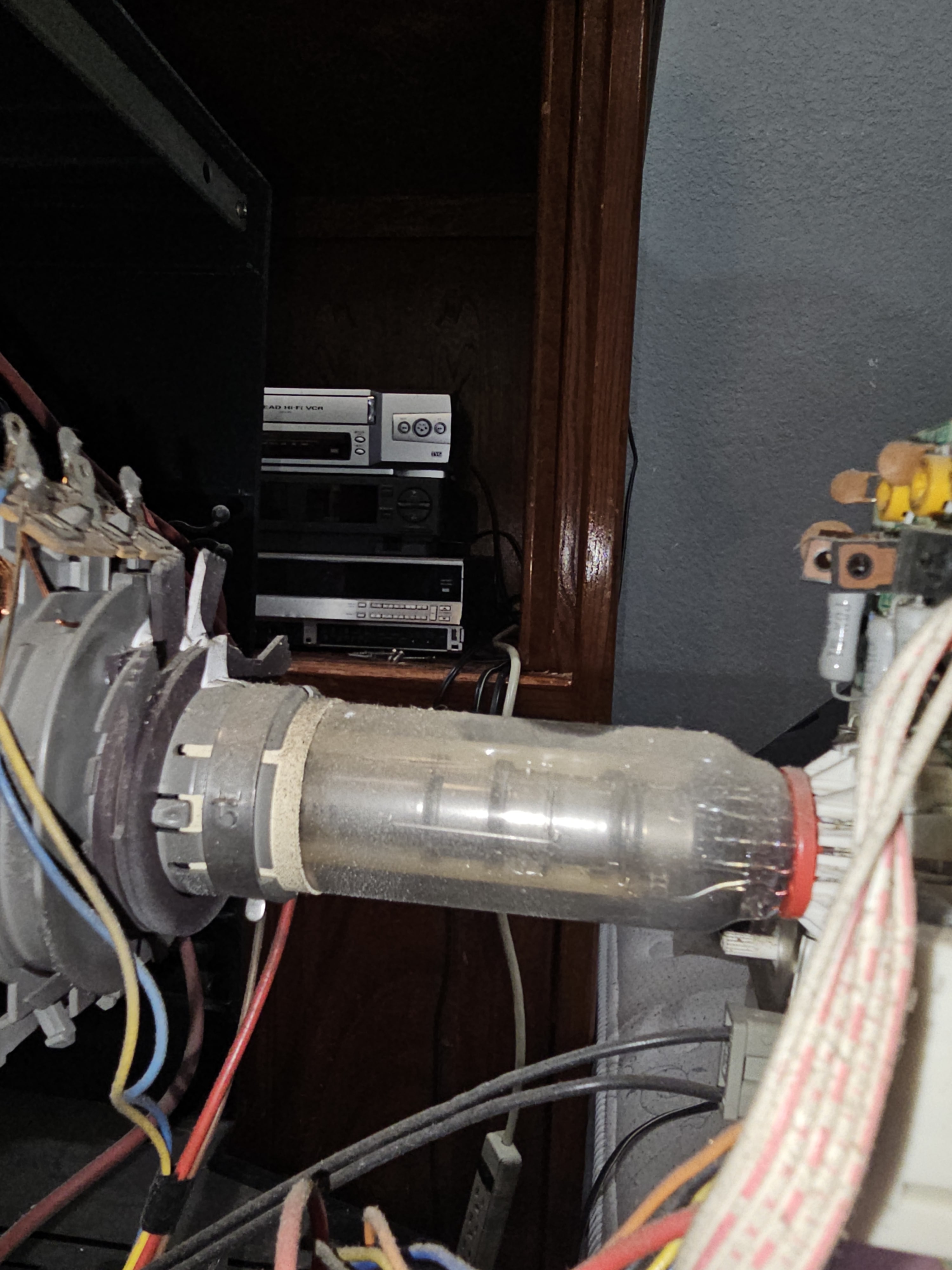

| Tube: | Sony Trinitron , A49JLV50X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |

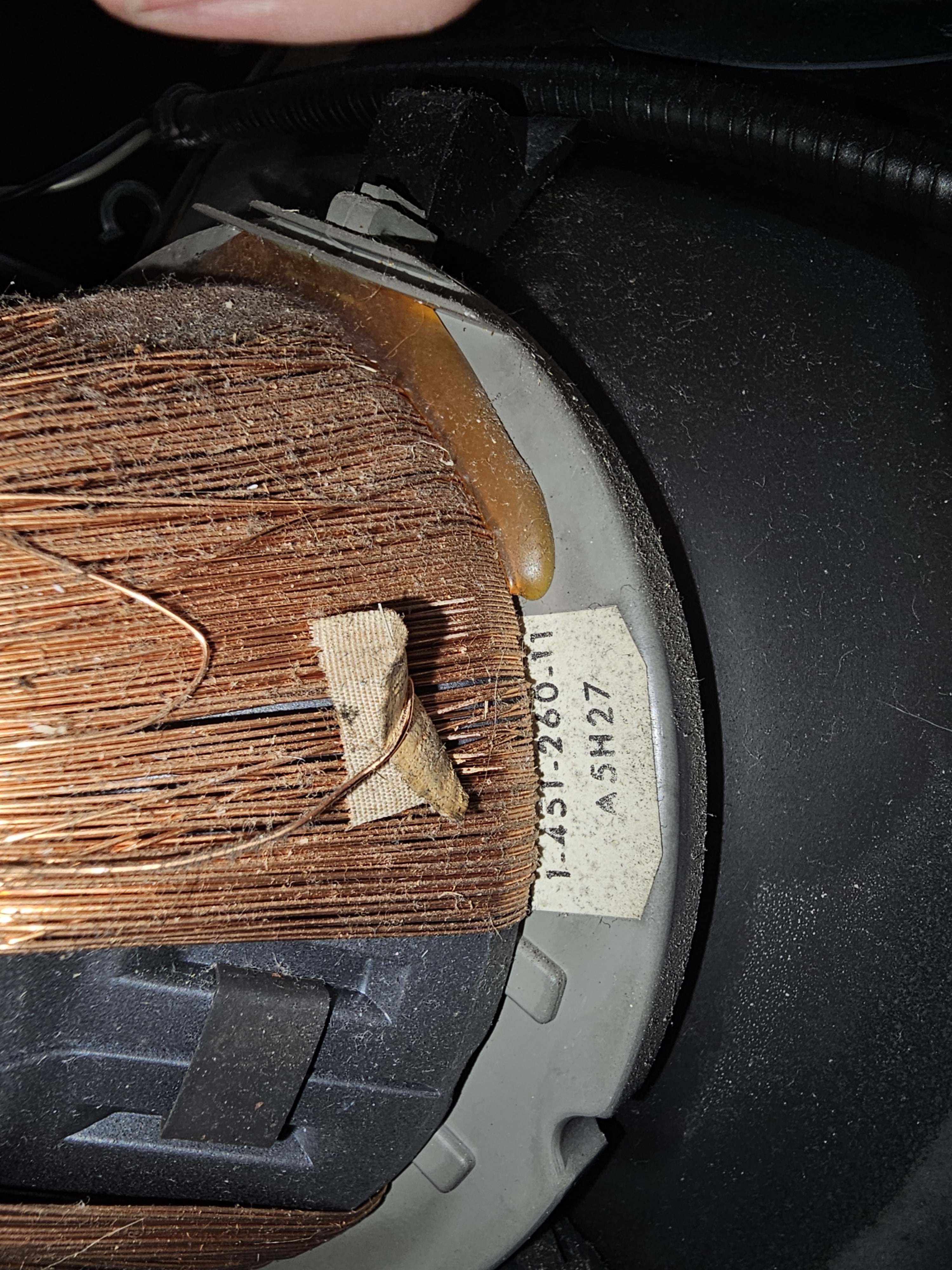

| Yoke: | 1-451-260-11 |

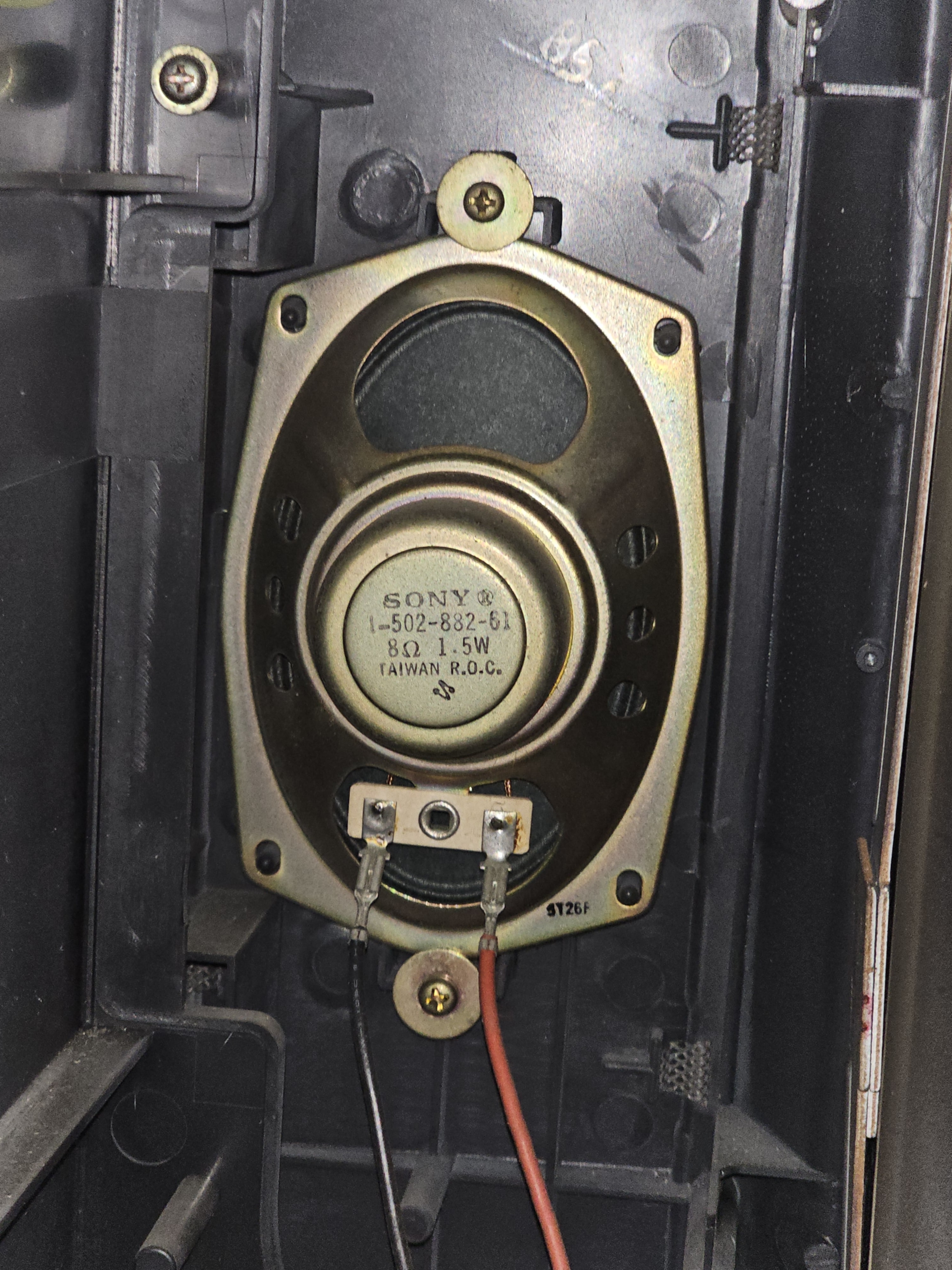

| Speakers: | Mono, 1.5W |

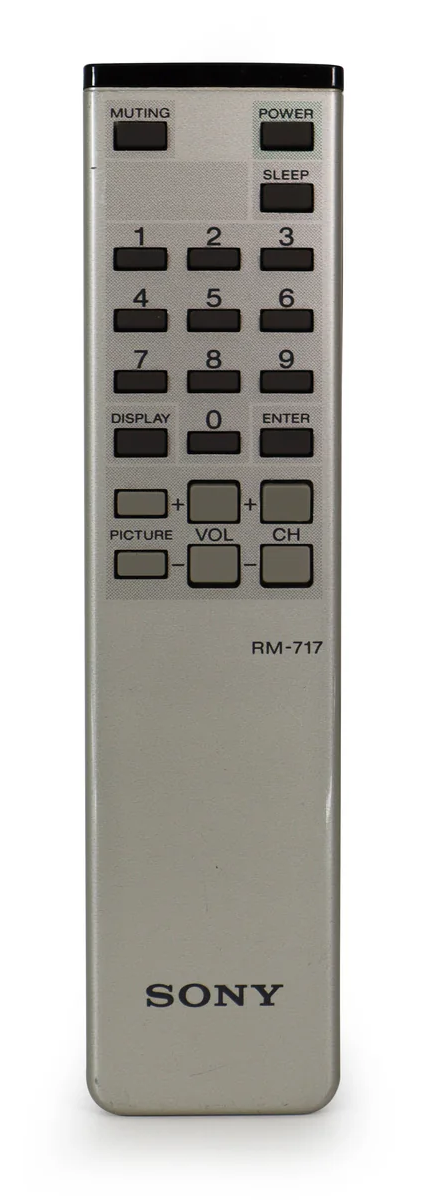

| Remote: | RM-717 |

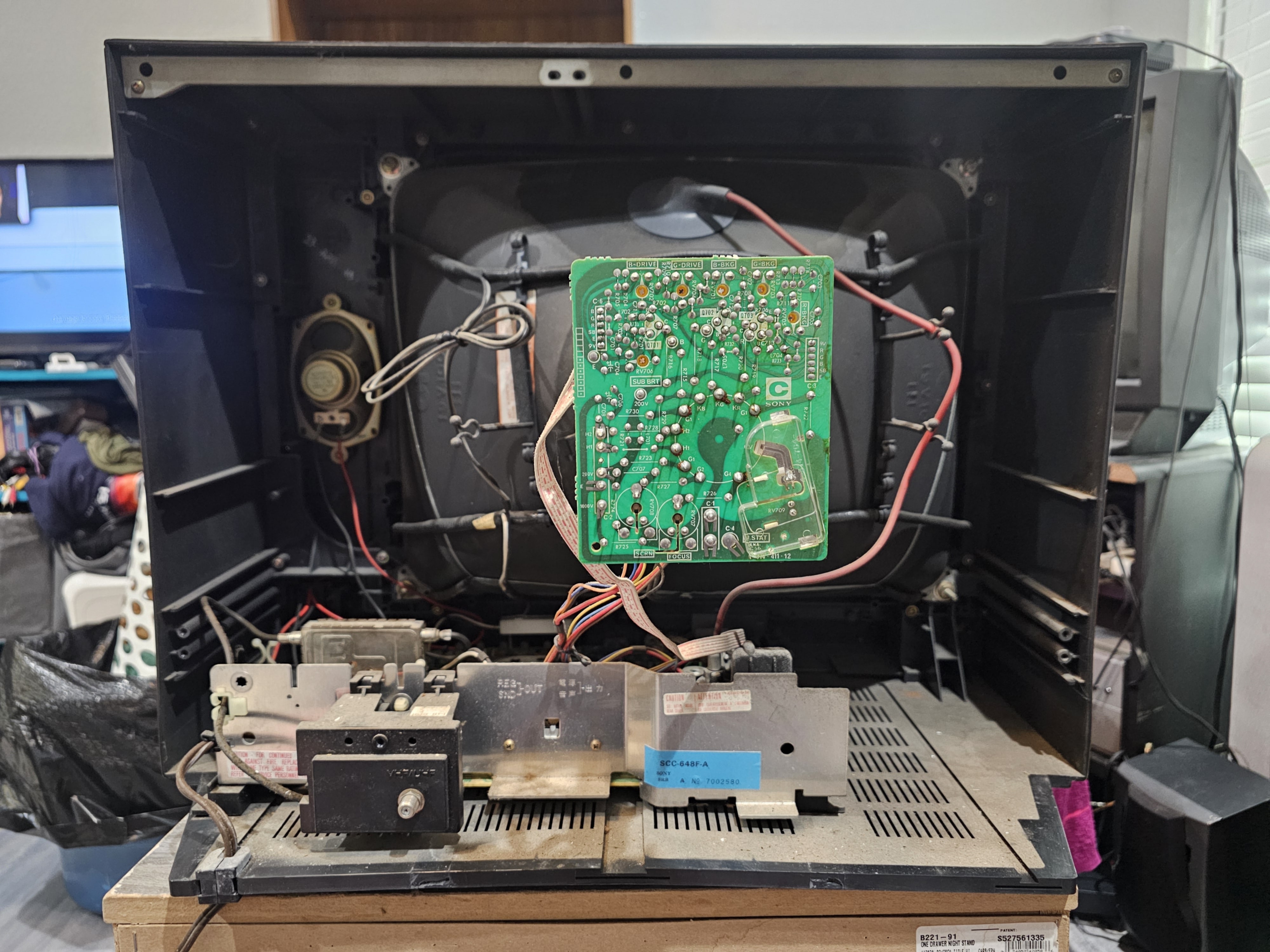

| Chassis: | P3, SCC-648F-A |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1982 |
| MSRP: | 519 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
