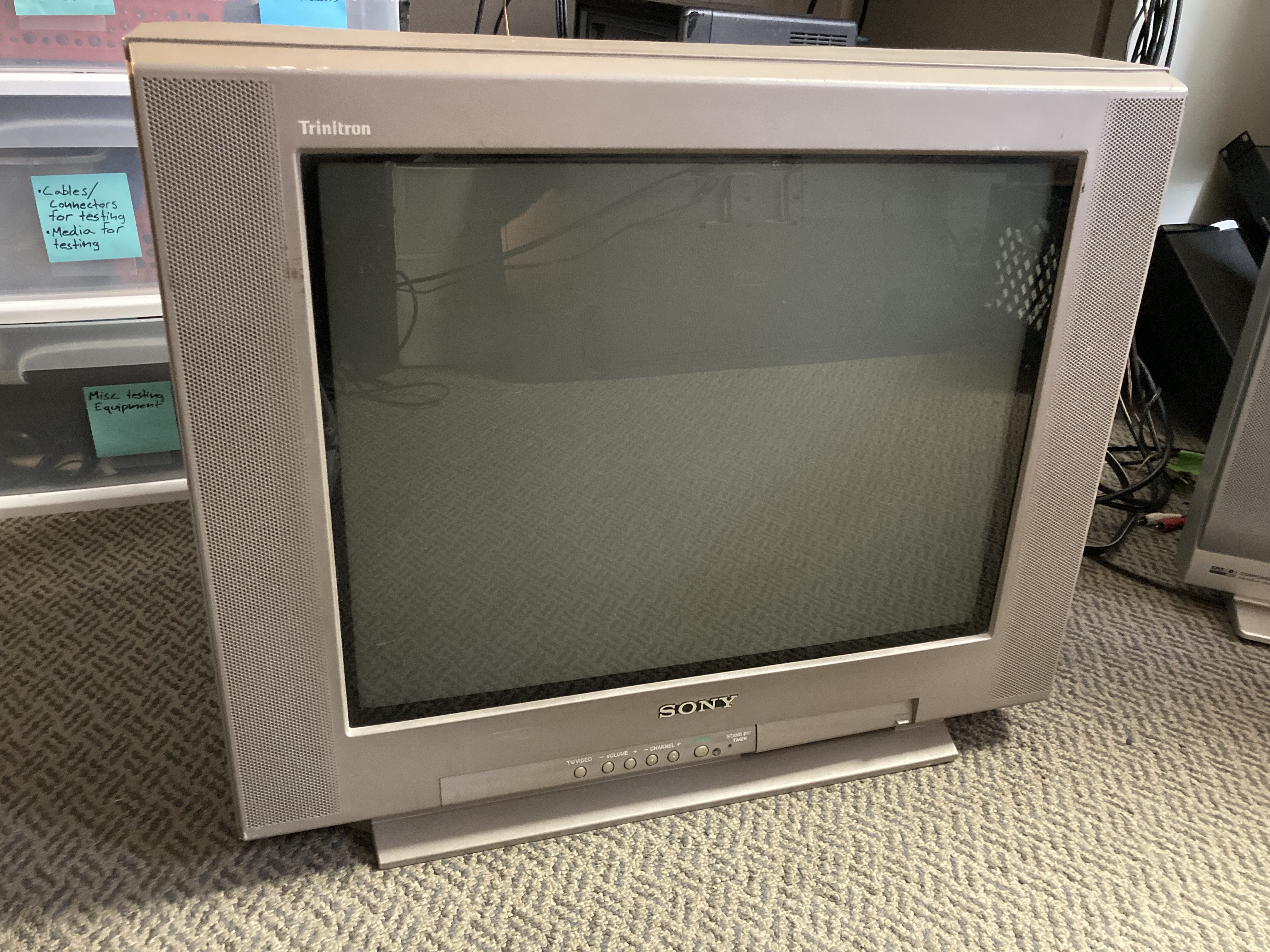

Sony KV-20FV12
Mike Morisette
June 10, 2023, 8:36 pm
October 7, 2024, 12:22 am
June 10, 2023, 8:36 pm
October 7, 2024, 12:22 am
Summary
20" model from Sony's flat screen Wega line. Has RF, composite, and s-video inputs
Literature
Notes

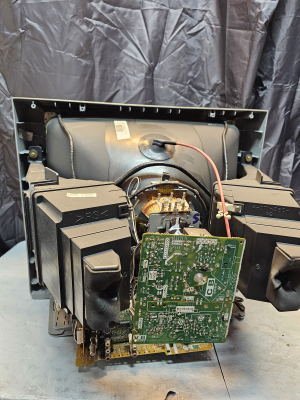

Unlike the 27" and larger BA-5 Trinitrons, this TV does not have native component inputs. However, its jungle chip is very versatile and can be modified for RGB and YPbPr component video. Please note that due to a different M board design and jungle chip, the RGB mod procedure for the 27" BA-5 Trinitrons doesn't apply.

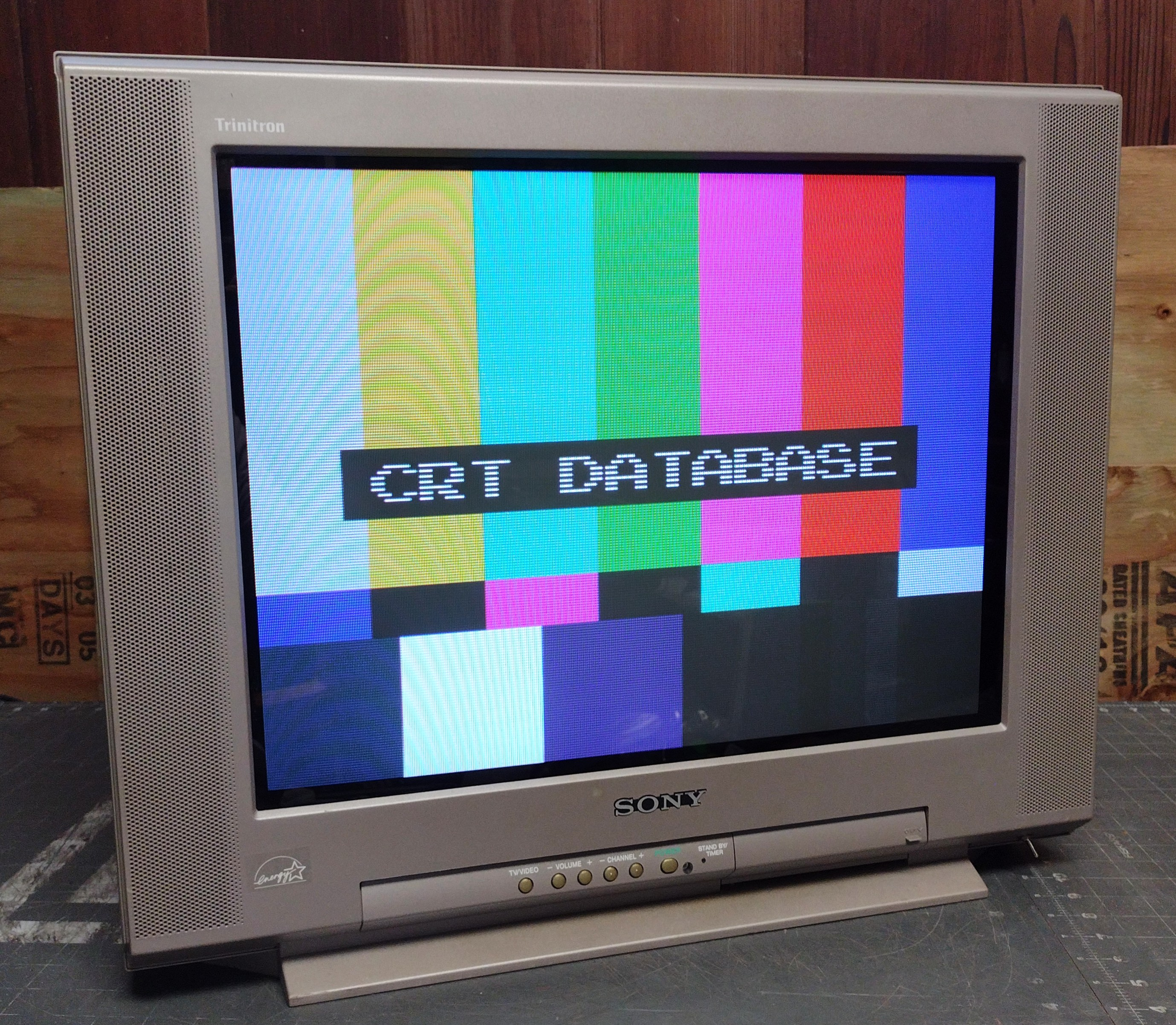

(Included images are of s-video with sharpening turned down below the midpoint and red push disabled.)
Gallery
Specifications | |
---|---|
Brand: | Sony |
Manufacturer: | Sony |
Model: | KV-20FV12 |
Series: | Wega |
Viewable Size: | 20" |
Inputs: | Composite, S-Video, RF |
Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | 2SD2624 |
Vertical Output IC: | TDA8172 |
Jungle: | CXA2131AS |
Flyback: | 1-453-316-21, NX-1748//X4A4 |
Tube: | Sony Trinitron , A51LPT70X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: | Aperture Grille |
Tint: | Dark |
Removable Glare Film: | No |

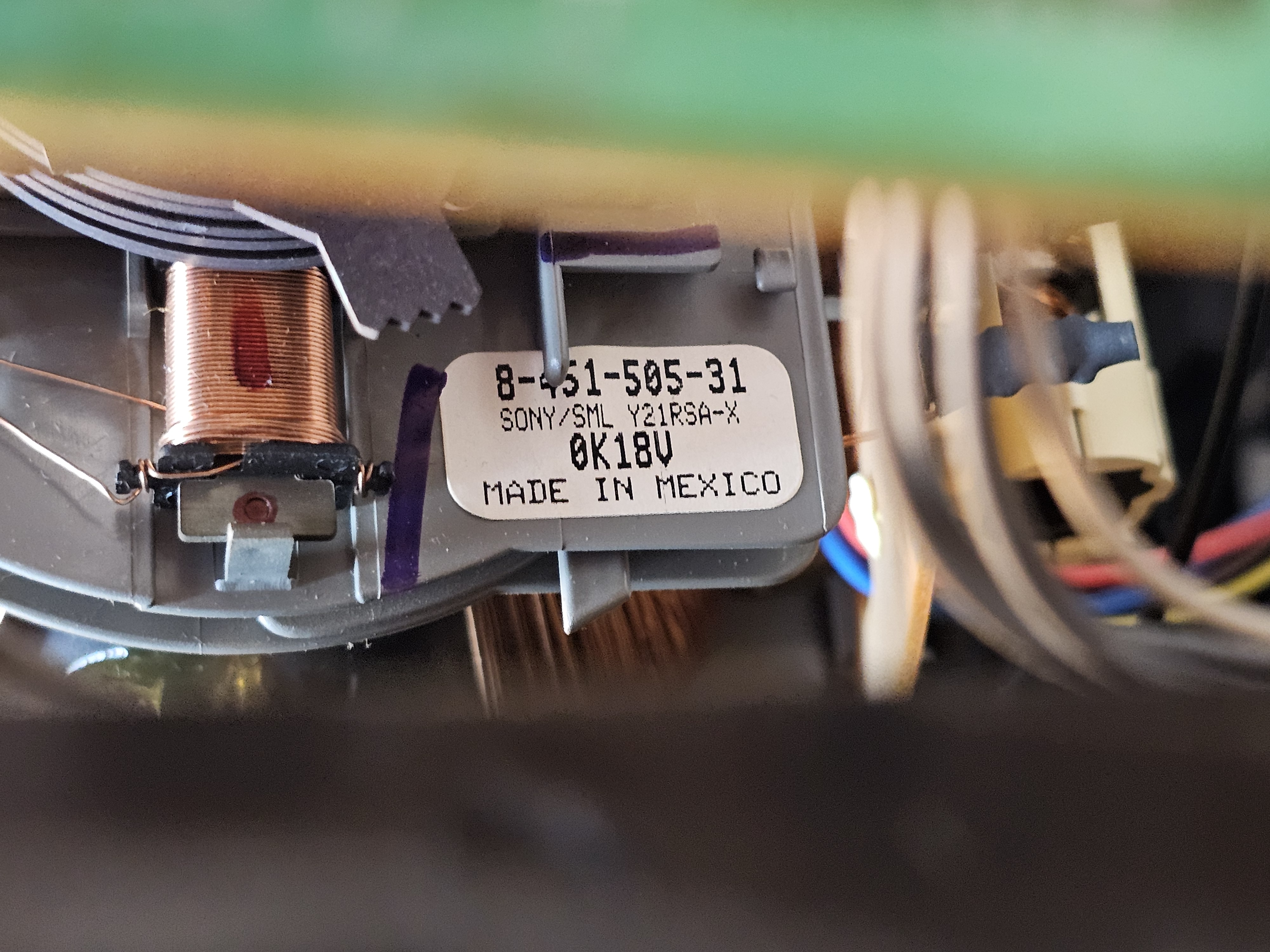

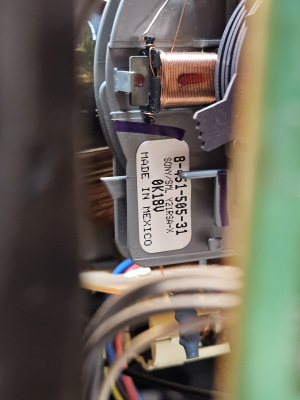

Yoke: | 8-451-505-31 |
Yoke Horz. Inductance: | 1.8487 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 24.41 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 2.624 ohm |
Yoke Vert. Resistance: | 12.97 ohm |
Speakers: | Stereo |
Remote: | RM-Y168 |
Chassis: | BA-5 |
Weight: | 59.5 lbs (27 kg) |
Application: | Consumer |
Launched: | 2000 |
Country of Manufacture: | Mexico |
Mods: | RGB via Mux, Component YPbPr |
Degaussing: | Automatic on Power-on |
