Summary
20" stereo Trinitron Color TV from Sony. Has RF and composite inputs. Made in the USA in 1988.

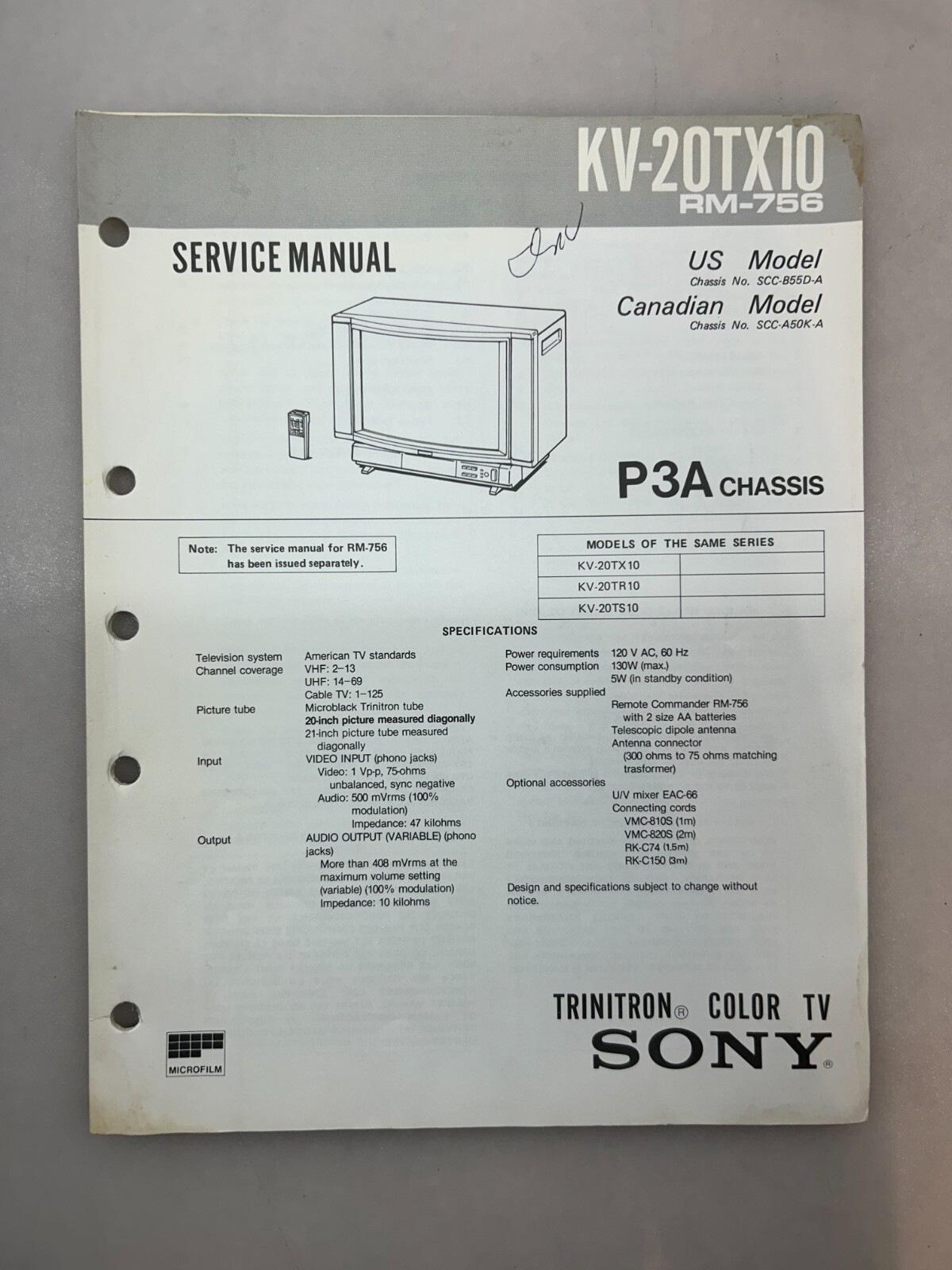

Literature
Notes
One of their last TVs of this size to include a pincushion correction circuit, and has adjustment pots for horizontal geometry. There are also pots on the neckboard to adjust white balance.

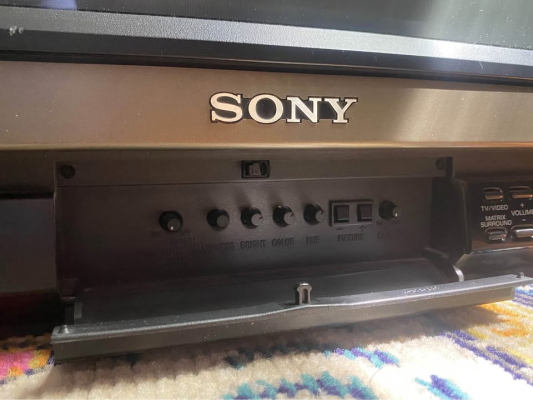

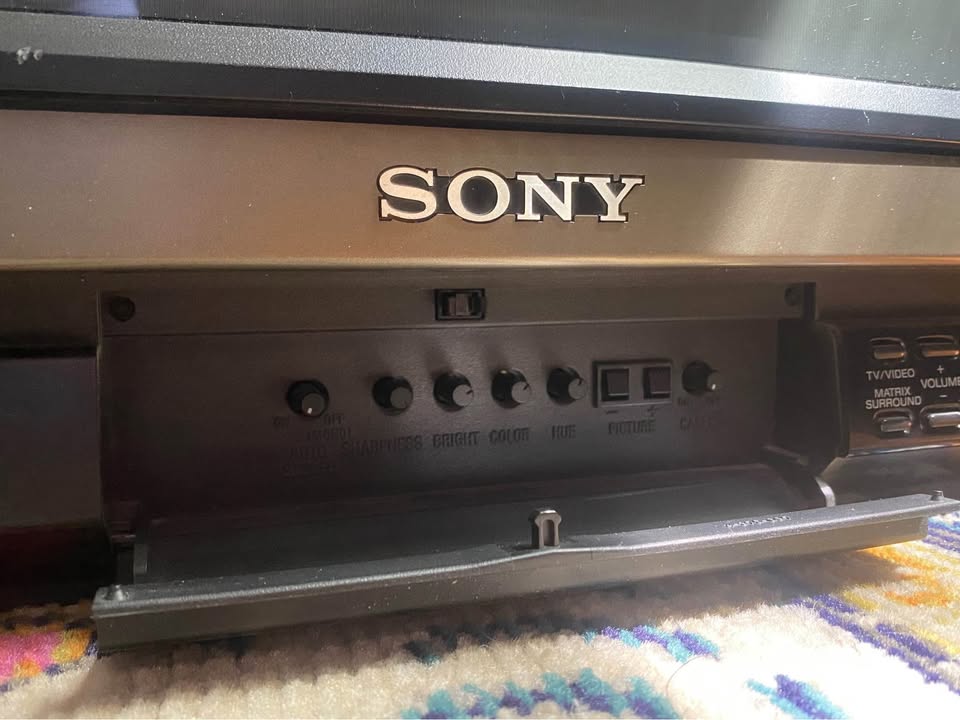

While this TV does have a remote, picture adjustments are controlled by pots on the front panel. Unlike some Trinitrons from this period, the TV can be set up properly without it.
This TV has a hot chassis and should not be modified for additional inputs.
Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-20TX10 |
| Series: | KV |
| Viewable Size: | 20" |

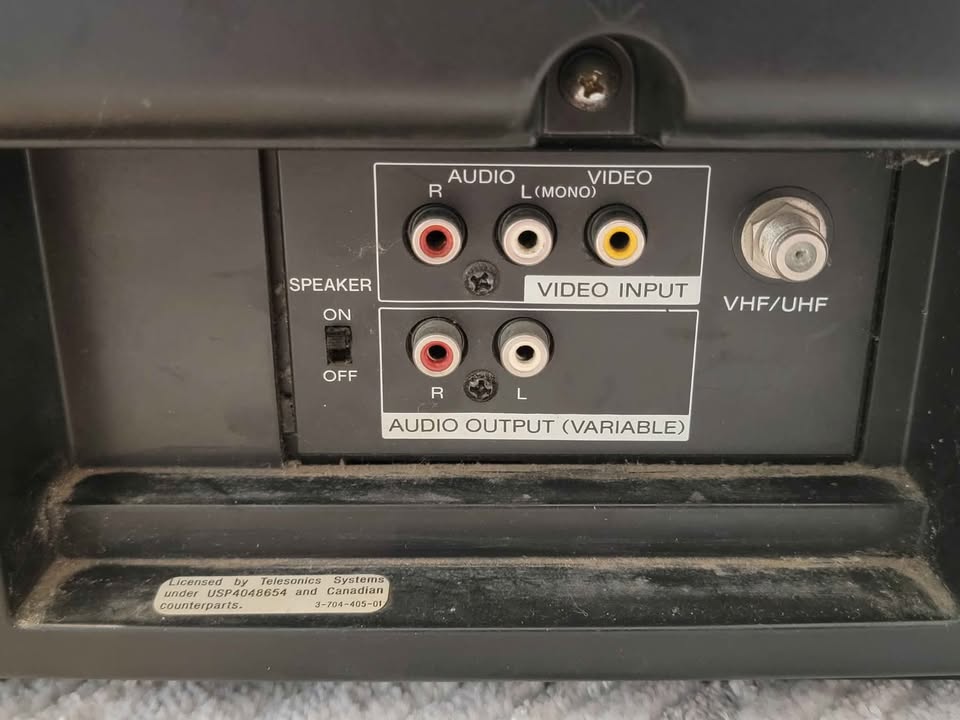

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls, Front Mounted Buttons |
| Horz. Output Transistor: | 2SD1555 |
| Vertical Output IC: | uPC1378H |
| Jungle: | Sony, CXA1013 |
| Flyback: | 1-439-415-11, 1-439-351-22 |
| Focus Type: | Single |
| Tube: | Sony Trinitron , A51JUH50X |
| Heater Voltage: | 6.3v |
| Deflection: | 100° |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 1-451-268-21 |
| Speakers: | Stereo |

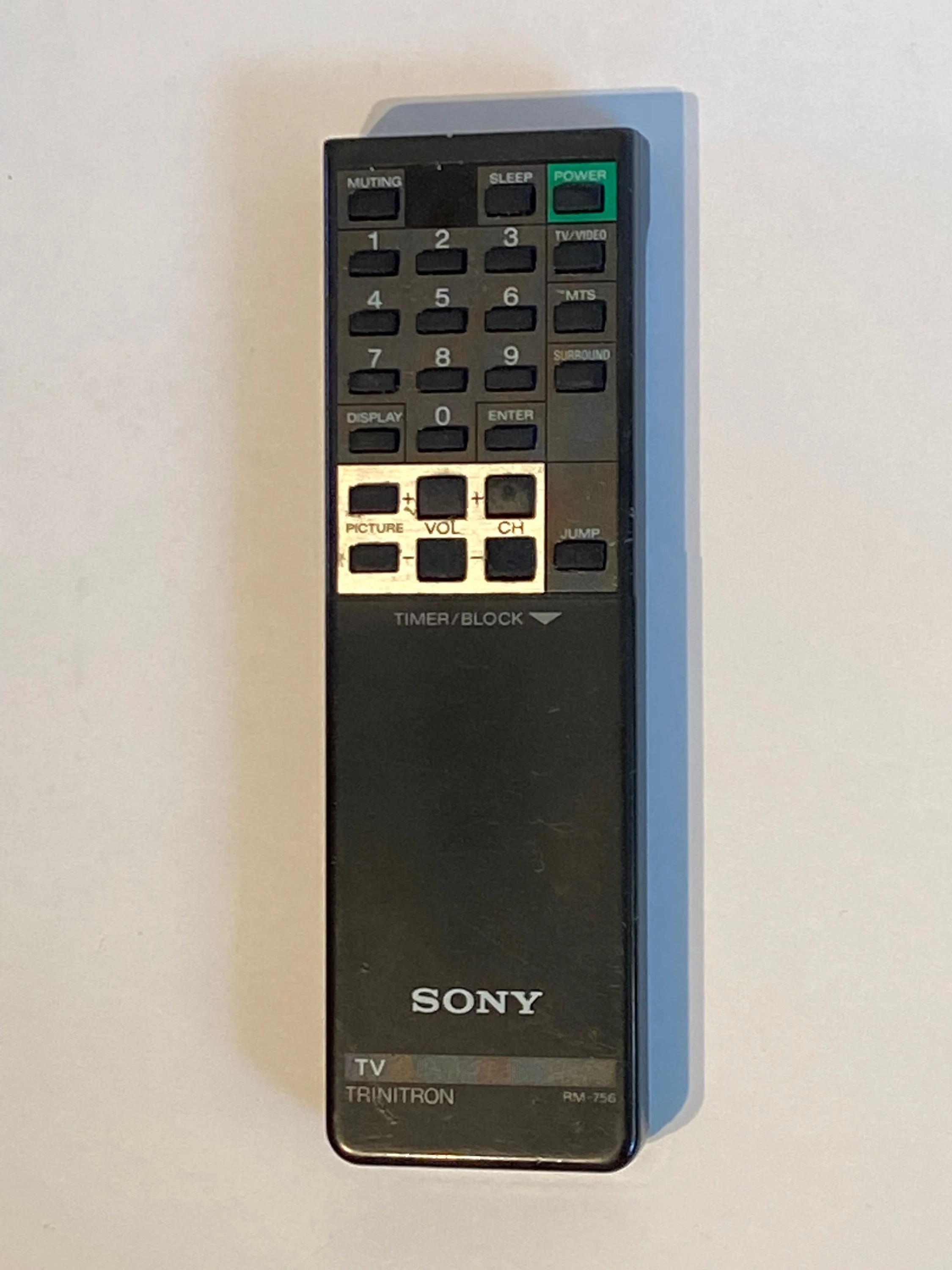

| Remote: | RM-756 |
| Chassis: | P3A |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1988 |
| MSRP: | 849 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual |
