Summary

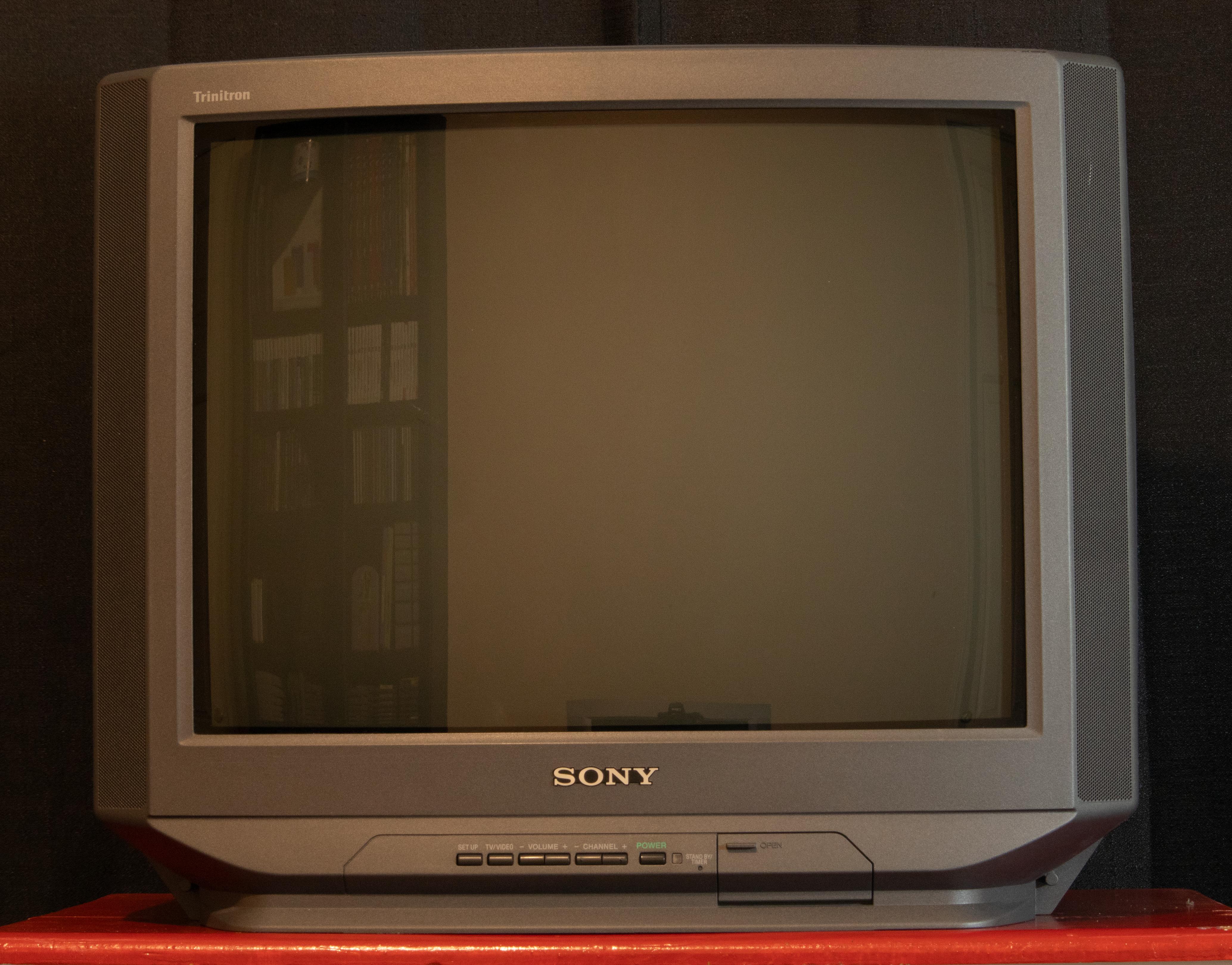

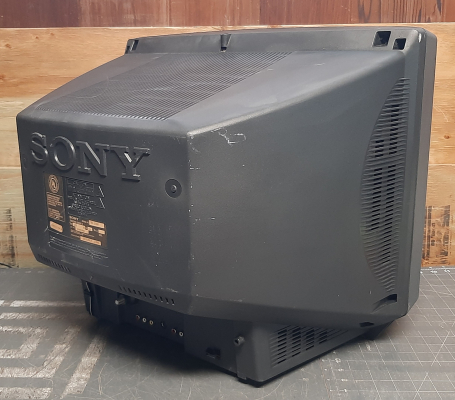

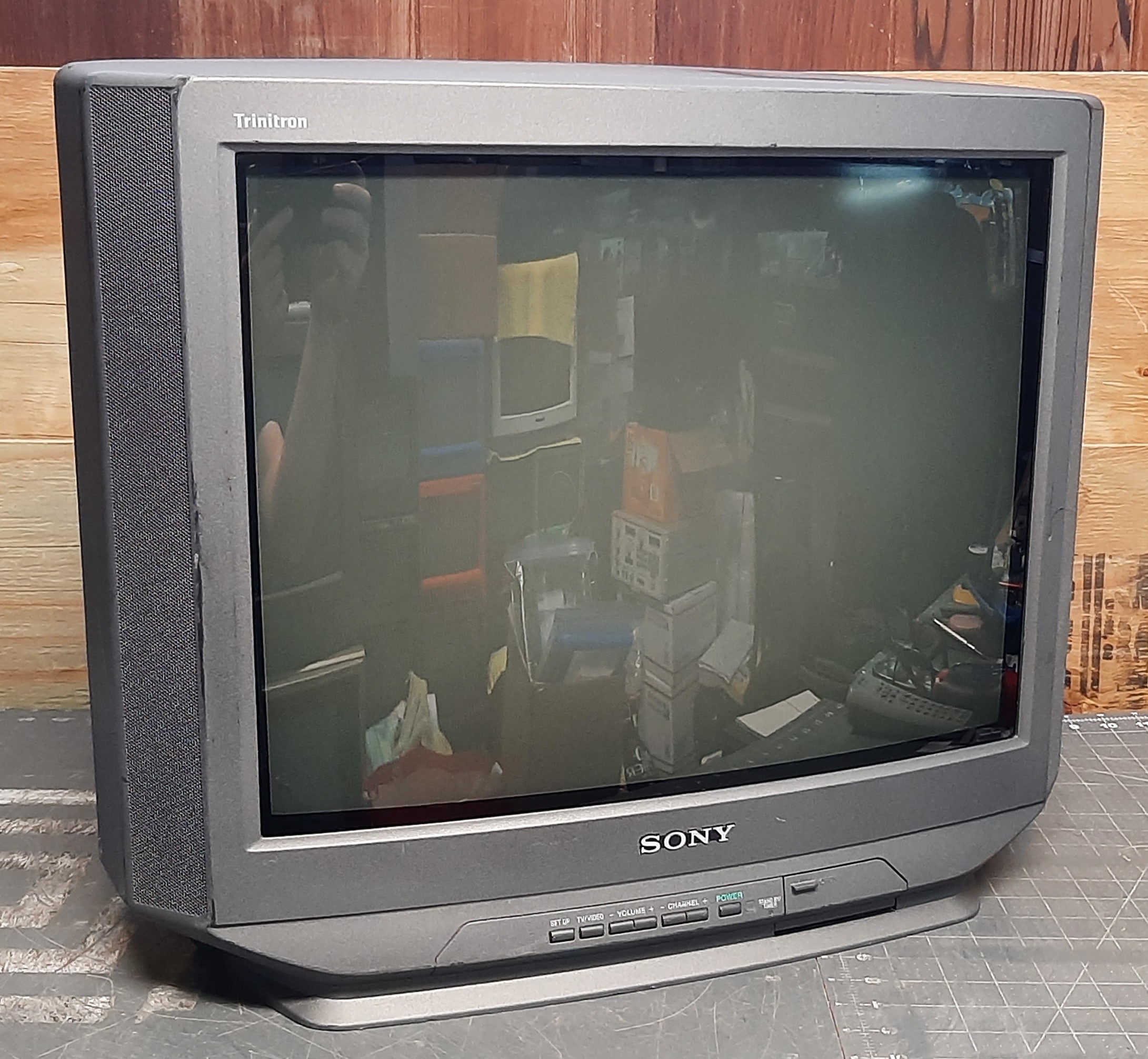

Curved 20" Trinitron with an S-Video input and Stereo audio.
Manuals & Promo Materials
Notes
Remote is required to enter service menu. With the set turned off, press "DISPLAY", "5", "VOL(+)", and POWER, each individually within a second. See service manual for more info.

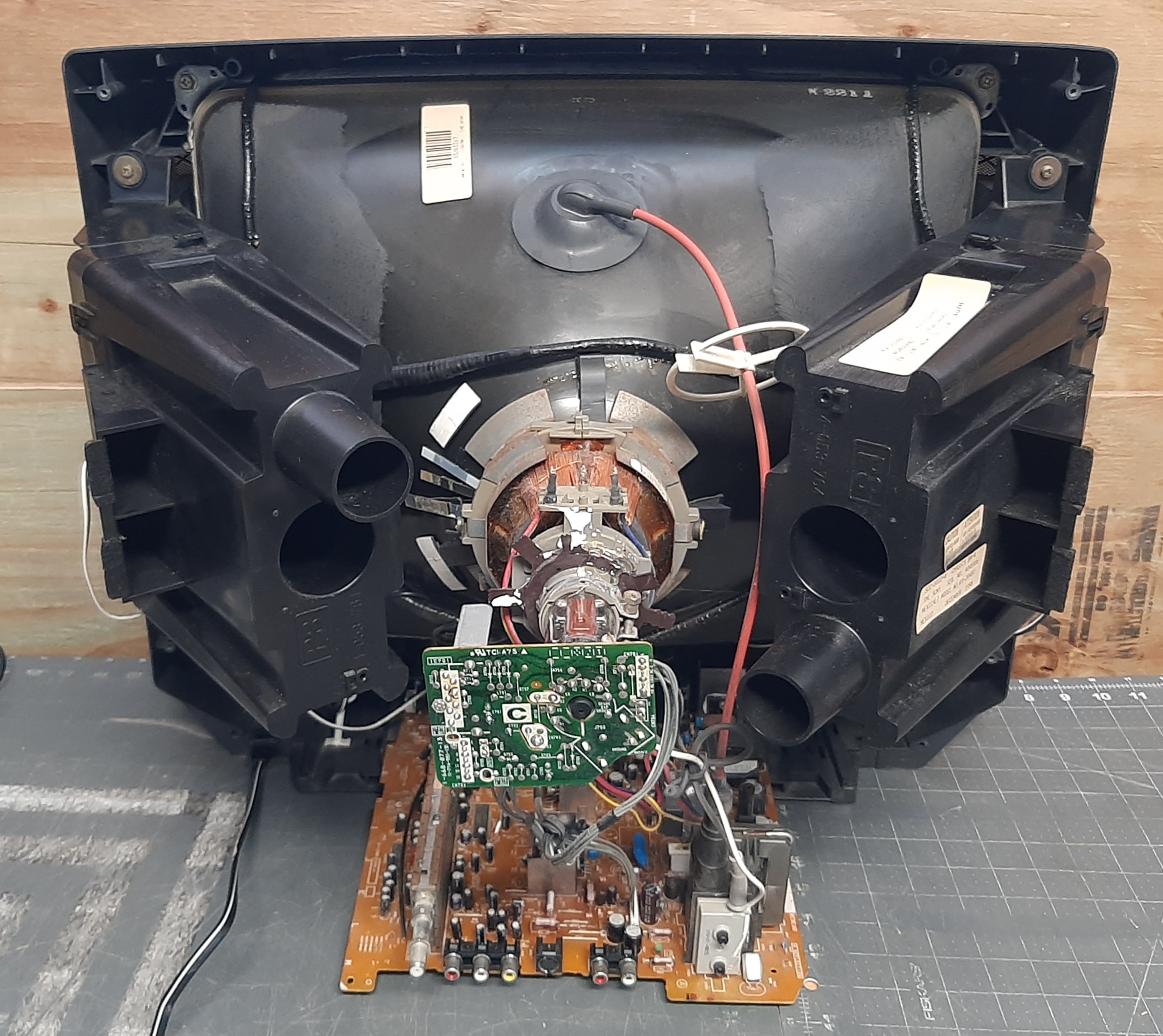

This set uses the CXA2061S jungle chip (labeled IC301) as mentioned the service manual. This jungle chip allows for the following mods: RGB via Mux, Component YPbPr. Although there are no pictures of the A board, the procedure should be nearly identical to the guide written by Matt Ross (6tanks) and should provide the necessary insight for those who wish to perform the mod. Instructions for the Component YPbPr mod are available on the KV-20S40 article.

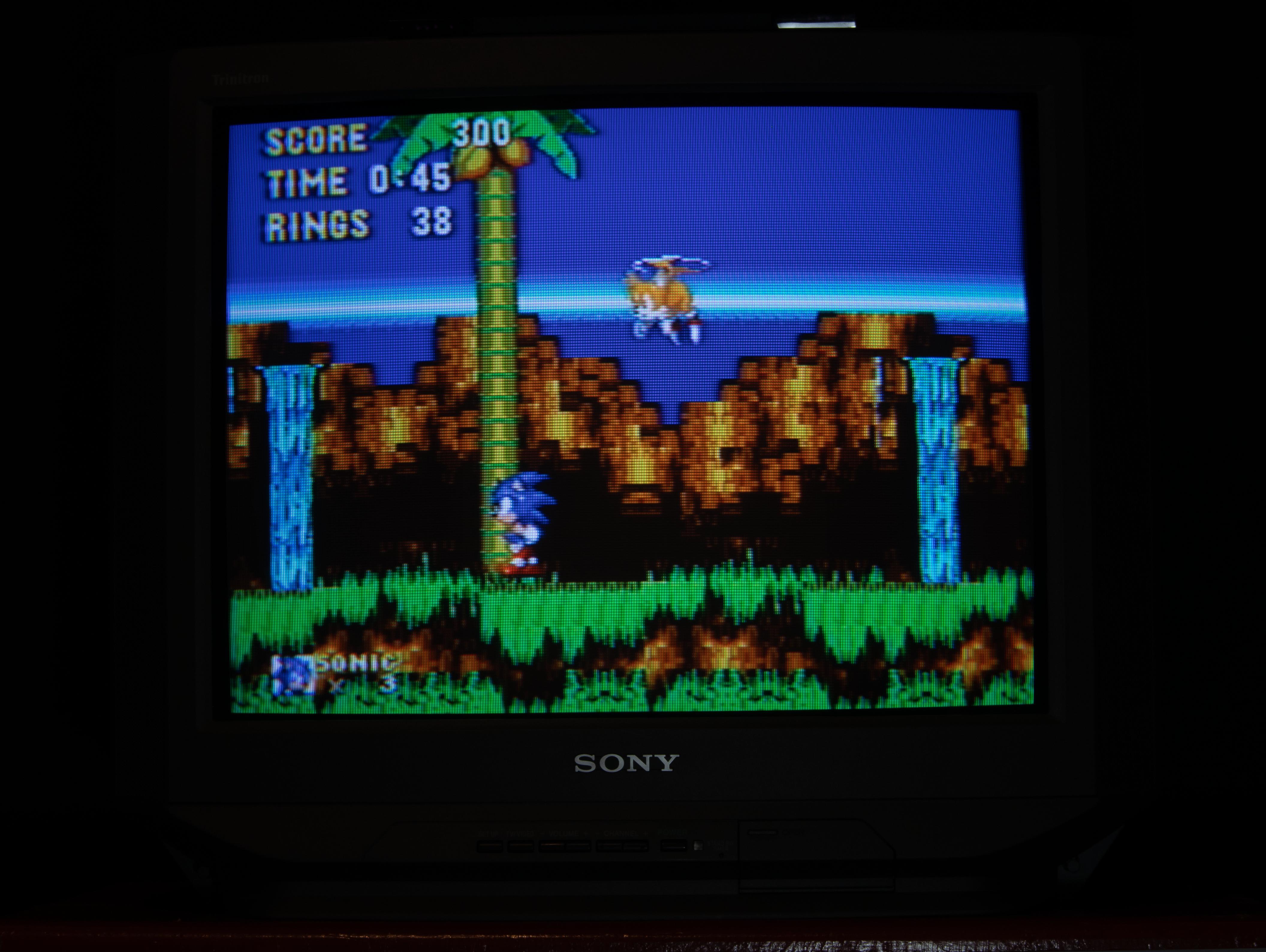

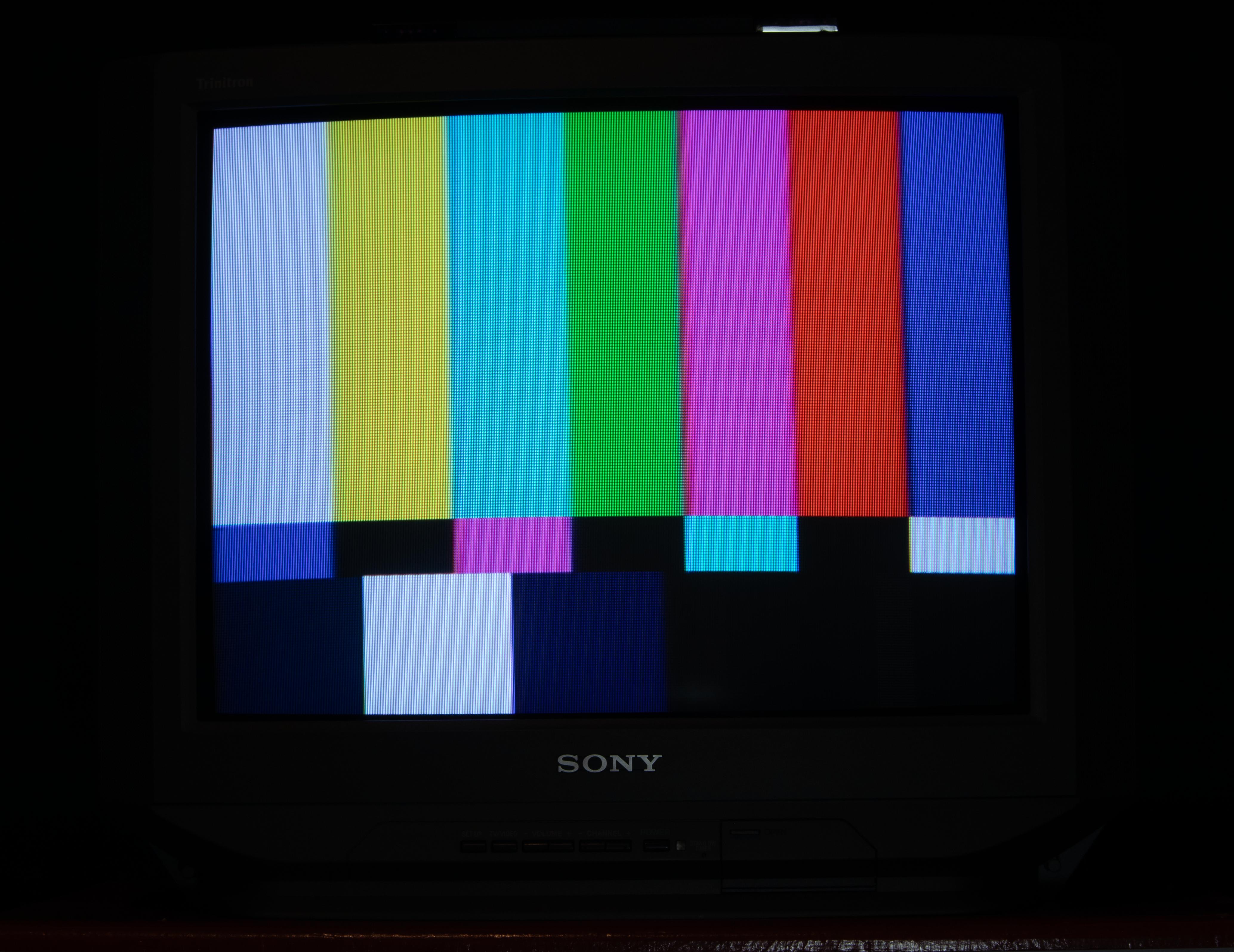

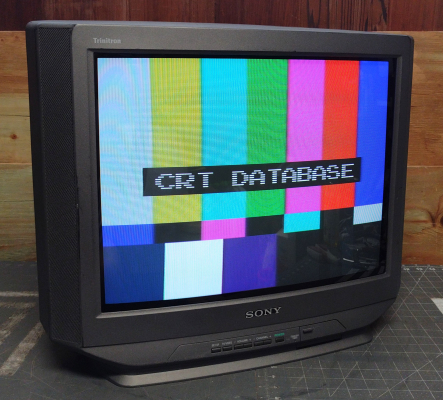

(Attached images of the display were using a composite input.)

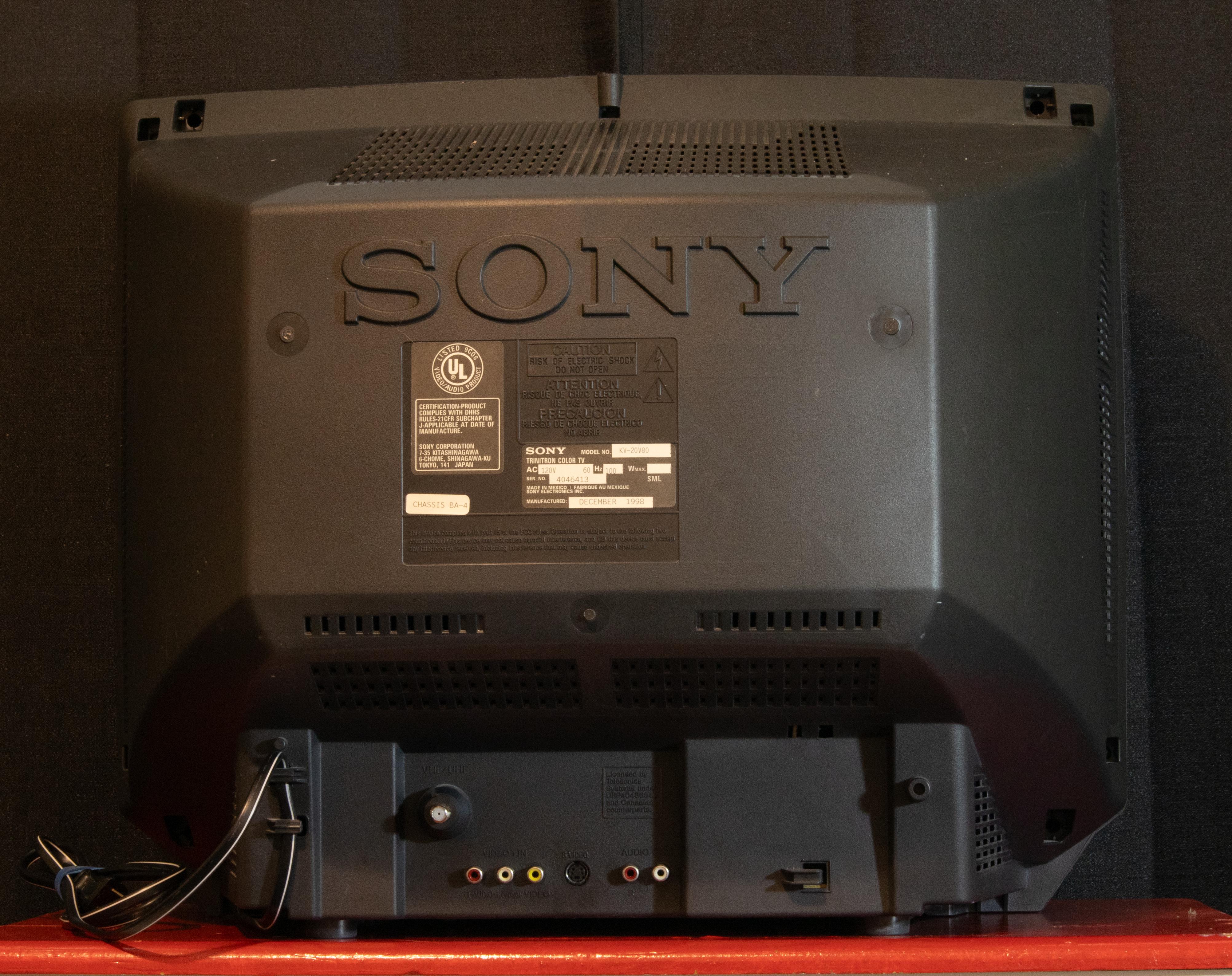

Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-20V80 |
| Series: | KV |
| Viewable Size: | 20" |

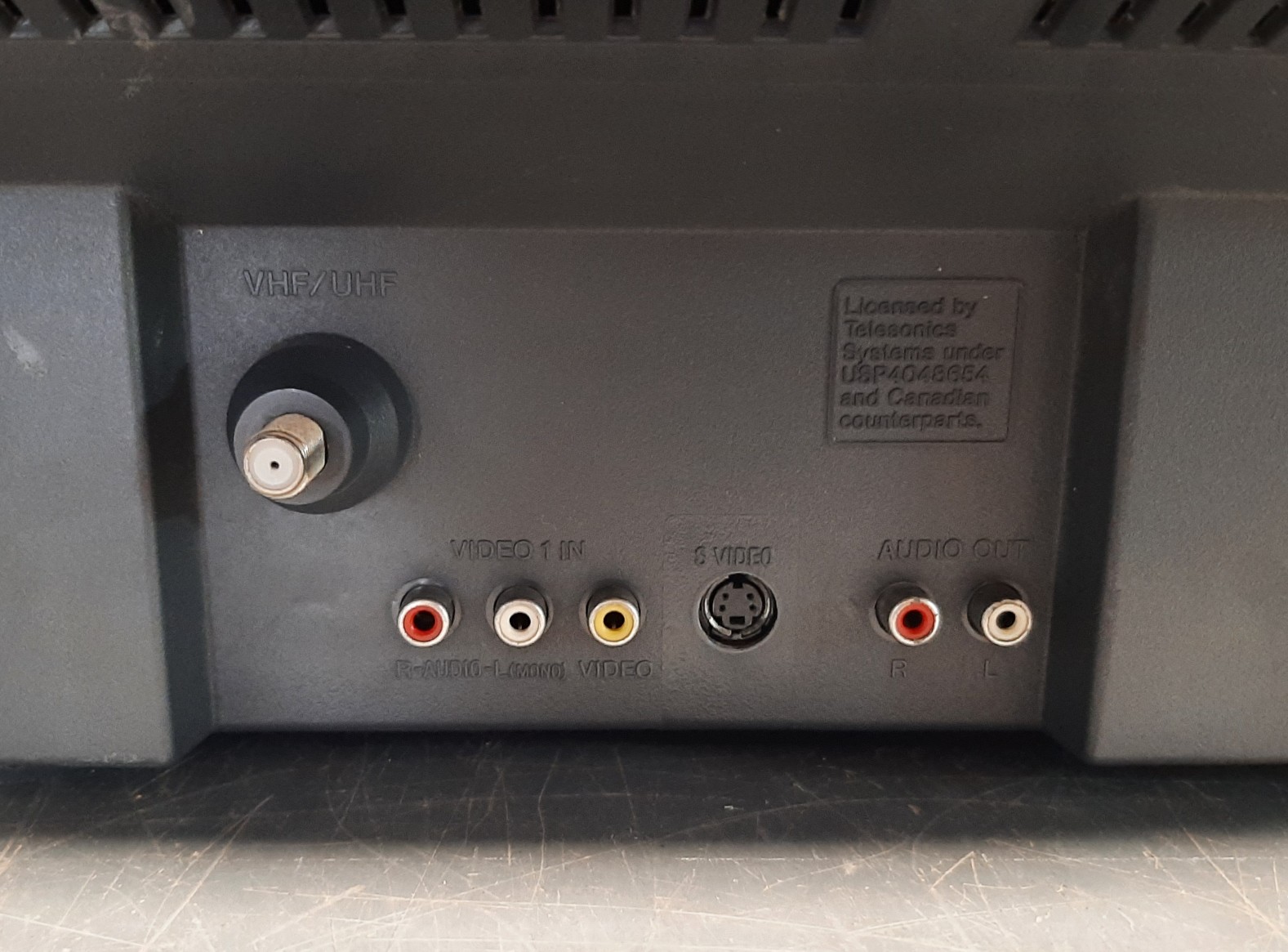

| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SC5426 |
| Vertical Output IC: | TDA8172 |
| Jungle IC: | CXA2061S |
| Comb Filtering: | None |
| Flyback: | 1-453-211-11 |
| Tube: | A51LDG50X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 8-451-440-21 |
| Speakers: | Stereo |
| Remote: | RM-Y135A |

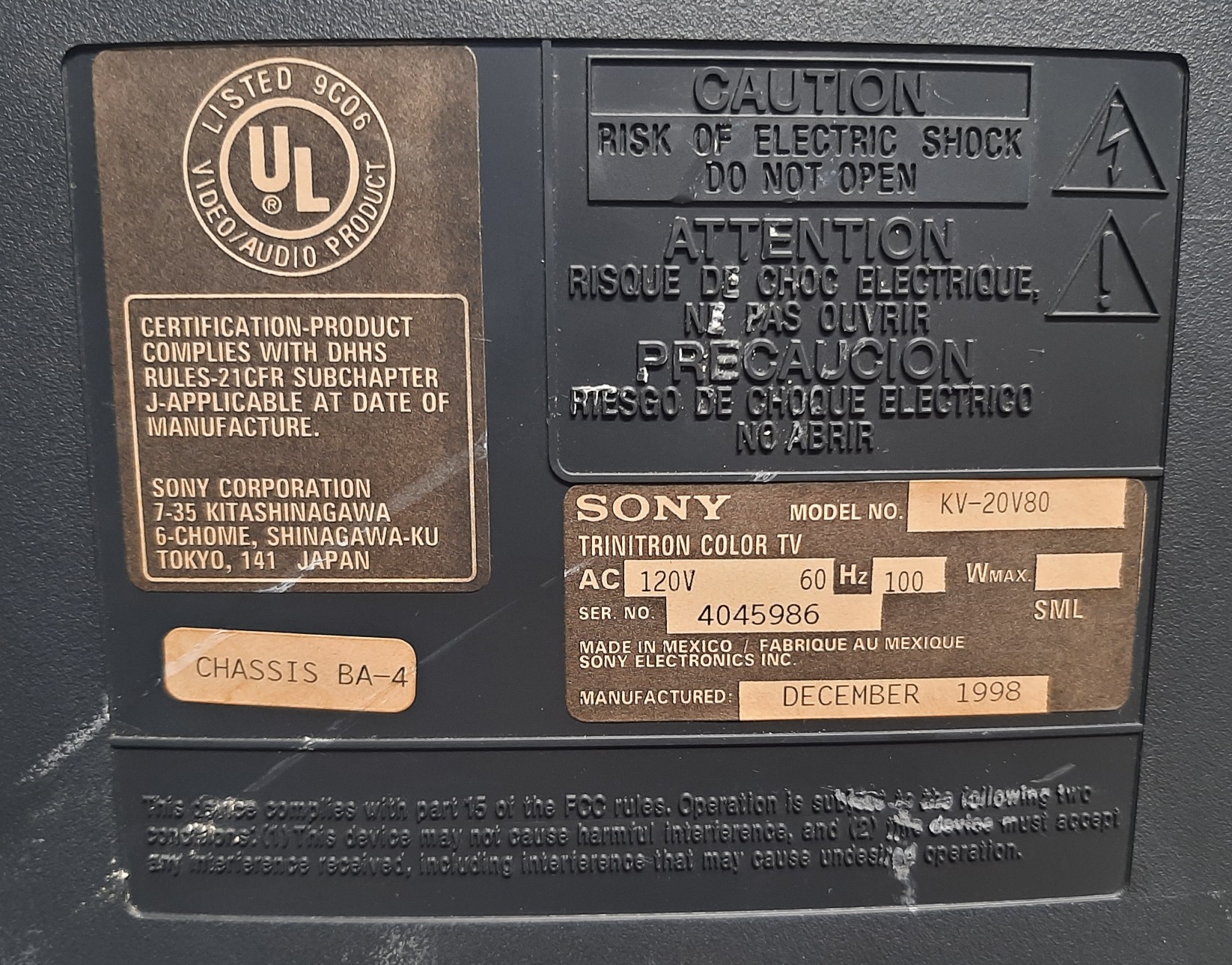

| Chassis: | BA-4 |
| Weight: | 49.1875 lbs (22.3 kg) |
| Dimensions (W/H/D): |
556 x 464.5 x 474.9 mm
(21.9 x 18.3 x 18.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1998 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux, Component YPbPr |
| Degaussing: | Automatic on Power-on |
| Tag: | Community Submission, Needs Pictures |
