Summary

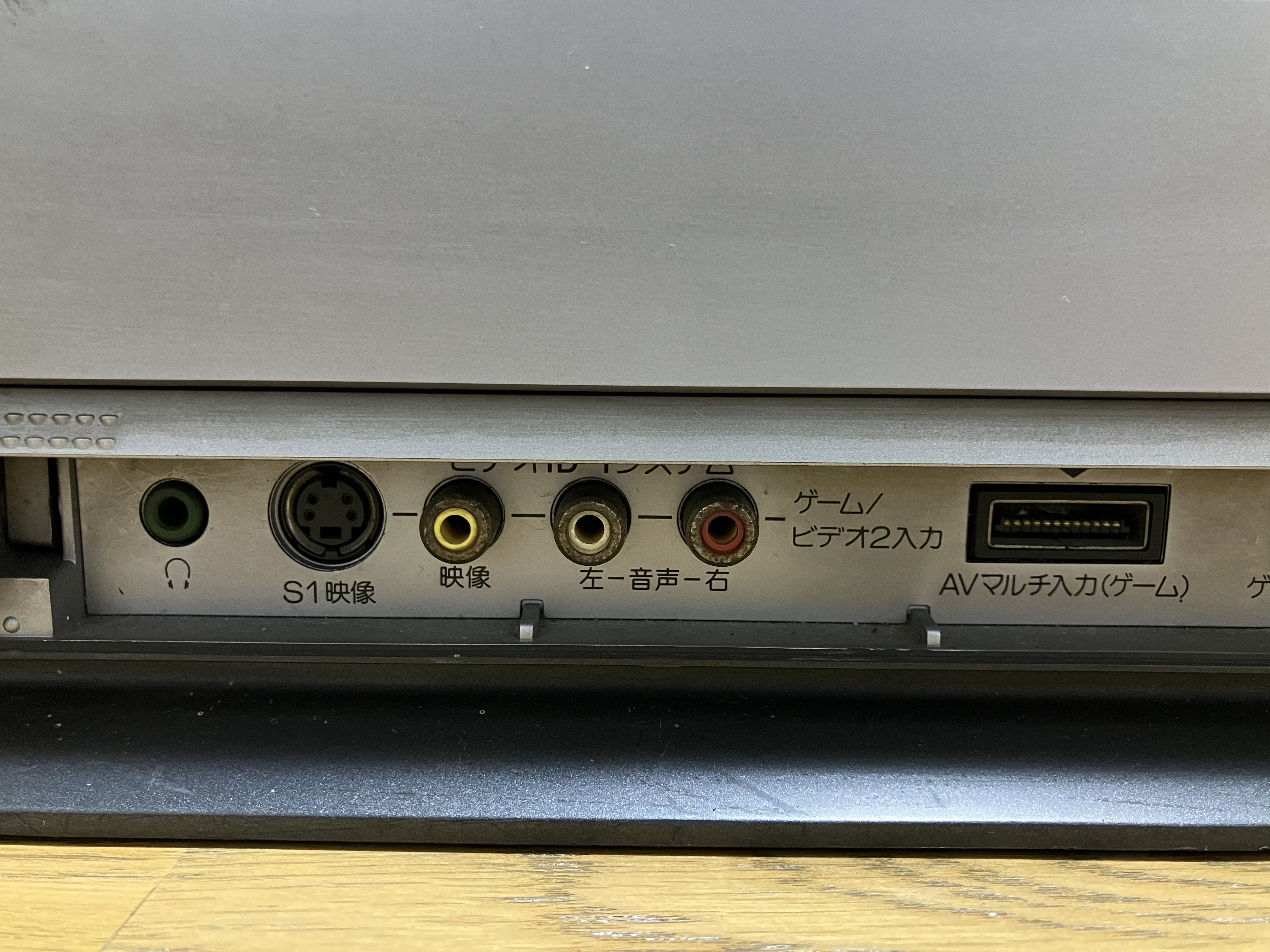

A 21-inch consumer set with a complete set of I/O! Including 4 Composite, 3 S-Video, 1 D-Terminal Component, and 1 RGB with AV Multi.
Manuals & Promos
No manuals are currently available at this time.
Notes

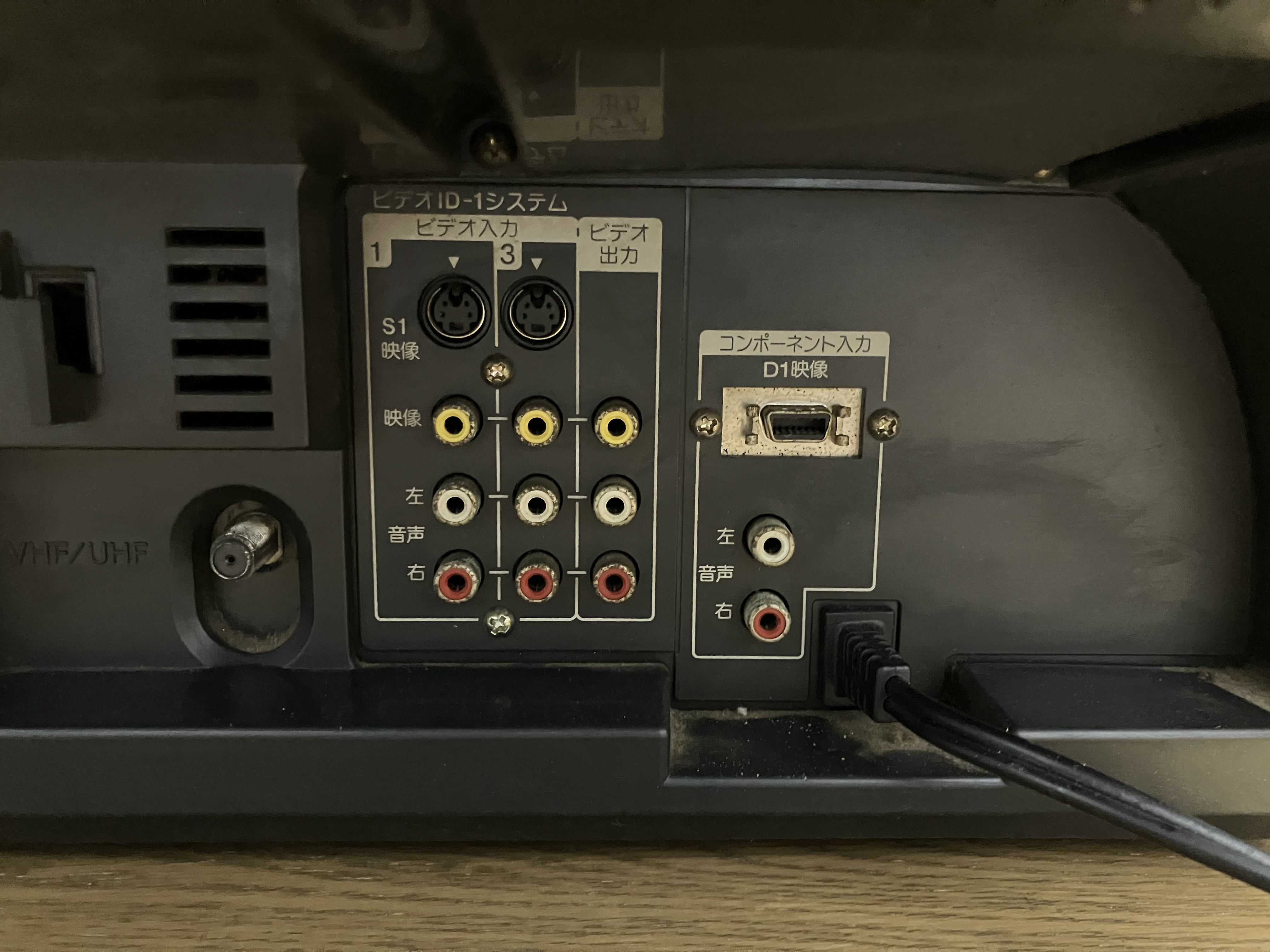

Information on the D-Terminal D1 Video Connector - TLDR; It's basically Component YPbPr without audio You will need a breakout adapter to use standard Component YPbPr, the adapter can be found here

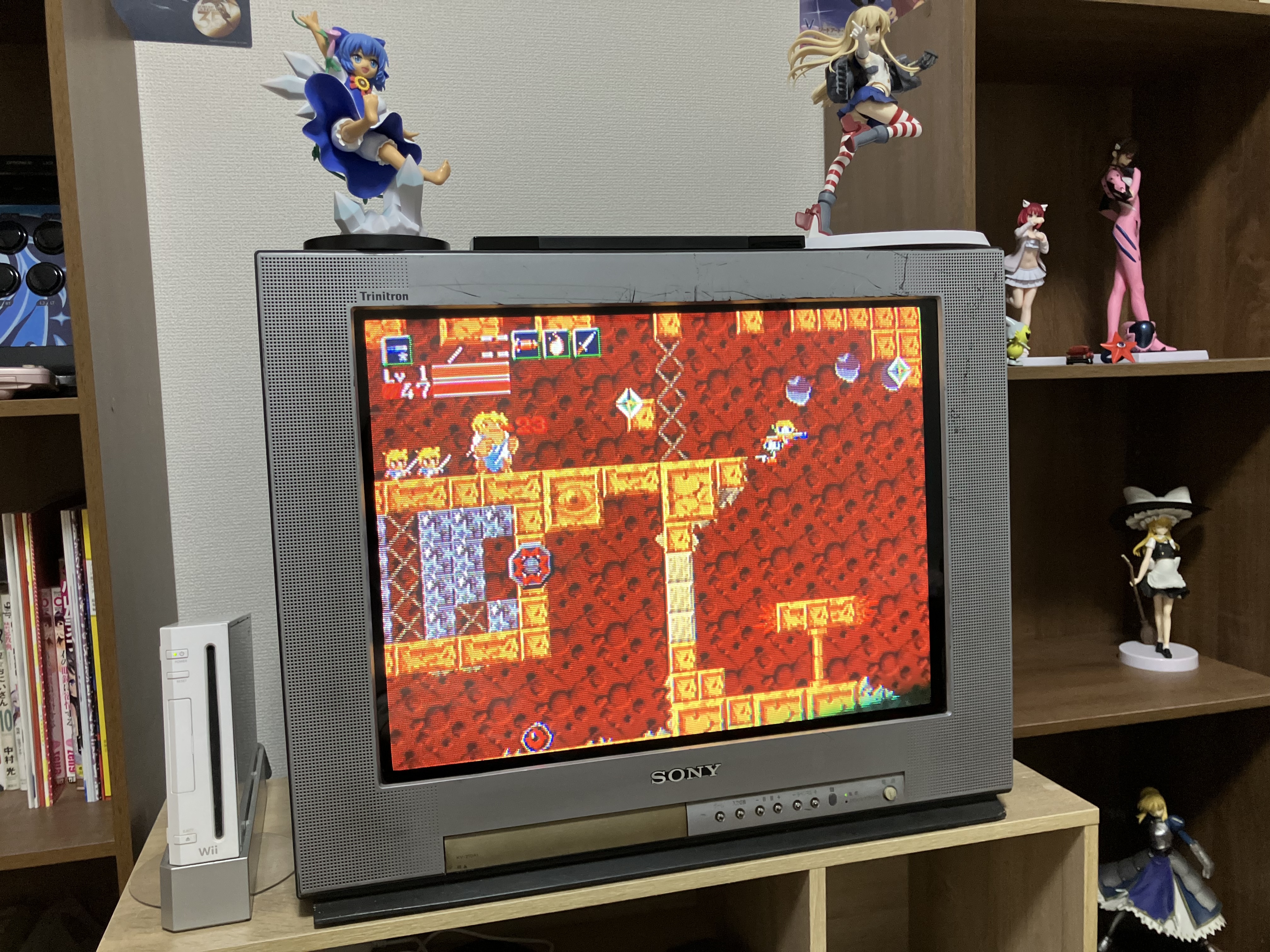

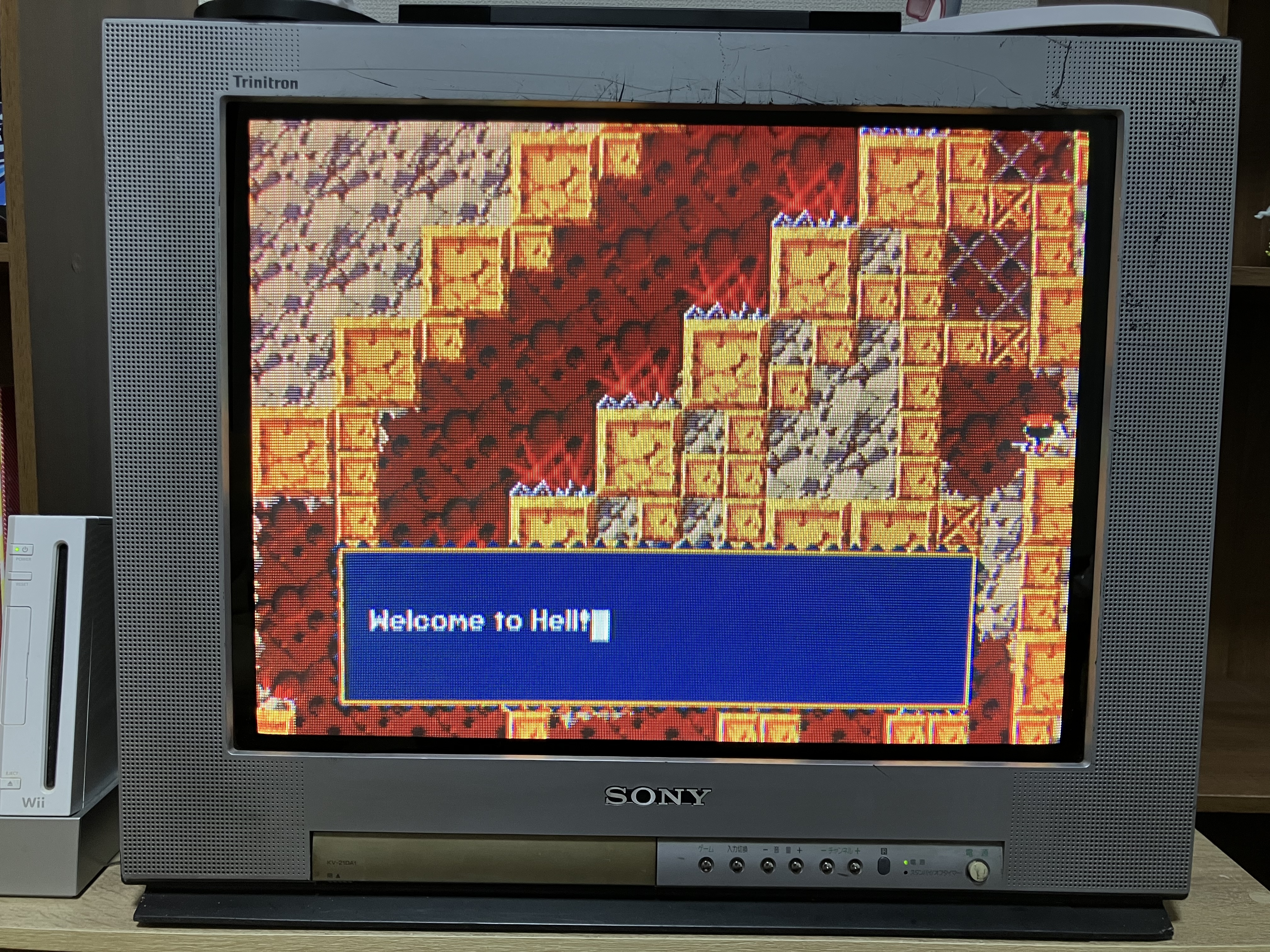

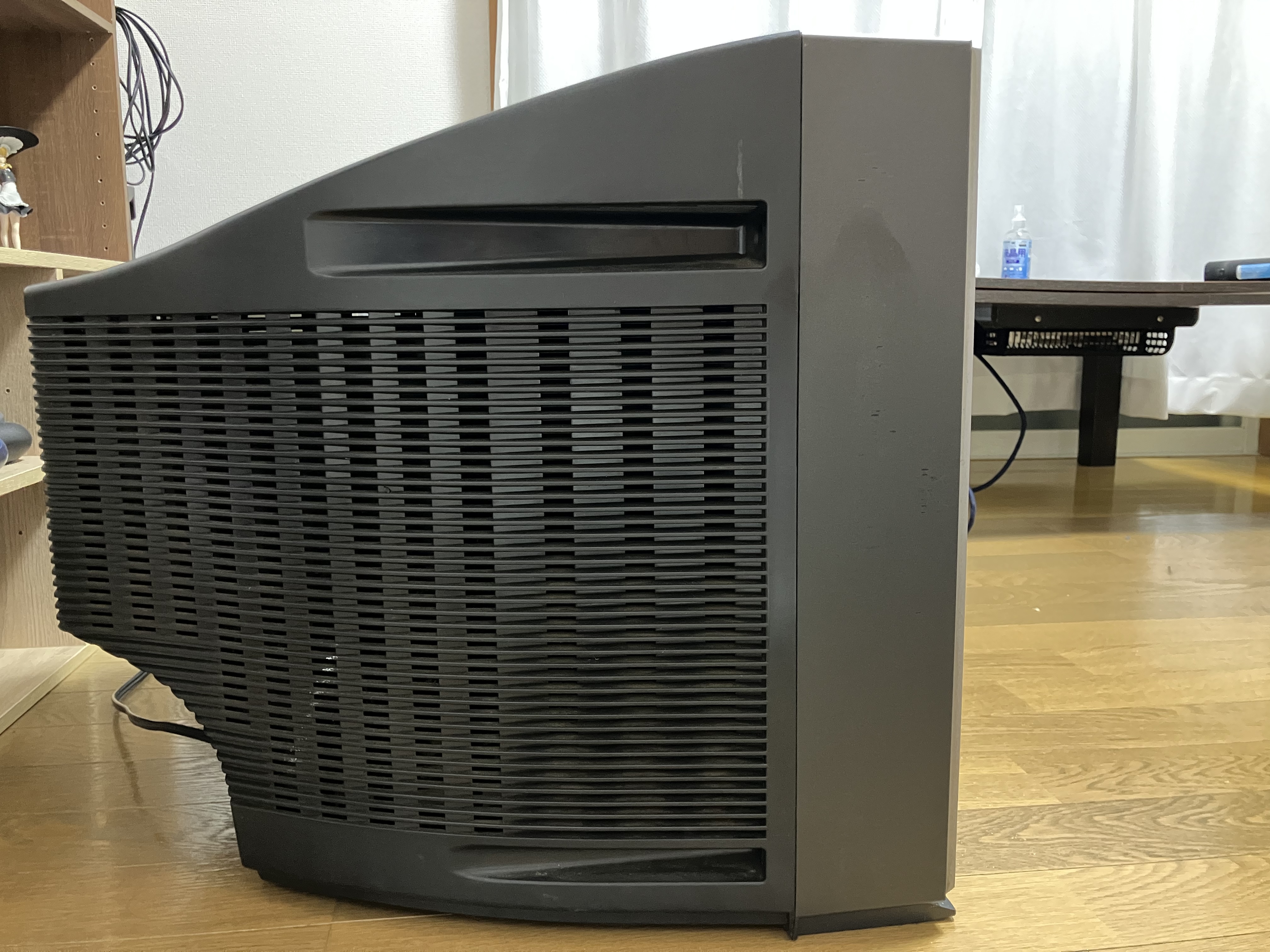

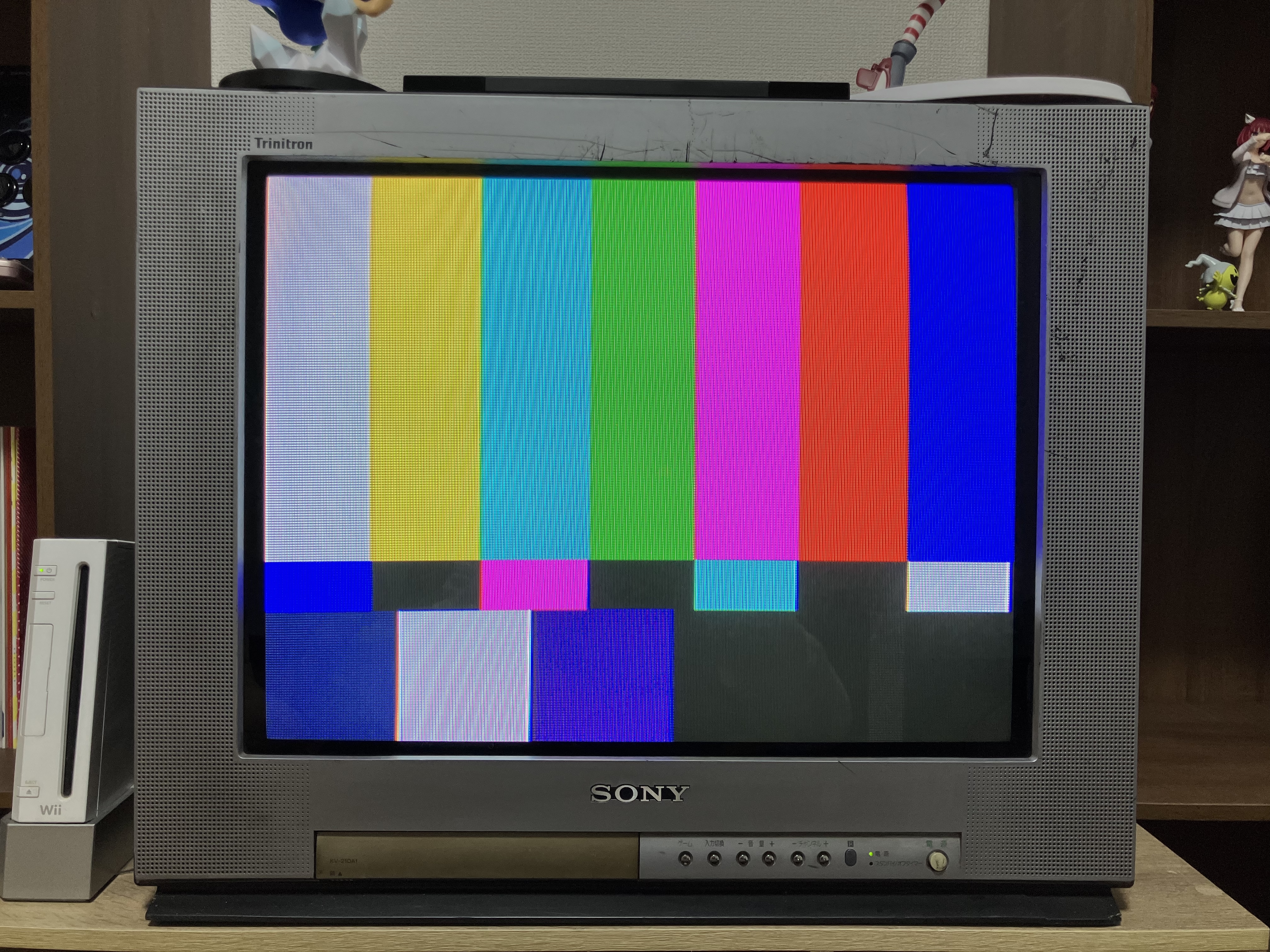

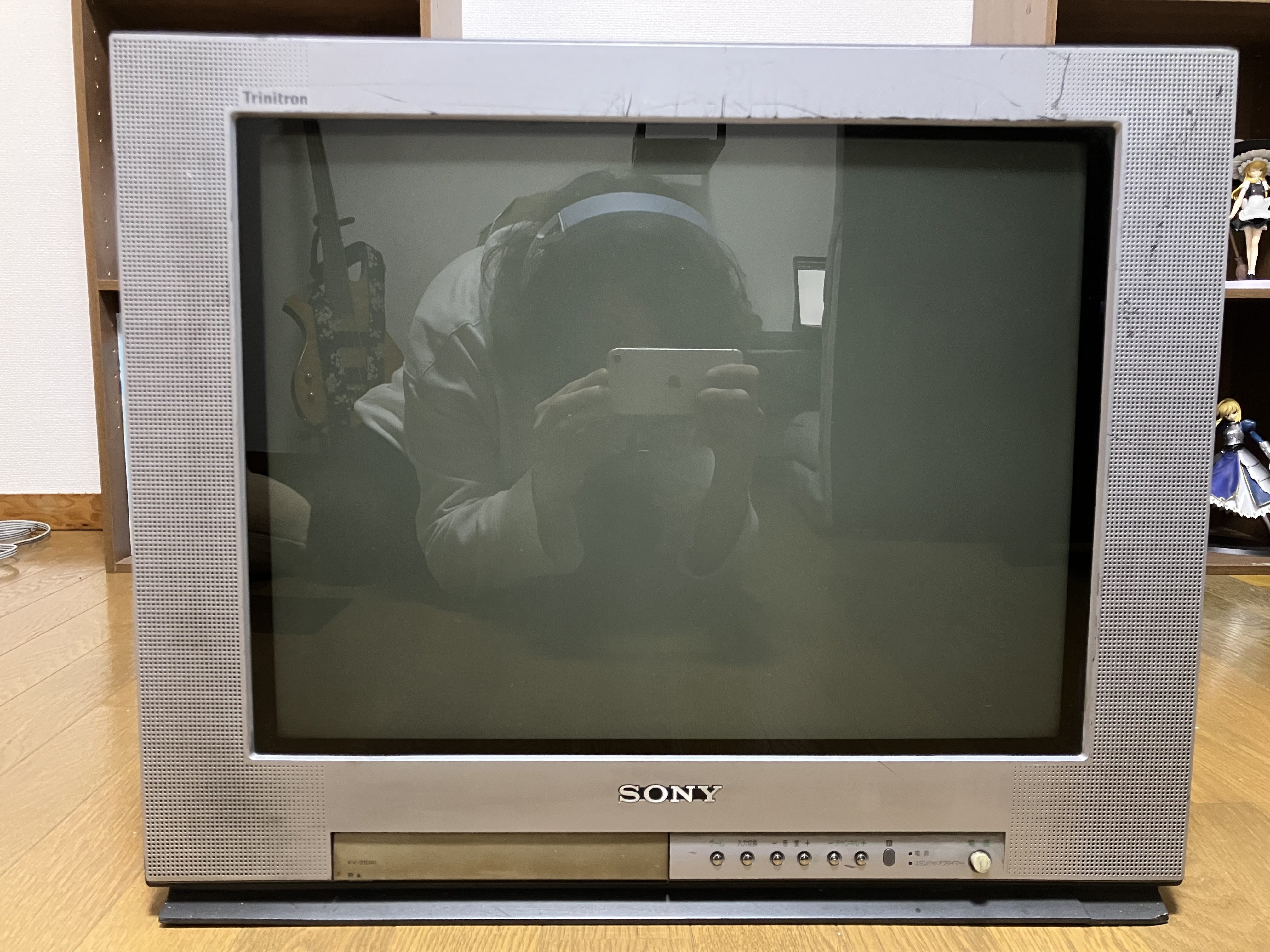

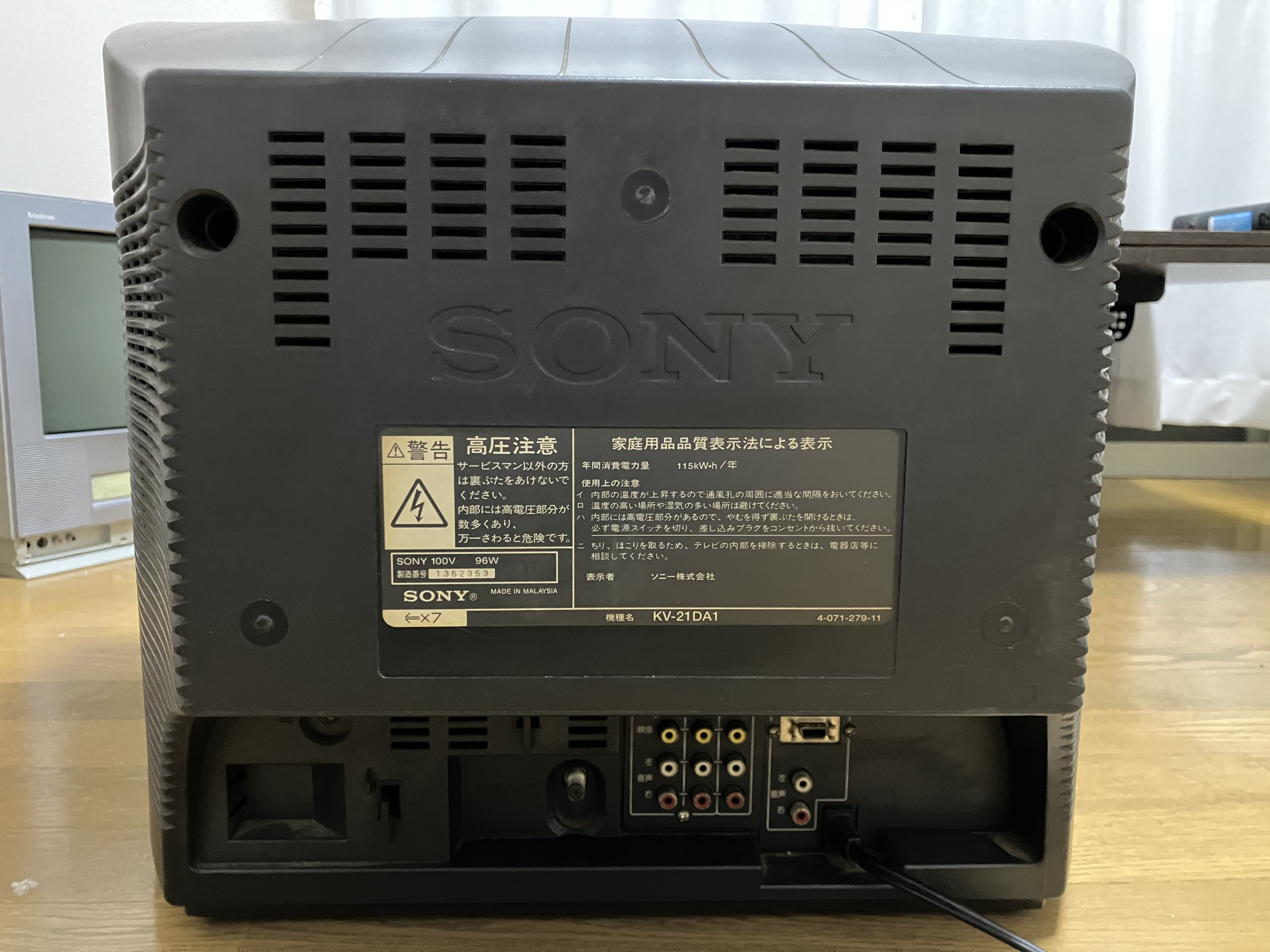

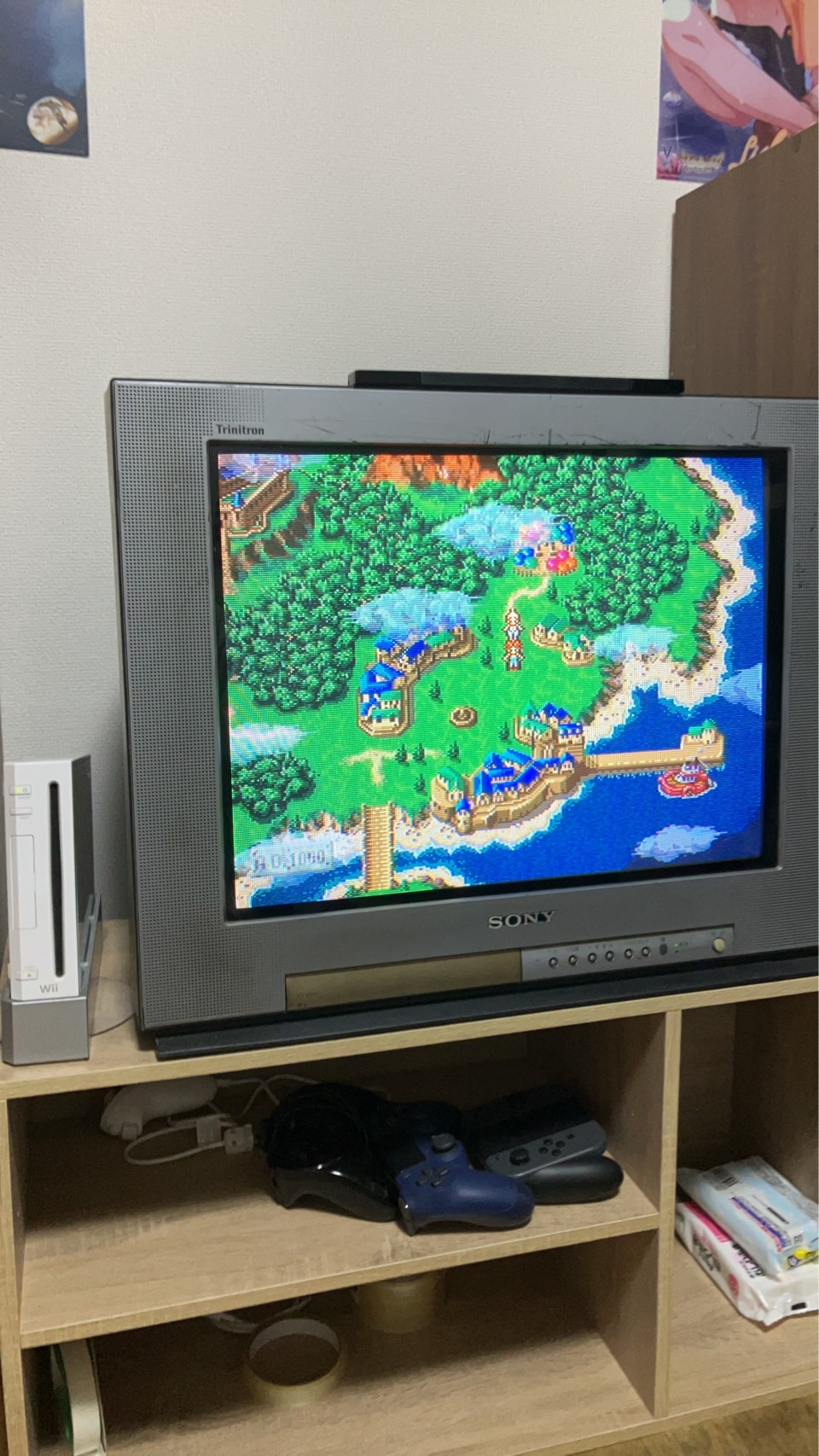

Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-21DA1 |
| Series: | KV |
| Viewable Size: | 21" |
| Input Signals: | Composite, S-Video, RF, Component YPbPr, RGB |
| Native Resolutions: | 240p, 480i |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Tube: | Sony FD Trinitron |
| Mask: |
Aperture Grille
|
| Remote: | RM-J235 |
| Weight: | 61 lbs (27.7 kg) |
| Dimensions (W/H/D): |
544 x 444 x 482 mm
(21.4 x 17.4 x 18.9") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | Malaysia |
| Market: | Japan |
| Power Standard: | 100v |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Yoke Info, Needs Tube Info, Community Submission |
