Summary

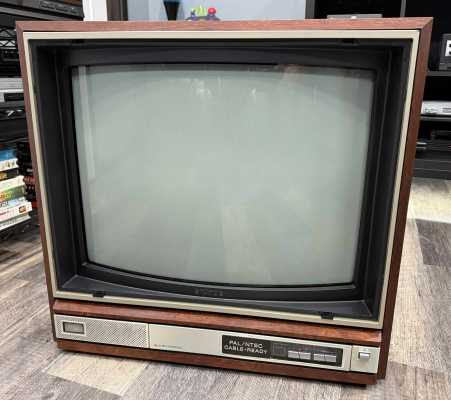

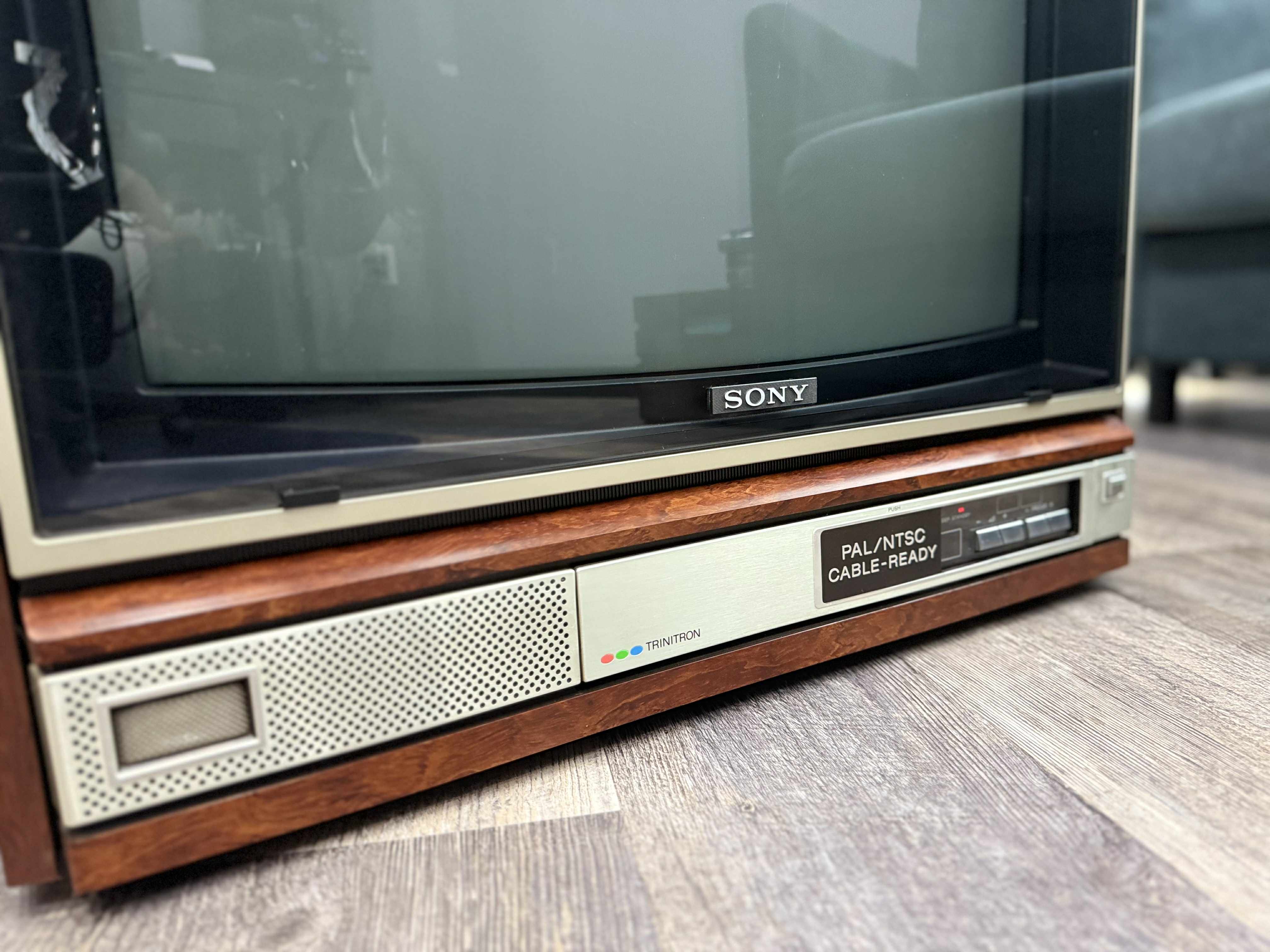

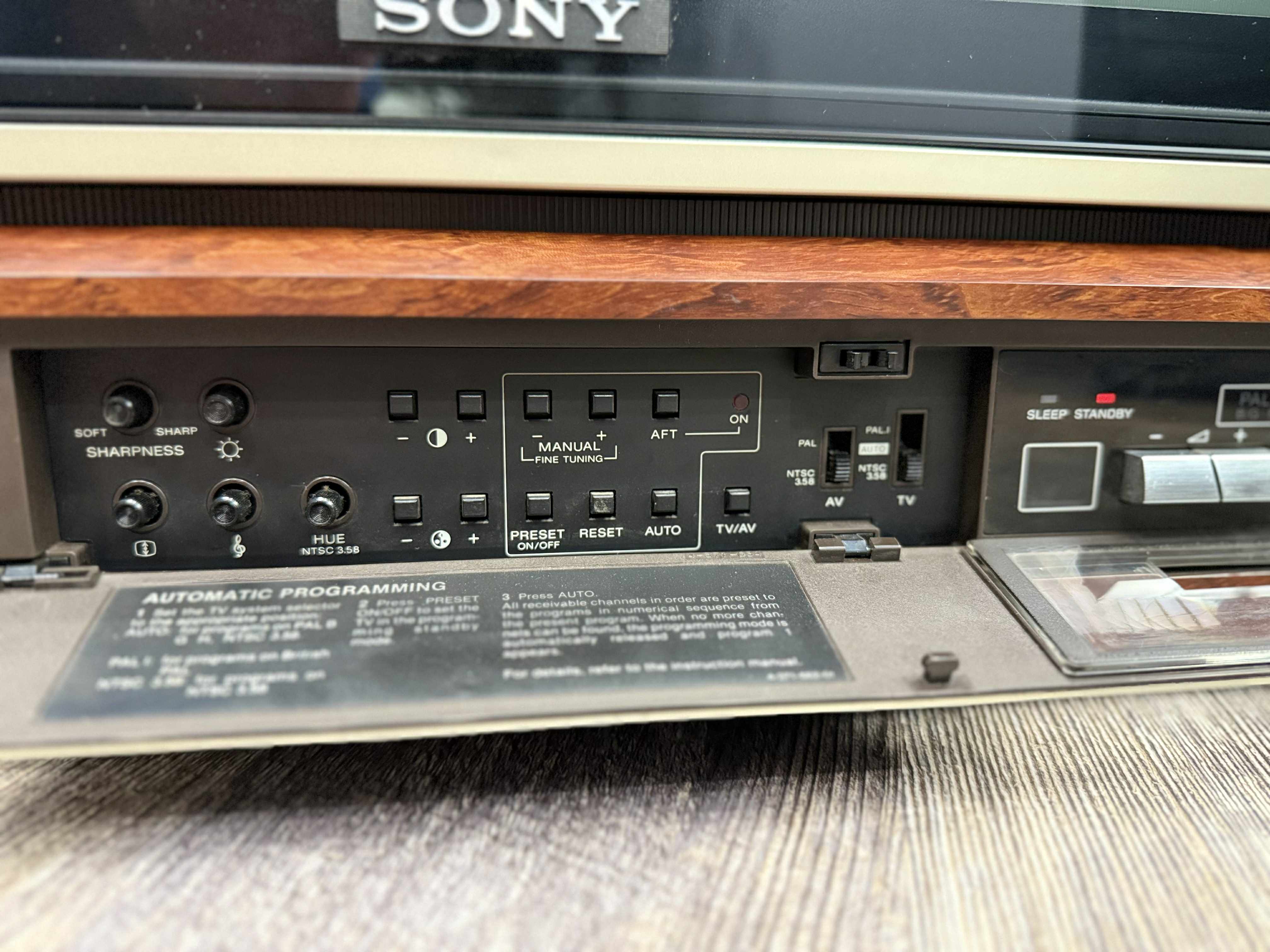

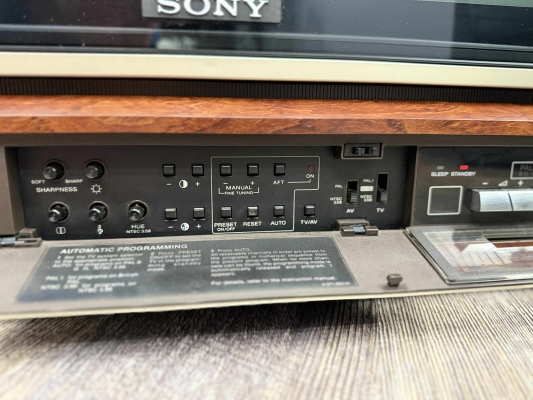

25" multi-standard Sony CRT made for Asia, Australia, Europe, and the Middle East. Features RF, composite video, and mono sound. As far as I can tell, it was never officially sold stateside, but it did get sold in Guam. Originally manufactured in Japan, this set was designed to accept NTSC and PAL video standards, and you can switch between the standards on the front of the set.
(Special thanks to Kyle L. for the pics!)
Manuals

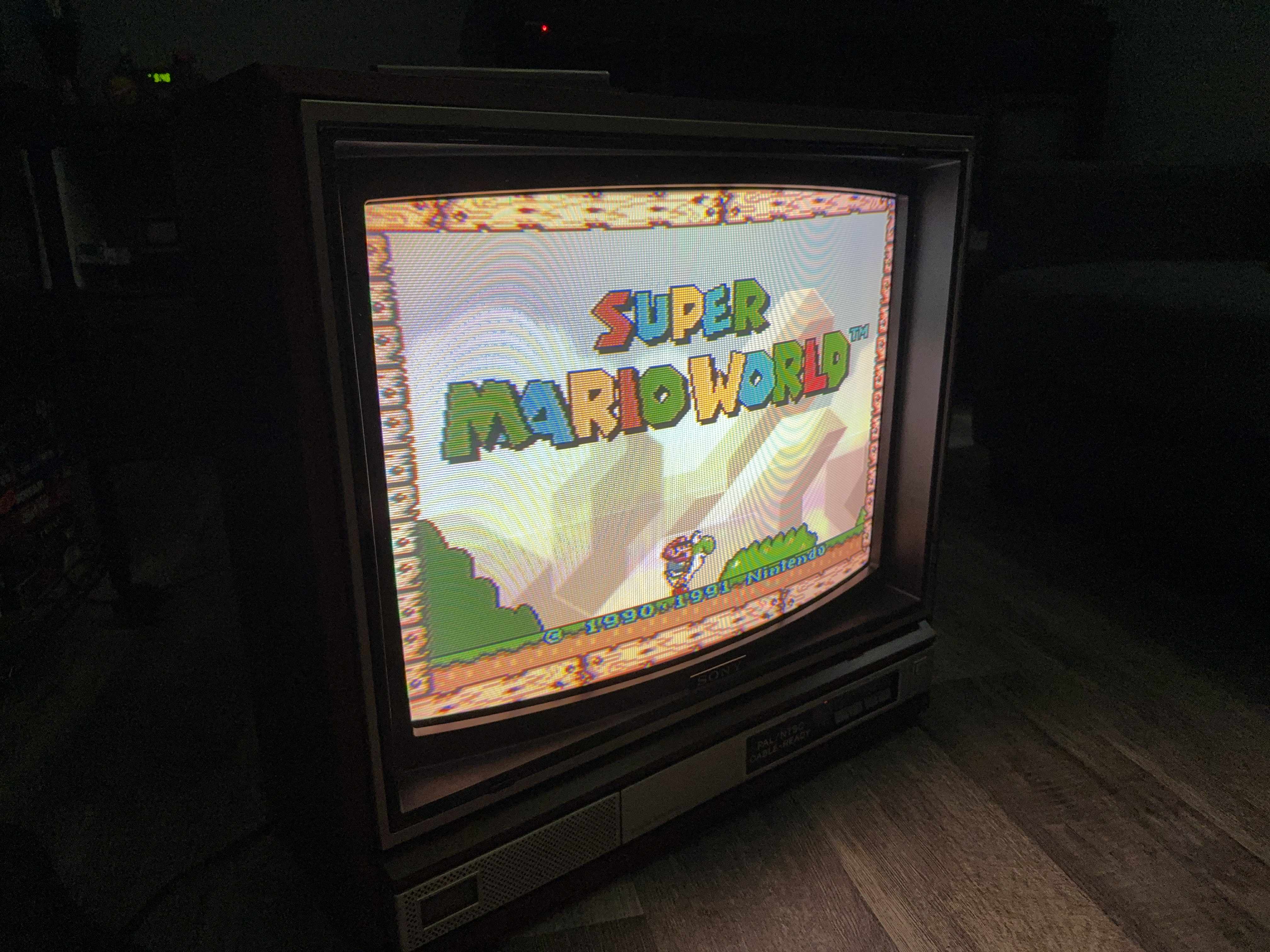

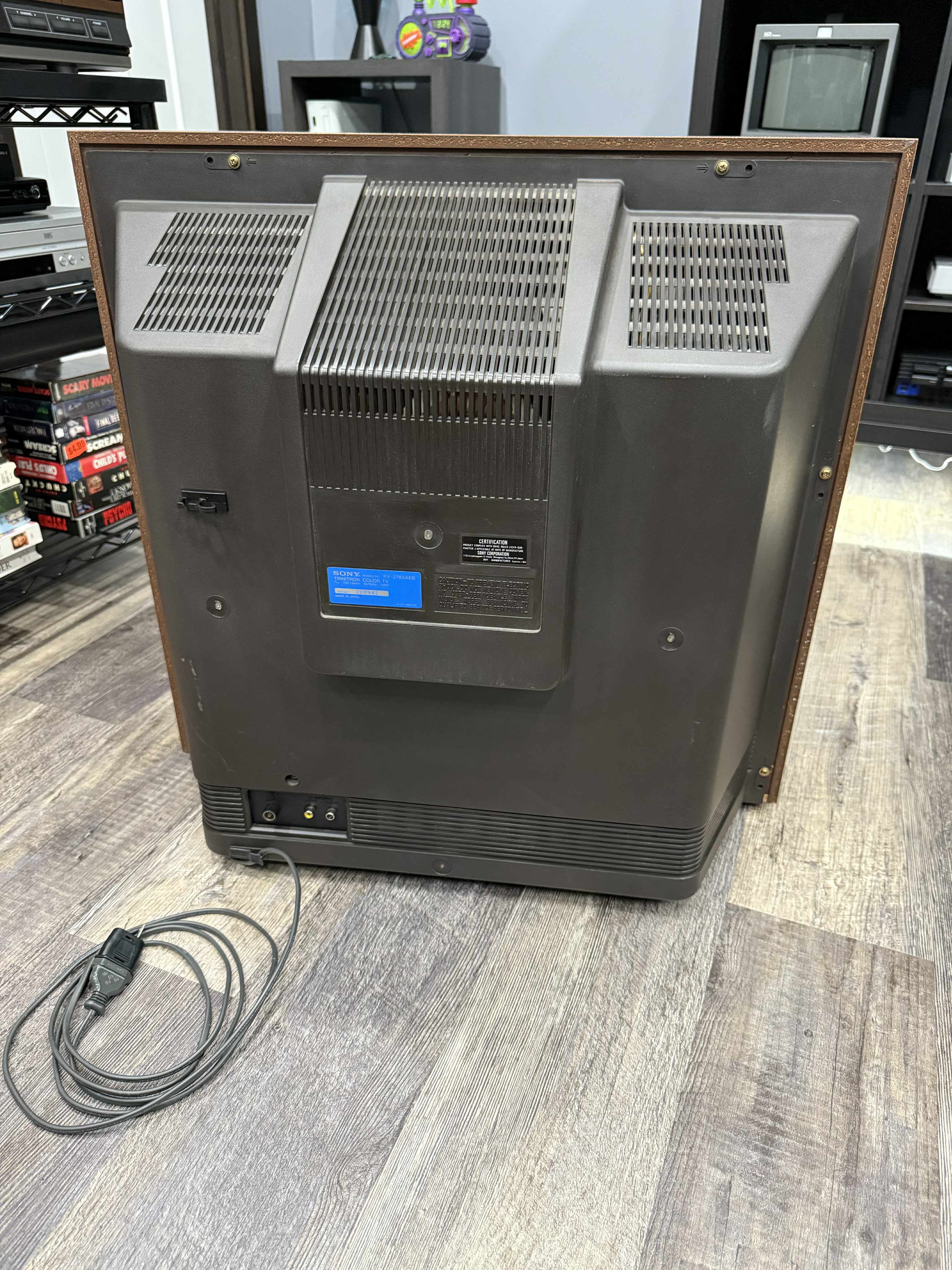

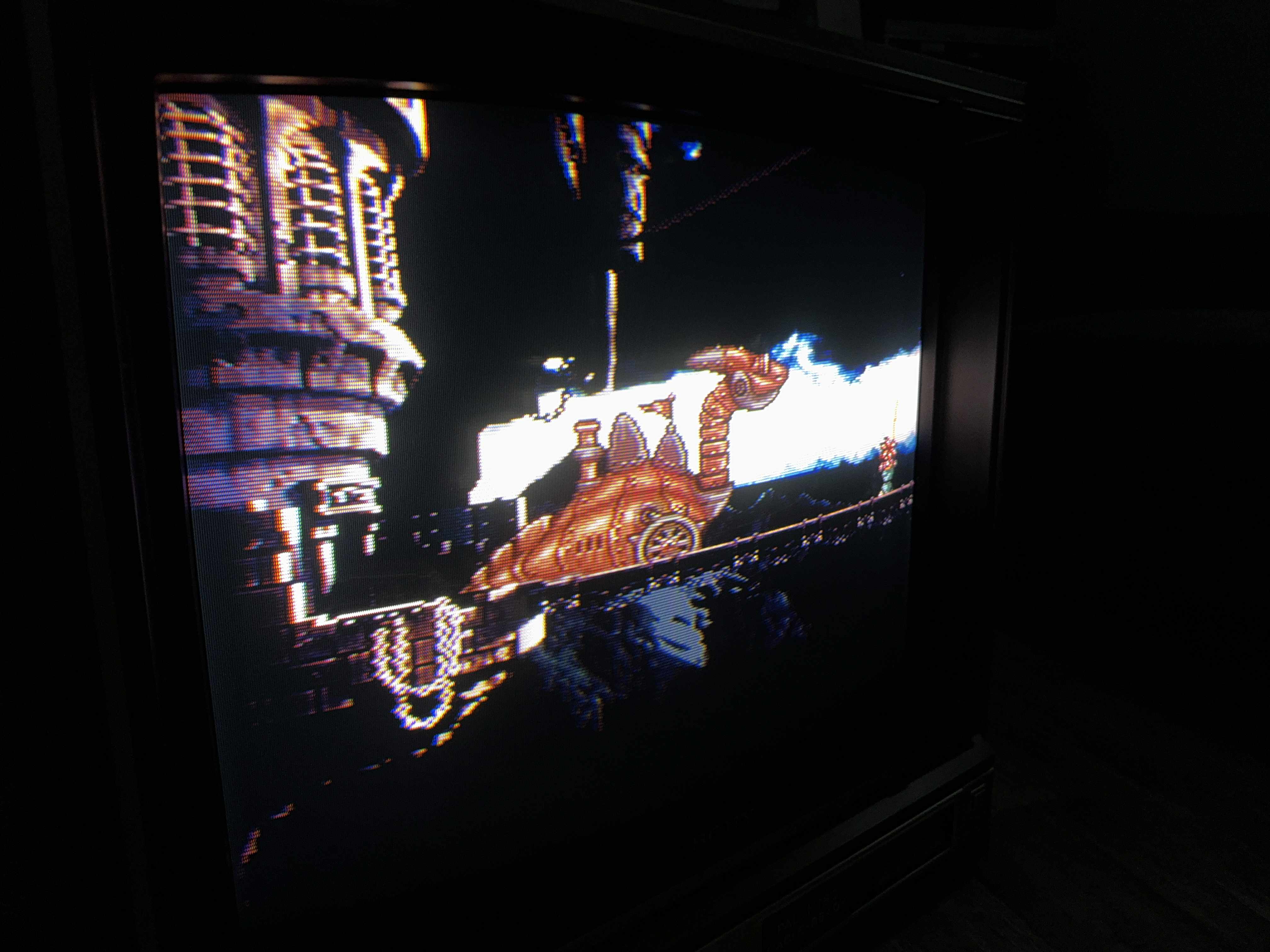

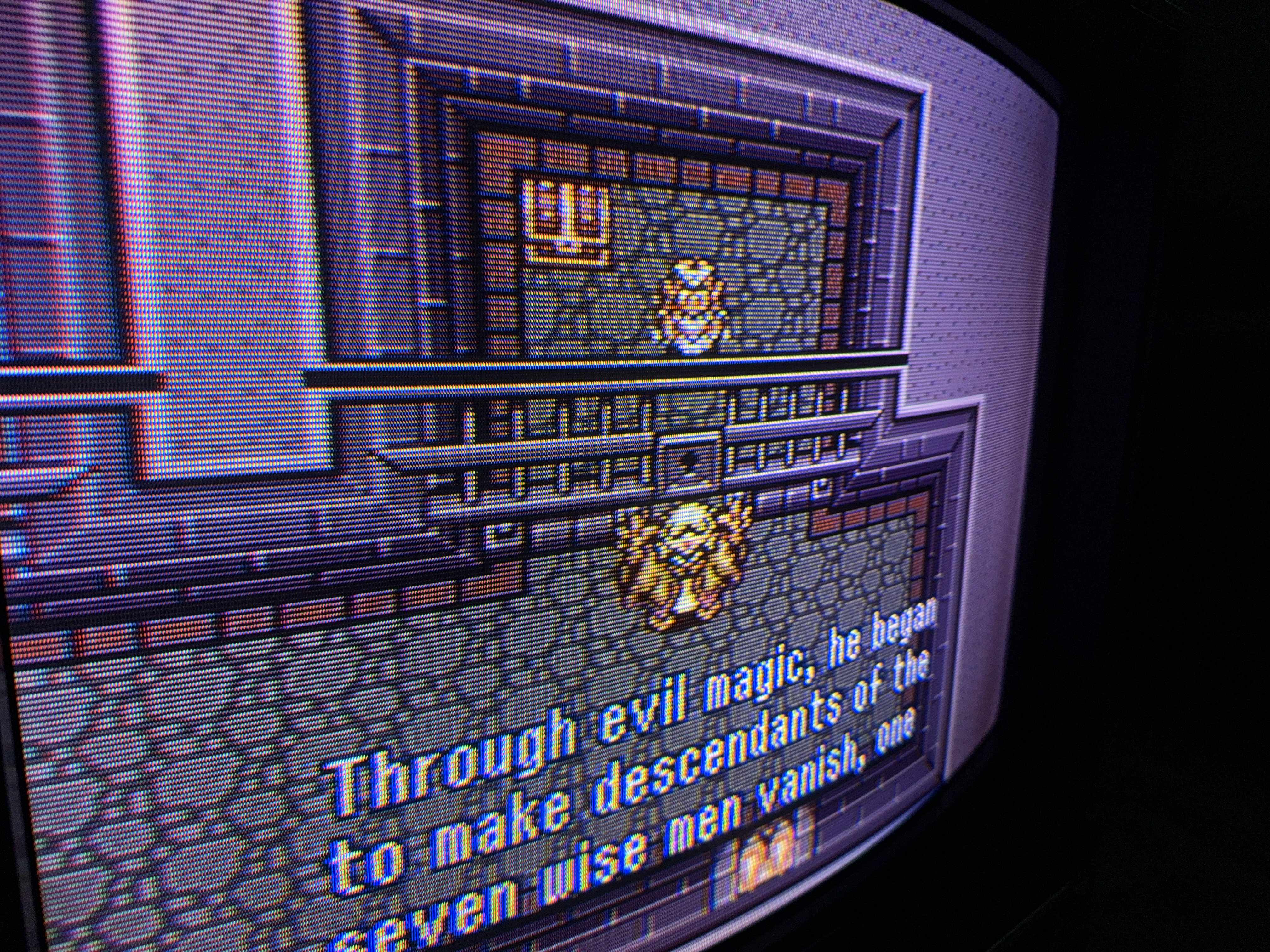

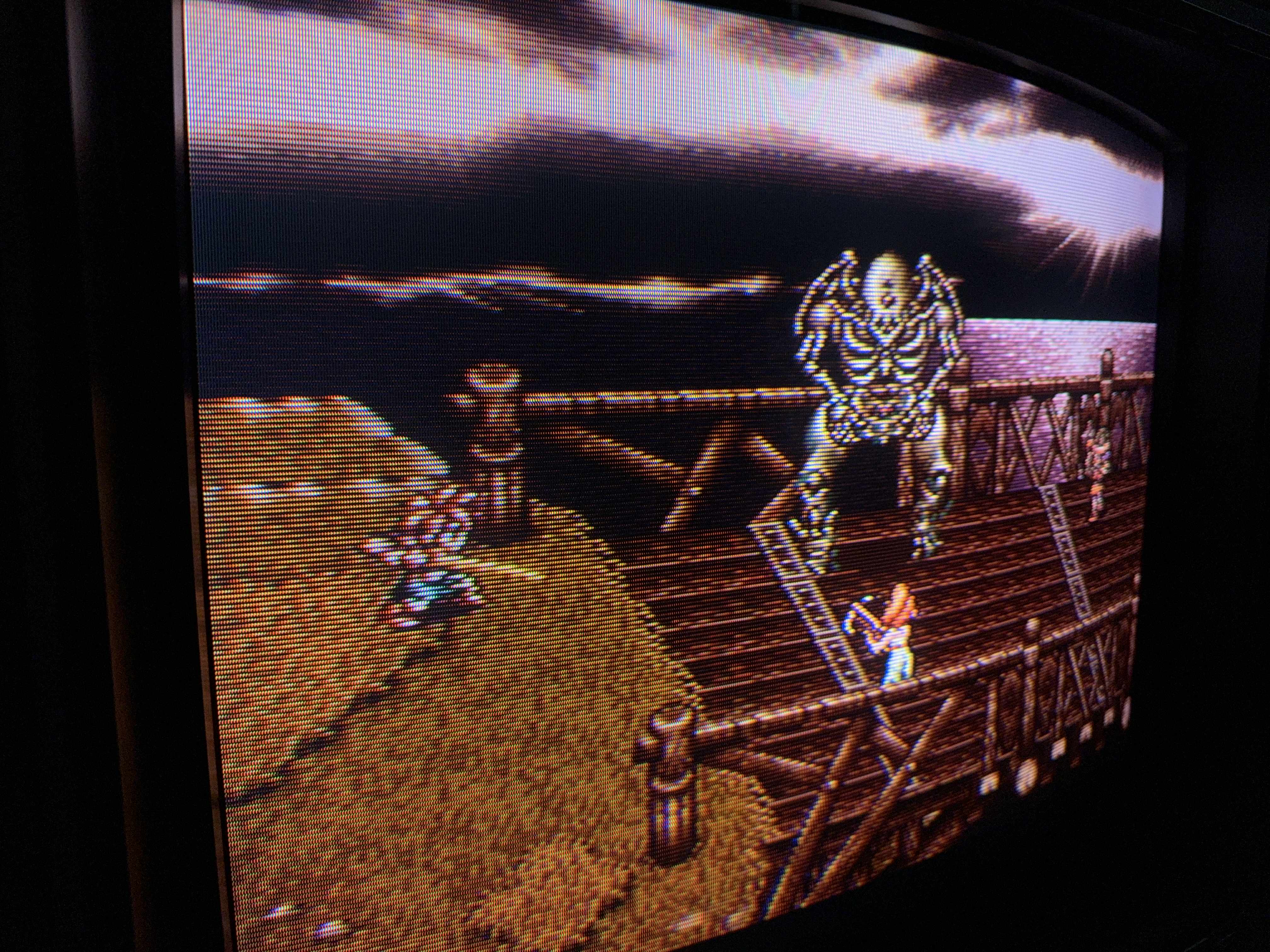

Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |

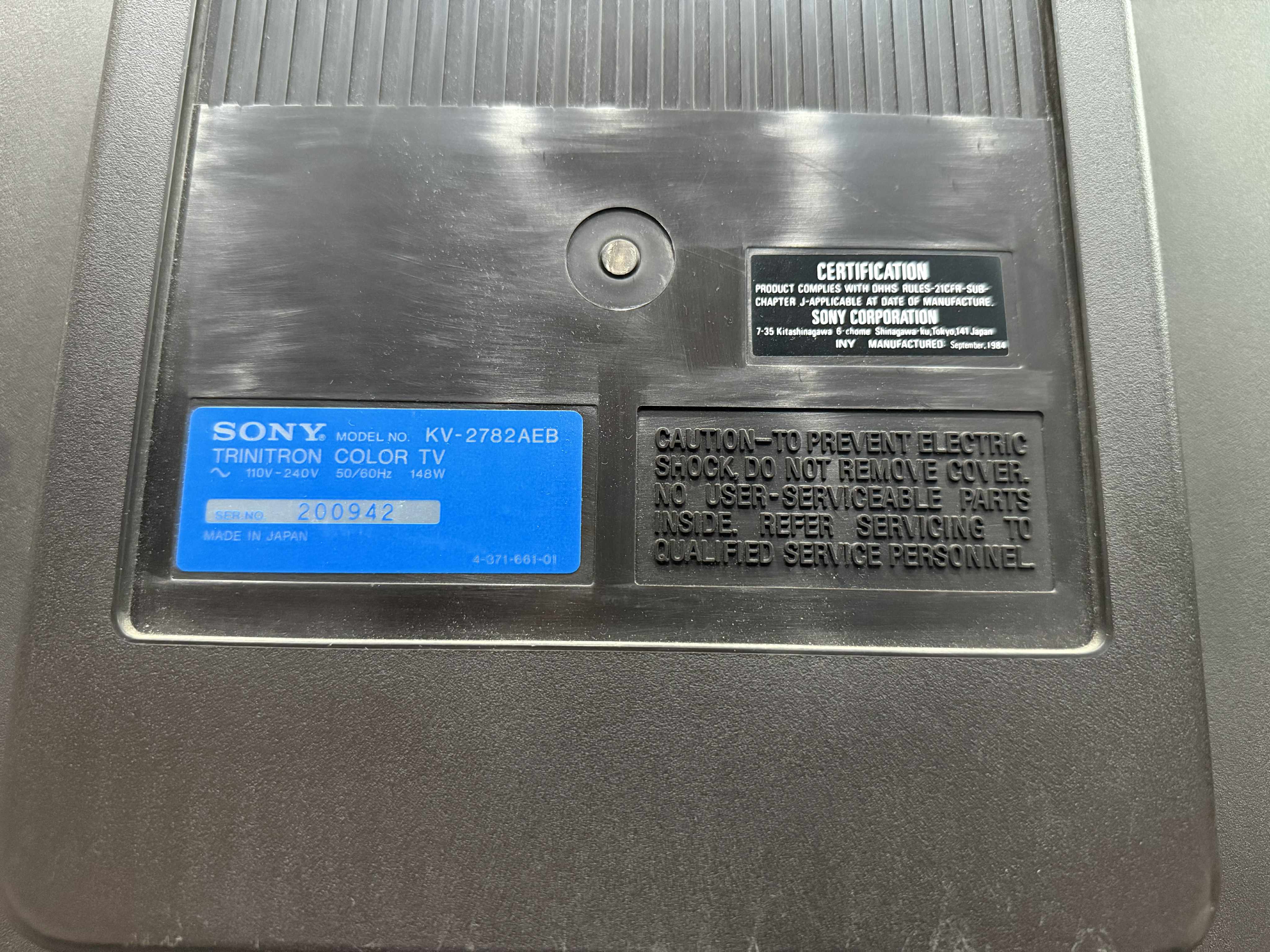

| Model: | KV-2782AEB |
| Series: | AEB |
| Viewable Size: | 27" |

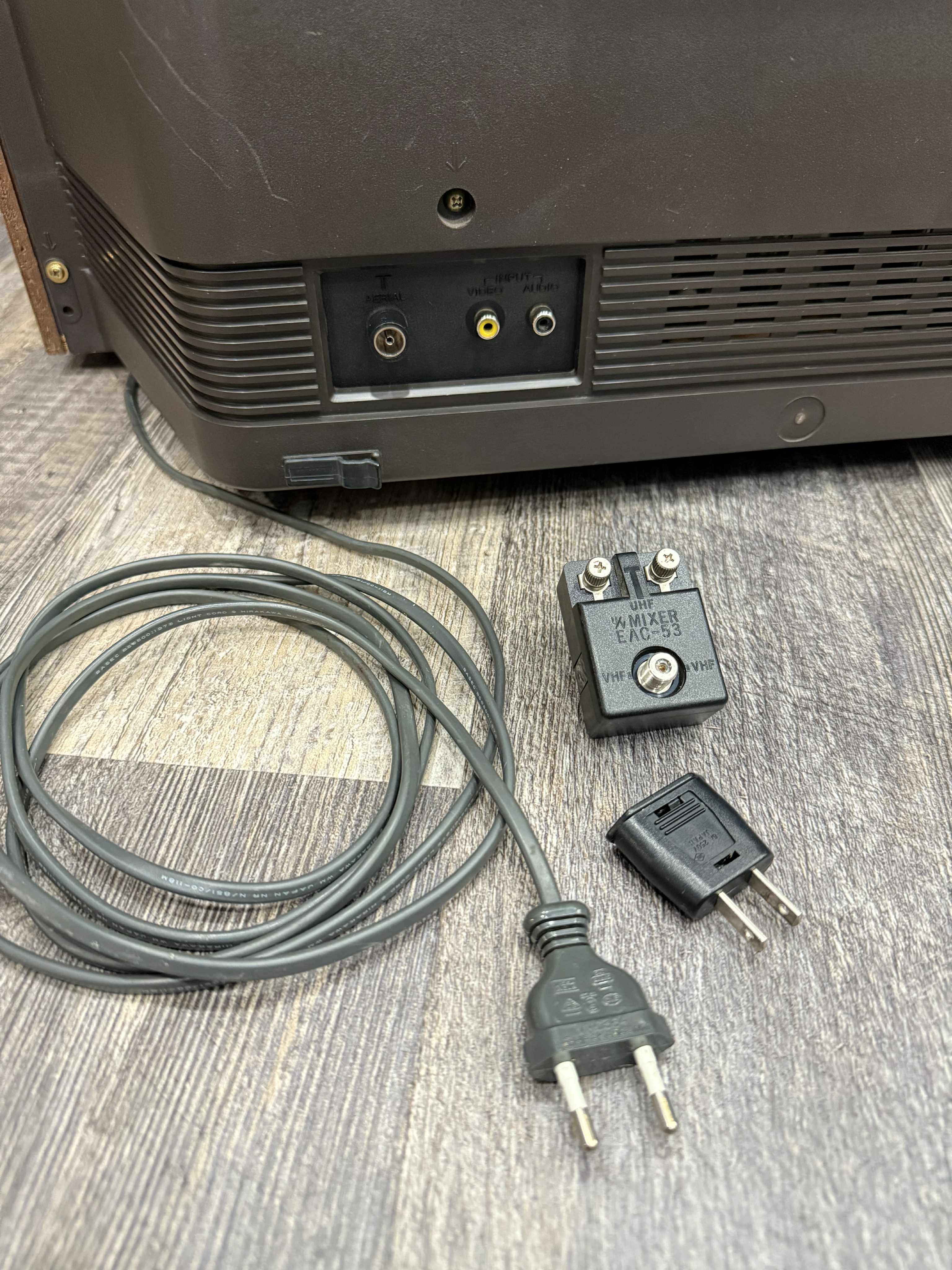

| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i, 288p, 576i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz, 50 Hz |
| Formats: | PAL, NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Comb Filtering: | None |
| Flyback: | 1-439-357-11 |
| Focus Type: | Single |

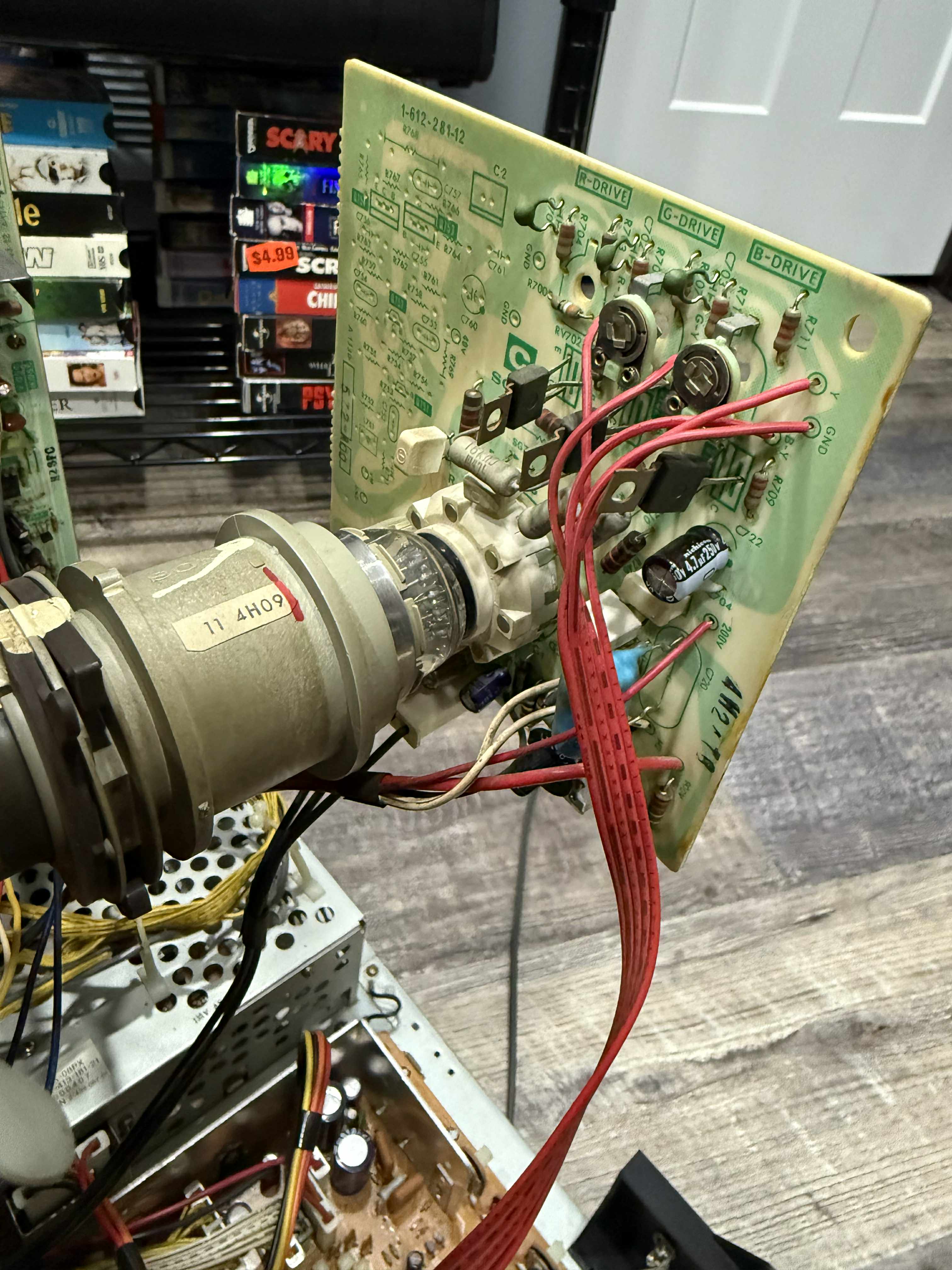

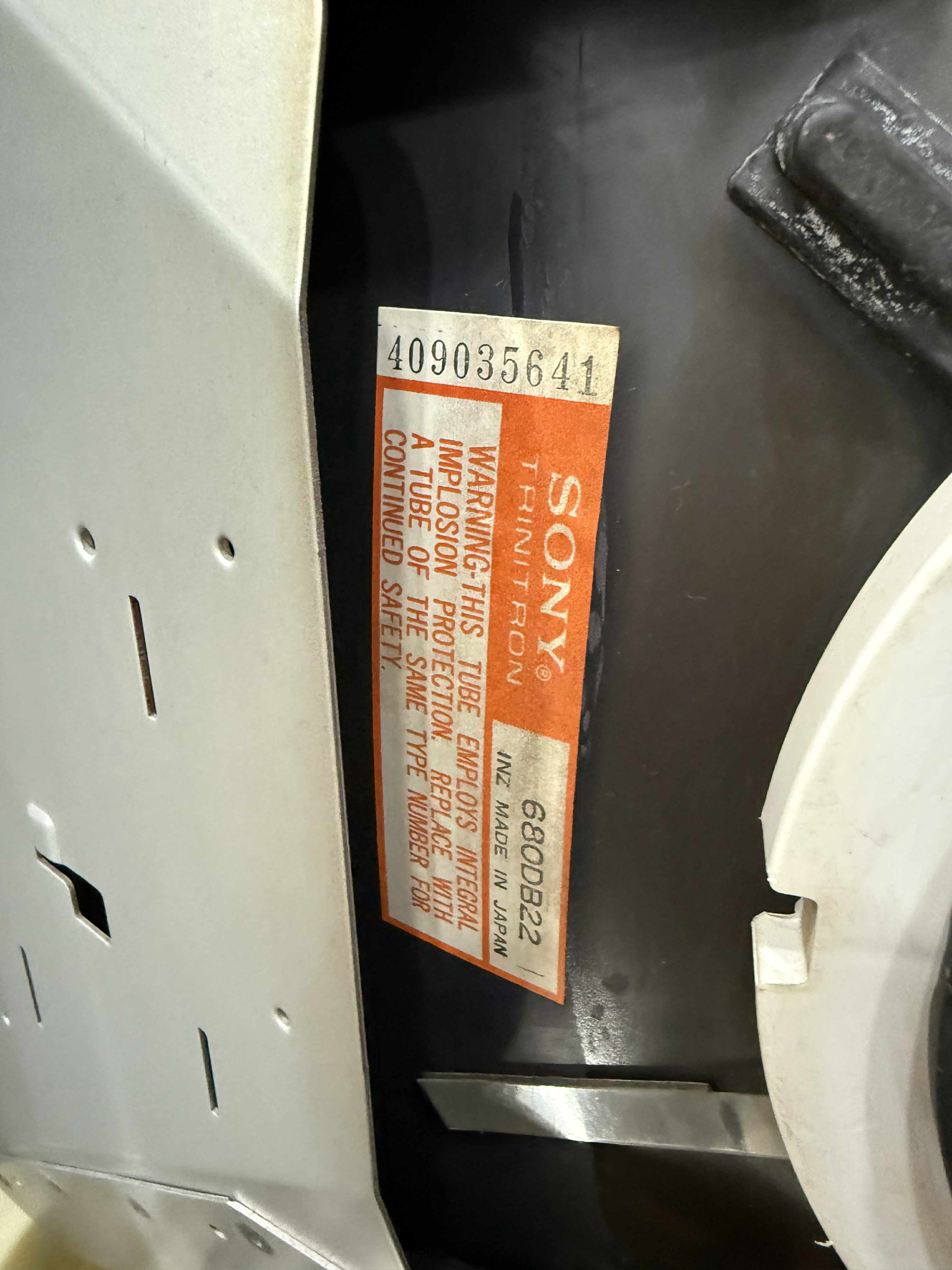

| Tube: | Sony Trinitron , 680DB22A |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Tint: | Light, Detachable Sunshade |
| Removable Glare Film: | No |

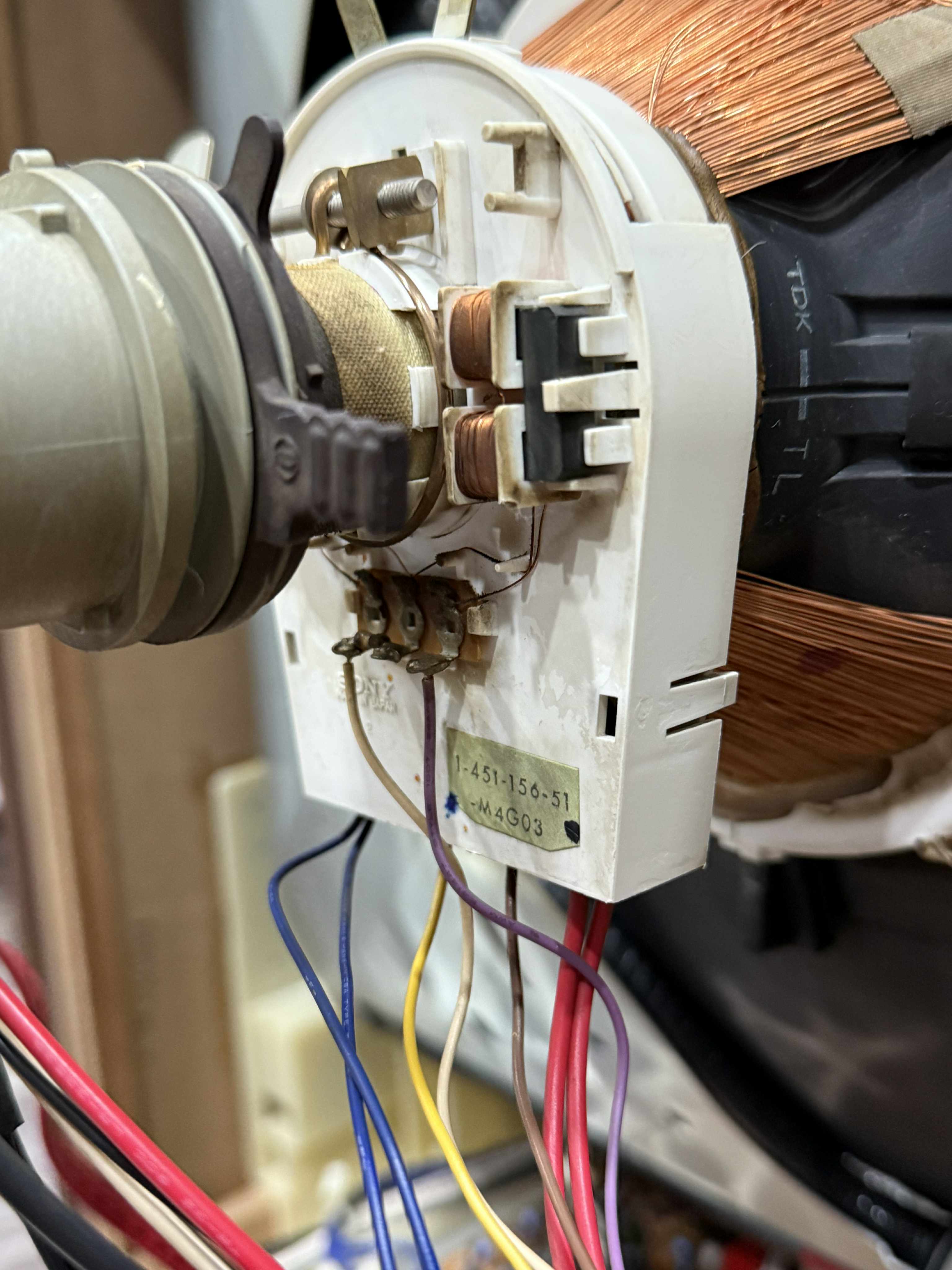

| Yoke: | 1-451-156-51 |

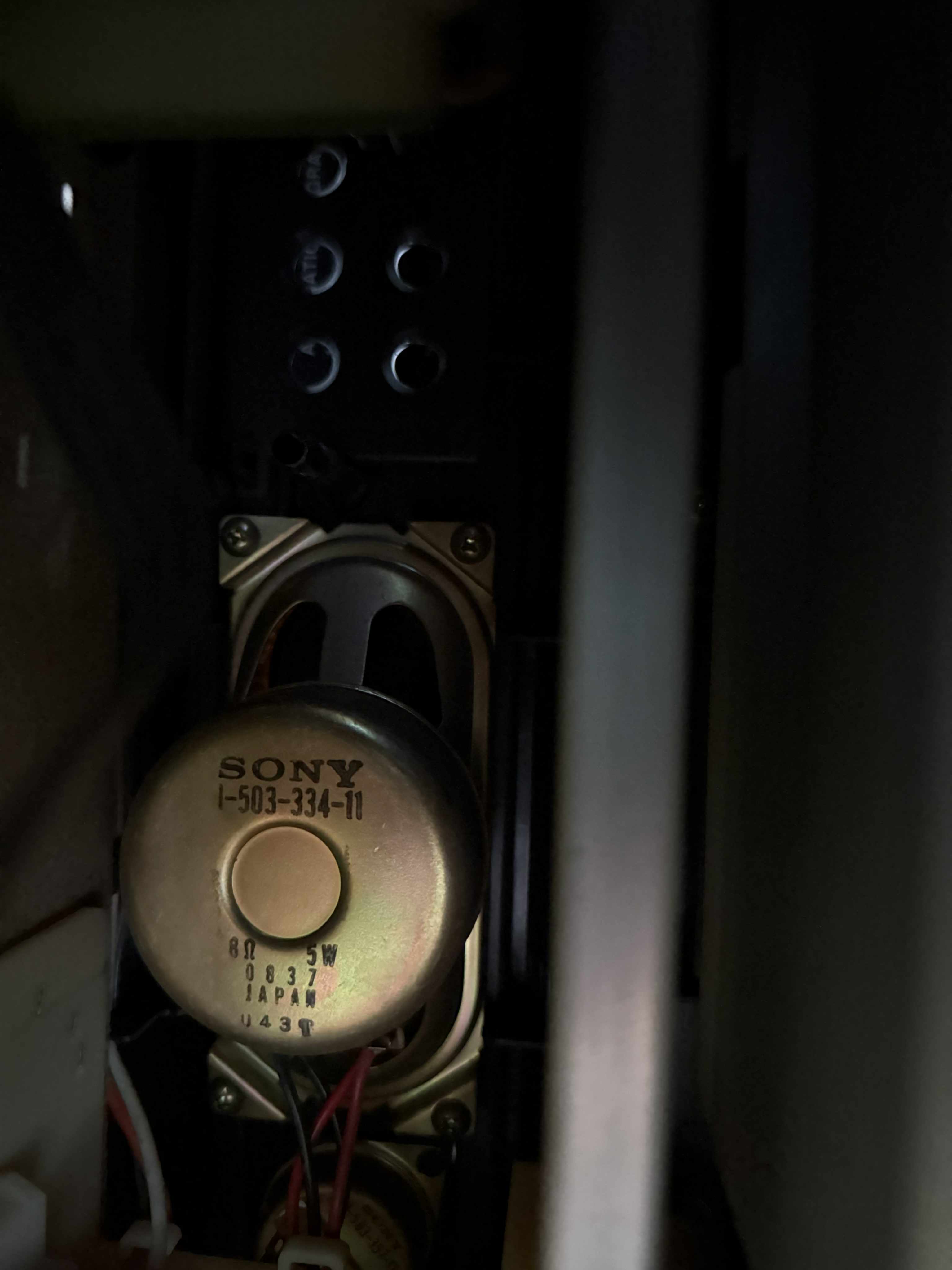

| Speakers: | Mono, 5W |
| Remote: | RM-627 |

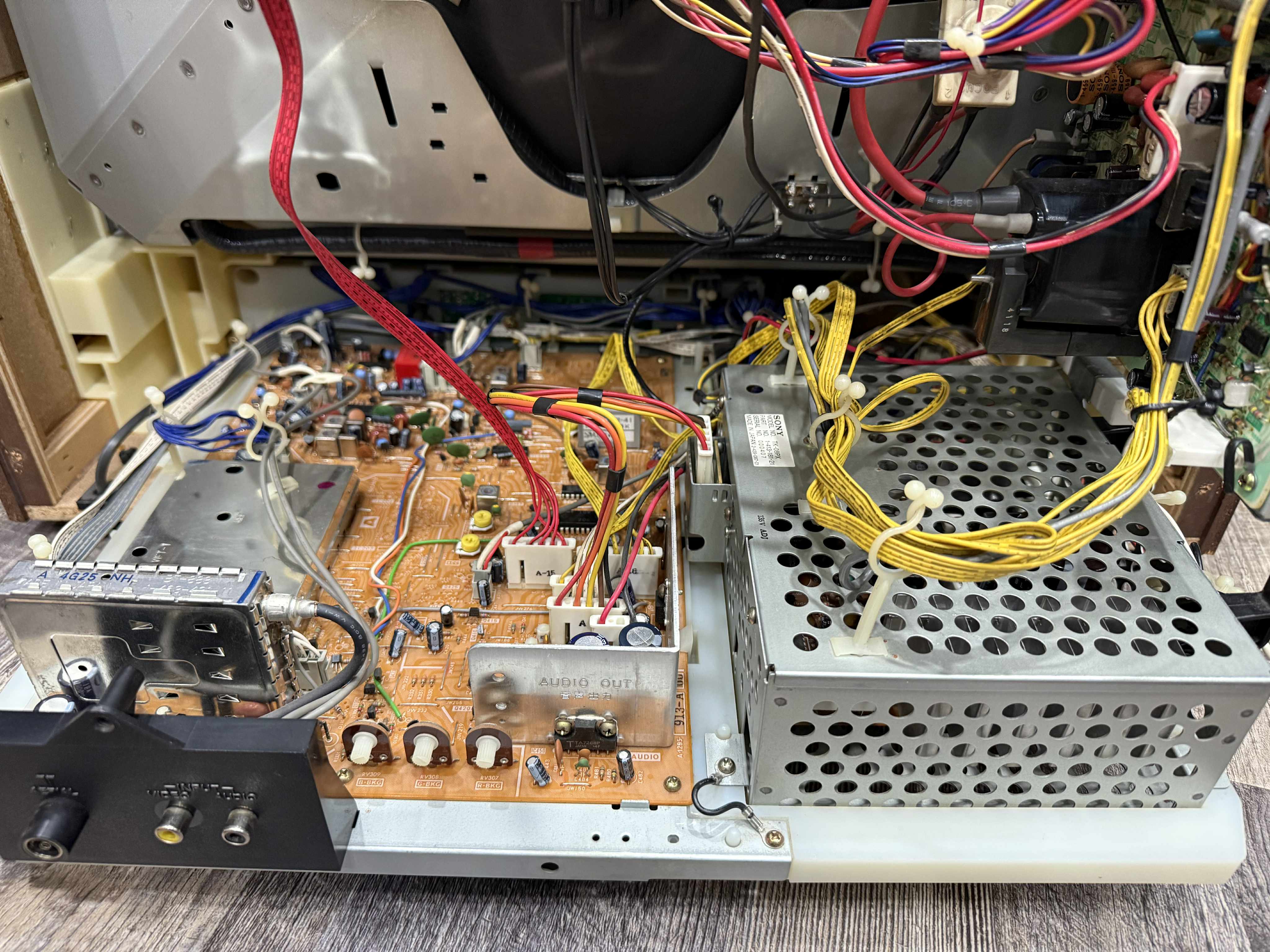

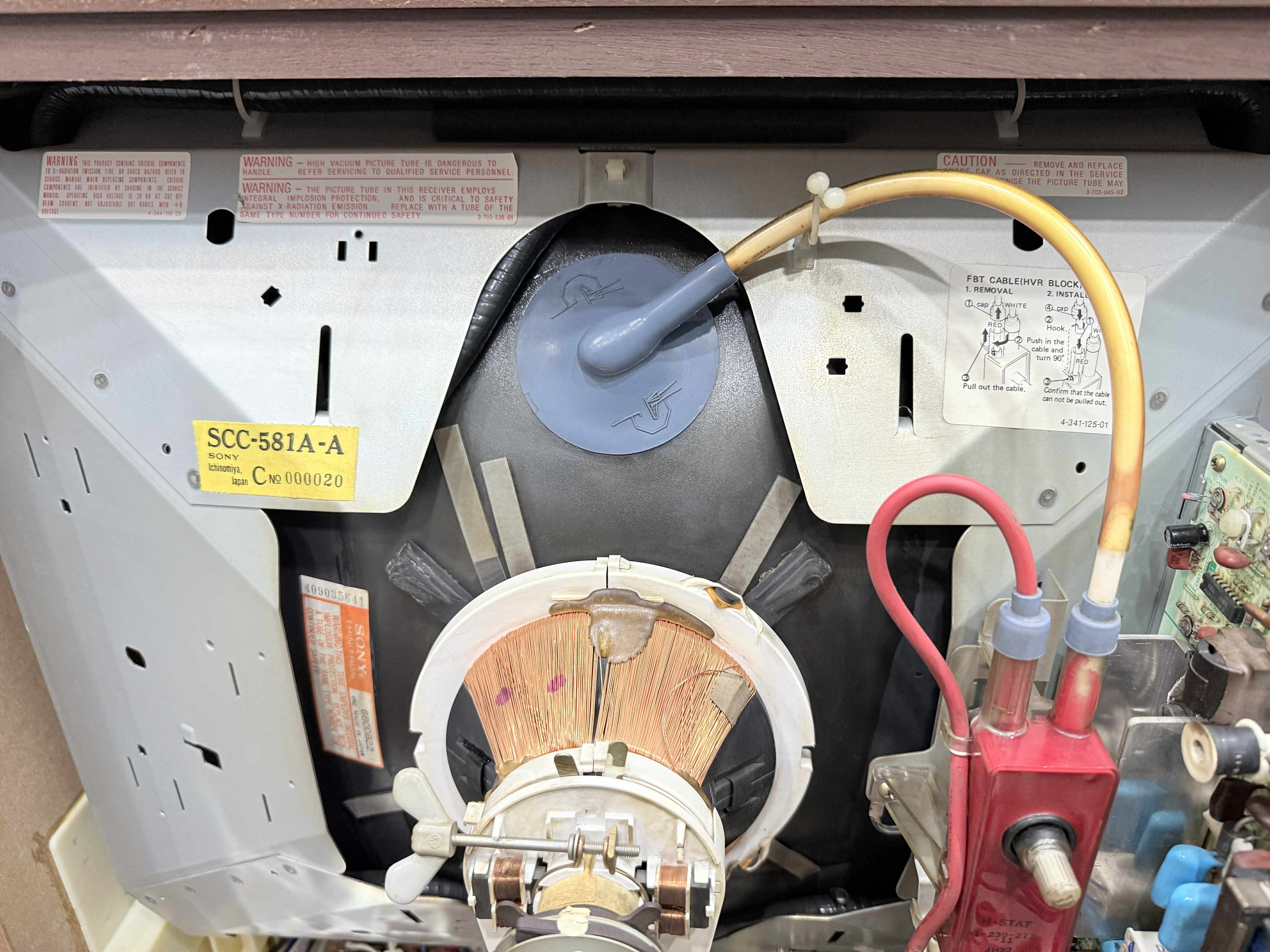

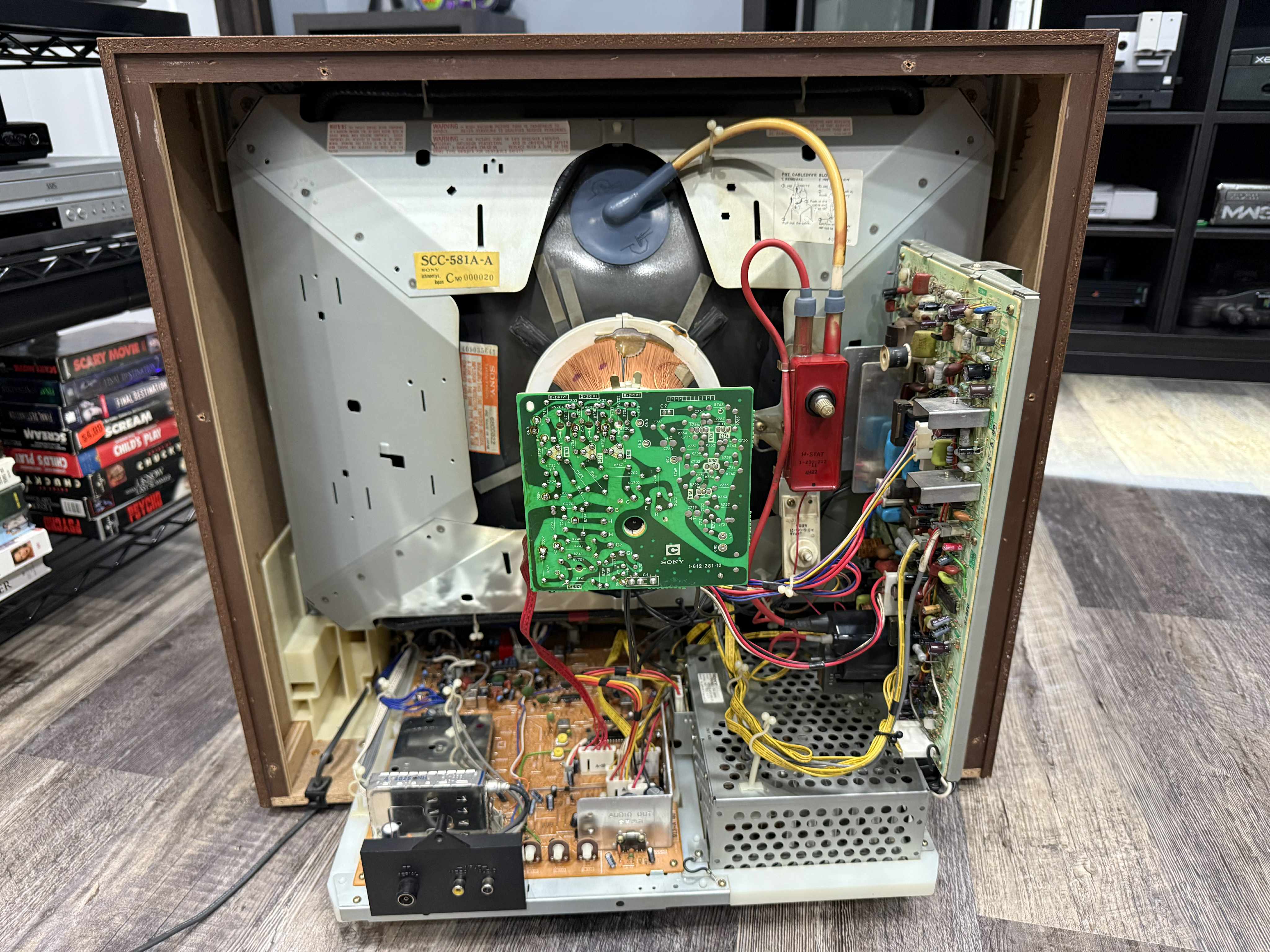

| Chassis: | SCC-581A-A |
| Weight: | 116 lbs (52.6 kg) |
| Dimensions (W/H/D): |
659 x 628 x 493 mm
(25.9 x 24.7 x 19.4") |
| Application: | Consumer |

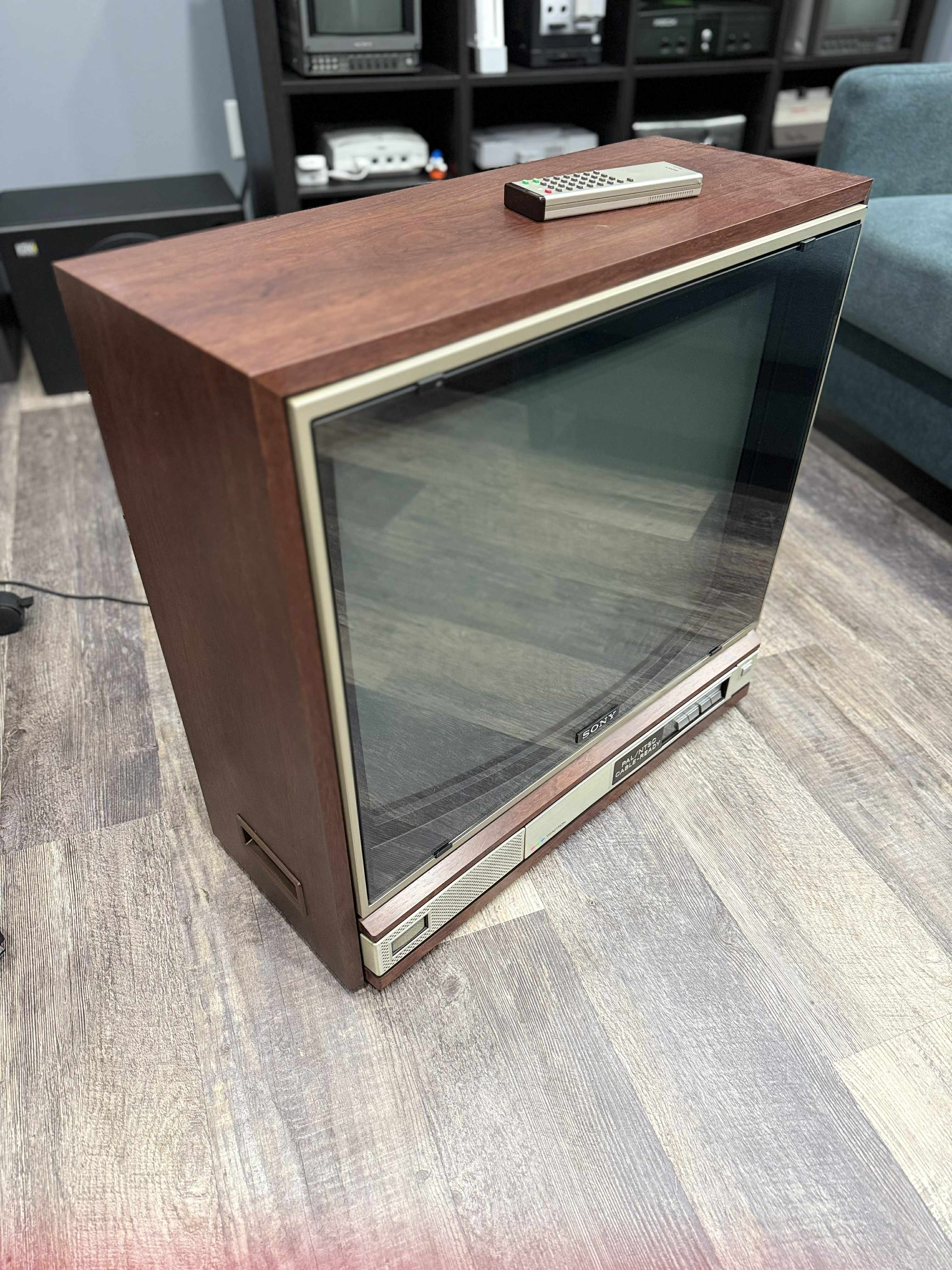

| Cabinet Material: | Wood |
| Launched: | 1985 |
| MSRP: | 945 USD |
| Country of Manufacture: | Japan |
| Market: | Worldwide |
| Power Standard: | Universal |

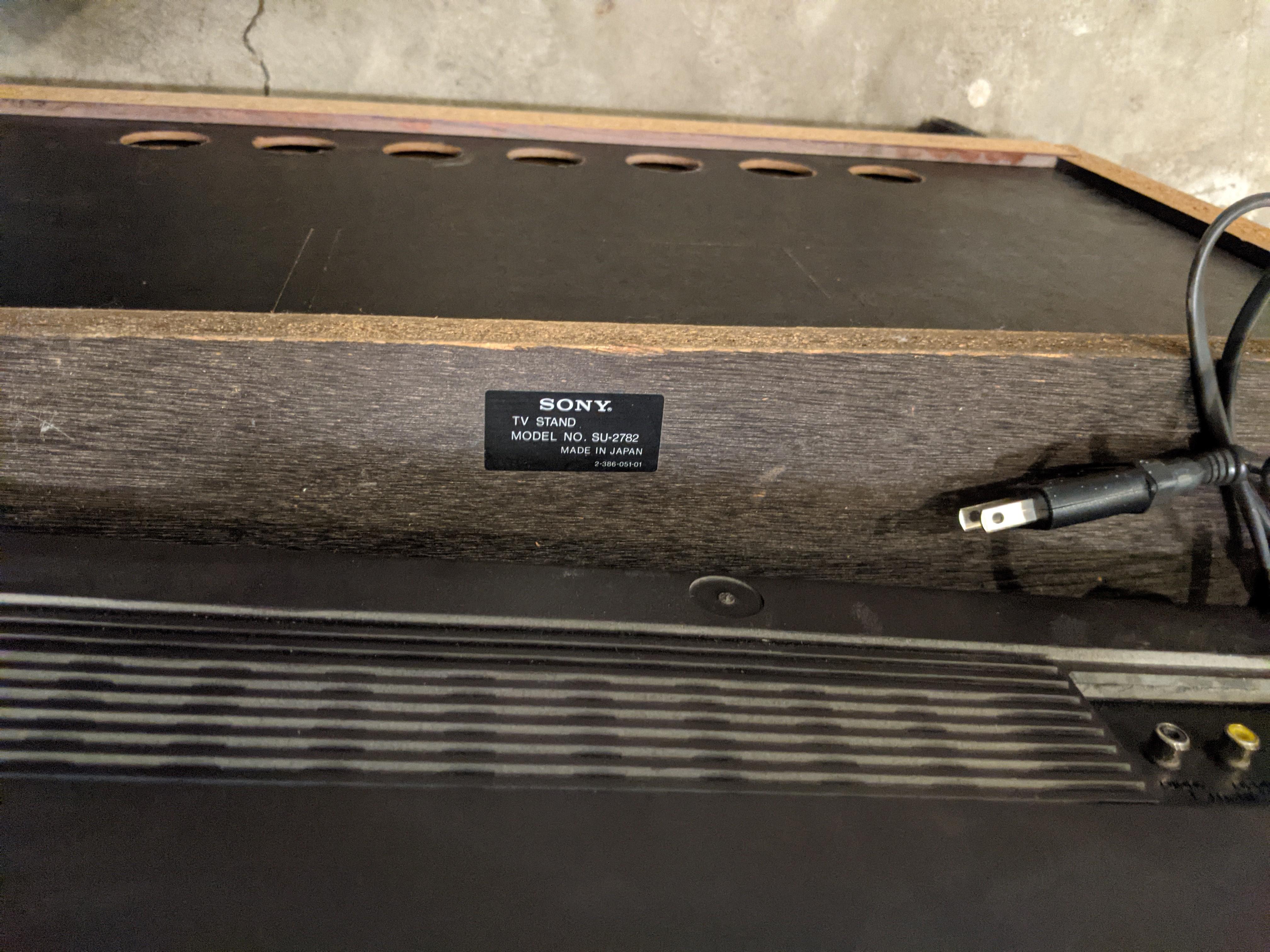

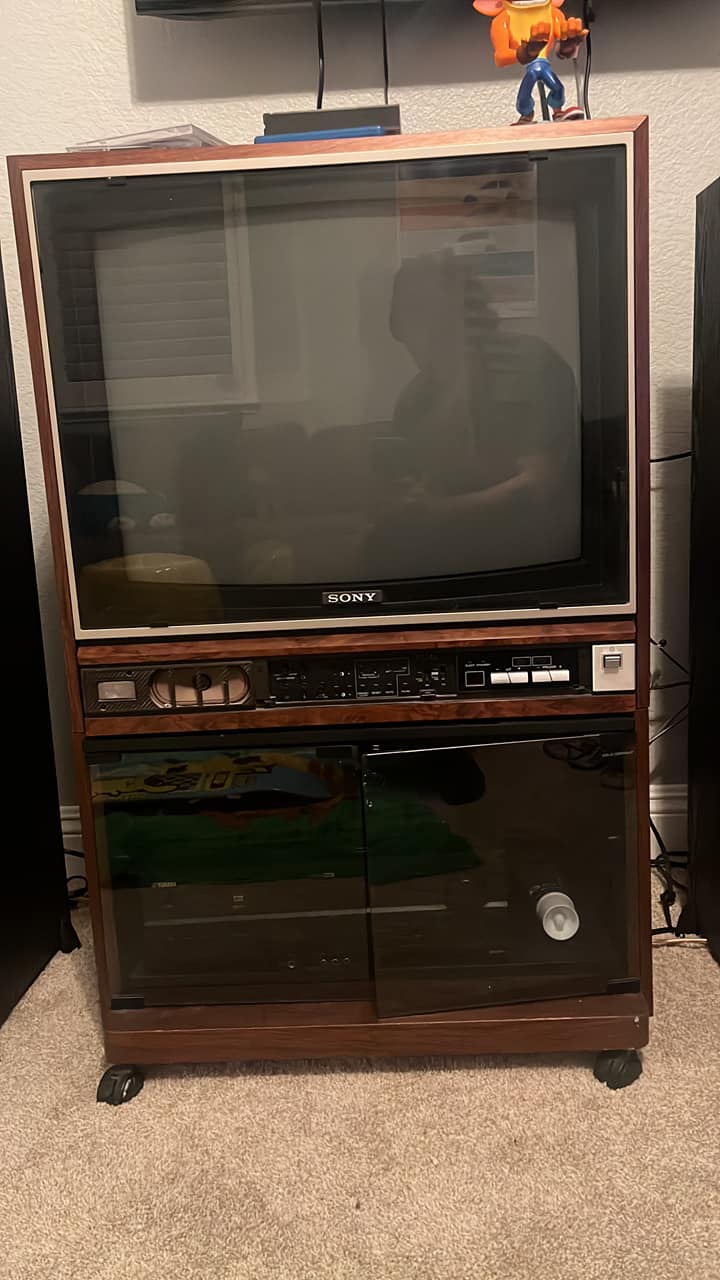

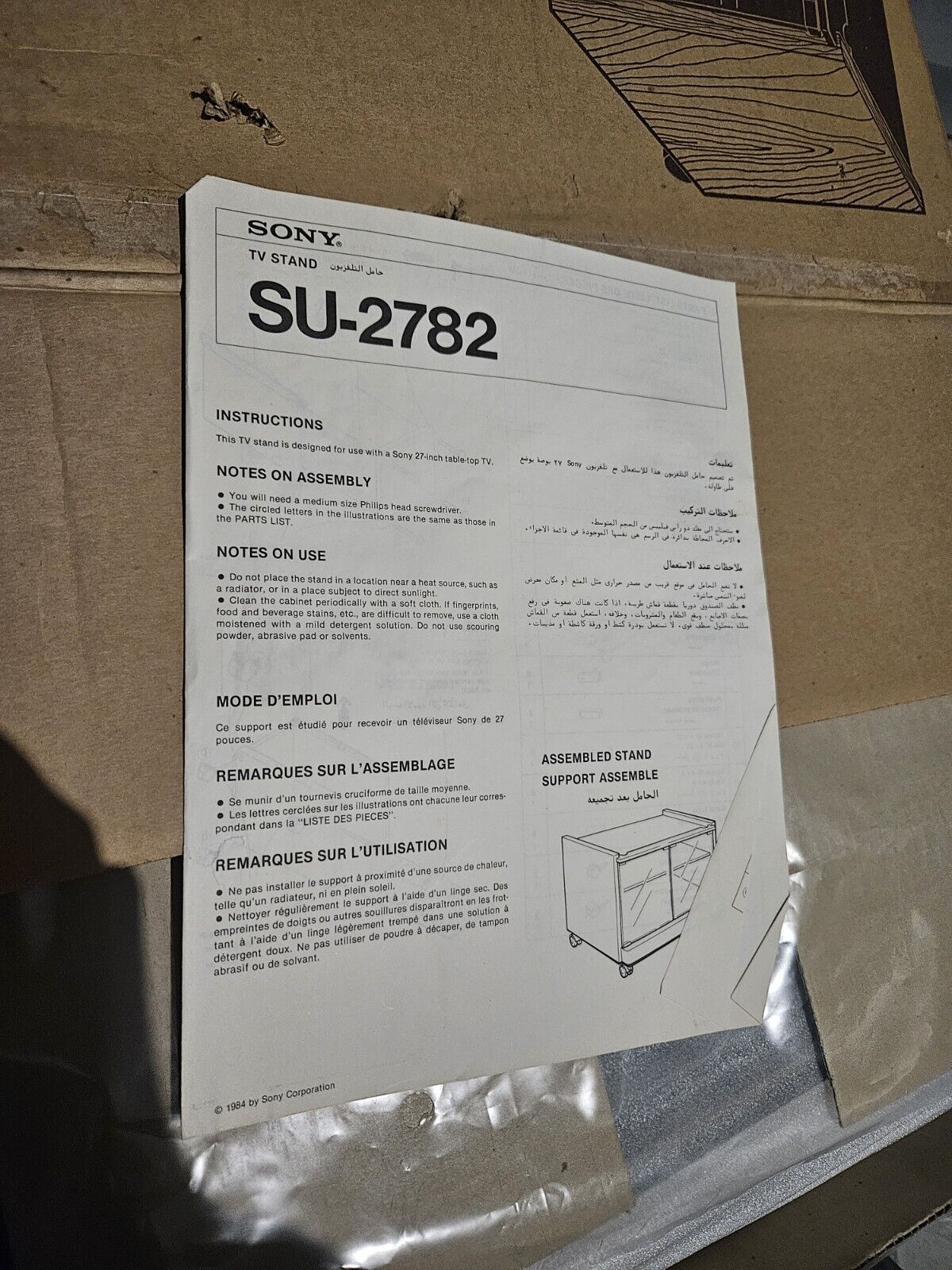

| Mounting: | Table Surface (Standard), OEM Stand, SU-2782 |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual |
