Sony KV-27HFR

SegaSaturn94
October 2, 2024, 12:50 pm
January 21, 2026, 11:26 pm

Summary

27" higher-end Trinitron introduced in 1987. Maxes out at composite, but makes up for it with great speakers. Made in the USA.

Manuals

Notes

It is possible to mod this TV for S-video.

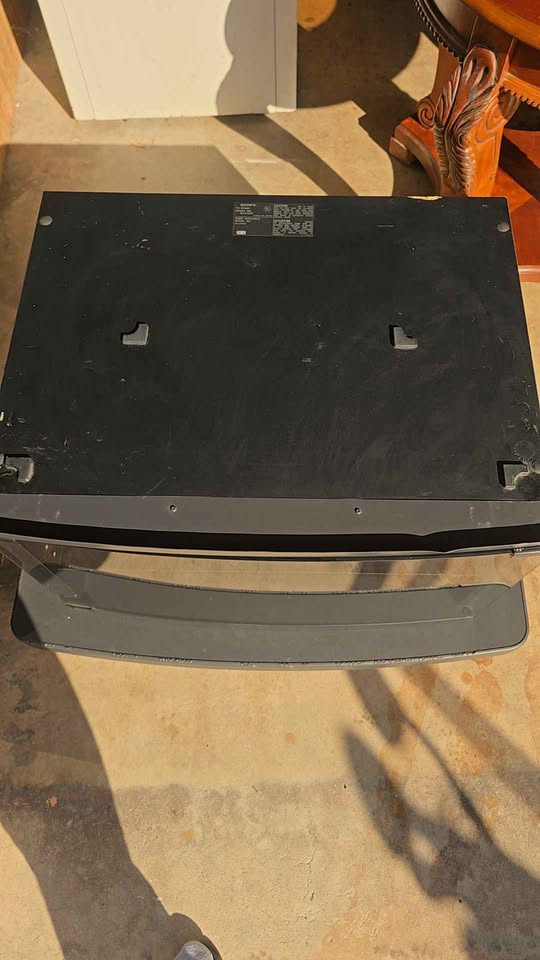

Gallery

Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR Sony KV-27HFR
Specifications
Brand: Sony
Manufacturer: Sony

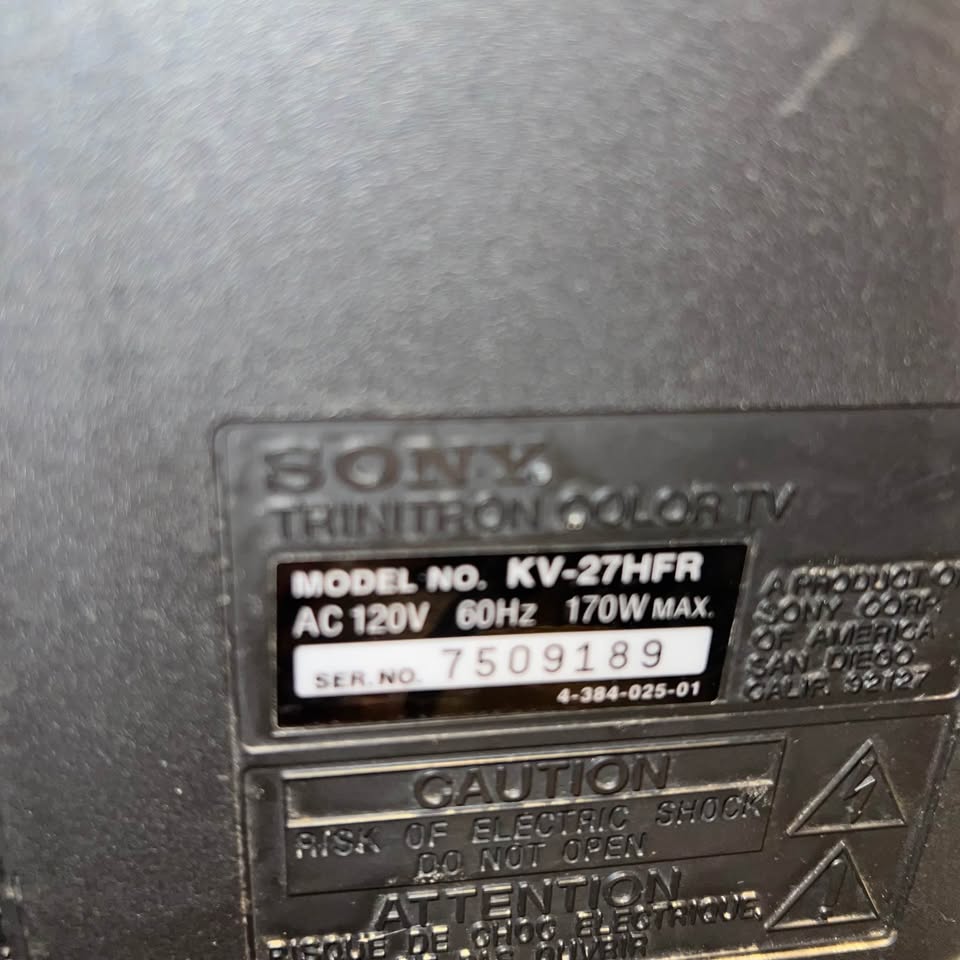

Model: KV-27HFR
Series: KV
Viewable Size: 27"
Inputs: Composite, RF
Native Resolutions: 240p, 480i
Horizontal Scan Range: 15 kHz
Vertical Scan Range: 60 Hz
Formats: NTSC
Aspect: 4:3

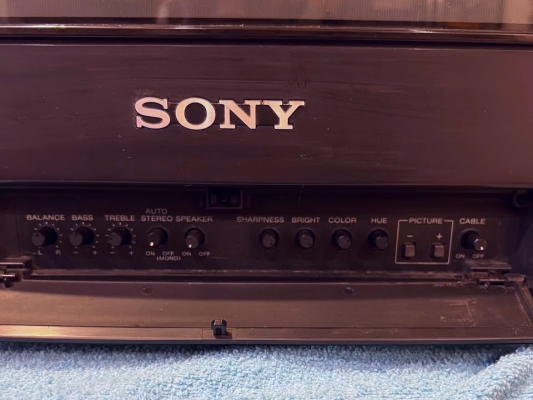

Adjustments: OSD Customer Controls, OSD Service Menu

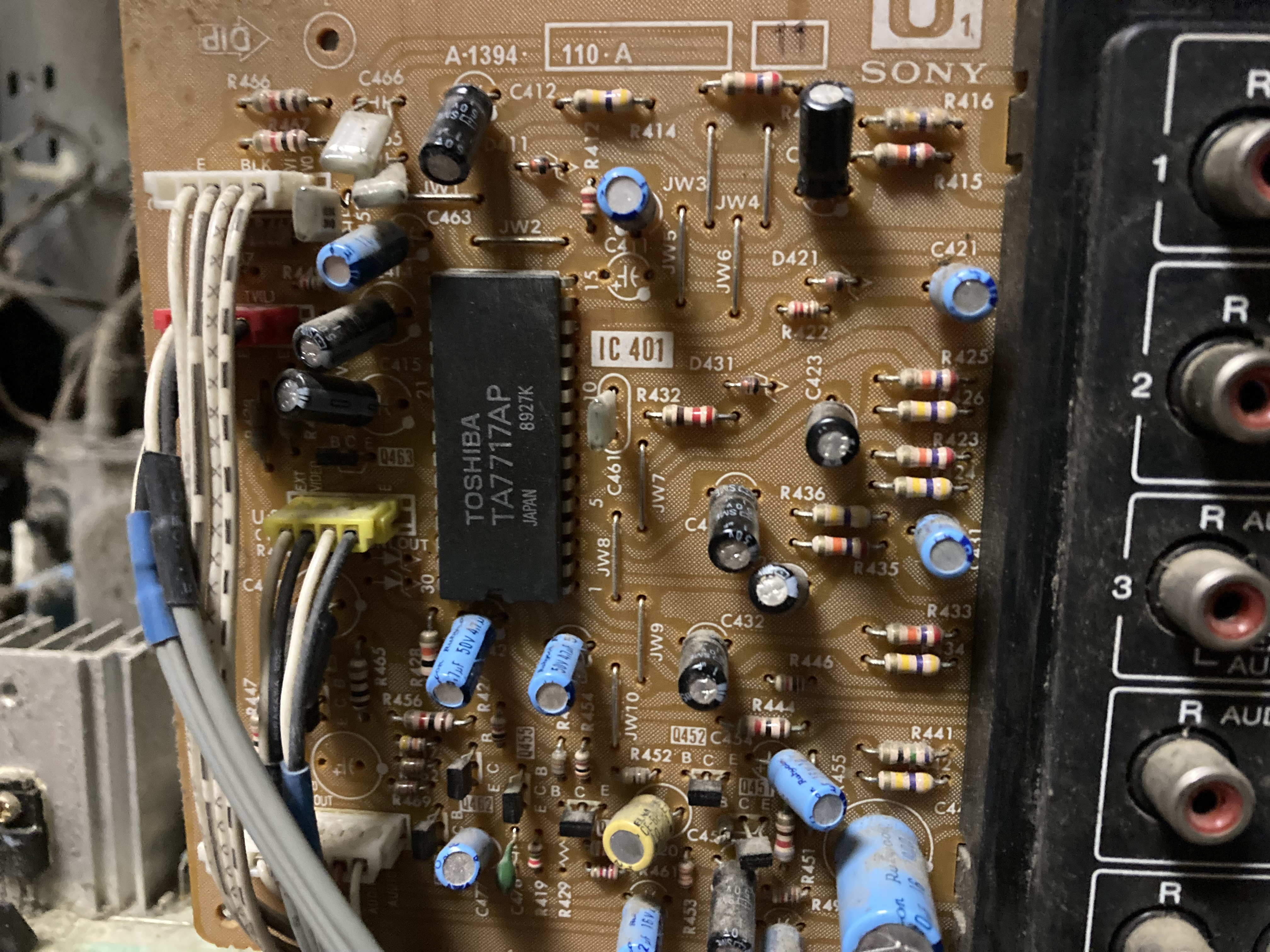

Jungle IC: Toshiba, TA7717AP, TA7717

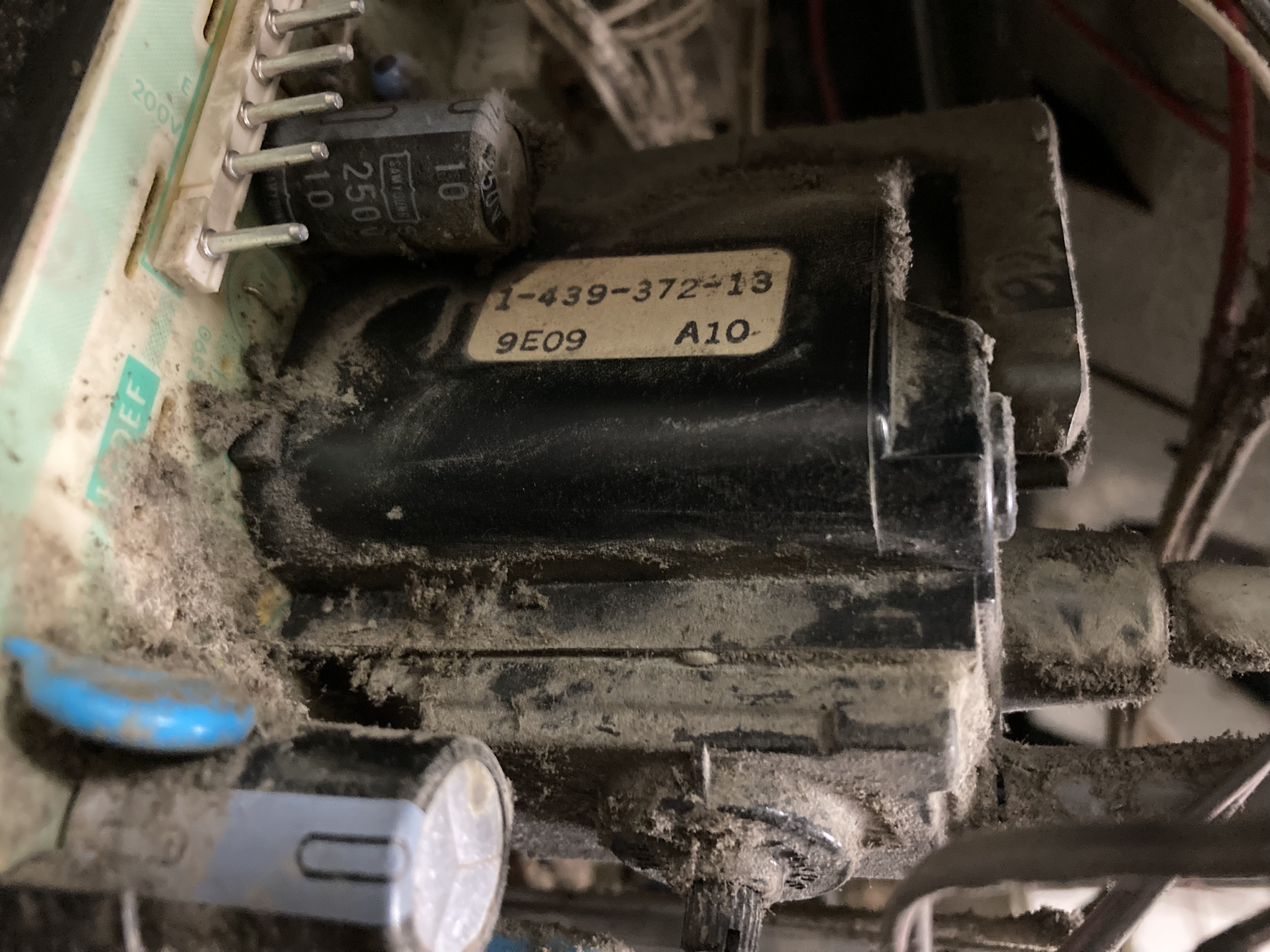

Flyback: 1-439-372-13
Focus Type: Single

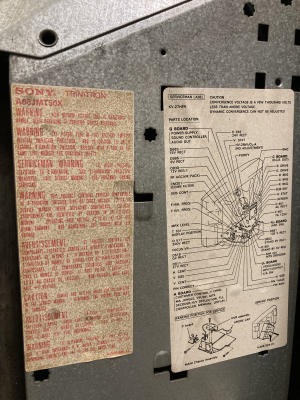

Tube: Sony Trinitron , A68JMT50X
Heater Voltage: 6.3v
Deflection: 110°
Mask: Aperture Grille
Tint: Dark
Removable Glare Film: No
Yoke: 1-451-275-11, SY-158

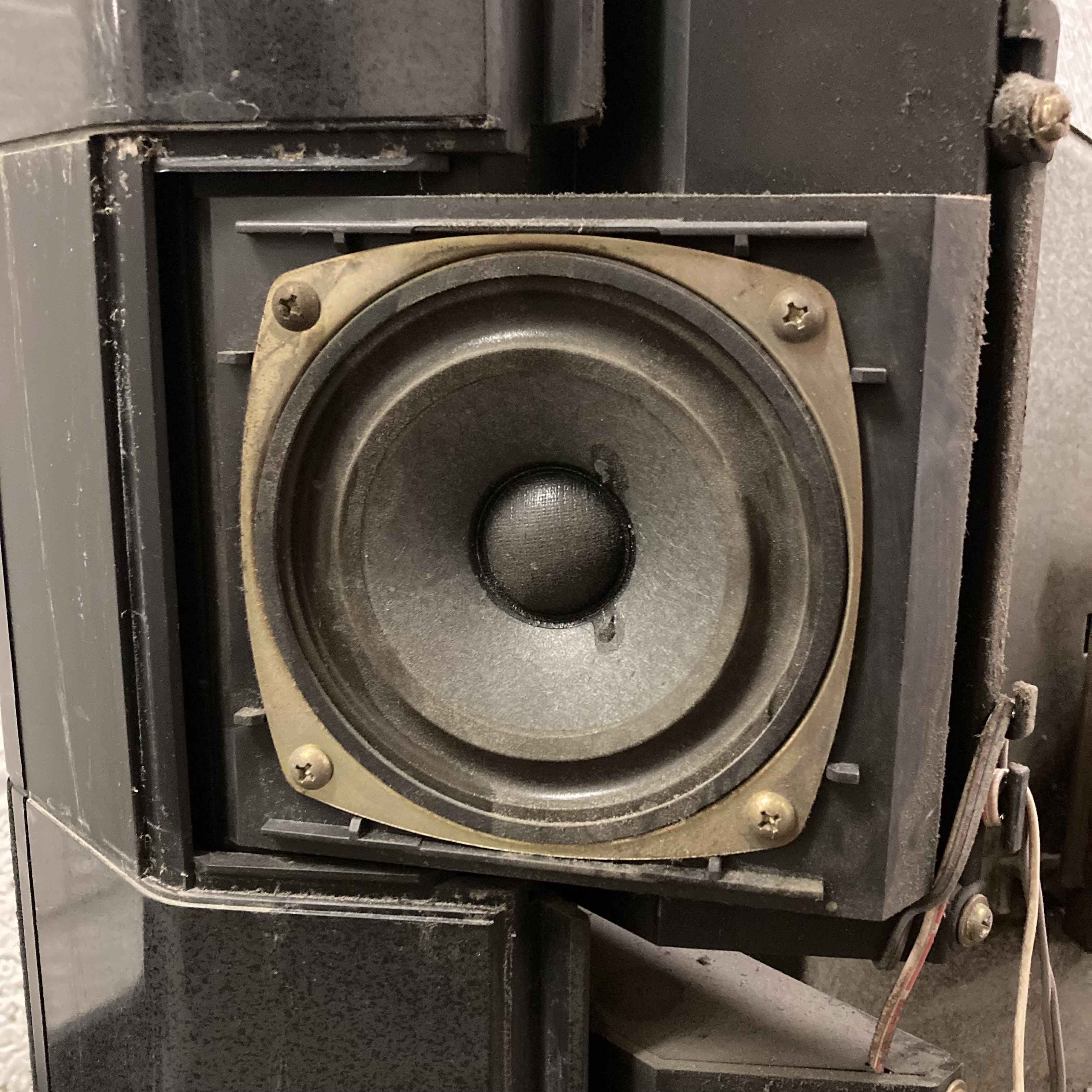

Speakers: Stereo
Remote: RM-745
Chassis: P3A
Application: Consumer
Cabinet Material: Plastic
Launched: 1987
Country of Manufacture: Japan
Market: North America
Power Standard: 120v
Mounting: Table Surface (Standard)
Mods: RGB via Mux, S-Video
Degaussing: Automatic on Power-on
Tag: Needs Service Manual
