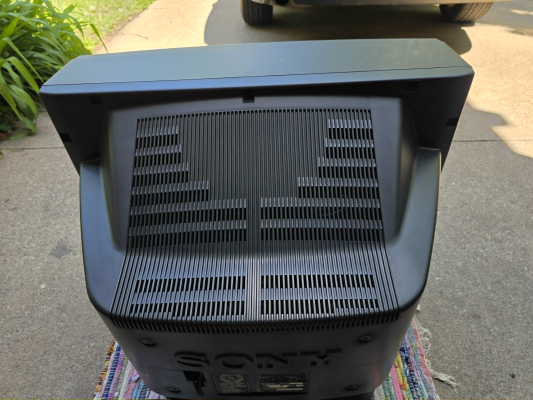

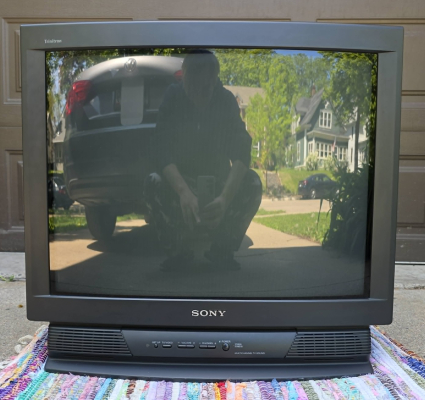

Sony KV-27S10
Mike Morisette
August 30, 2024, 9:53 pm
October 3, 2024, 1:54 am
August 30, 2024, 9:53 pm
October 3, 2024, 1:54 am

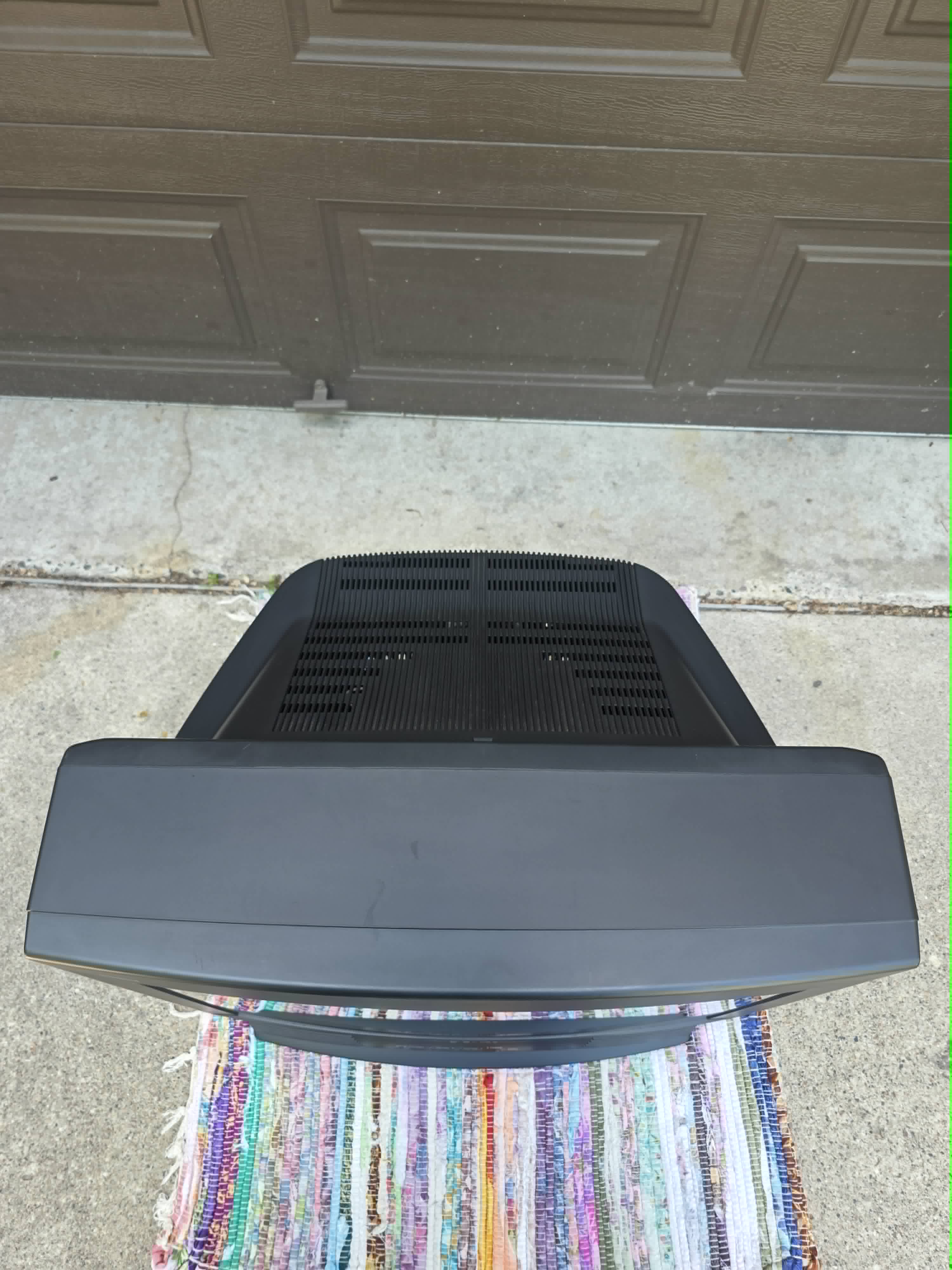

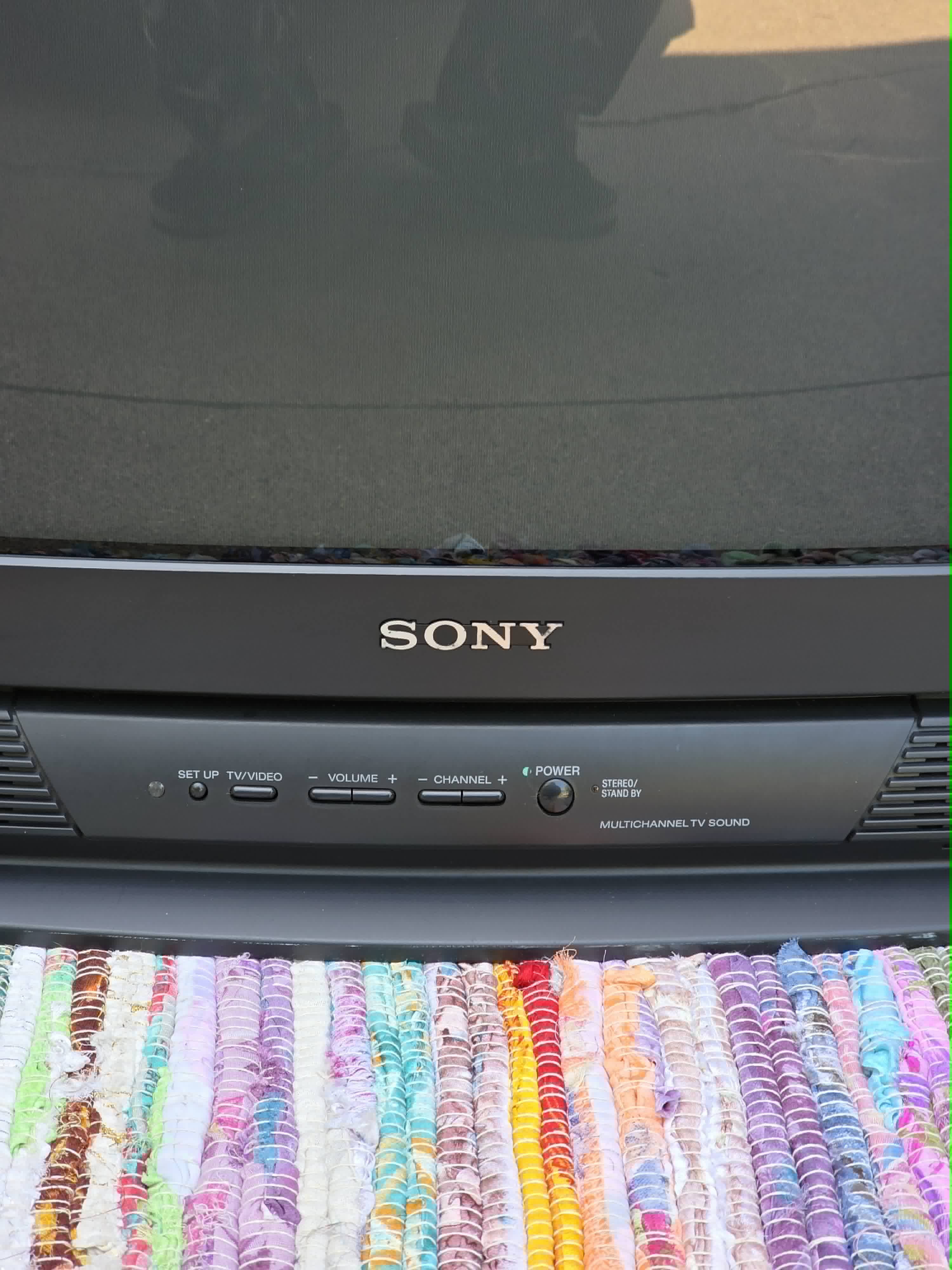

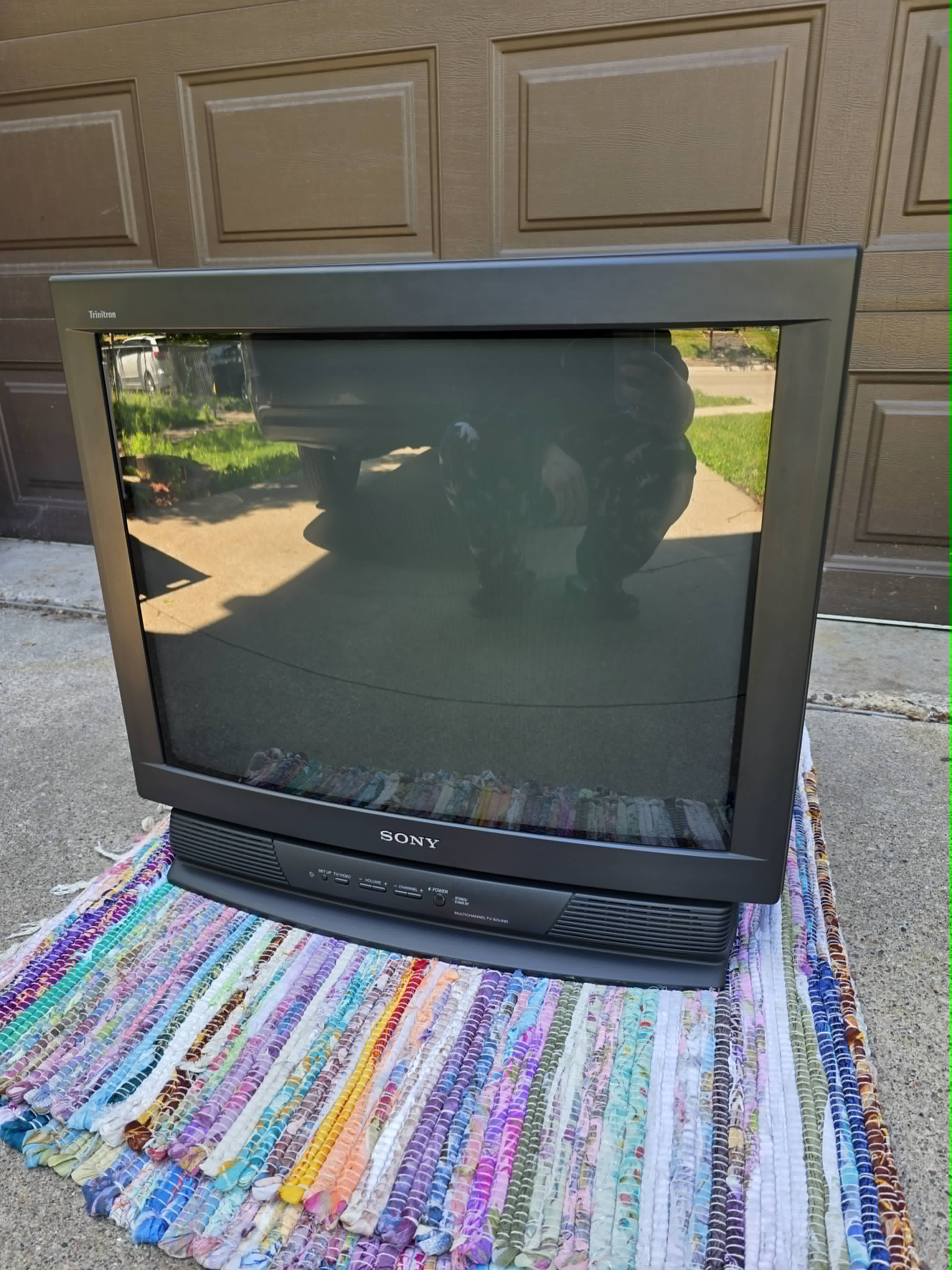

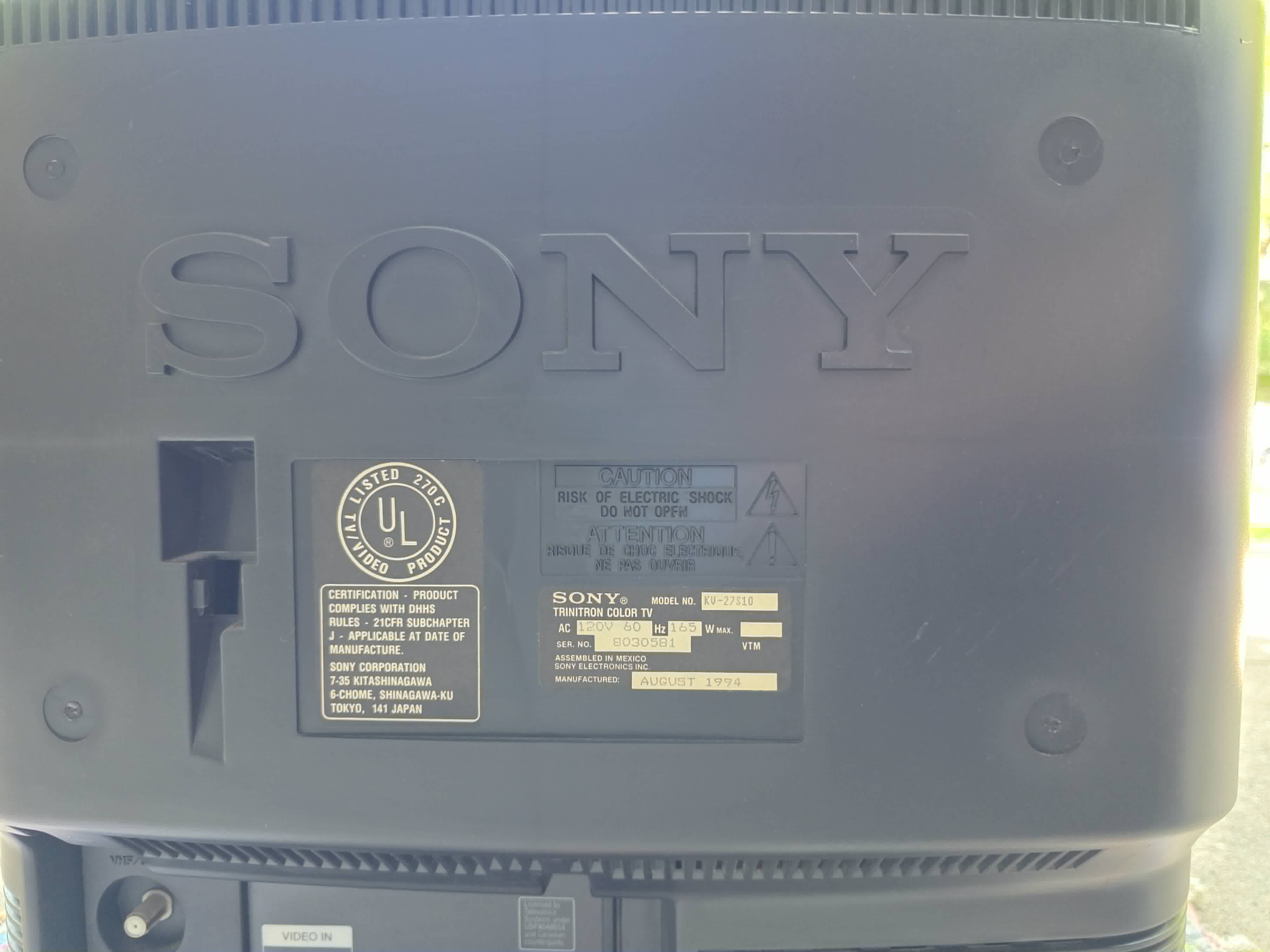

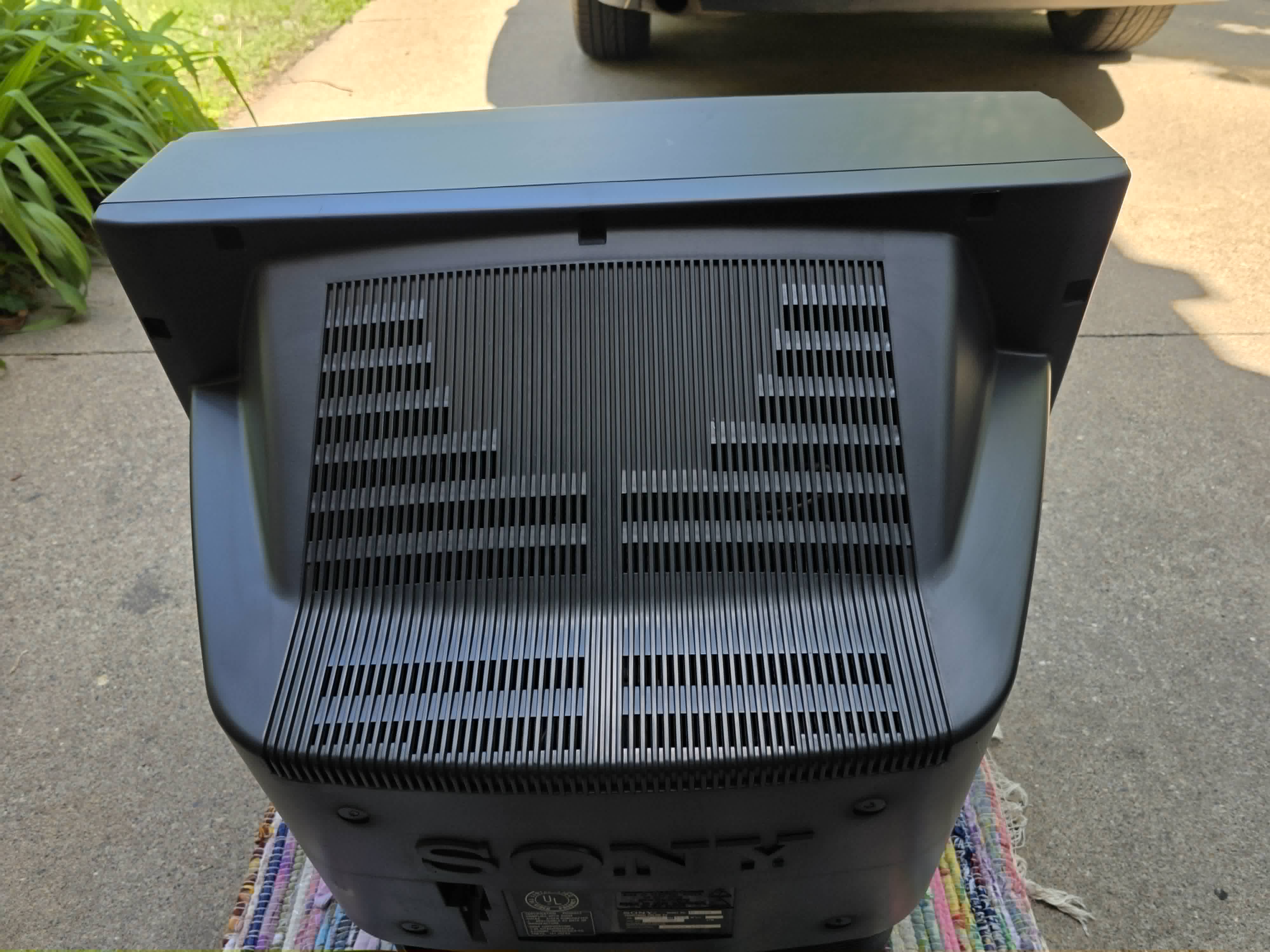

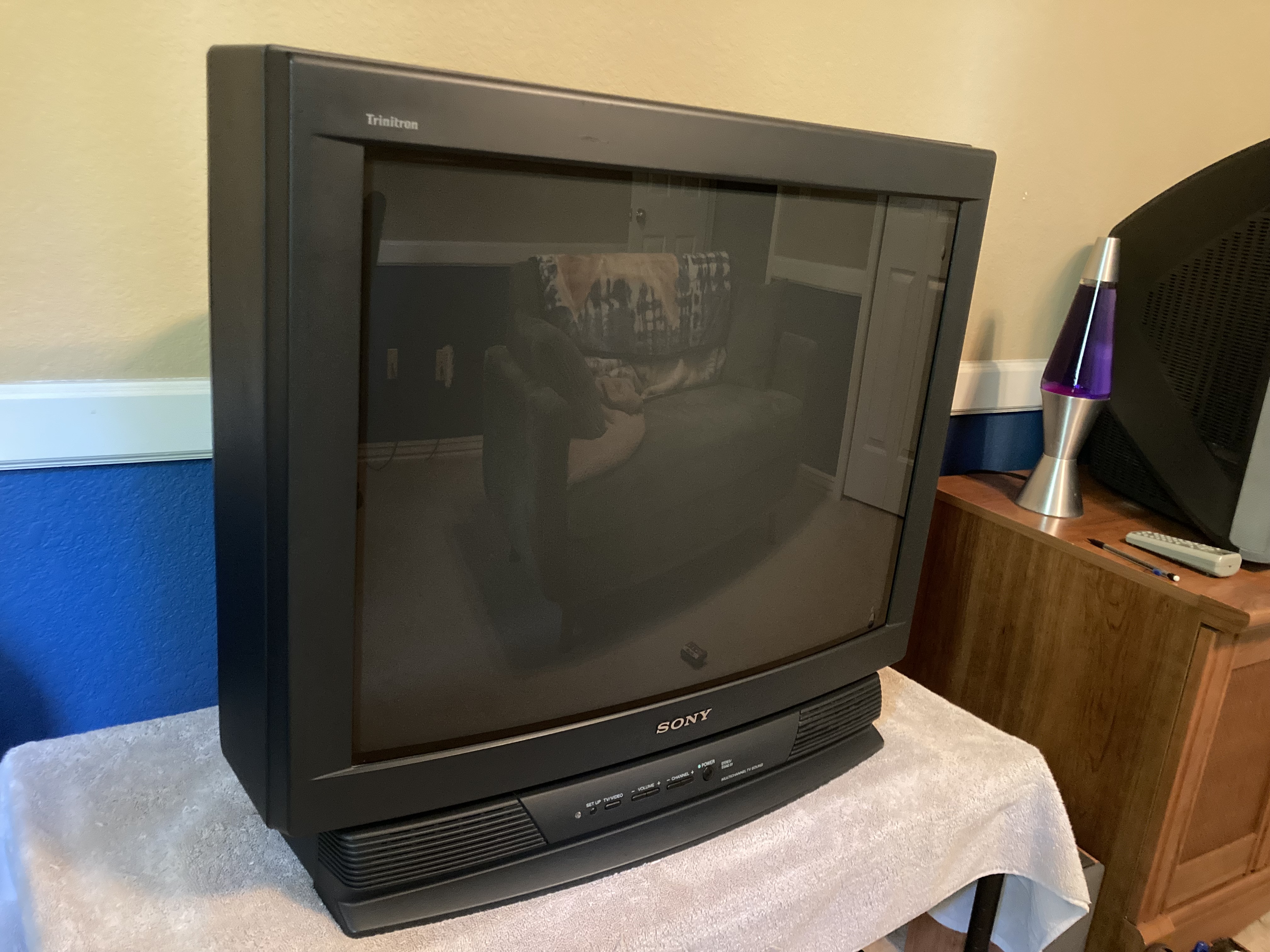

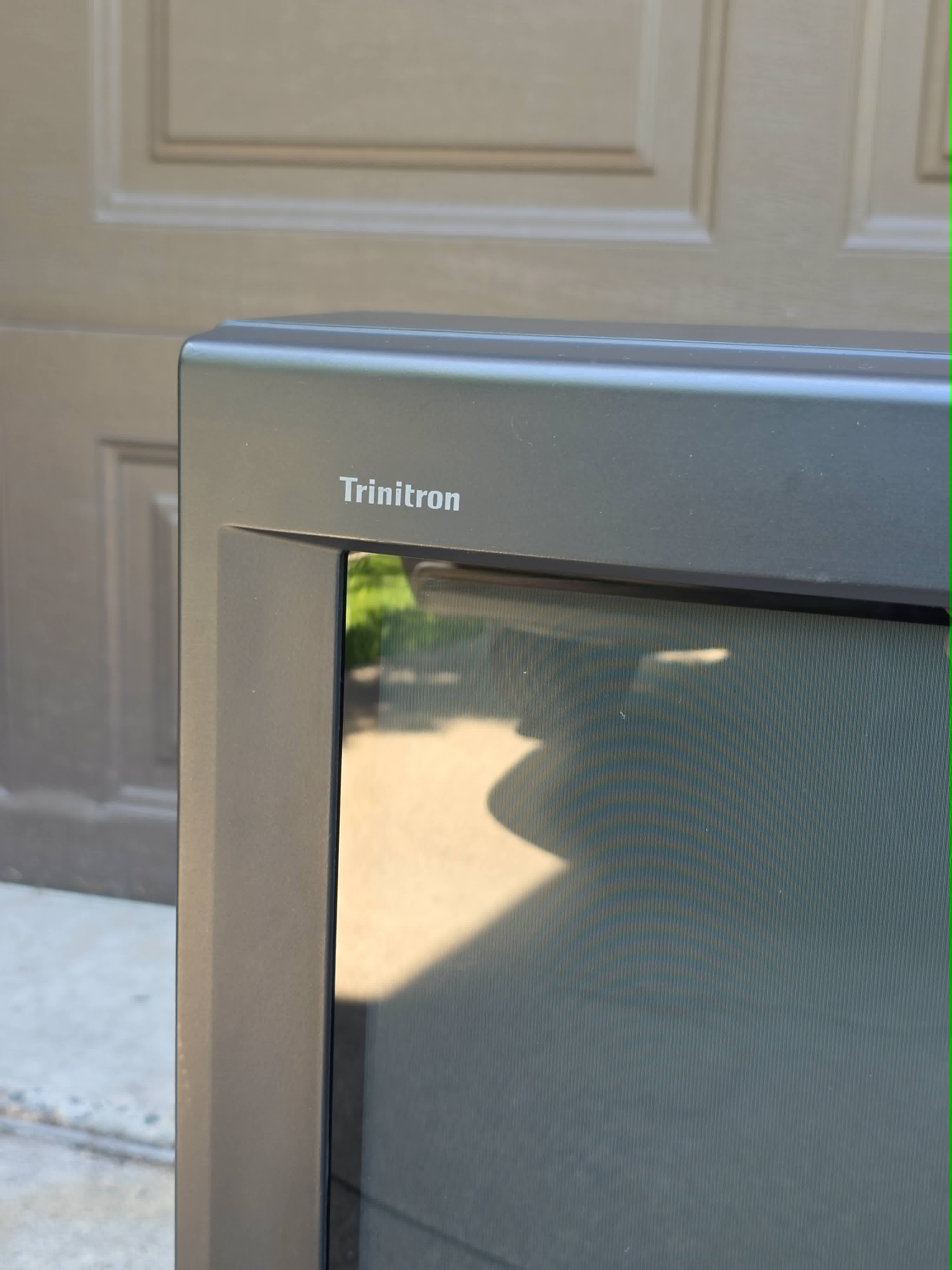

Gallery






Specifications | |
---|---|
Brand: | Sony |
Manufacturer: | Sony |
Model: | KV-27S10 |
Series: | KV |
Viewable Size: | 27" |

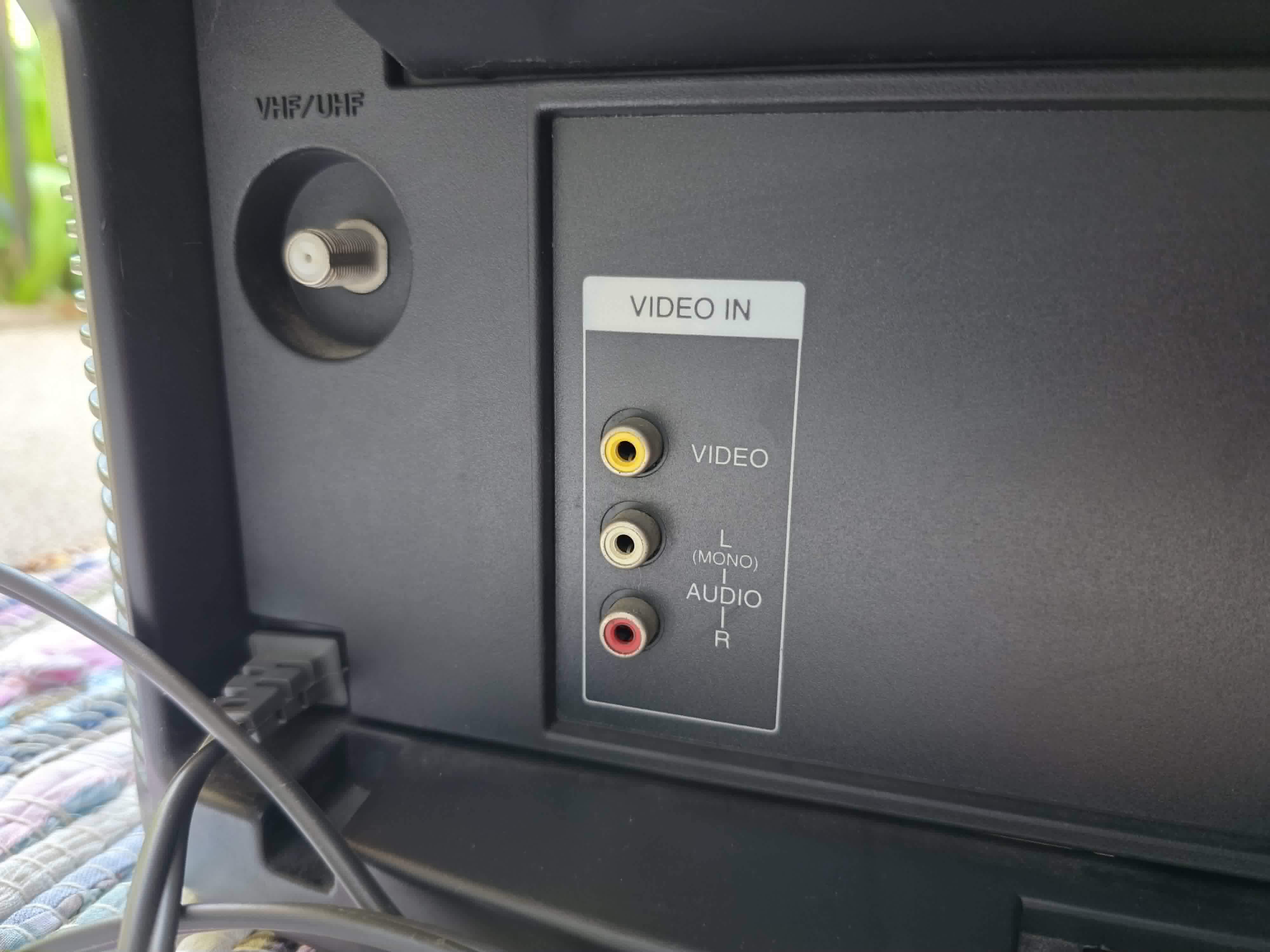

Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle: | CXA1465AS |
Flyback: | 1-439-498-71 |
Tube: | Sony Trinitron , A68KZJ50X |
Heater Voltage: | 6.3v |
Mask: |
Aperture Grille
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Yoke Horz. Inductance: | 0.8405 mH (@ 10 kHz) |
Yoke Vert. Inductance: | 20.26 mH (@ 100 Hz) |
Yoke Horz. Resistance: | 0.97 ohm |
Yoke Vert. Resistance: | 8.89 ohm |
Speakers: | Stereo, 5W x 2 |
Remote: | RM-Y116 |
Chassis: | AA-1 |
Weight: | 94 lbs (42.6 kg) |
Application: | Consumer |
Launched: | 1994 |
Country of Manufacture: | USA |
Mods: | RGB via CC |
Degaussing: | Automatic on Power-on |
