Summary

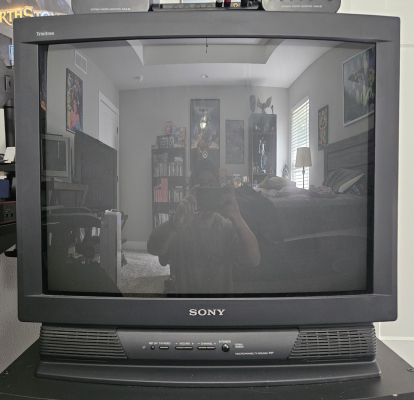

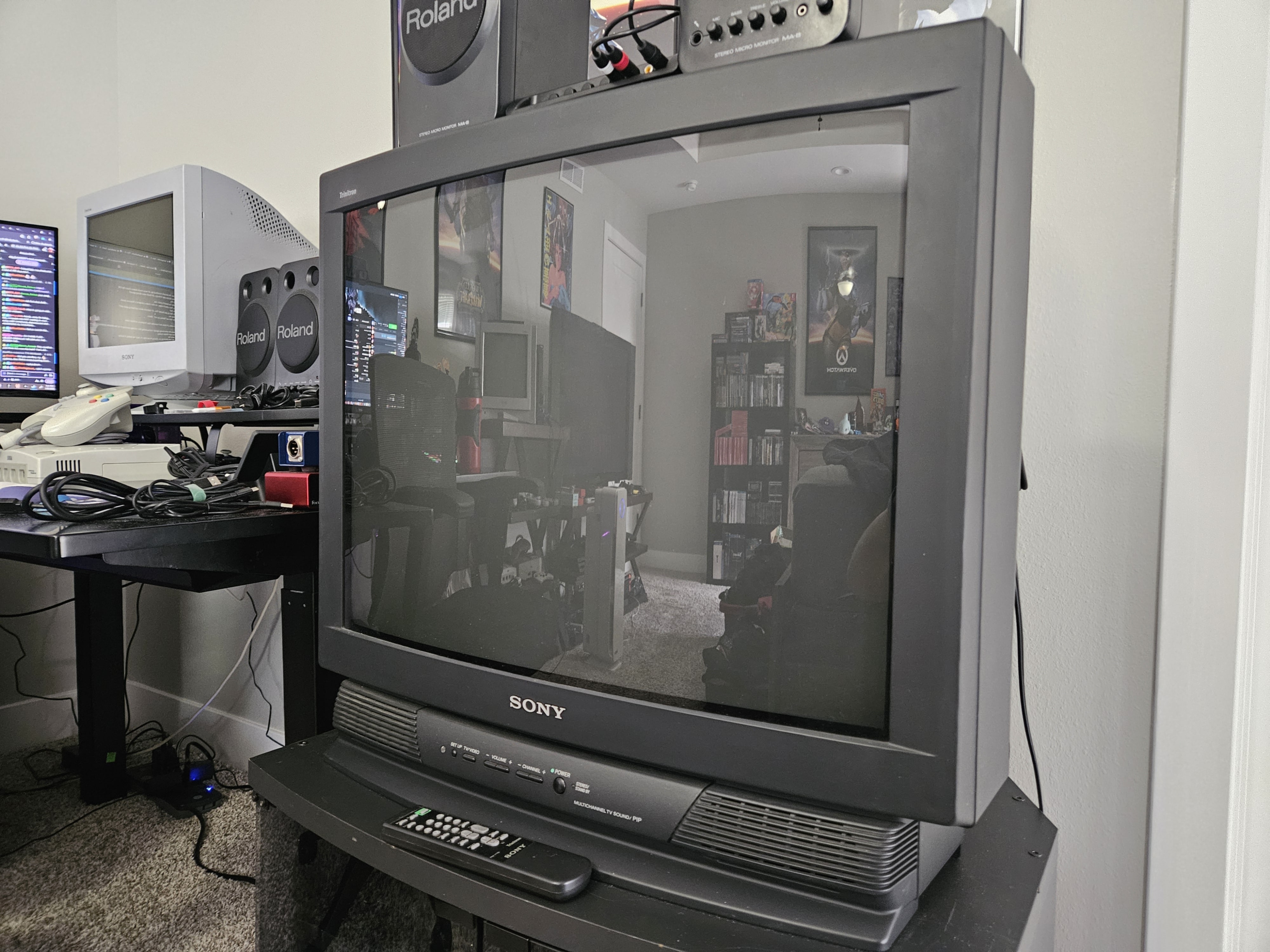

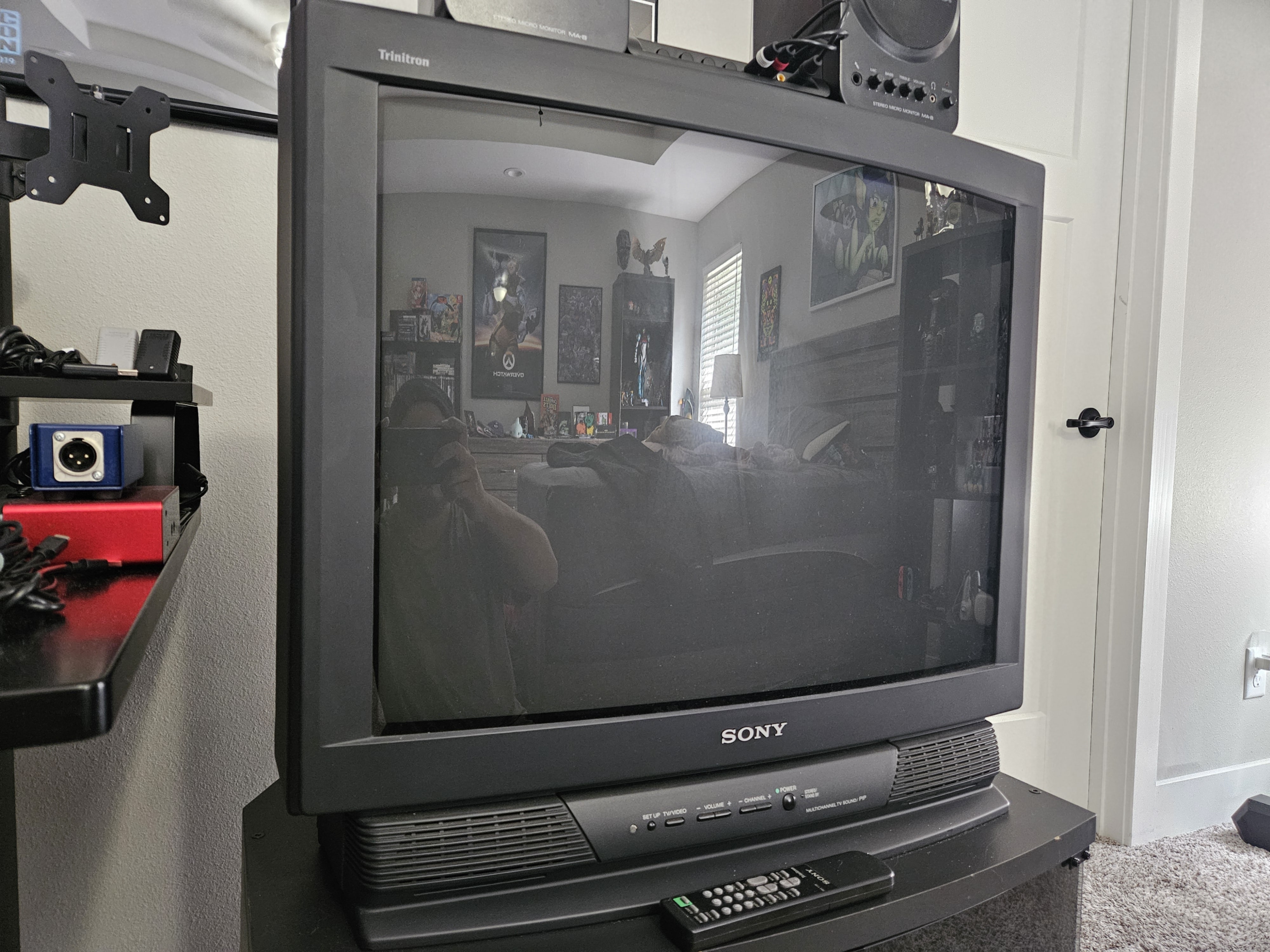

27" CRT by Sony, a midrange model for them. Has RF, composite, and s-video. Made at Sony's San Diego factory in 1994.
(Special thanks to Gabriel Vazquez for the pics!)
Manuals
Owner's and Service Manual Combined
RGB Mods
This set can be modified for RGB via the closed captioning decoder. Link to guide HERE

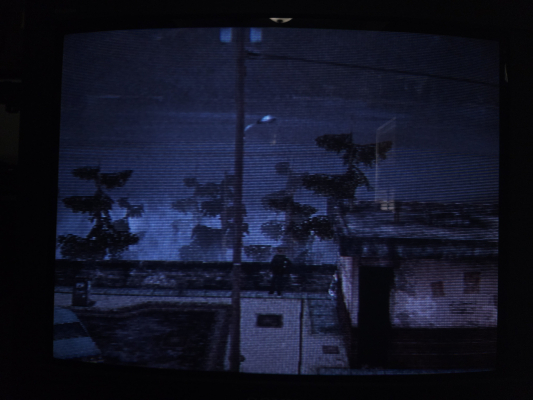

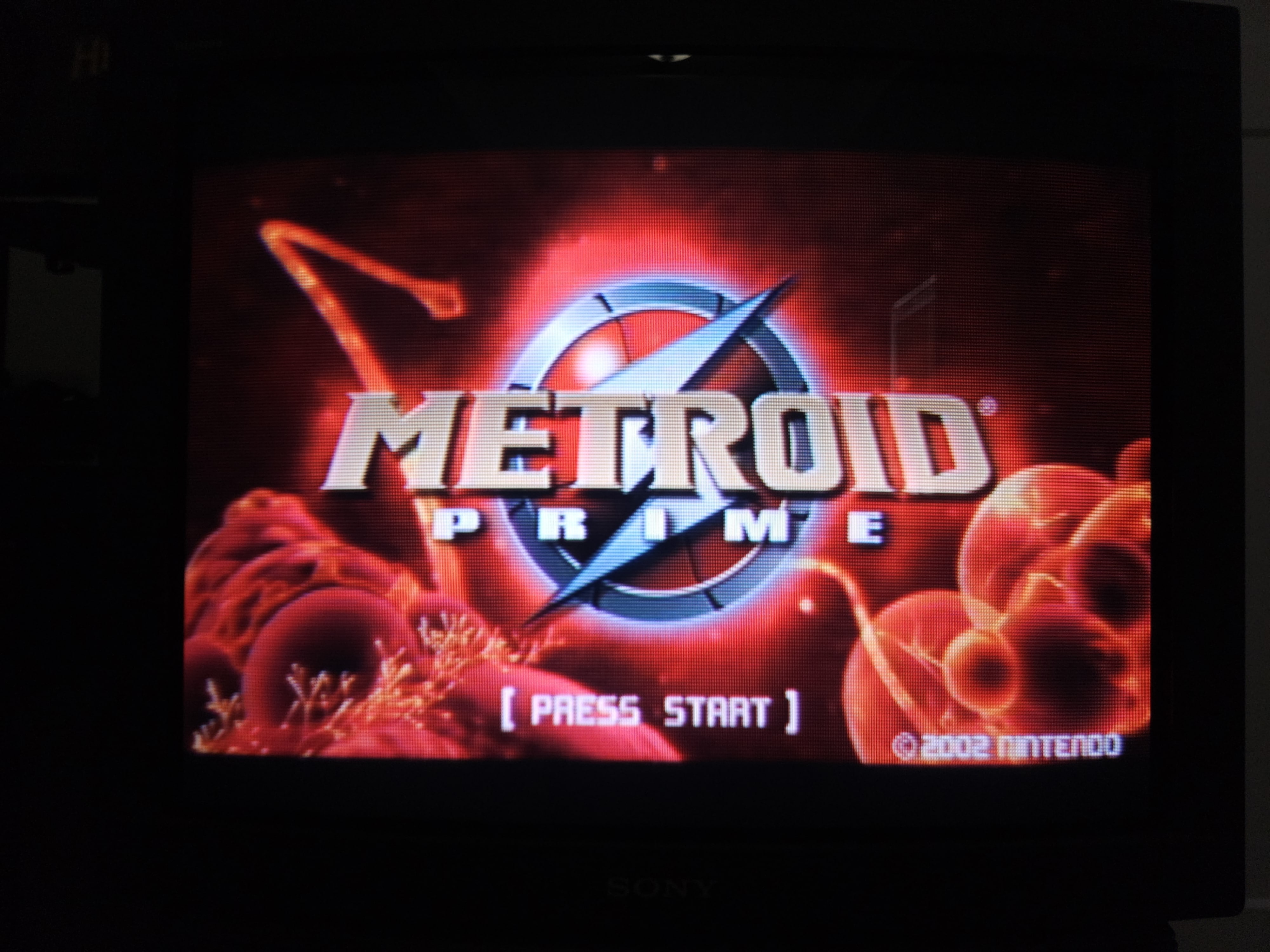

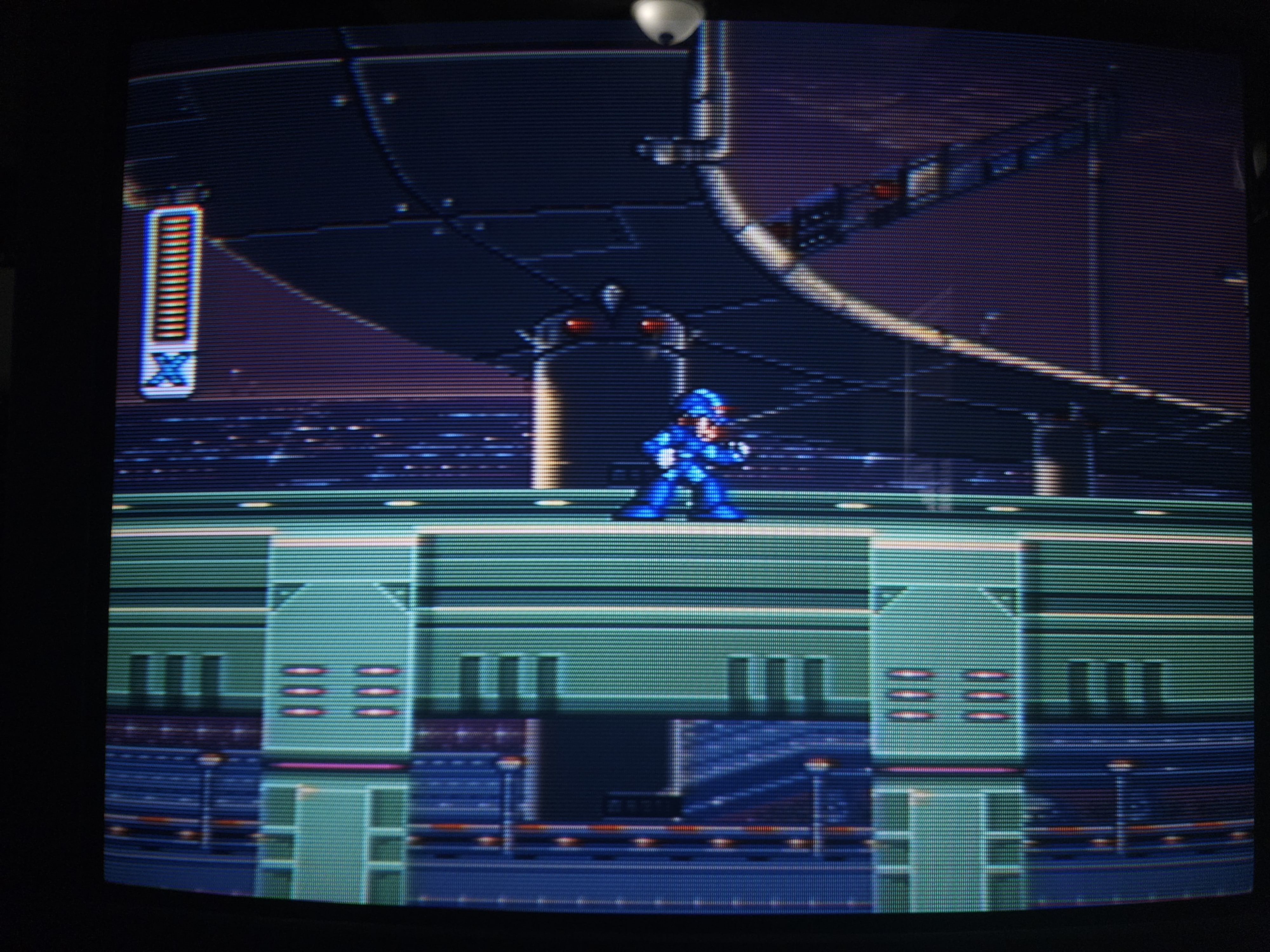

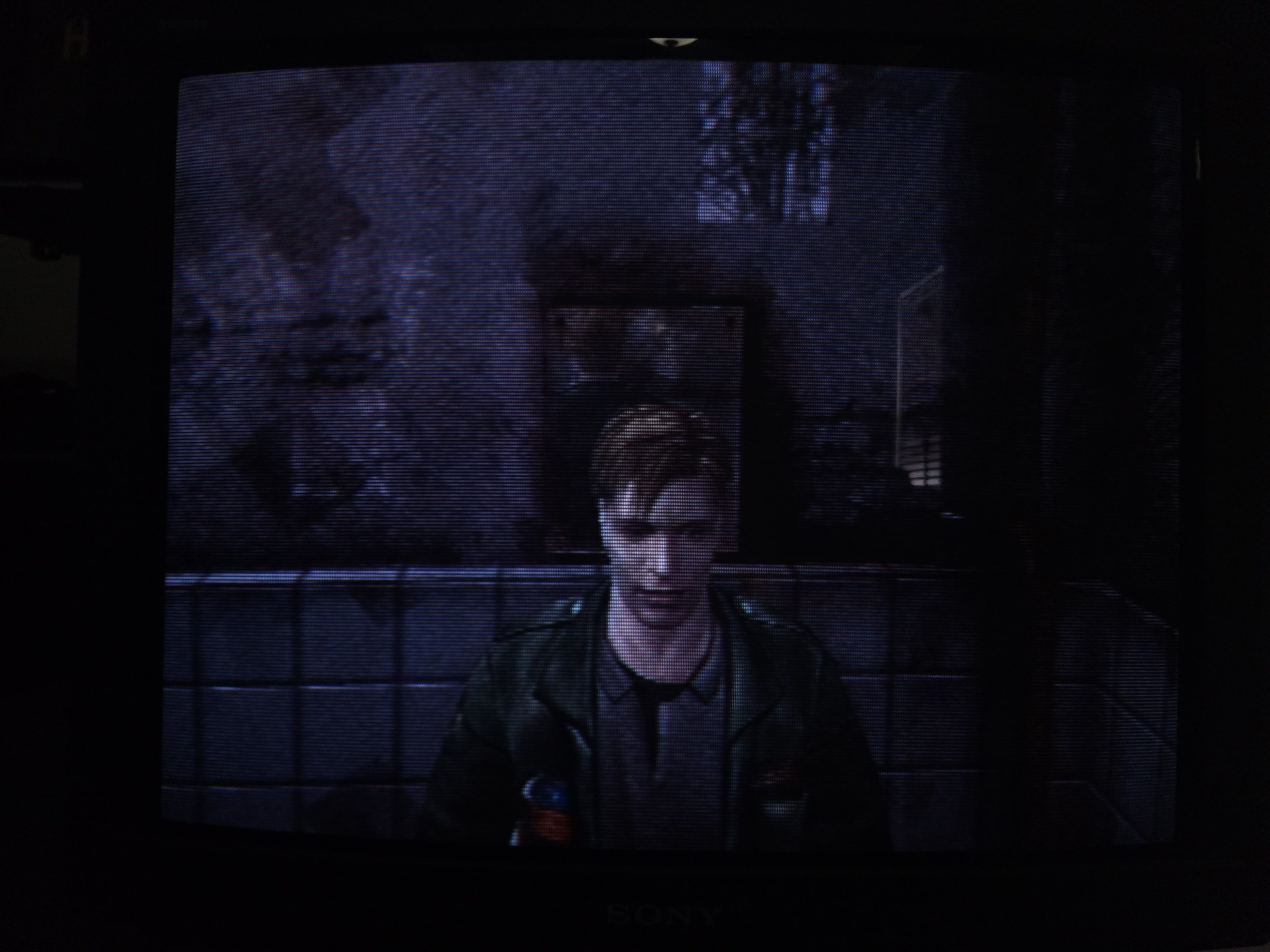

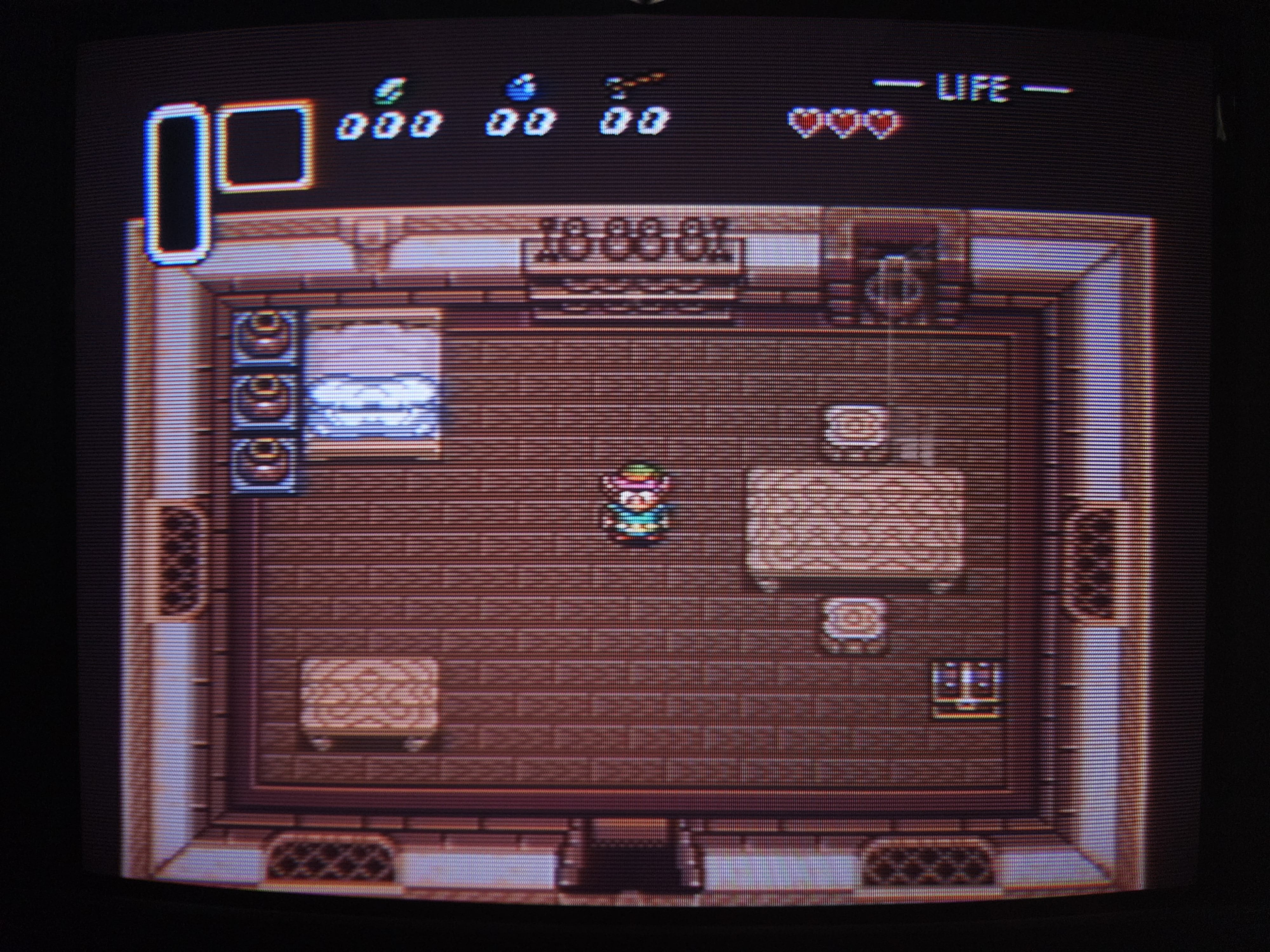

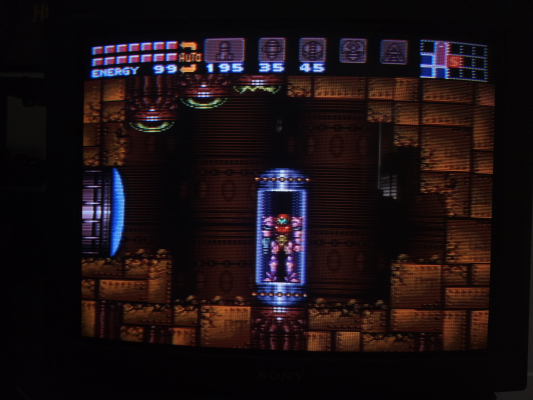

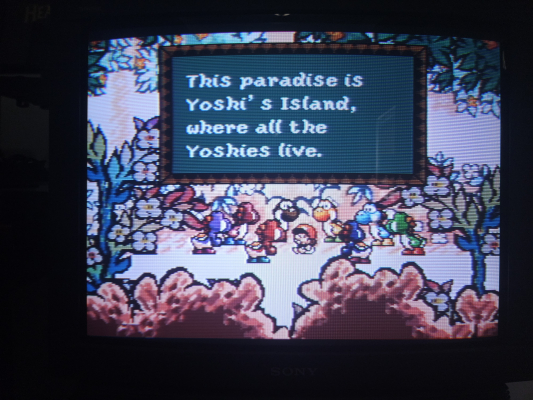

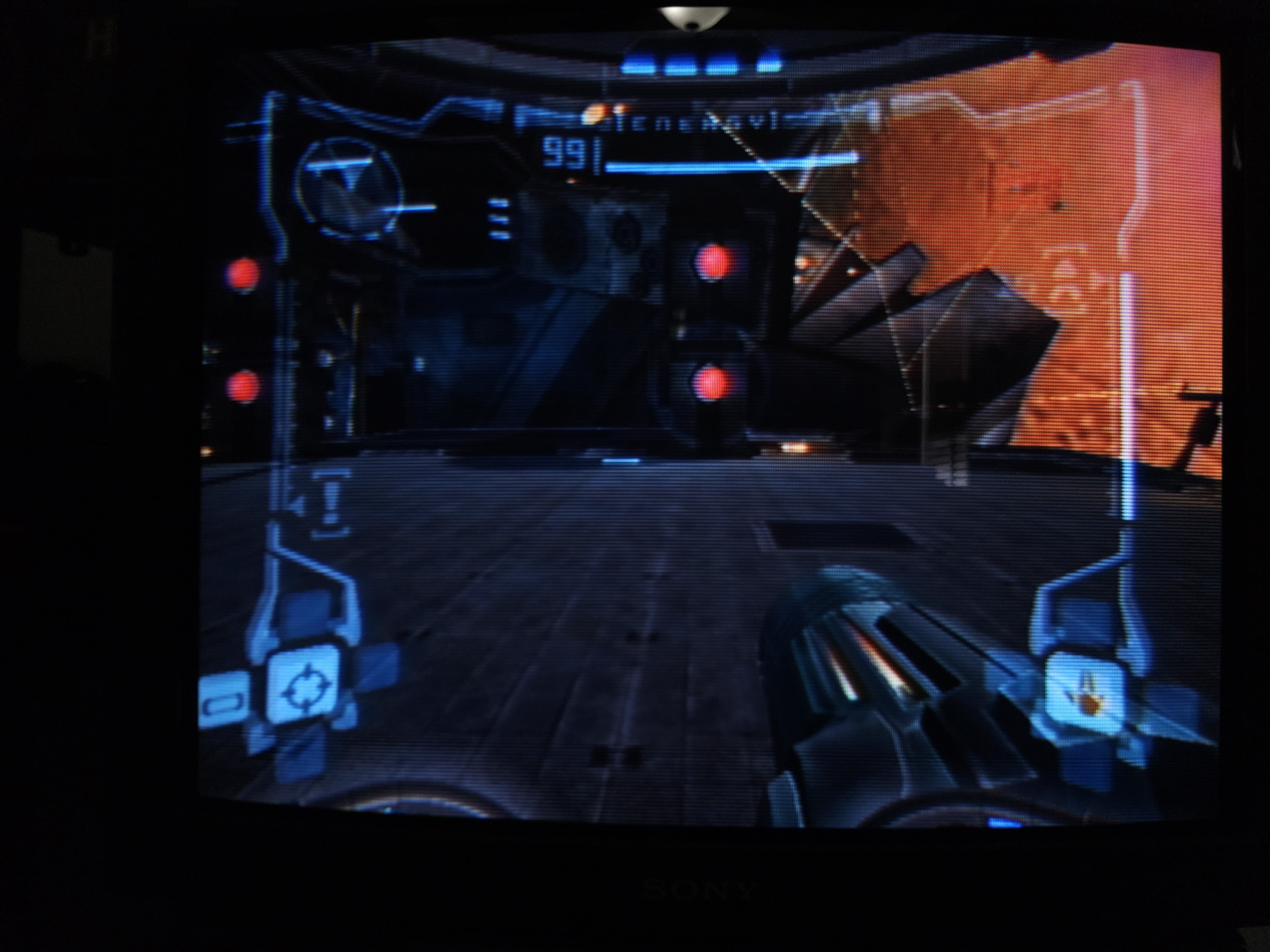

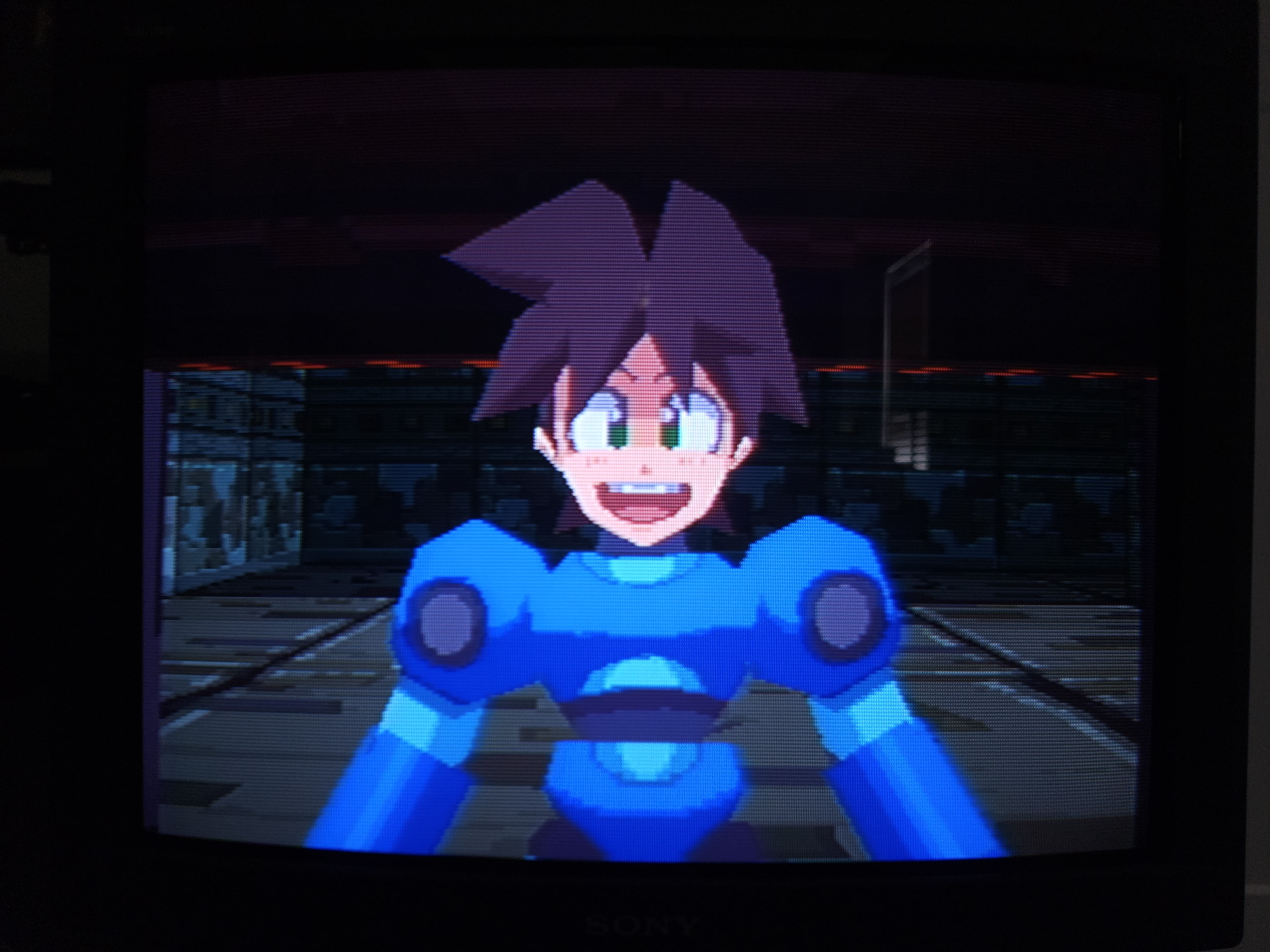

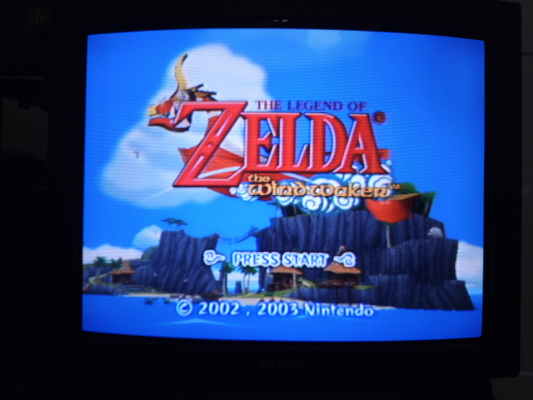

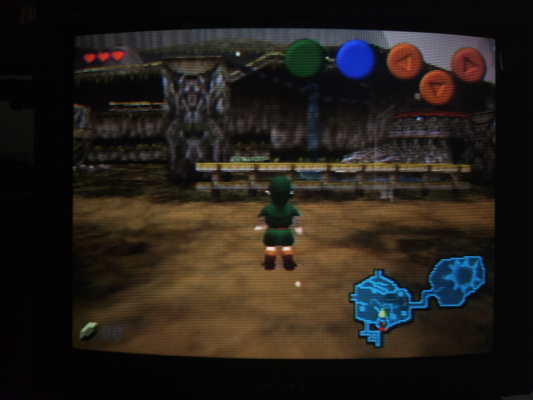

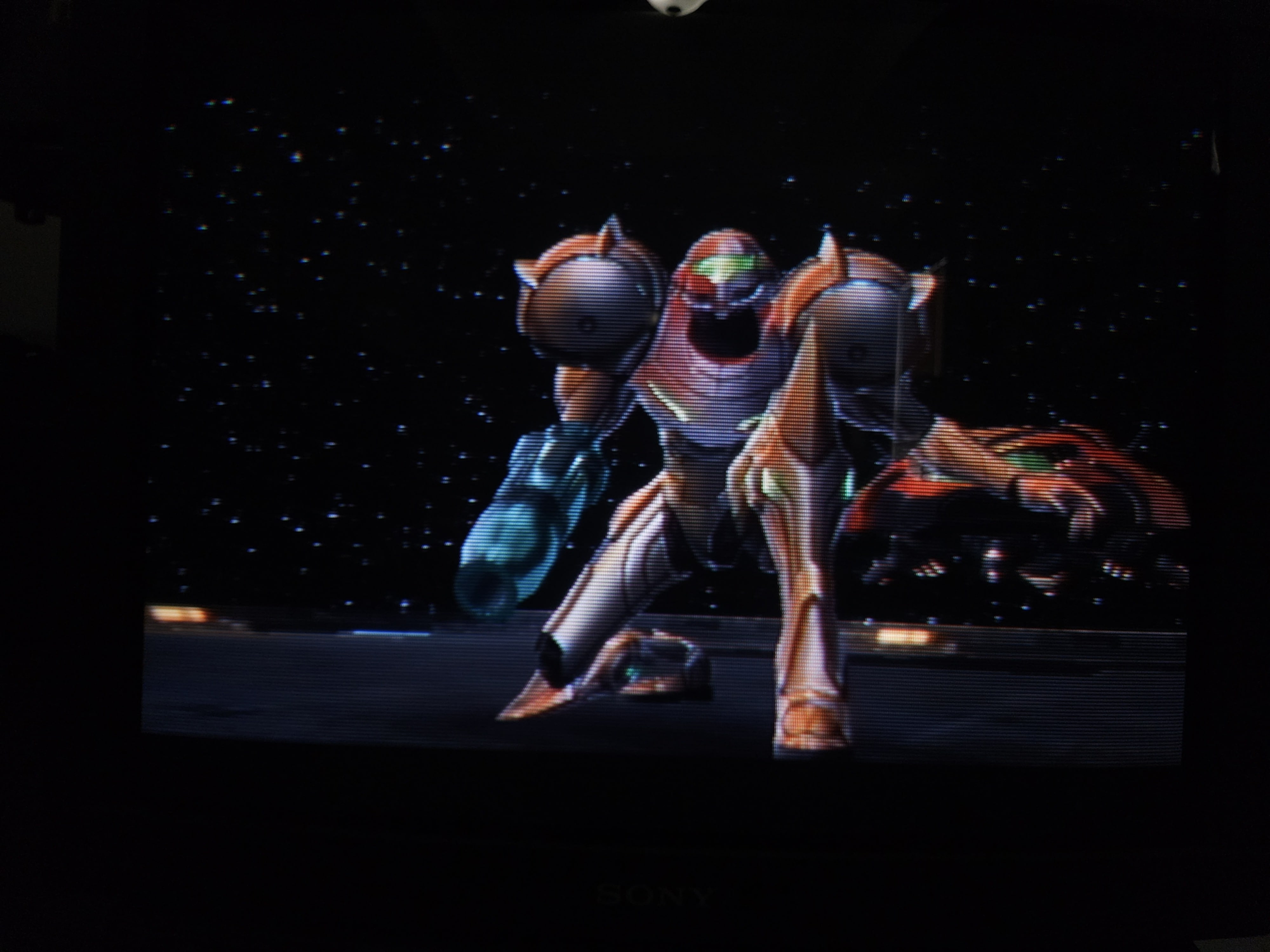

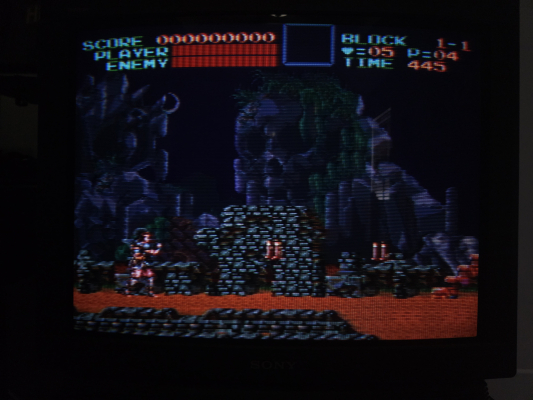

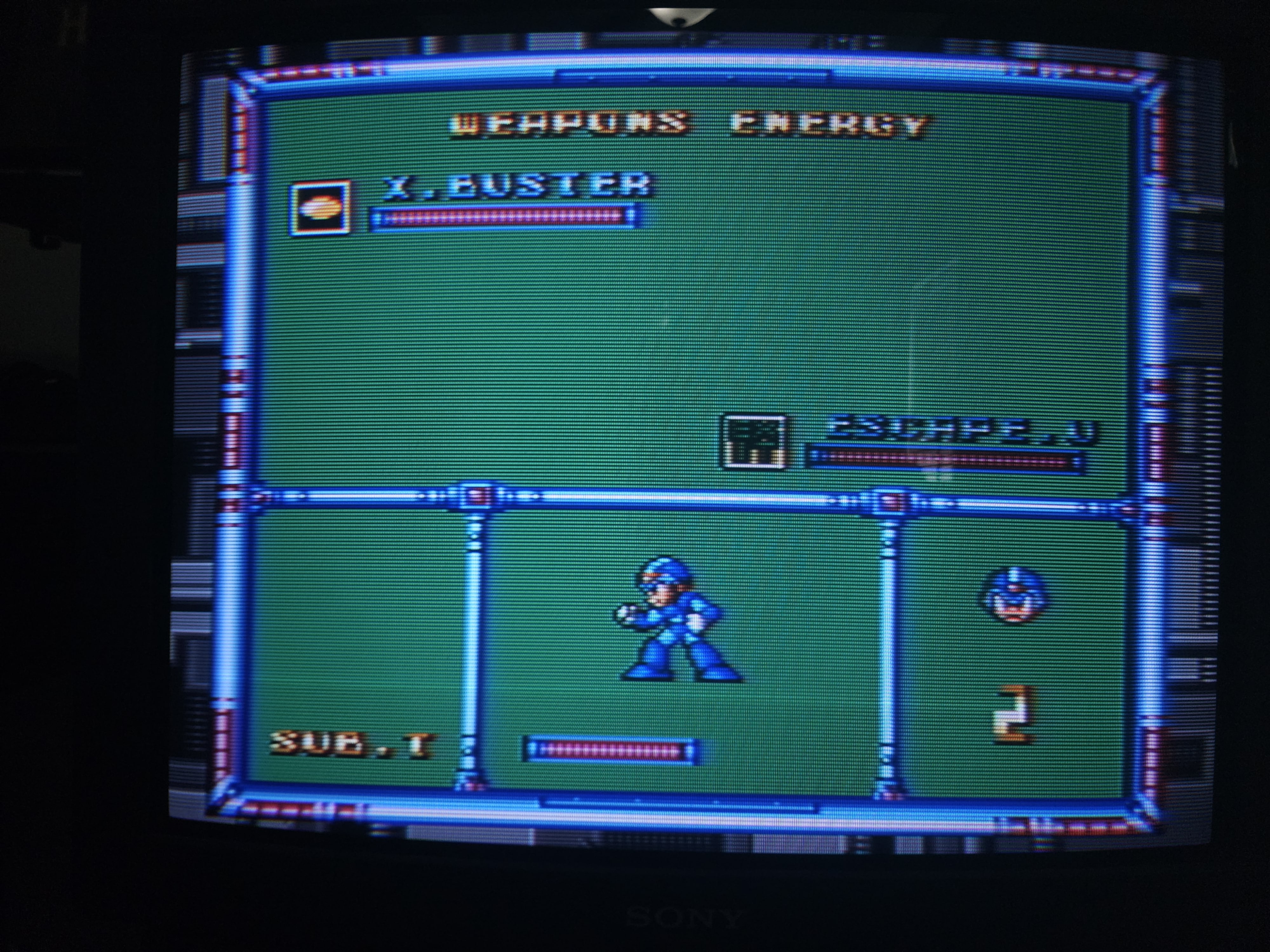

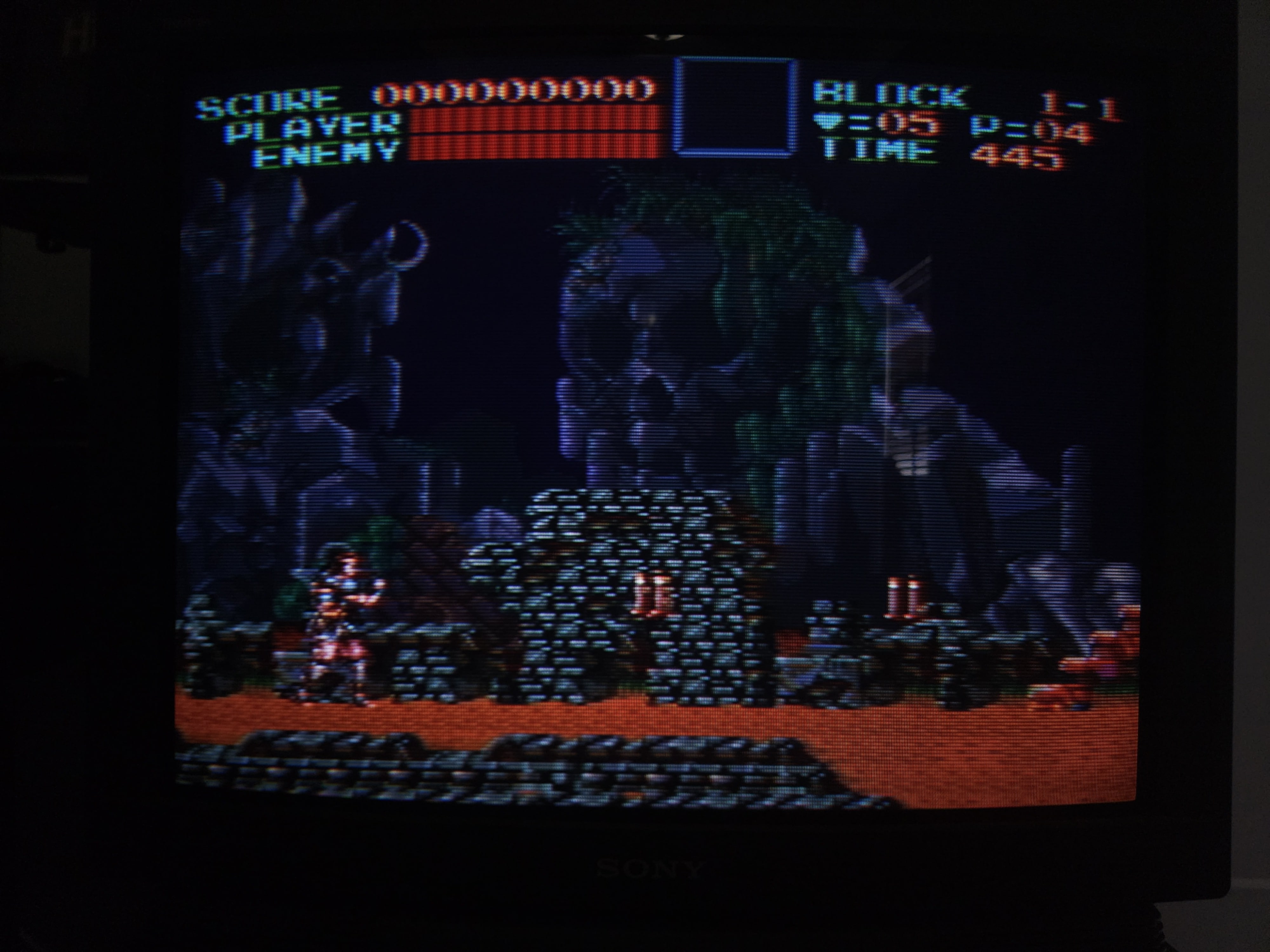

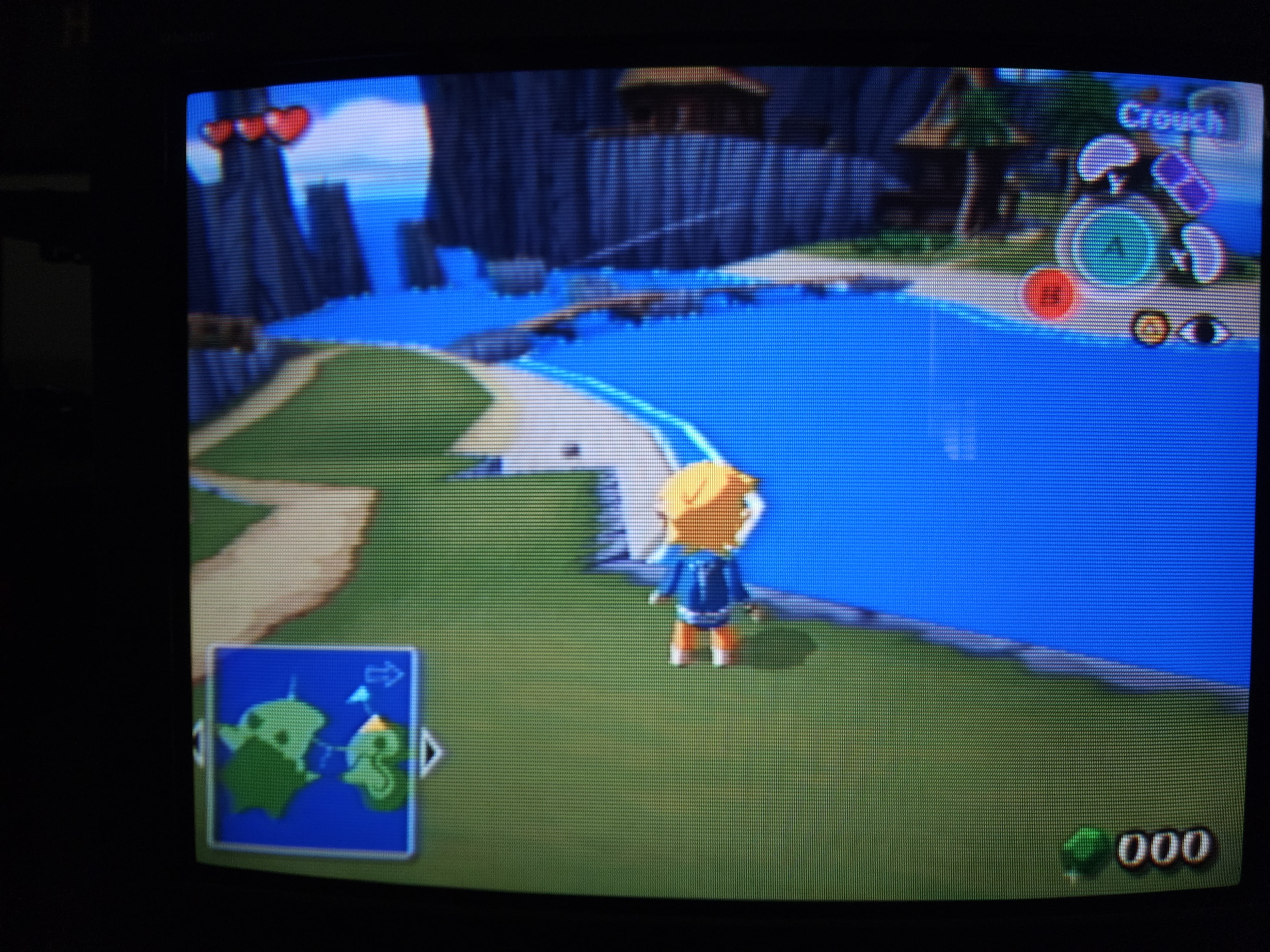

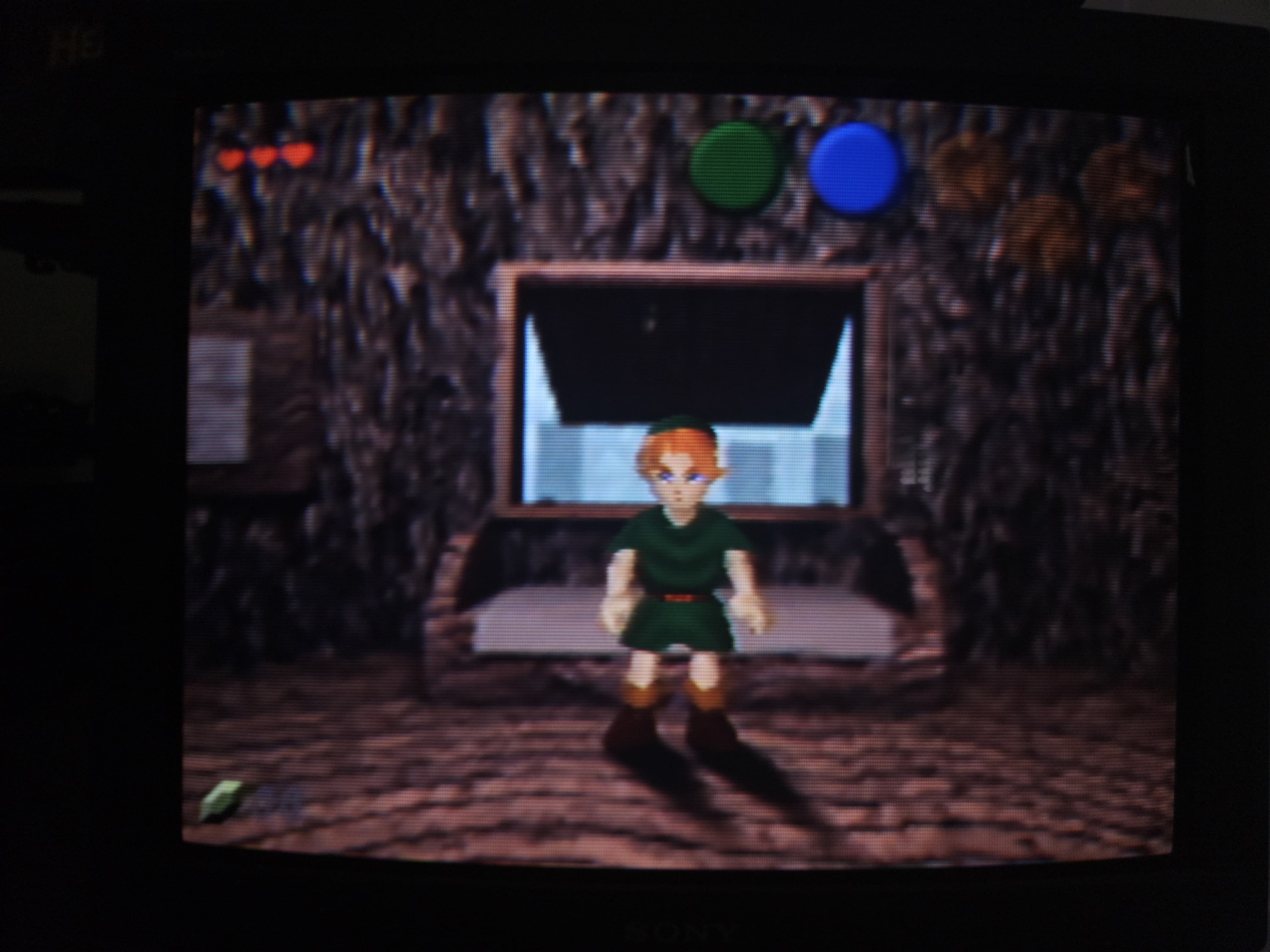

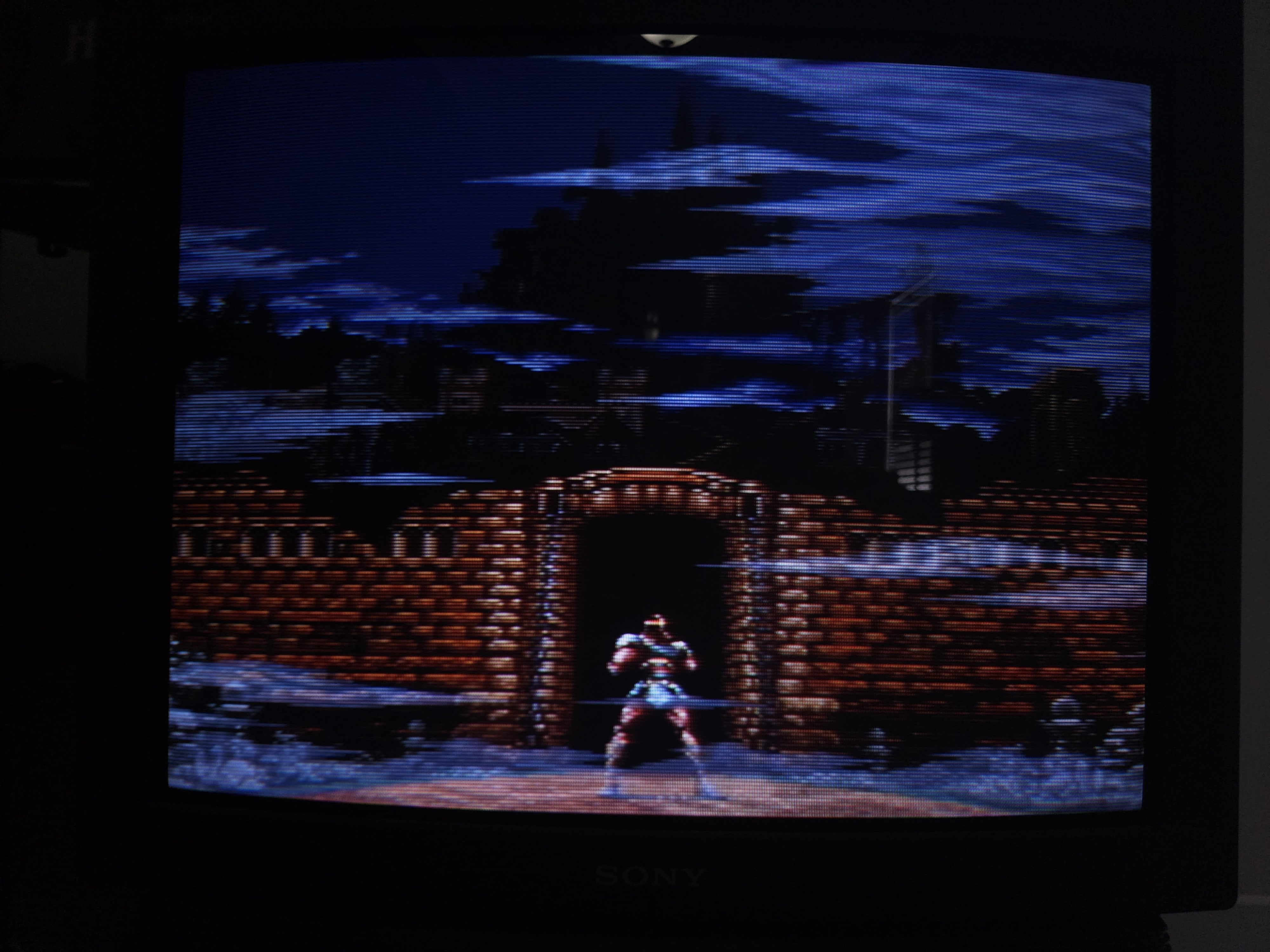

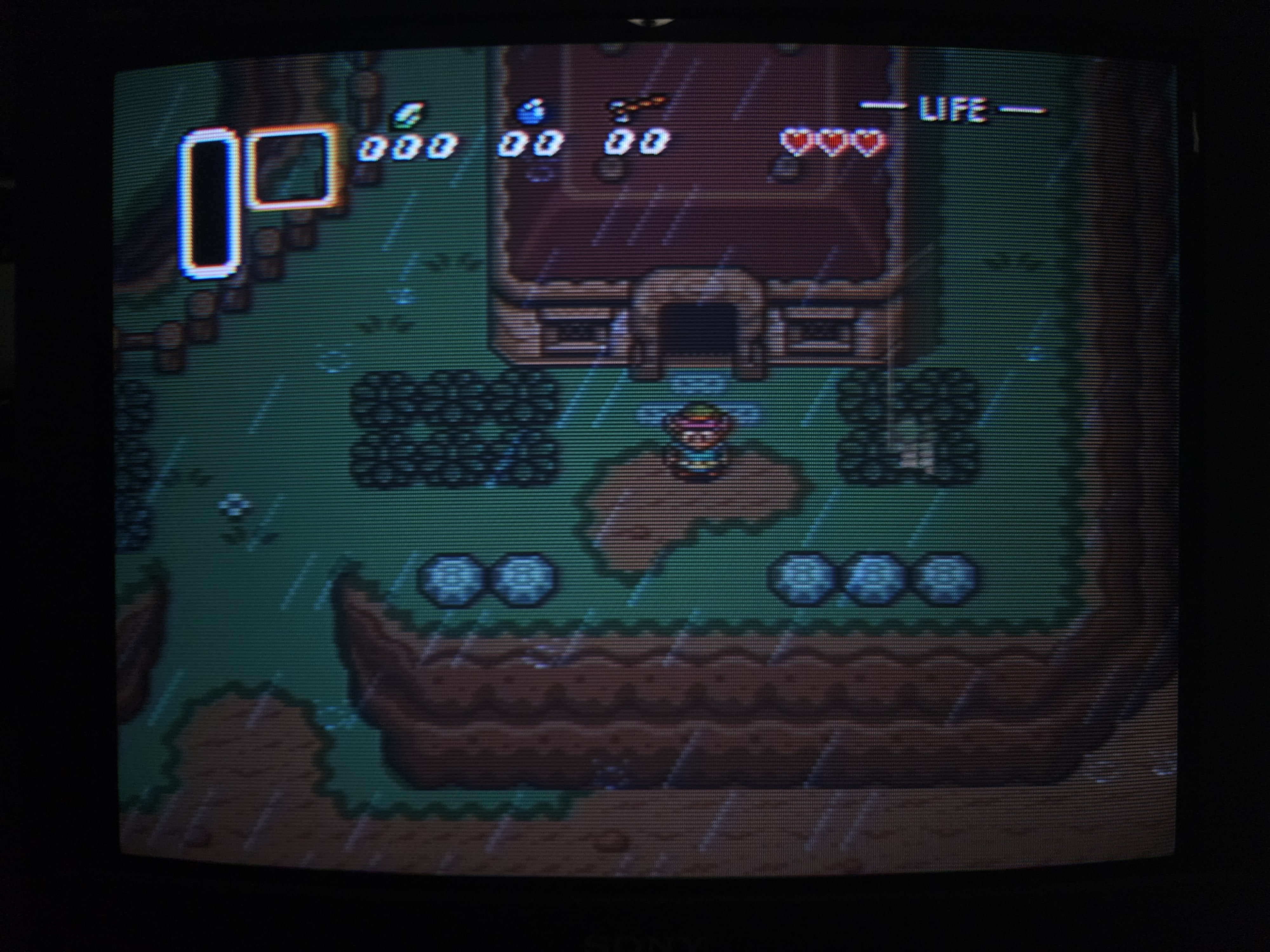

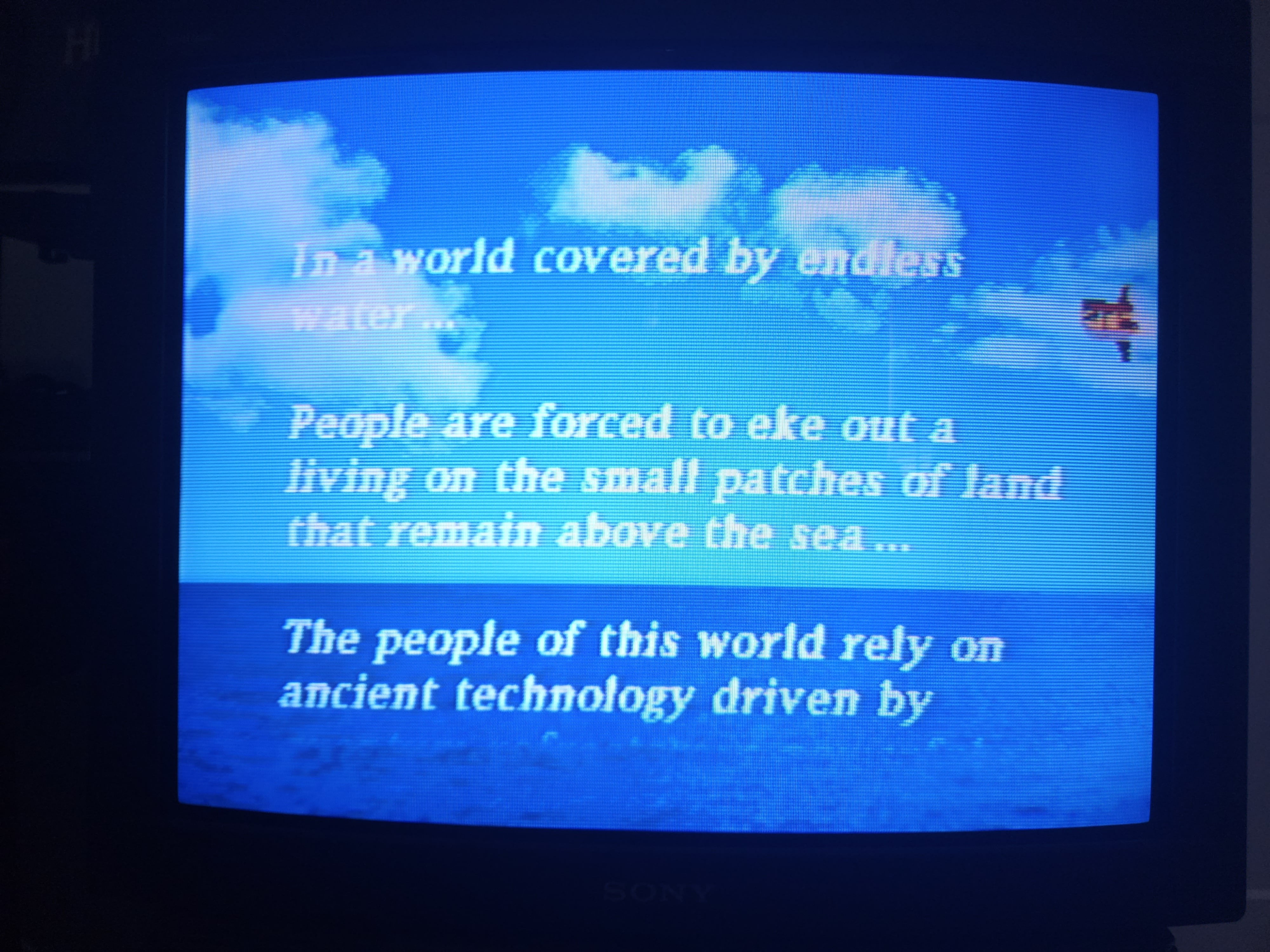

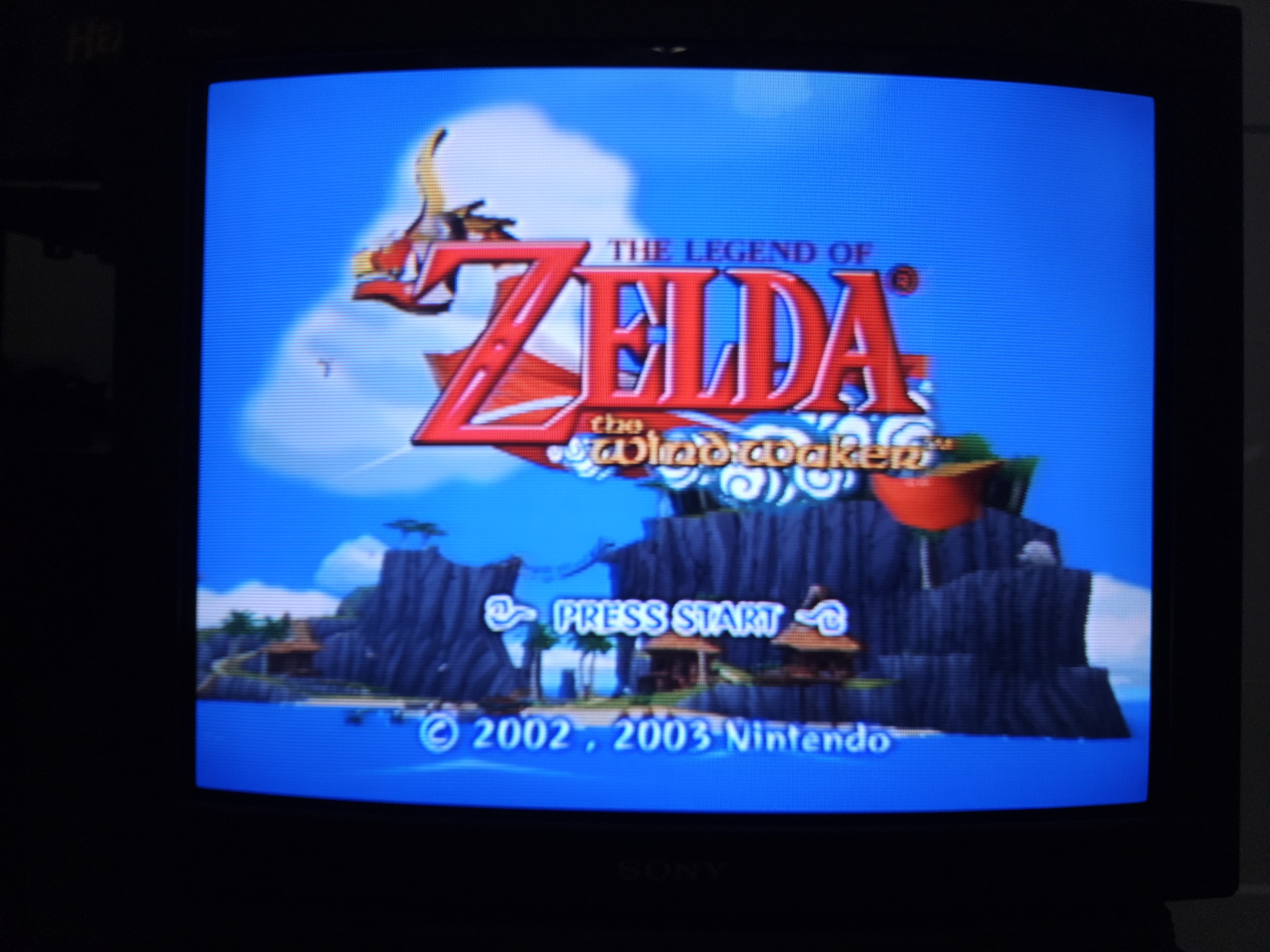

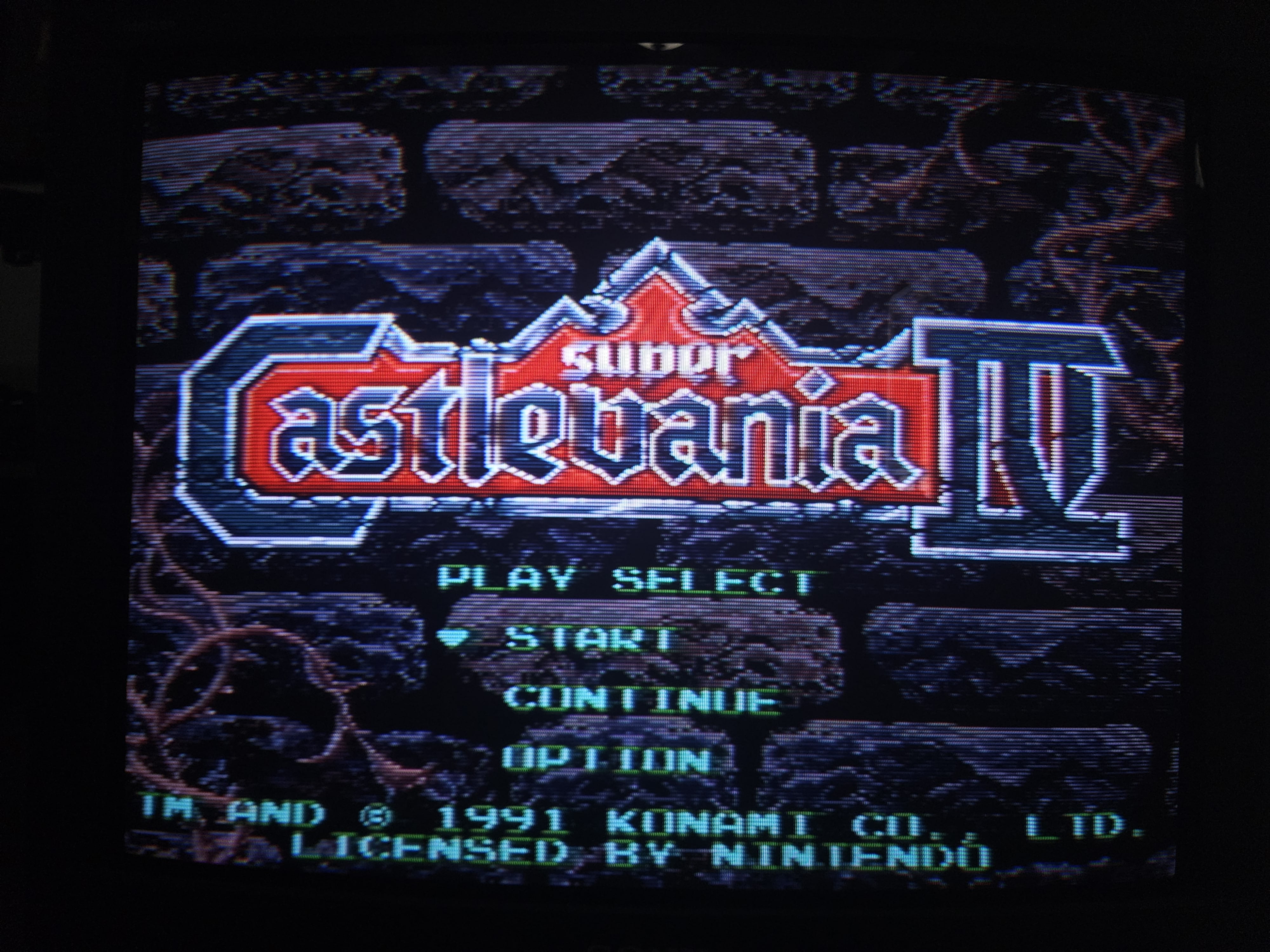

Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-27S15 |
| Series: | KV |
| Viewable Size: | 27" |

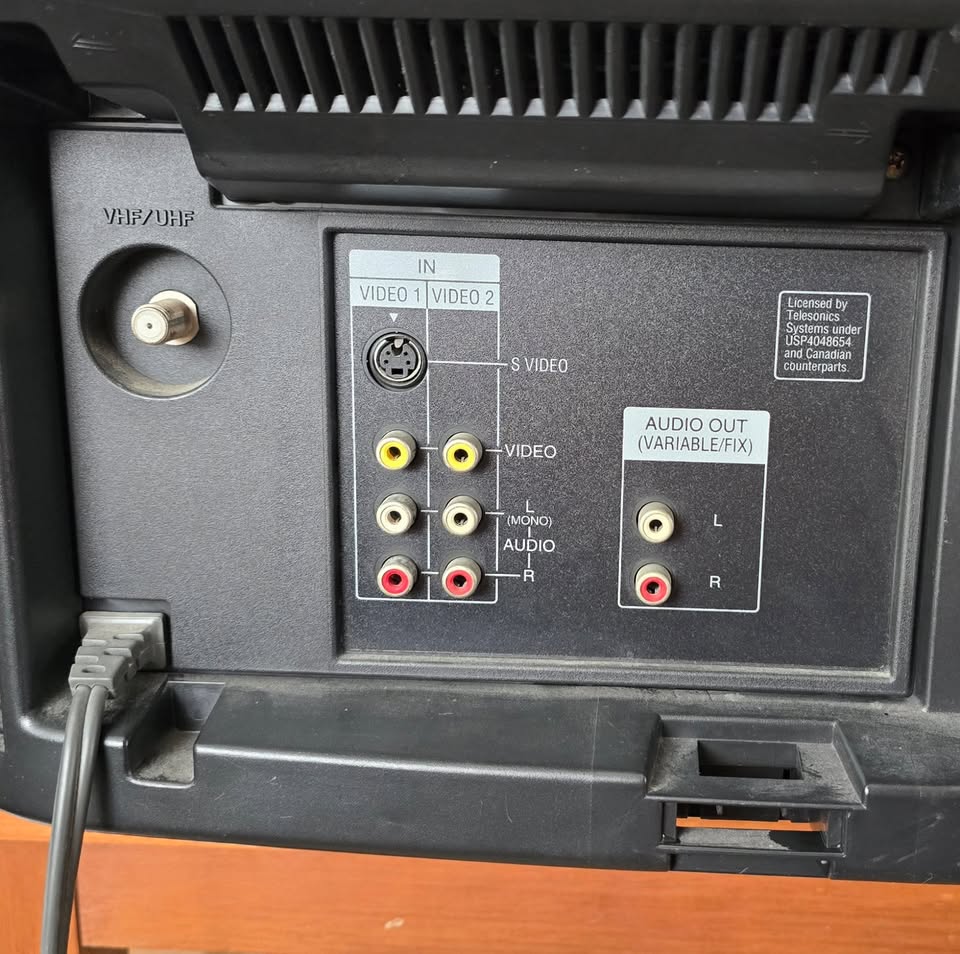

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle: | Sony, CXA1465AS, CXA1465 |
| Flyback: | NX-A2604A3 |
| Focus Type: | Single |
| Tube: | Sony Trinitron , A68KZJ50X |
| Heater Voltage: | 6.3v |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | Y28PFA |
| Speakers: | Stereo, 5W x 2 |

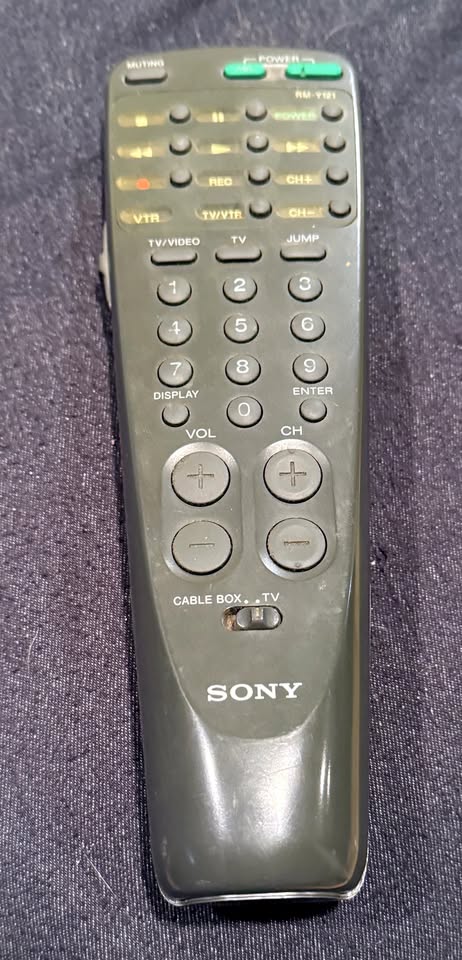

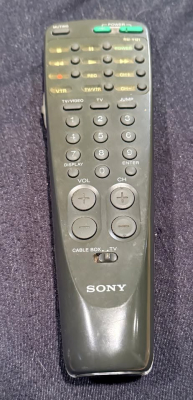

| Remote: | RM-Y121 |
| Chassis: | AA-1, SCC-F84M-A |
| Weight: | 93 lbs (42.2 kg) |
| Dimensions (W/H/D): |
661 x 603 x 524 mm
(26 x 23.7 x 20.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1994 |
| MSRP: | 699 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Direct |
| Degaussing: | Automatic on Power-on |
