Summary

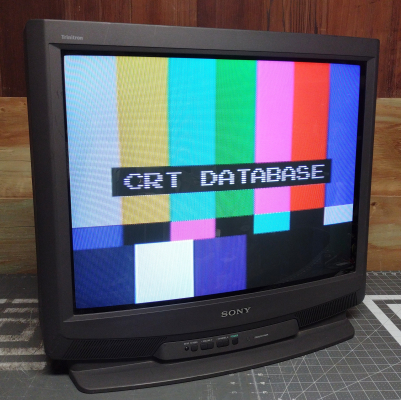

Late '90s curved Trinitron, released in 1997. It uses the AA-2D chassis, unlike later 27" Trinitrons that used the BA-4 and BA-4D. This was the most basic model in that size, with just a single composite video input and no extra features. It can be modded to restore the S-Video input, however.
Manuals
Notes
The jungle chips used in the AA-2D chassis Trinitrons are very versatile, and these TVs can be modified for RGB and/or Component video.
Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-27S22 |
| Series: | KV |
| Viewable Size: | 27" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | C4927 |
| Vertical Output IC: | TDA8172 |
| Jungle IC: | CXA2025AS |
| Flyback: | 1-453-207-11, 8-598-969-00, NX-2609 |
| Tube: | Sony Trinitron , A68KZJ50X |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 8-451-275-42, Y28PFA |
| Yoke Horz. Inductance: | 0.8282 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 20.79 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 1.183 ohm |
| Yoke Vert. Resistance: | 8.75 ohm |
| Speakers: | Stereo |
| Remote: | RM-Y135A |
| Chassis: | AA-2D |
| Weight: | 89.5 lbs (40.6 kg) |
| Application: | Consumer |
| Launched: | 1997 |
| Country of Manufacture: | Mexico |
| Mods: | RGB via Mux, S-Video, Component YPbPr |
| Degaussing: | Automatic on Power-on |
