Summary

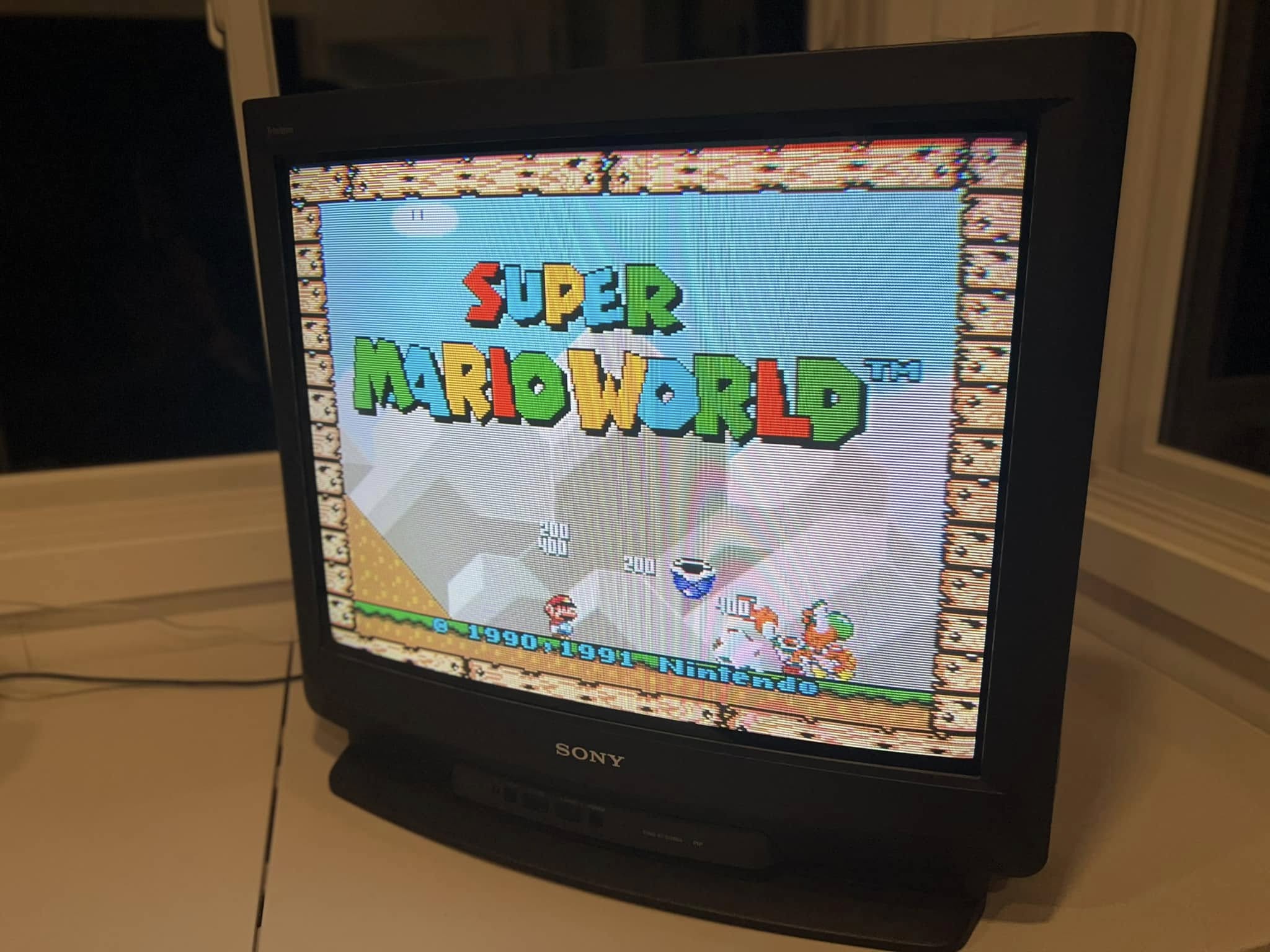

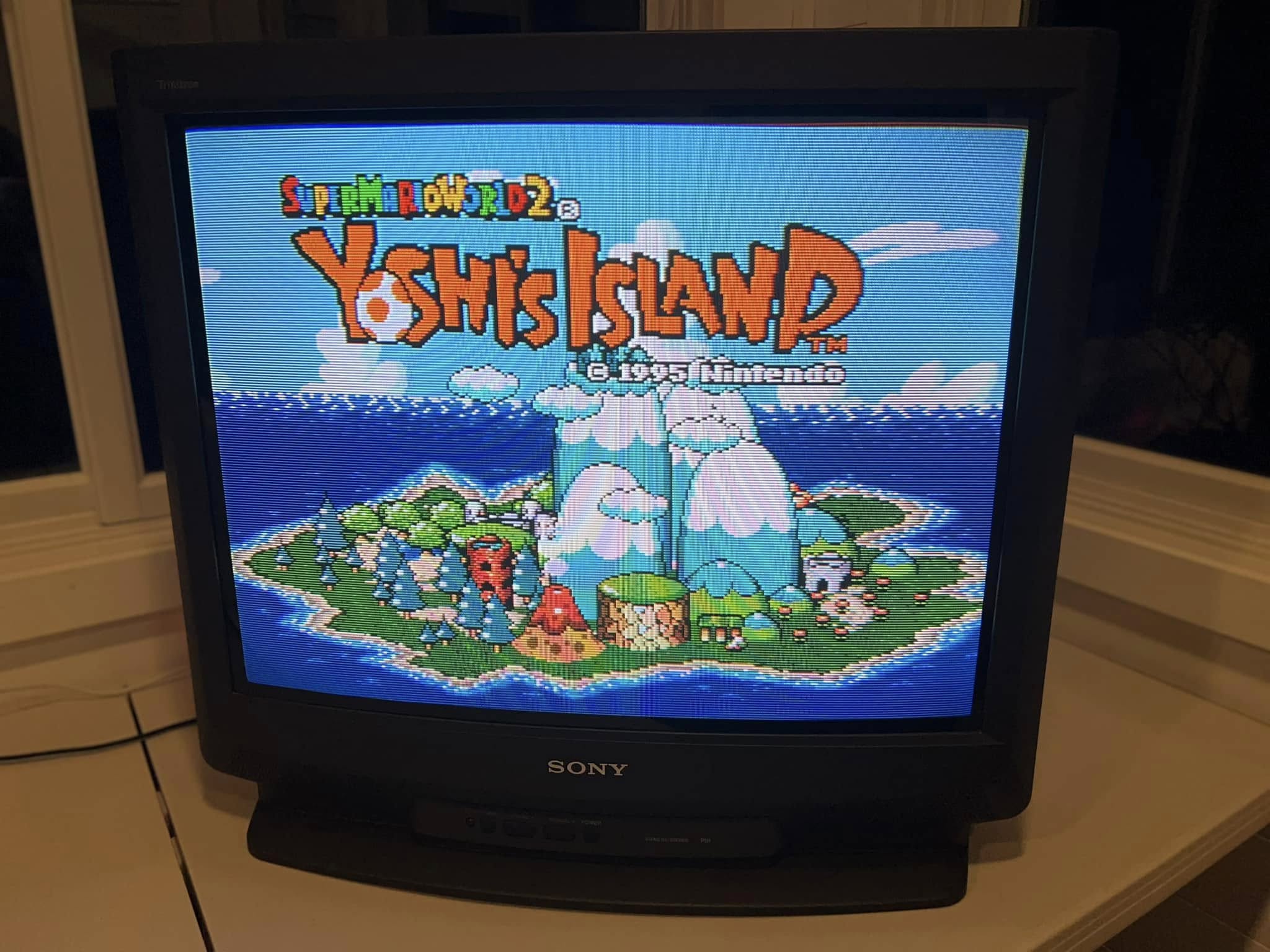

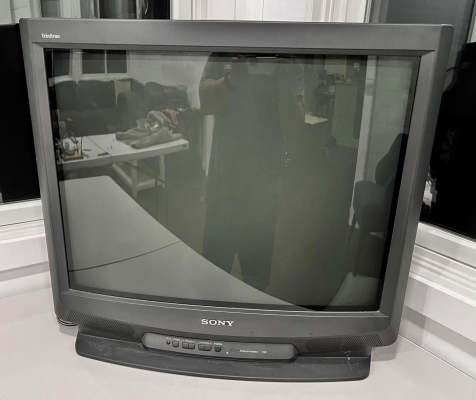

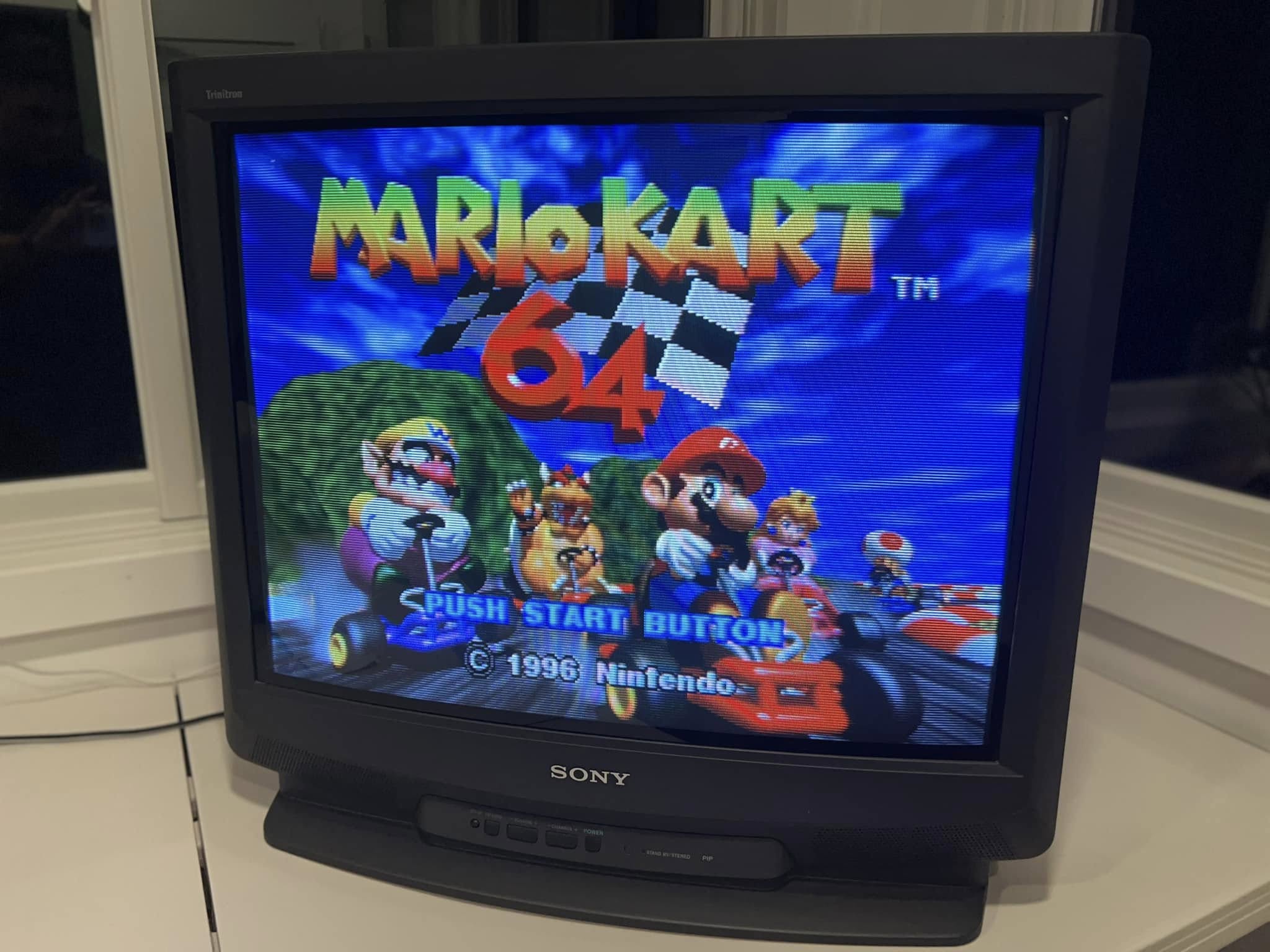

27" curved-screen midrange CRT by Sony. Has RF, composite, and s-video inputs with stereo sound. Made in Mexico in 1996.
(Special thanks to Michael Lopez and Christopher Cuevas for the pics!)
Manuals
Notes

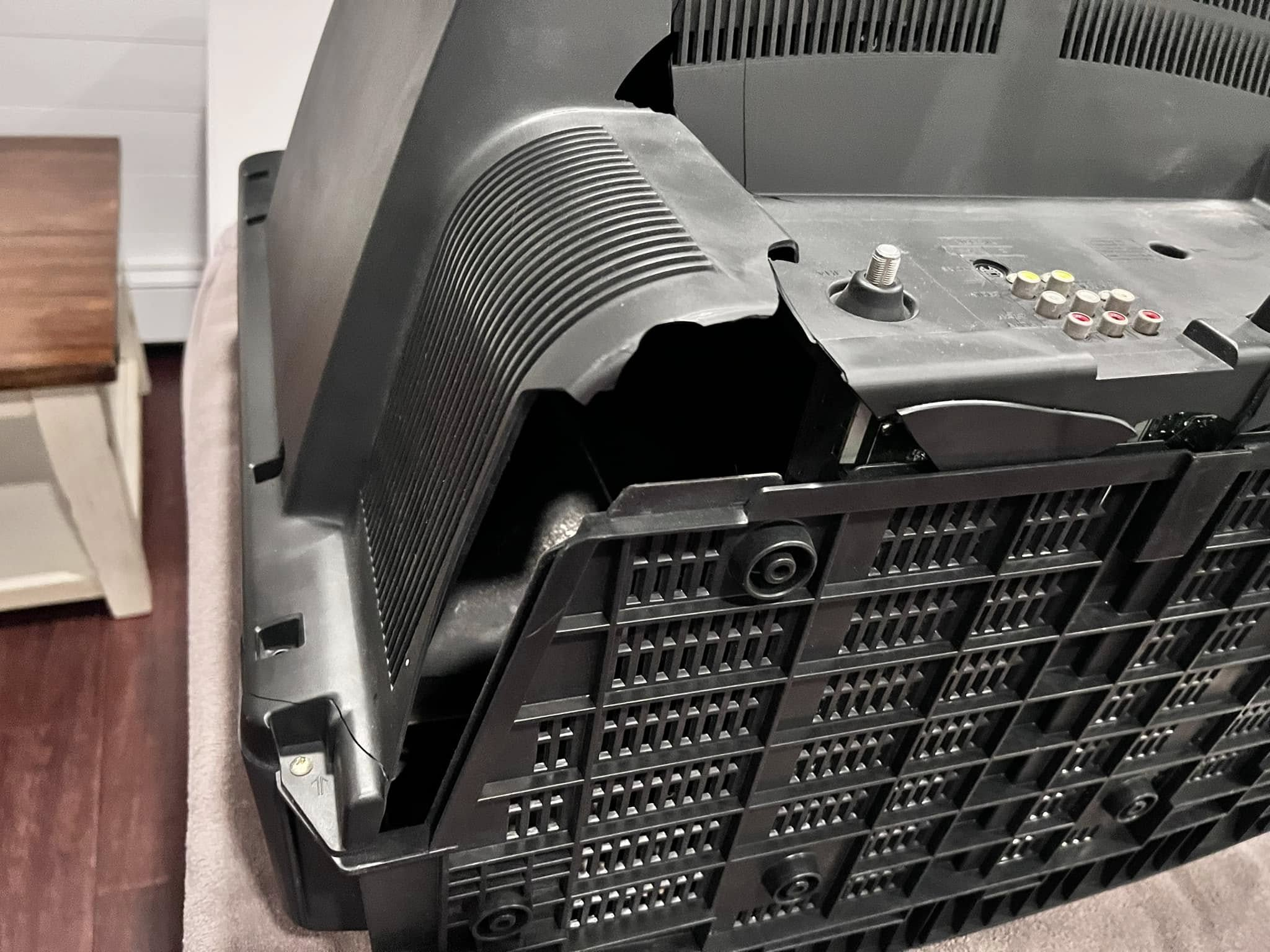

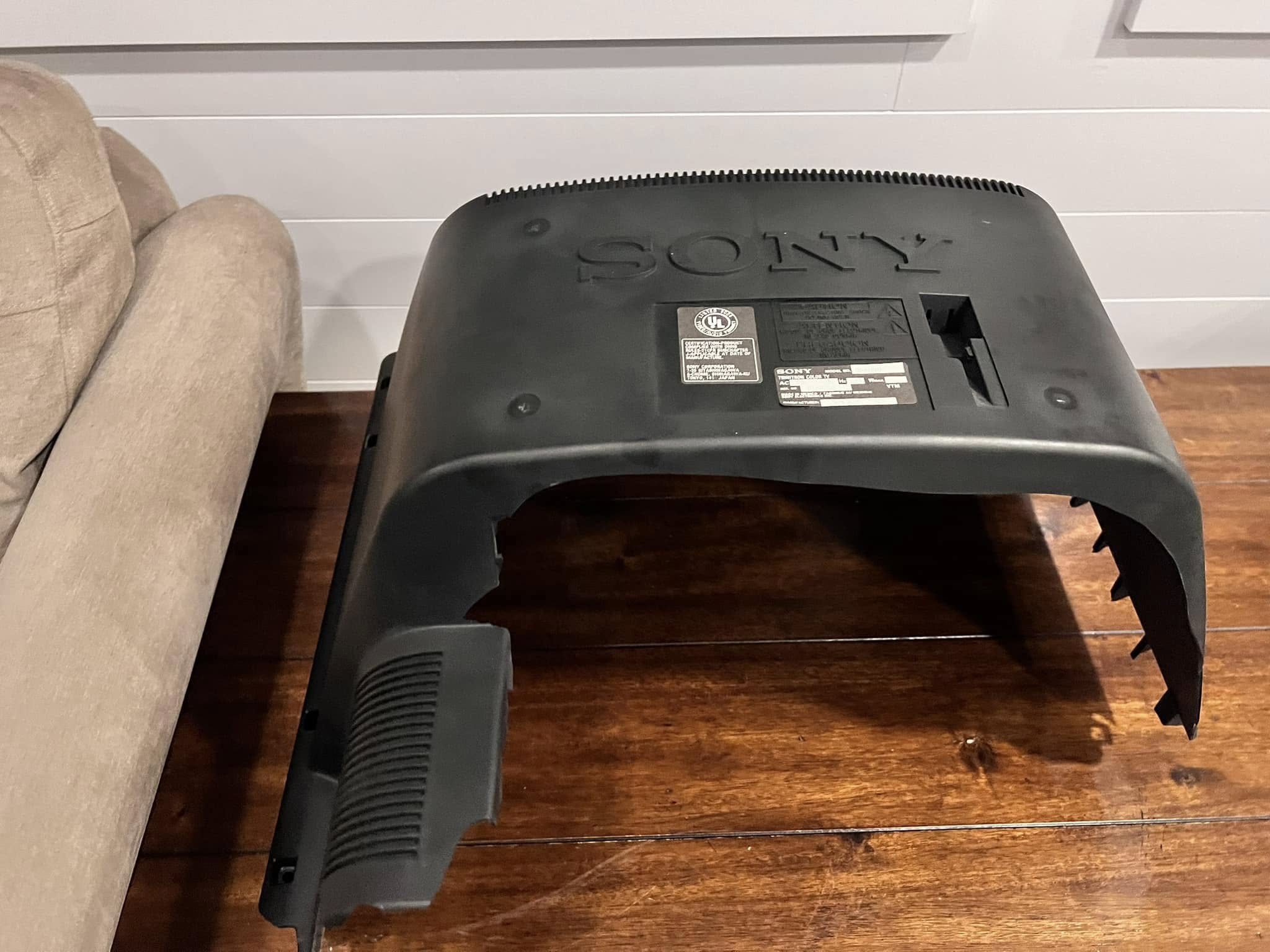

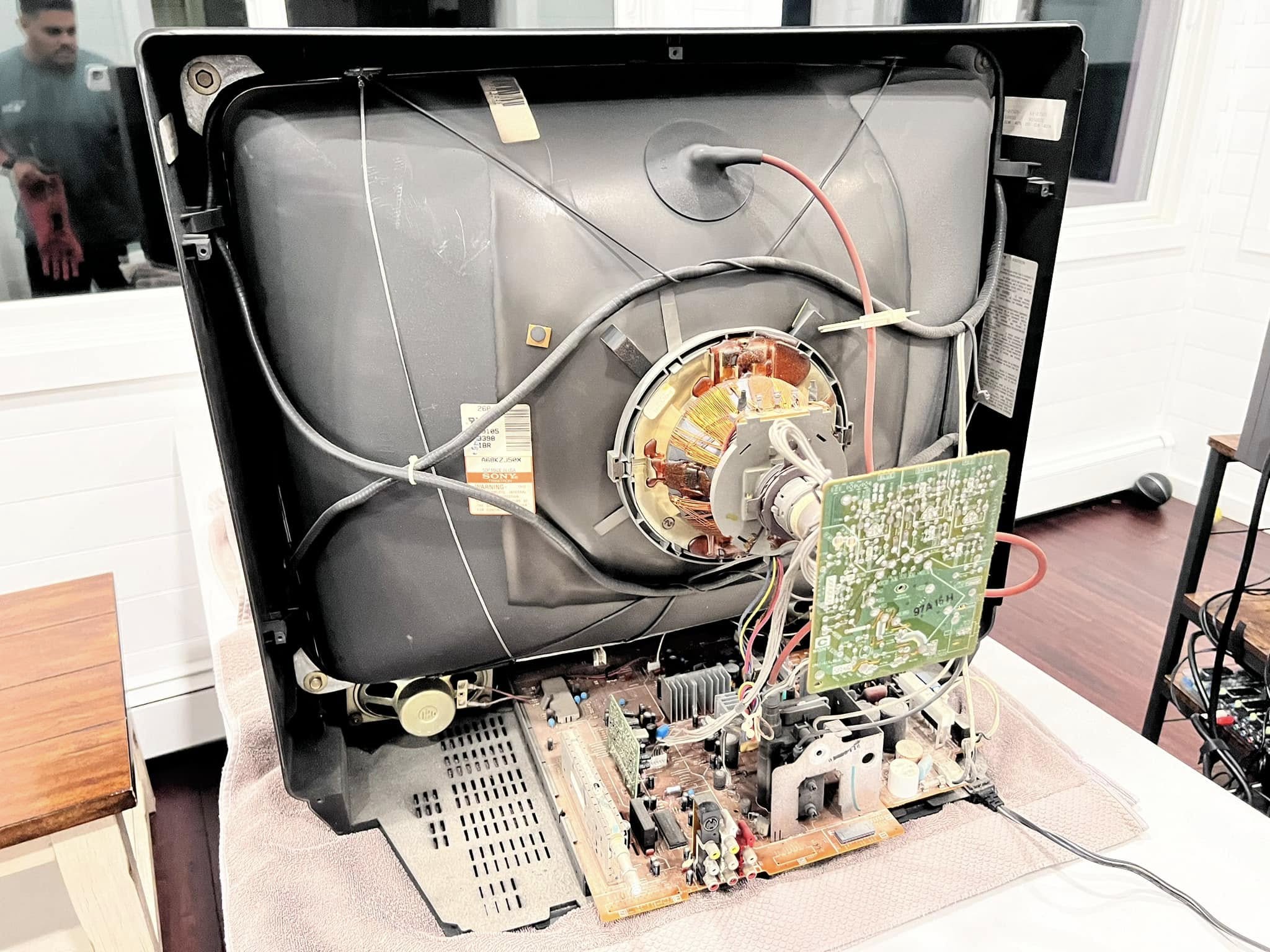

This set came out during the "brittle era" of plastic for Sony's TV cases (1993-1996.) Be careful when handling this set, and expect some chunks to break off:

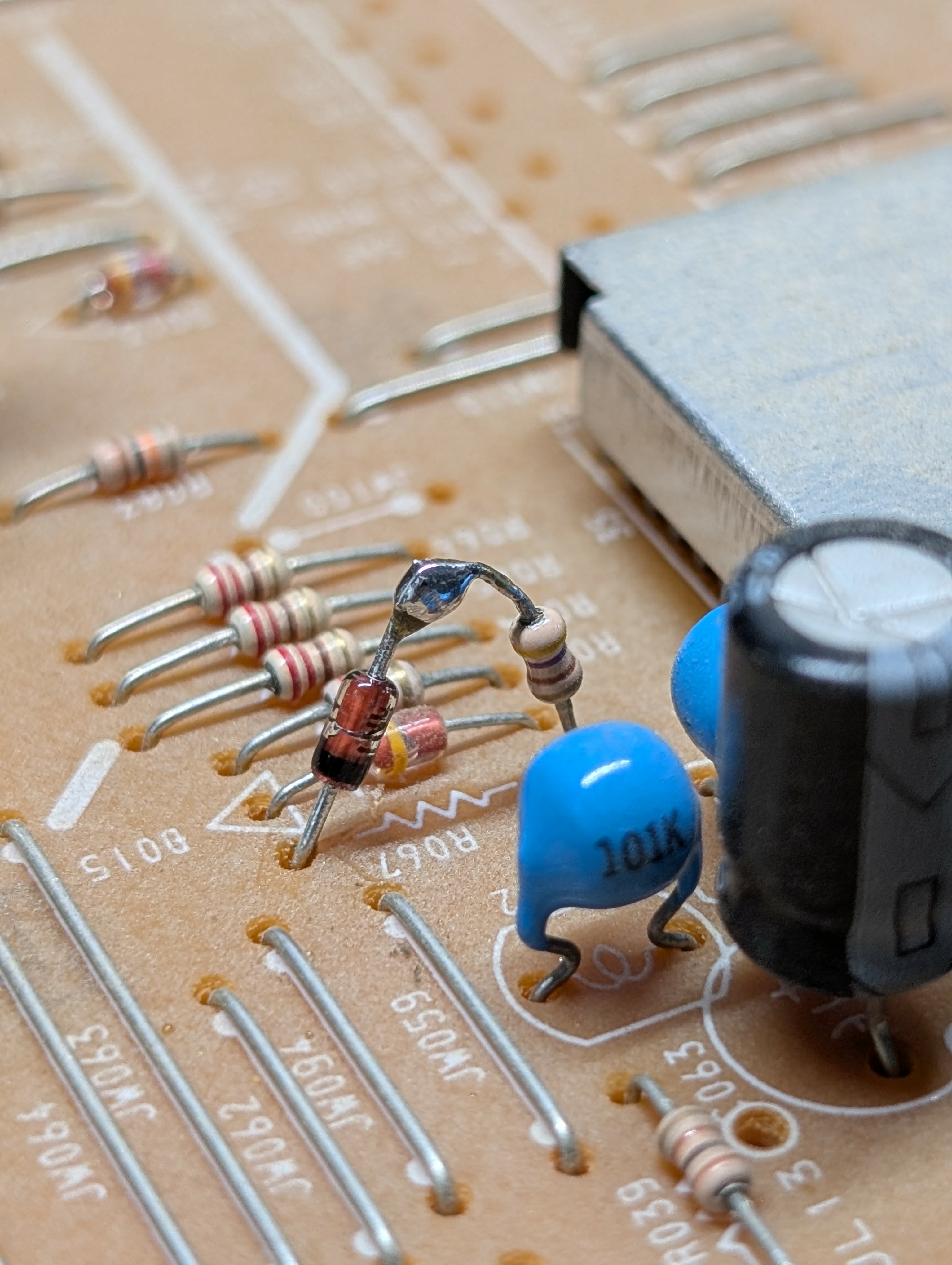

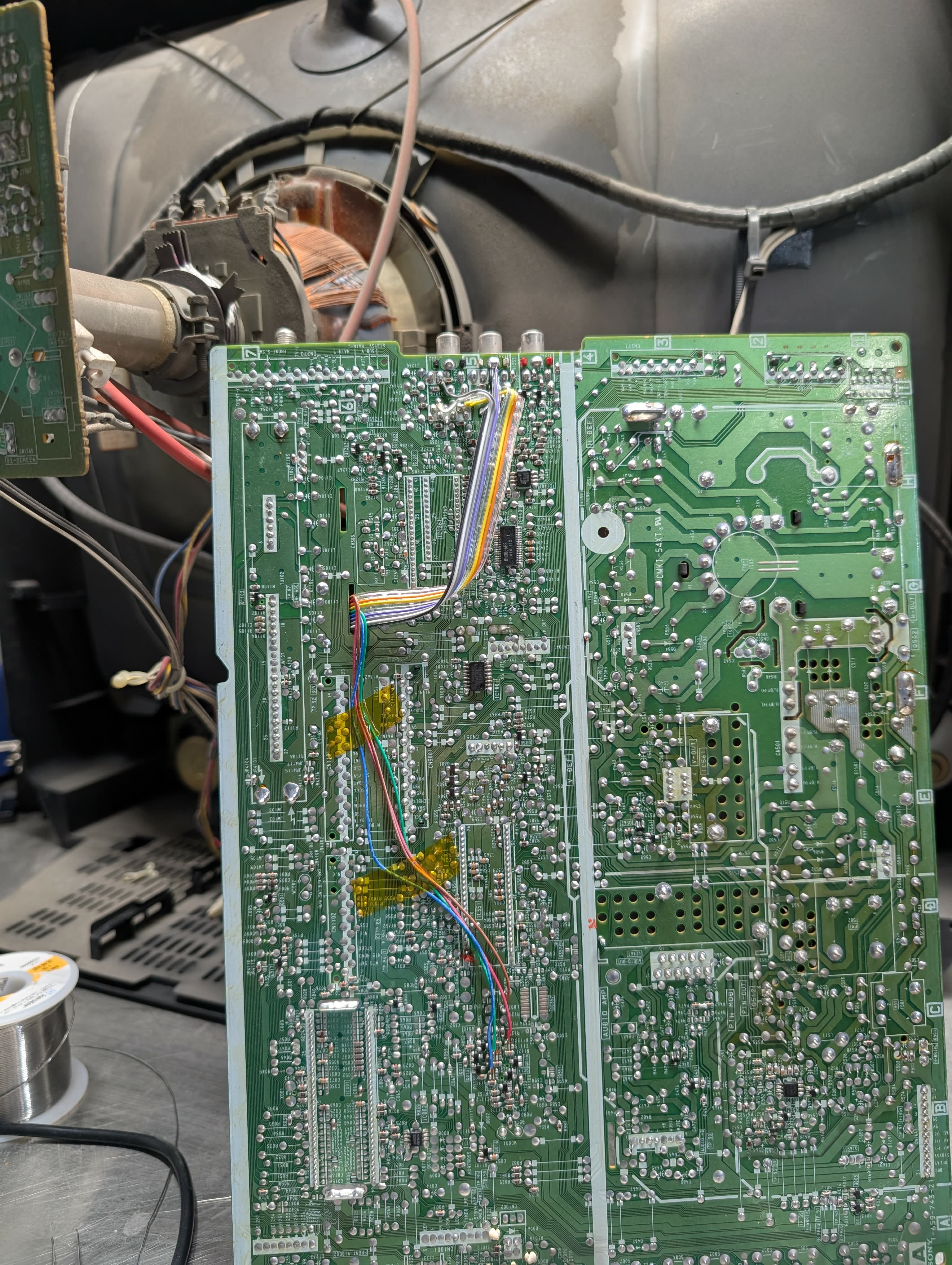

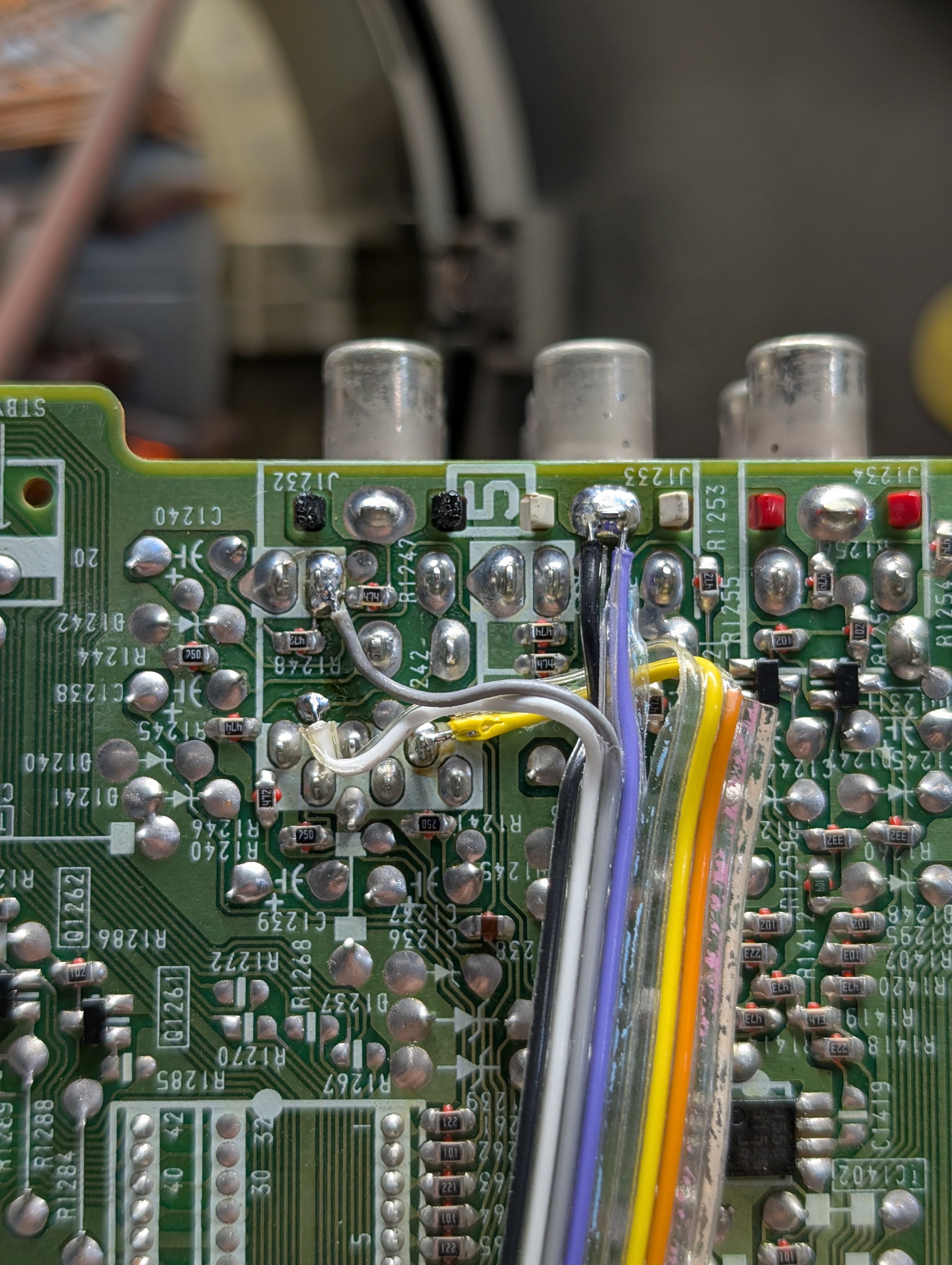

RGB Mod
Link to RGB mod process on Sunthar's site HERE
Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-27S25 |
| Series: | KV |
| Viewable Size: | 27" |

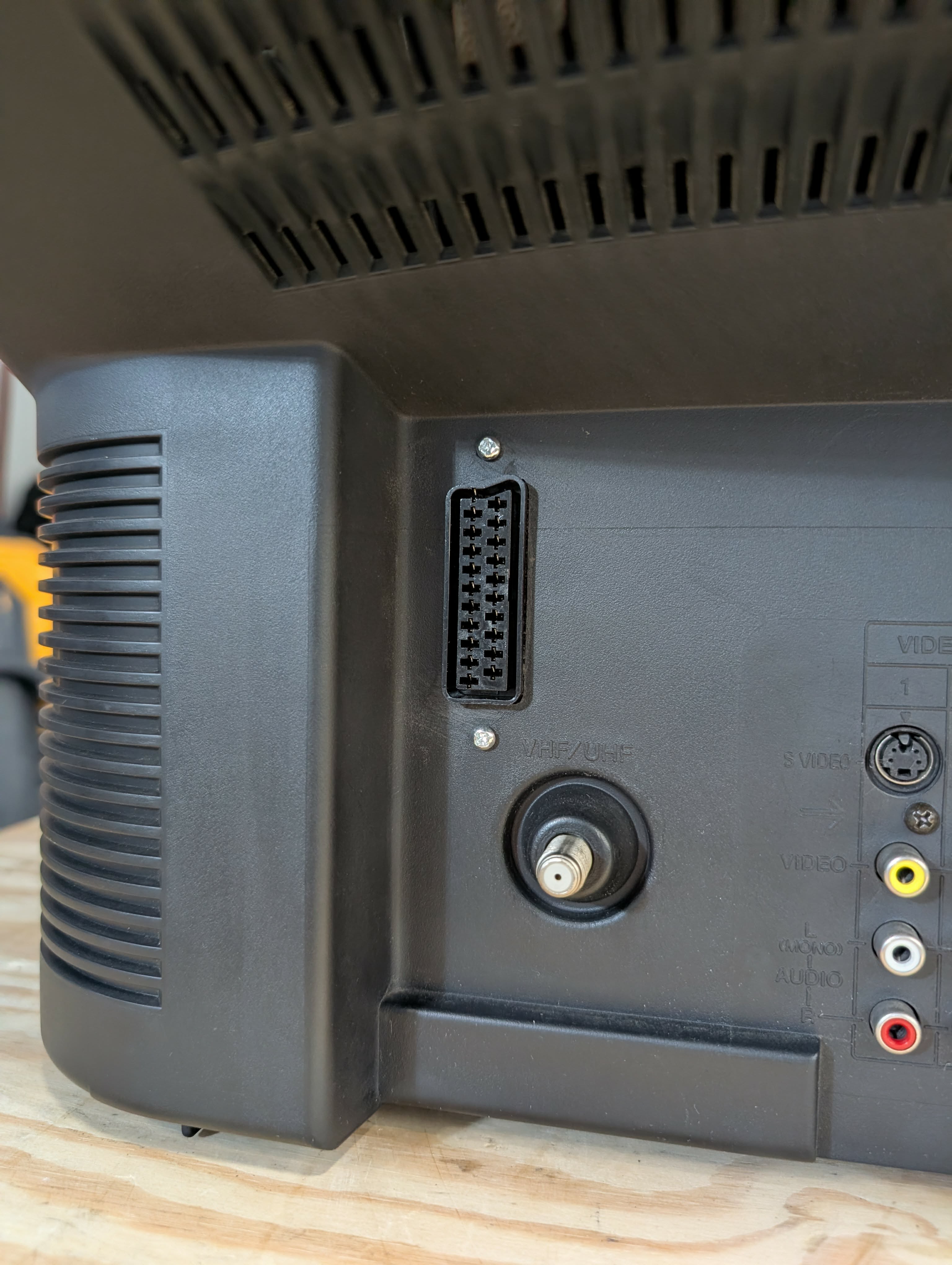

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | TDA8172, Philips |
| Jungle IC: | Sony, CXA2025AS, CXA2025S |
| Comb Filtering: | 2-Line Digital |
| Flyback: | 1-453-207-11 |
| Focus Type: | Single |

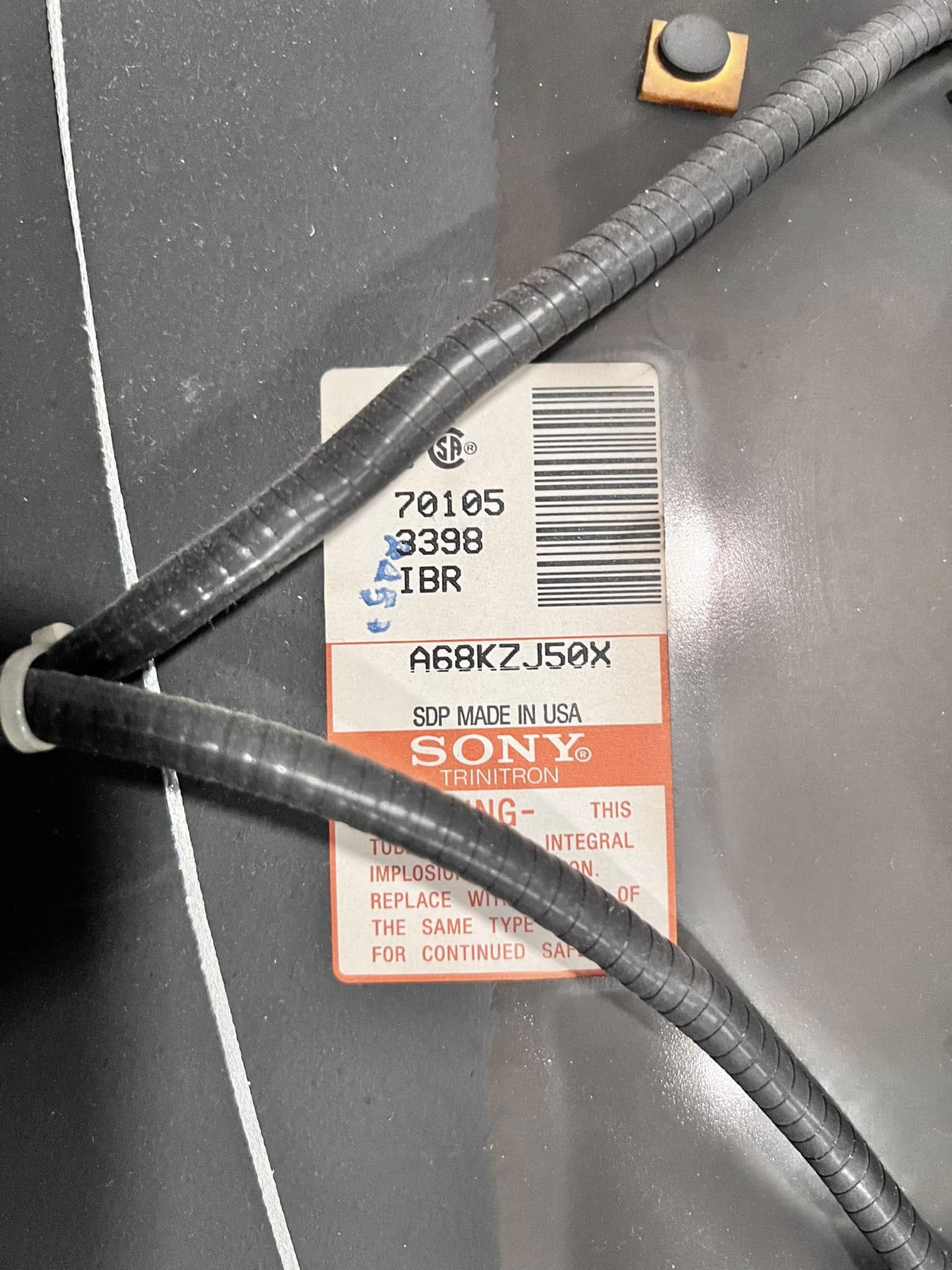

| Tube: | Sony Trinitron , A68KZJ50X |
| Heater Voltage: | 6.3v |
| Mask: |

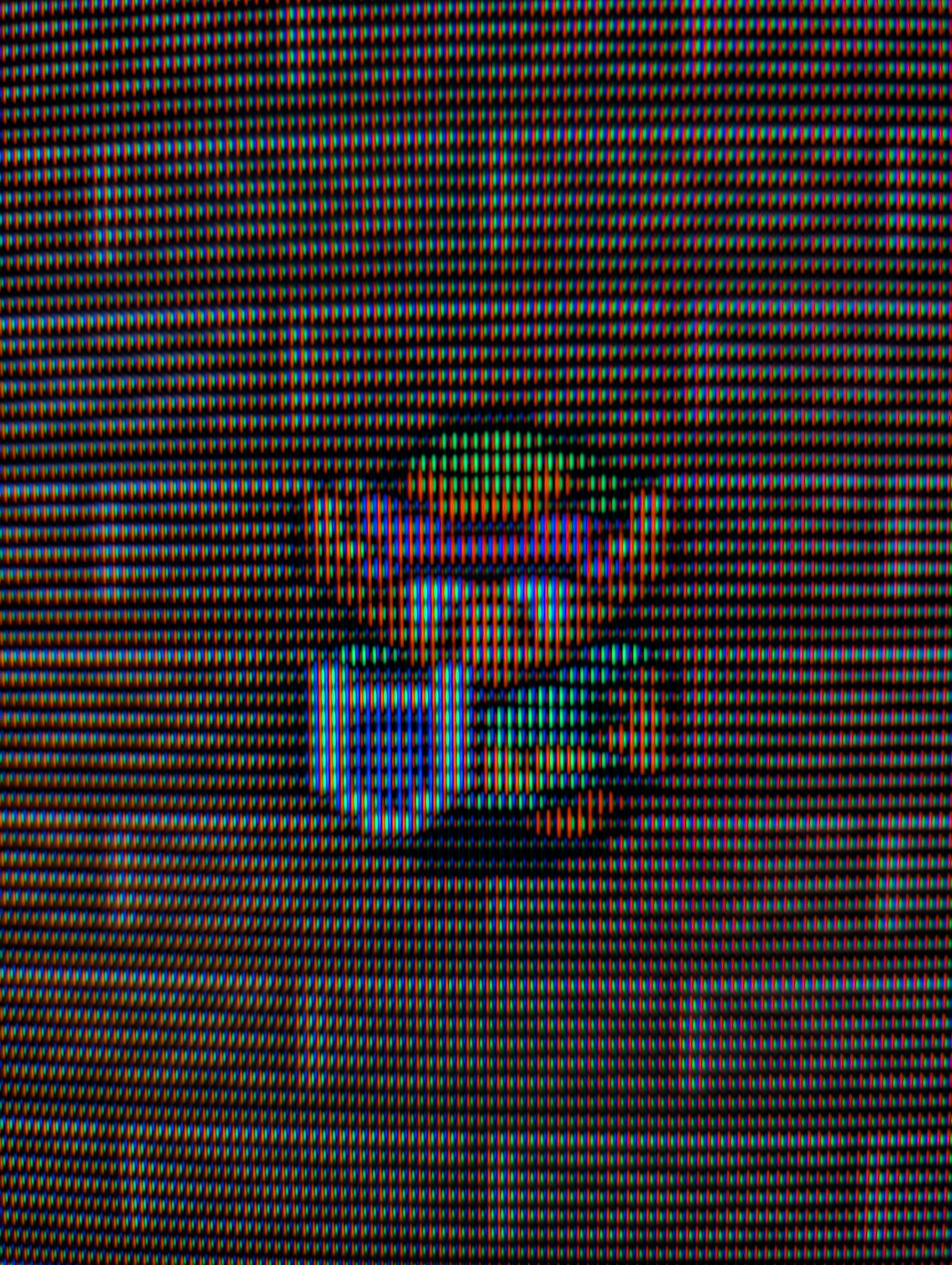

Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 5W x 2 |

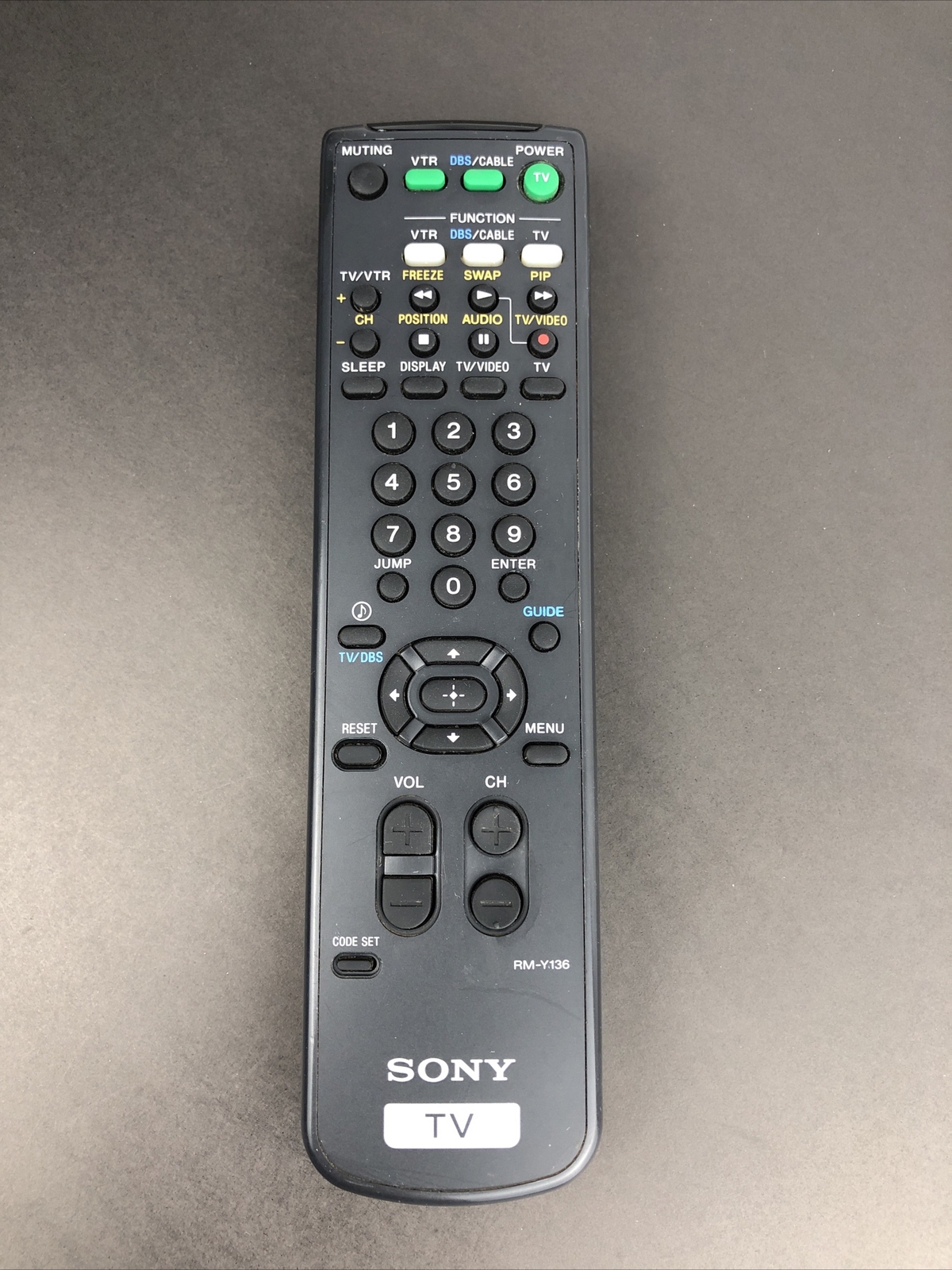

| Remote: | RM-Y136 |
| Chassis: | AA-2 |
| Weight: | 89.8 lbs (40.7 kg) |
| Dimensions (W/H/D): |
660 x 603 x 521 mm
(25.9 x 23.7 x 20.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1996 |
| MSRP: | 649 USD |

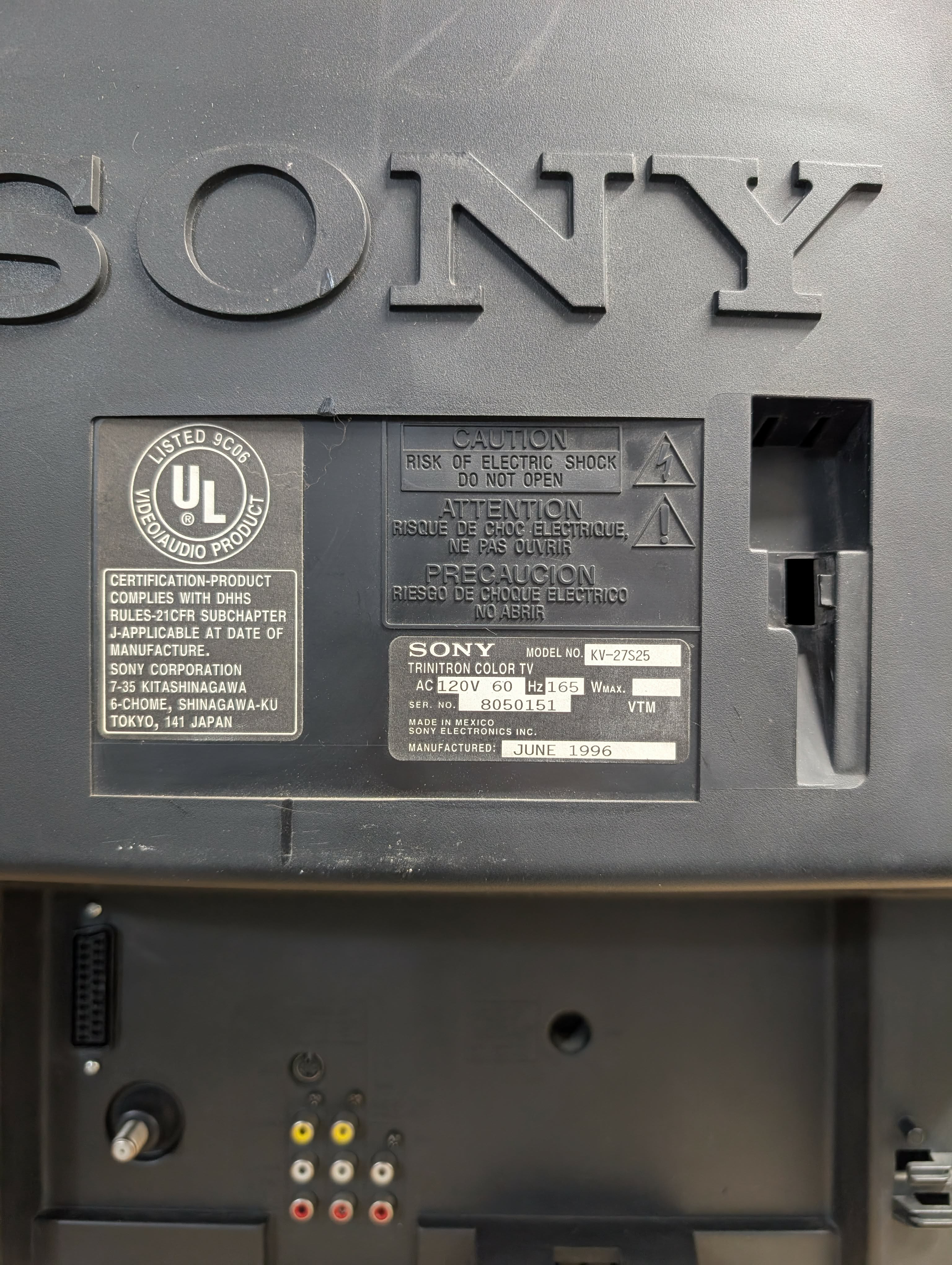

| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |

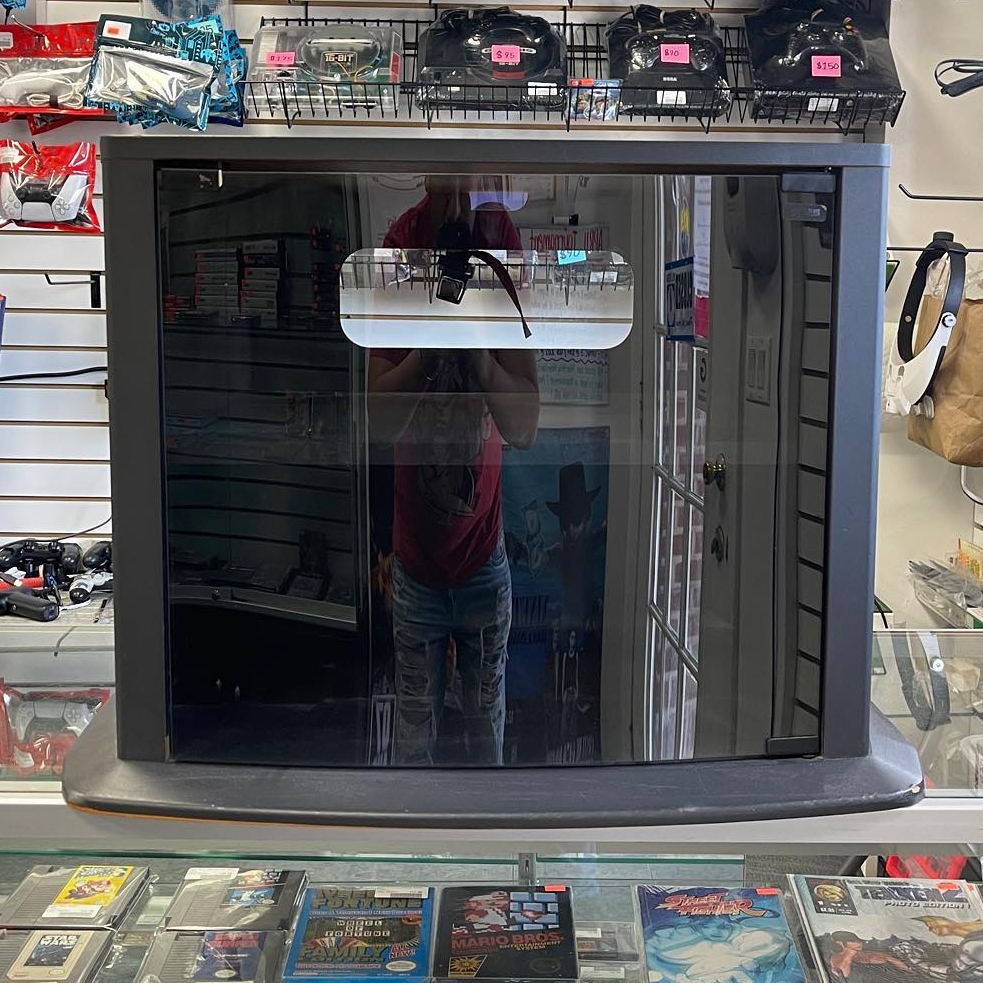

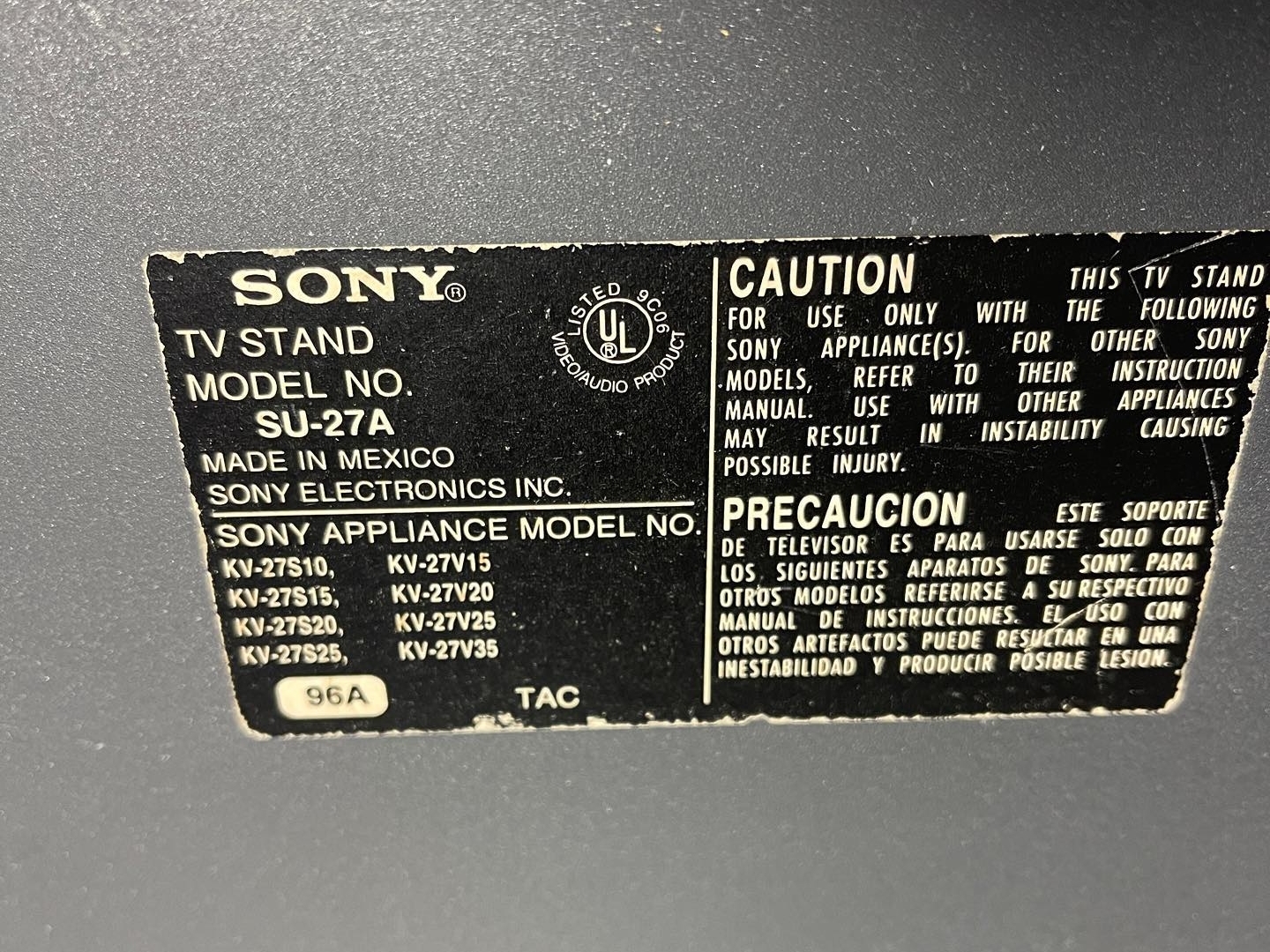

| Mounting: | Desk Stand, OEM Stand, SU-27A |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
