Summary
RGB-moddable set with S-Video input.
Manuals
Mods & Repair Guides
Service Notes

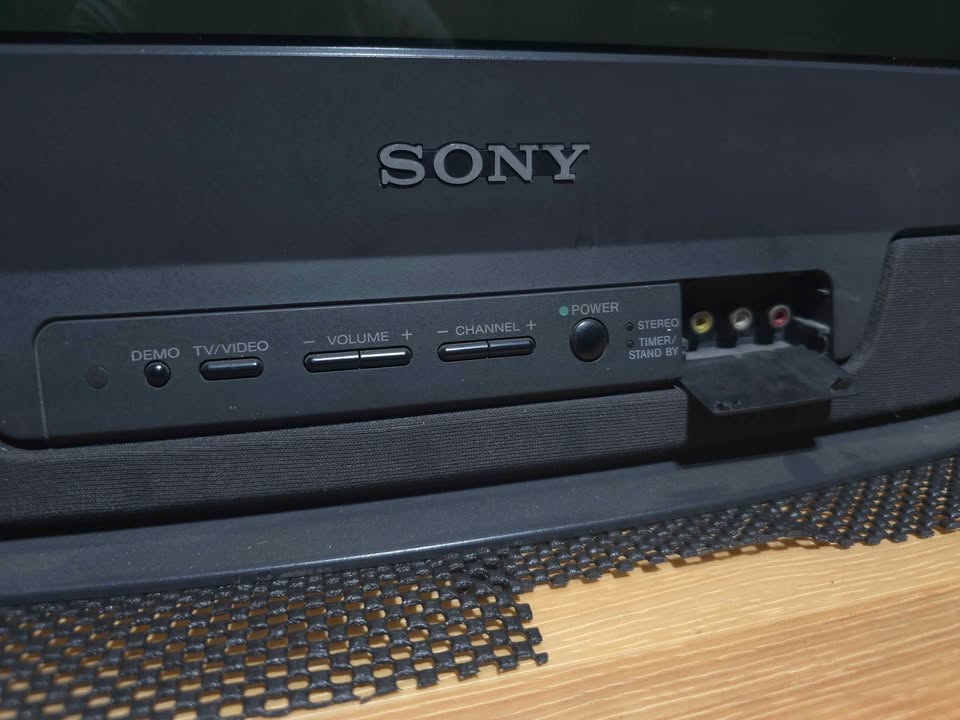

Encountered points of failure include speaker foam disintegration, yoke sag, and oxidized microswitches for the front buttons which can be cleaned with contact cleaner.
Sunthar's RGB guide instructs to remove R127 to disconnect blanking coming from the CC chip, but I went with leaving that resistor intact and instead cutting pin 3 of the CC chip close to the chip itself, and sending blanking to the remaining leg.

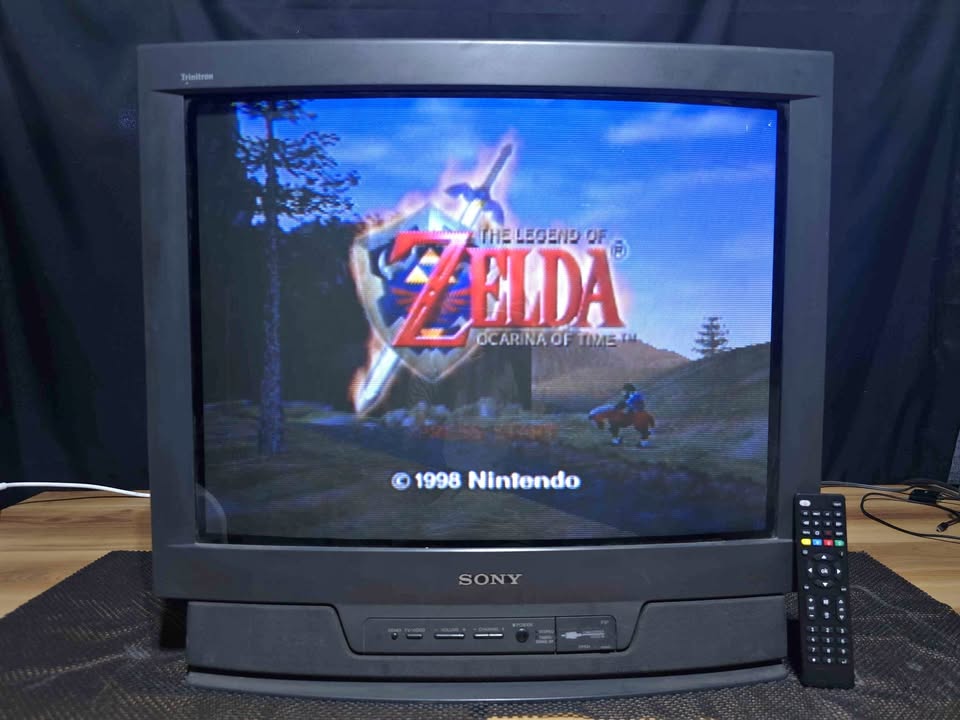

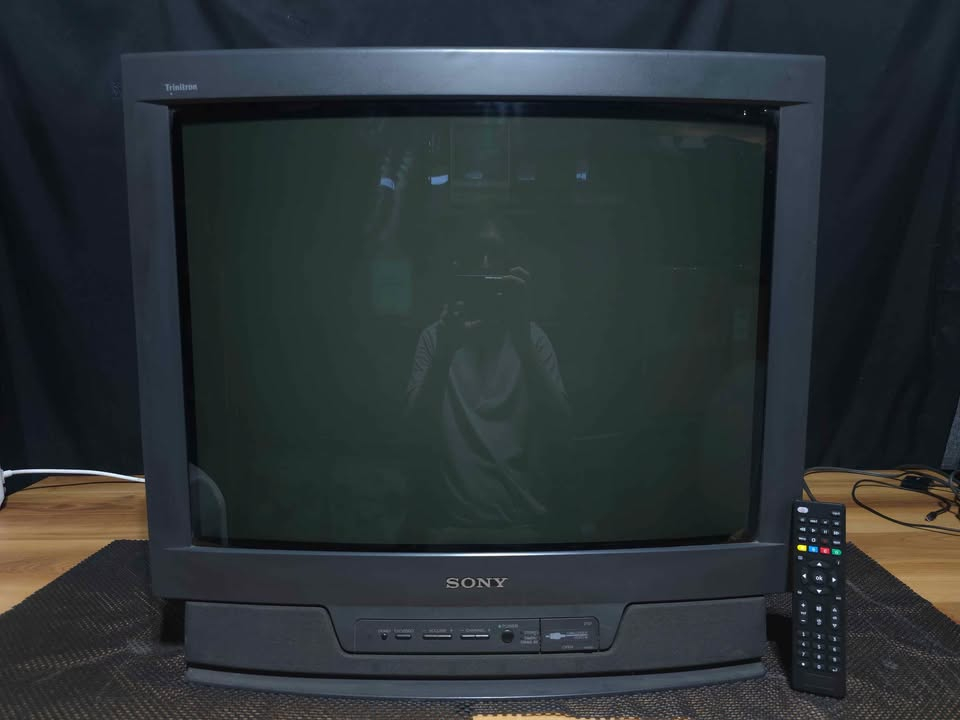

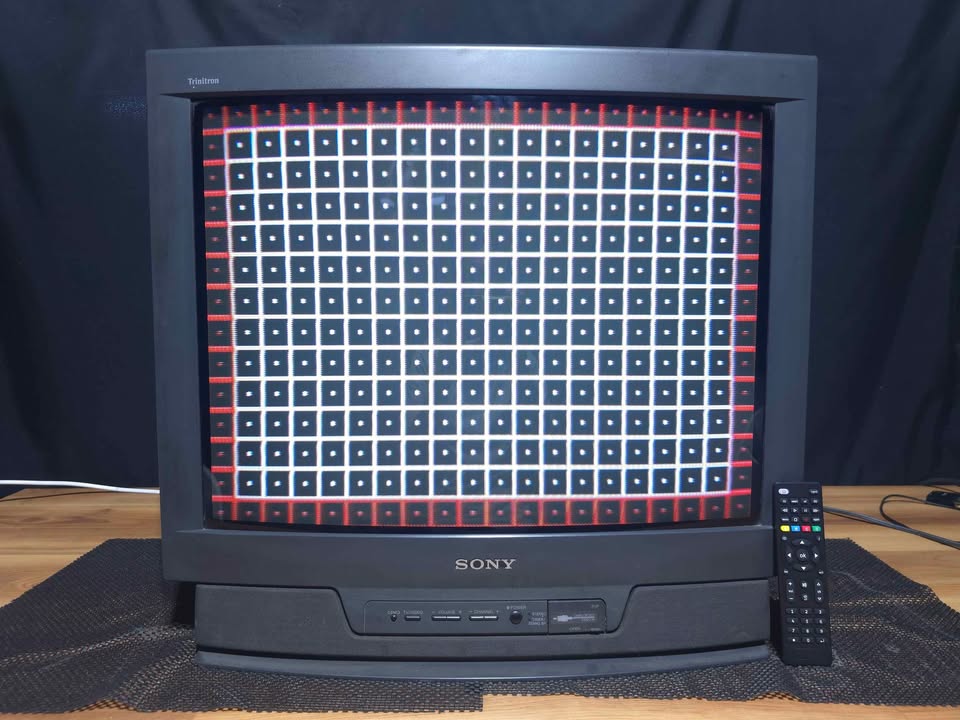

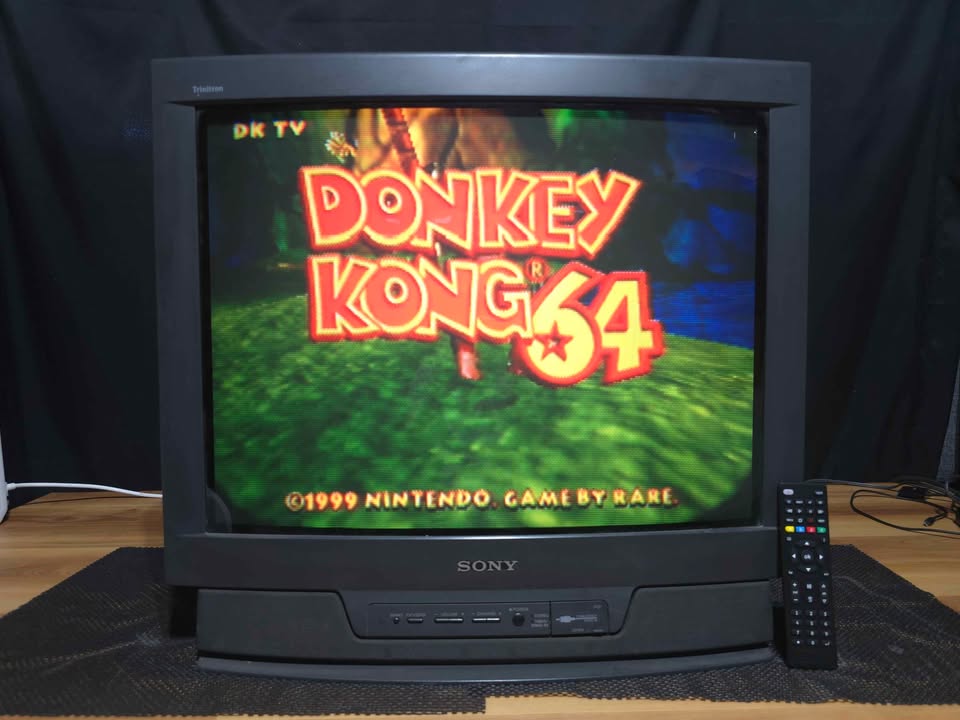

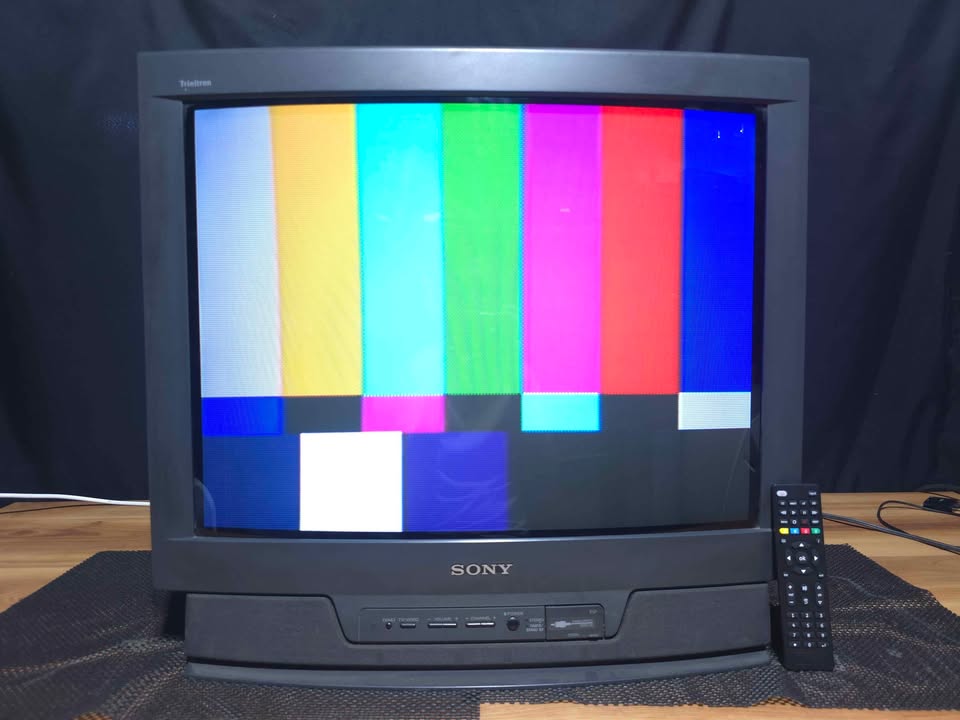

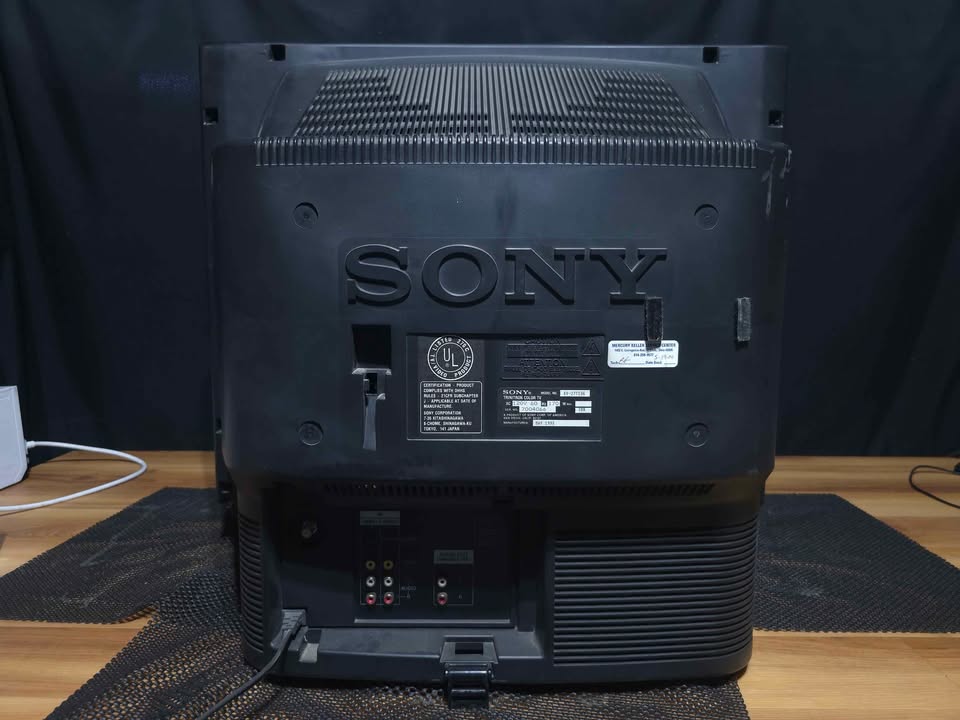

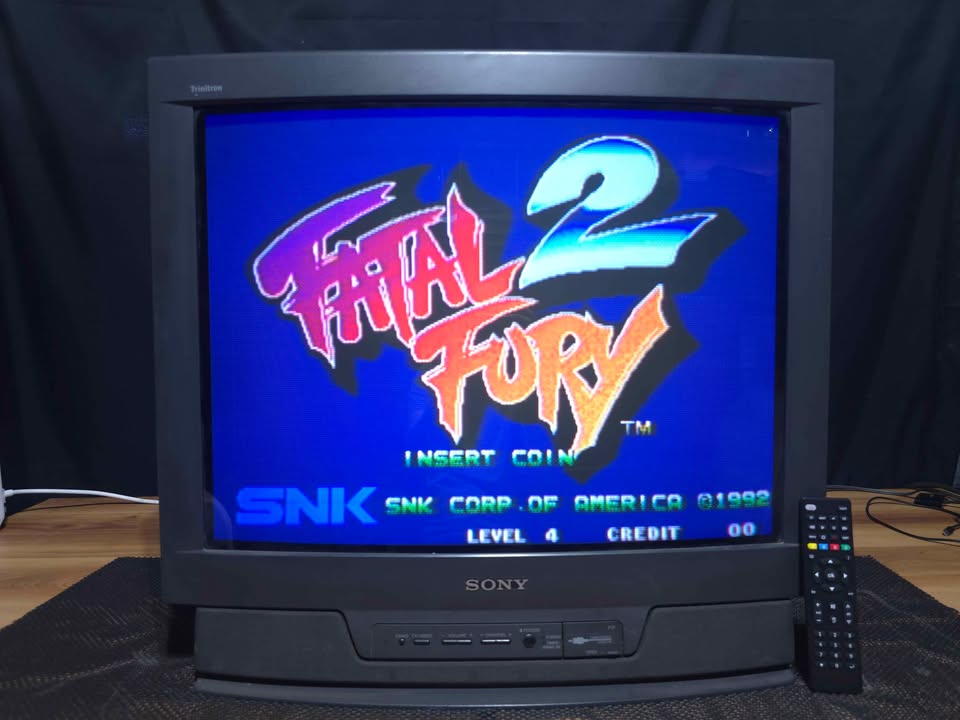

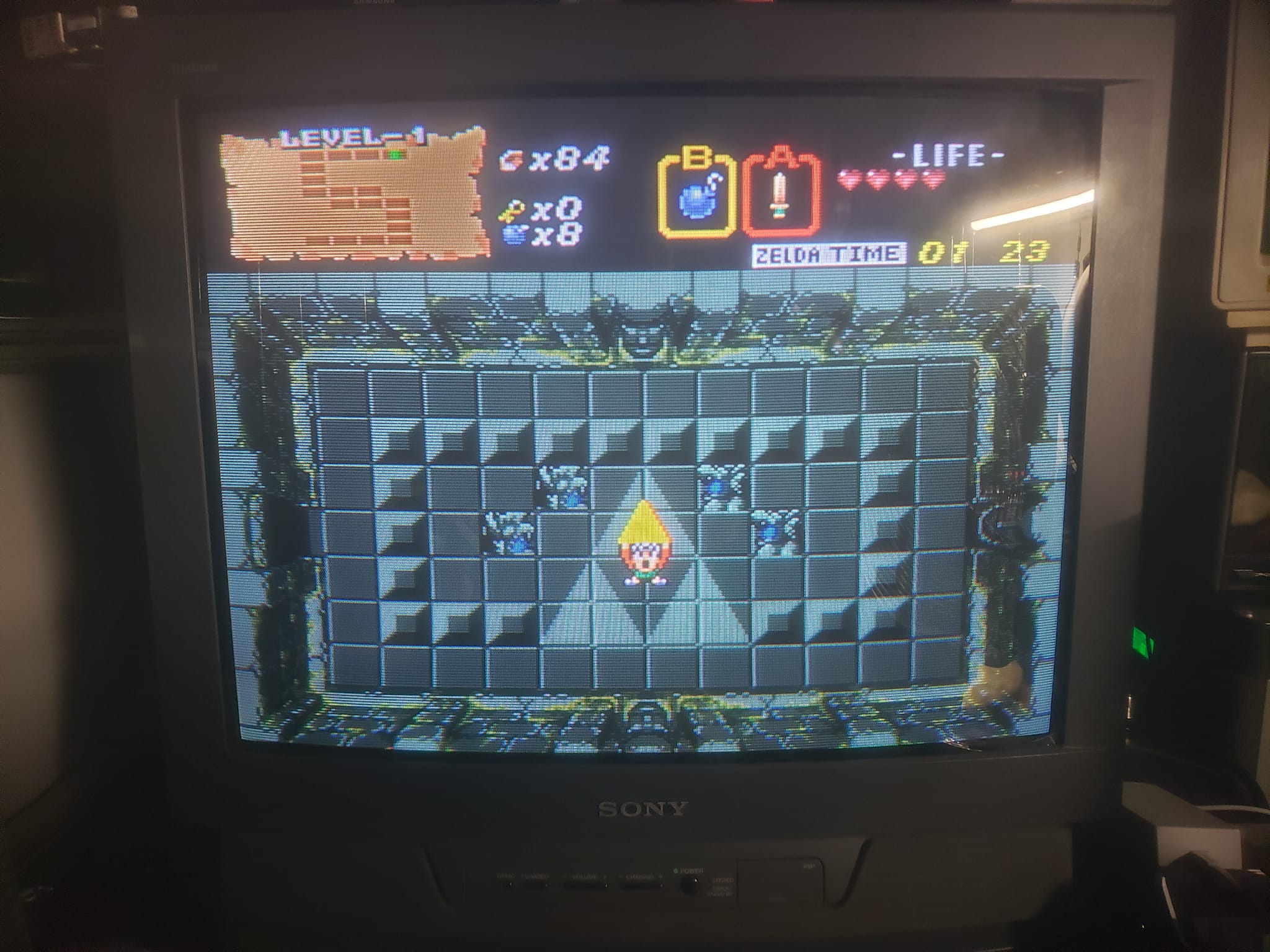

Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |

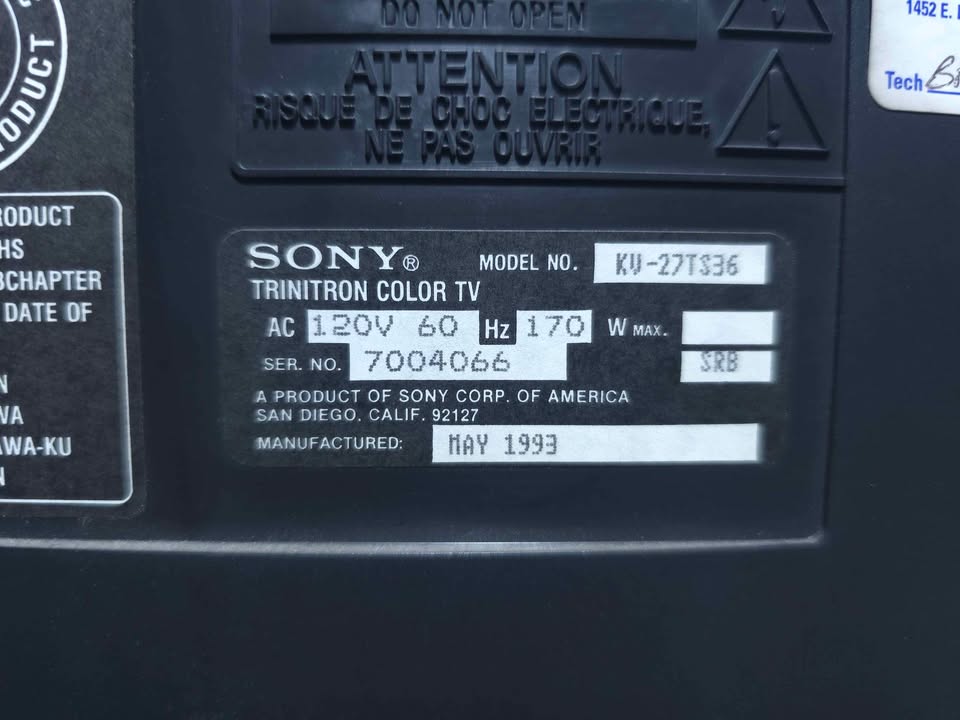

| Model: | KV-27TS36 |
| Series: | KV |
| Viewable Size: | 27" |

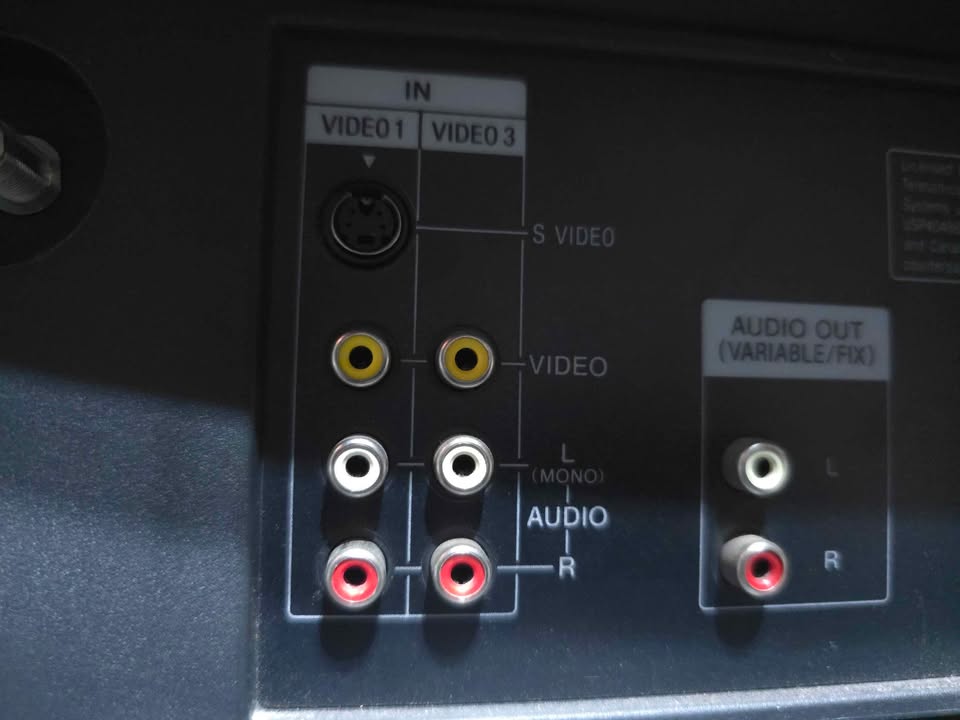

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle: | Sony, CXA1465AS |
| Comb Filter IC: | CM402 1-466-912-21 |
| Tube: | Sony Trinitron , A68KZJ50X |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Speakers: | Stereo, 5W x 2 |
| Remote: | RM-Y118 |
| Chassis: | AA-1 |
| Weight: | 93 lbs (42.2 kg) |
| Application: | Consumer |
| Launched: | 1993 |
| Country of Manufacture: | USA |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Pictures |
