Sony KV-27V10
SegaSaturn94
March 4, 2026, 10:23 pm
March 5, 2026, 3:59 am
March 4, 2026, 10:23 pm
March 5, 2026, 3:59 am
Summary

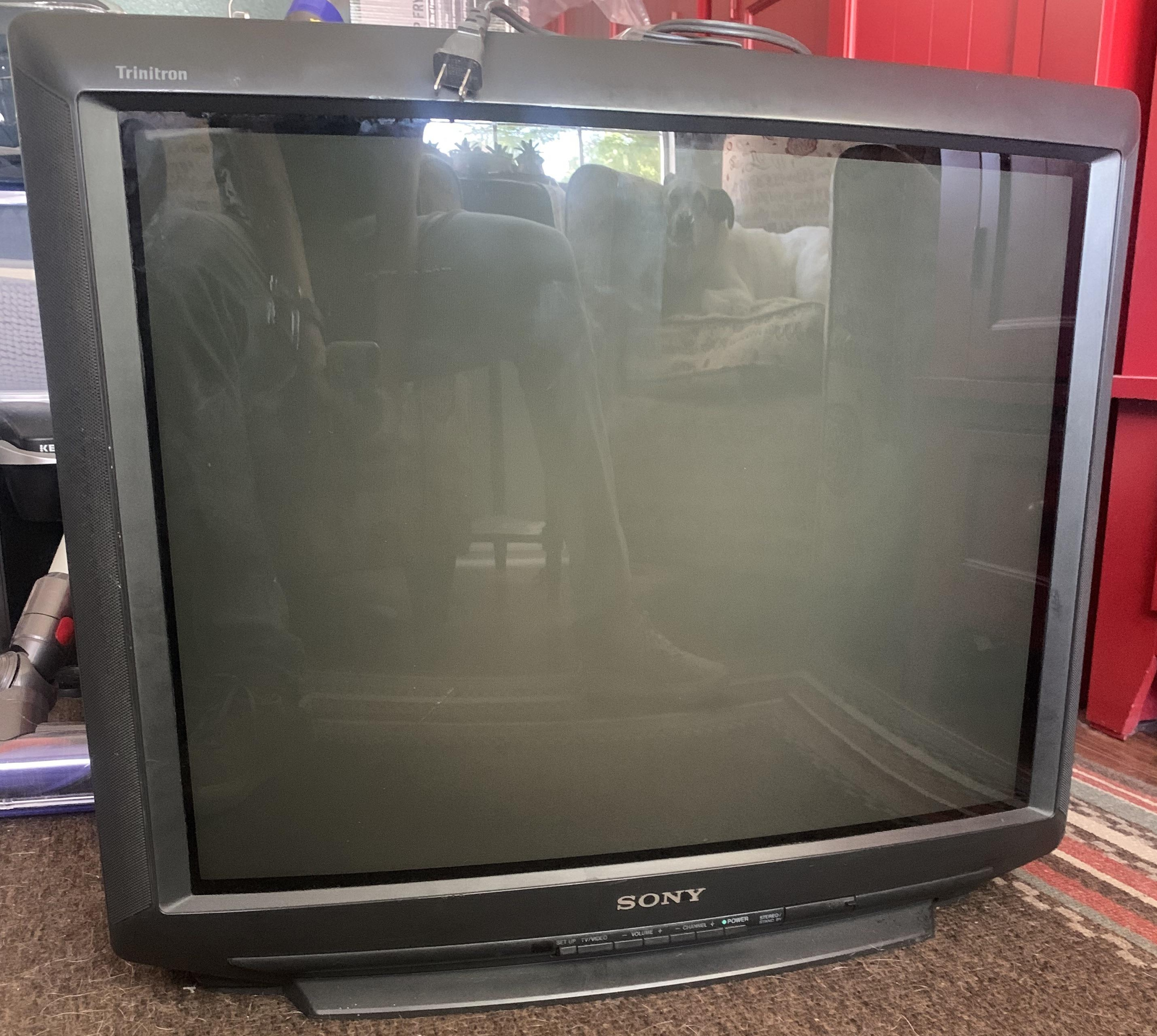

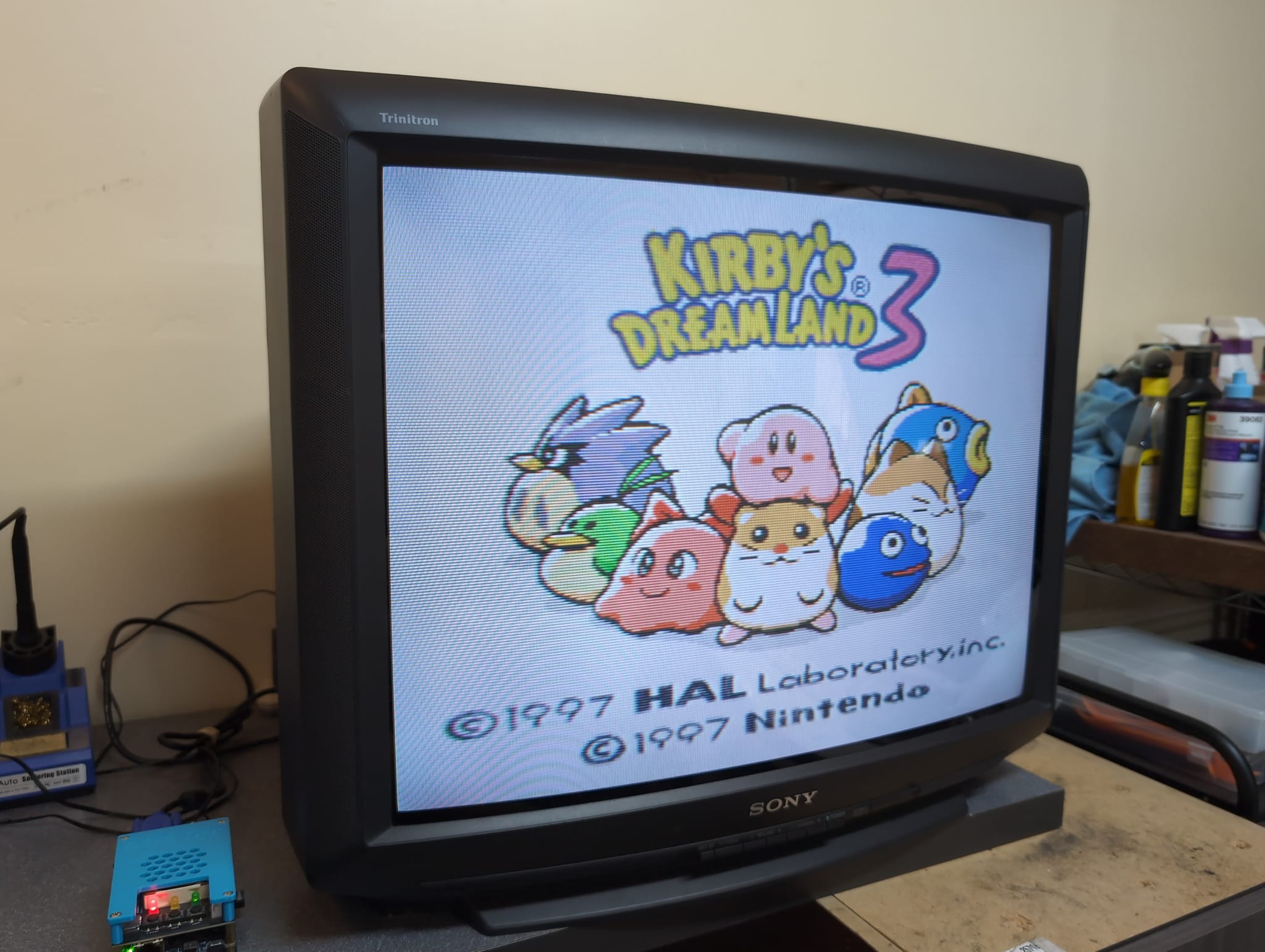

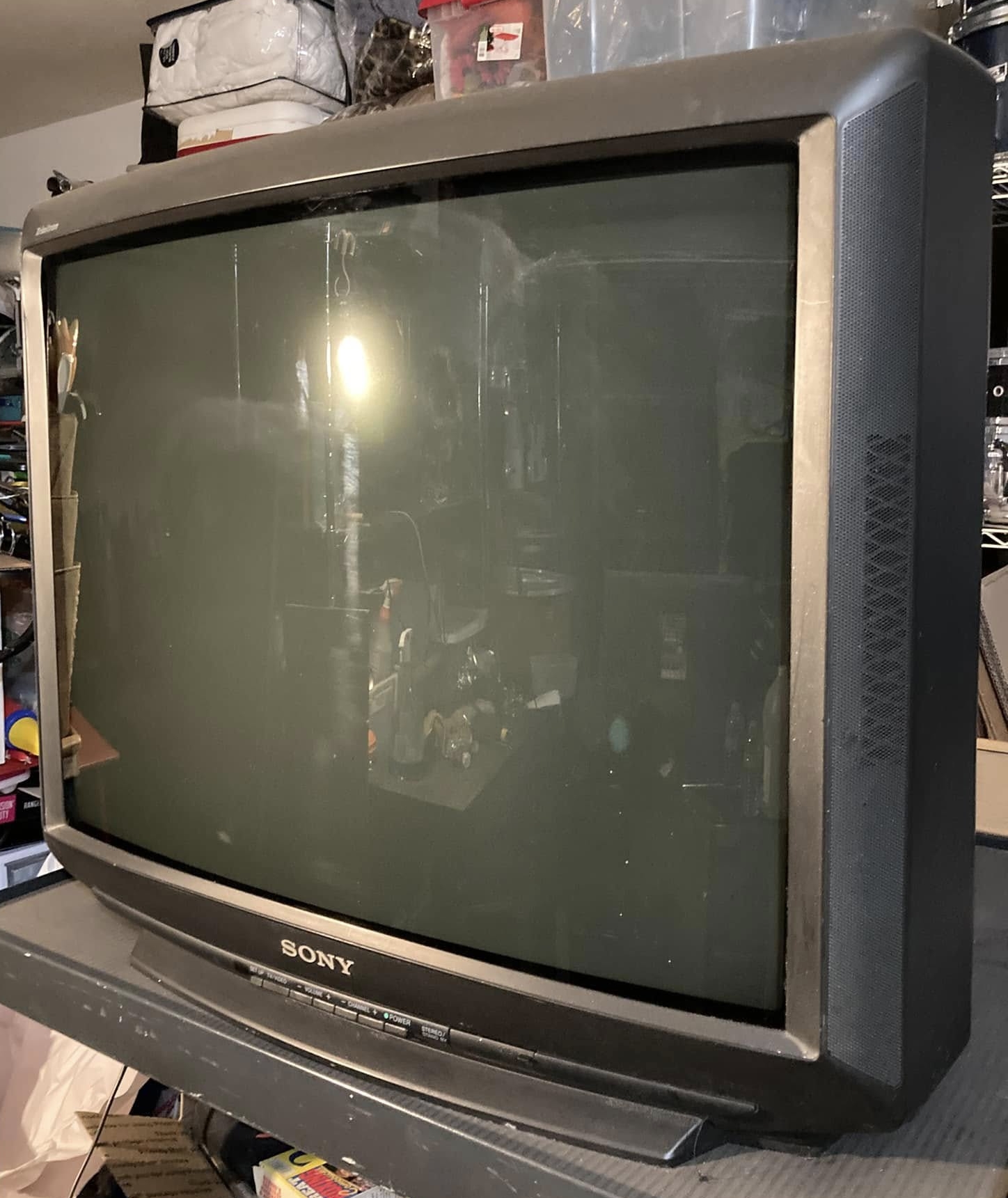

27" curved Trinitron by Sony, made in the USA in 1994. Has RF, composite, s-video with stereo sound.
(Special thanks to John Chavez for some of the pics!)
Manuals
Notes

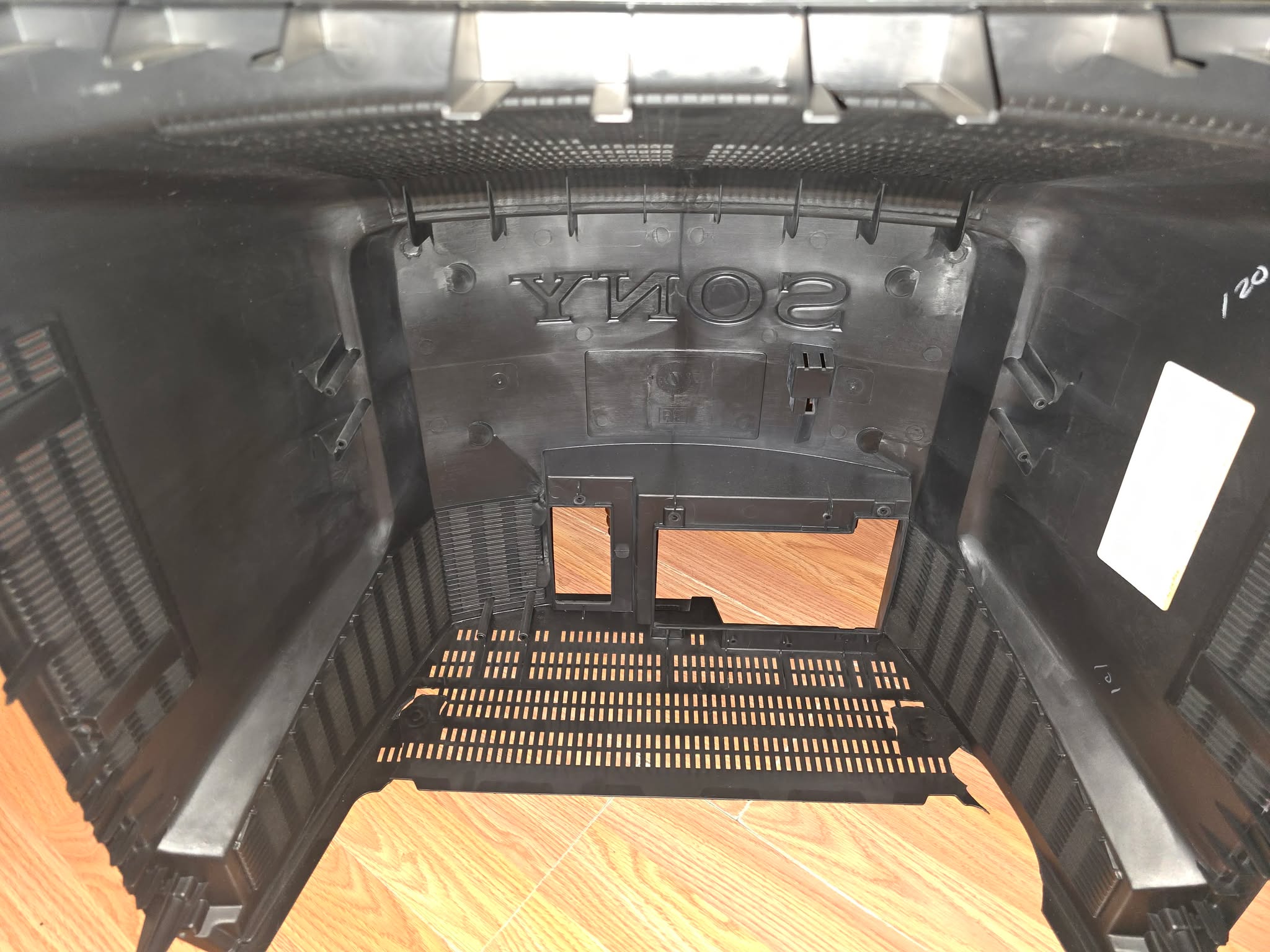

CAUTION: This set was made during Sony's "brittle era" 1993-1996. The cases of this period tend to crack easily, so make sure to handle carefully.
RGB Mod

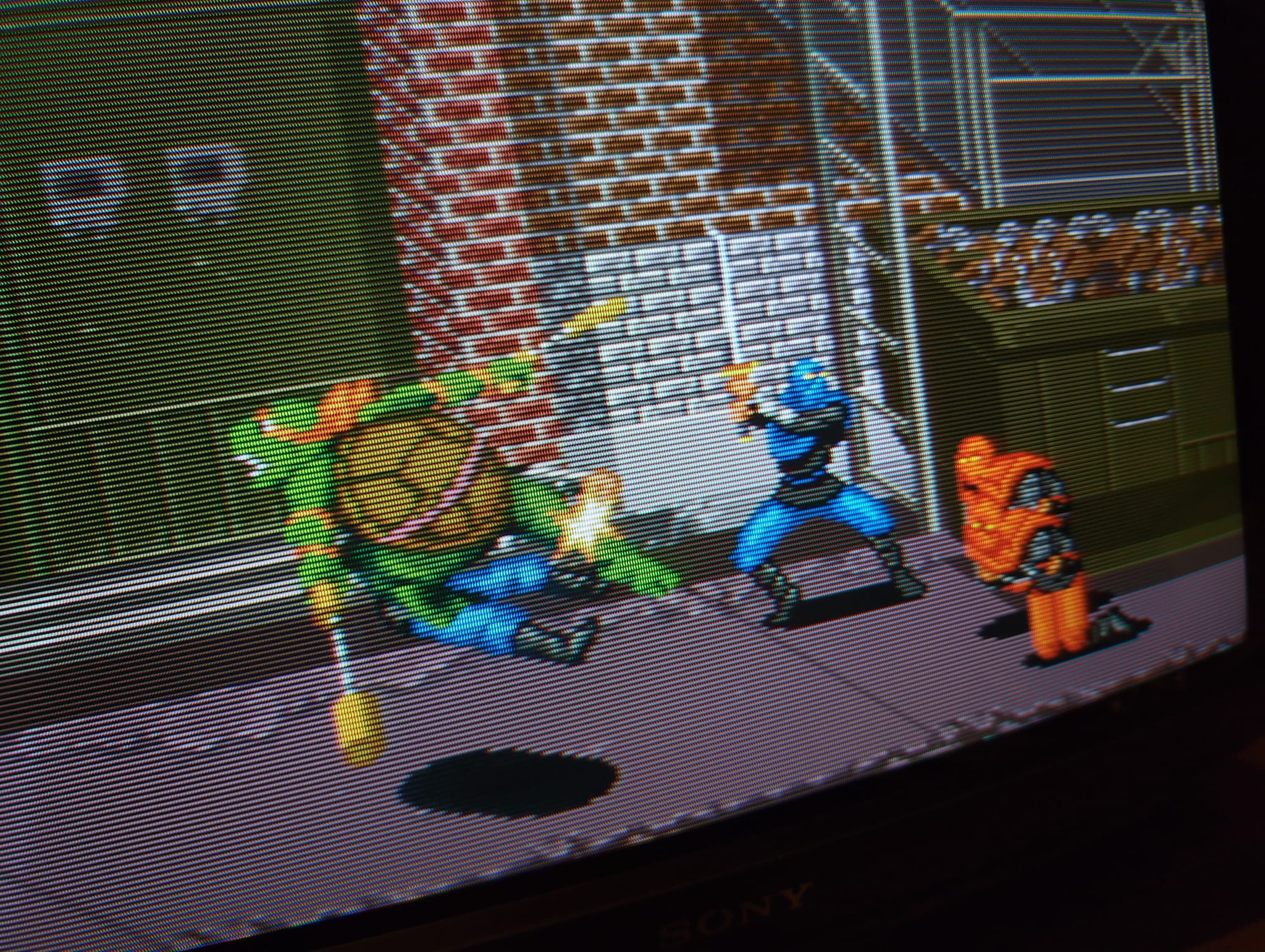

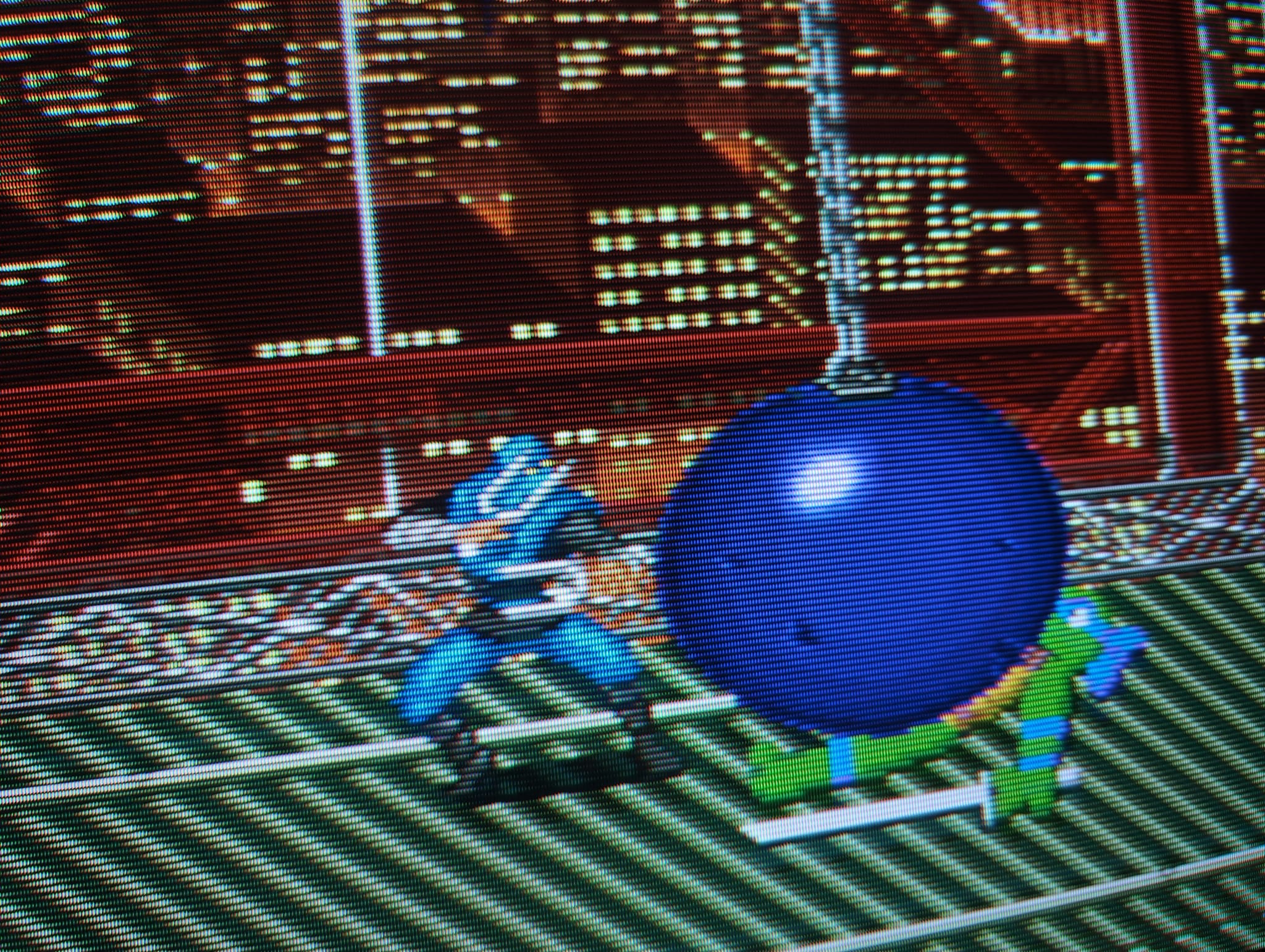

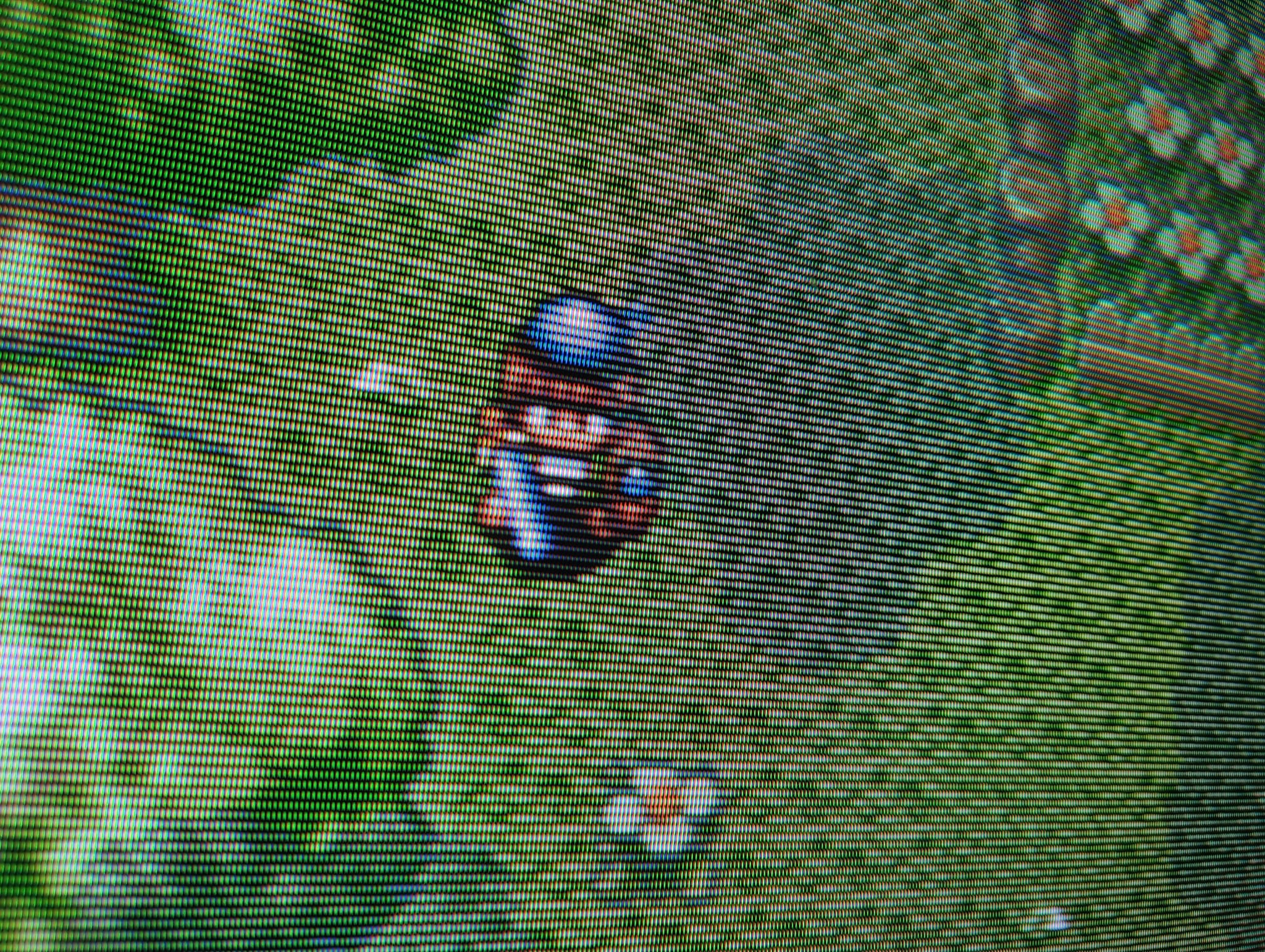

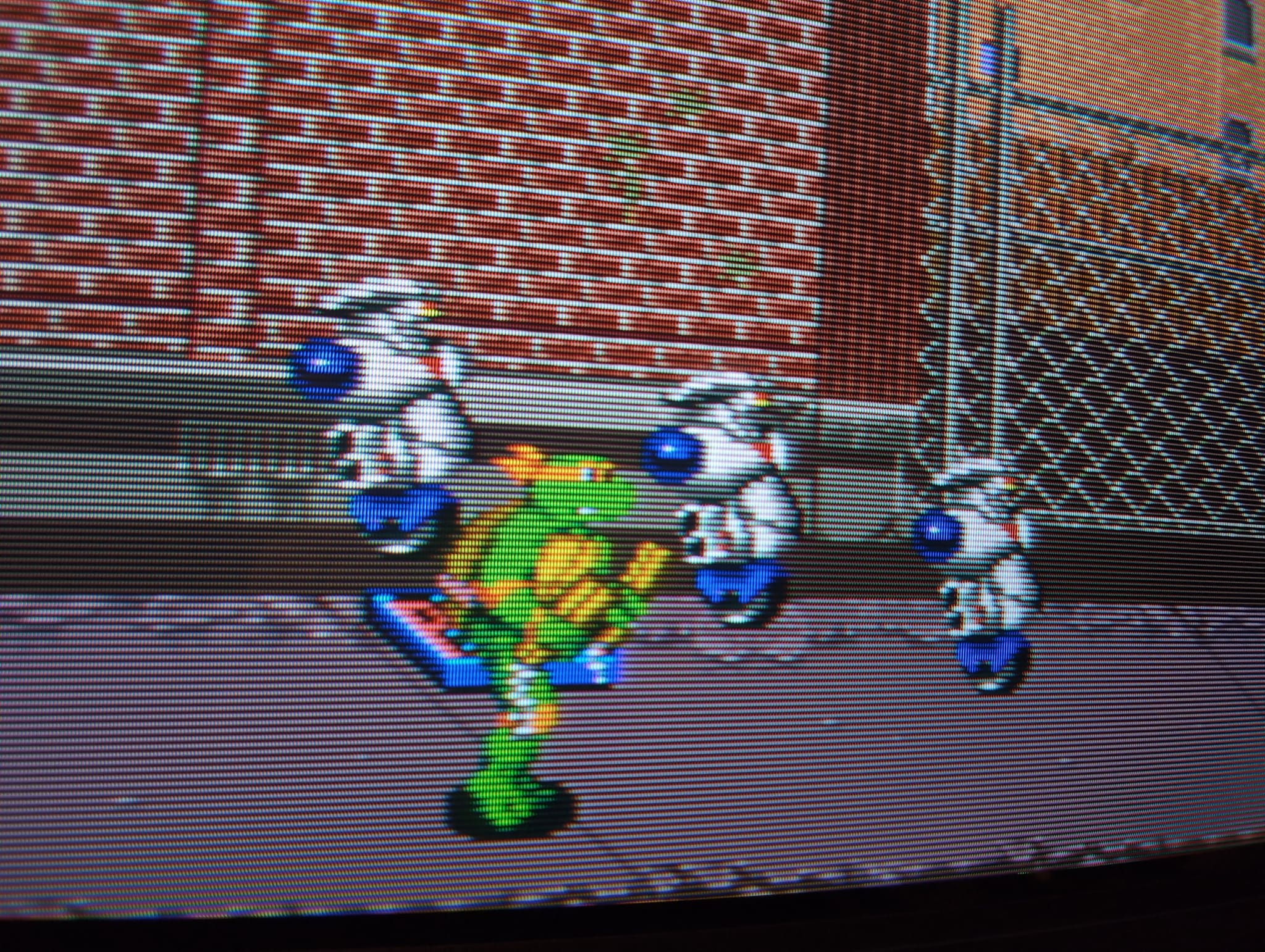

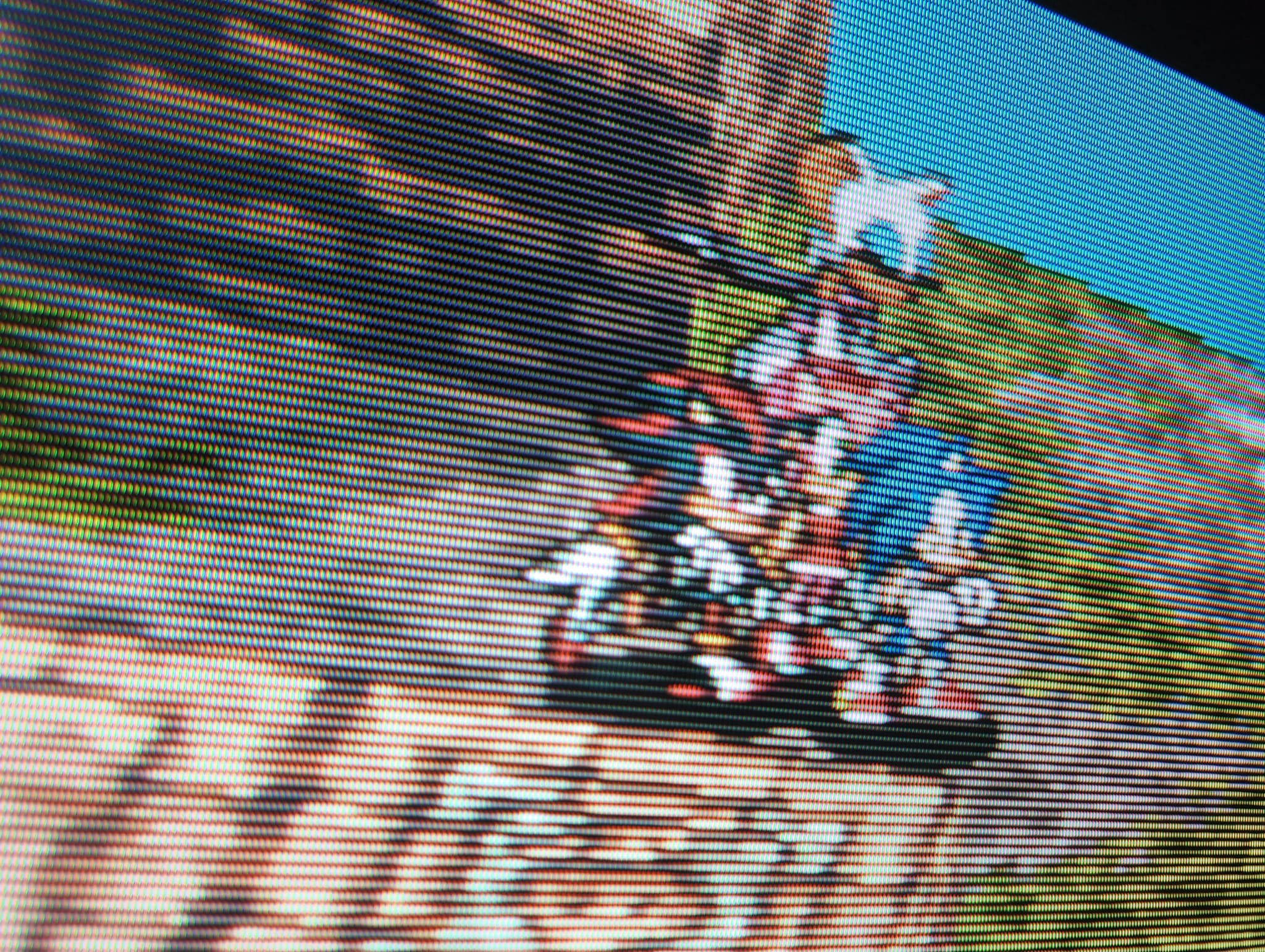

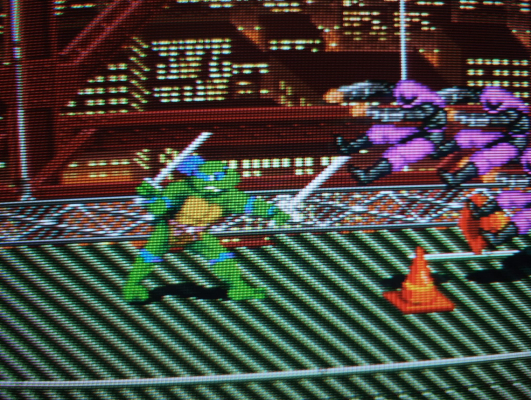

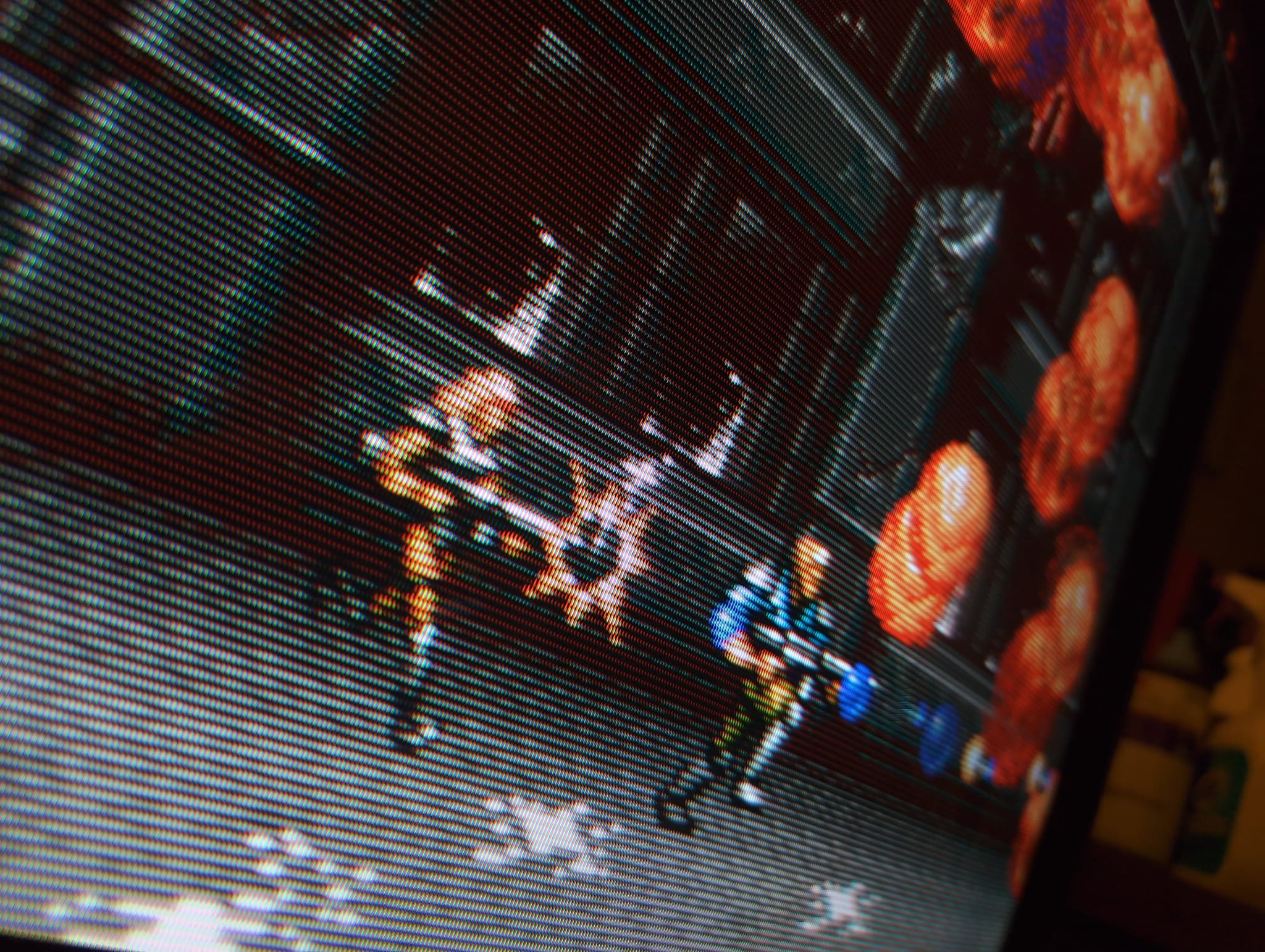

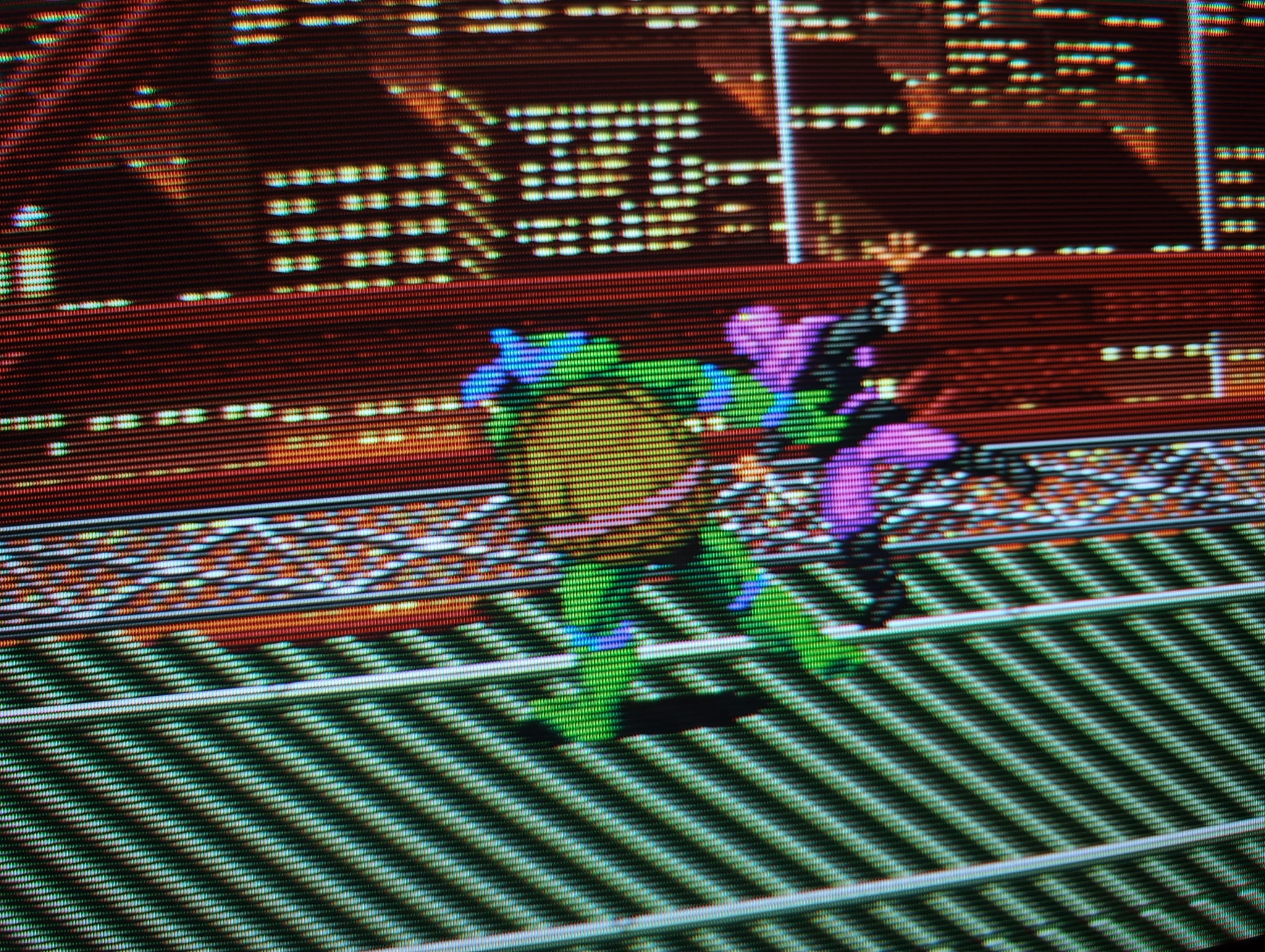

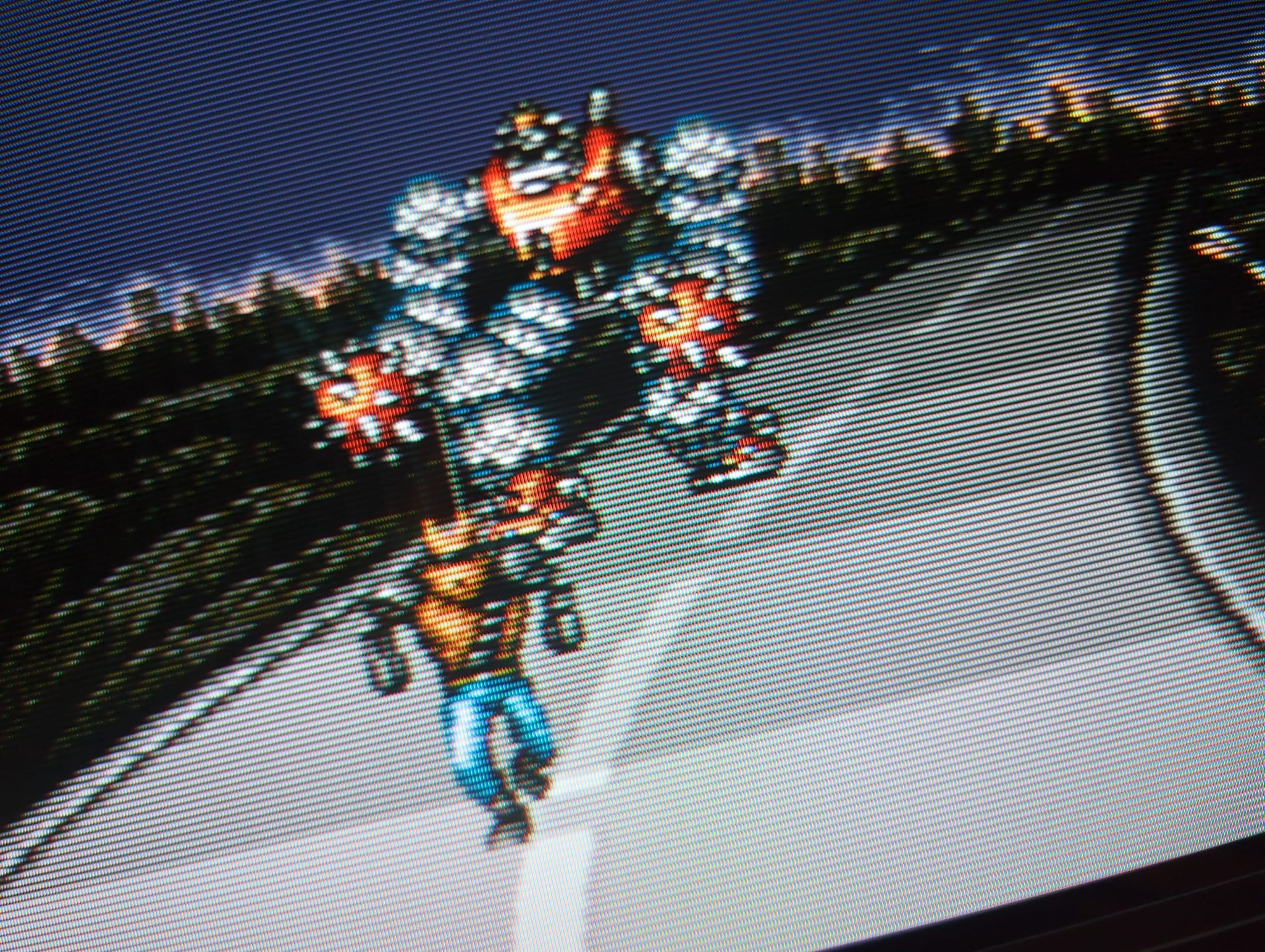

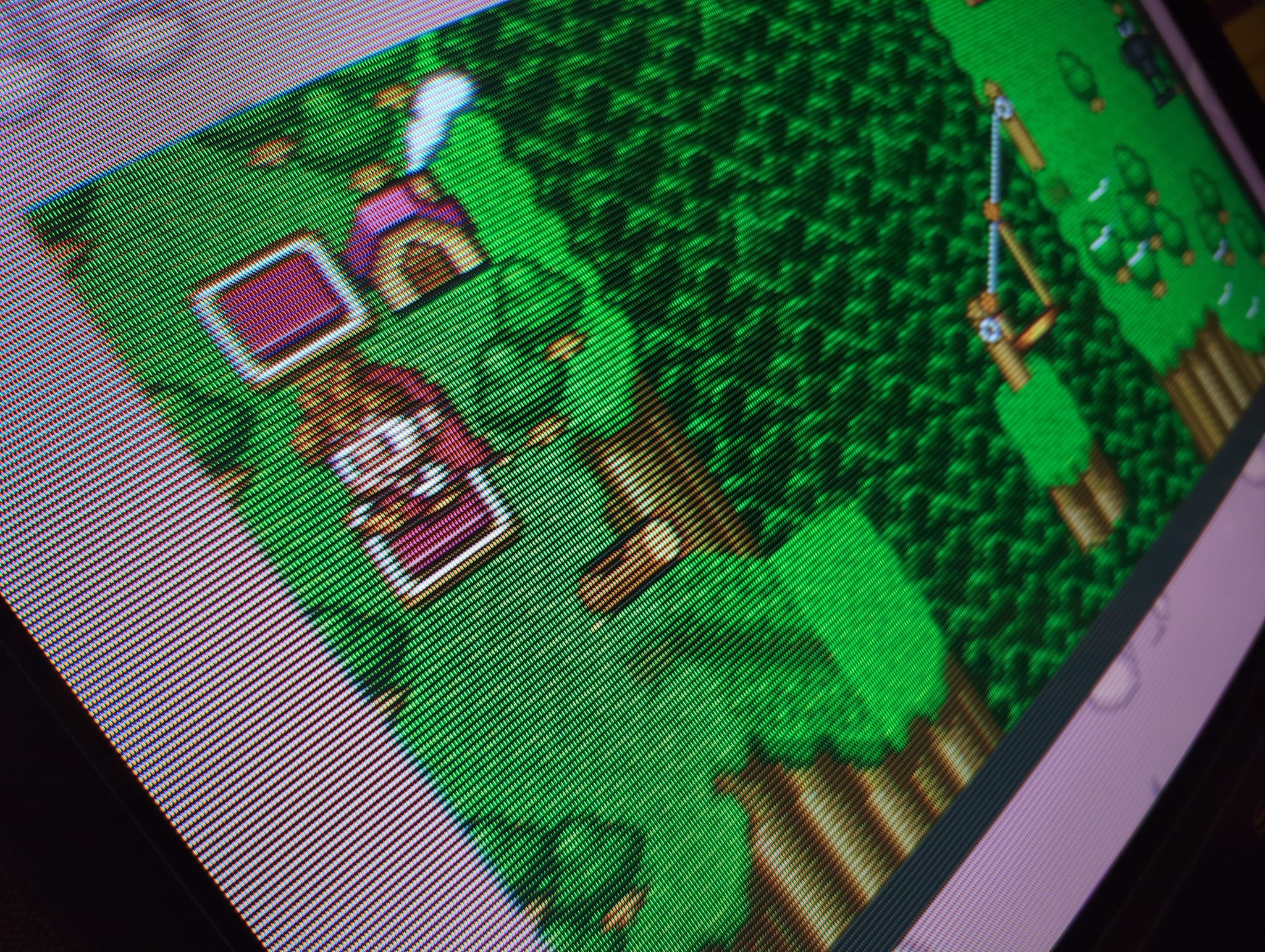

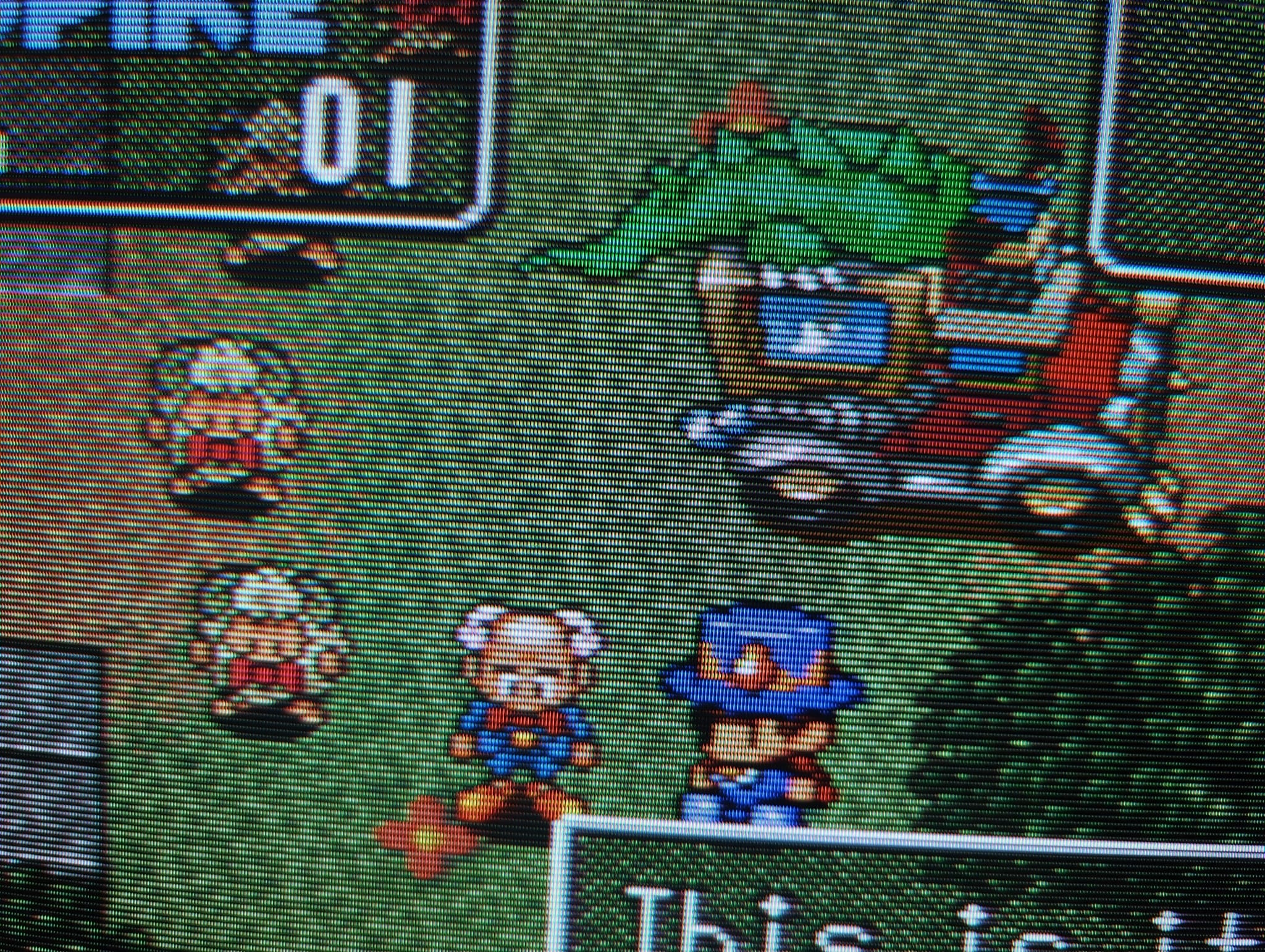

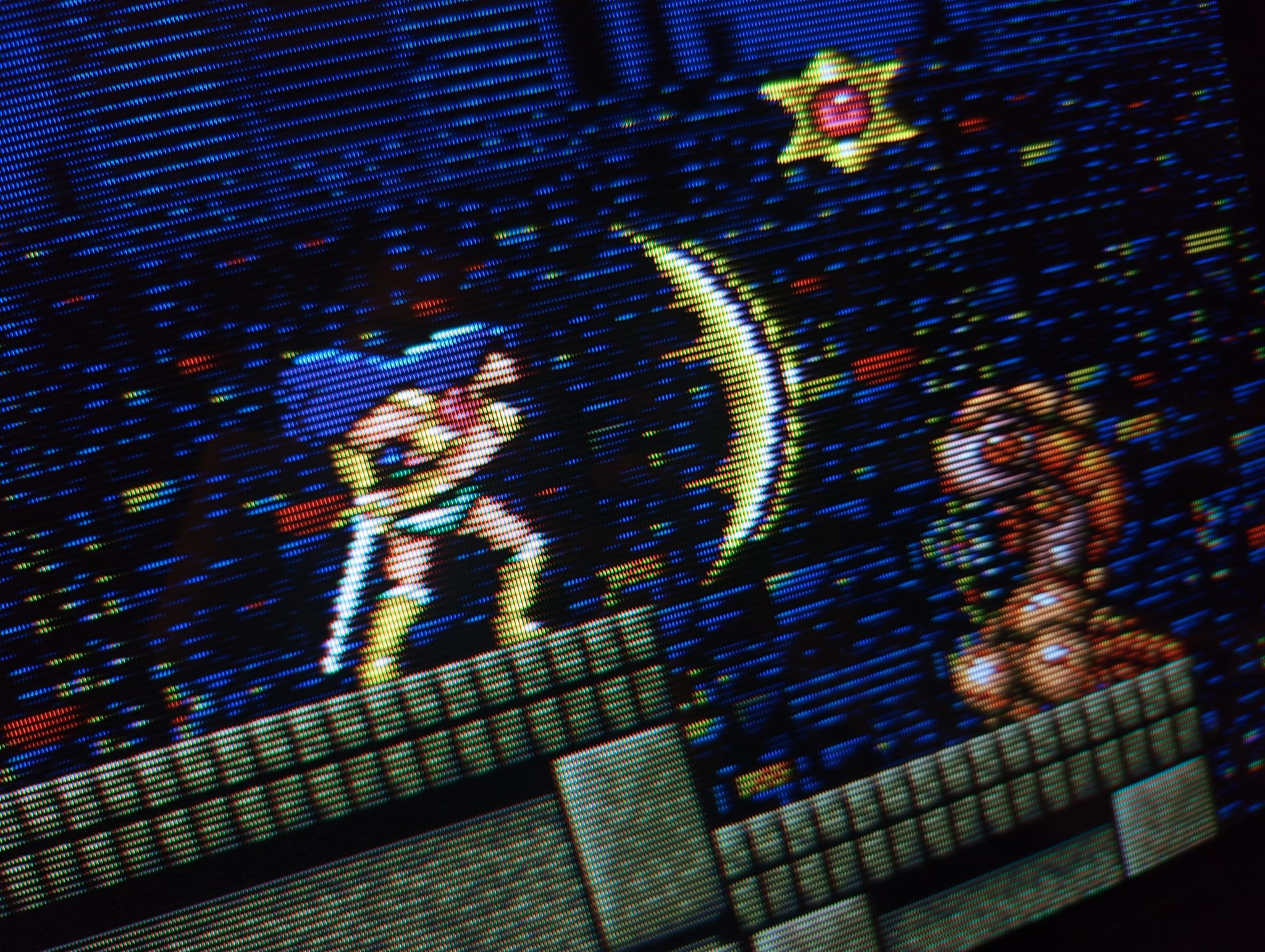

This set can be modded for analog RGB via the OSD mux method. (The included gameplay pics are of RGB.) Follow the instructions on Sunthar's site HERE
Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-27V10 |
| Series: | KV |
| Viewable Size: | 27" |

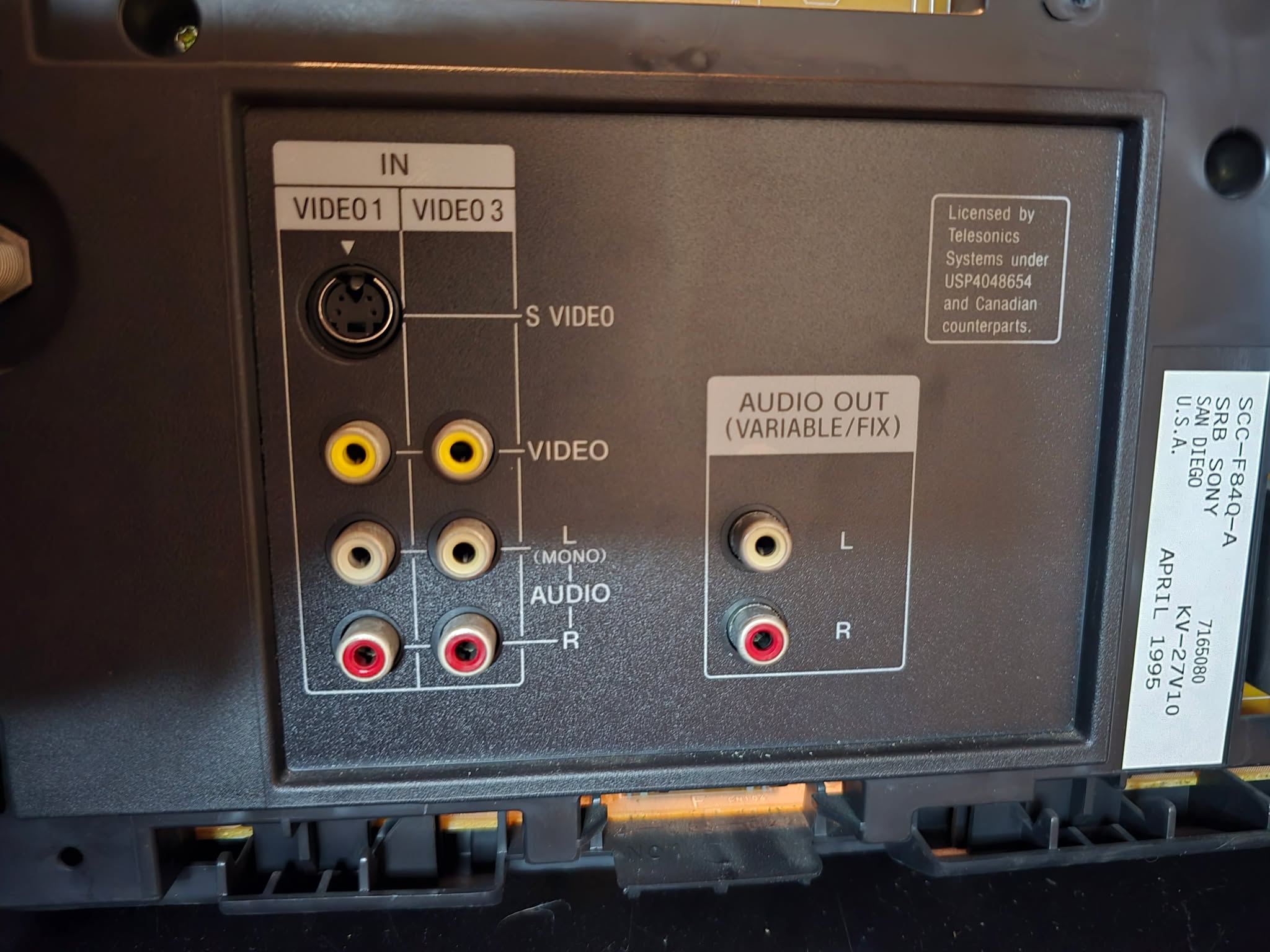

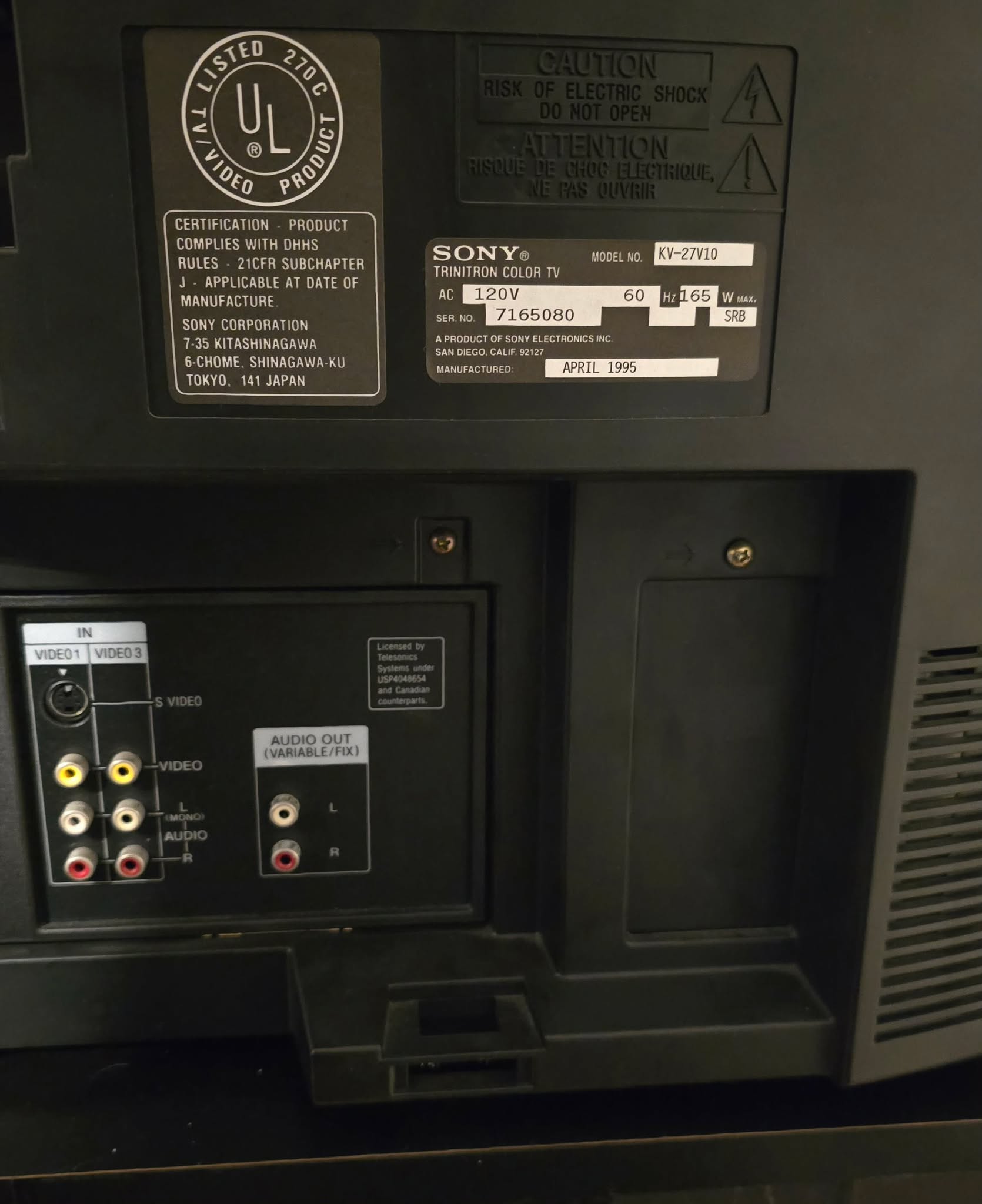

| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Sony, CXA1465AS, CXA1465 |
| Focus Type: | Single |

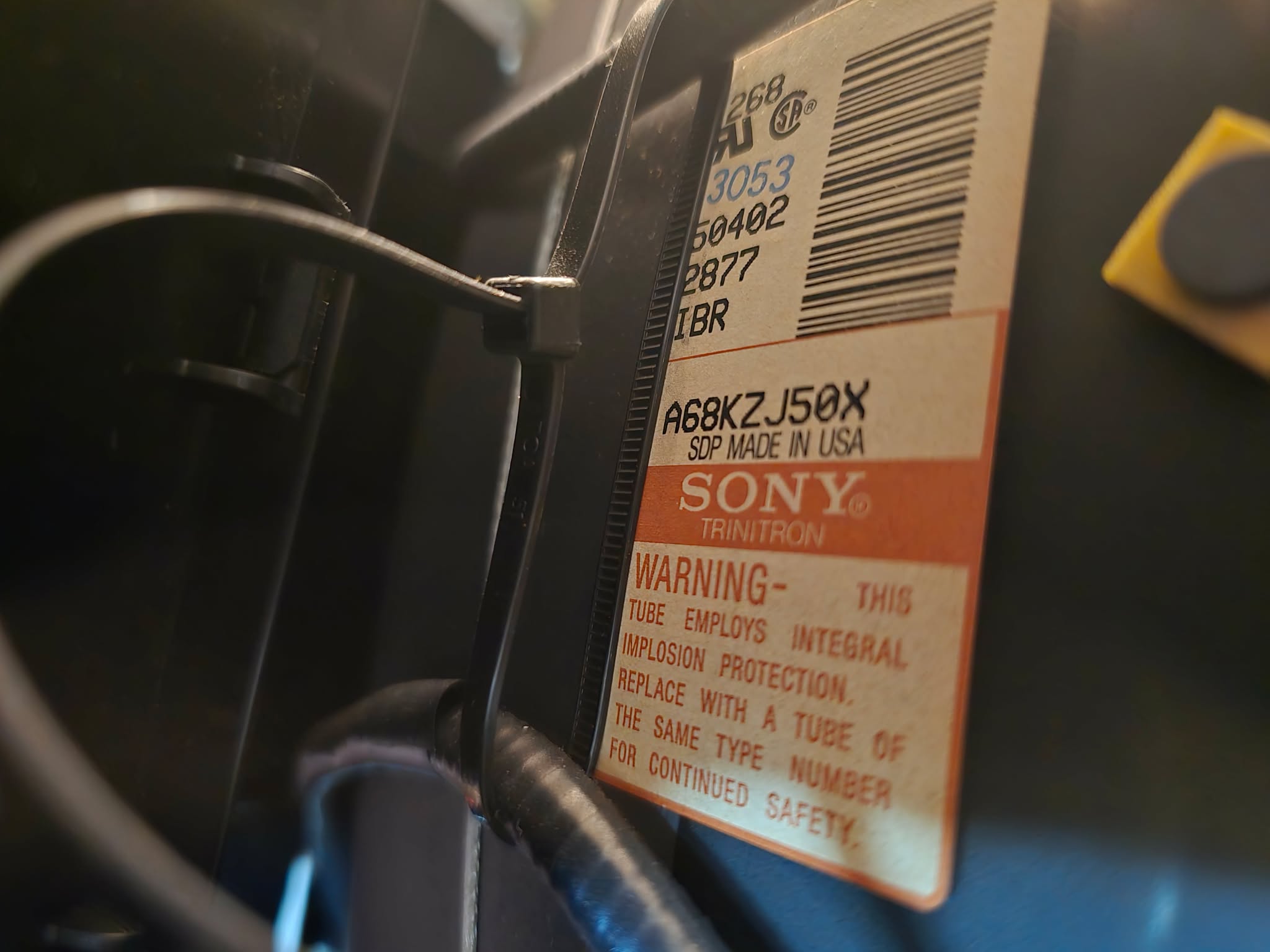

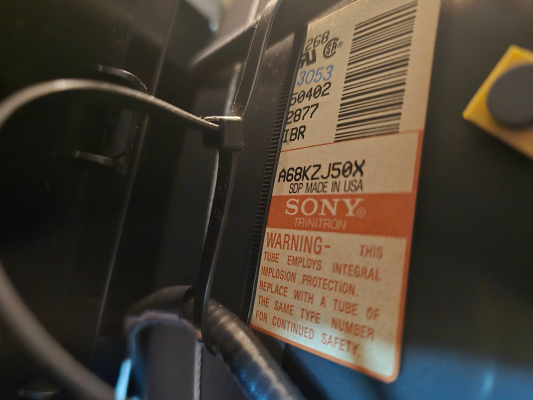

| Tube: | A68KZJ50X , HiBlack Trinitron |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |

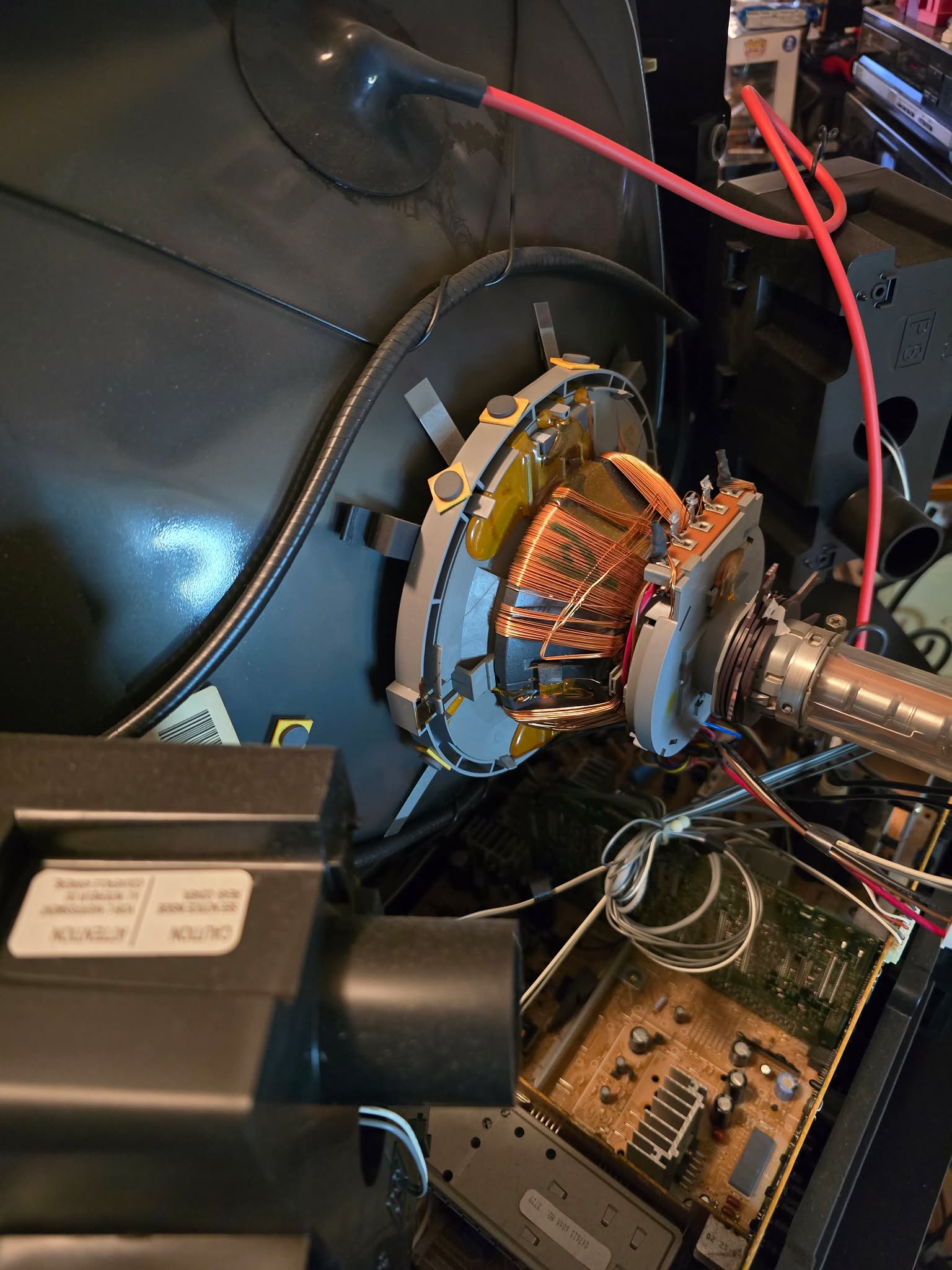

| Yoke: | 8-451-275-42, Y28PFA |

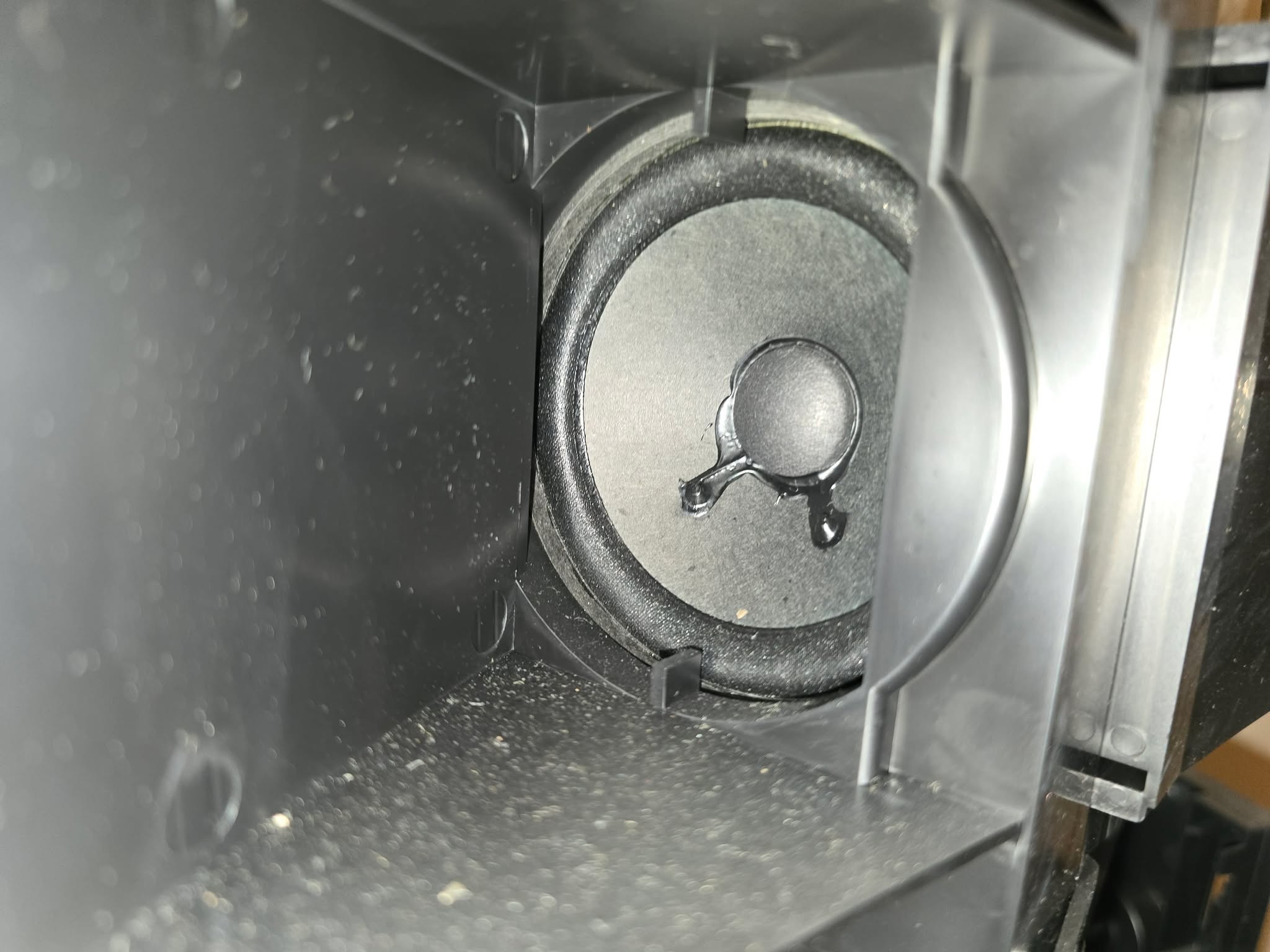

| Speakers: | Stereo, 5W x 2 |

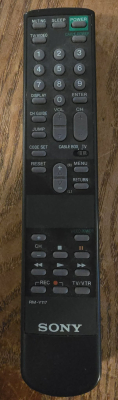

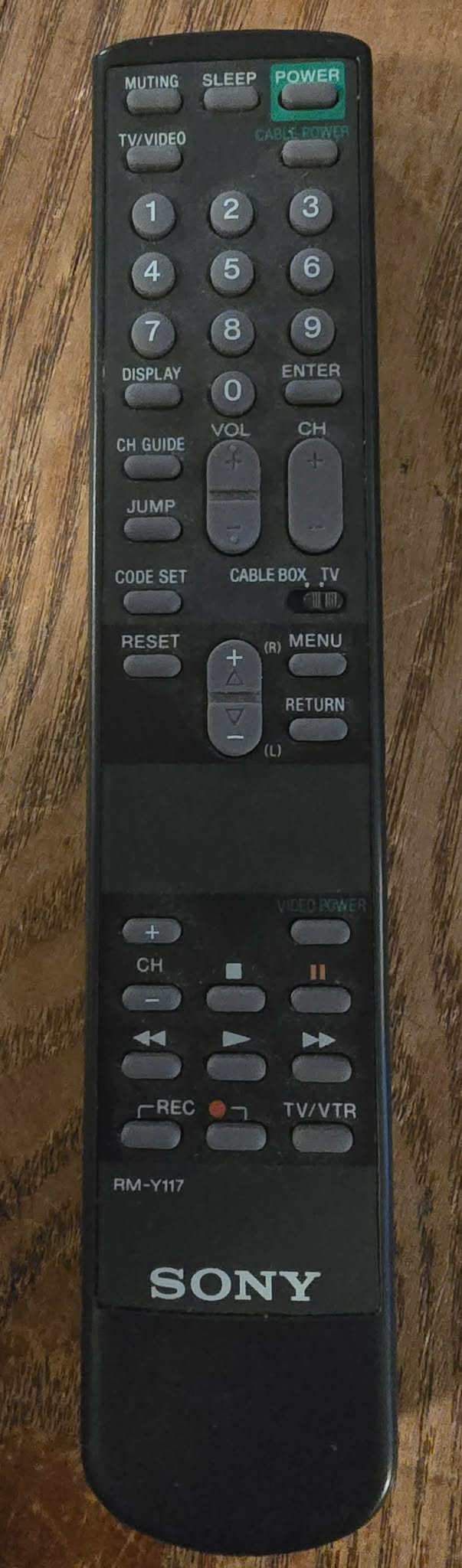

| Remote: | RM-Y117 |
| Chassis: | AA-1, SCC-F84Q-A |
| Weight: | 94 lbs (42.6 kg) |
| Dimensions (W/H/D): |
664 x 572 x 513 mm
(26.1 x 22.5 x 20.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1994 |
| MSRP: | 749 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |

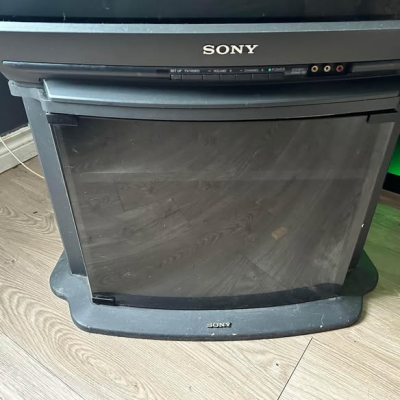

| Mounting: | Table Surface (Standard), OEM Stand, SU-27V10, SU-279 |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
