Sony KV-32TW77
Pikky_25
October 5, 2025, 10:15 pm
October 5, 2025, 10:15 pm
October 5, 2025, 10:15 pm
October 5, 2025, 10:15 pm
Summary

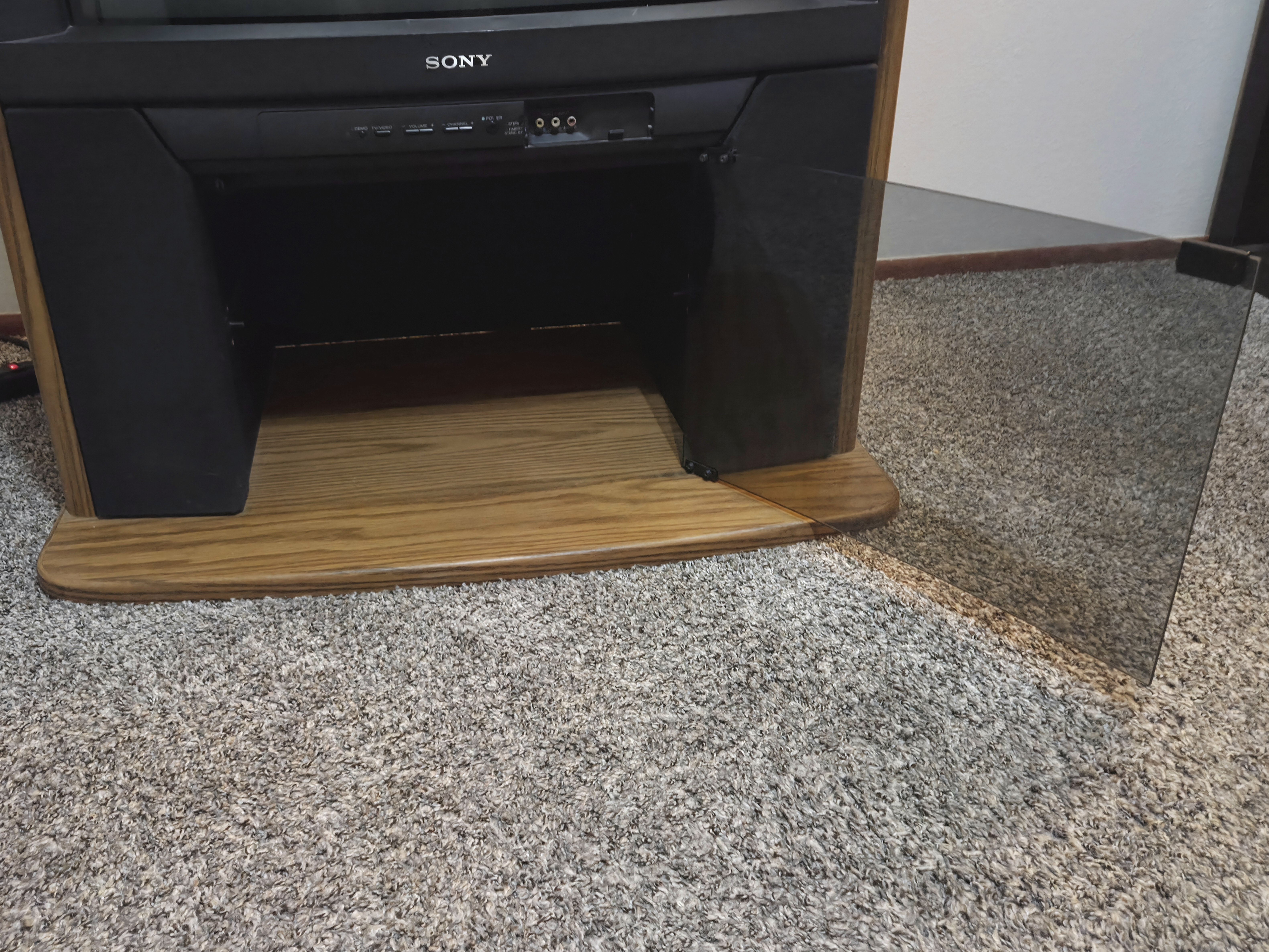

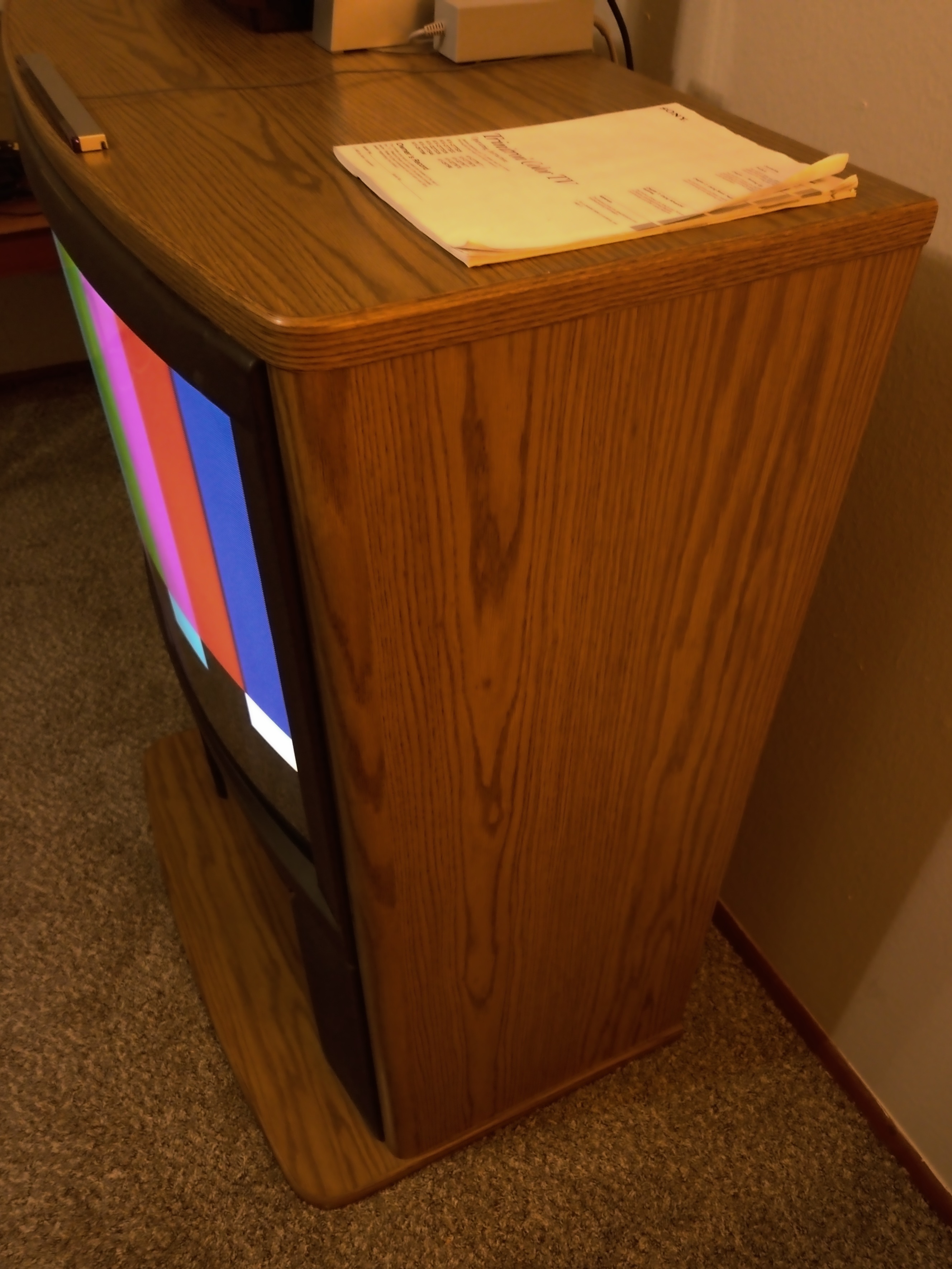

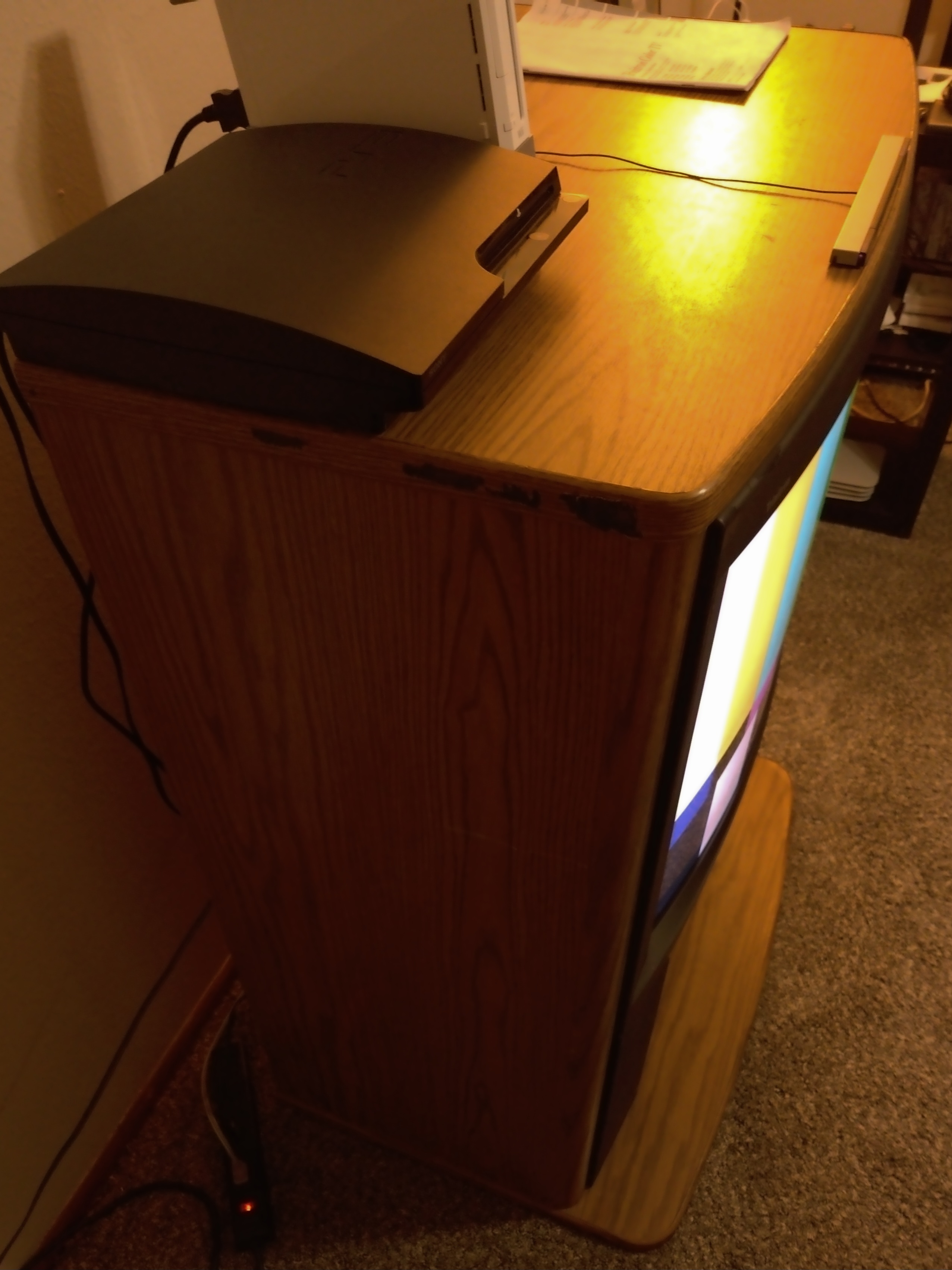

A cabinet-style standard definition Sony TV from the early 1990s. This particular 32-inch model came in two variants: a simulated woodgrain trim and an all black trim (KV-32TW78). Underneath the picture tube is a storage compartment for AV equipment covered by a hinged glass door.
Notes

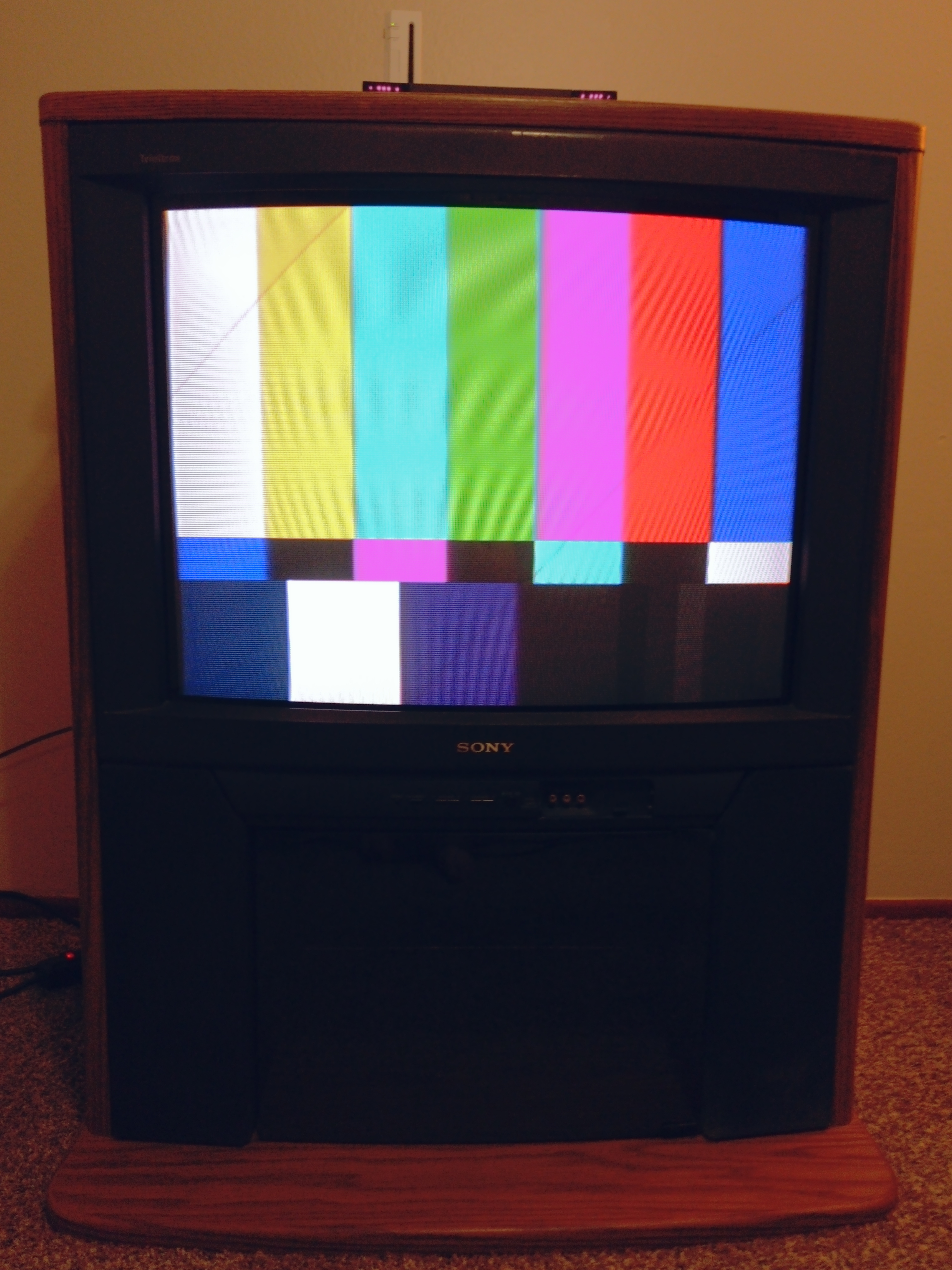

The audio section of the consumer OSD includes bass and treble adjustments, and a "surround" toggle. These adjustments will carry over to connected external speakers as well. The example pictured below was modded for RGB.
Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | 32TW77 |
| Series: | KV |
| Viewable Size: | 32" |

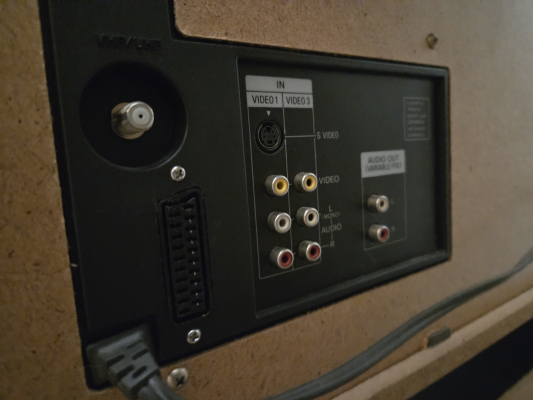

| Inputs: | Composite, RF, S-Video |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Tube: | A80JYV50X , Sony Microblack Trinitron |
| Speakers: | 5W x 2, Stereo |
| Remote: | RM-Y118 |
| Weight: | 239 lbs (108.4 kg) |
| Dimensions (W/H/D): |
895 x 1117 x 700 mm
(35.2 x 43.9 x 27.5") |
| Application: | Consumer |
| Cabinet Material: | Simulated Woodgrain |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Floor |
| Degaussing: | Automatic on Power-on |
| Tag: | Community Submission, Needs Owners Manual, Needs Service Manual, Needs Yoke Info |
