Summary

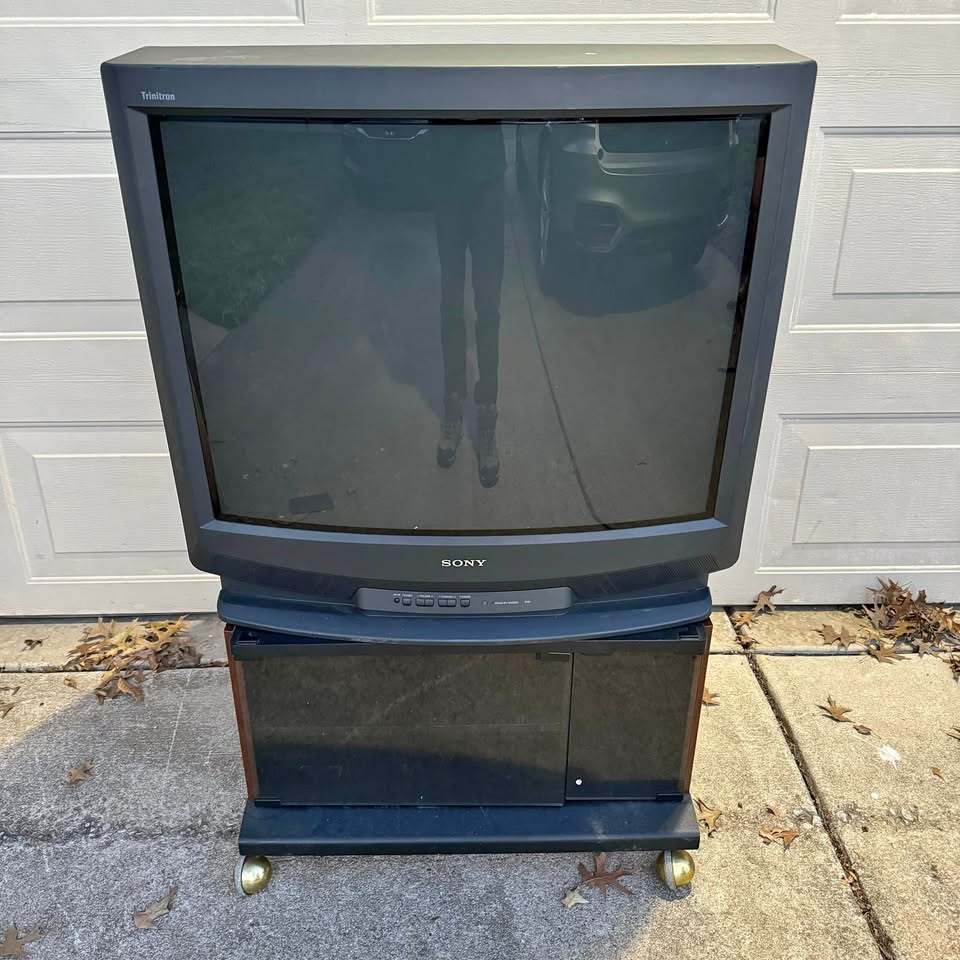

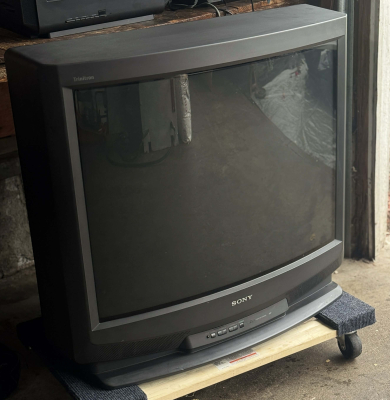

32" curved-screen midrange CRT by Sony. Has RF, composite, and s-video inputs with stereo sound. Made in the USA in 1996.
(Special thanks to Felipe Ortiz for the pics!)
Manuals
Notes

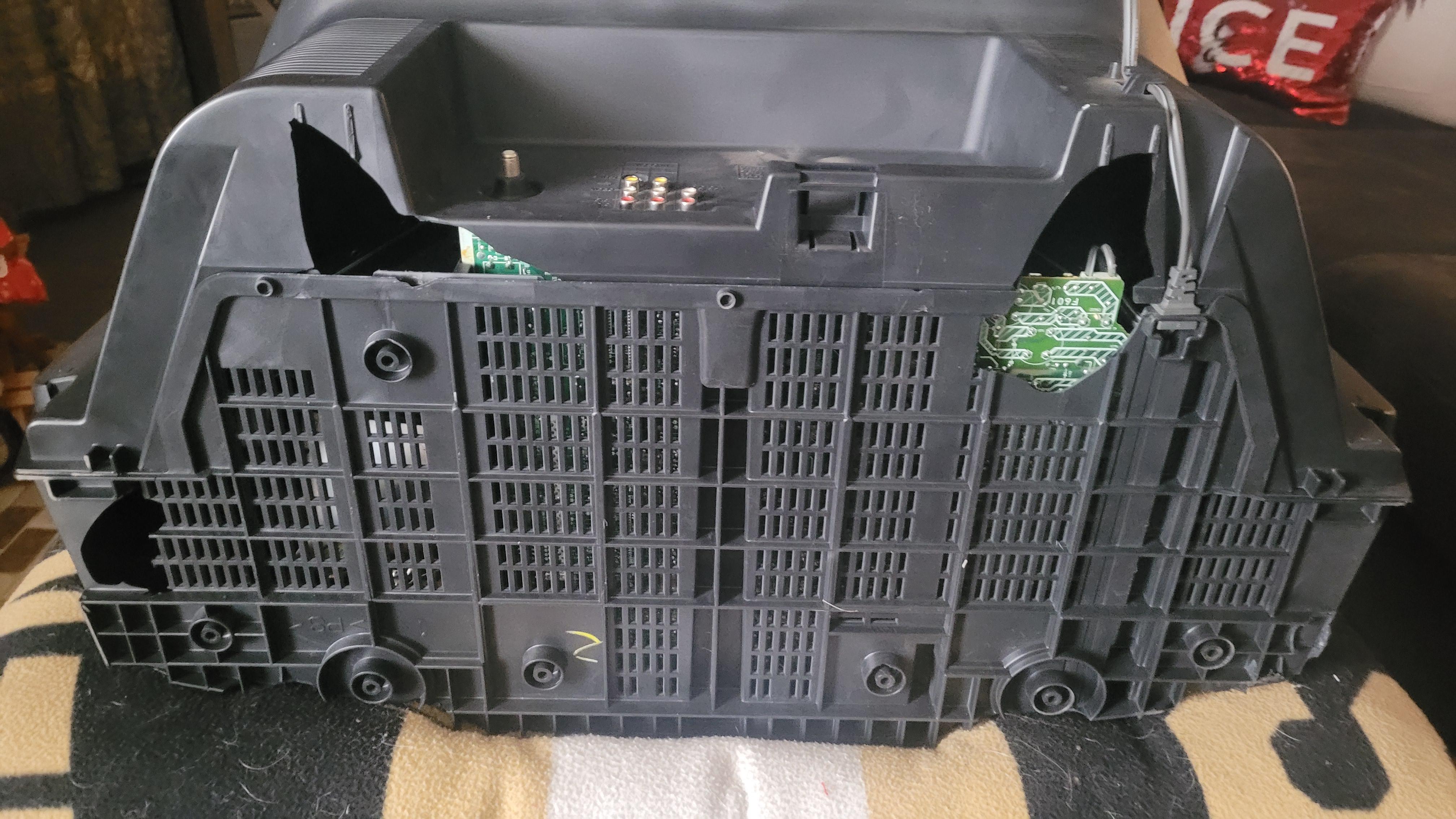

This set came out during the "brittle era" of plastic for Sony's TV cases (1993-1996.) Be careful when handling this set, and expect some chunks to break off:

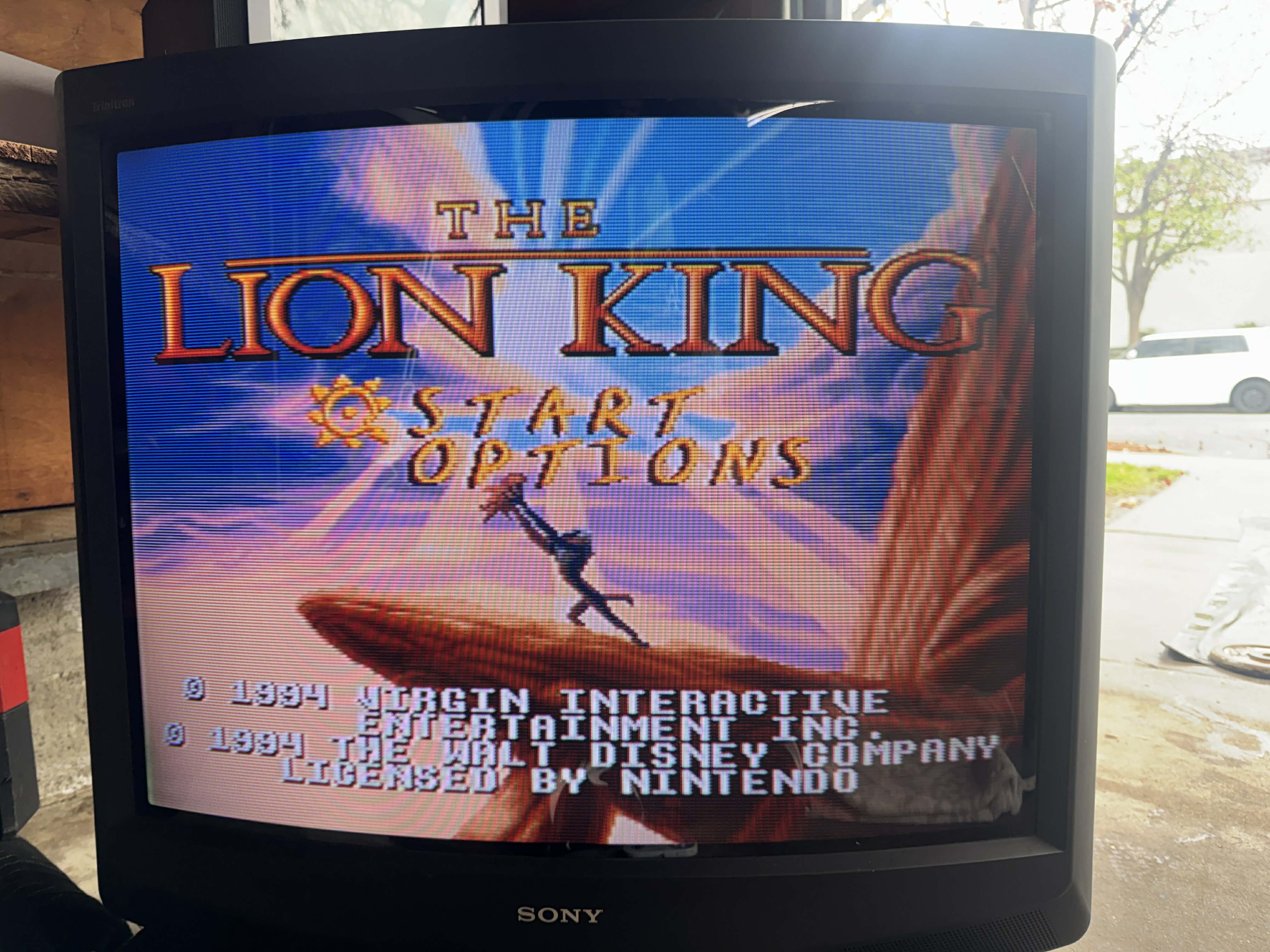

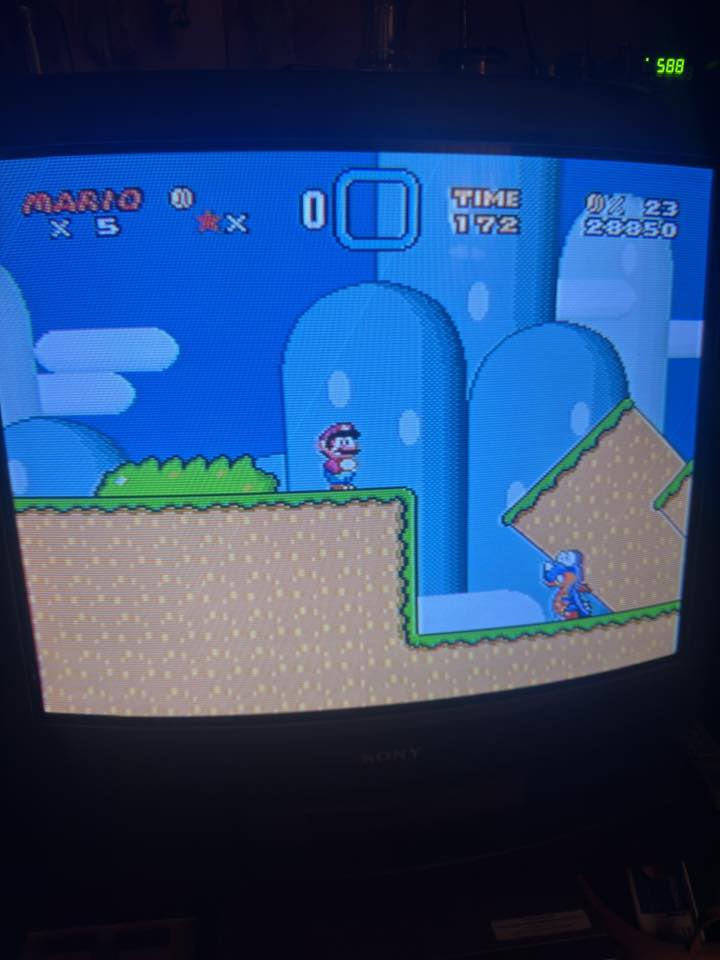

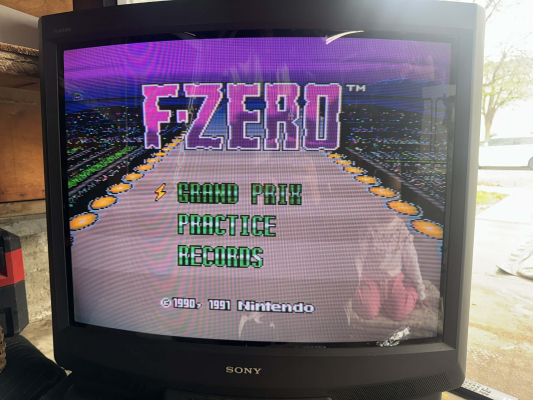

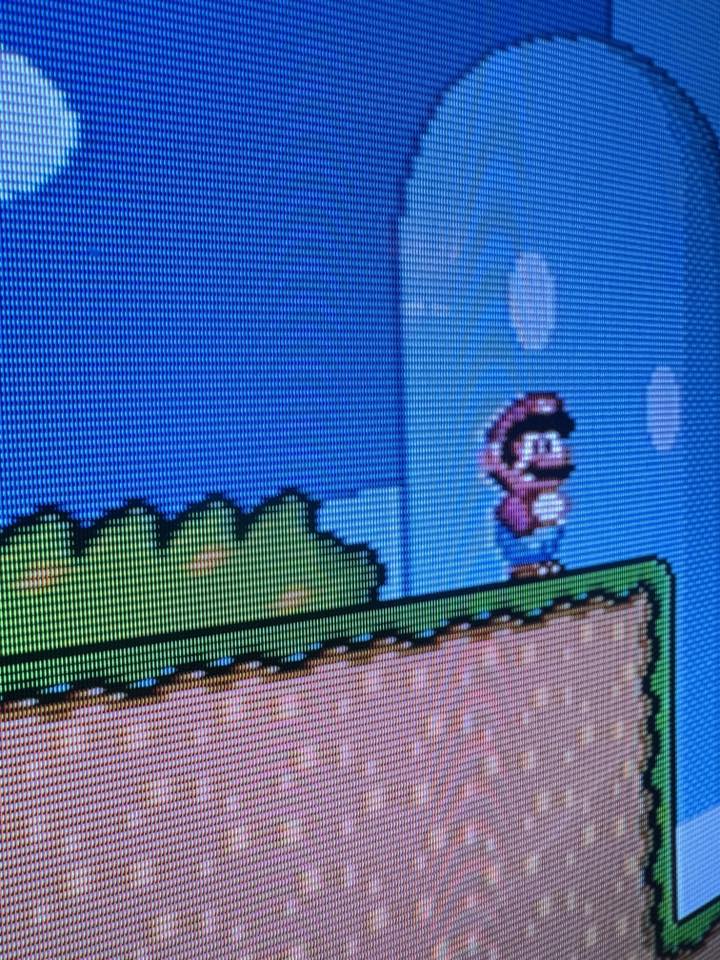

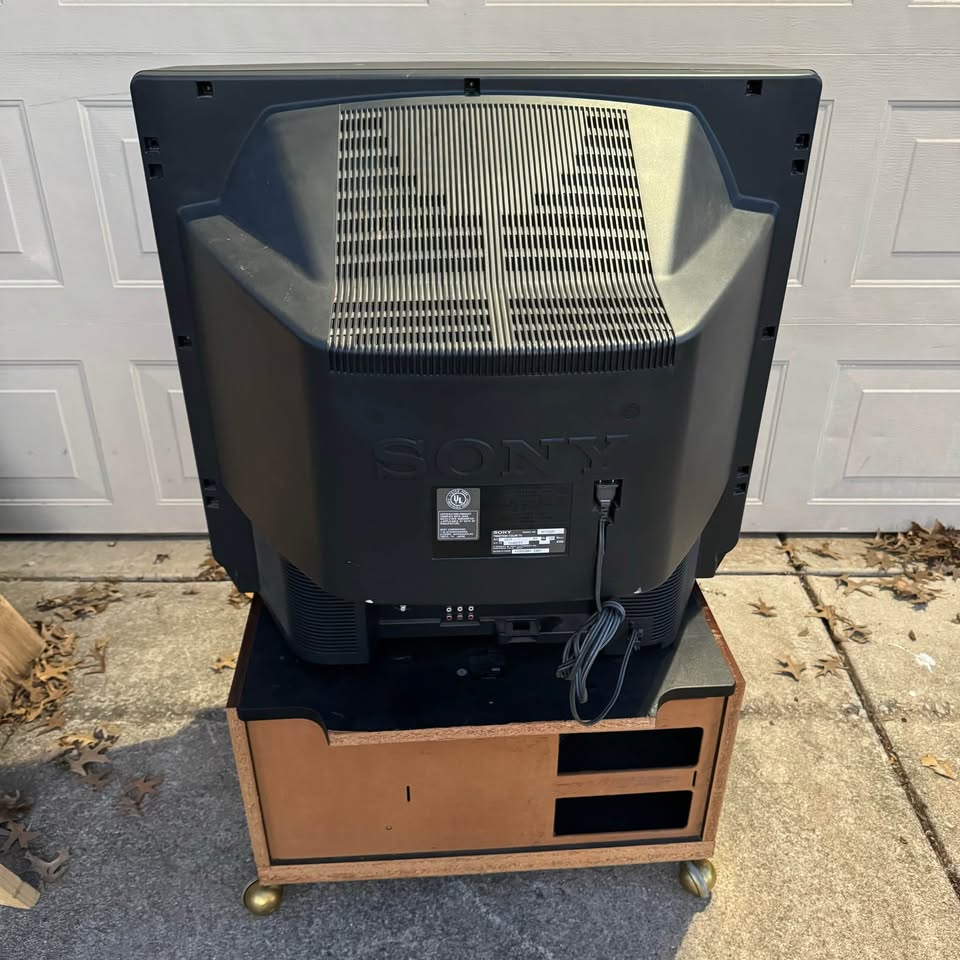

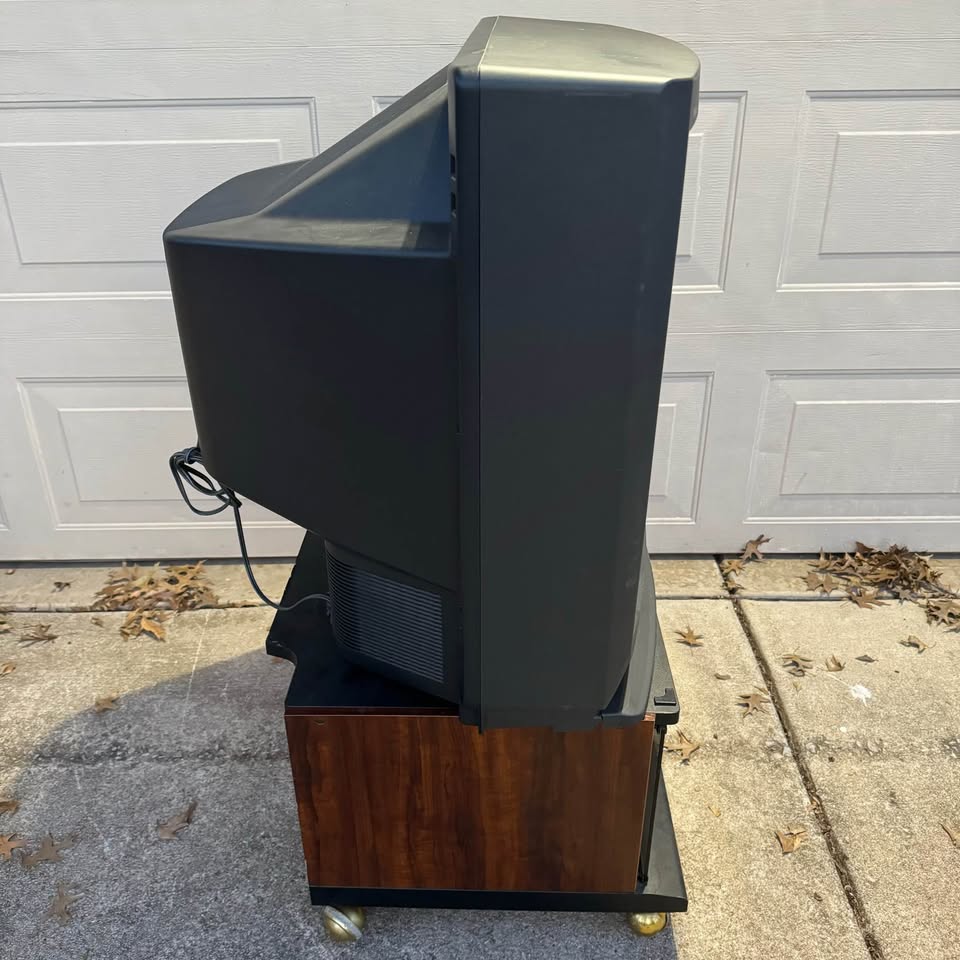

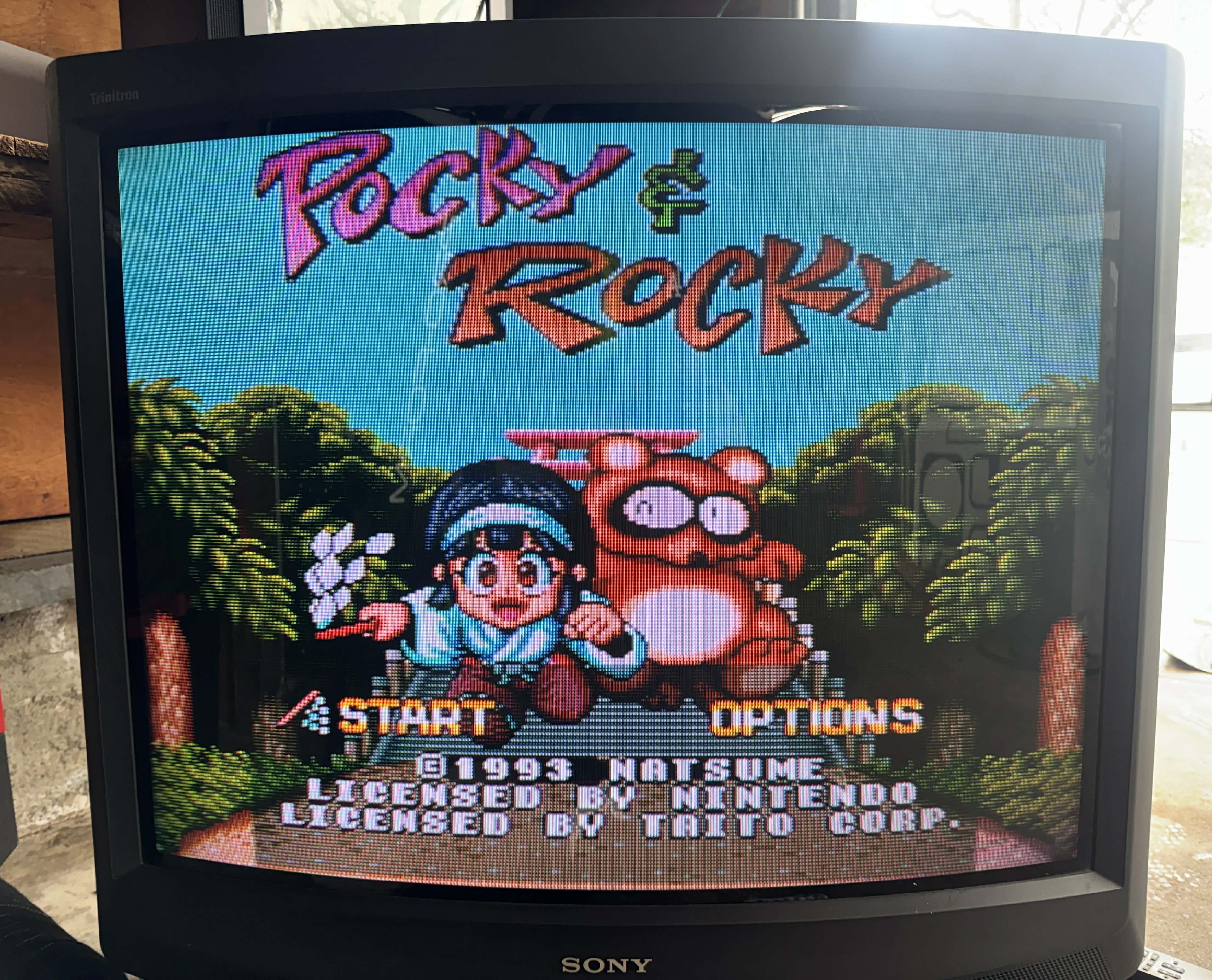

Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-32S25 |
| Series: | KV |
| Viewable Size: | 32" |

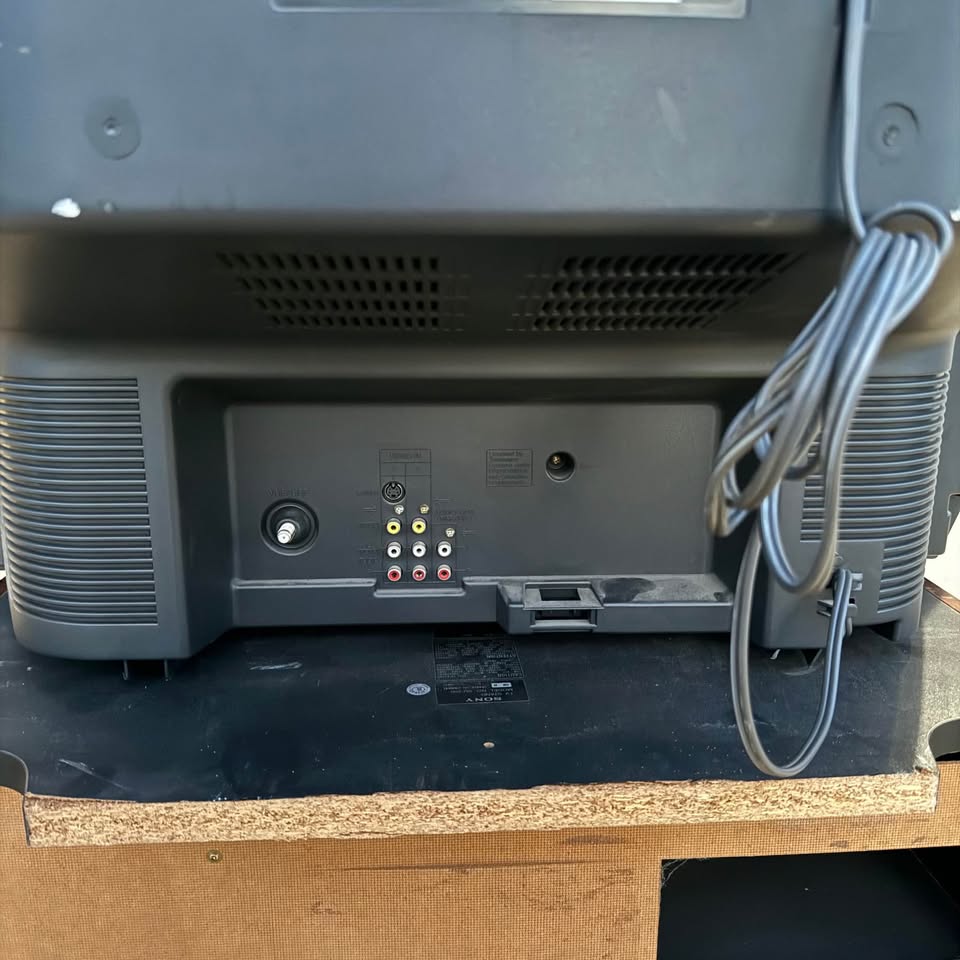

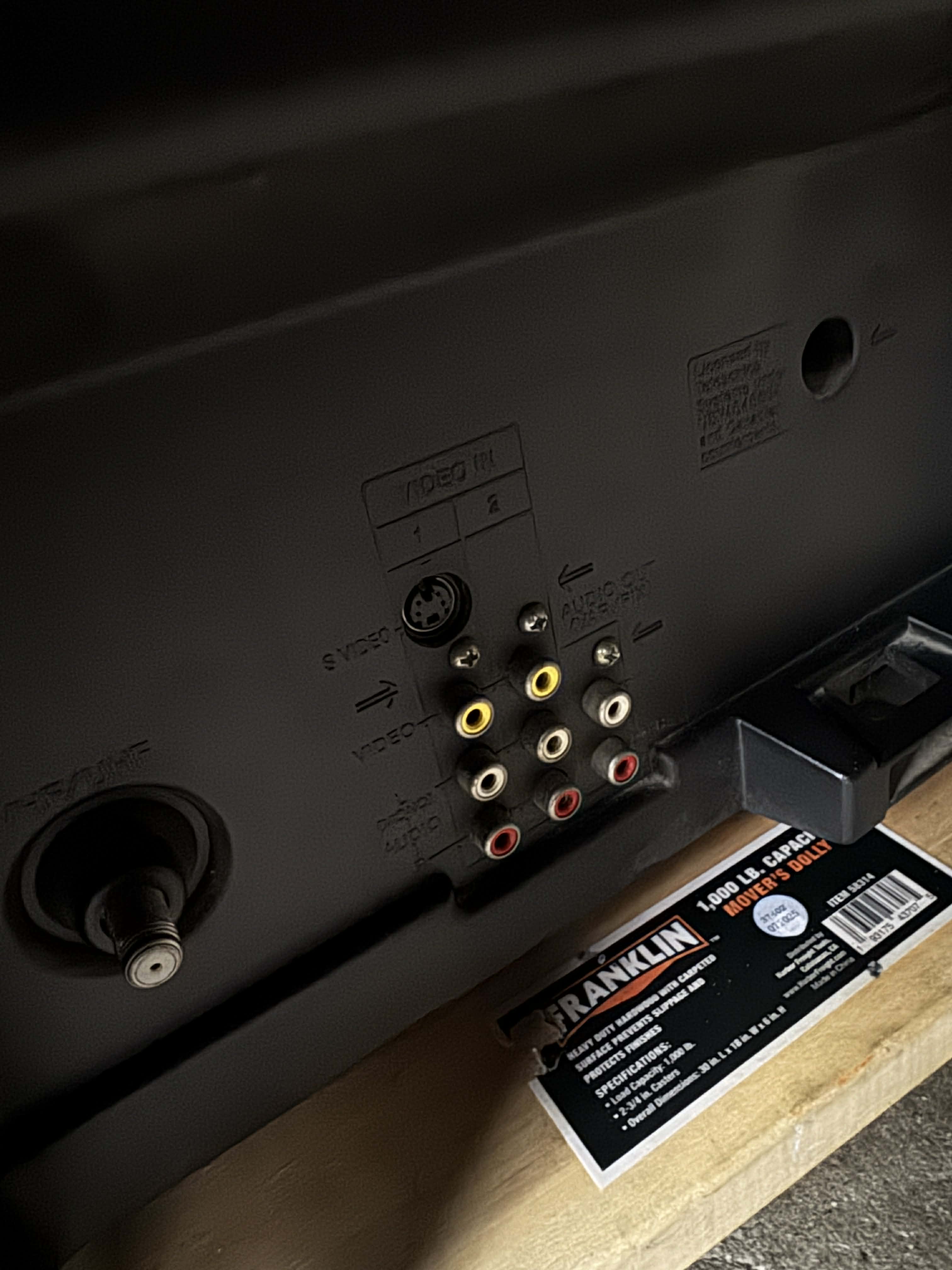

| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Sony, CXA2025AS, CXA2025S |
| Flyback: | 1-453-207-11, NX-2609 |
| Focus Type: | Single |
| Tube: | Sony Trinitron , M80JYV51X |
| Heater Voltage: | 6.3v |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 5W x 2 |

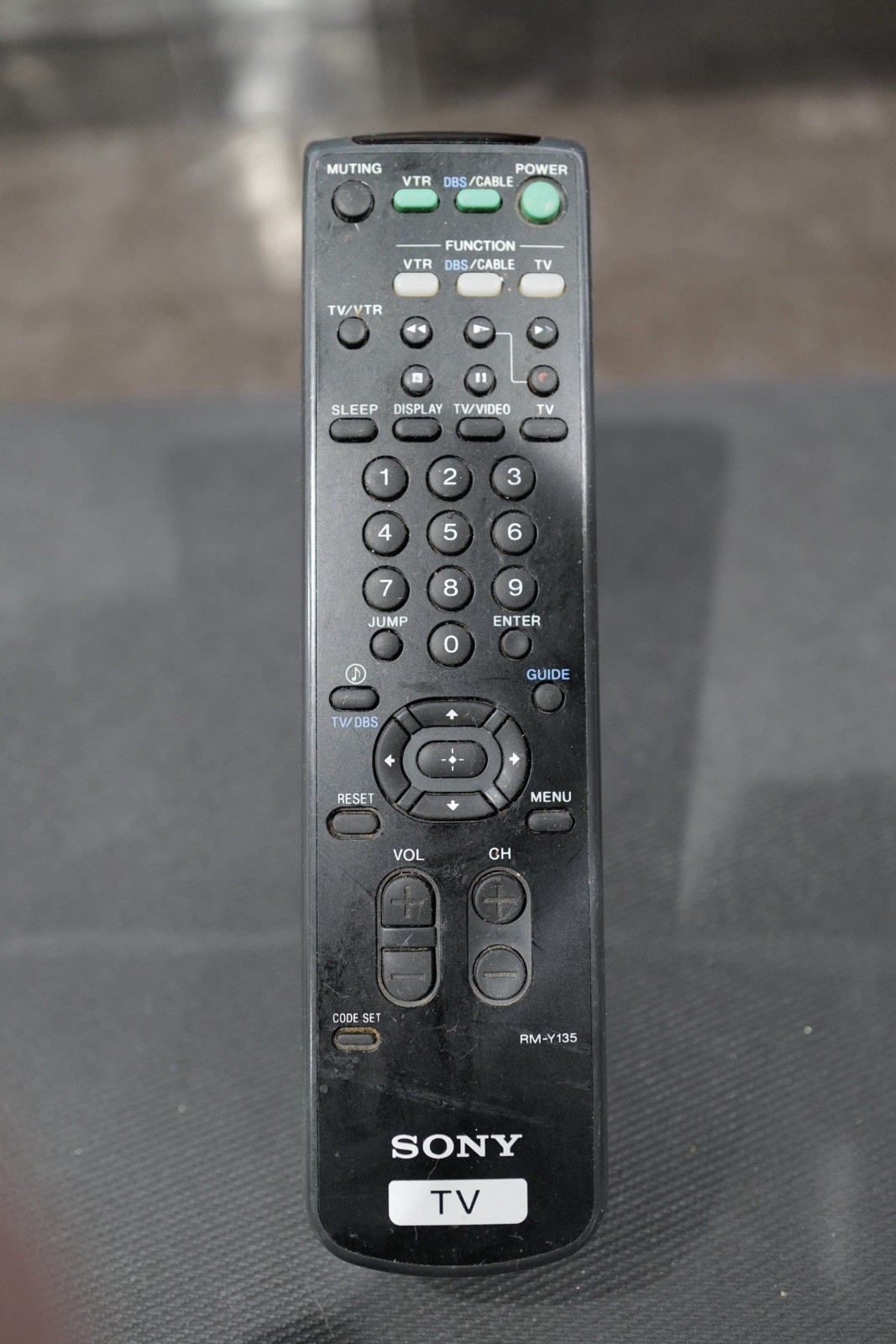

| Remote: | RM-Y135 |
| Chassis: | AA-2 |
| Weight: | 141 lbs (64 kg) |
| Dimensions (W/H/D): |
781 x 712 x 583 mm
(30.7 x 28 x 22.9") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1996 |
| MSRP: | 1299 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |

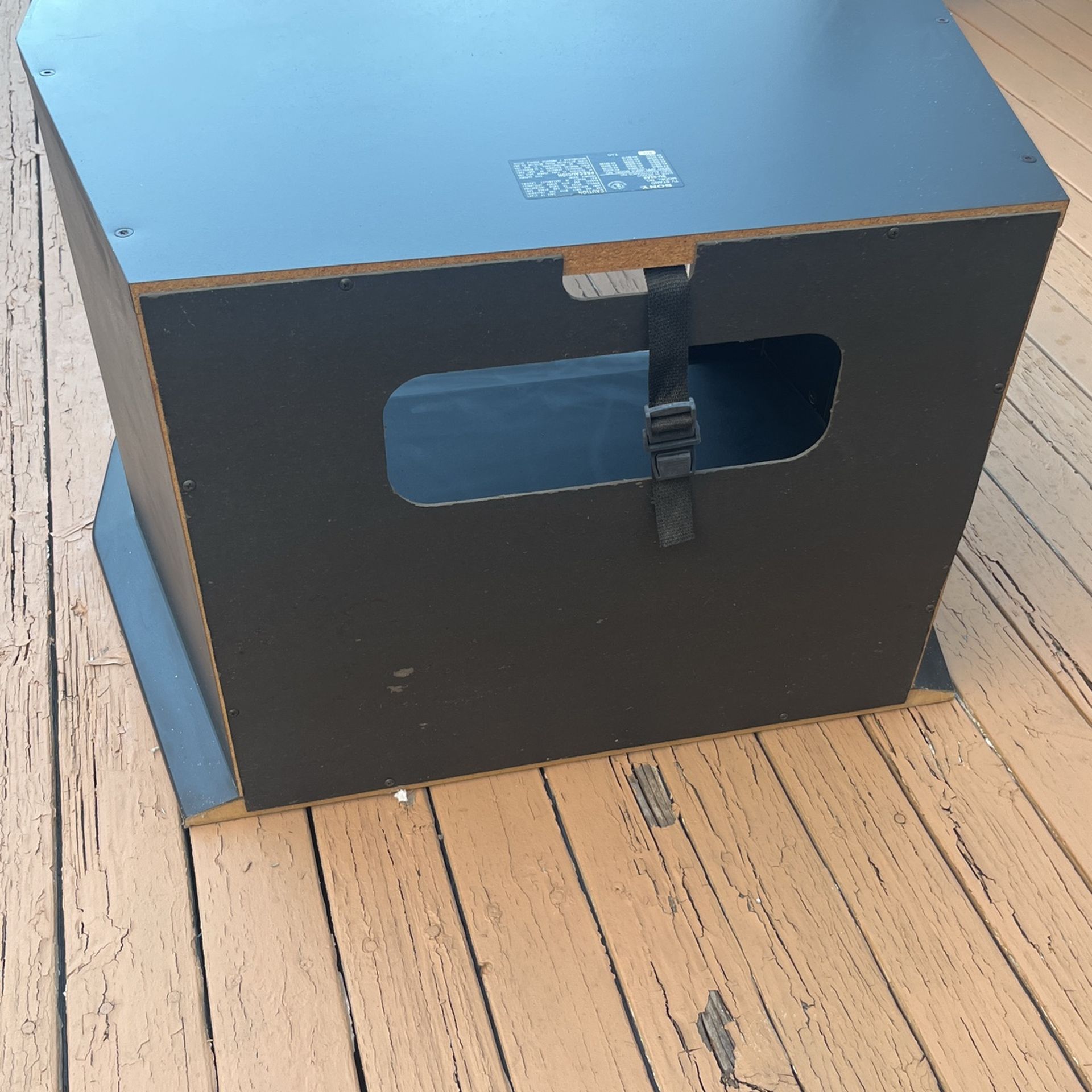

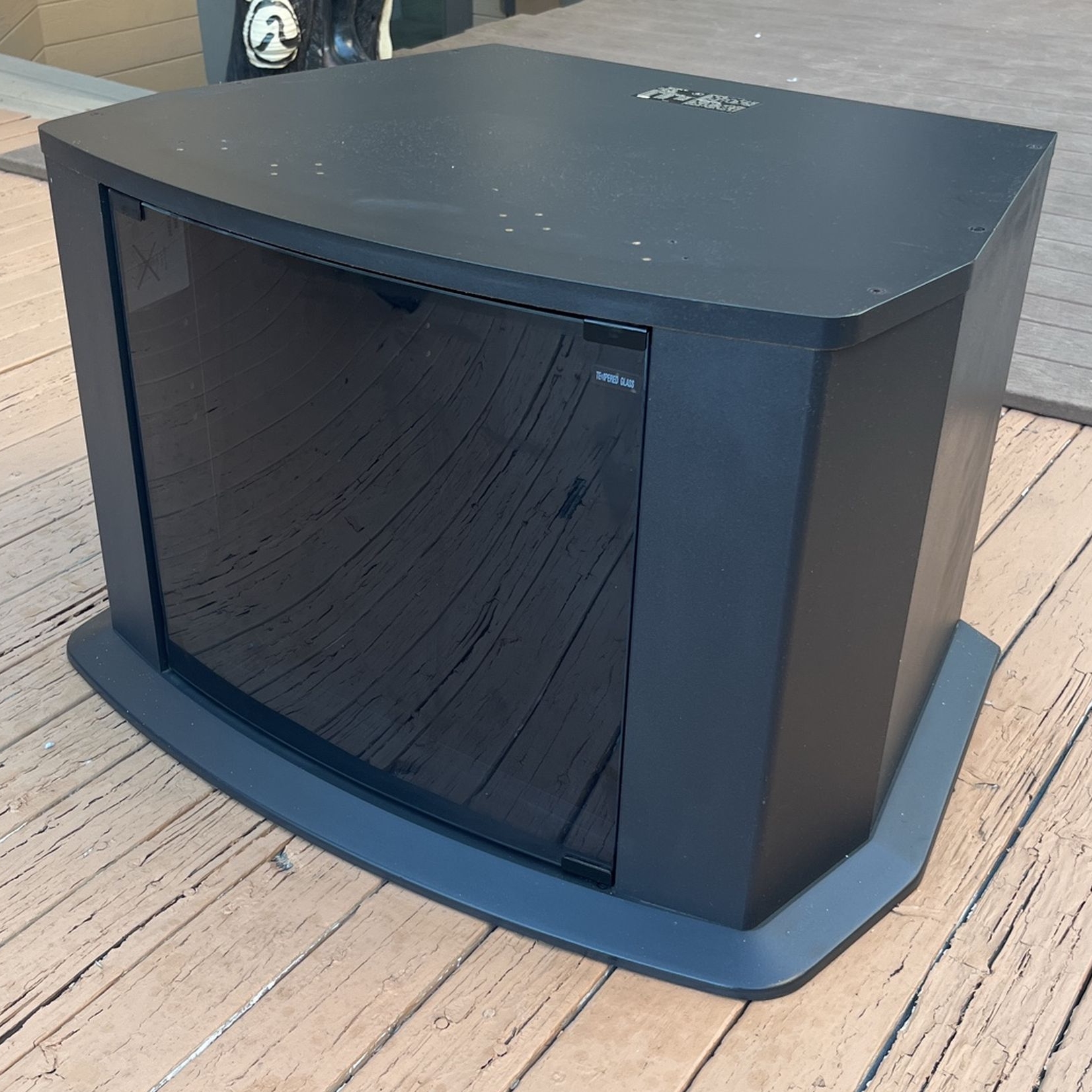

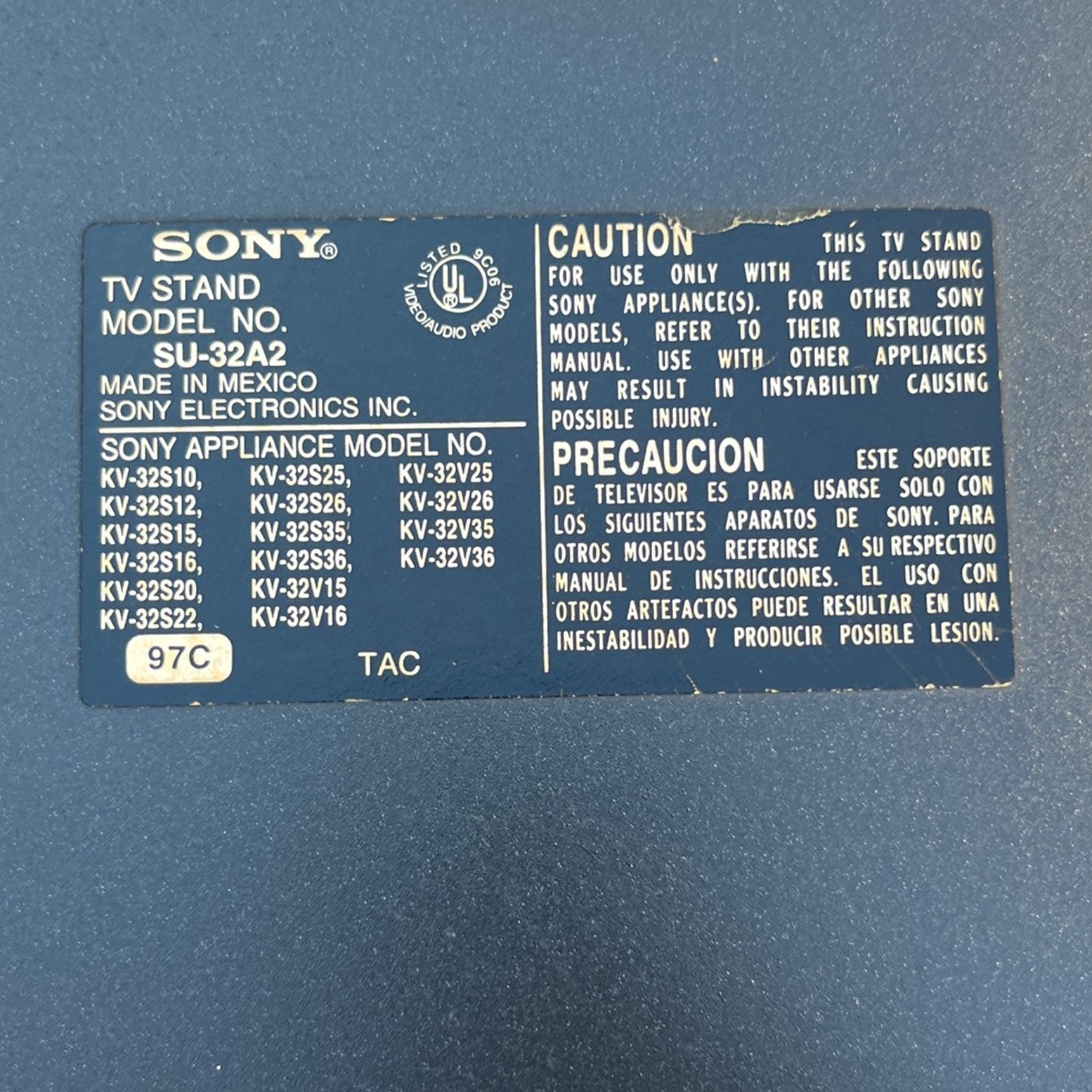

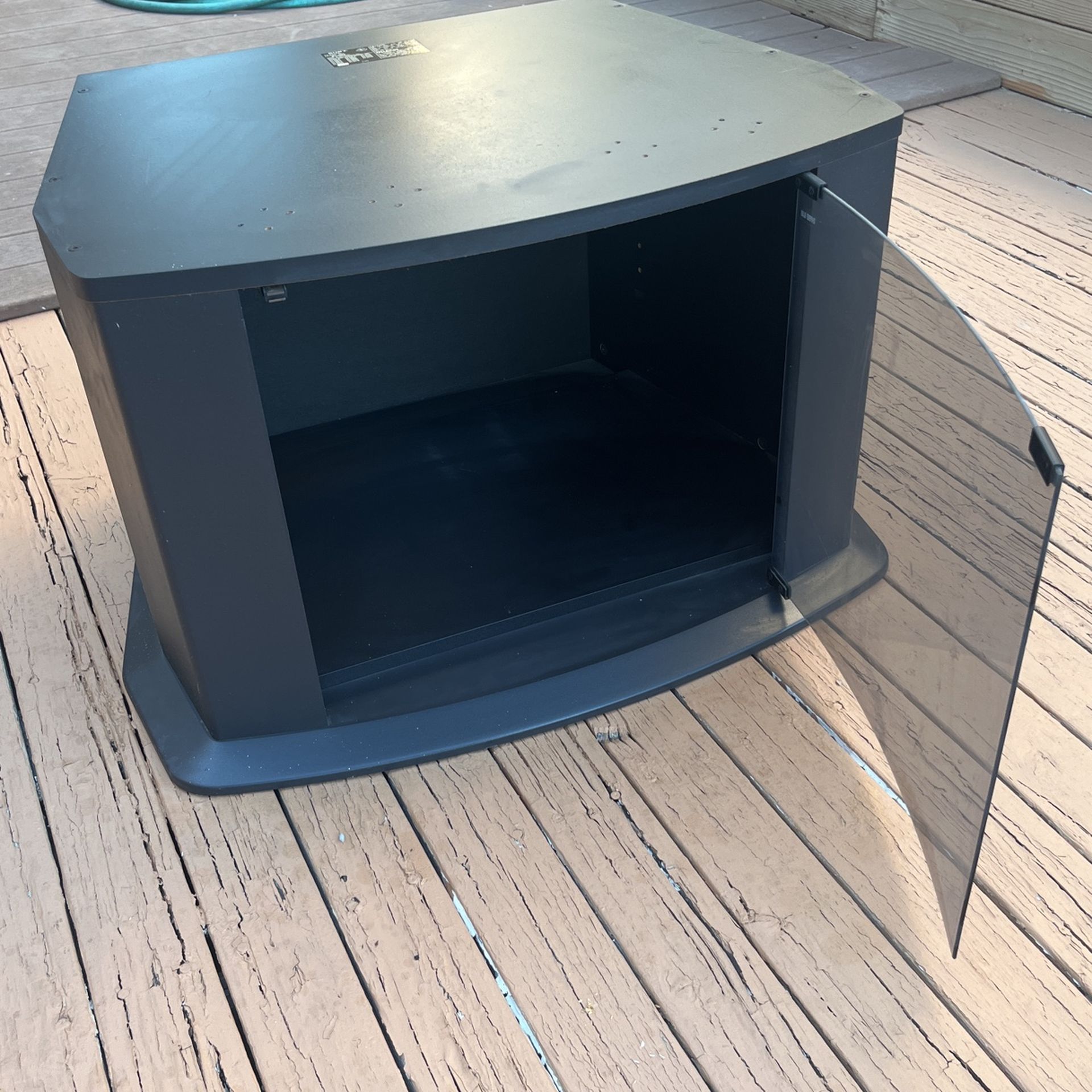

| Mounting: | Table Surface (Standard), OEM Stand, SU-32A |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
