Sony KV-32SXR10
Toqer, Trixter192
October 18, 2025, 2:09 pm
October 18, 2025, 2:41 pm
October 18, 2025, 2:09 pm
October 18, 2025, 2:41 pm
Summary
Sony touted the SXR series as the bigger brother of the XBR, which may have been literal since the only XBR at the time was 25 inches.

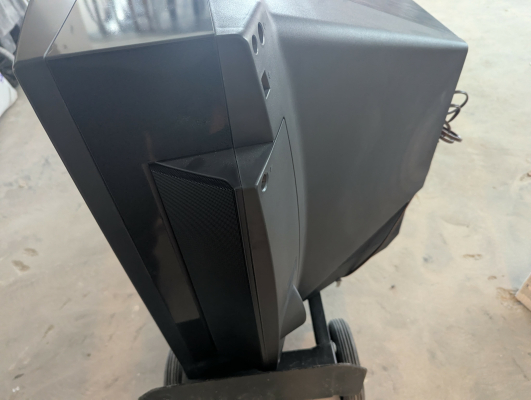

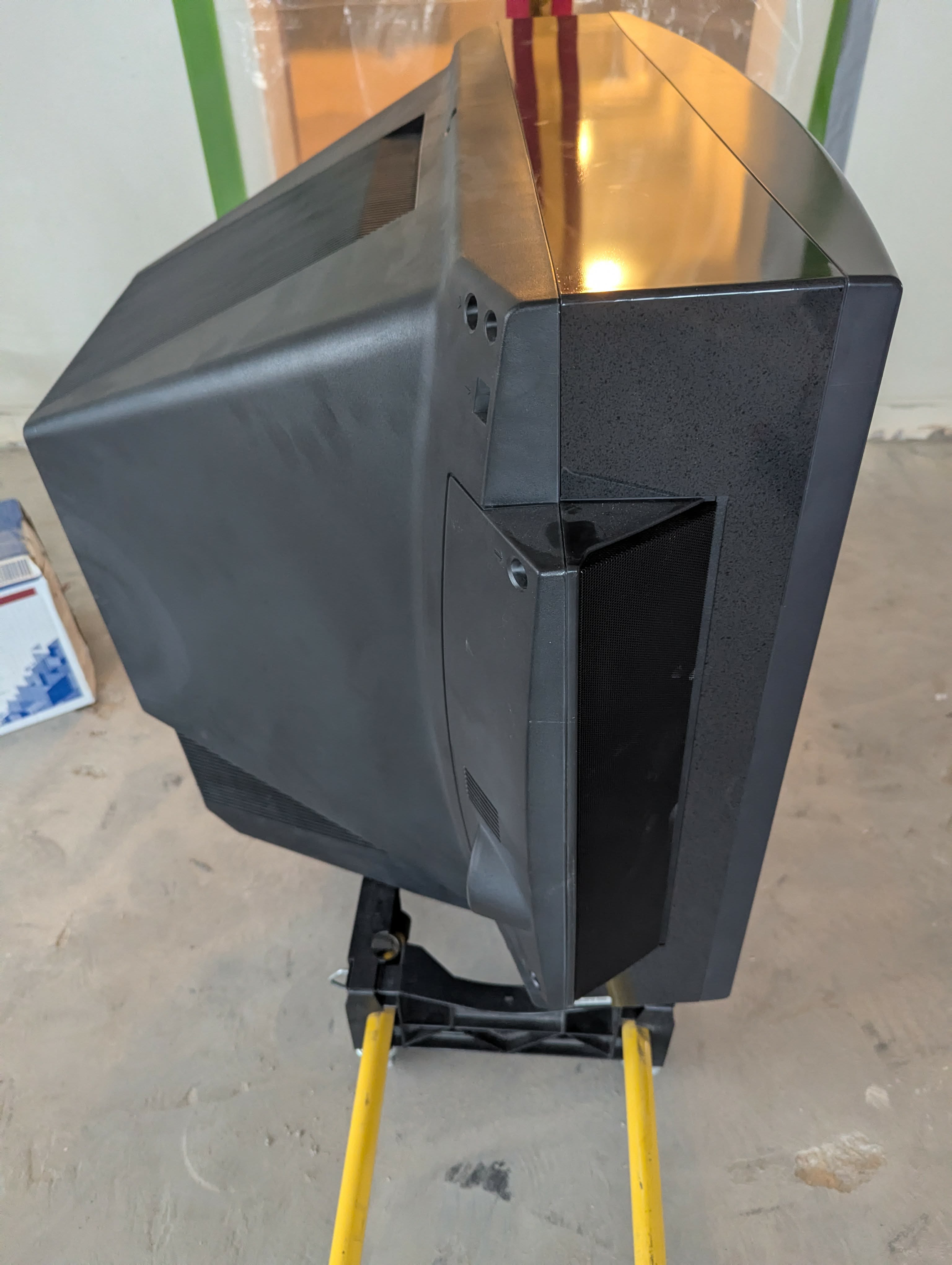

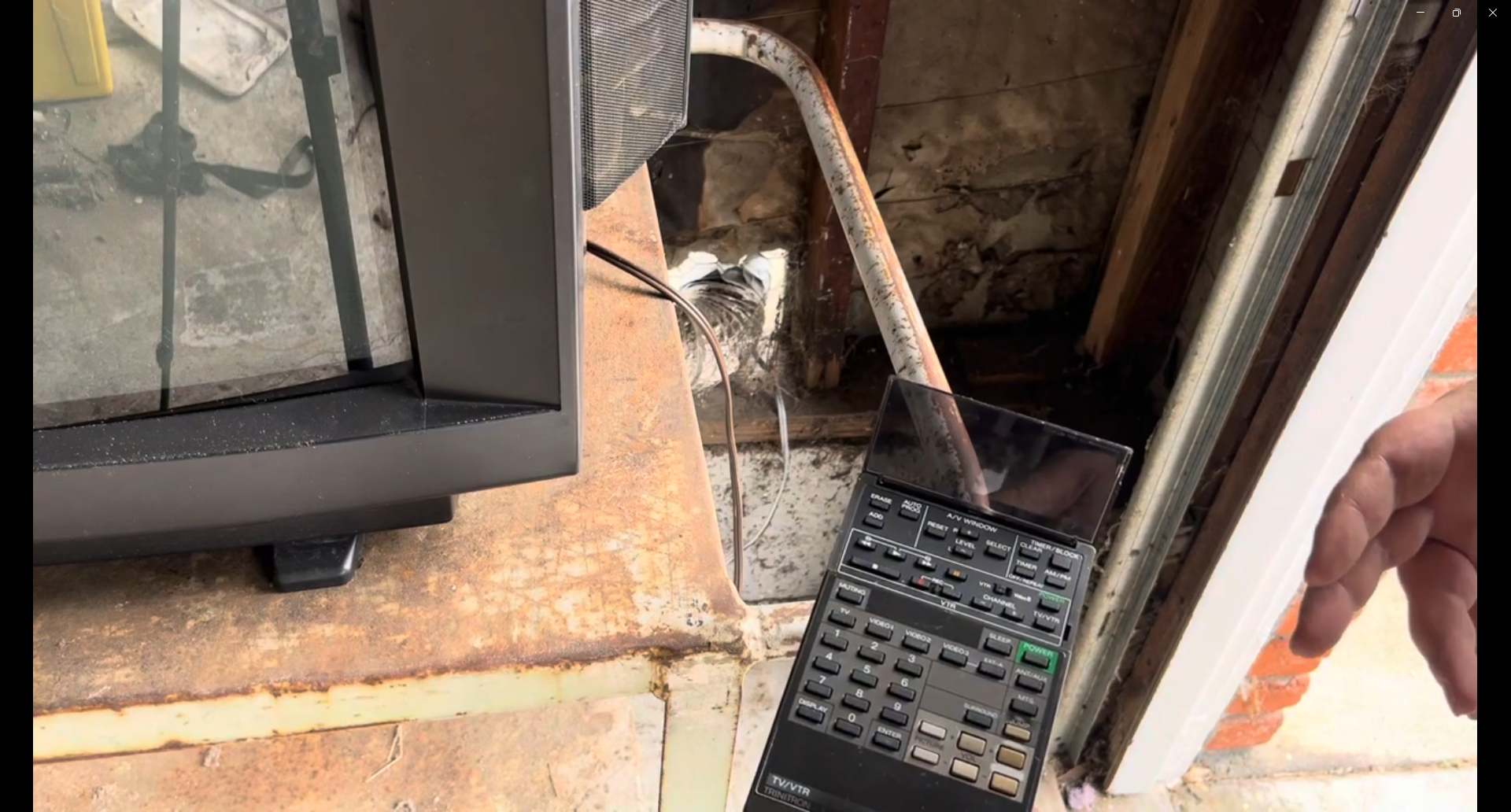

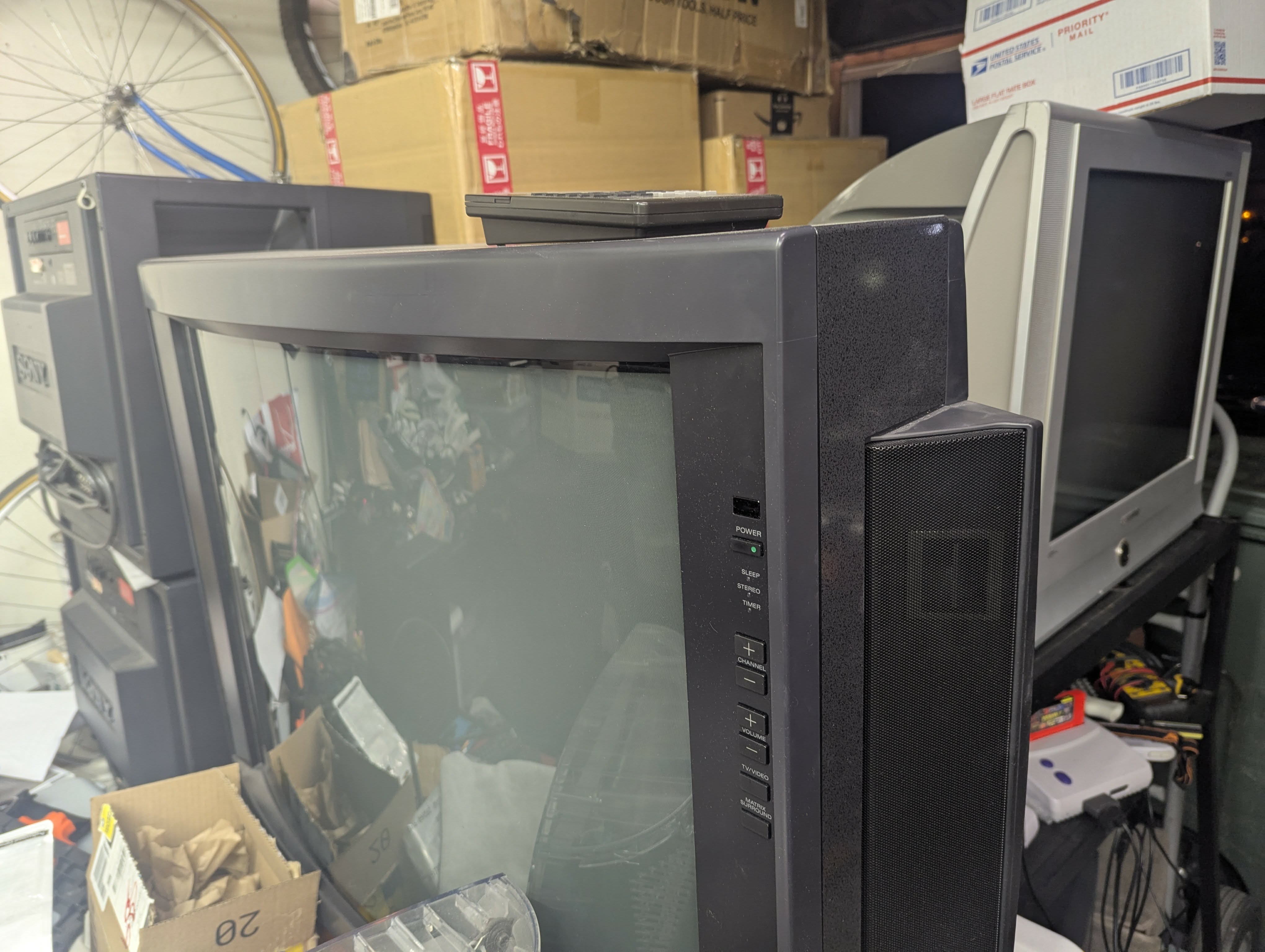

Featuring side mounted speakers with tweeters, ample inputs and a remote made for controlling 8mm camcorders, this set was for anyone wanting to produce video on a budget.
The tube in this set shares lineage with the Sony PVM-3230 utilizing the same Sony Trinitron , A80JYV10X.

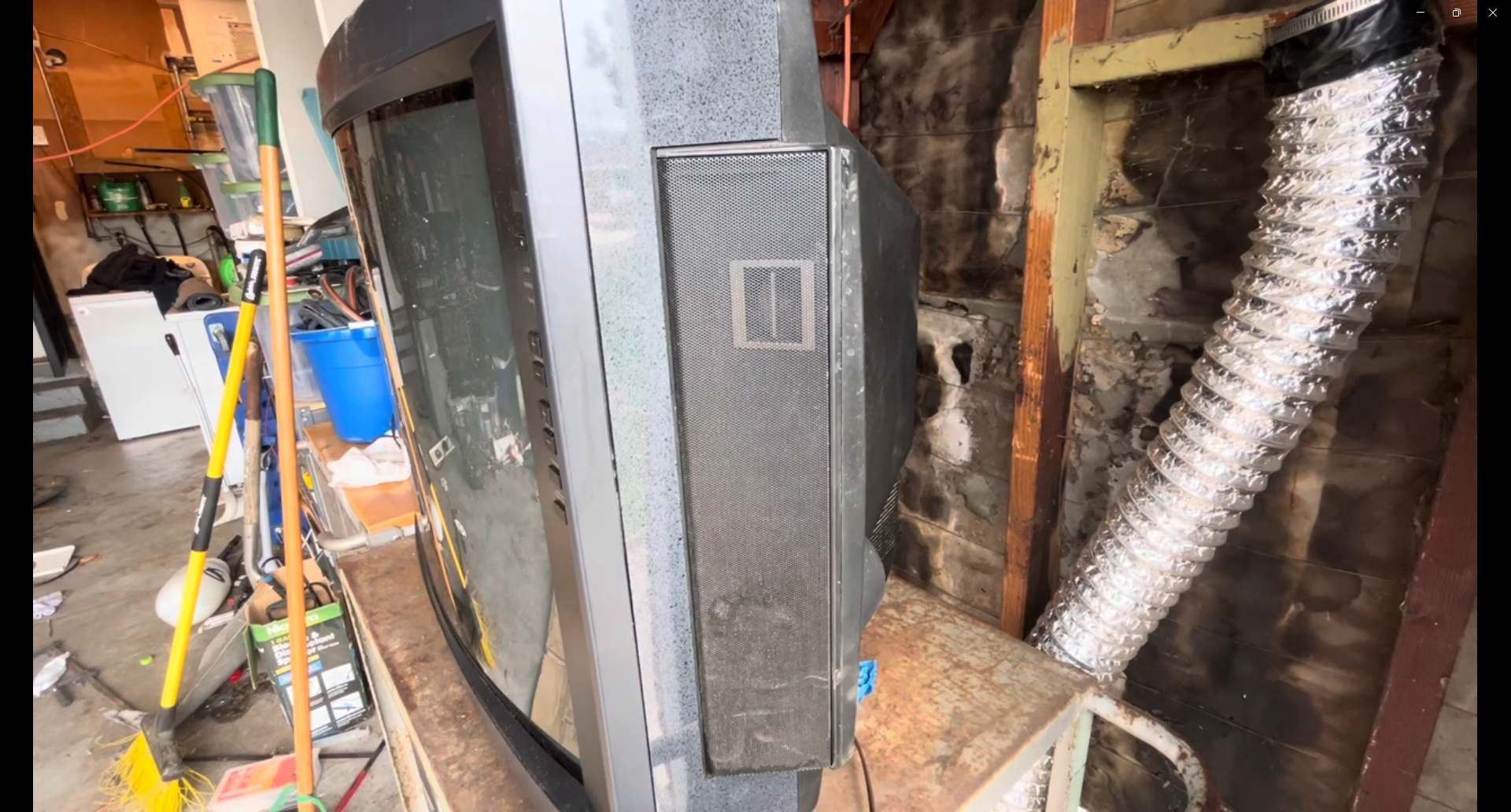

Outside of the technical specs, this set takes a bold departure from the matte charcoal of other Sony sets, featuring a faux granite finish on the sides, this sets bold looks tell you it's a cut above consumer models.
Manuals & Promo Materials

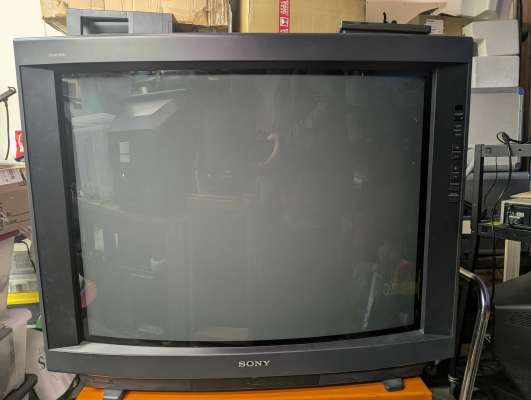

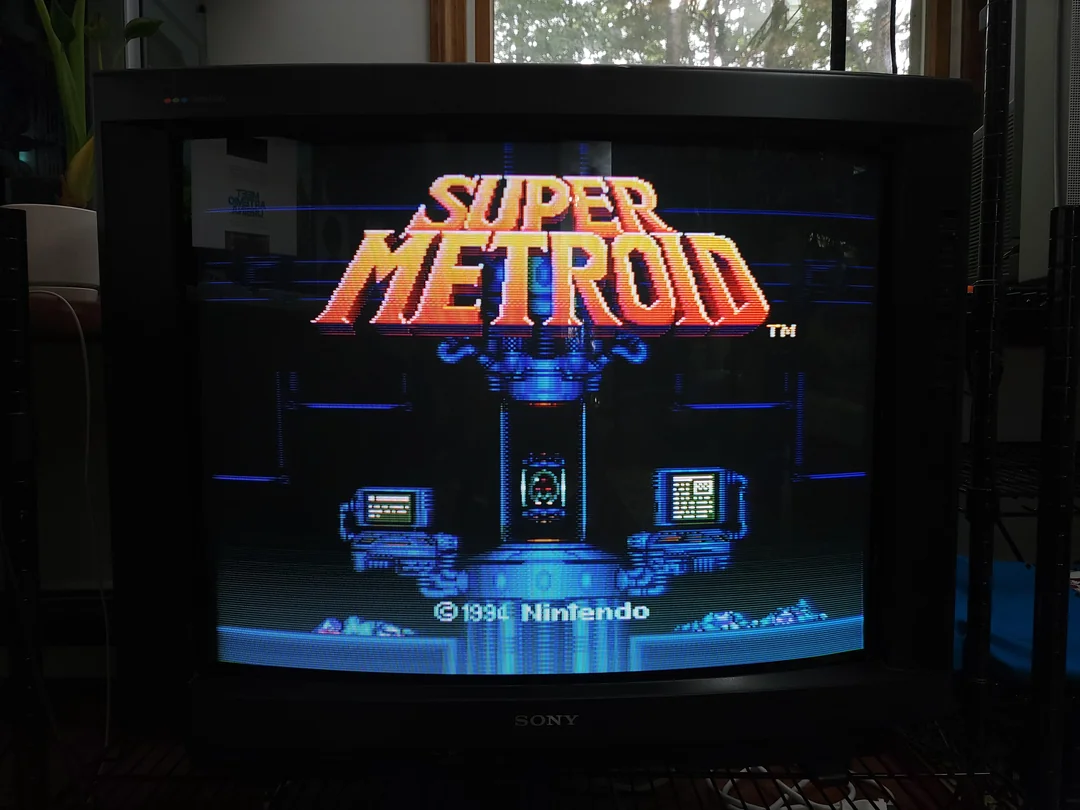

Gallery










Specifications | |
---|---|
Brand: | Sony |
Manufacturer: | Sony |
Model: | KV-32SXR10 |
Series: | KV |
Viewable Size: | 32" |
Inputs: | Composite, S-Video, RF |
Native Resolutions: | 240p, 480i |
Linecount: | 650 TVL |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | On-Screen Display, Menu for picture adjustment (OSD), On-Screen SERVICE MENU for picture adjustments (OSD Service Menu), Internal potentiometers for picture adjustments (requires opening the CRT) |

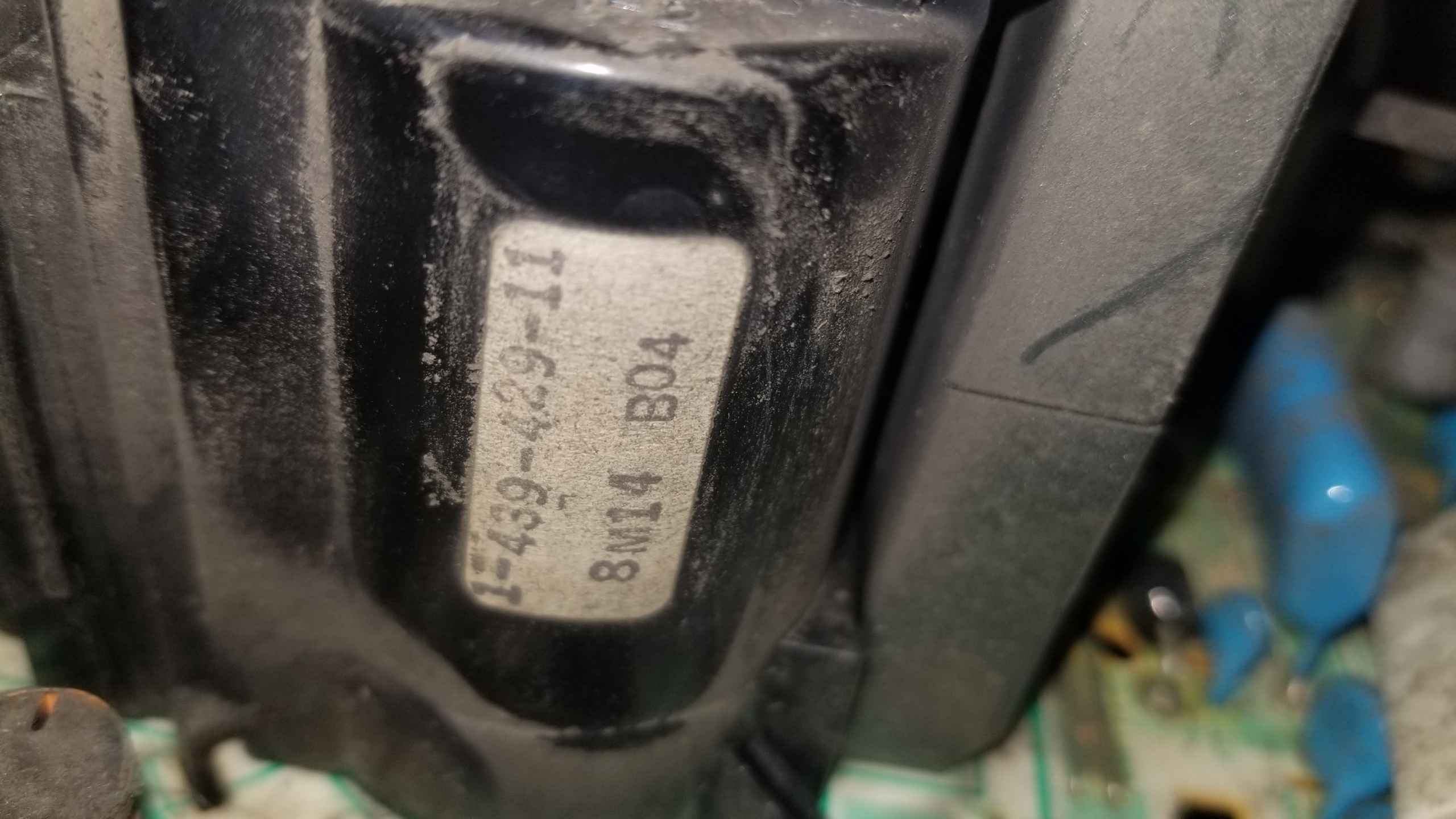

Flyback: | 1-439-429-XX |

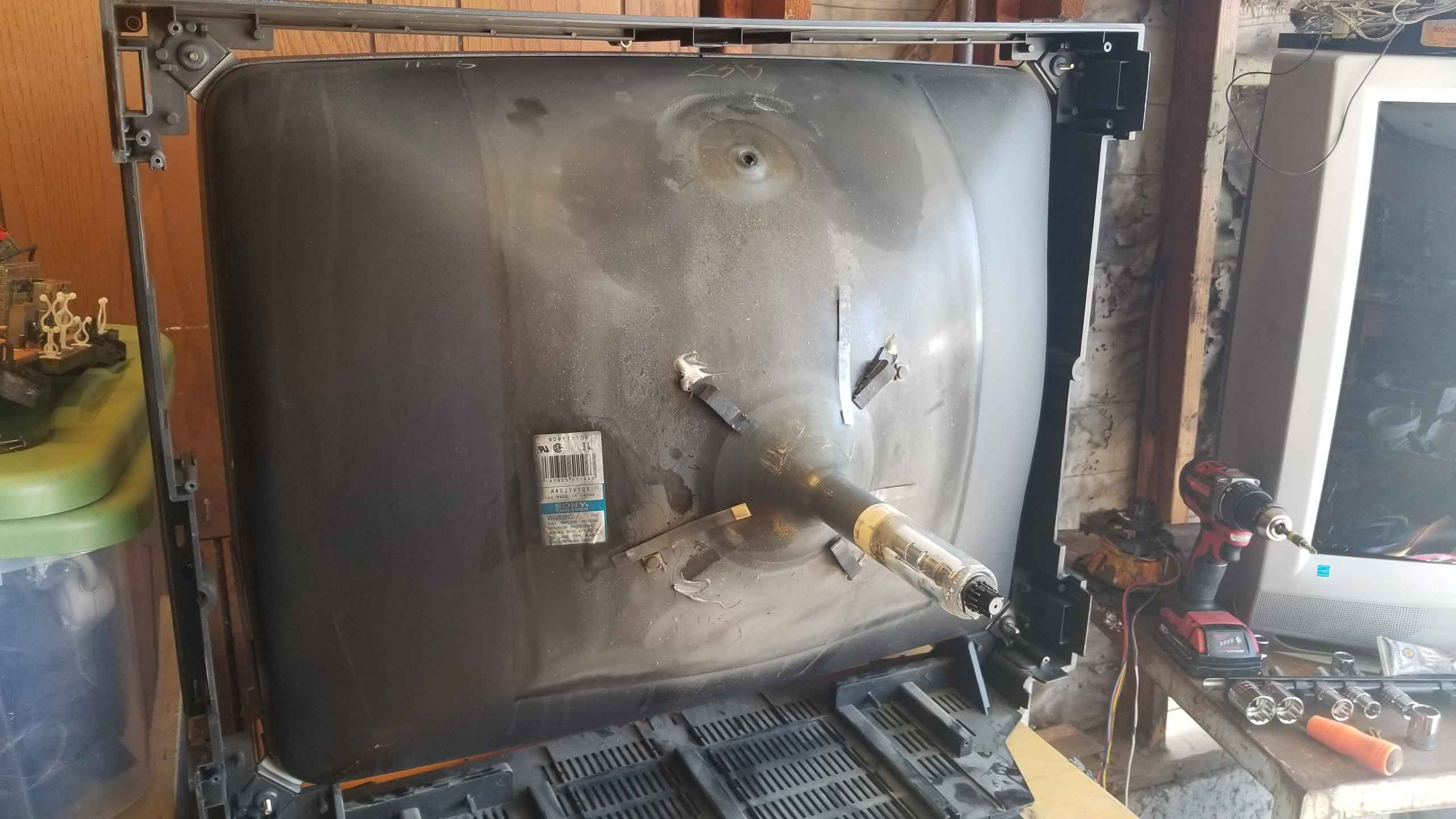

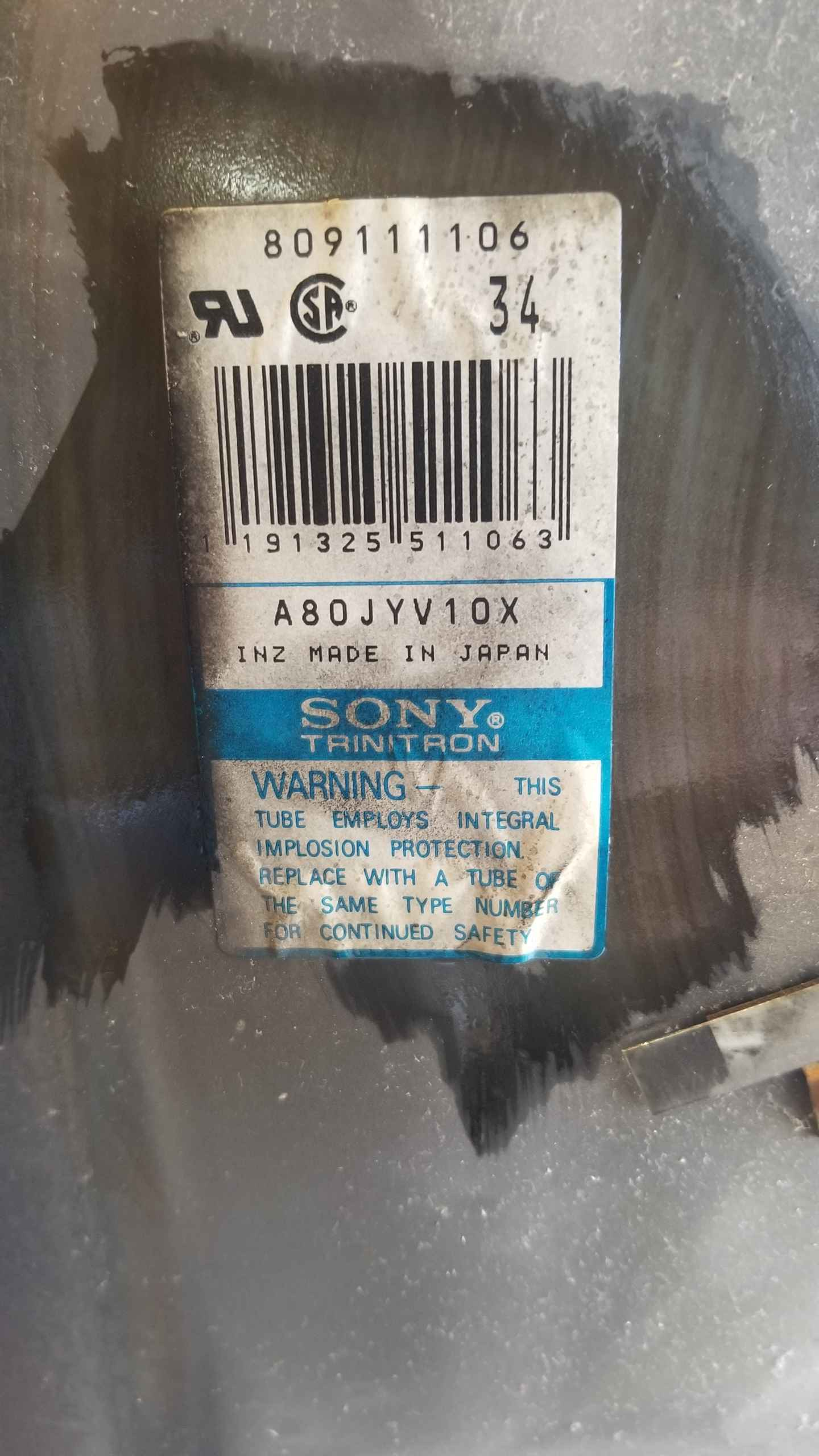

Tube: | A80JYV10X |
Heater Voltage: | 6.3v |
Deflection: | 110° |
Mask: |
Aperture Grille
![]() |
Pitch: | 0.9 mm |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | 1-451-275-11, SY-158 |
Speakers: | Stereo, 7W x 2 |

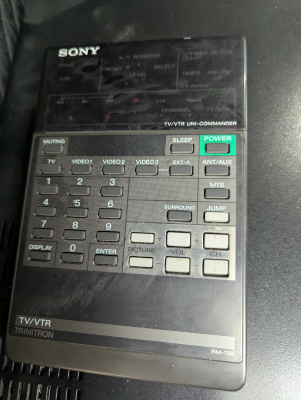

Remote: | RM-755 |
Chassis: | P2B |
Weight: | 158.8 lbs (72 kg) |
Dimensions (W/H/D): |
908 x 673 x 575 mm
(35.7 x 26.4 x 22.6") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1988 |
MSRP: | 2700 USD |
Country of Manufacture: | Mexico |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Degaussing: | Automatic on Power-on |
Tag: | Community Submission |
