| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |

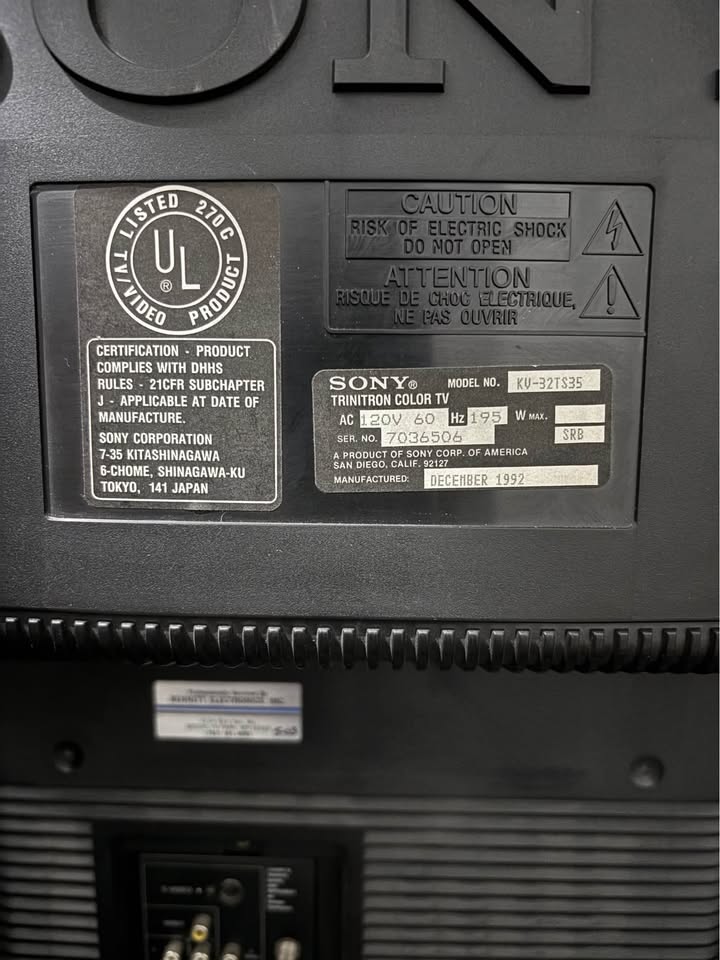

| Model: | KV-32TS35 |
| Series: | KV |
| Viewable Size: | 32" |

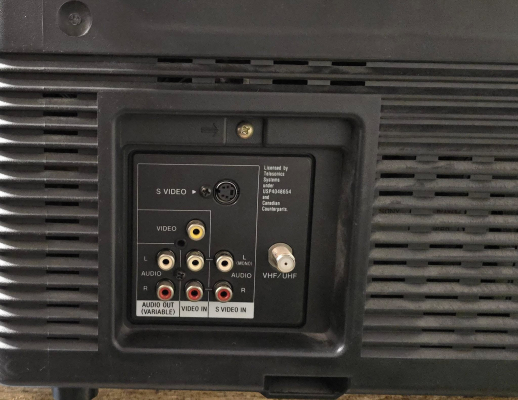

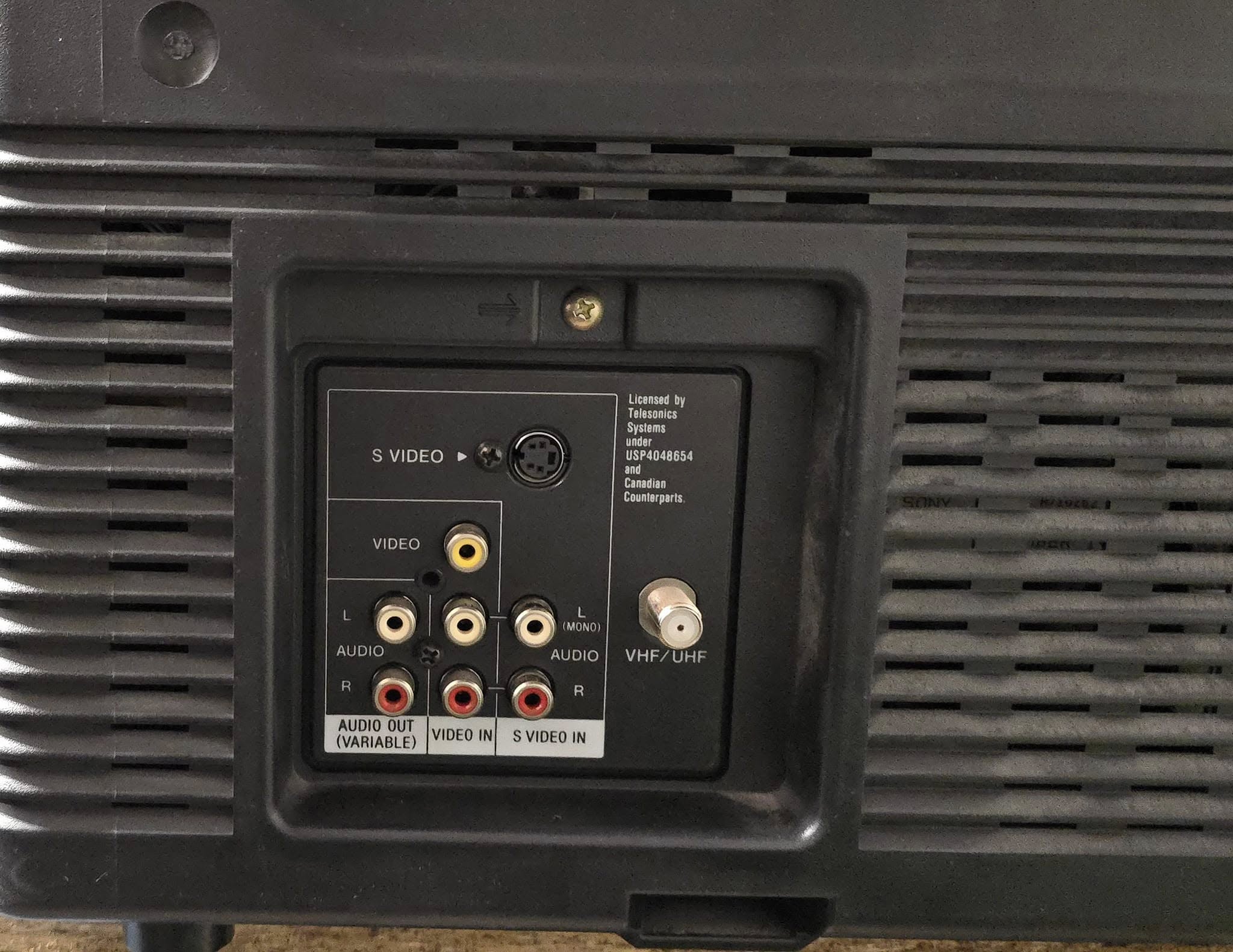

| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | AN5521, Panasonic |
| Jungle IC: | MC68HC05T7-LSC89919B |
| Flyback: | 1-439-502-11, NX-2600A3 |
| Focus Type: | Single |
| Tube: | Sony Microblack Trinitron , A80JYV50X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | Y34FXA, 1-451-315-11 |
| Yoke Vert. Resistance: | 9.21 ohm |
| Speakers: | Stereo, 5W x 2 |

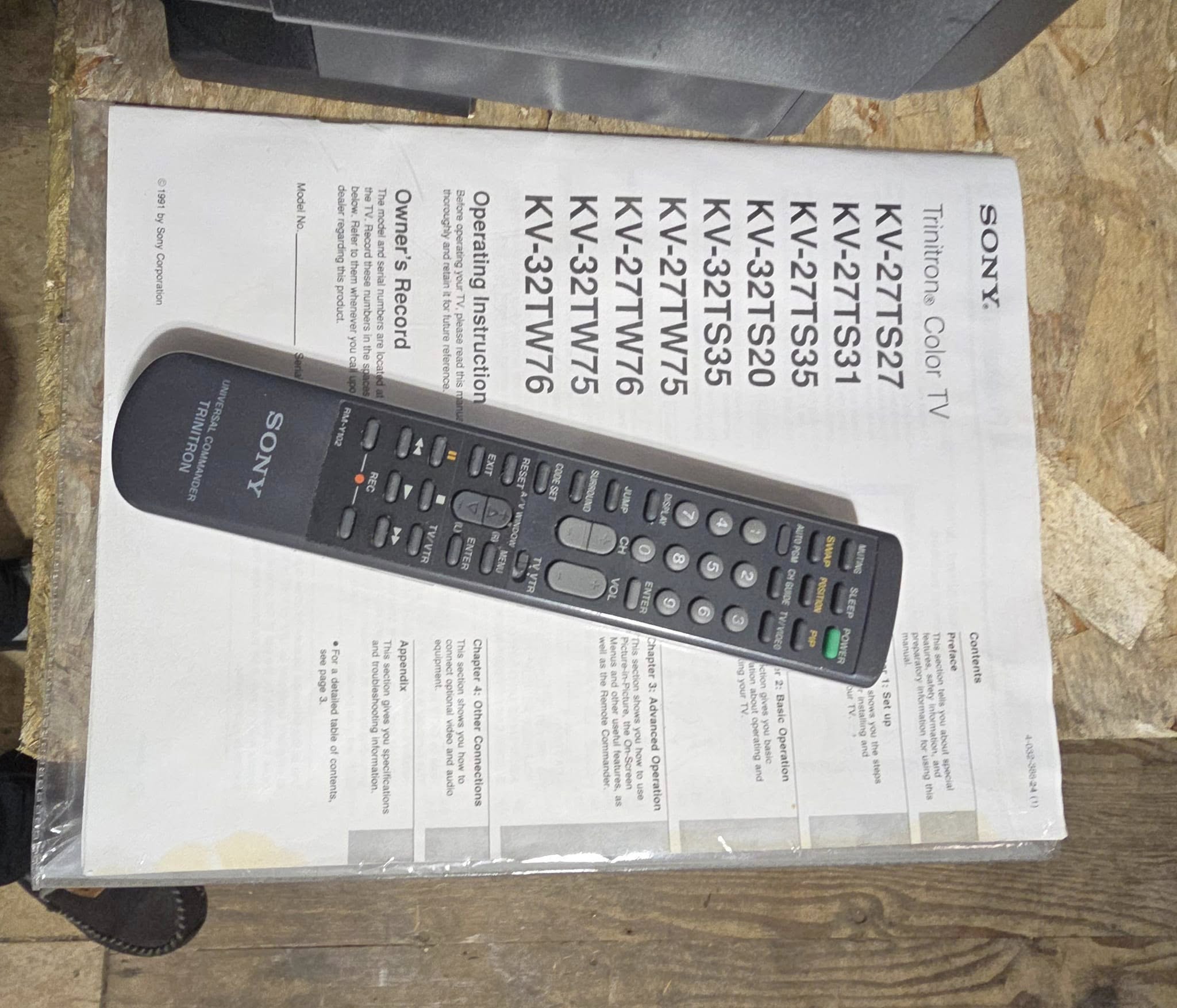

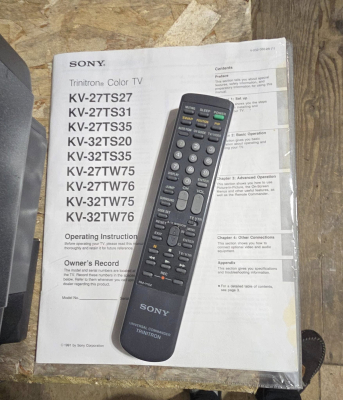

| Remote: | RM-Y102 |
| Chassis: | LN-1, SCC-E54C-A |
| Weight: | 156.9 lbs (71.2 kg) |
| Dimensions (W/H/D): |
712 x 781 x 579 mm
(28 x 30.7 x 22.8") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1991 |
| MSRP: | 1699 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
