Summary

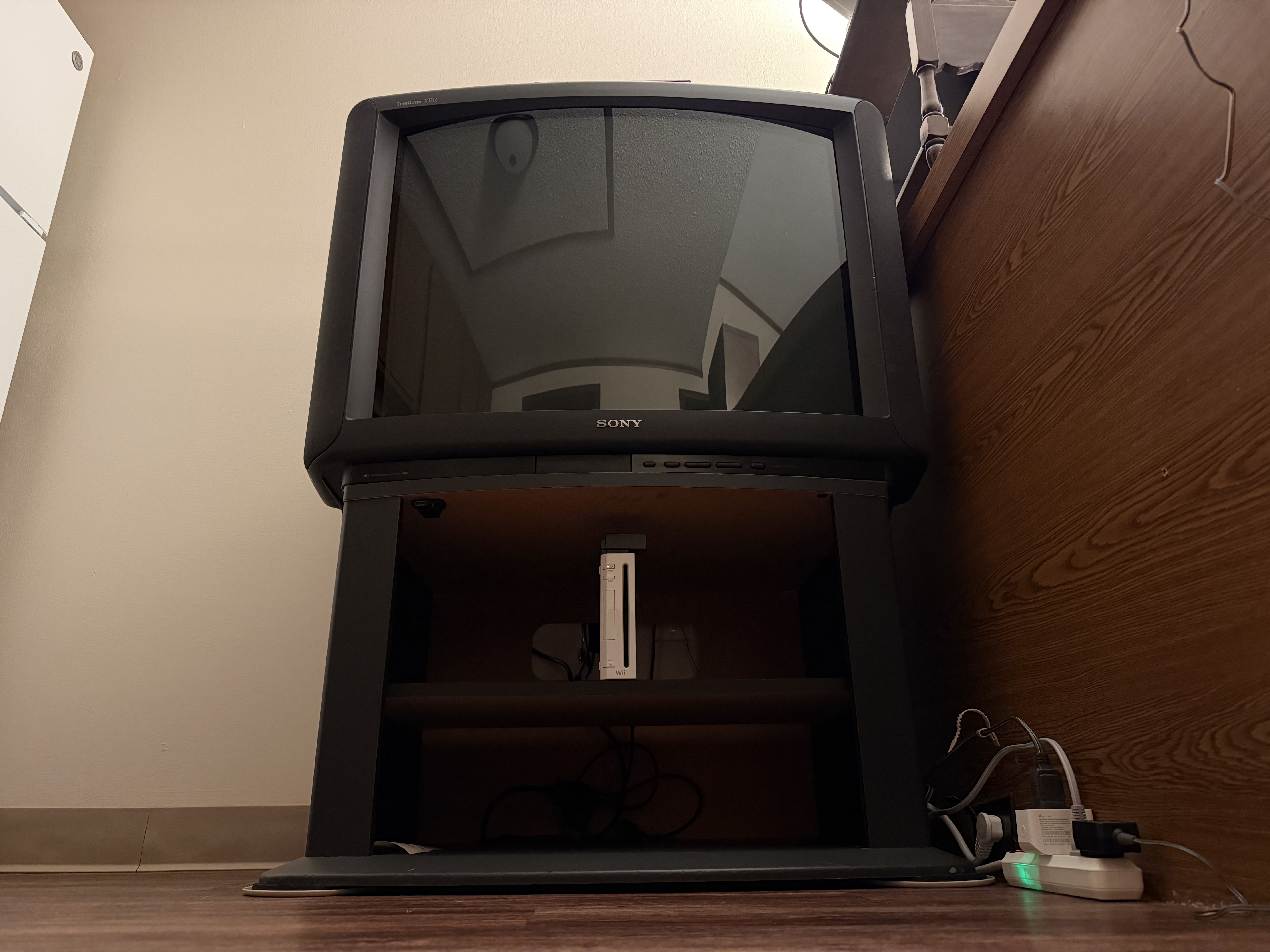

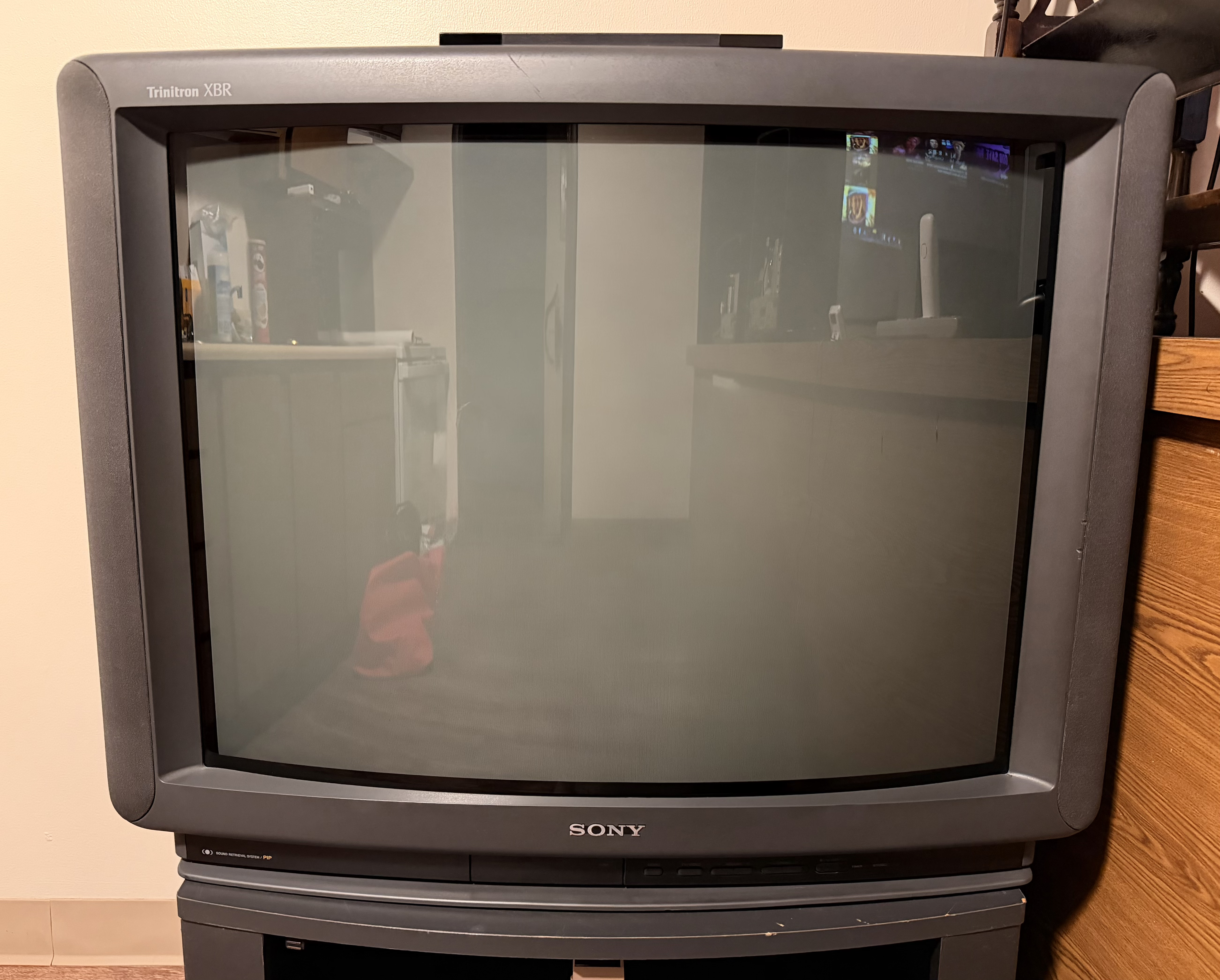

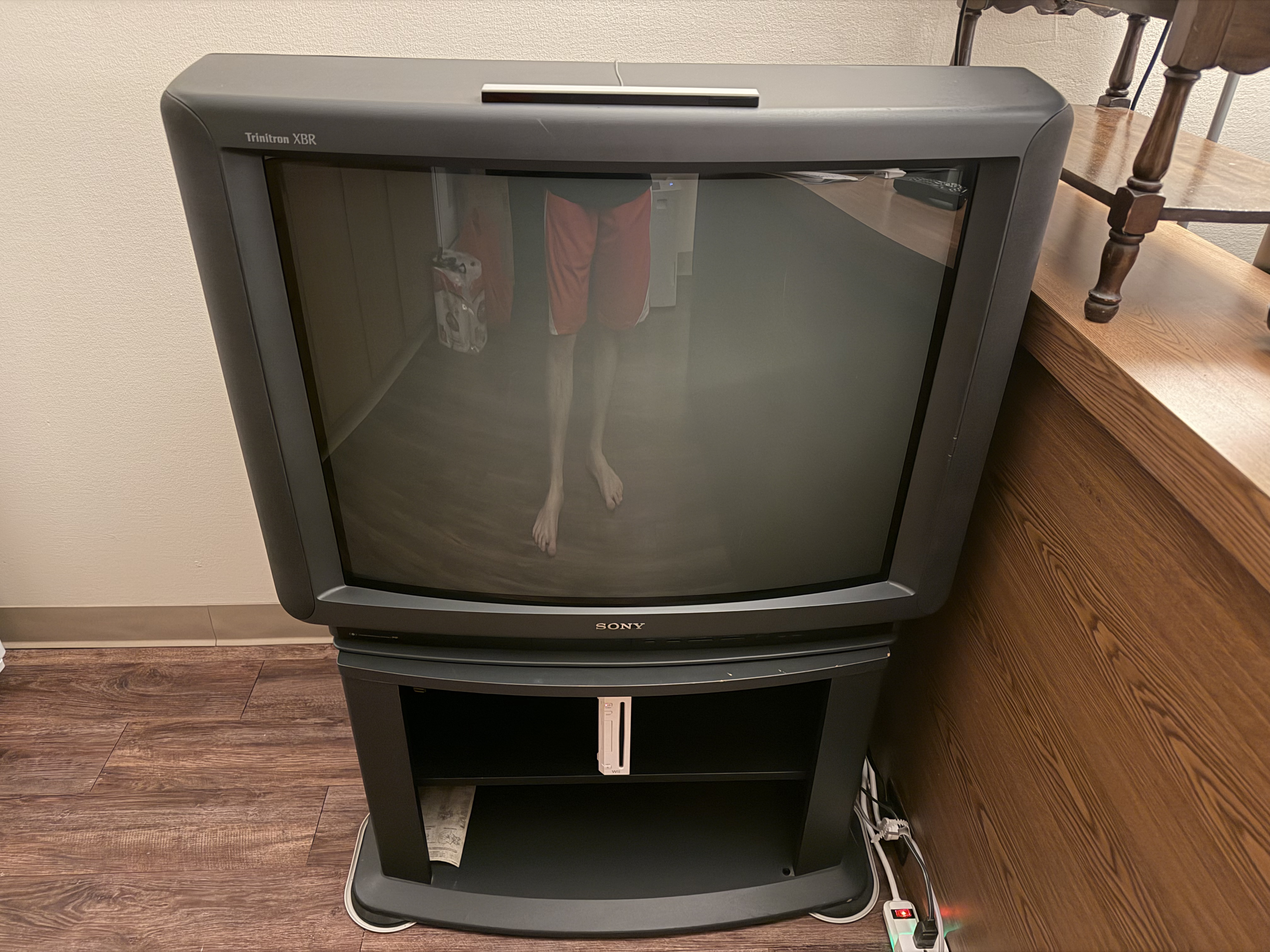

High-end 32" Trinitron by Sony, part of their XBR line. Has RF, composite, and s-video inputs with bassy stereo sound. Originally manufactured in Mexico in 1992.
(Special thanks to Justin Williams for the pics!)
Literature
Notes
The FN chassis has been known to be overbuilt and rather unreliable, so if you ever come across a Sony set that uses it, be aware it may need servicing at some point.

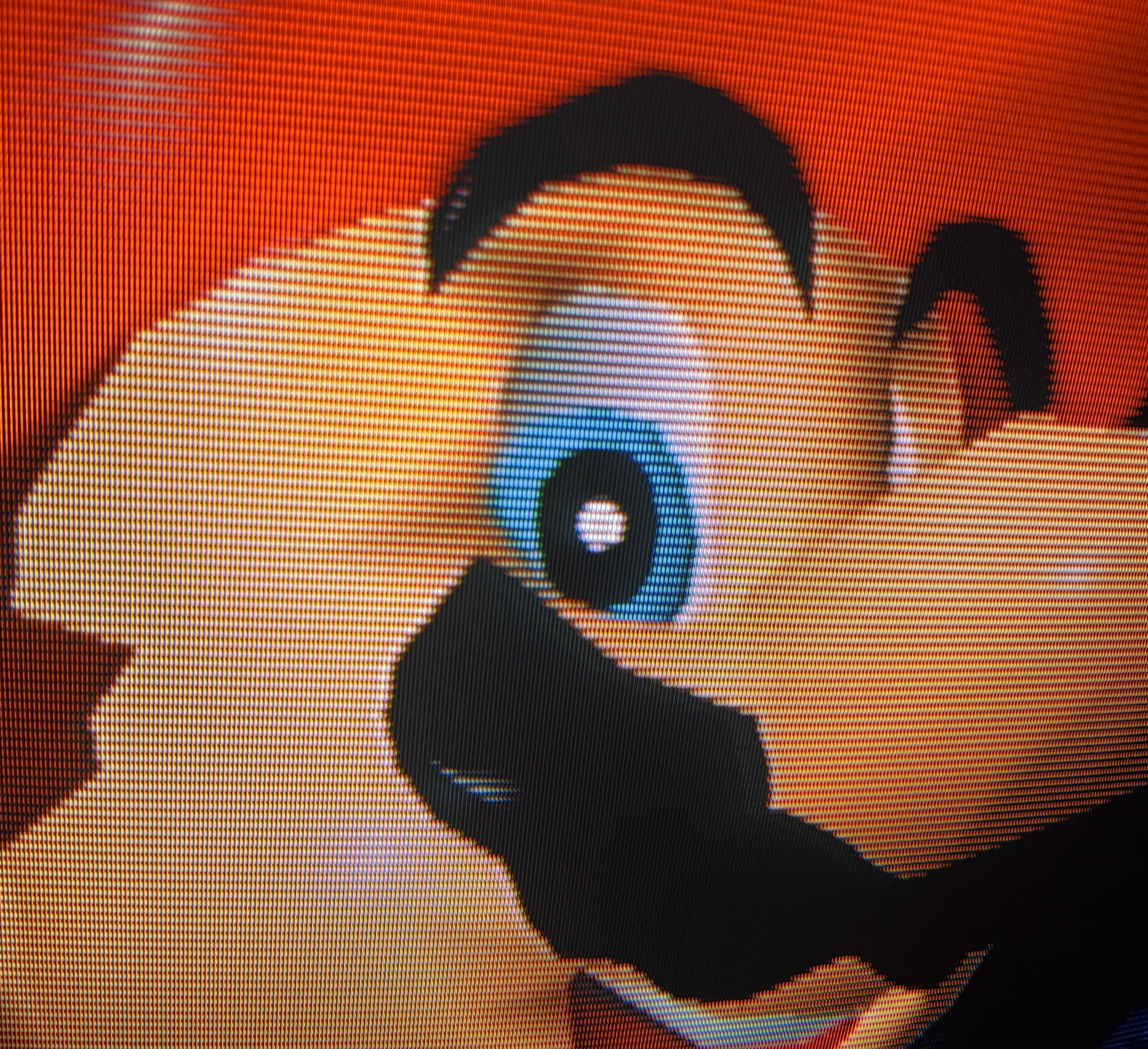

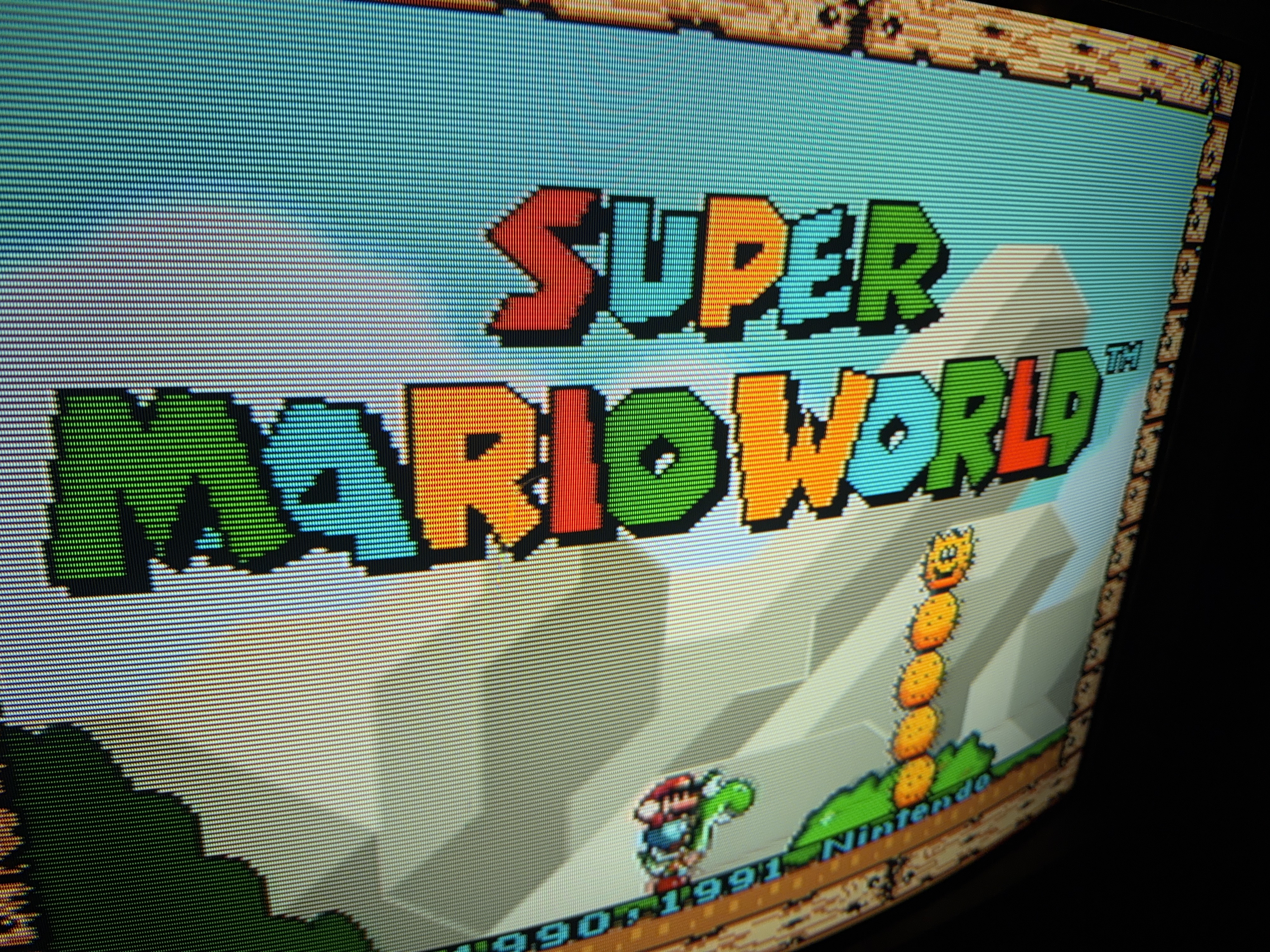

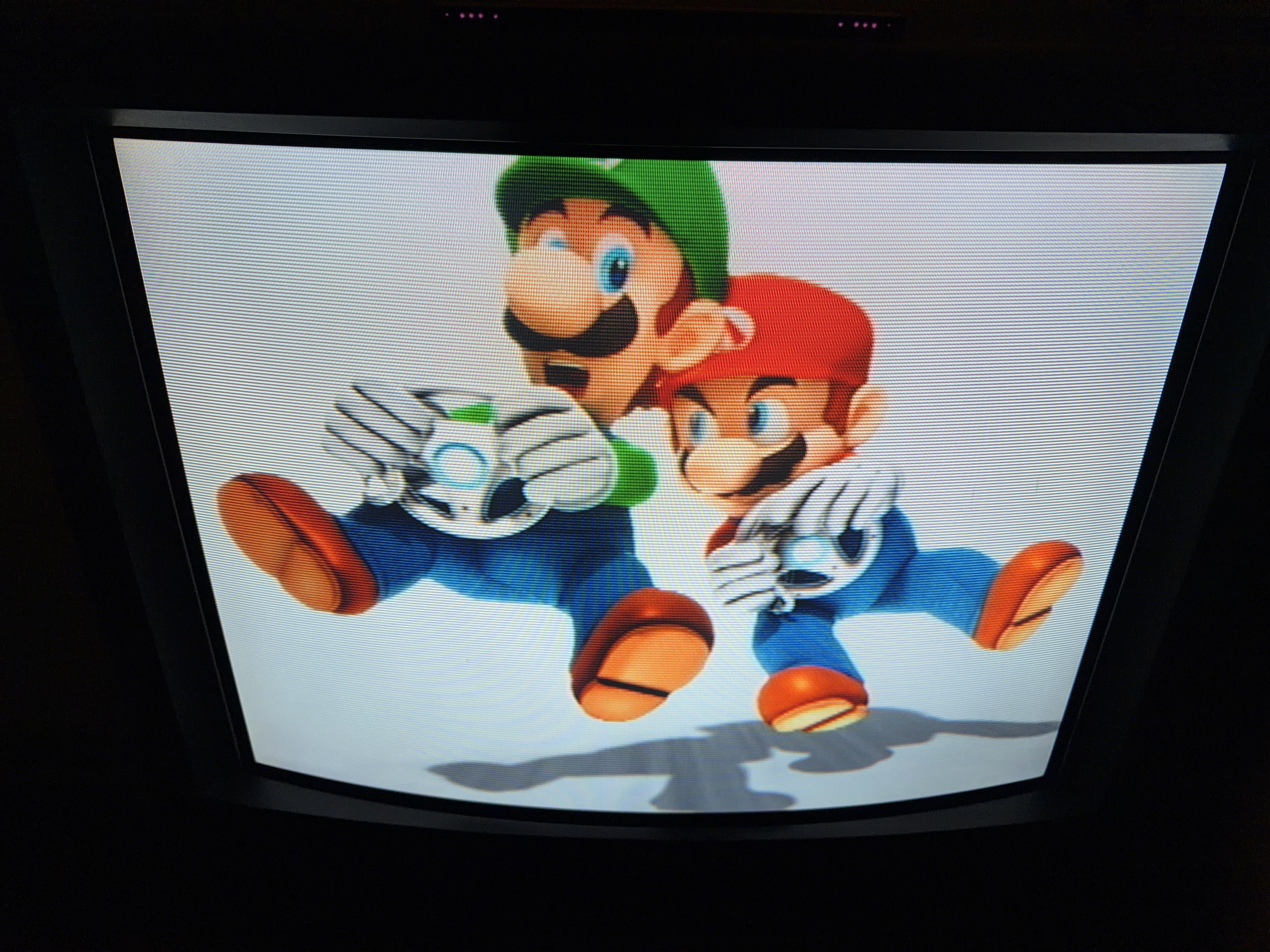

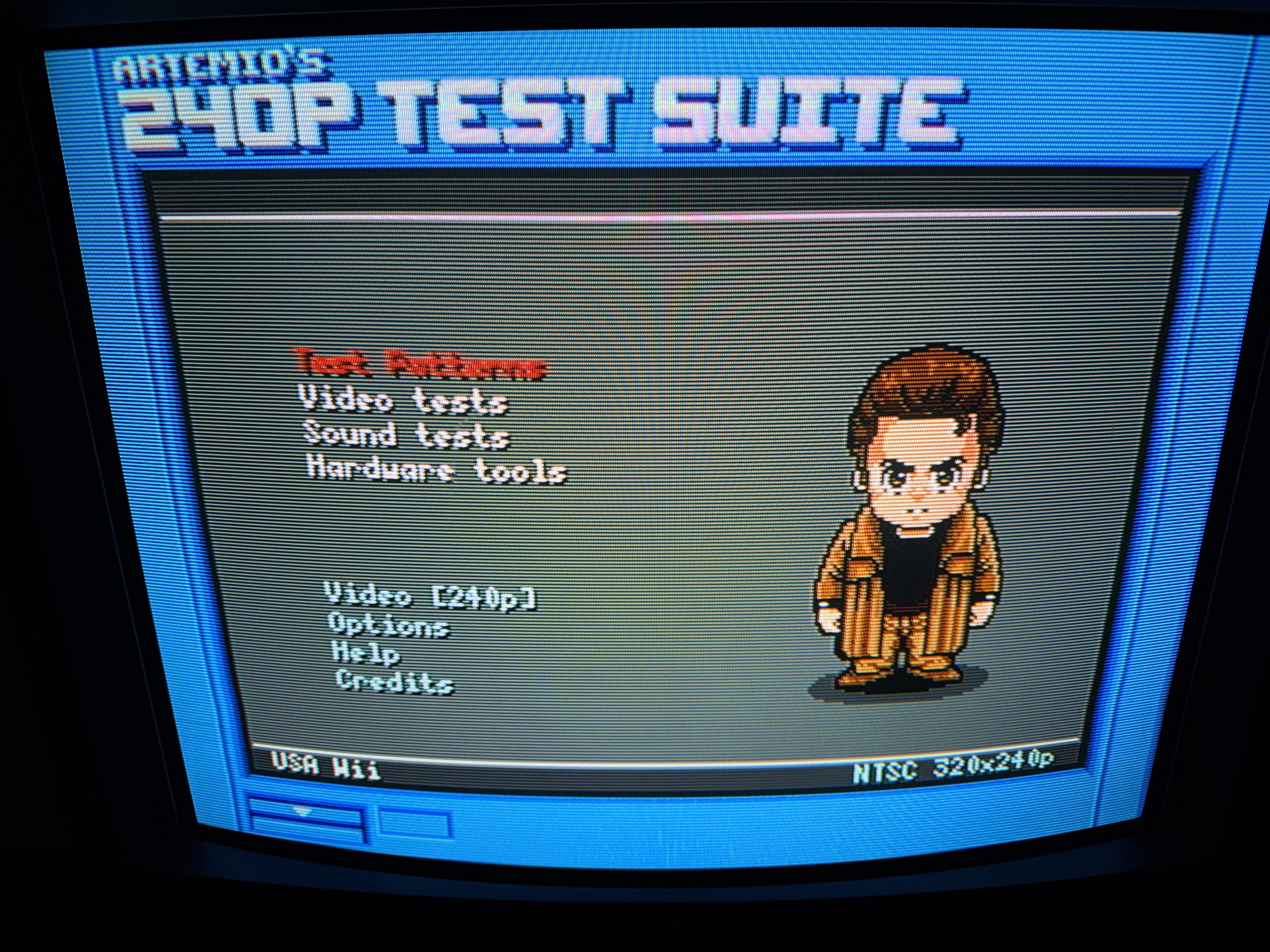

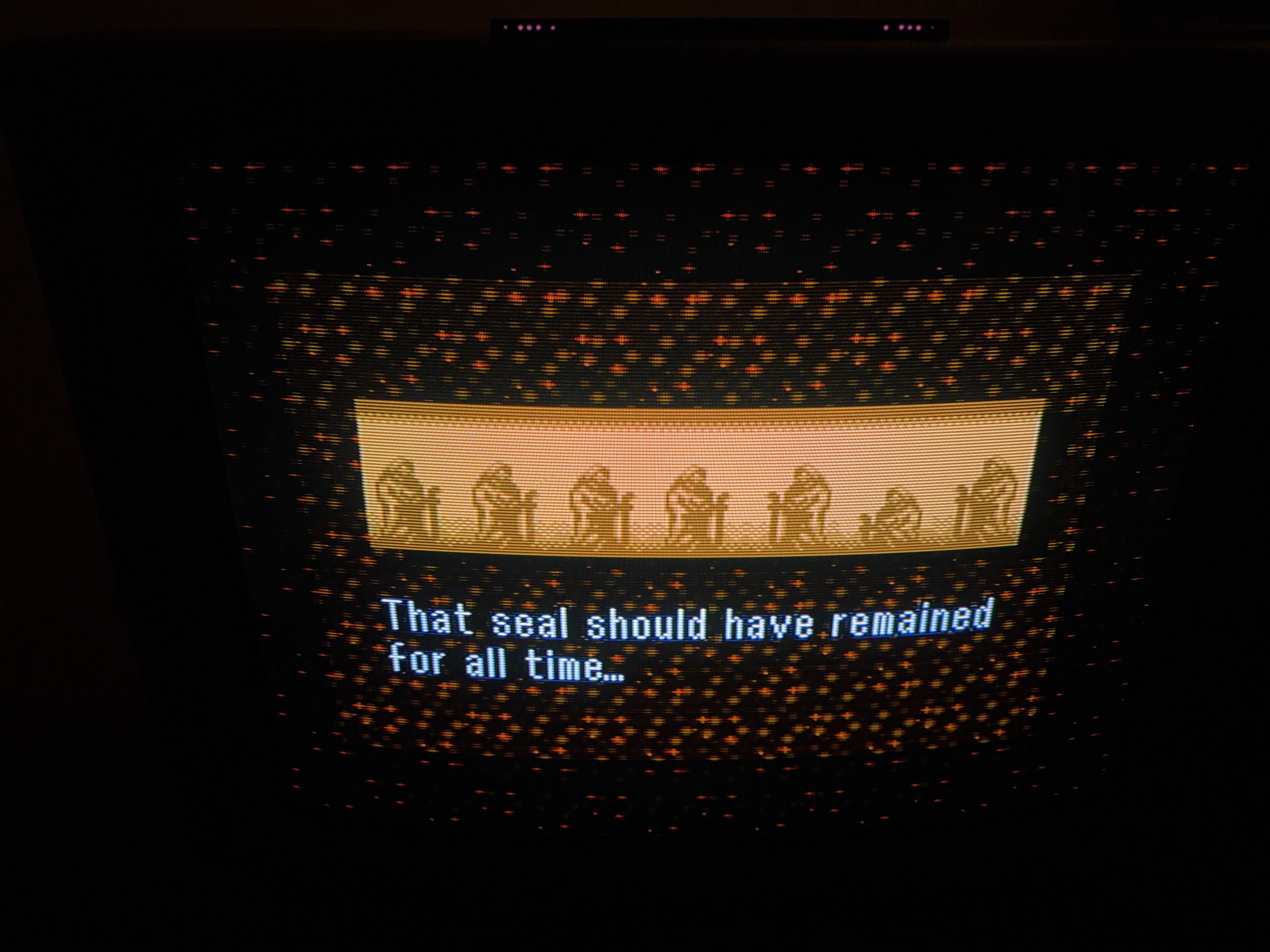

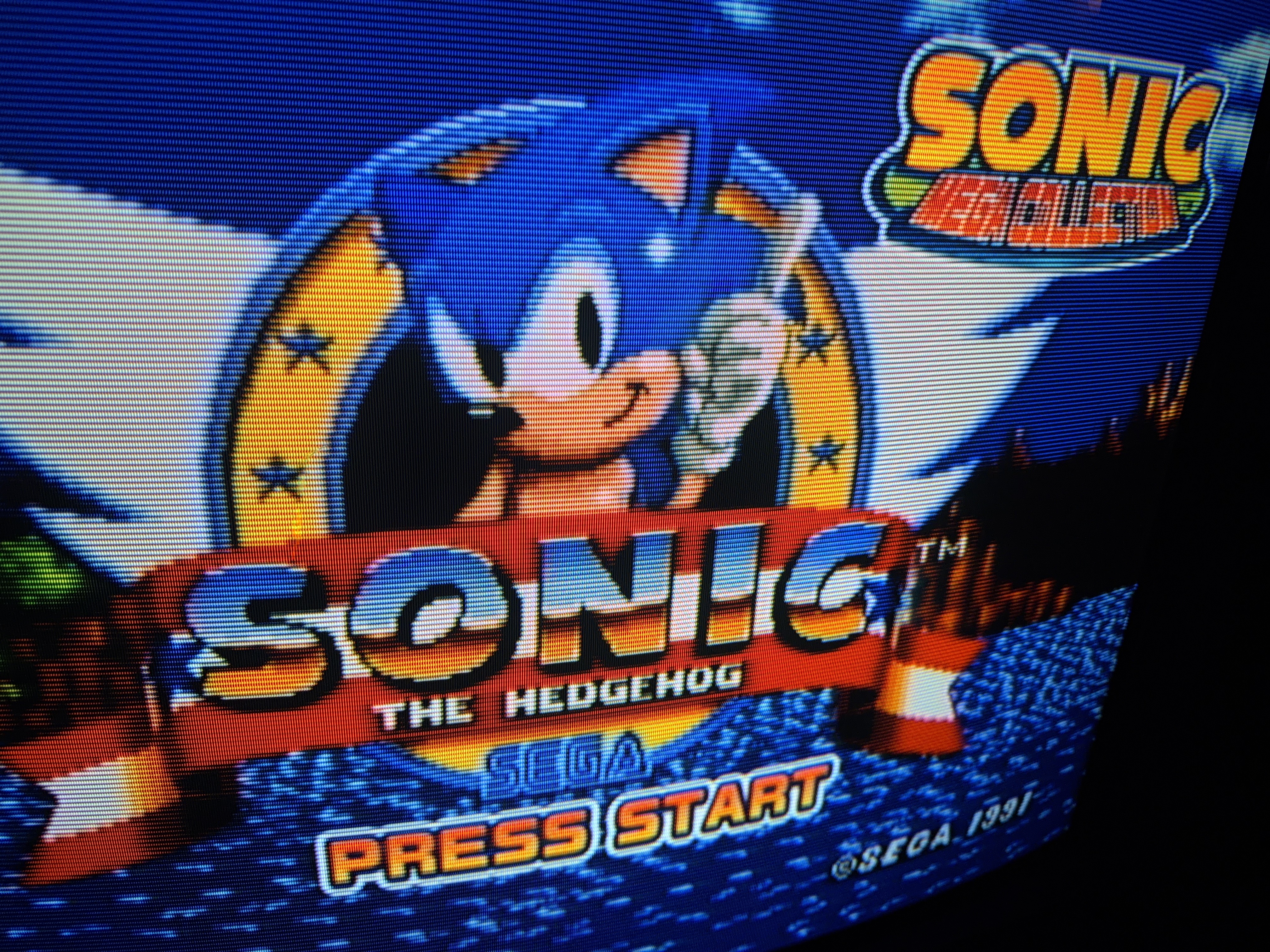

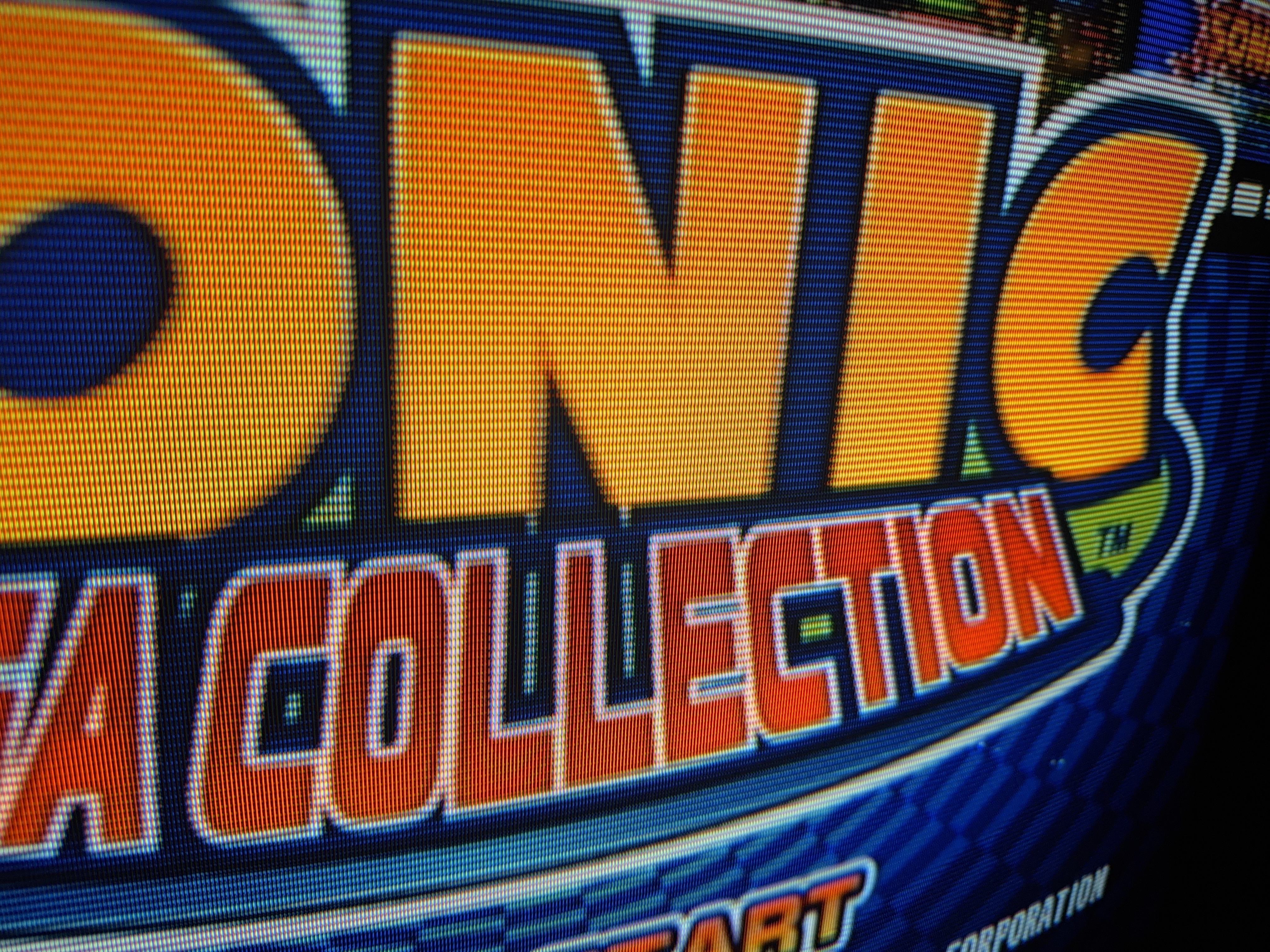

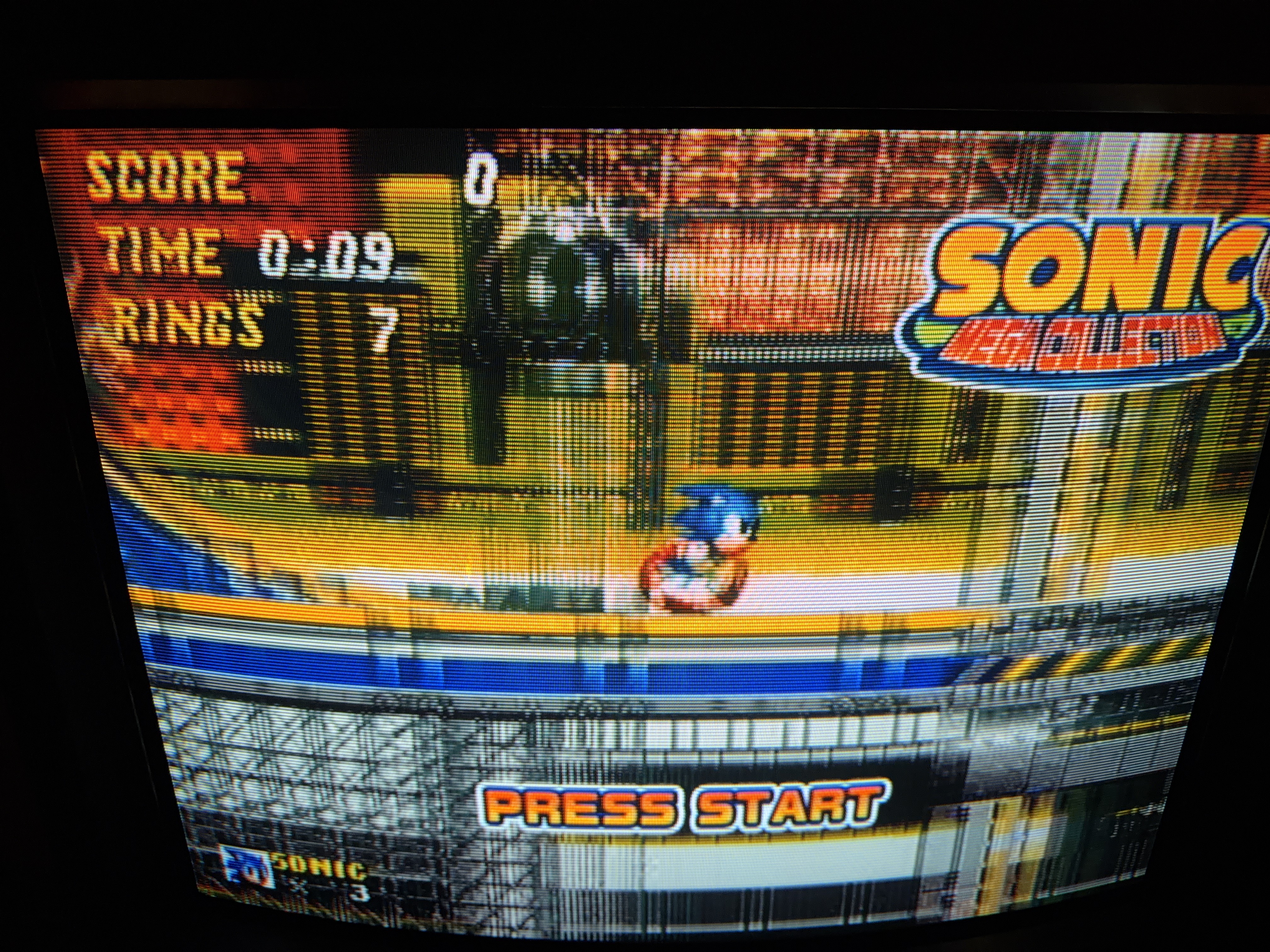

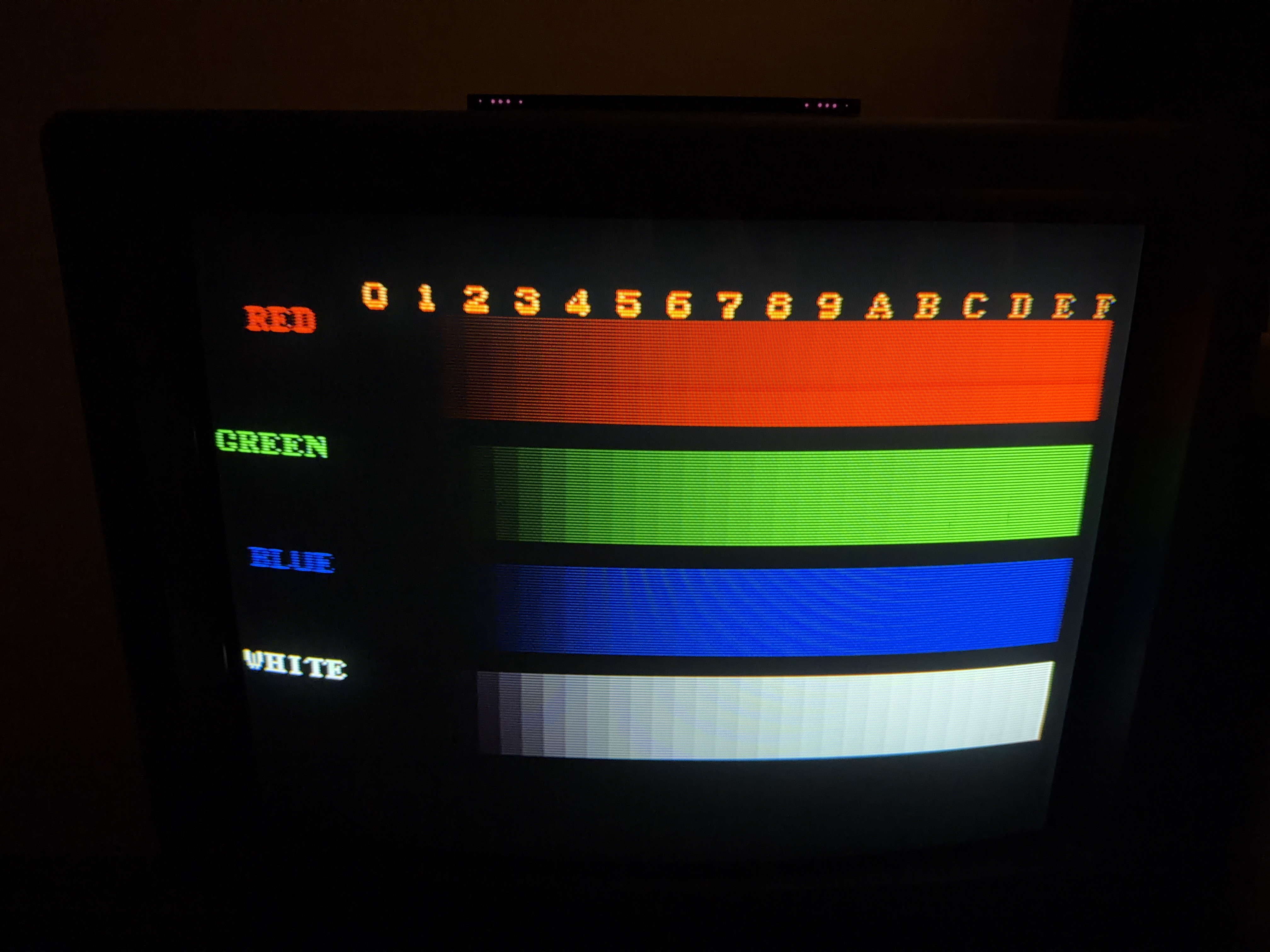

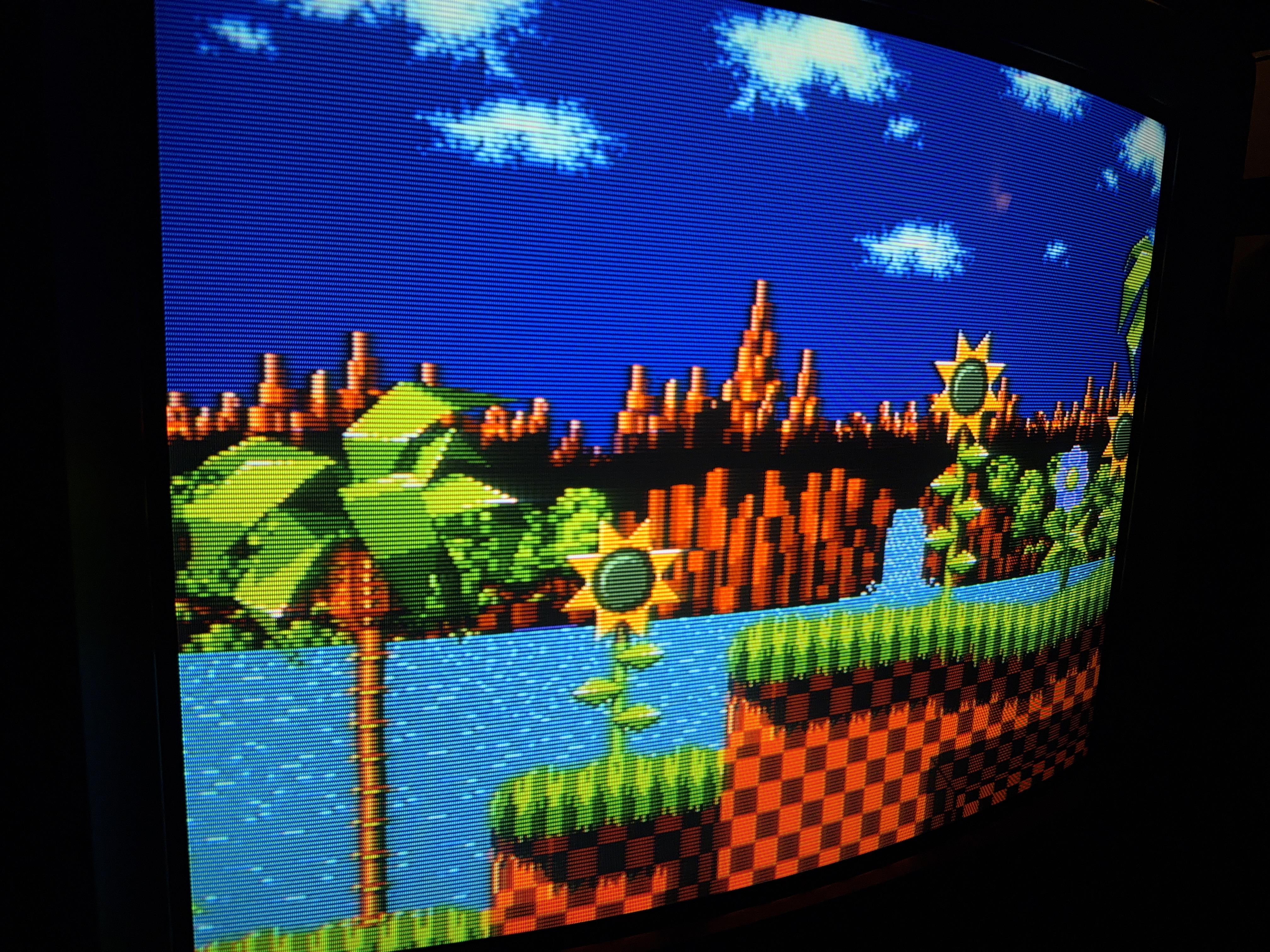

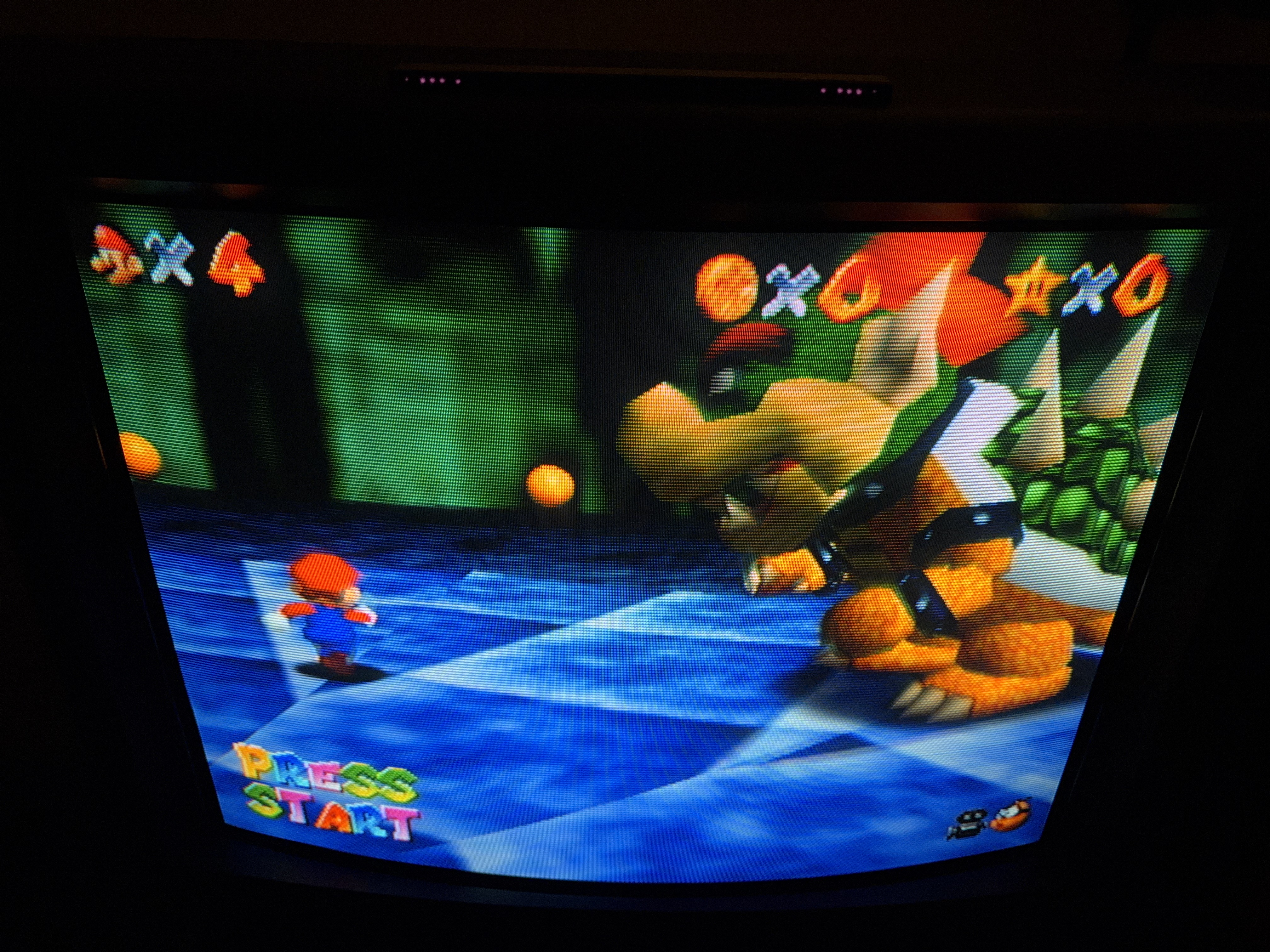

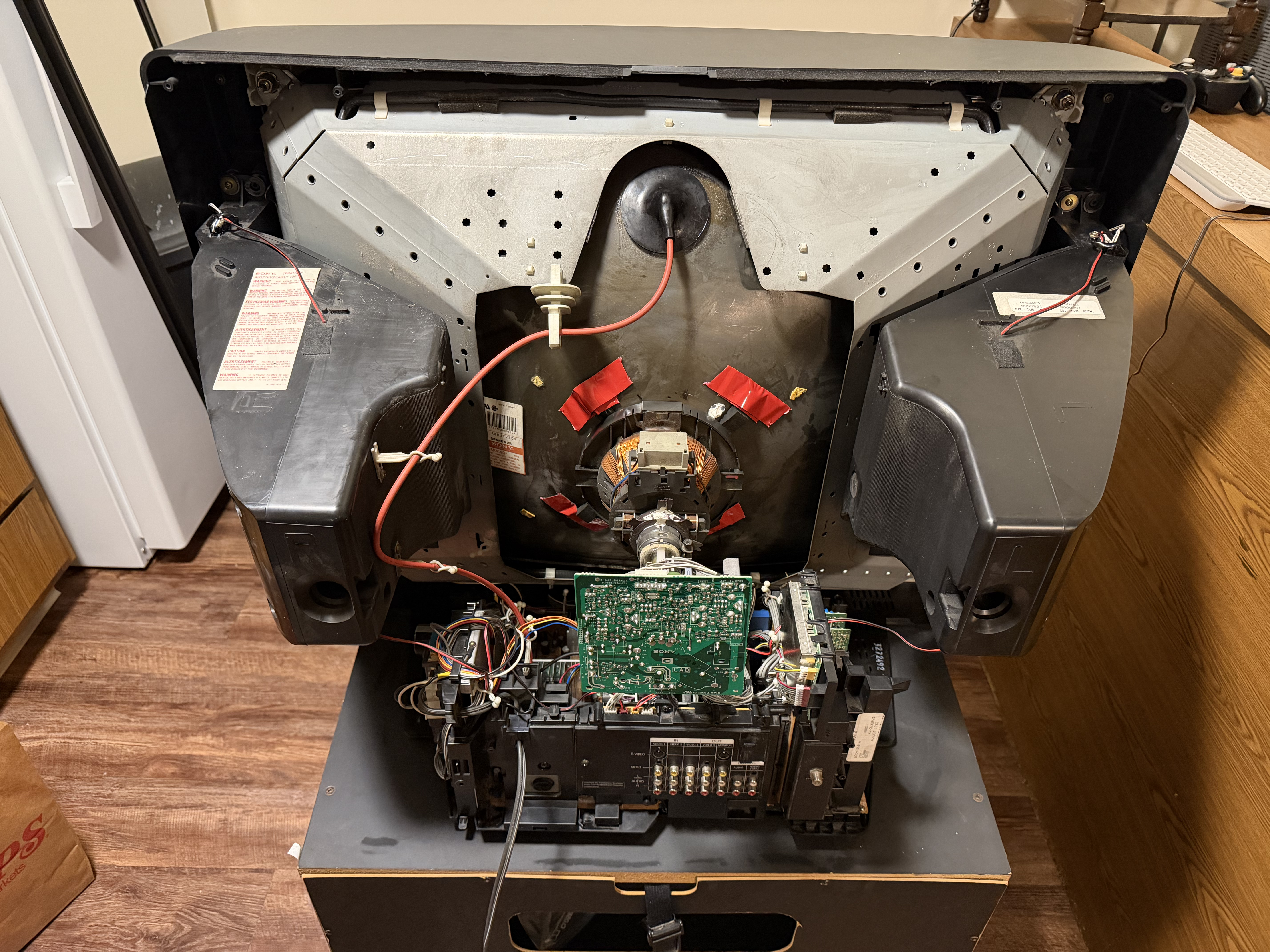

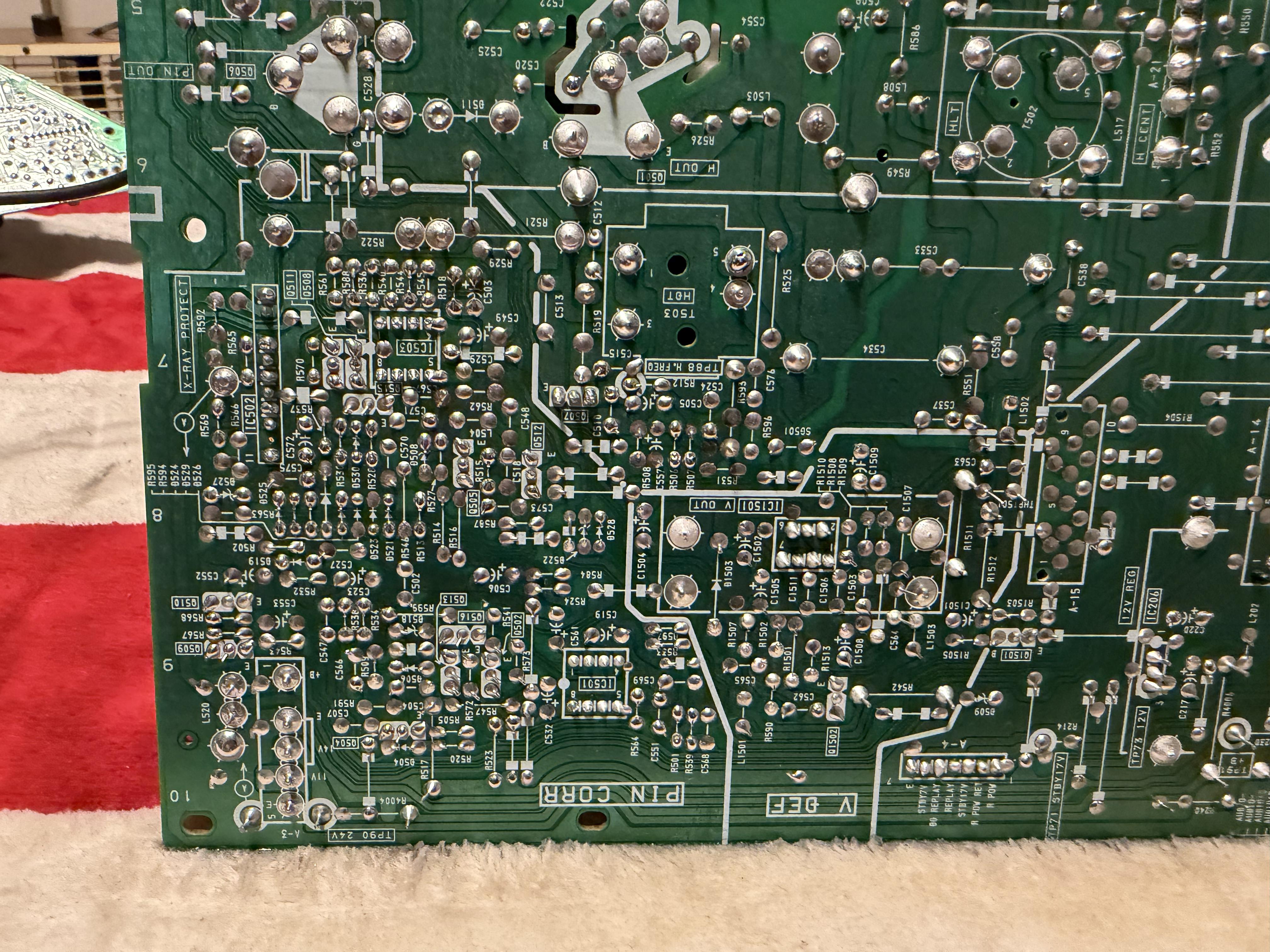

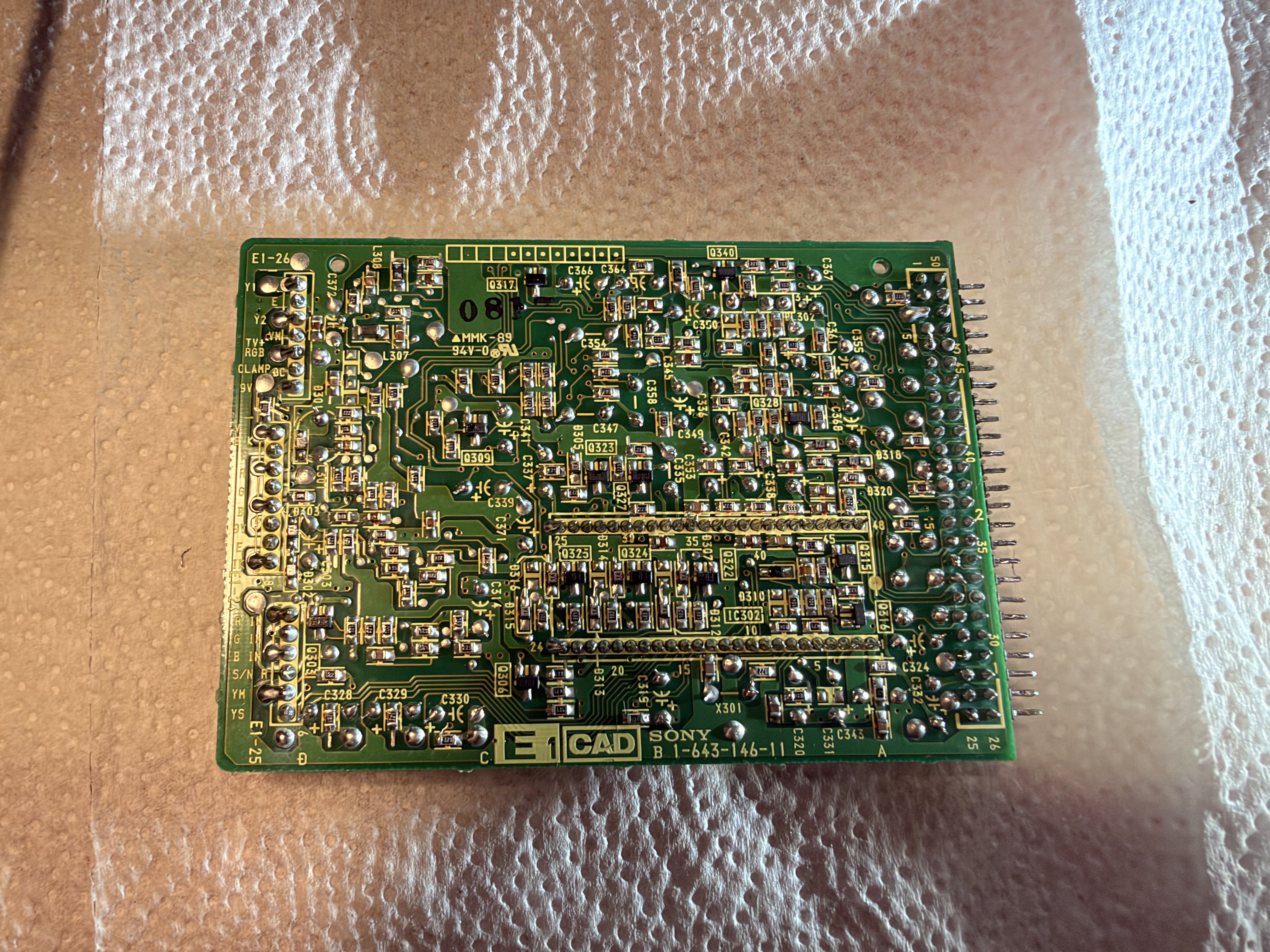

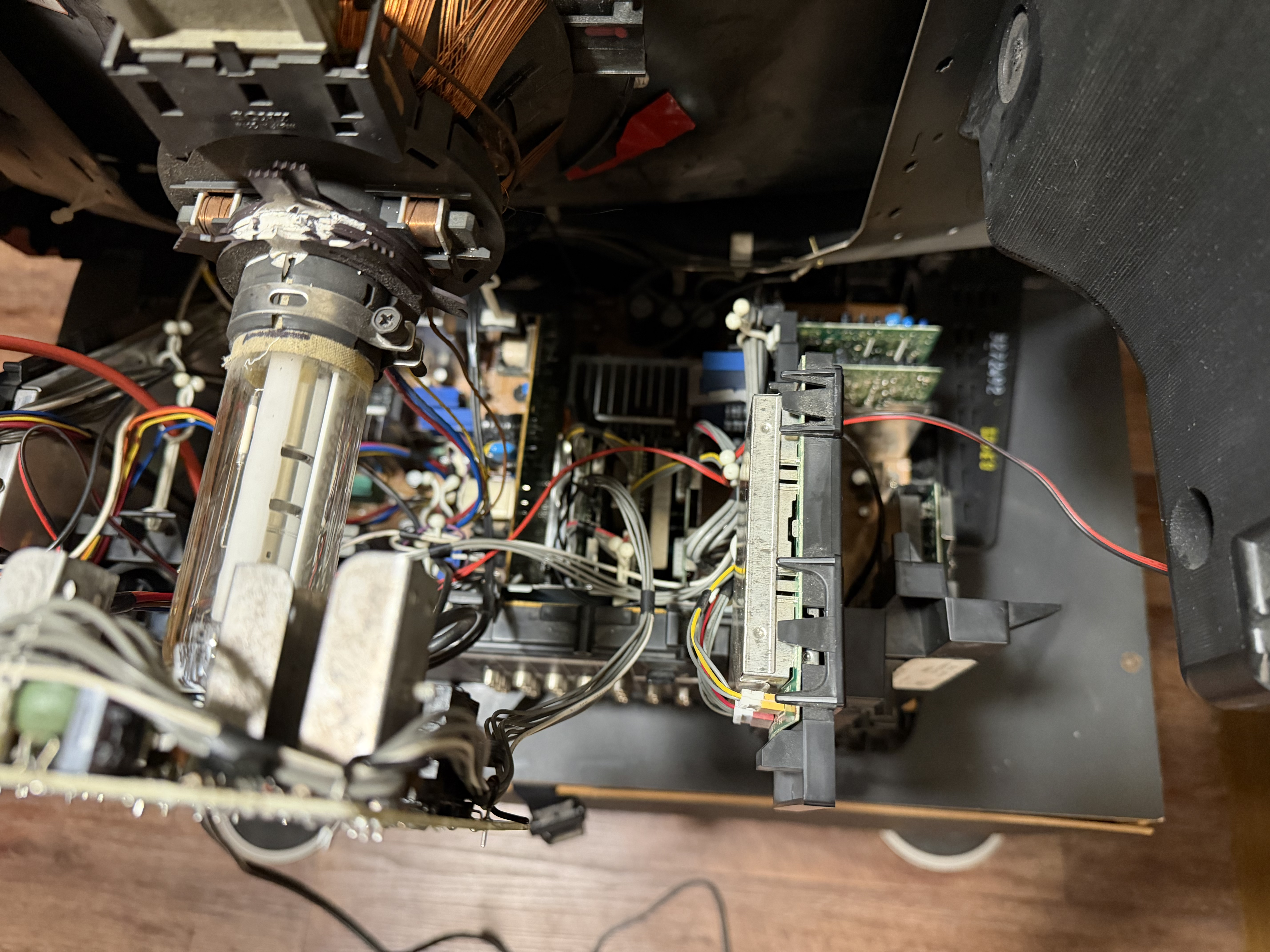

Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |

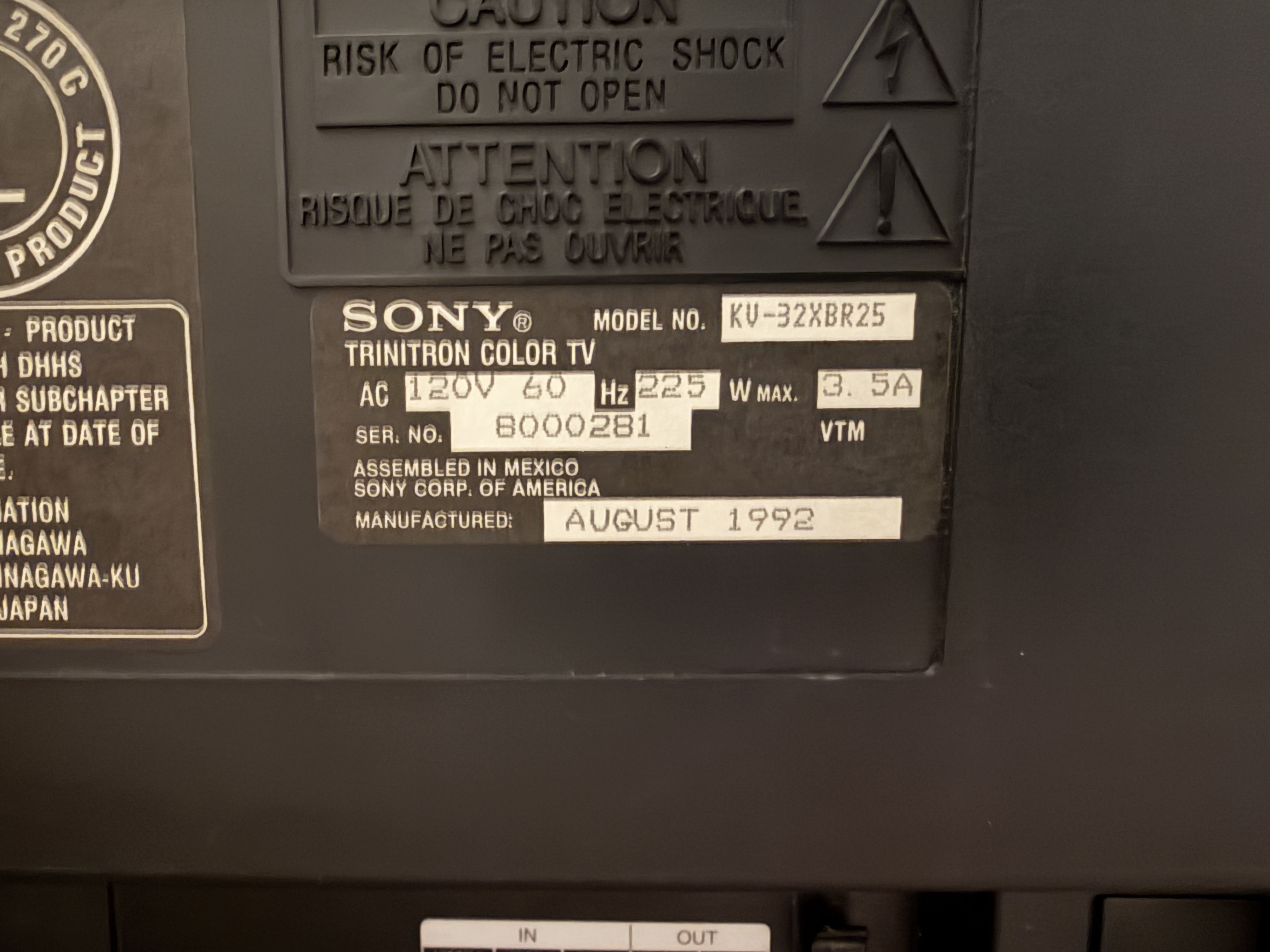

| Model: | KV-32XBR25 |
| Series: | XBR |
| Viewable Size: | 32" |

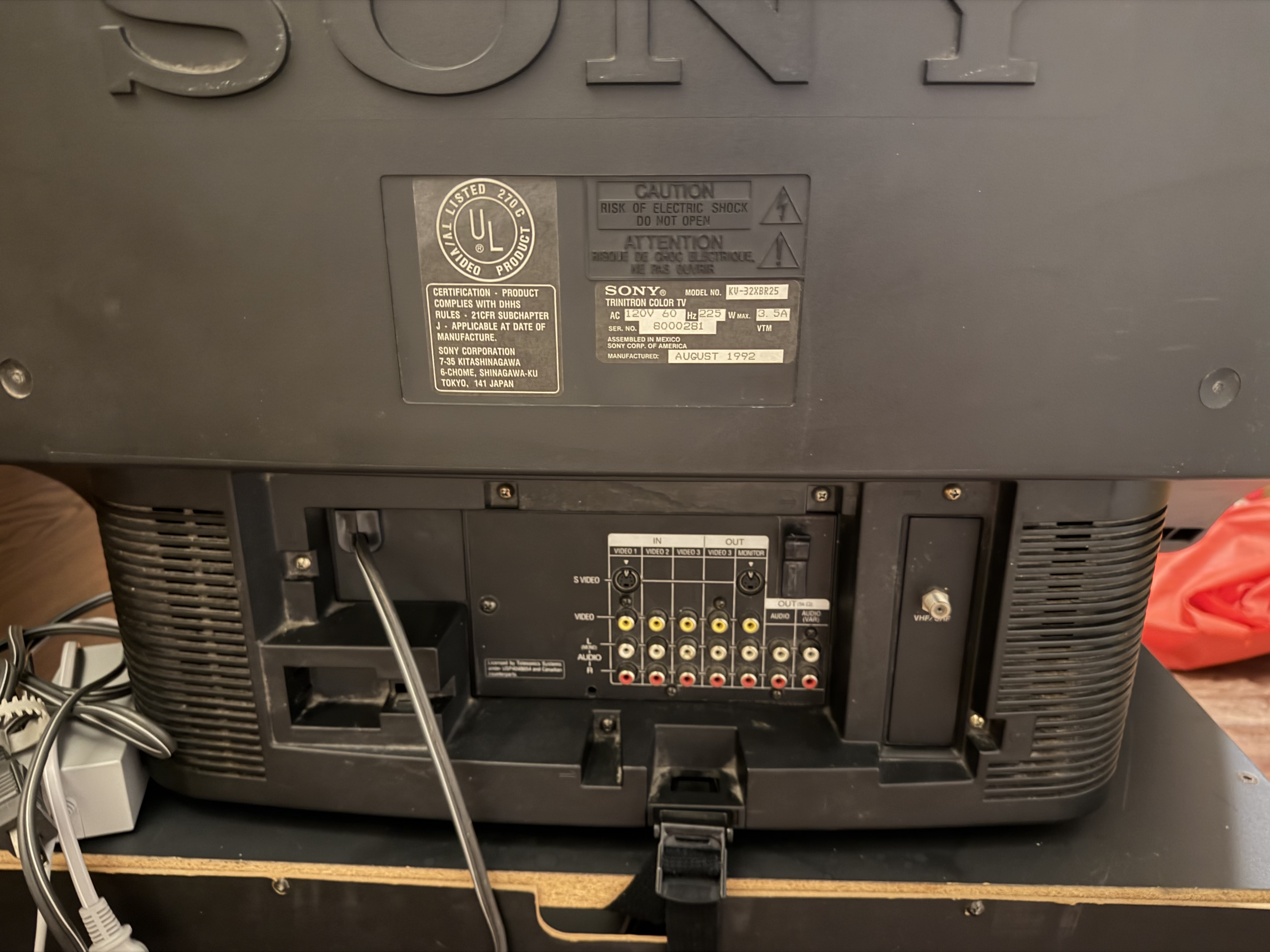

| Input Signals: | Composite, RF, S-Video |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

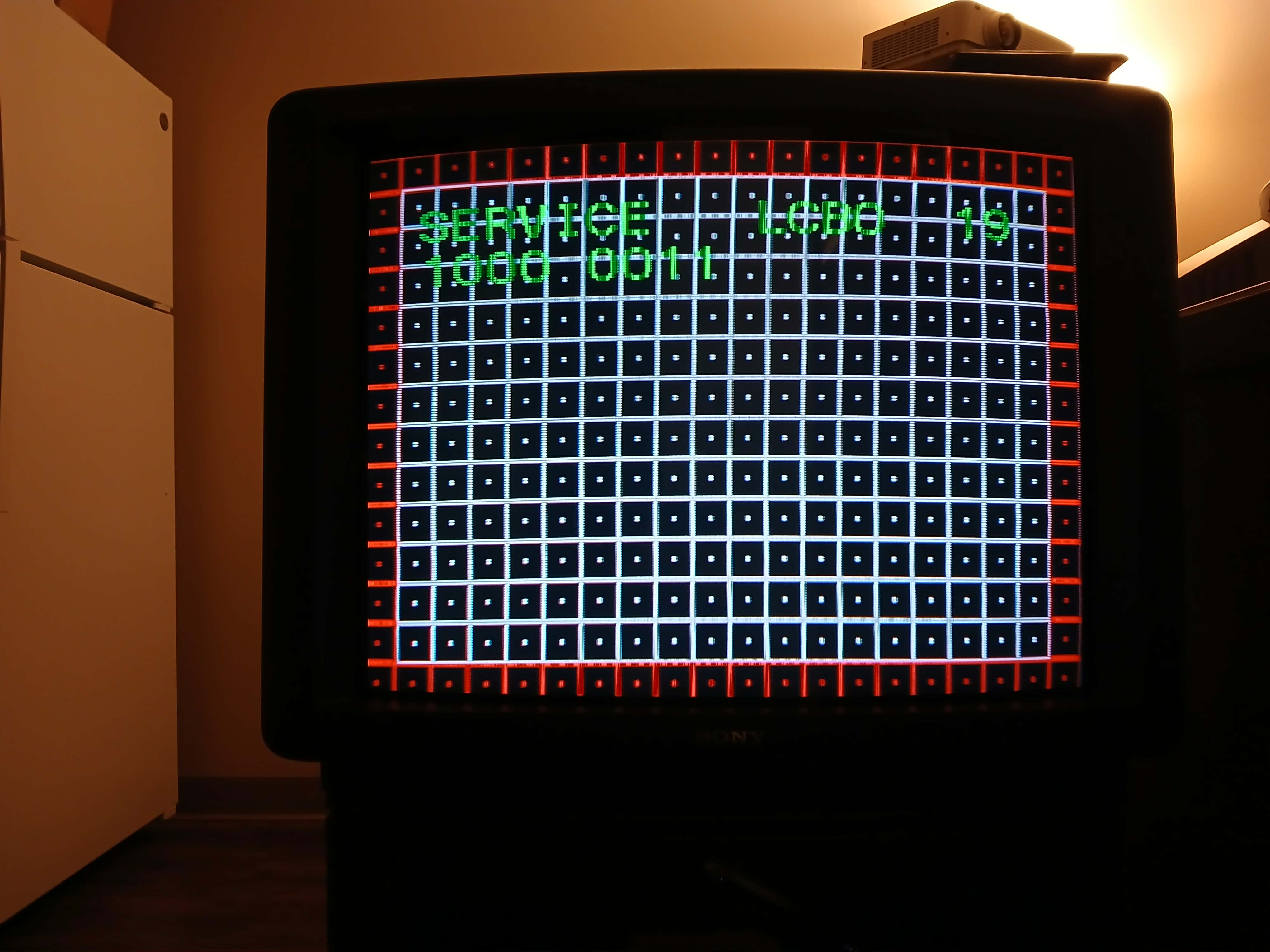

| Adjustments: | OSD Customer Controls, OSD Service Menu |

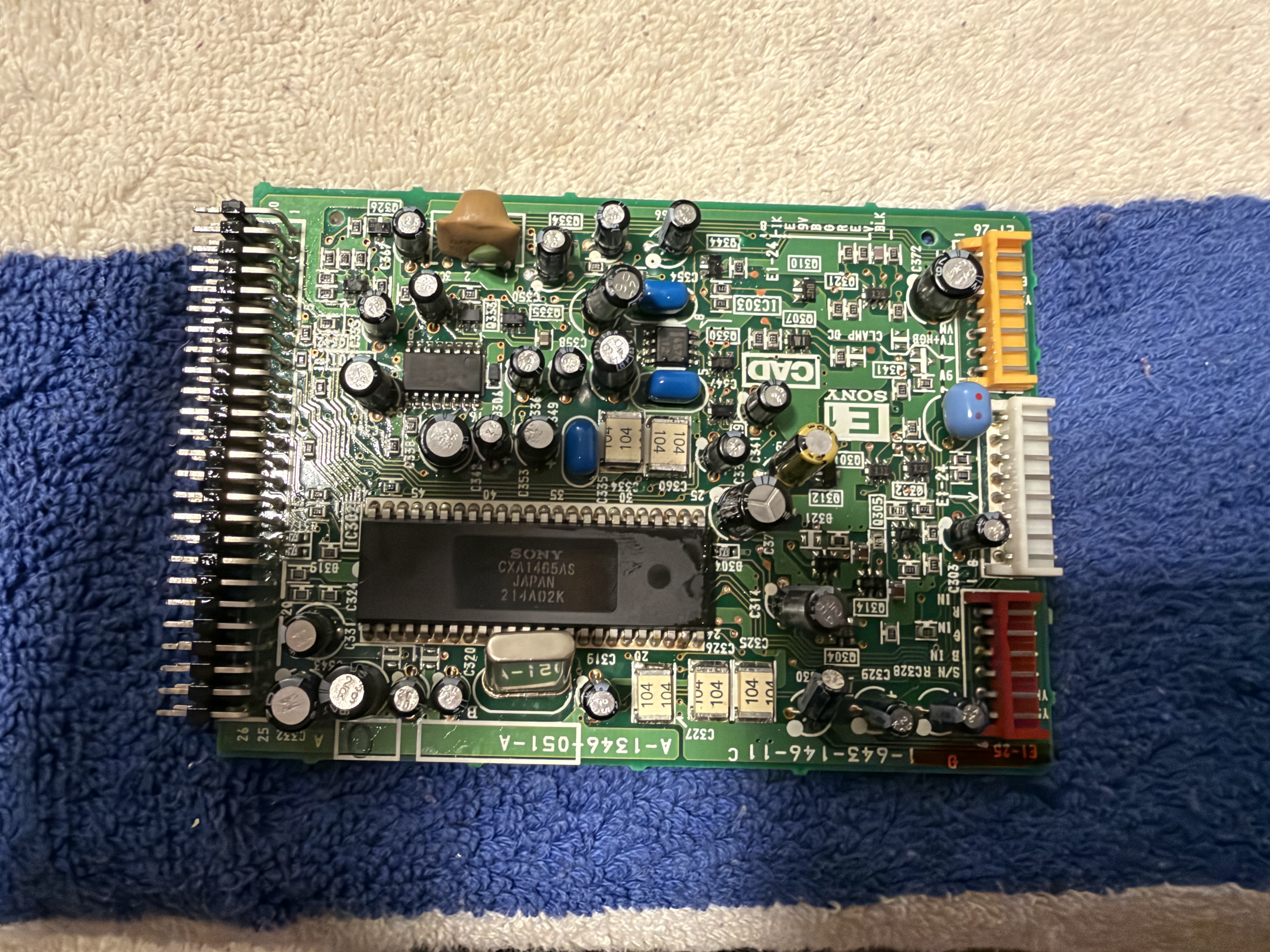

| Jungle IC: | CXA1465, CXA1465AS, Sony |
| Focus Type: | Single |

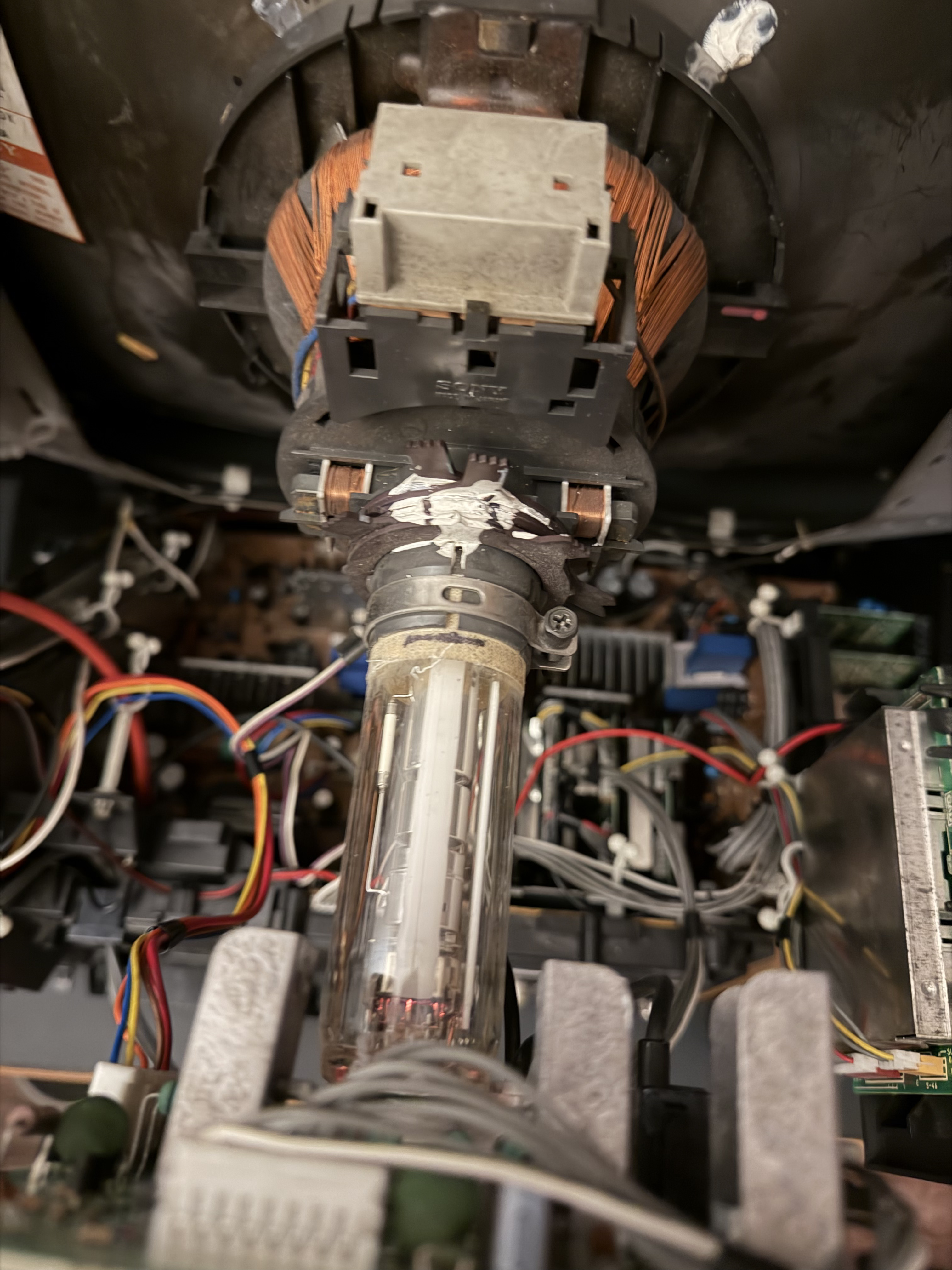

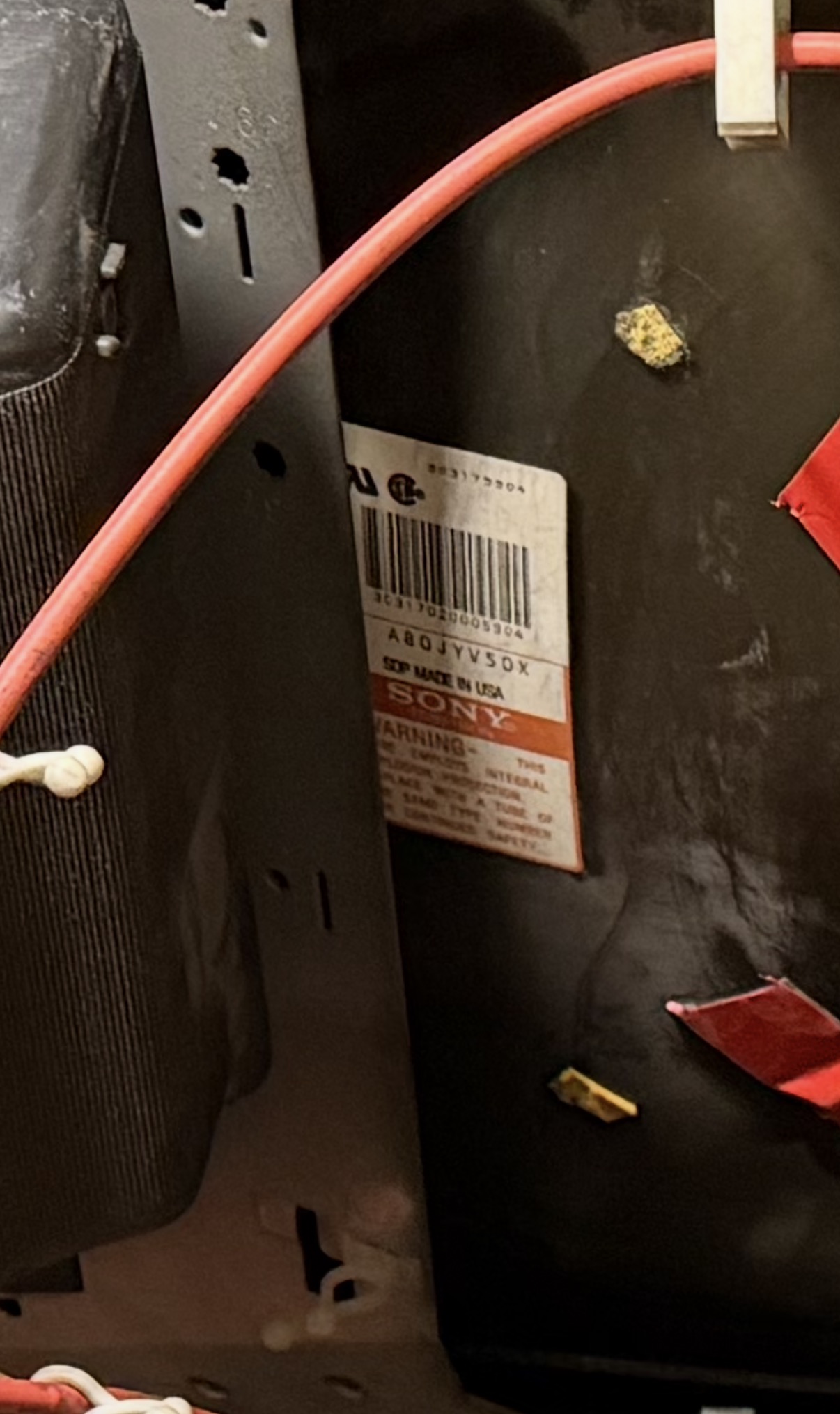

| Tube: | A80JYV50X , Sony Microblack Trinitron |
| Heater Voltage: | 6.3v |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 1-451-315-11 |
| Speakers: | Stereo |
| Remote: | RM-Y112 |

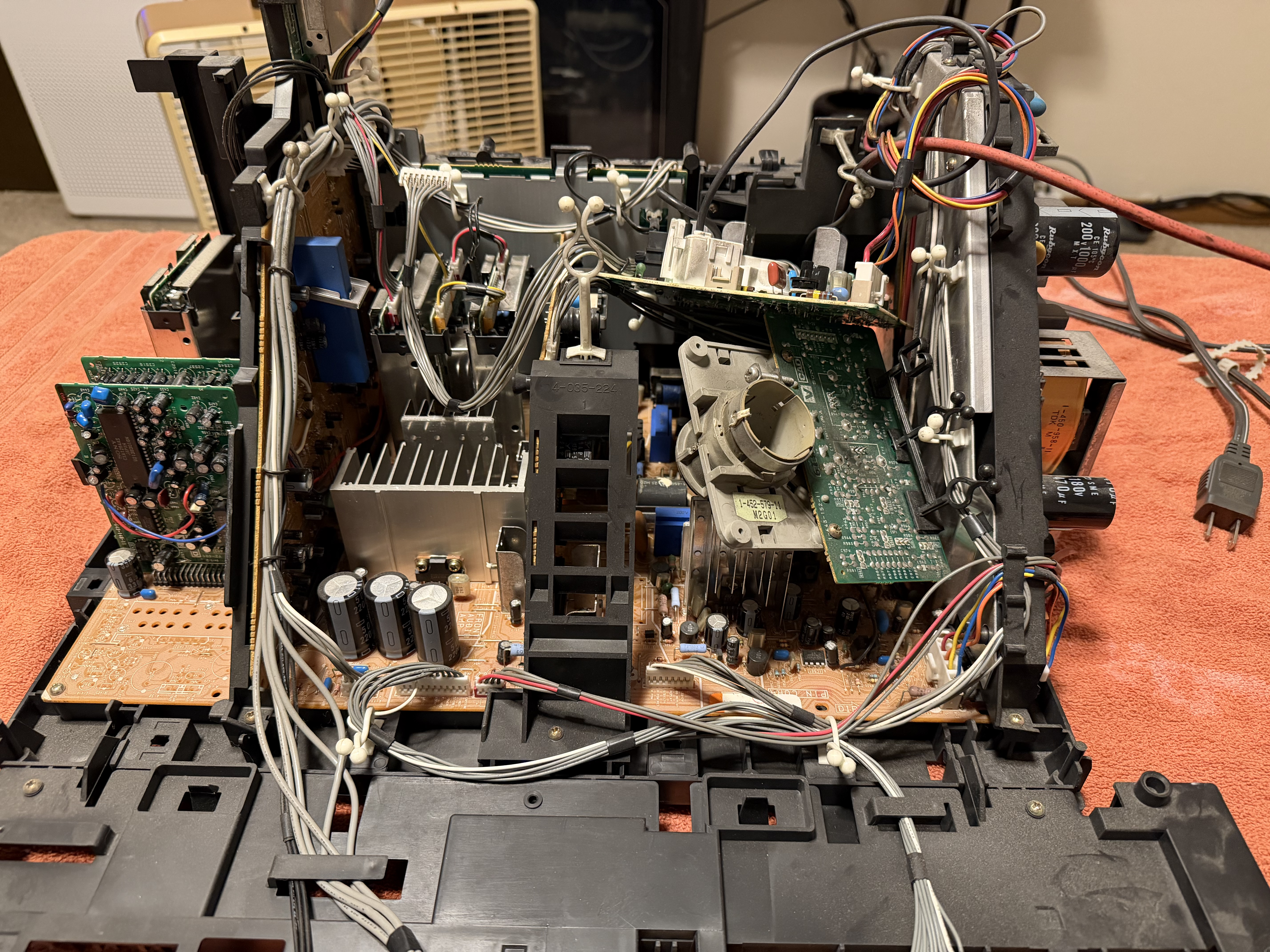

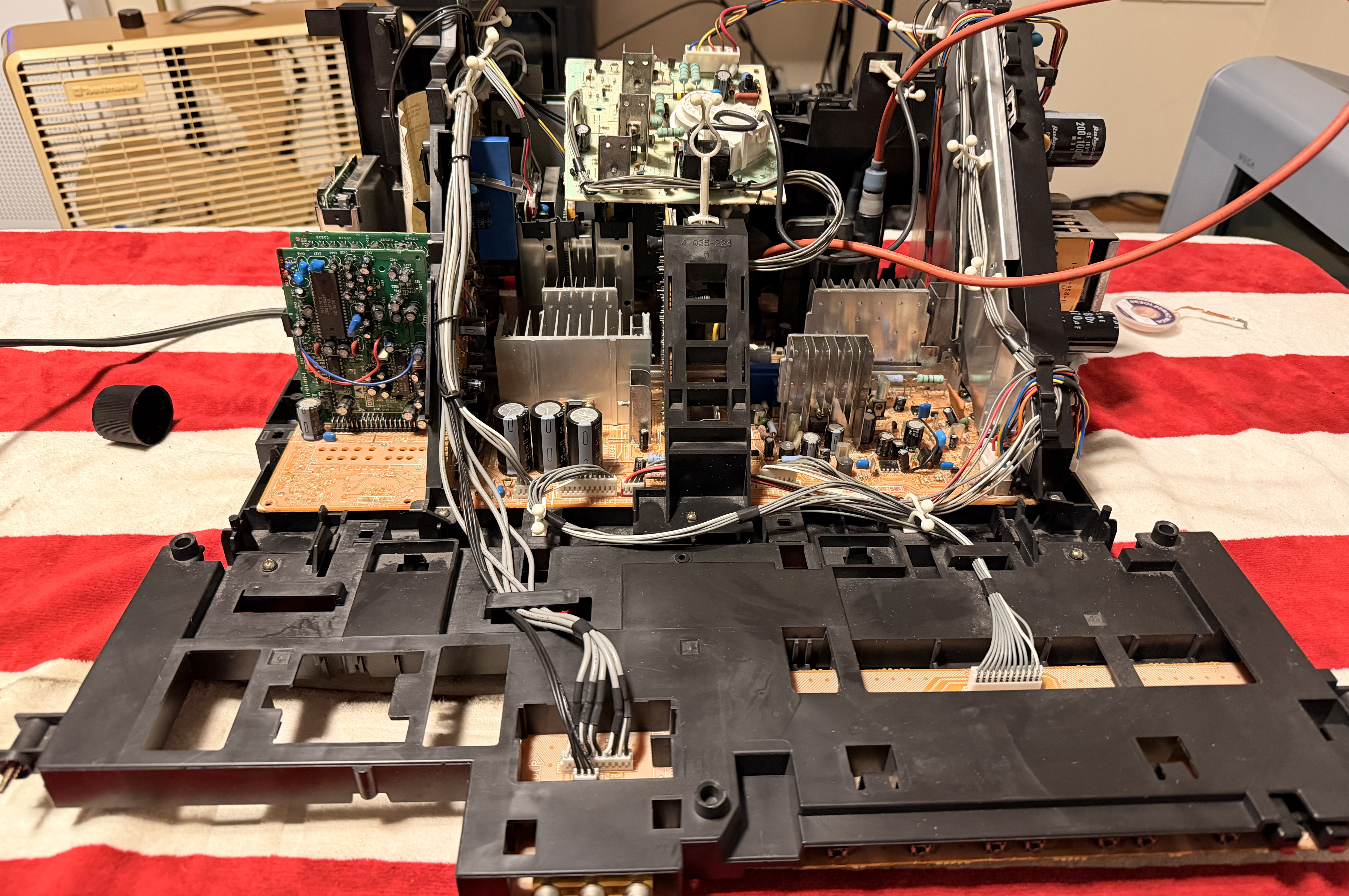

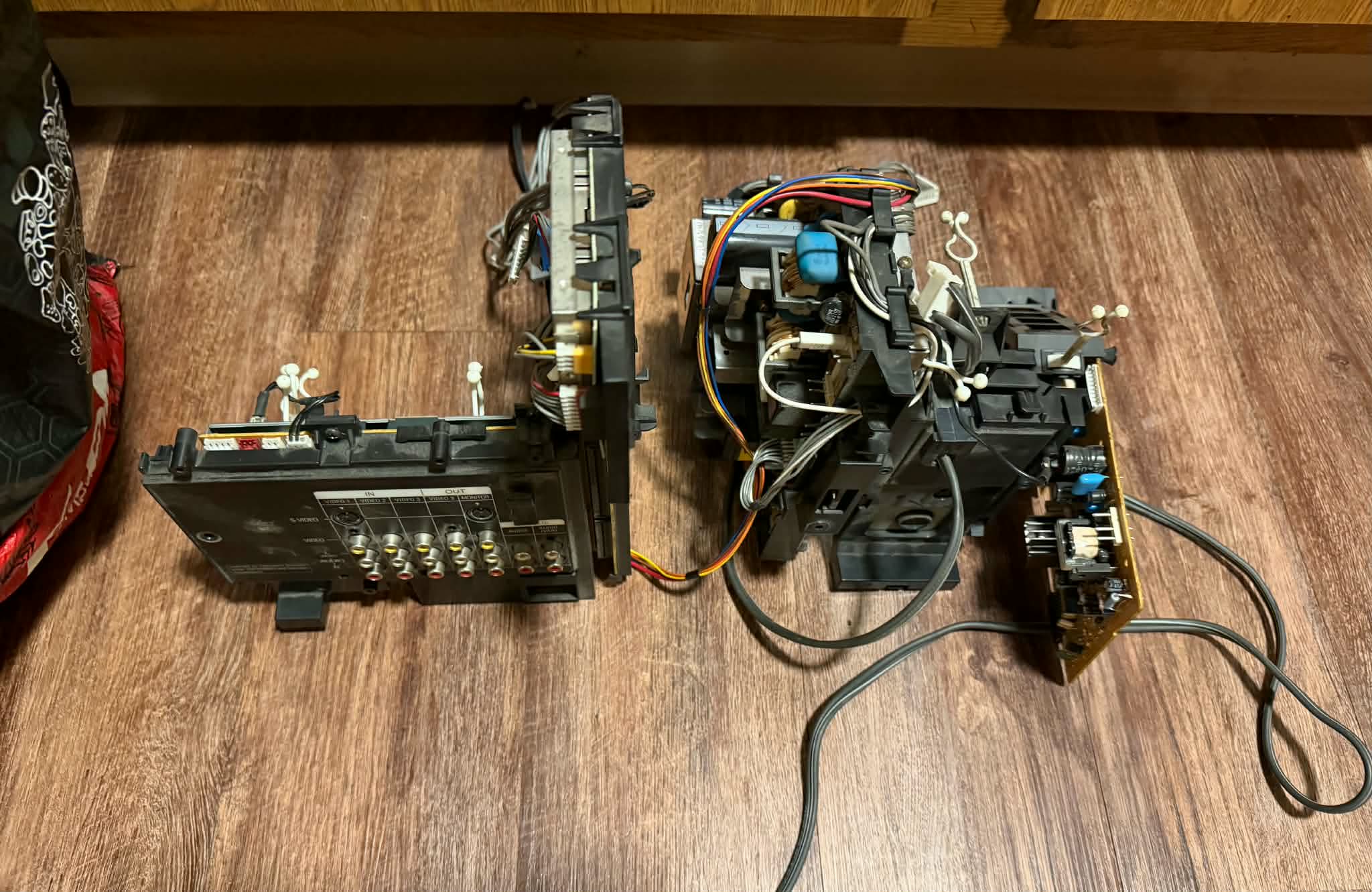

| Chassis: | FN |
| Weight: | 169 lbs (76.7 kg) |
| Dimensions (W/H/D): |
870 x 663 x 575 mm
(34.2 x 26.1 x 22.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1992 |
| MSRP: | 2399 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand, SU-32XBR3 |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
