Summary

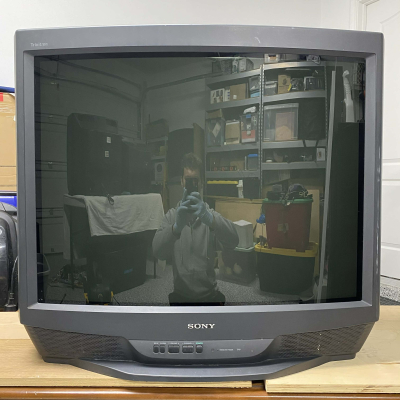

35" curved-screen CRT by Sony, made at their Pennsylvania plant in 1997. Has RF, composite, and s-video inputs with stereo sound.
(Special thanks to Kyle Mazabob for the pics!)
Manuals
Notes

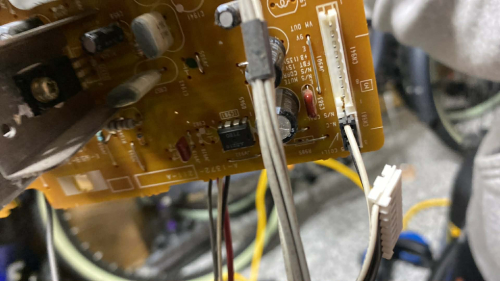

This set has velocity modulation. To disable it, disconnect or cut the top white wire on the CN941 connector.

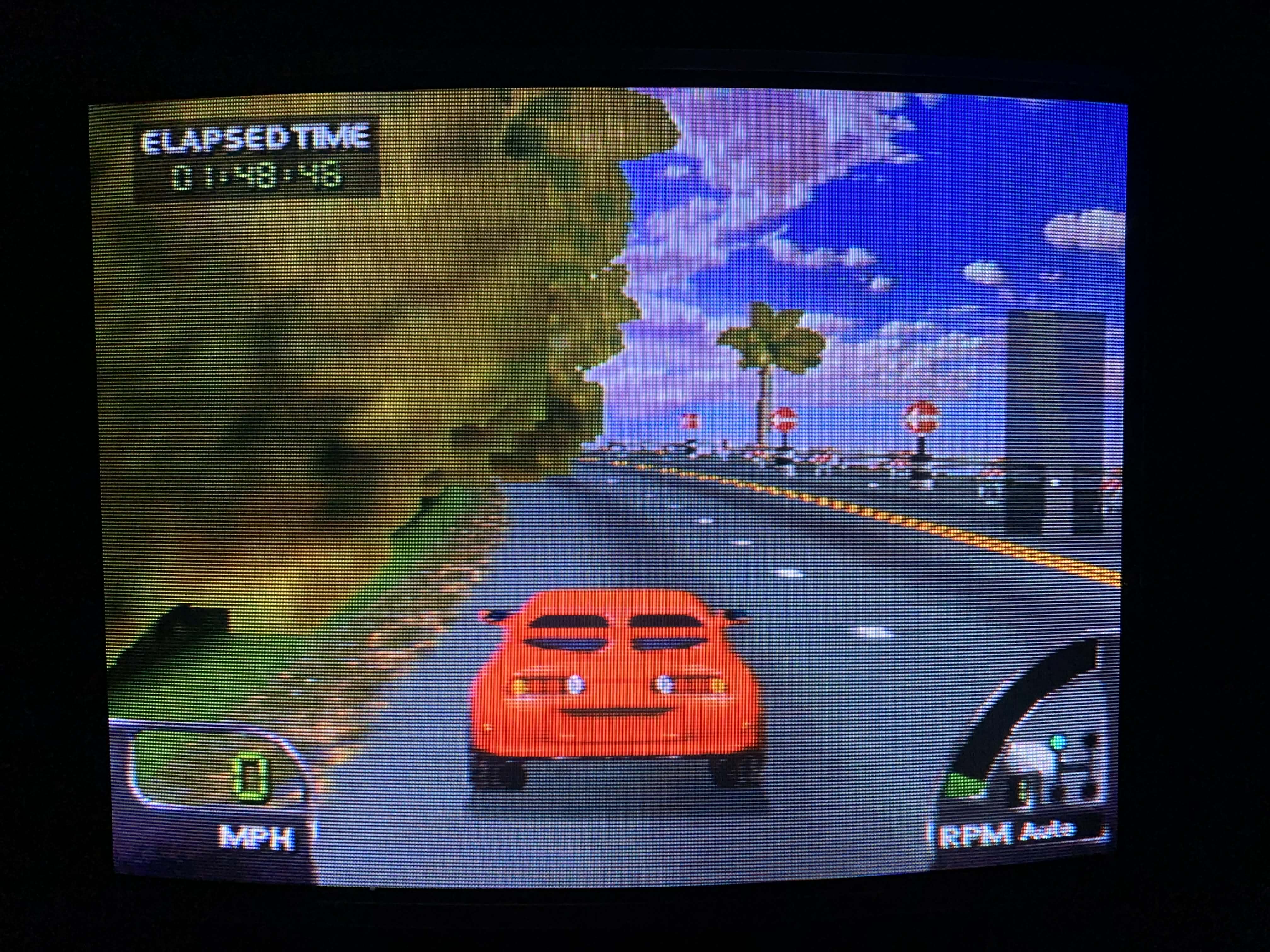

Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-35S26 |
| Series: | KV |
| Viewable Size: | 35" |
| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |

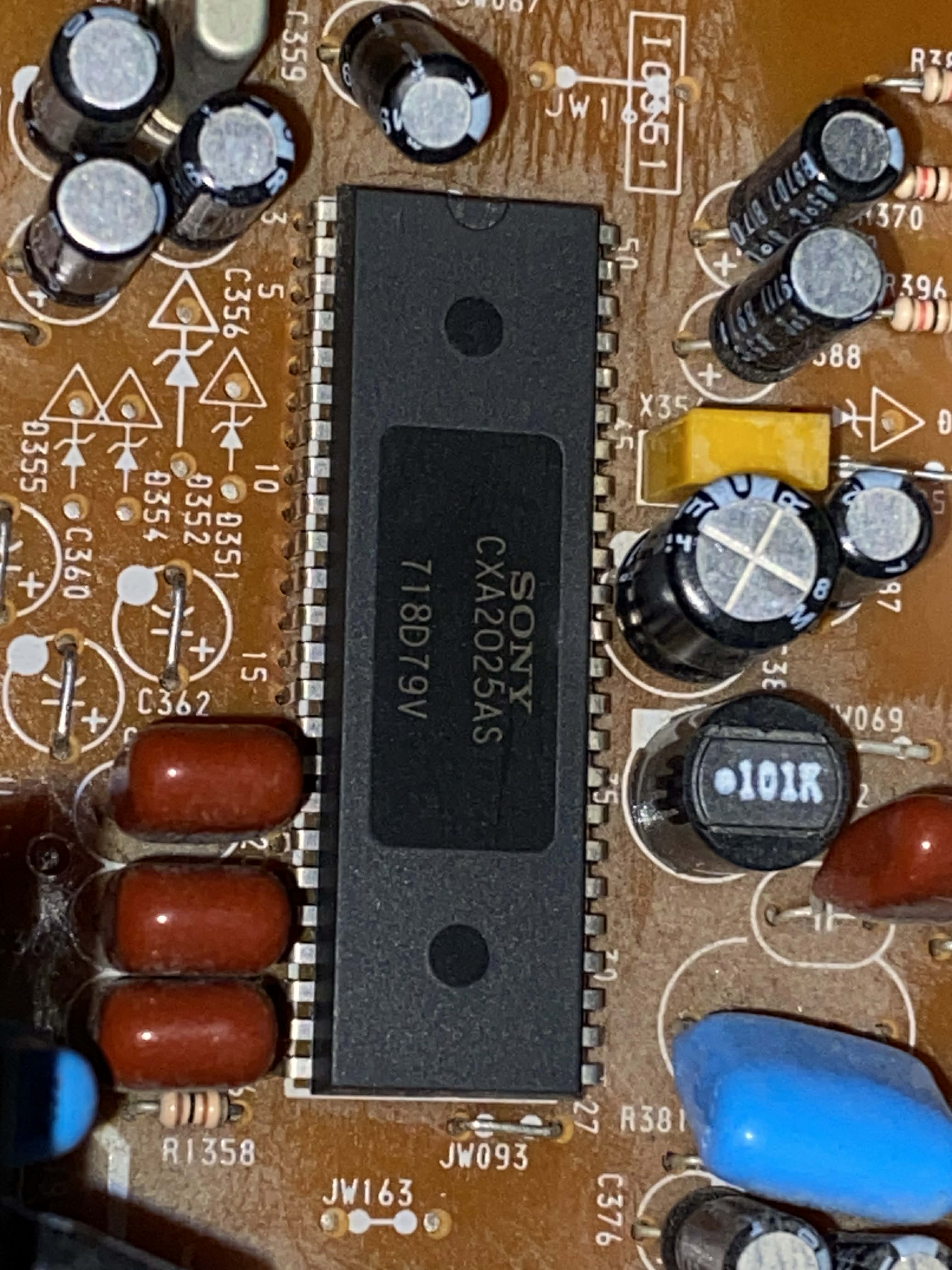

| Jungle IC: | Sony, CXA2025AS |
| Comb Filtering: | 2-Line Digital |

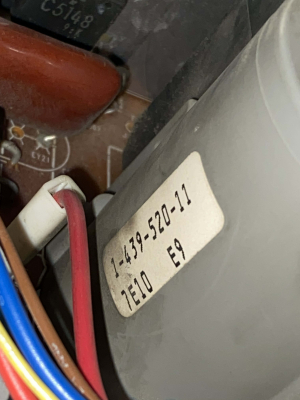

| Flyback: | 1-439-520-11 |
| Focus Type: | Single |
| Tube: | HiBlack Trinitron , A89LJT80X |
| Heater Voltage: | 6.3v |
| Mask: |
Aperture Grille
|
| Tint: | Dark |
| Removable Glare Film: | No |

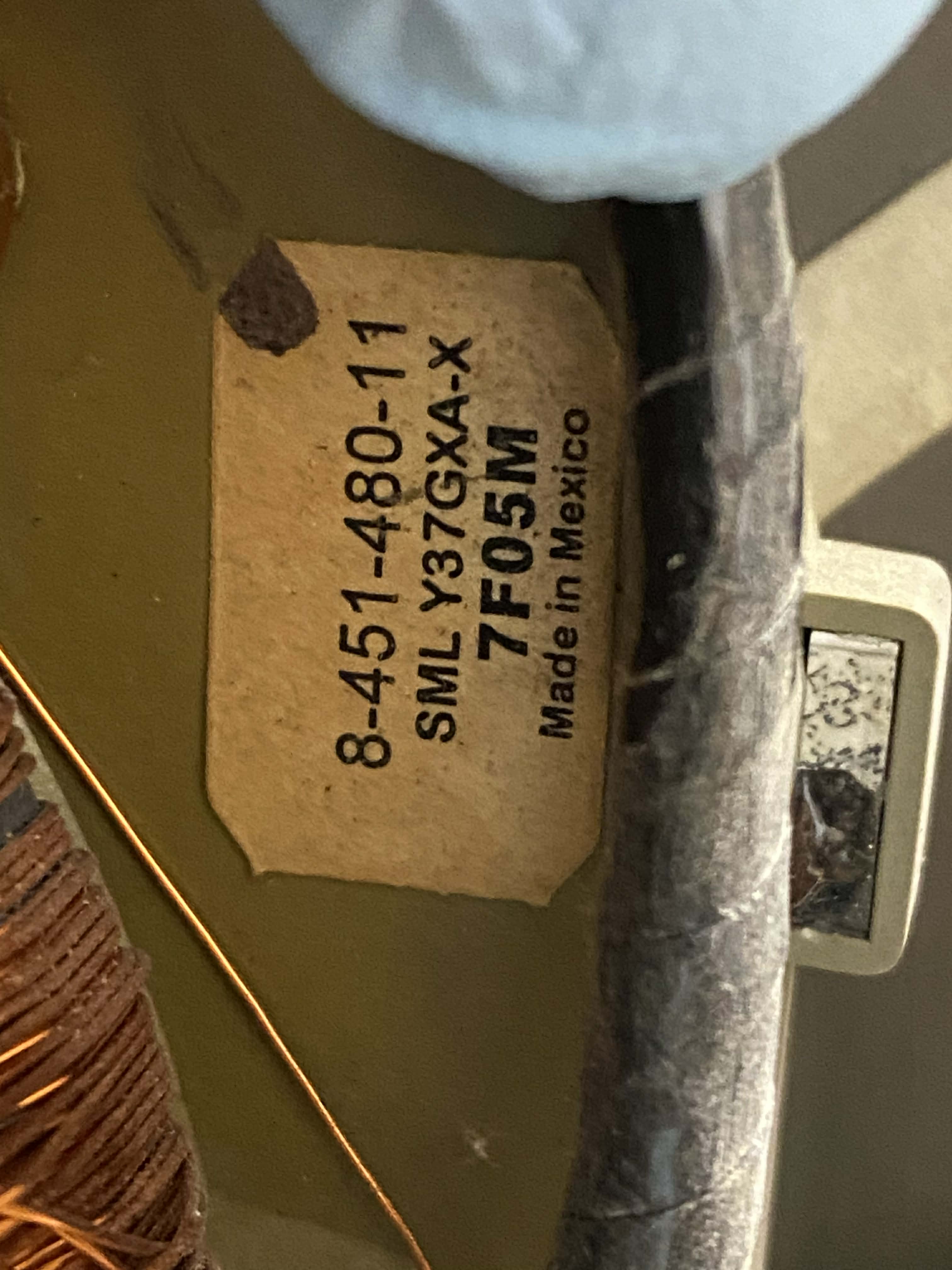

| Yoke: | 8-451-480-11 |

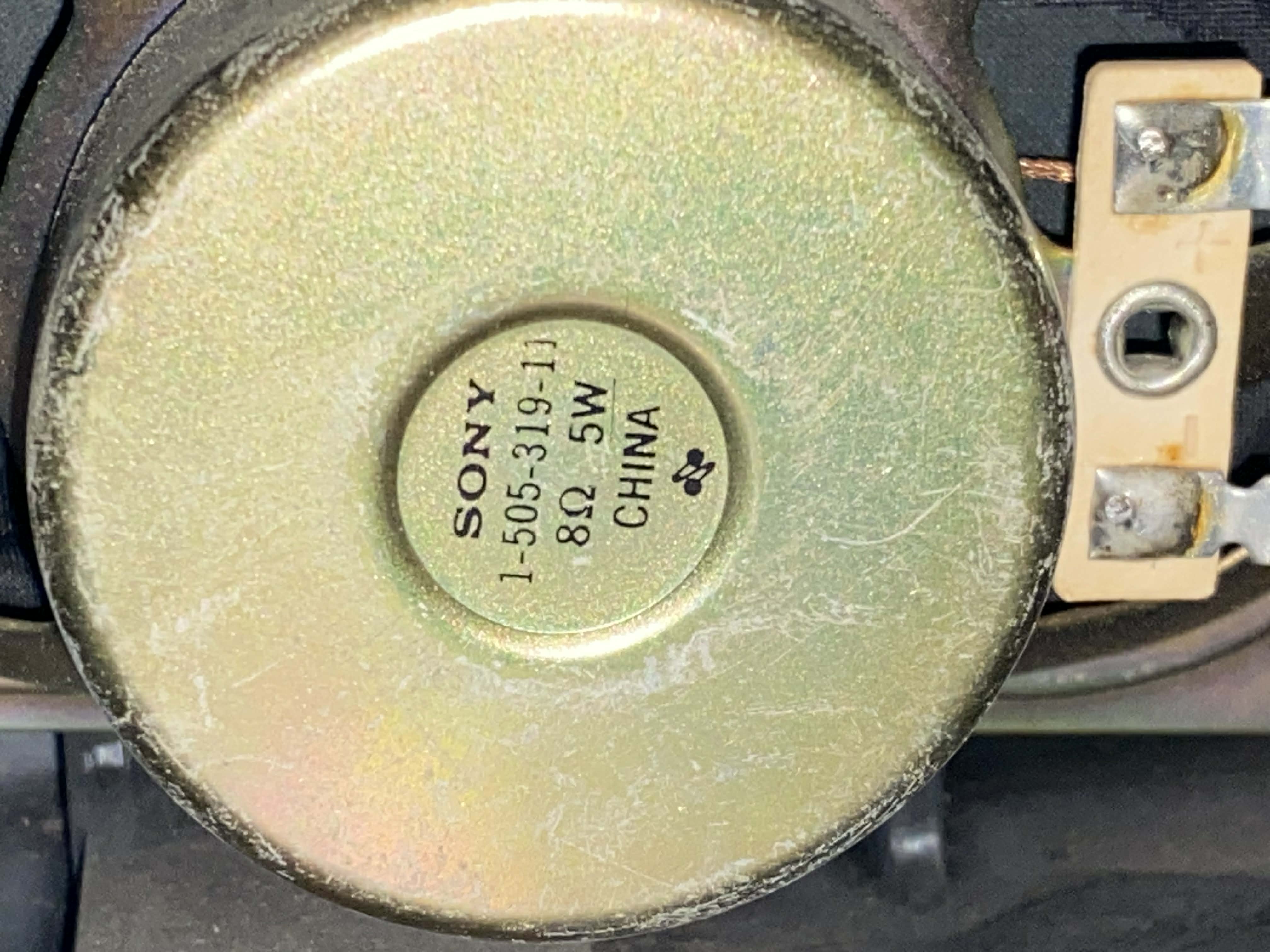

| Speakers: | Stereo, 5W x 2 |

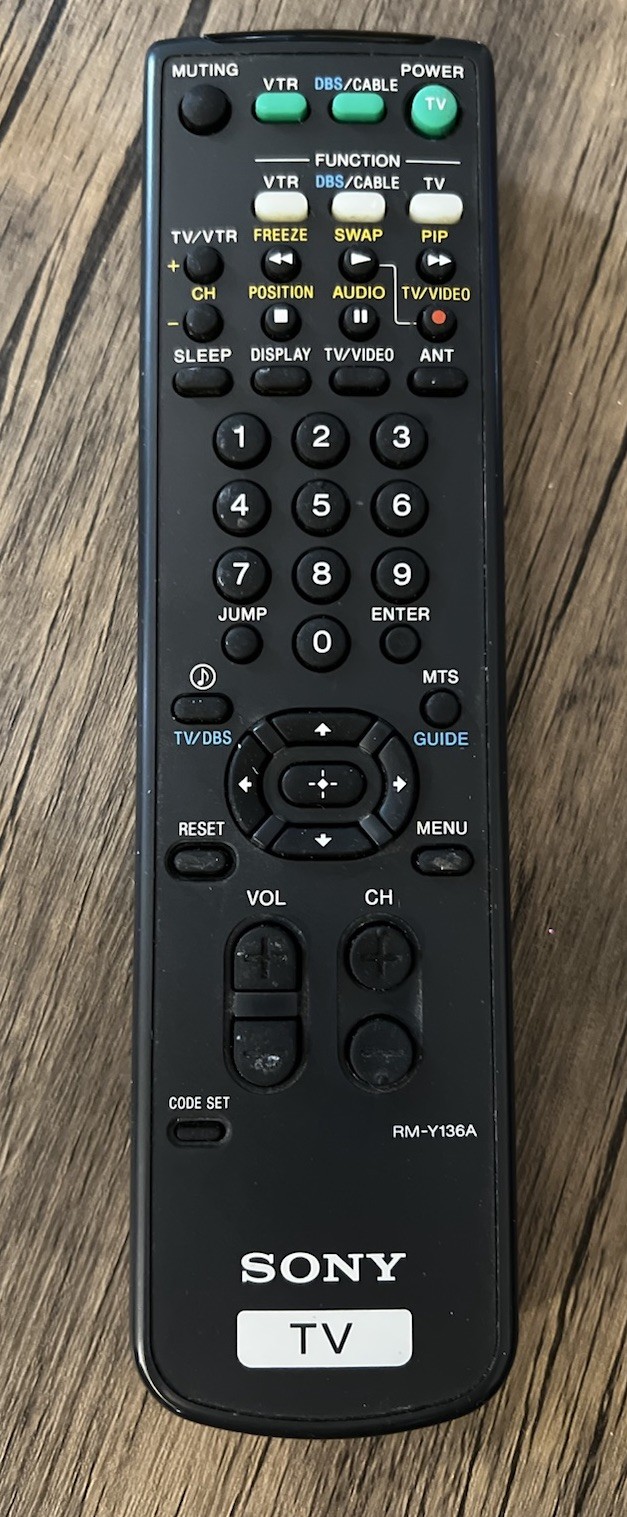

| Remote: | RM-Y136A |
| Chassis: | AA-2D |
| Weight: | 183 lbs (83 kg) |
| Dimensions (W/H/D): |
870 x 761 x 653 mm
(34.2 x 29.9 x 25.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |

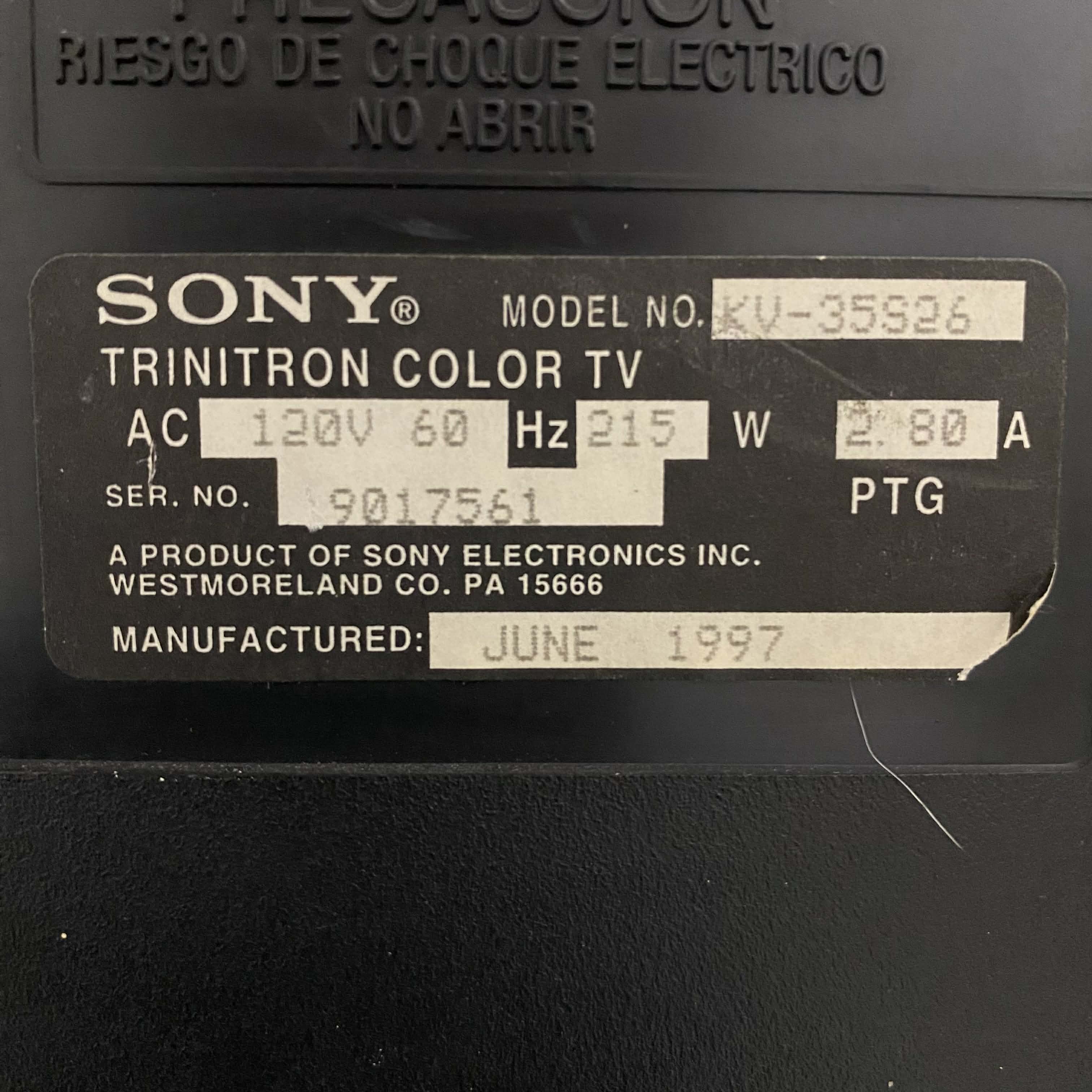

| Launched: | 1997 |
| MSRP: | 1399 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |

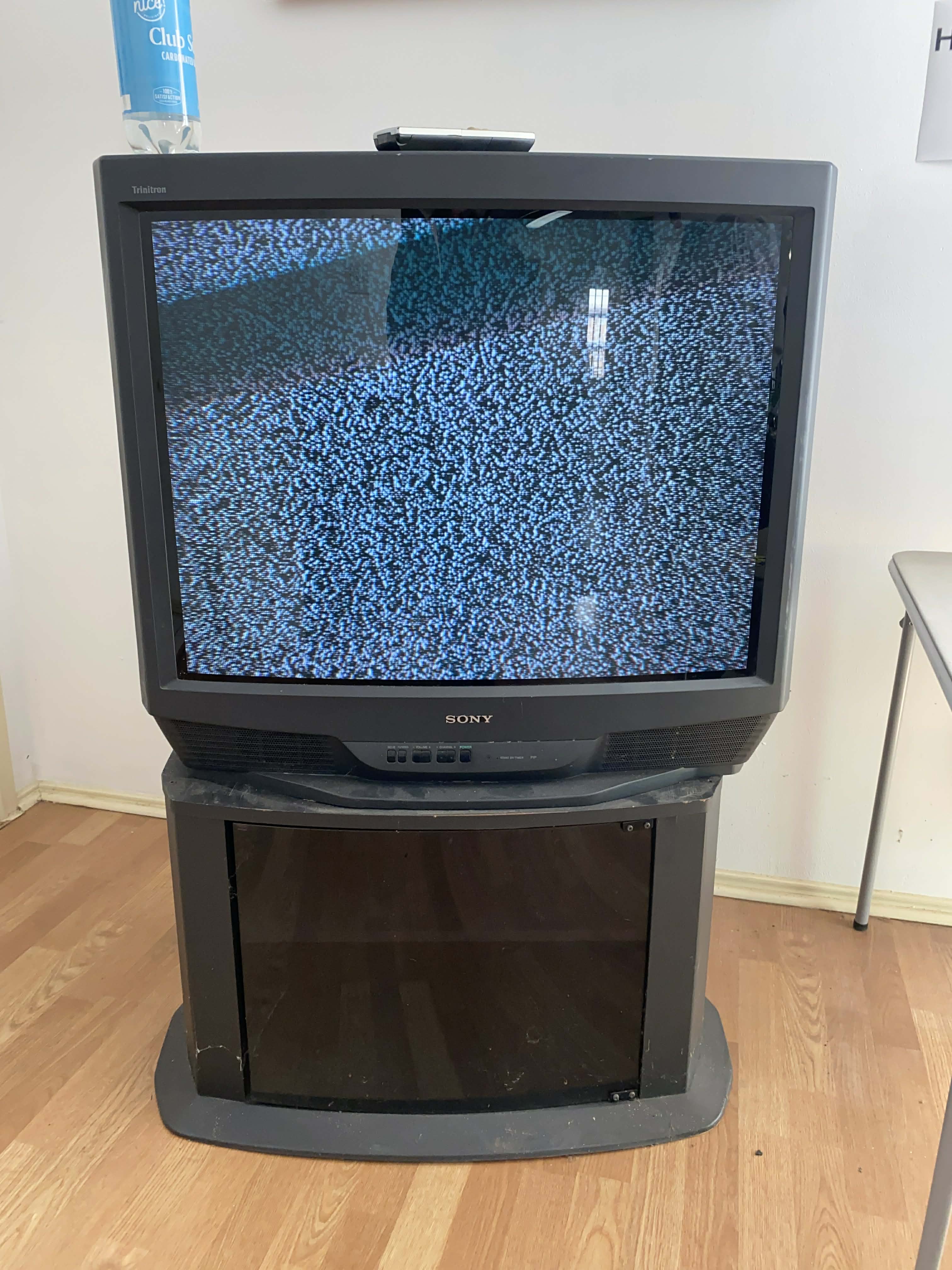

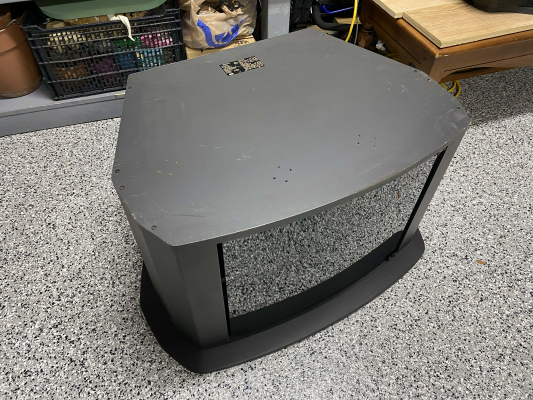

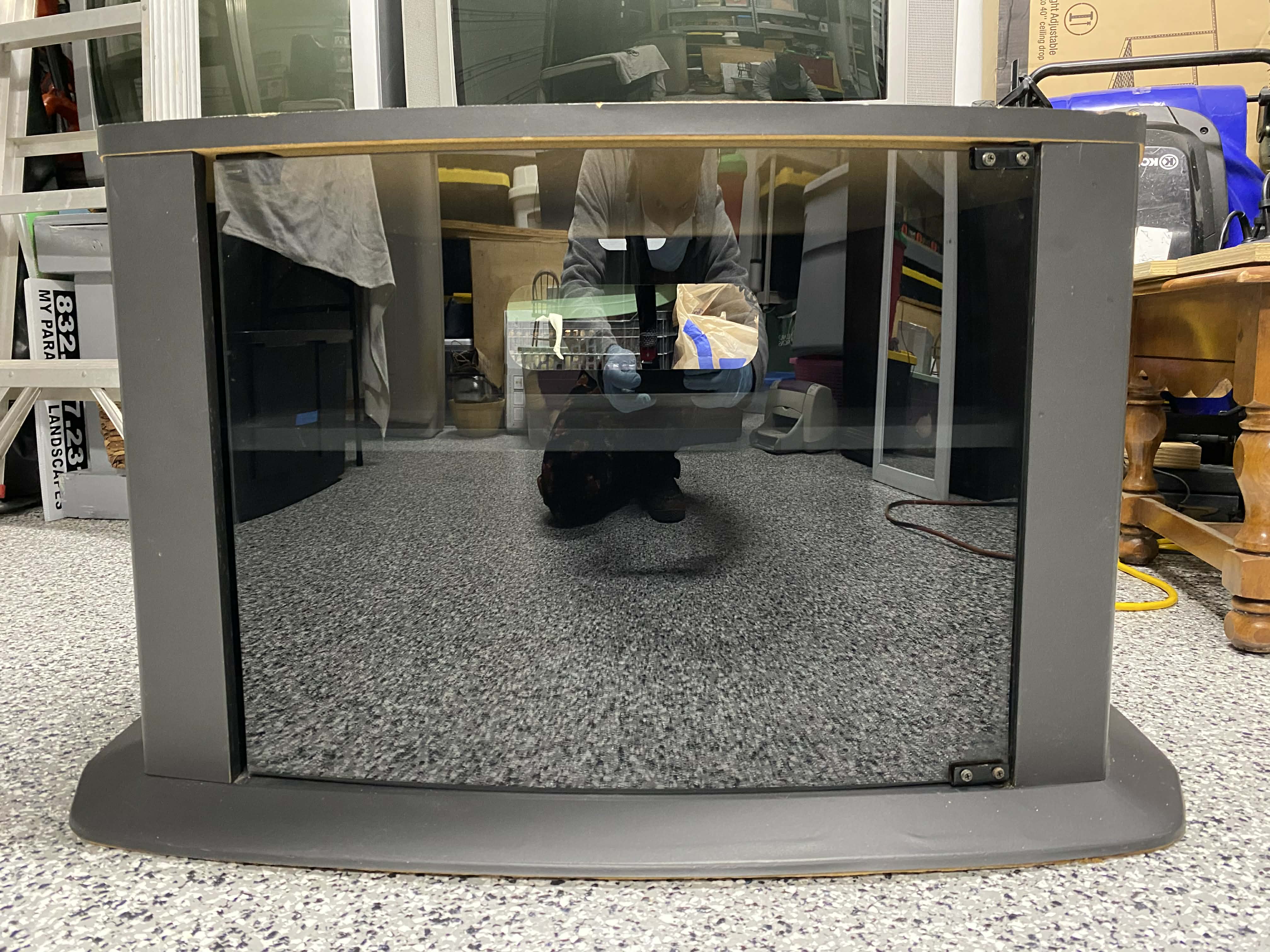

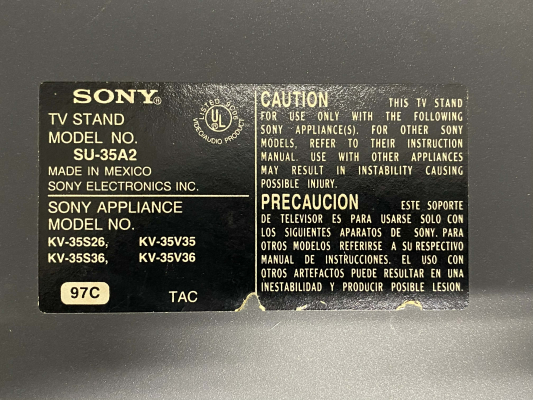

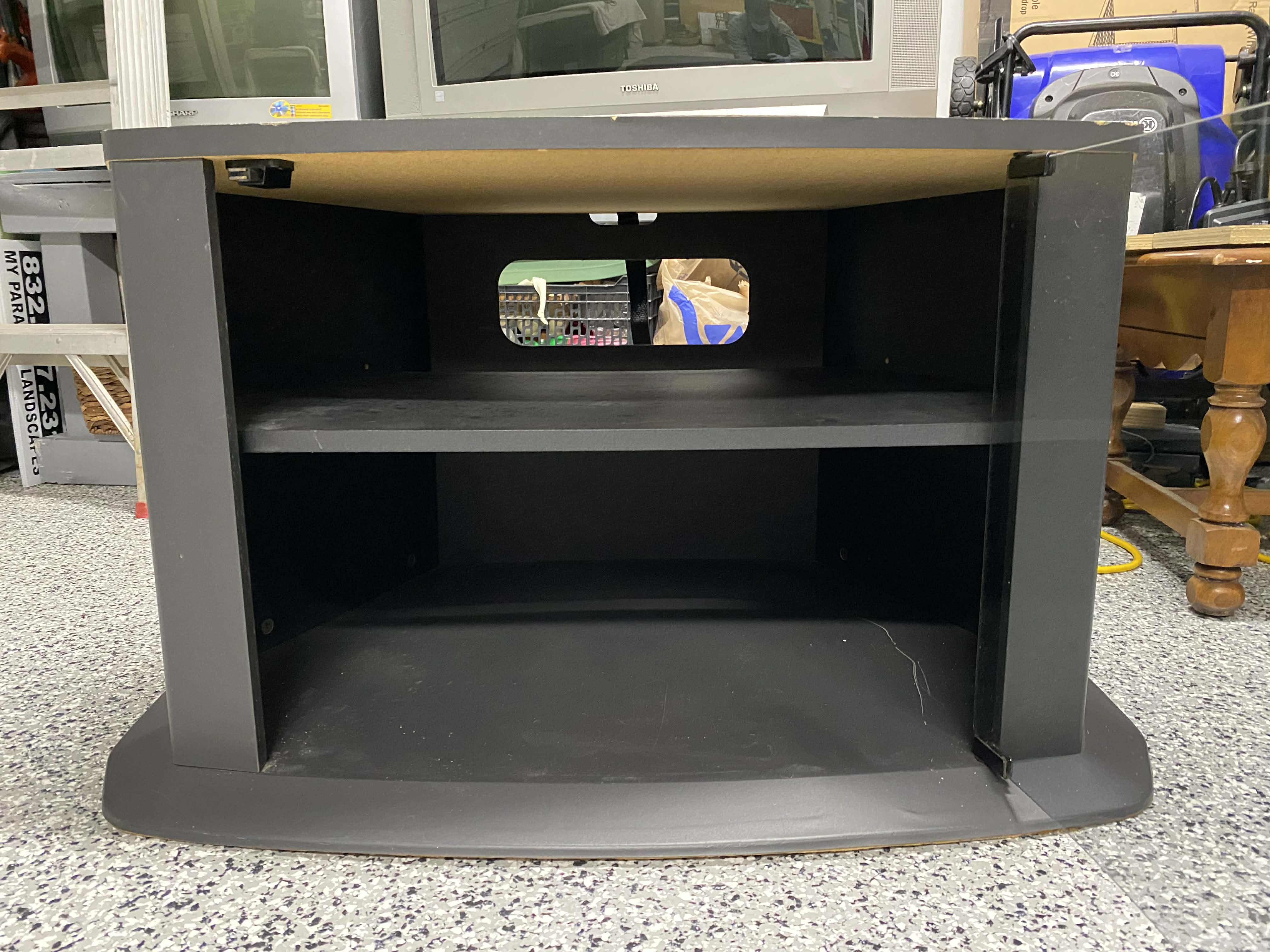

| Mounting: | Table Surface (Standard), OEM Stand, SU-35A, SU-35A2 |

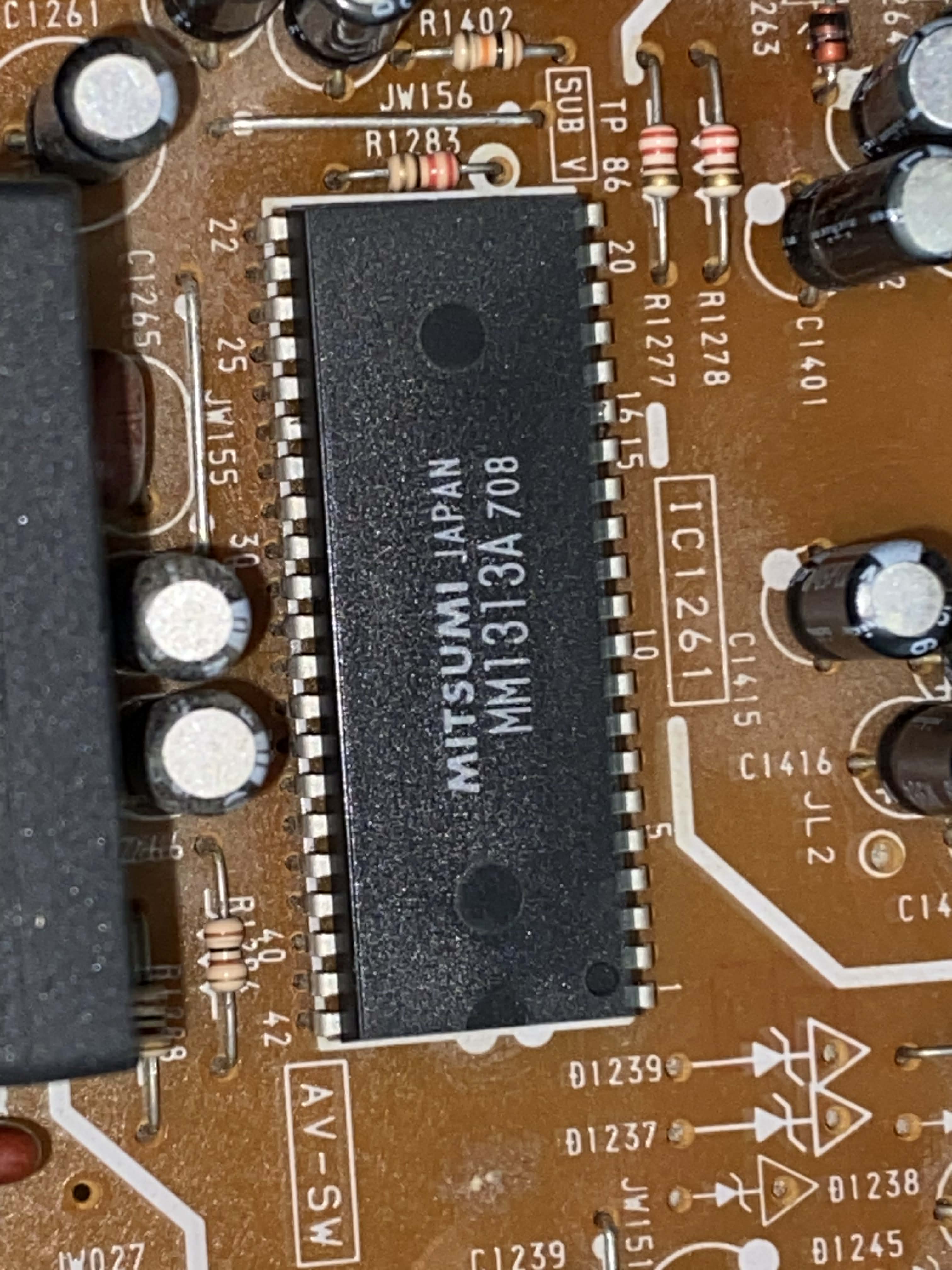

| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
