Sony KV-5200
RallyMK1
August 25, 2026, 7:01 pm
August 25, 2026, 7:01 pm
August 25, 2026, 7:01 pm
August 25, 2026, 7:01 pm
Summary

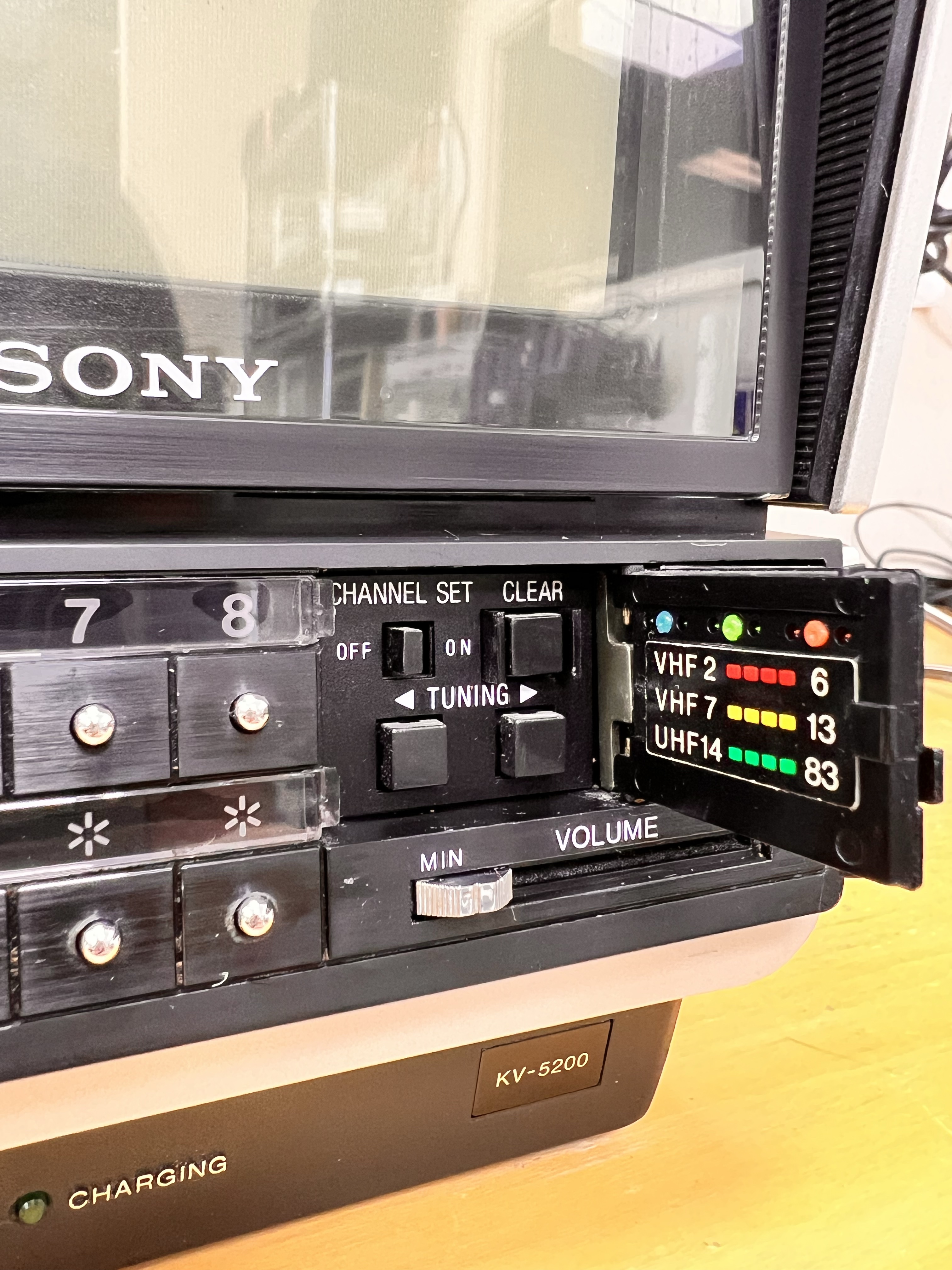

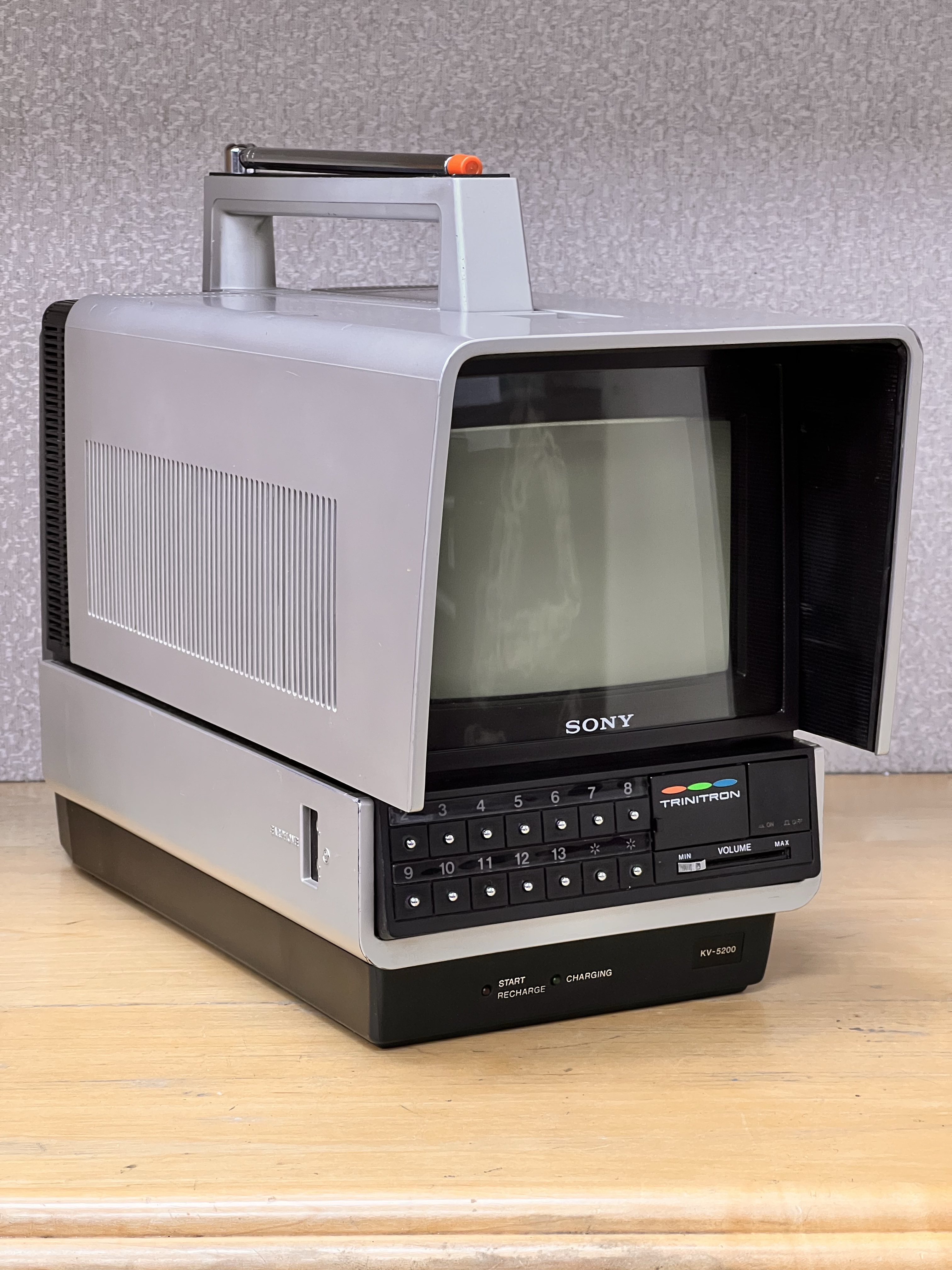

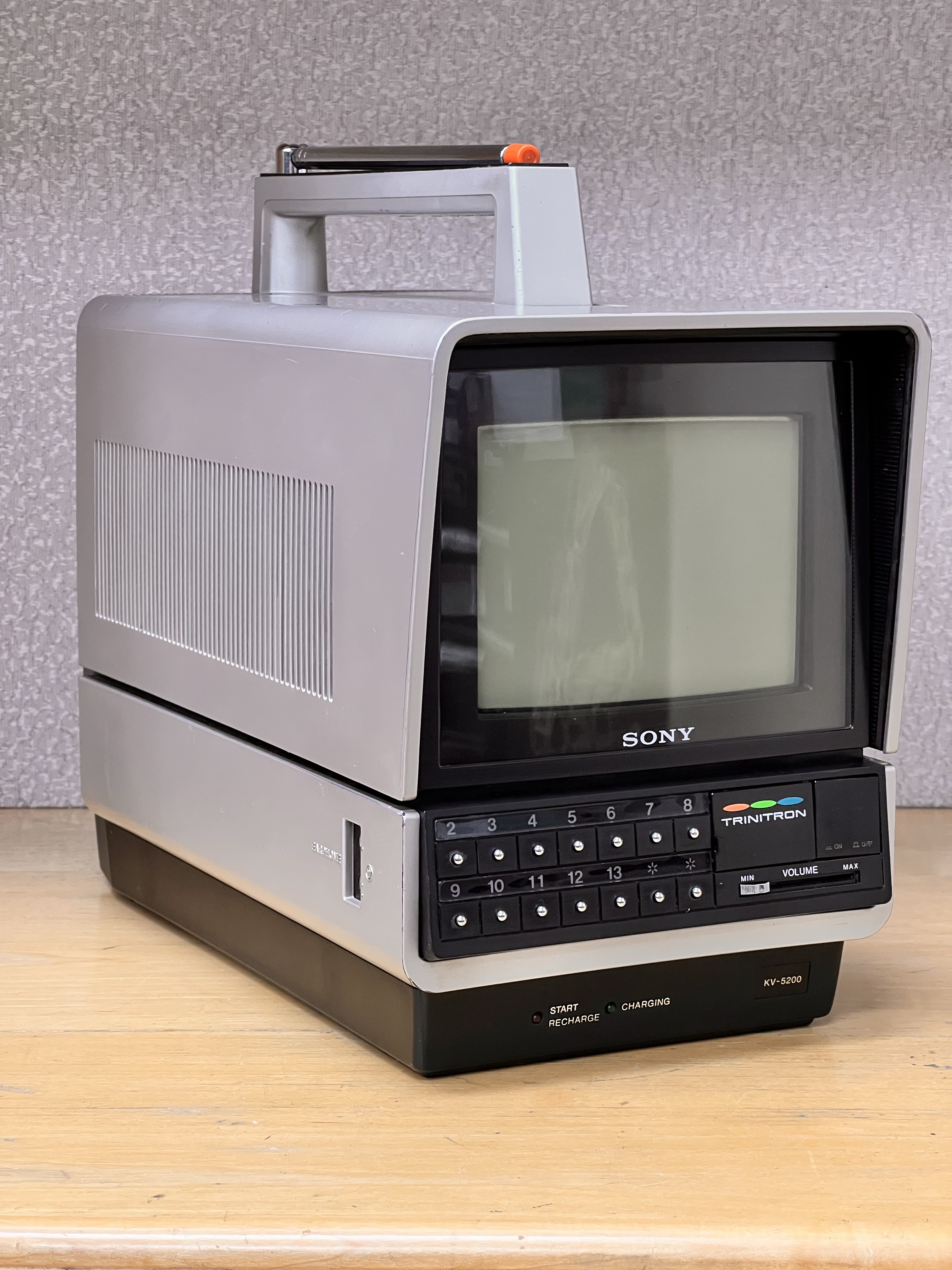

Can be used with a rechargeable battery pack, BP-37W. Hood over screen has a pushbutton that extends to protect screen from glare. Has an on-screen channel tuning adjustment operated from buttons behind little Sony door on the front.
Manuals
Notes

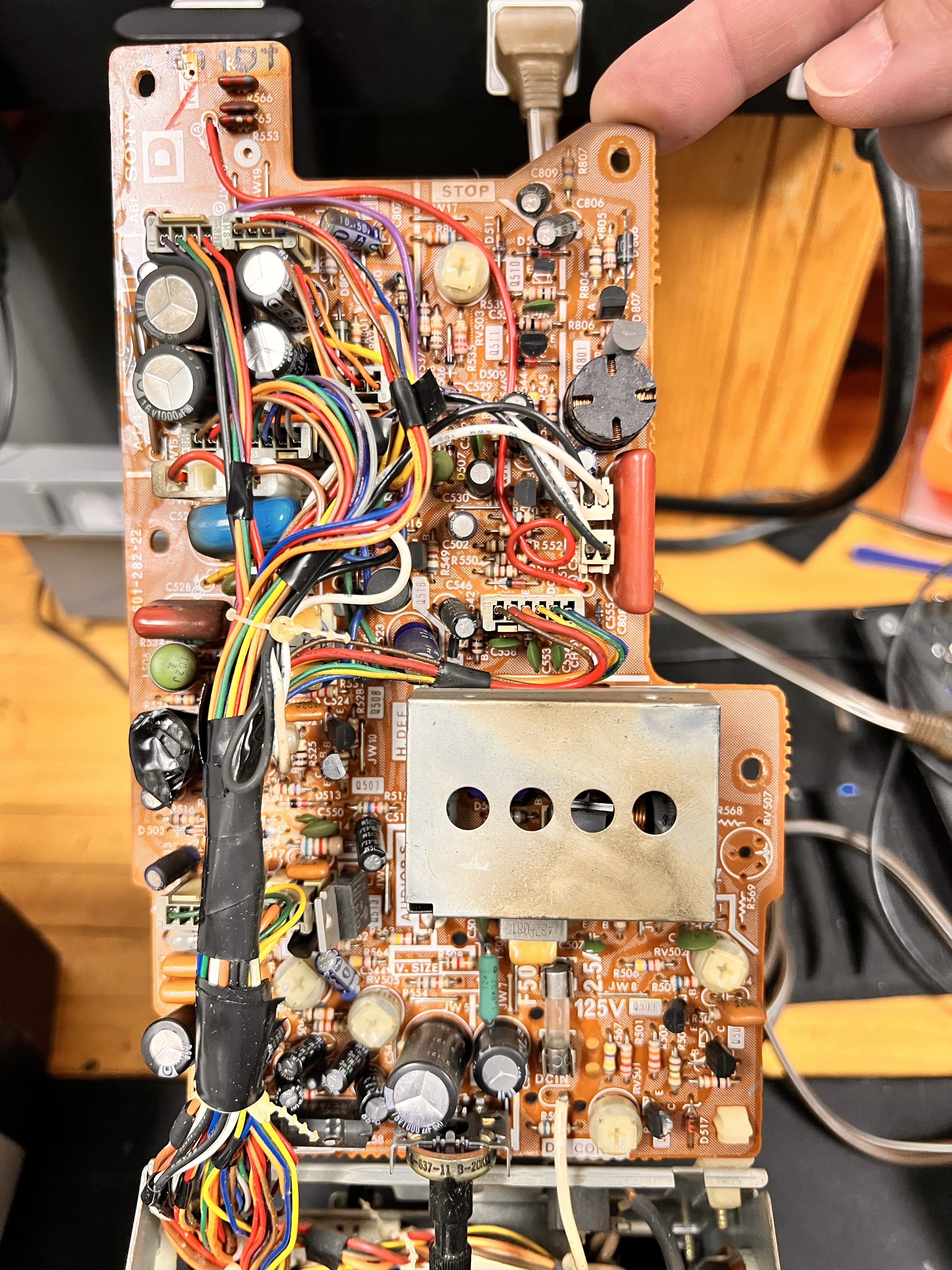

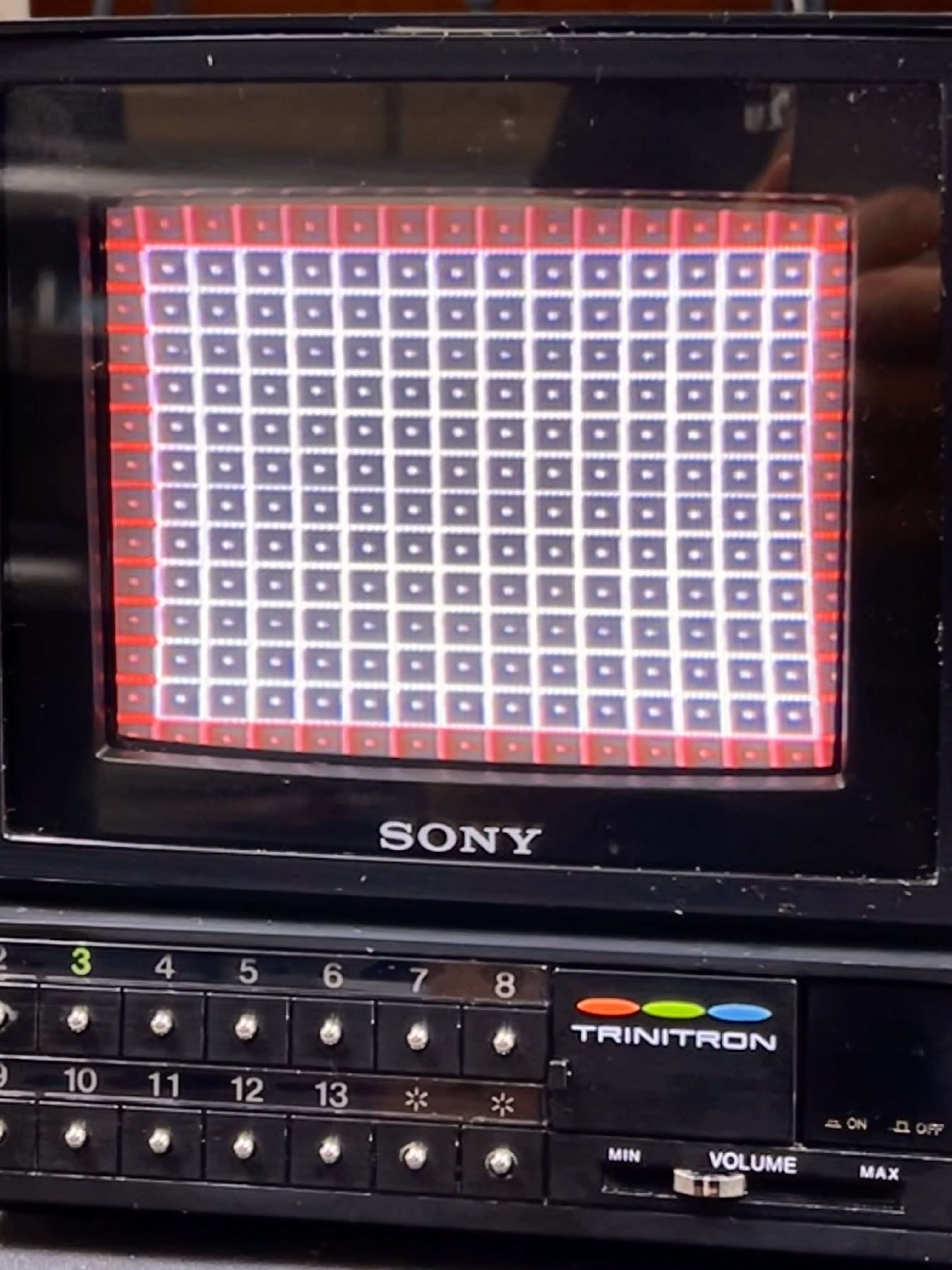

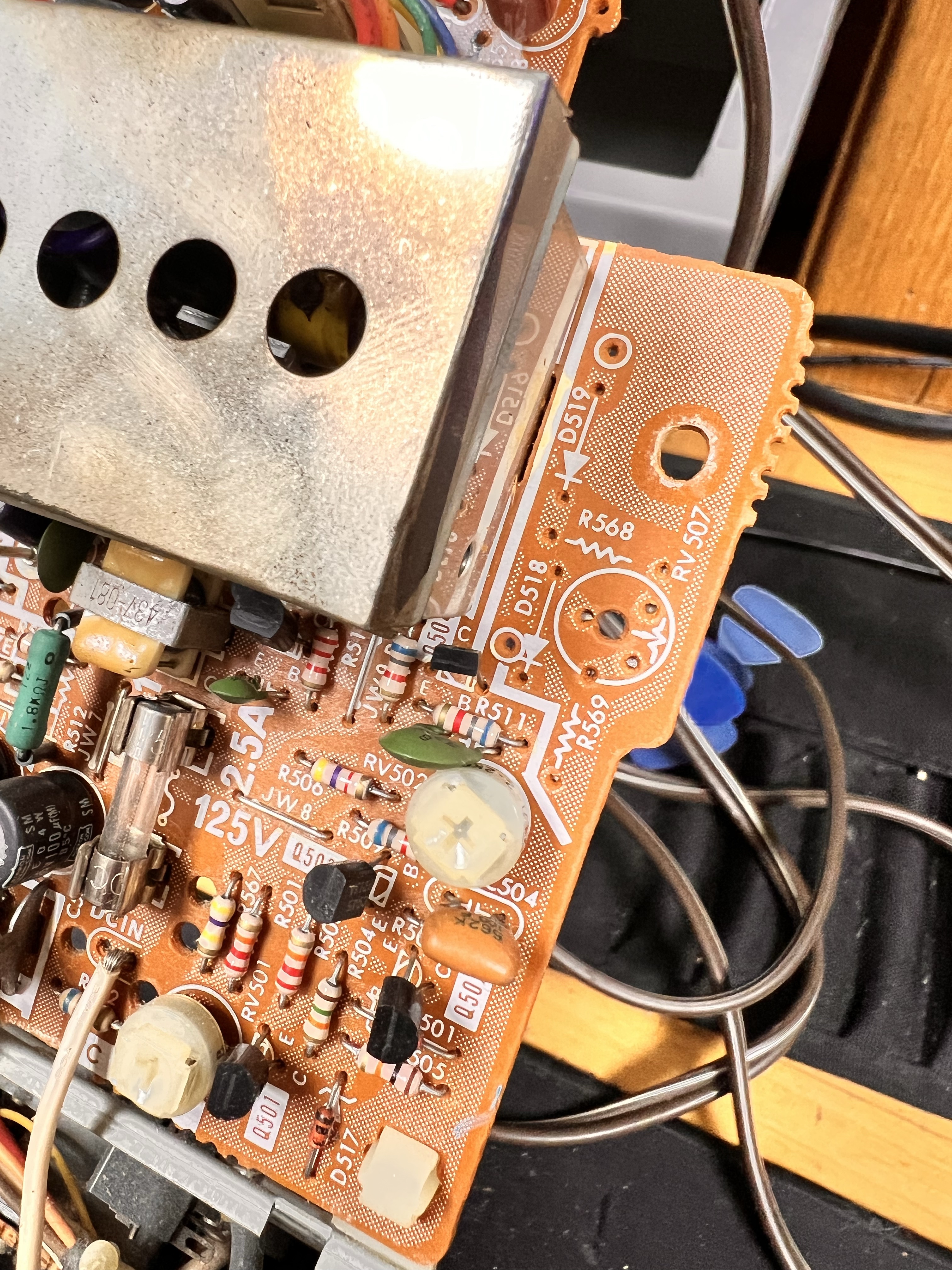

No pincushion adjustment. Area of the board where it would be was unpopulated from the factory.
Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | KV-5200 |
| Series: | KV |
| Viewable Size: | 5" |
| Input Signals: | RF |
| Sync: | |
| Native Resolutions: | 240p, 480i |
| Scaled Resolutions: | |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Expansions: | |
| Adjustments: | External Potentiometers, Internal Potentiometers |
| Focus Type: | Single |
| Tube: | SD-59 |
| Speakers: | .5W |
| Chassis: | |
| Weight: | 5 lbs (2.3 kg) |
| Dimensions (W/H/D): |
6 x 10 x 13 mm
(0.2 x 0.4 x 0.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1981 |
| Country of Manufacture: | Japan |
| Market: | North America |
| Power Standard: | 120v, 12VDC, 24VDC |
| Mounting: | |
| Mods: | |
| Degaussing: | |
| Tag: | Community Submission |
