| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |

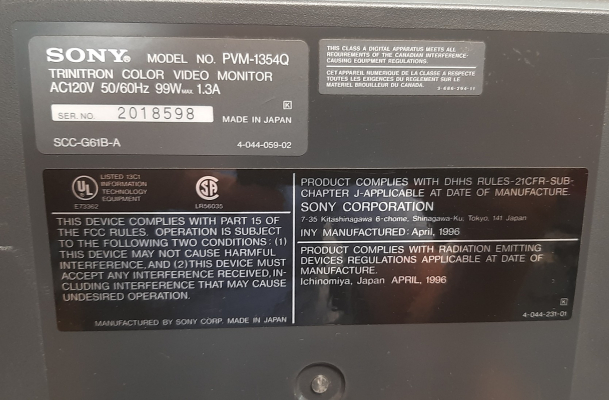

| Model: | 1354Q |
| Series: | PVM Q-Series |
| Viewable Size: | 13" |

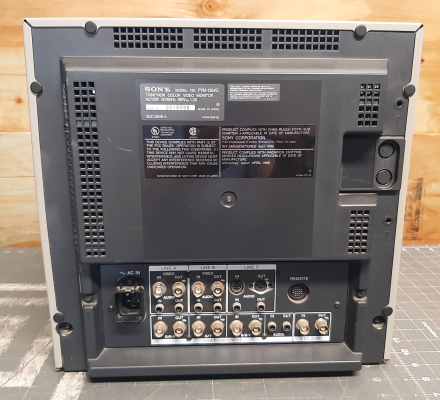

| Inputs: | Composite, S-Video, Component YPbPr, RGB |
| Sync: | CSYNC, Sync over Composite, Sync on Luma |
| Native Resolutions: | 240p, 480i |
| Linecount: | 600 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC, PAL, NTSC4.43, SECAM |
| Aspect: | 4:3 |
| Adjustments: | External Potentiometers, OSD Service Menu |
| Horz. Output Transistor: | 2SD1397 |
| Comb Filtering: | Glass |
| Flyback: | 1-453-163-11, 1-453-163-12 |
| Tube: | Sony HR Trinitron , M34KBE20X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Pitch: | 0.25 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 8-451-329-12 |
| Yoke Horz. Inductance: | 1.9589 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 28.54 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 2.33 ohm |
| Yoke Vert. Resistance: | 18.80 ohm |
| Speakers: | Mono |
| Weight: | 37 lbs (16.8 kg) |
| Application: | Professional |
| Launched: | 1994 |
| Country of Manufacture: | Japan |
| Mounting: | Rackable |
| Degaussing: | Automatic on Power-on, Manual |
