Sony PVM-1380
Andy King
December 14, 2022, 1:01 am
December 14, 2022, 1:01 am
Summary
Very simple composite-only PVM chassis from the late 80s/early 90s. Has horizontal convergence adjustment pot on the neckboard.
Literature
- [Service Manual]()
- Owner's Manual

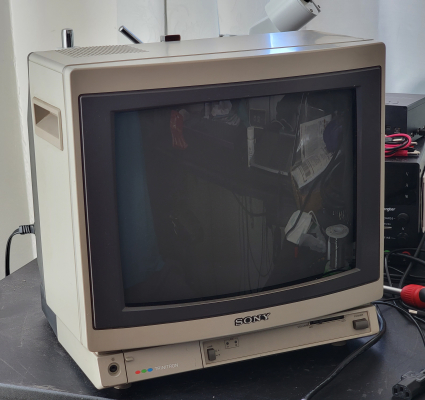

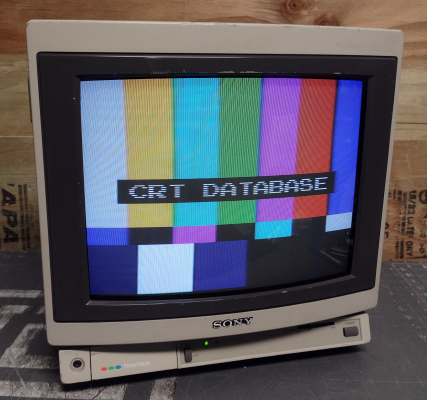

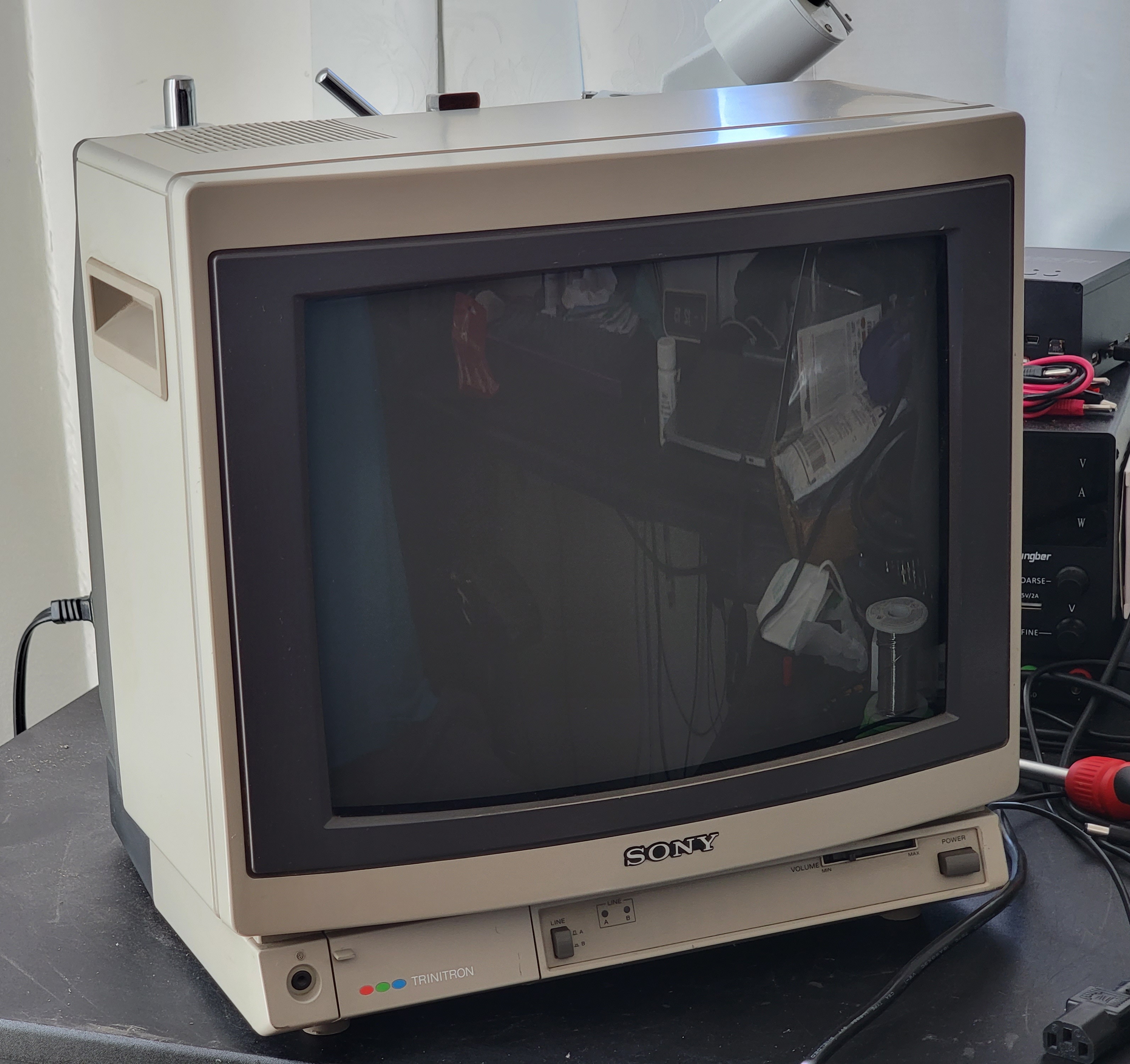

Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | 1380 |
| Series: | PVM |
| Viewable Size: | 13" |
| Inputs: | Composite, VTR |
| Resolutions: | 240p, 480i |
| Linecount: | 250 TVL |
| Horizontal Max: | 15 kHz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Jungle: | CX20192 |
| Tube: | A34JBU10X |
| Deflection: | 90 deg. |
| Mask: | Aperture Grille |
| Pitch: | .60mm |
| Tint: | Dark |
| Speakers: | Mono |
| Application: | Professional |
| Country of Manufacture: | Japan |
| Degaussing: | Automatic on Power-on |
