Summary
The precursor to the M-Series of PVMs. Generally considered to be more reliable than the M series because the power supplies are less likely to fail. Also has a dark-tinted tube which offers better contrast in dark viewing environments.
Literature
Notes
The service manual for this model isn't available online. The next closest version is the PVM-2054QM, which is the European equivalent.

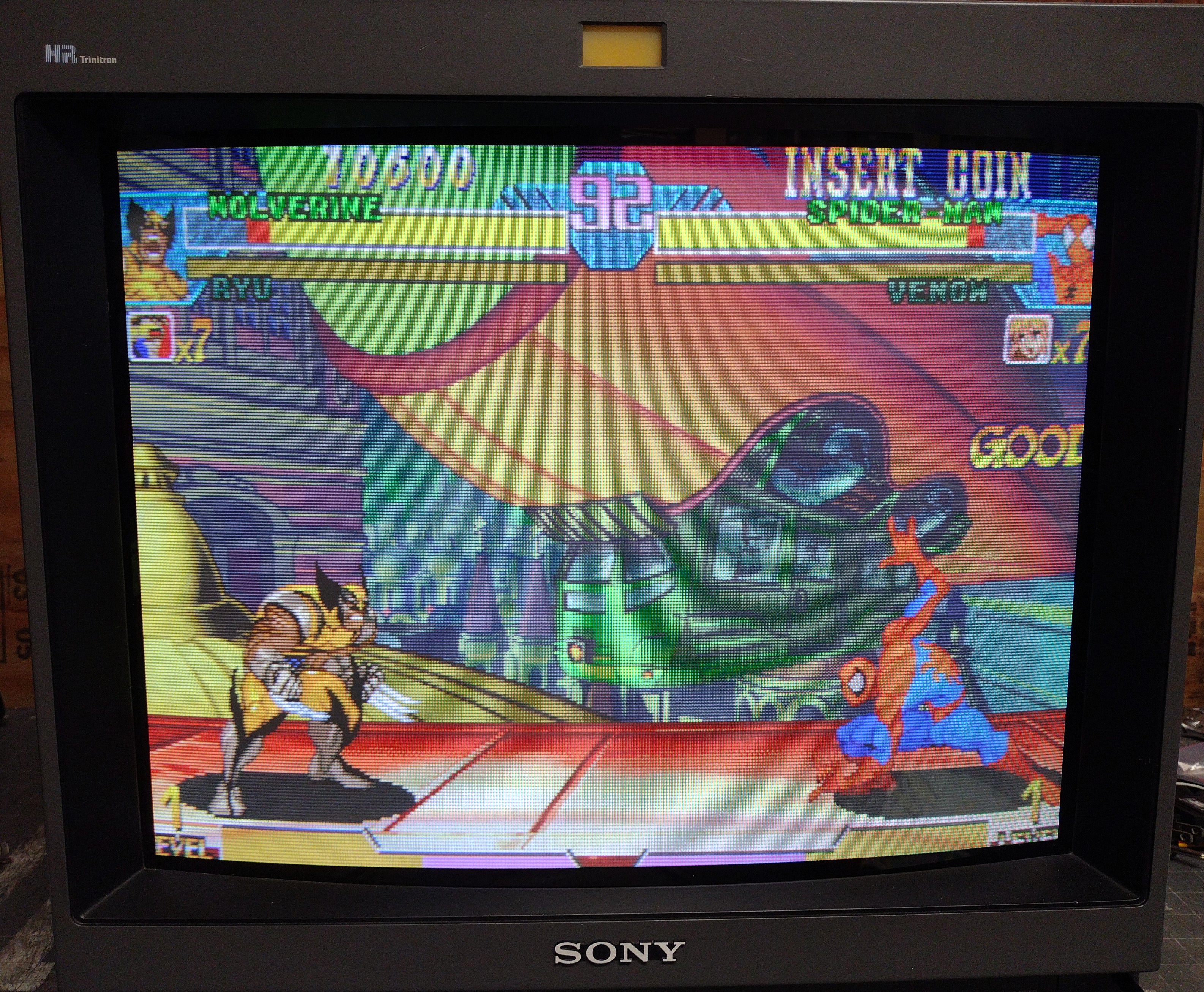

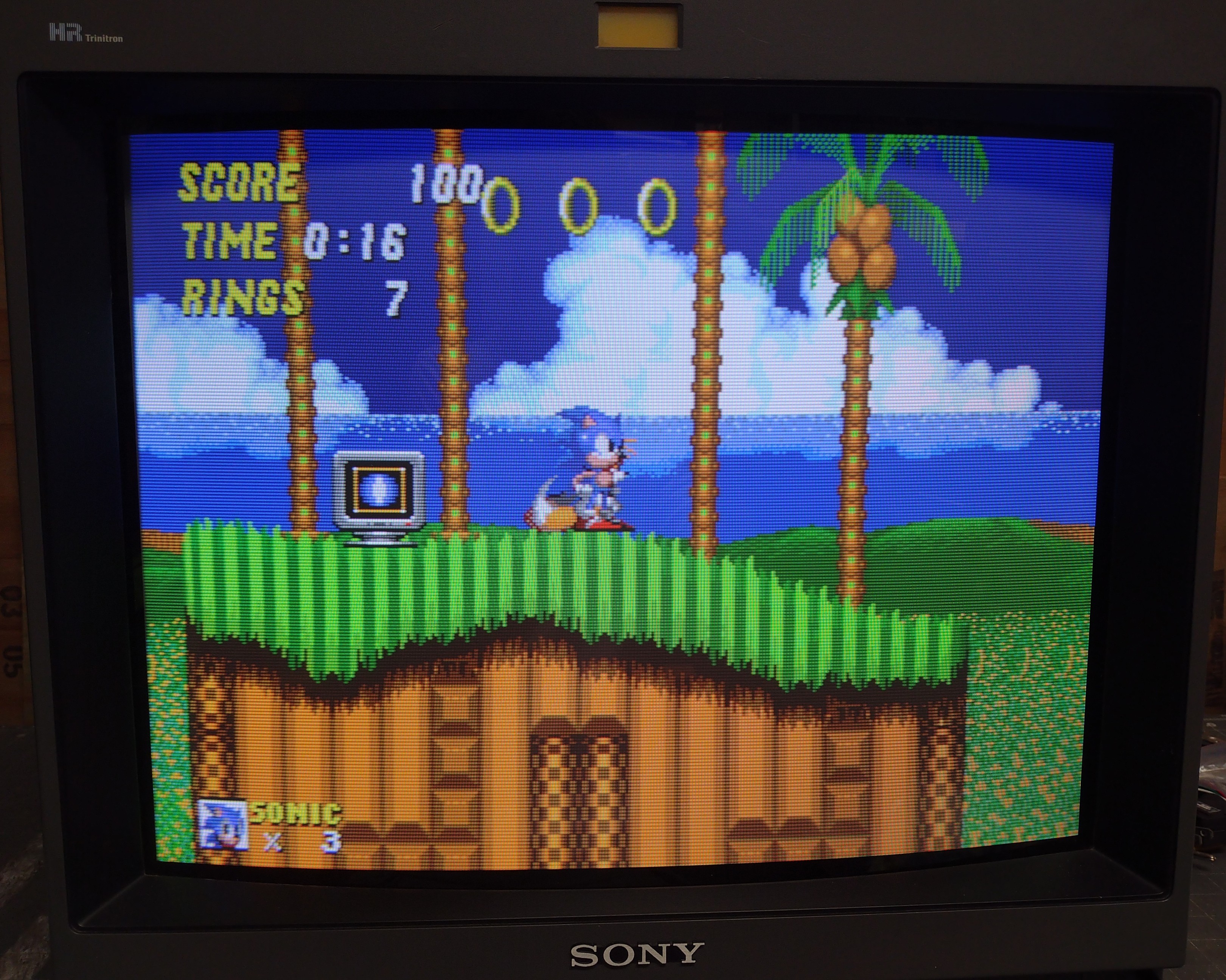

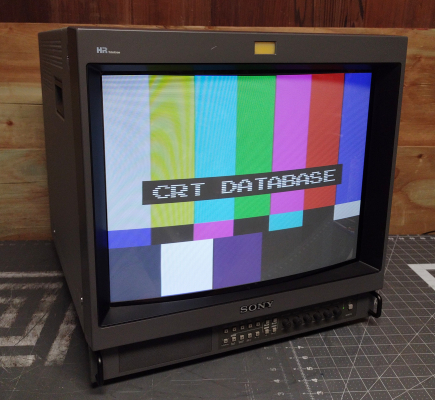

Gallery
| Specifications | |
|---|---|
| Brand: | Sony |
| Manufacturer: | Sony |
| Model: | 1954Q |
| Series: | PVM Q-Series |
| Viewable Size: | 19" |
| Inputs: | Composite, S-Video, Component YPbPr, RGB |
| Sync: | CSYNC, Sync over Composite |
| Native Resolutions: | 240p, 480i |
| Linecount: | 600 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC, PAL, NTSC4.43, SECAM |
| Aspect: | 4:3 |
| Adjustments: | External Potentiometers, OSD Service Menu |
| Comb Filtering: | Glass |
| Comb Filter IC: | ADL-MP046S, 1-808-654-21 |
| Flyback: | 1-453-164-11 |
| Tube: | Sony HR Trinitron , M49KGH20X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Aperture Grille
|
| Pitch: | .40 mm, 0.4 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | 1-451-349-12 |
| Yoke Horz. Inductance: | 1.1163 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 28.97 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 1.49 ohm |
| Yoke Vert. Resistance: | 15.1 ohm |
| Speakers: | Mono |
| Weight: | 66 lbs (29.9 kg) |
| Application: | Professional |
| Launched: | 1994 |
| Country of Manufacture: | Japan |
| Mounting: | Rackable |
| Degaussing: | Automatic on Power-on, Manual |
