Sony PVM-91
Matt Ross
October 2, 2024, 12:53 pm
April 30, 2025, 10:48 am
October 2, 2024, 12:53 pm
April 30, 2025, 10:48 am
Summary
Compact early '80s broadcast monitor from Sony. Due to it being monochrome, it has a standard round tube instead of the usual Trinitron shape. Picture is rated at 800 TVL.
Manuals
Notes
As with all monochrome monitors, the picture is much cleaner if you're able to input a pure luma signal rather than composite video. This can be obtained from S-Video (via an RCA splitter adapter), or from component video if you use the green RCA plug.

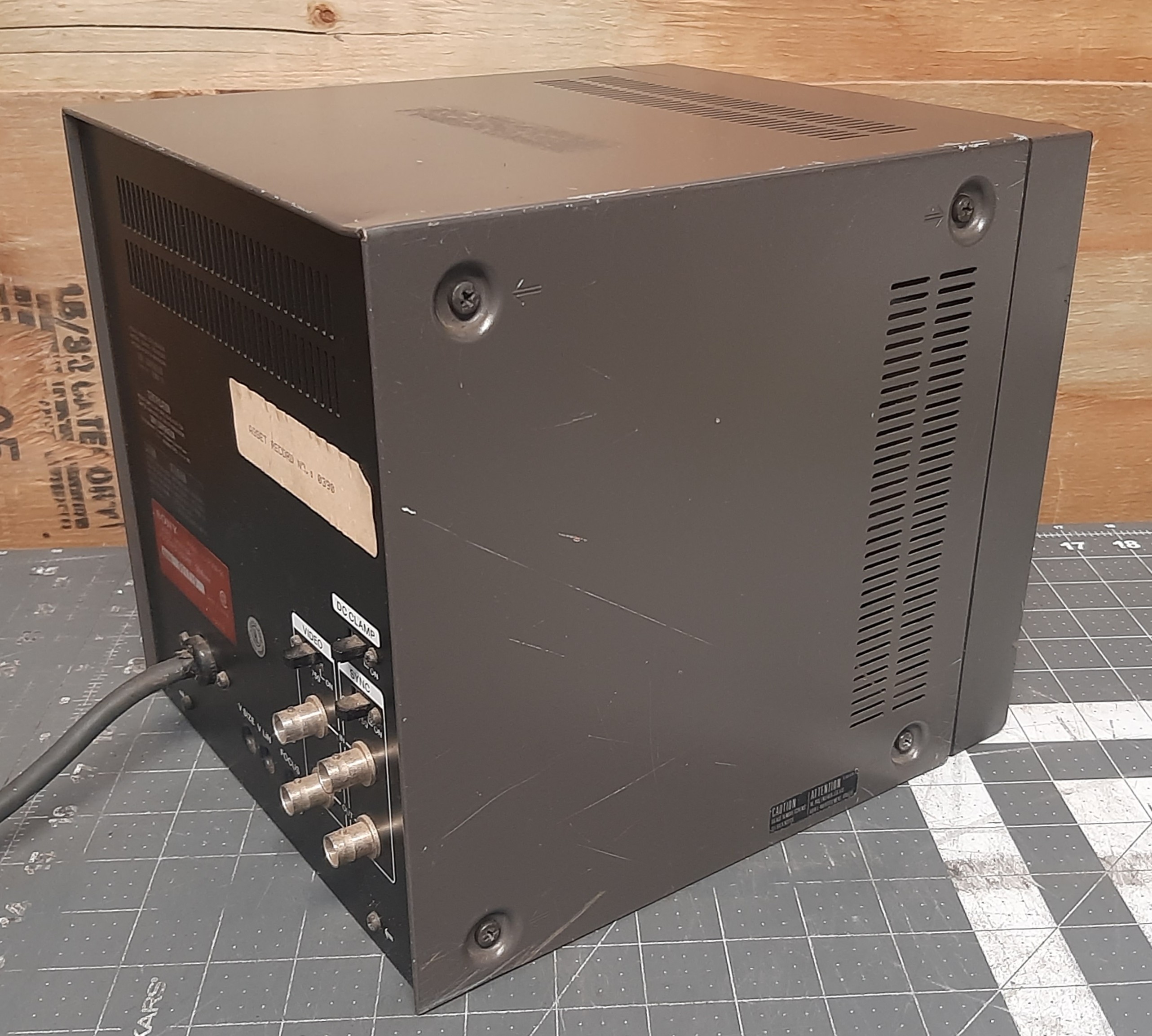

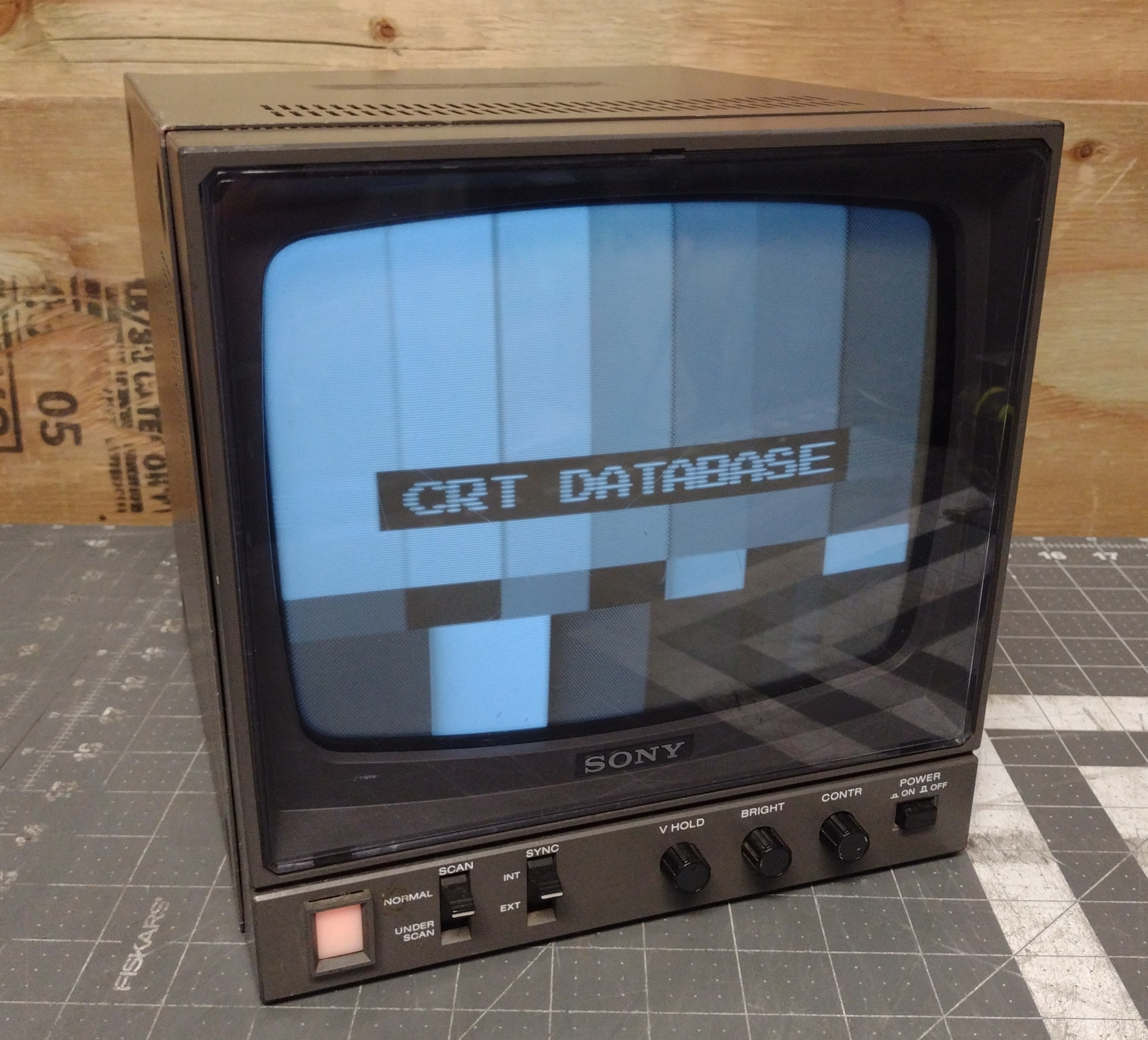

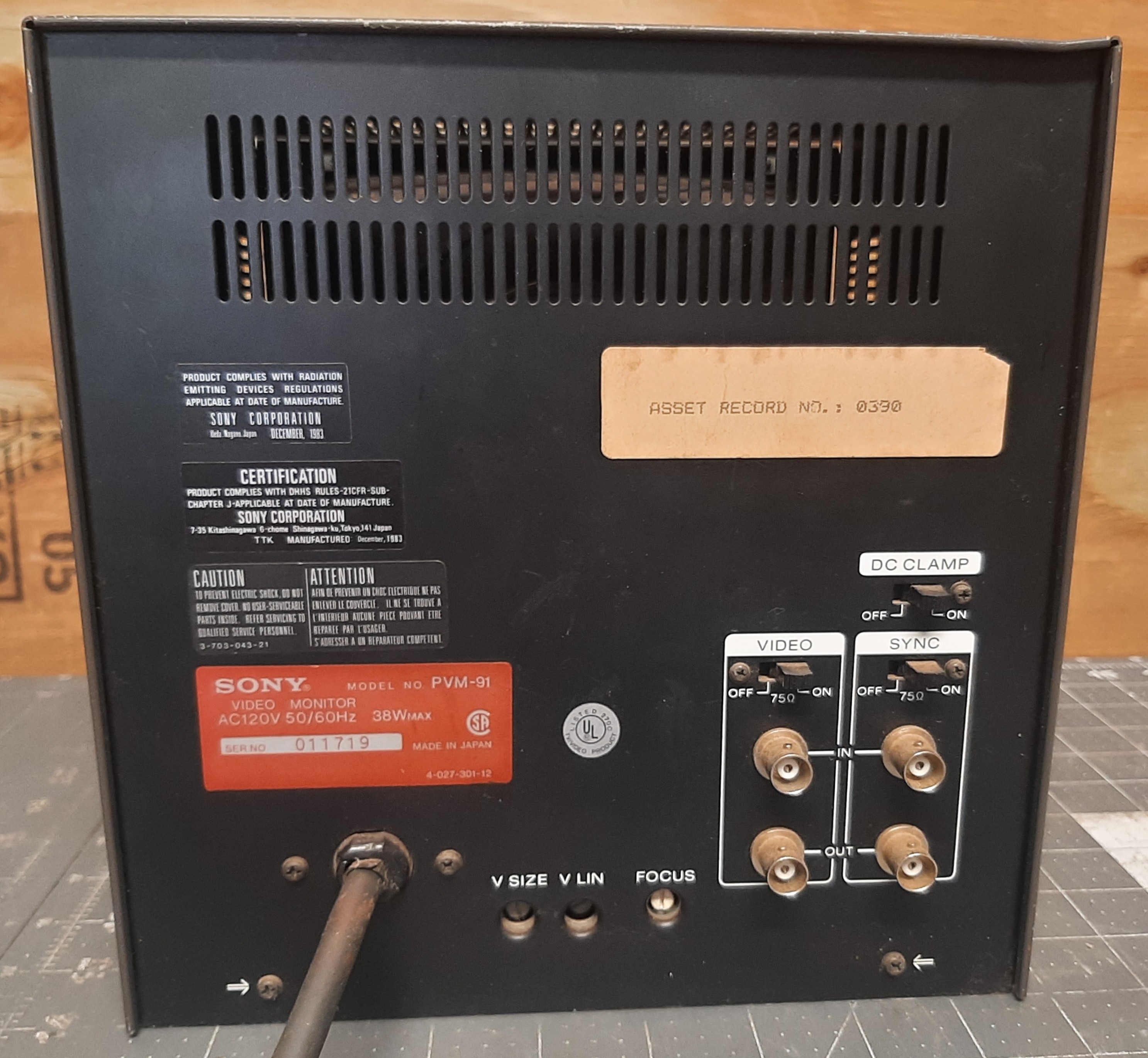

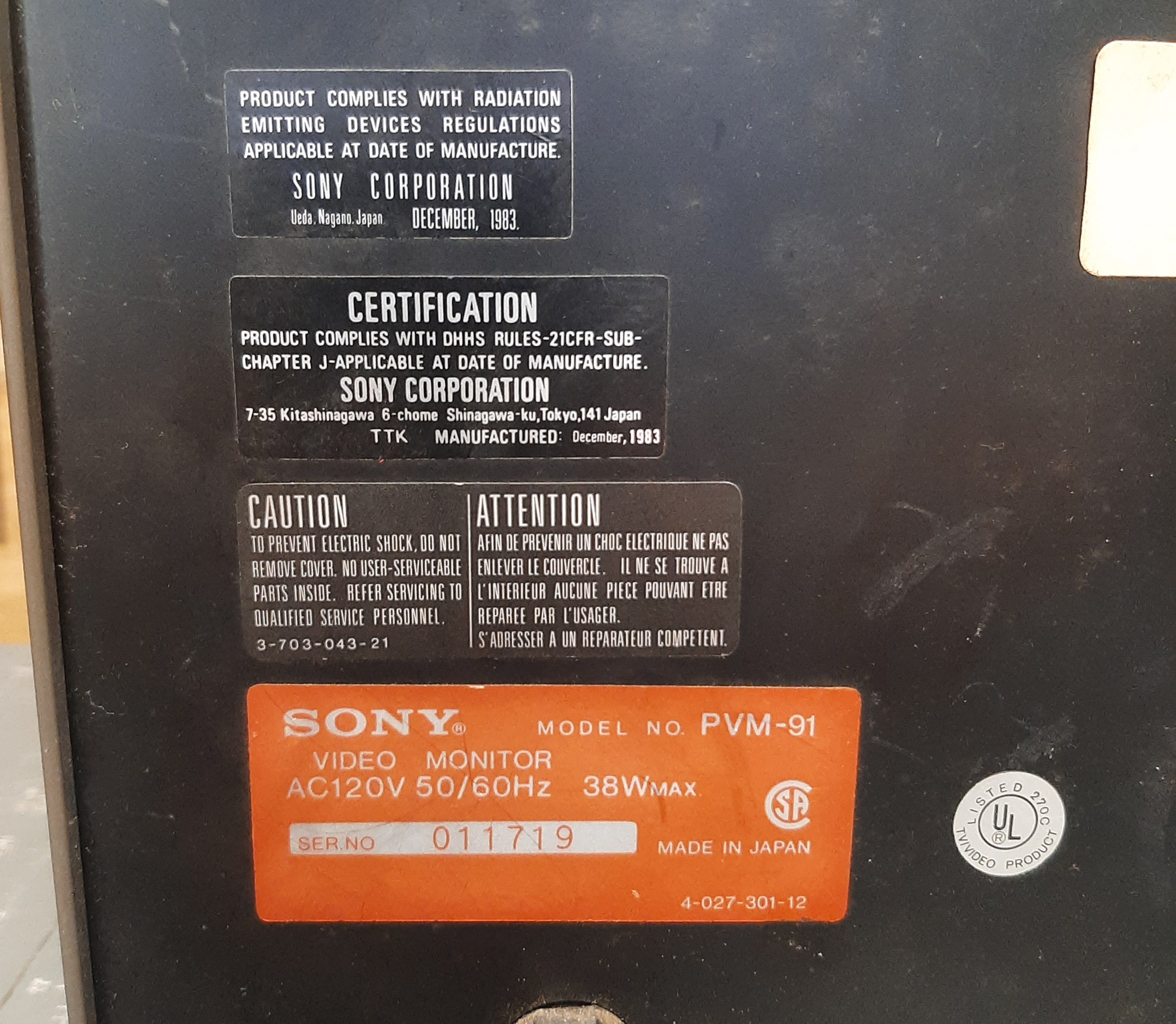

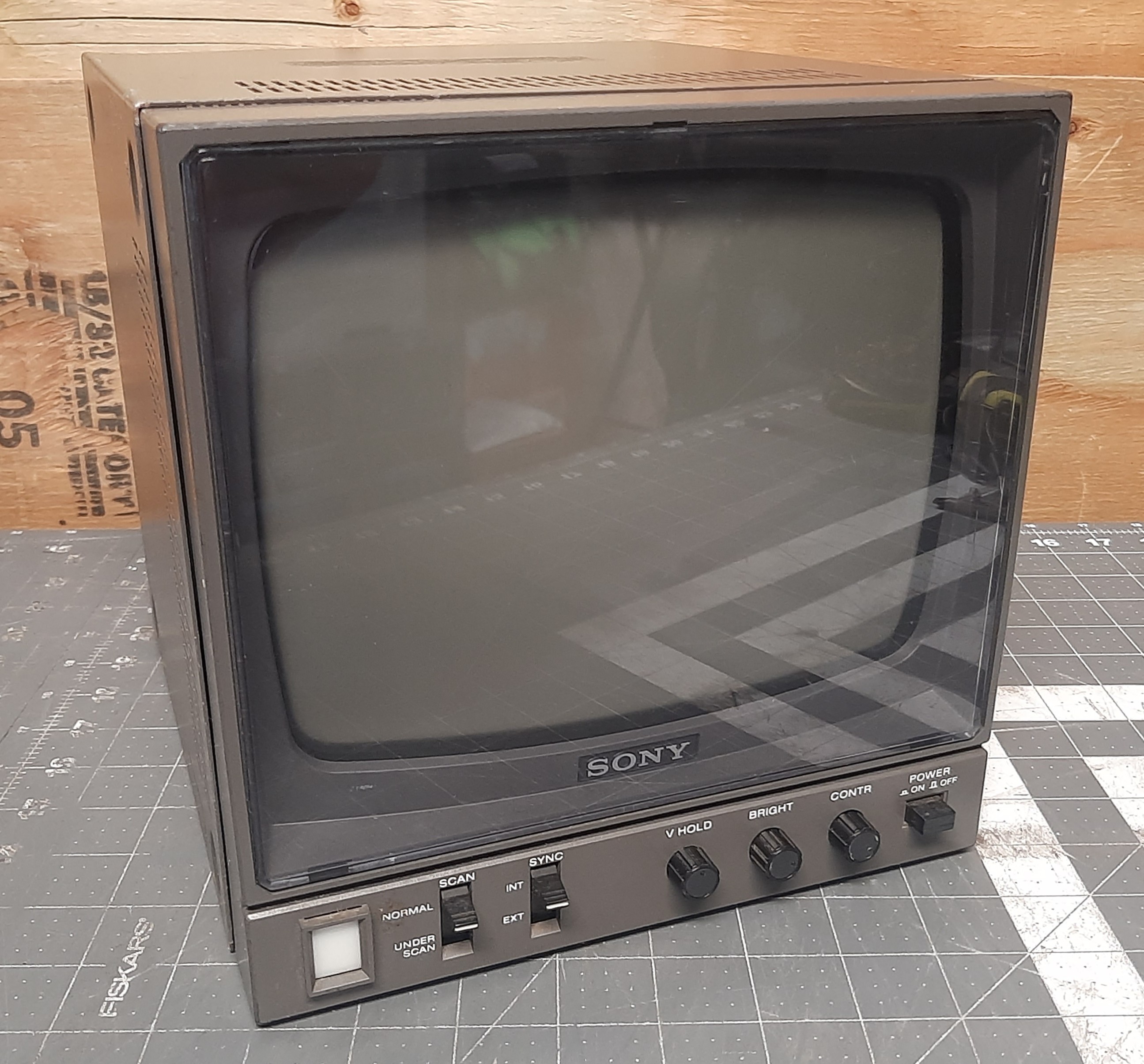

Gallery




Specifications | |
---|---|
Brand: | Sony |
Manufacturer: | Sony |
Model: | PVM-91 |
Series: | PVM (Monochrome) |
Viewable Size: | 9" |
Inputs: | Composite |
Sync: | CSYNC, Sync over Composite, Sync on Luma |
Native Resolutions: | 240p, 480i |
Linecount: | 800 TVL |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 50 Hz, 60 Hz |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, External Potentiometers |
Focus Type: | Single |
Deflection: | 90° |
Mask: | Monochrome Tube (no mask) |
Tint: | Light, Detachable Sunshade |
Removable Glare Film: | No |
Speakers: | None |
Weight: | 13.2 lbs (6 kg) |
Dimensions (W/H/D): |
225 x 220 x 250 mm
(8.8 x 8.6 x 9.8") |
Application: | Professional |
Cabinet Material: | Metal |
Launched: | 1982 |
Country of Manufacture: | Japan |
Market: | North America |
Power Standard: | 120v |
Mounting: | Rackable |
Degaussing: | Not Applicable |
Tag: | Needs Owners Manual, Needs Yoke Info, Needs Tube Info |
