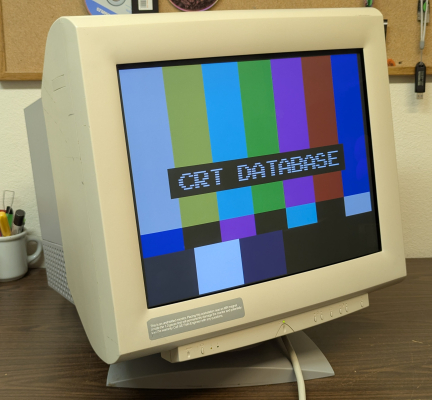

Sun Microsystems 21" Premium Monitor
Andy King
February 28, 2023, 11:22 pm
February 28, 2023, 11:22 pm
Summary
20" viewable size computer monitor from Sony, branded for Sun Microsystems. Under the hood it is a Sony GDM-5010PT. Unlike most Sun monitors, this is PC compatible and supports a wide range of resolutions and has a VGA input alongside their standard DB13W3. The native resolution is 1600x1200.
Literature
Notes
There are some documented LED error codes in the service manual.
Gallery
| Specifications | |
|---|---|
| Brand: | Sony, Sun Microsystems |
| Manufacturer: | Sony |
| Model: | 21" Premium Monitor, 5010PT |
| Series: | GDM |
| Viewable Size: | 20" |
| Inputs: | VGA, DB13W3 |
| Sync: | HV Sync, CSYNC |
| Resolutions: | VGA, SVGA, XGA, SXGA, UXGA |
| Horizontal Max: | 30 kHz, 96 khz |
| Vertical Max: | 48 Hz, 160 Hz |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Flyback: | NX-4142 |
| Tube: | M50LMD15X |
| Deflection: | 90 deg. |
| Mask: | Aperture Grille |
| Pitch: | .25mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Chassis: | SCC-L04F-A |
| Weight: | 68 lbs (31 kg) |
| Application: | Computer Monitor |
| Country of Manufacture: | Japan |
| Degaussing: | Automatic on Power-on |
