Sylvania 6419TE
Matt Ross
February 28, 2023, 5:52 pm
October 2, 2024, 5:50 pm
February 28, 2023, 5:52 pm
October 2, 2024, 5:50 pm
Summary

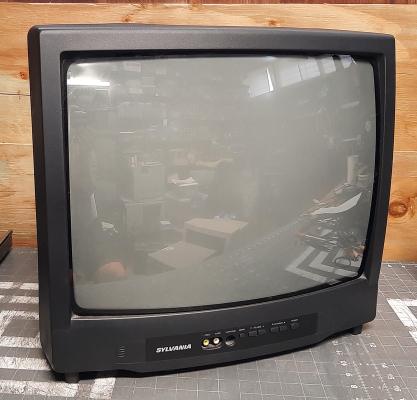

Budget model 19" curved TV, made by Funai and sold under the Sylvania brand. These TVs were extremely common in the early 2000s. Features a single mono AV input on the front.
Literature
Notes
Unlike many TVs in its size class, this uses a 19" viewable tube and can be used as a donor set for arcade monitors.
This TV was also sold with the Symphonic brand name, using the same model number.
Gallery
| Specifications | |
|---|---|
| Brand: | Sylvania |
| Manufacturer: | Funai |
| Model: | 6419TE |
| Series: | Sylvania |
| Viewable Size: | 19" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | C5885 |
| Vertical Output IC: | LA78040A |
| Jungle IC: | M62171M8-058FP |
| Flyback: | LTF00CPS2060 |
| Tube: | Funai , A48AKH13X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Yoke Horz. Inductance: | 2.145 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 27.39 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 3.0 ohm |
| Yoke Vert. Resistance: | 15.1 ohm |
| Speakers: | Mono |
| Remote: | N0108UD, N0132UD |
| Weight: | 37.5 lbs (17 kg) |
| Application: | Consumer |
| Launched: | 2004 |
| Country of Manufacture: | Malaysia |
| Degaussing: | Automatic on Power-on |
