Sylvania 6724DG
April 29, 2025, 10:43 pm
April 29, 2025, 7:21 pm
Summary

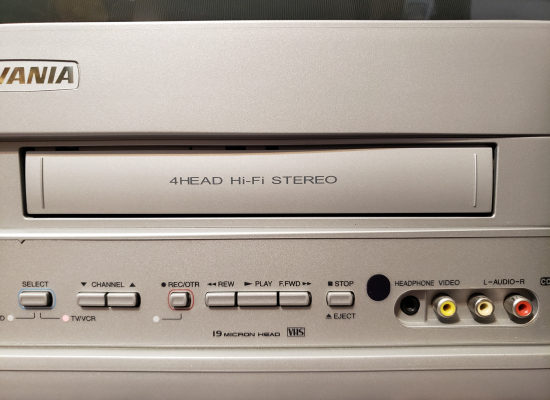

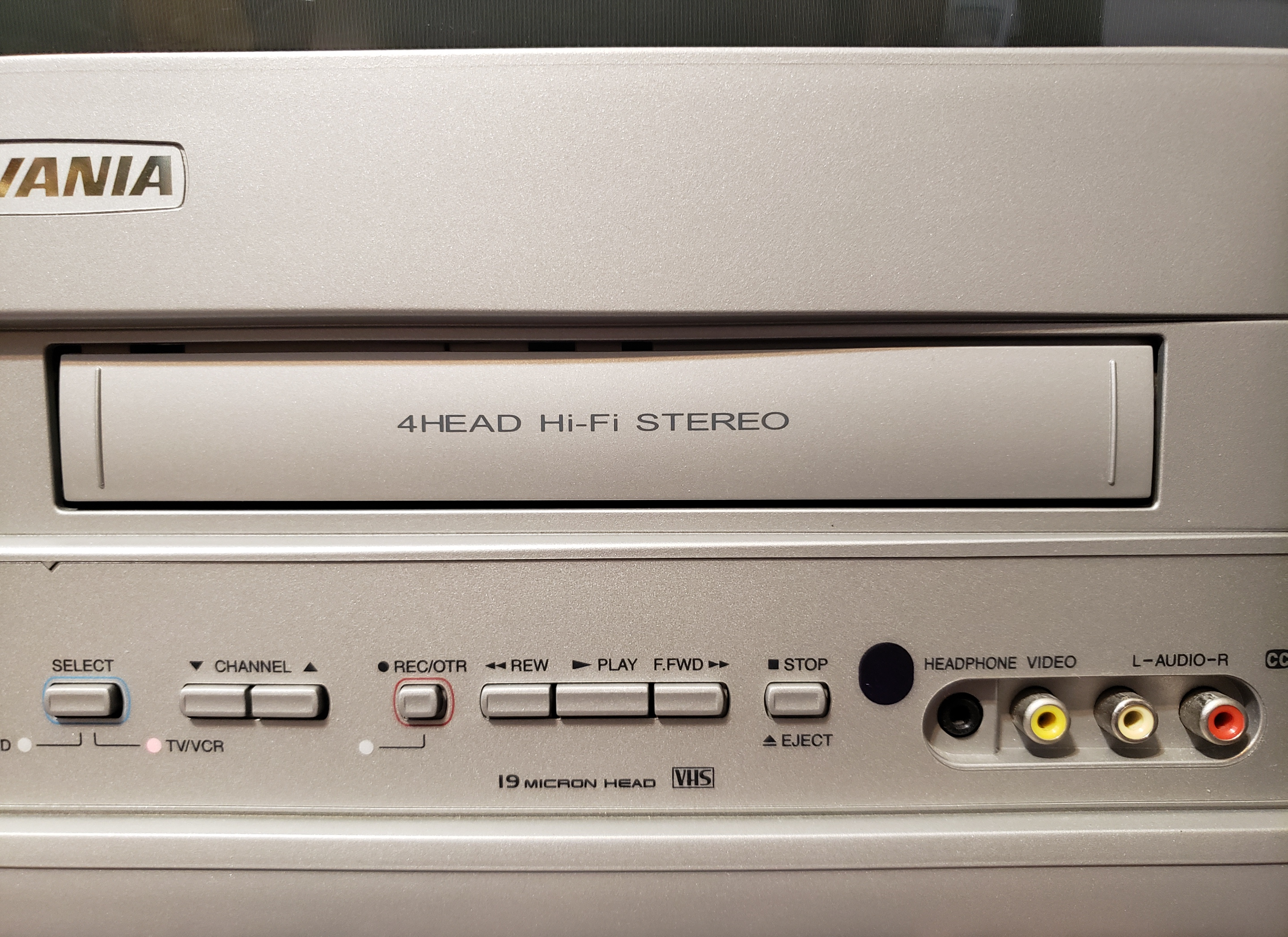

Sylvania's 24-inch 6724FDG TV/DVD/VCR player combination unit is a compact combo unit ideal for the bedroom, kitchen, den, or kids' room. The 6724FDG features stereo speakers, front-panel audio/video inputs for your camcorder, VCR, or gaming device, and a headphone jack accessible from the front panel for private or late-night viewing. A convenient front-panel menu button simplifies setup even if you misplace the remote control. Both Dolby Digital and DTS 5.1-channel surround-sound signals from DVDs can be routed through the player's coaxial digital-audio output for direct connection to a full-featured audio/video receiver.
Manuals
- User Manual
- Service Manual for the similar 6720FDF
Media & Promo Materials

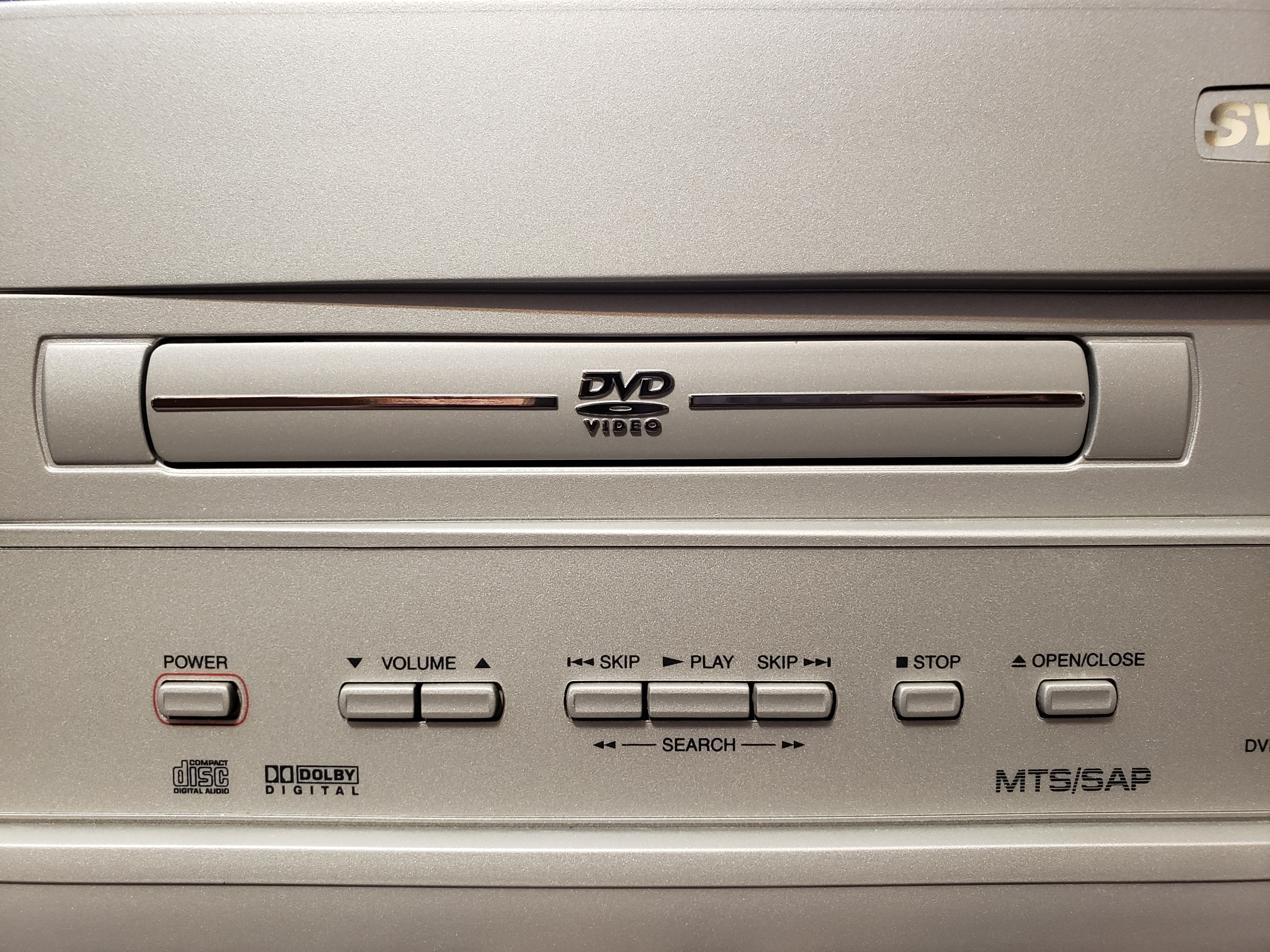

Notes
Requires a compatible remote with a "Picture" button in order to access picture settings, as is found on Funai remotes for DVD combos. Repeatedly press the Picture button to cycle through the picture settings.

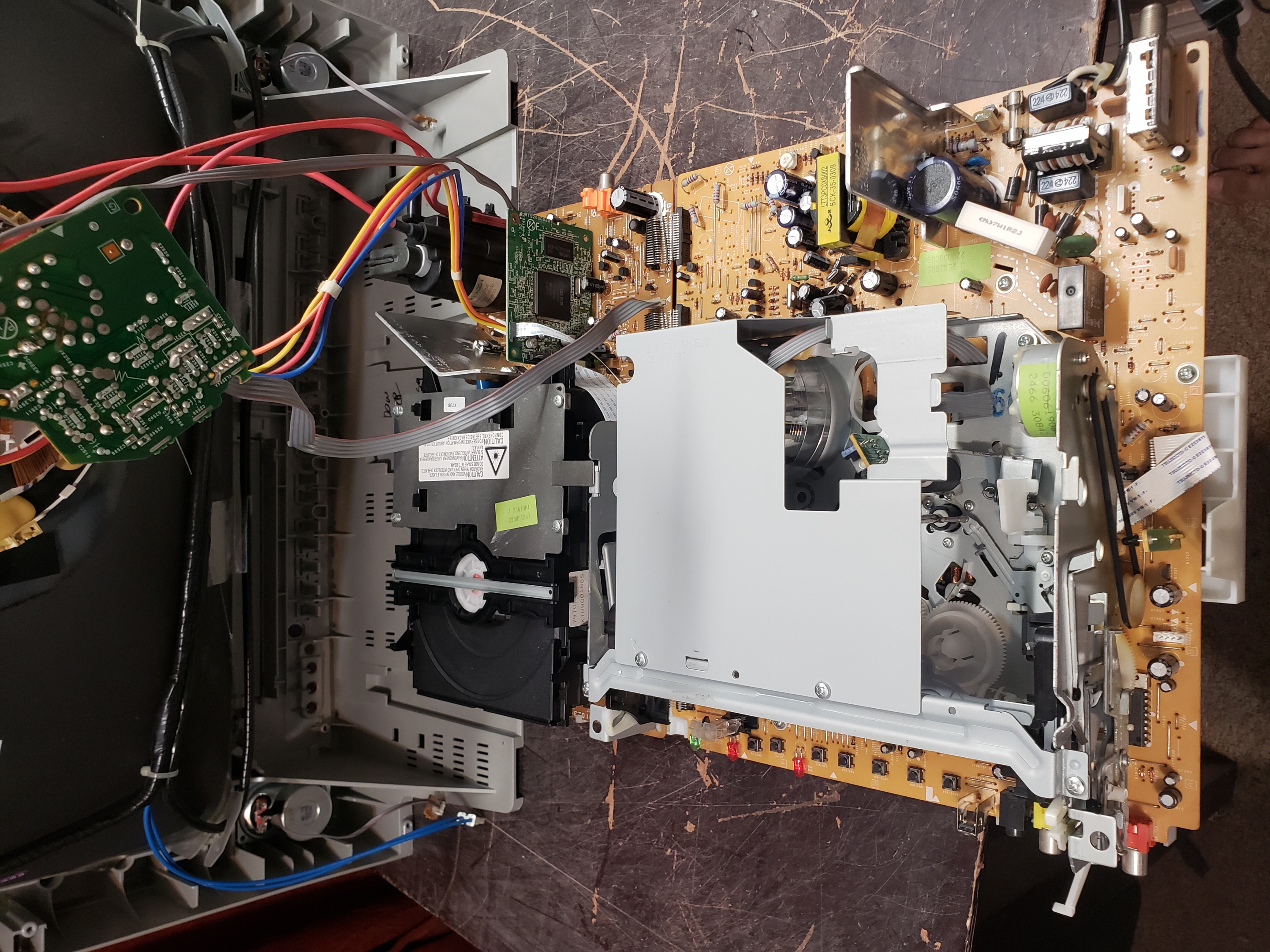

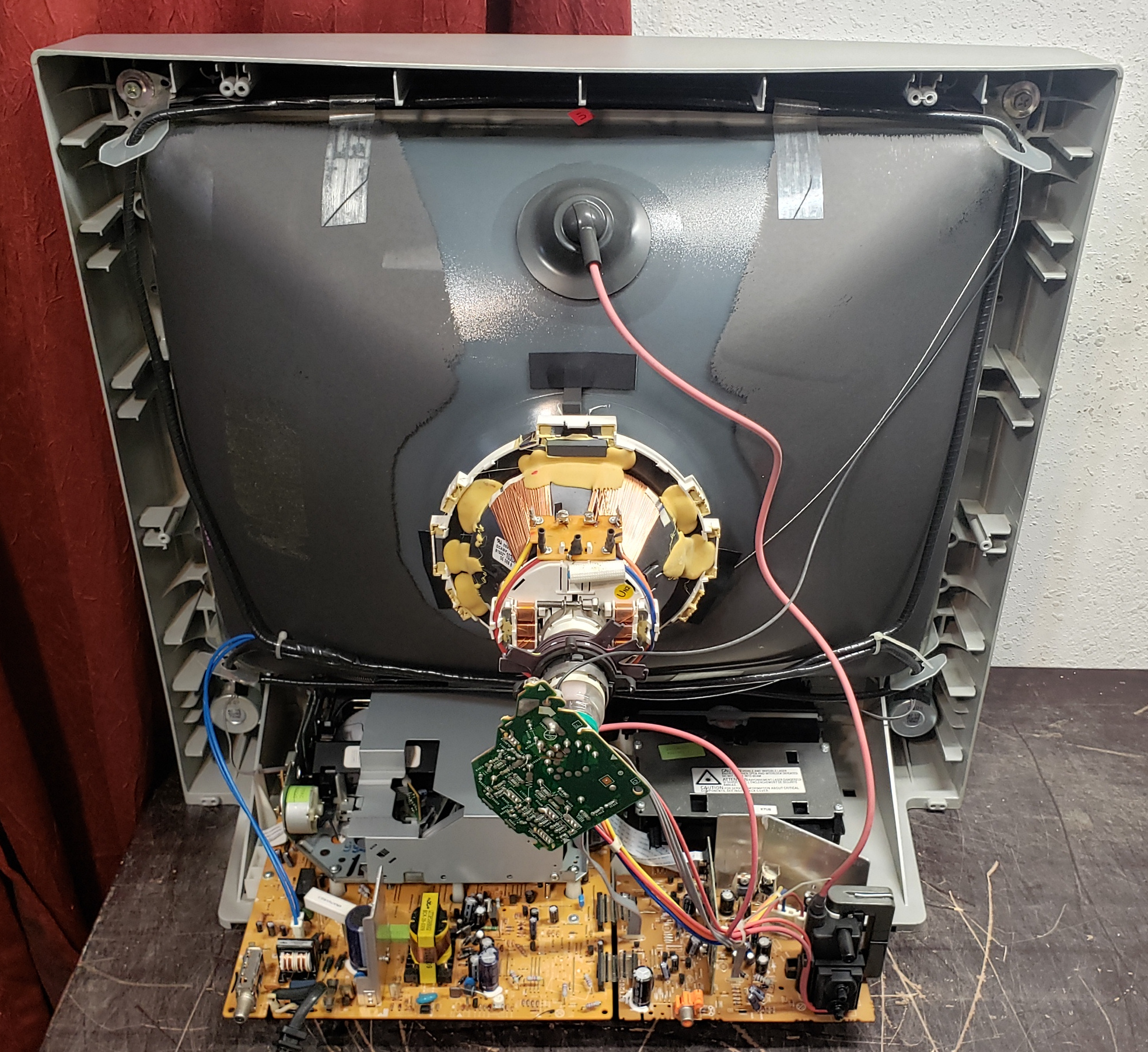

Has internal pots for horizontal size and pincushion.

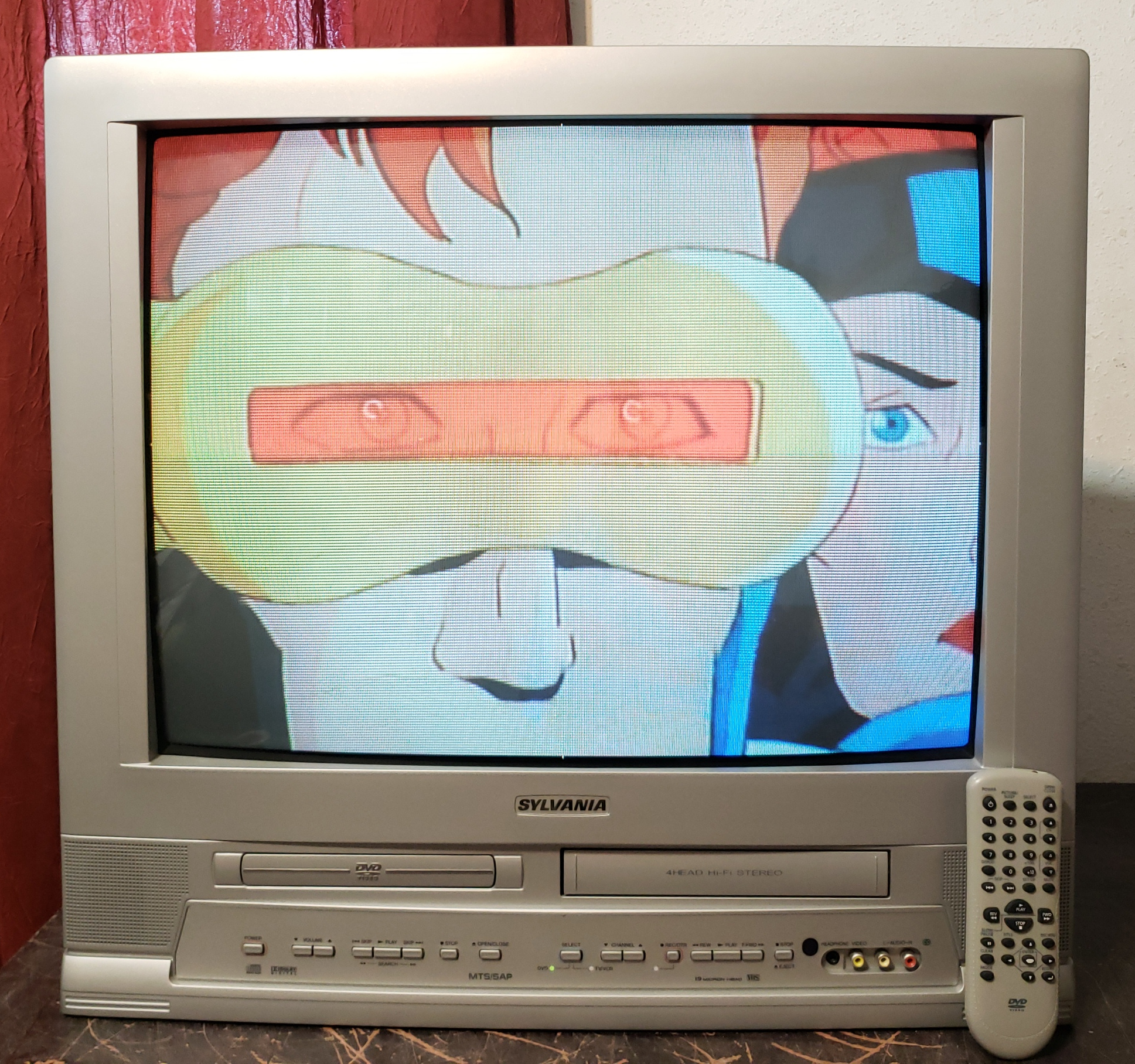

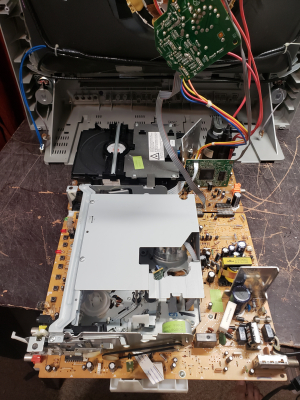

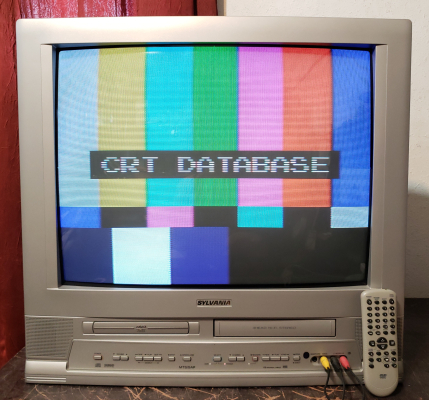

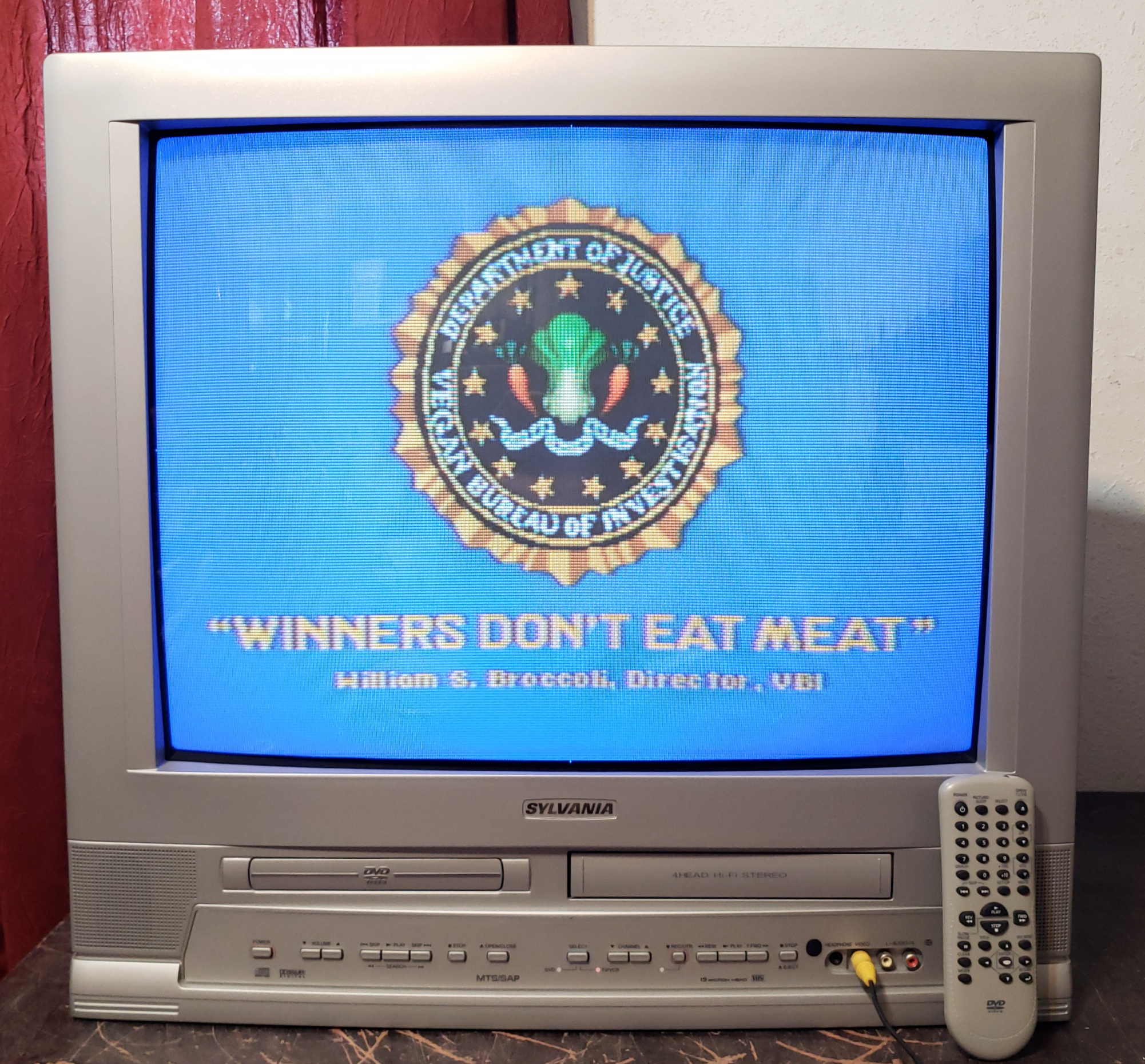

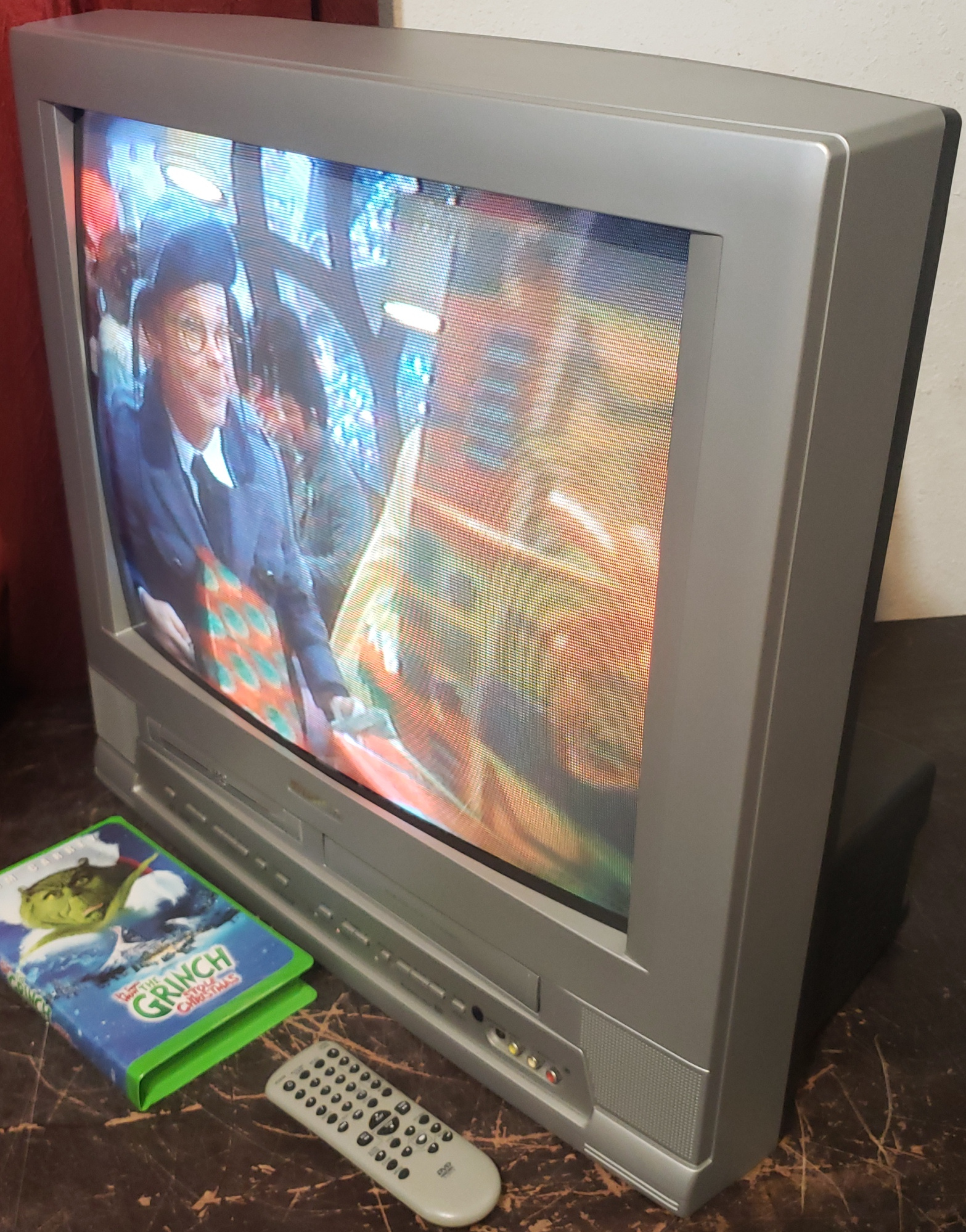

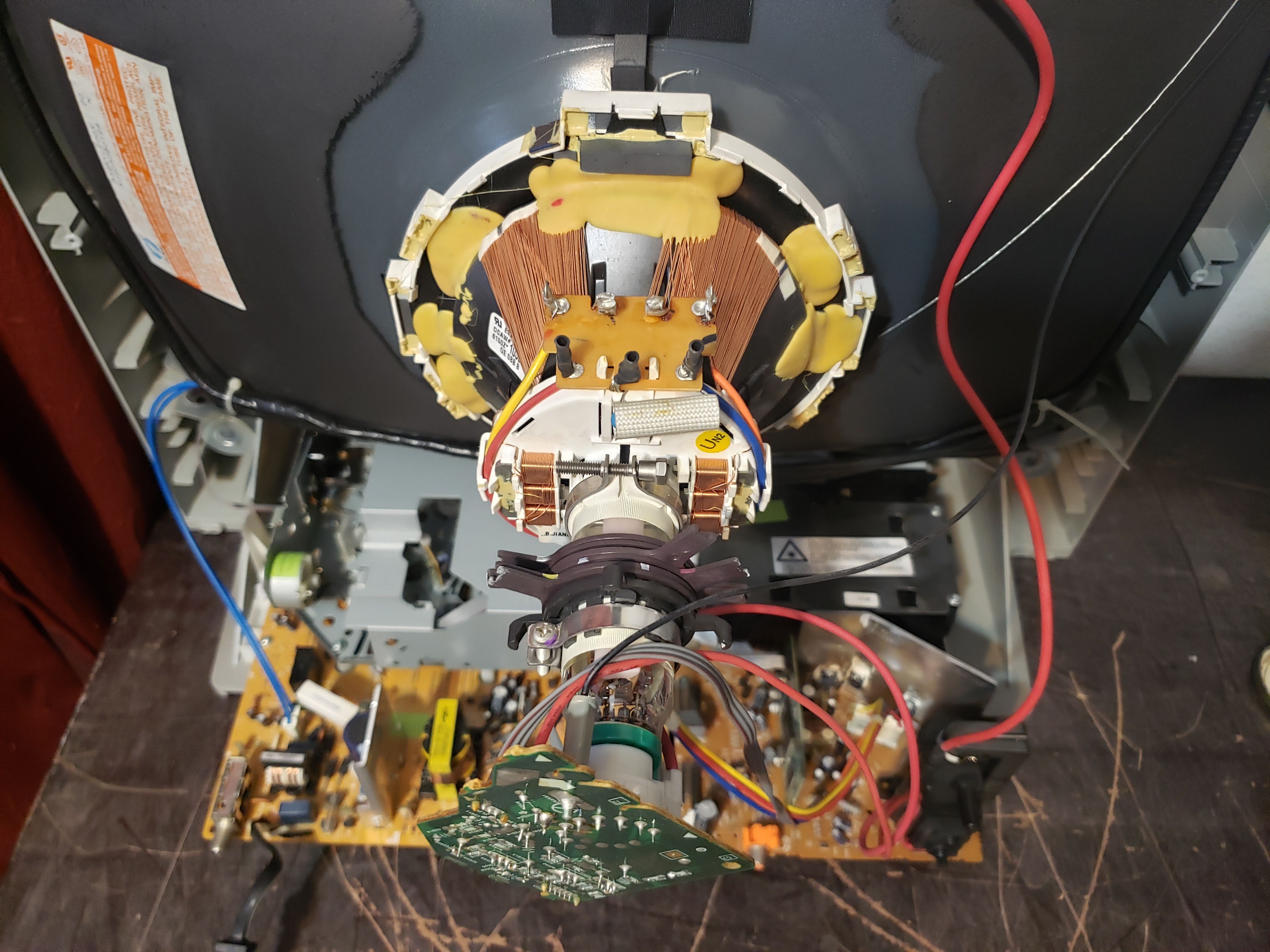

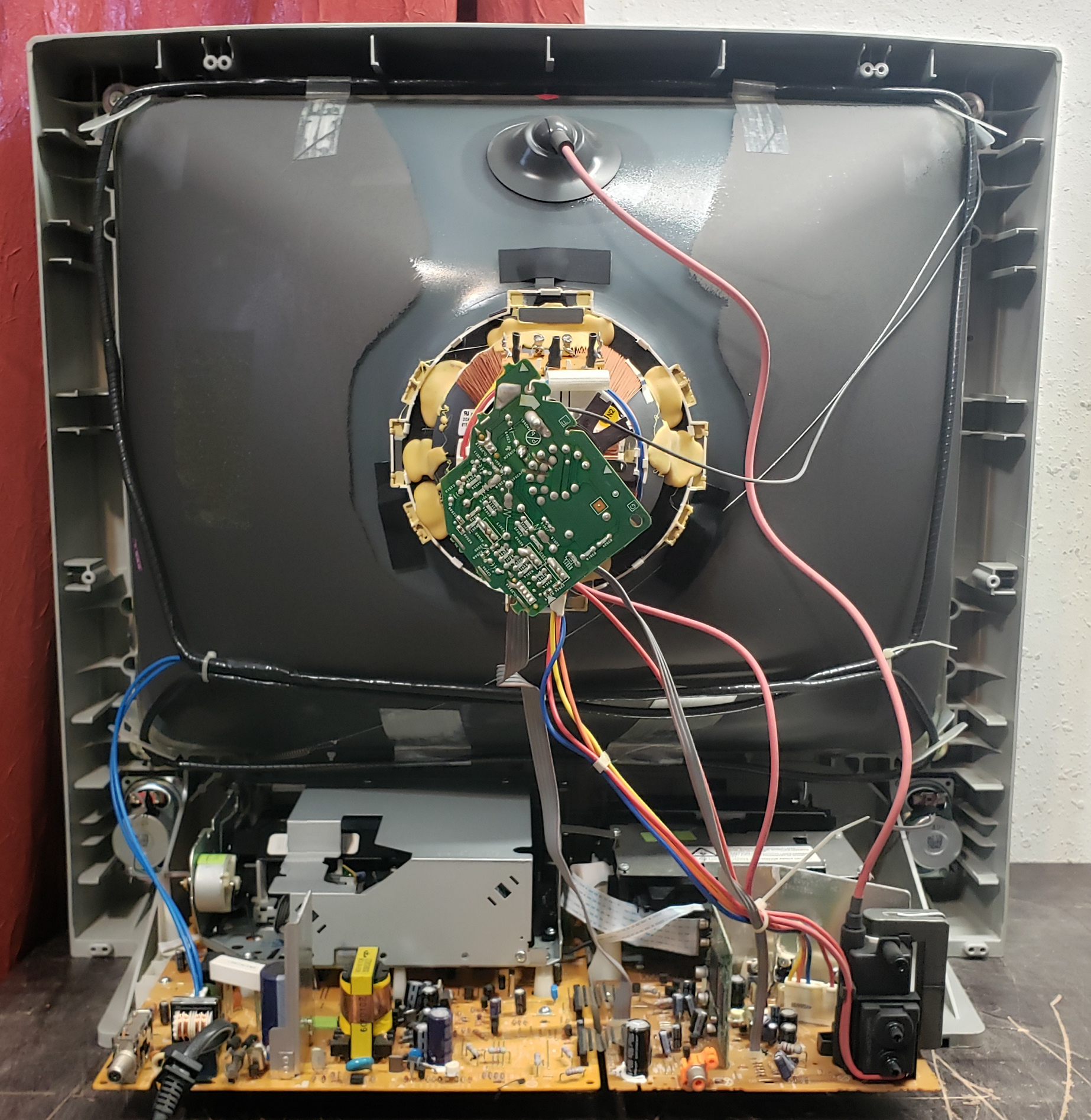

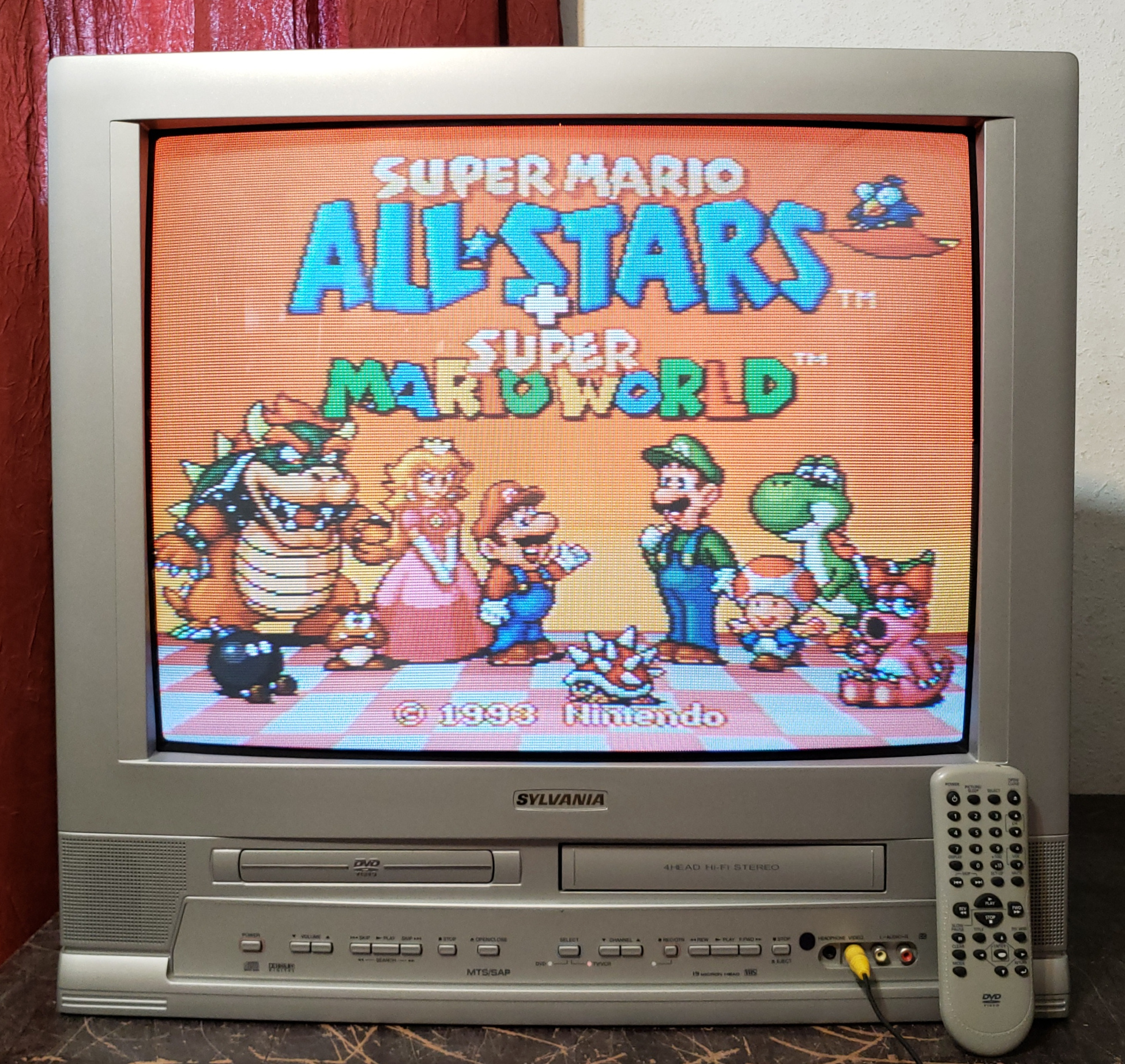

Gallery


















Specifications | |
---|---|
Brand: | Sylvania |
Manufacturer: | Funai |

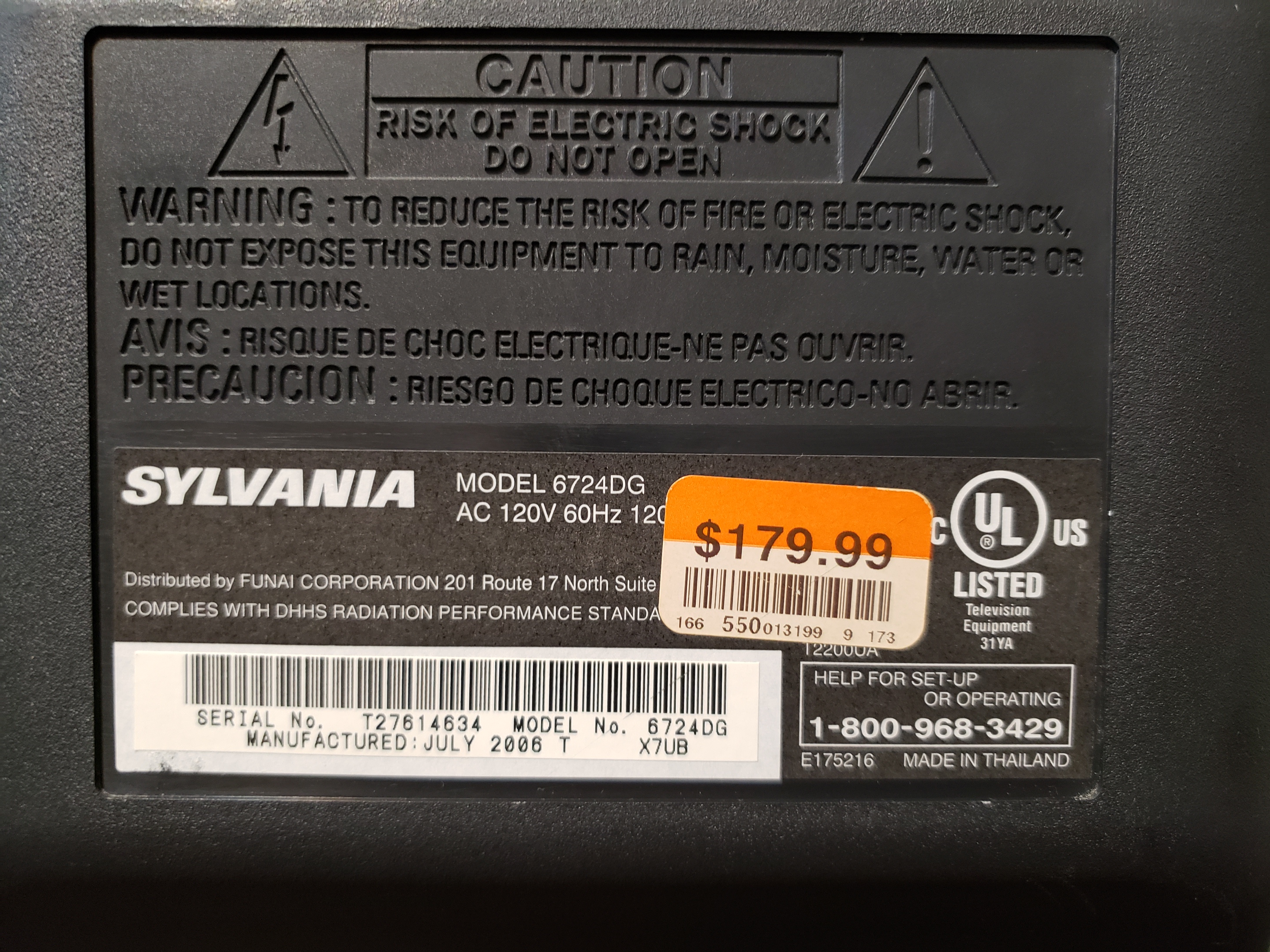

Model: | 6724DG |
Series: | TV/VCR/DVD Combo |
Viewable Size: | 24" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu, Internal Potentiometers |
Focus Type: | Single |

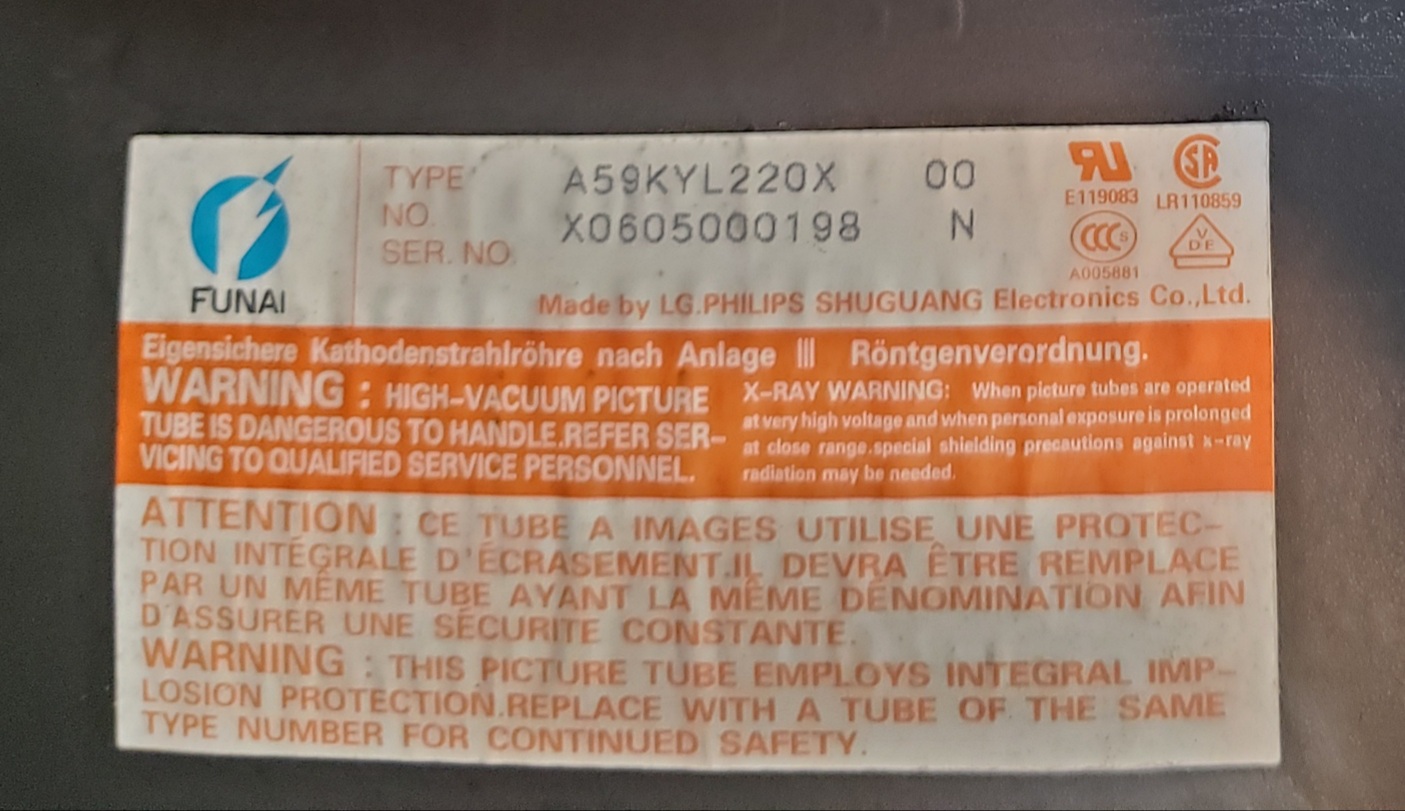

Tube: | LG.Philips , A59KYL220X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Speakers: | Stereo, 1W x 2 |
Remote: | NF101UD |
Weight: | 60.2 lbs (27.3 kg) |
Dimensions (W/H/D): |
612 x 576 x 481 mm
(24.1 x 22.6 x 18.9") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2006 |
Country of Manufacture: | Thailand |
Mods: | S-Video |
Degaussing: | Automatic on Power-on |
Tag: | Needs Service Manual, Needs Yoke Info |
