Summary

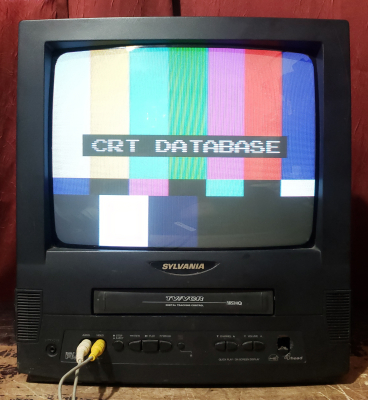

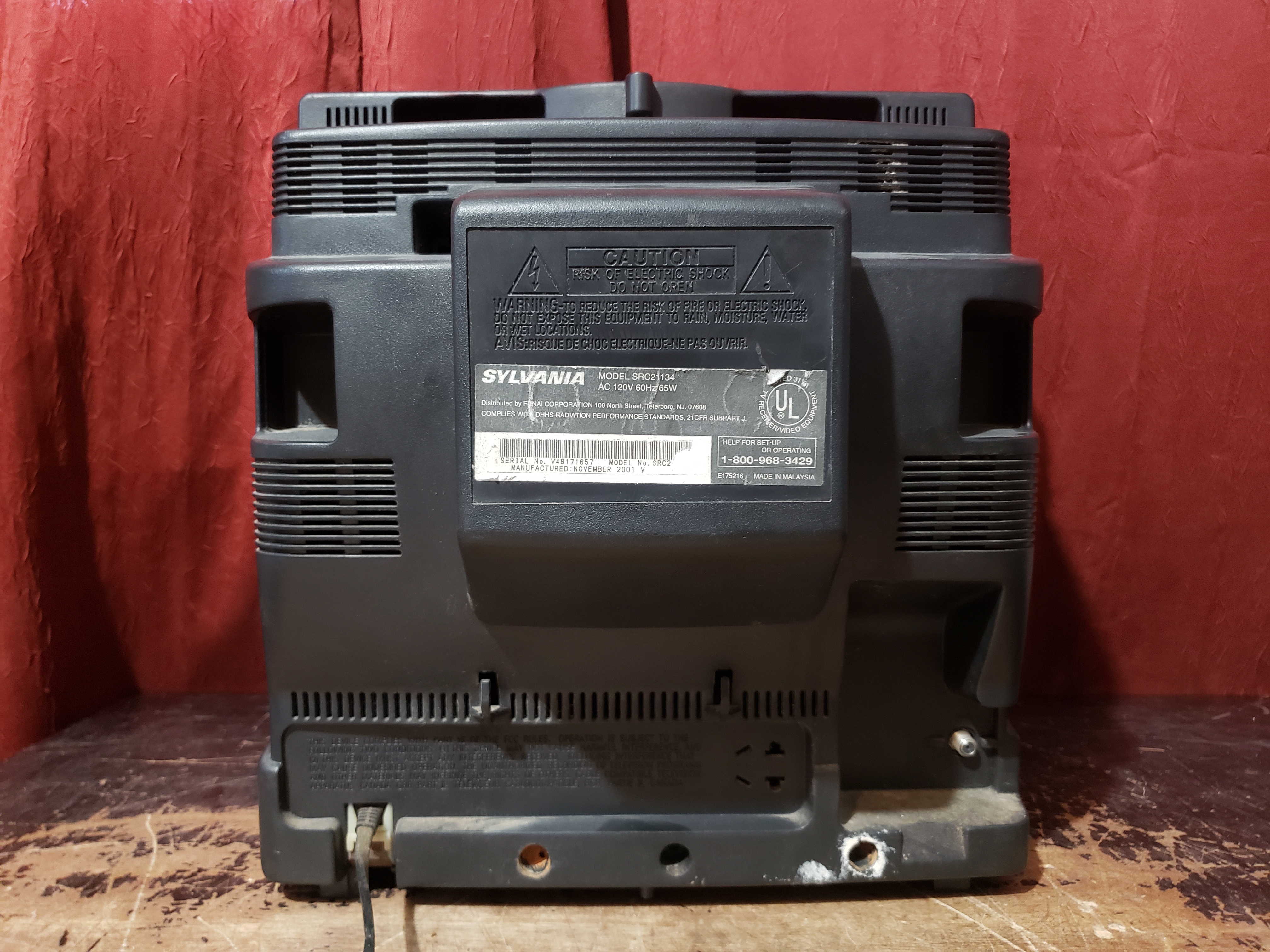

13" TV/VCR combo unit, manufactured by Funai and sold under the Sylvania brand. Features a single mono AV port on the front, and an RF coaxial input on the back.
Manuals
Notes
You can switch inputs and access the menu options using the channel buttons. The VCR playback buttons navigate the menus.
Gallery
| Specifications | |
|---|---|
| Brand: | Sylvania |
| Manufacturer: | Funai |
| Model: | SRC21134 |
| Series: | TV/VCR Combo |
| Viewable Size: | 13" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | Notch |

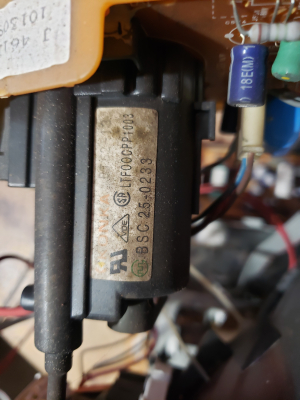

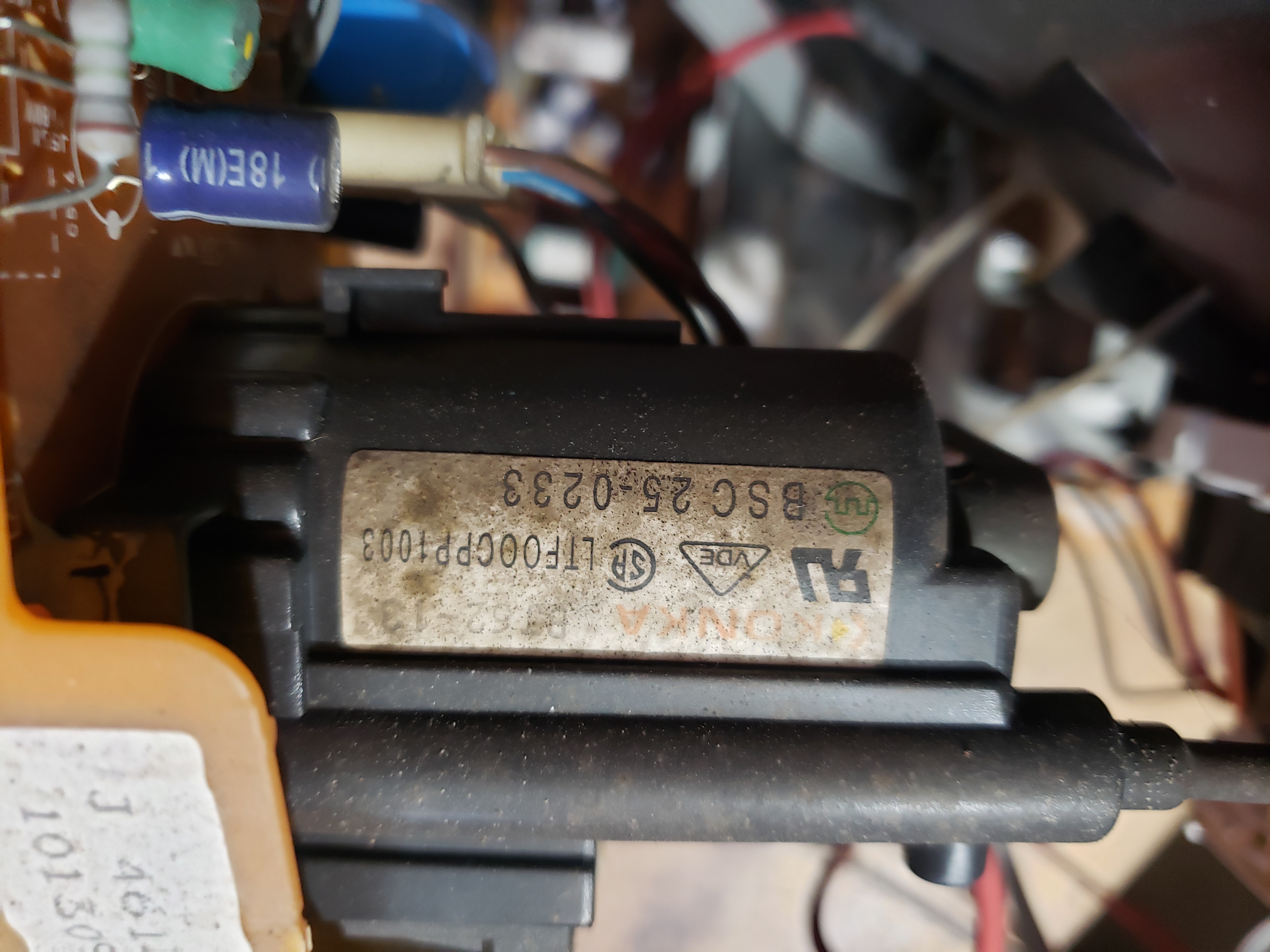

| Flyback: | LTF00CPP1003 |
| Focus Type: | Single |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |

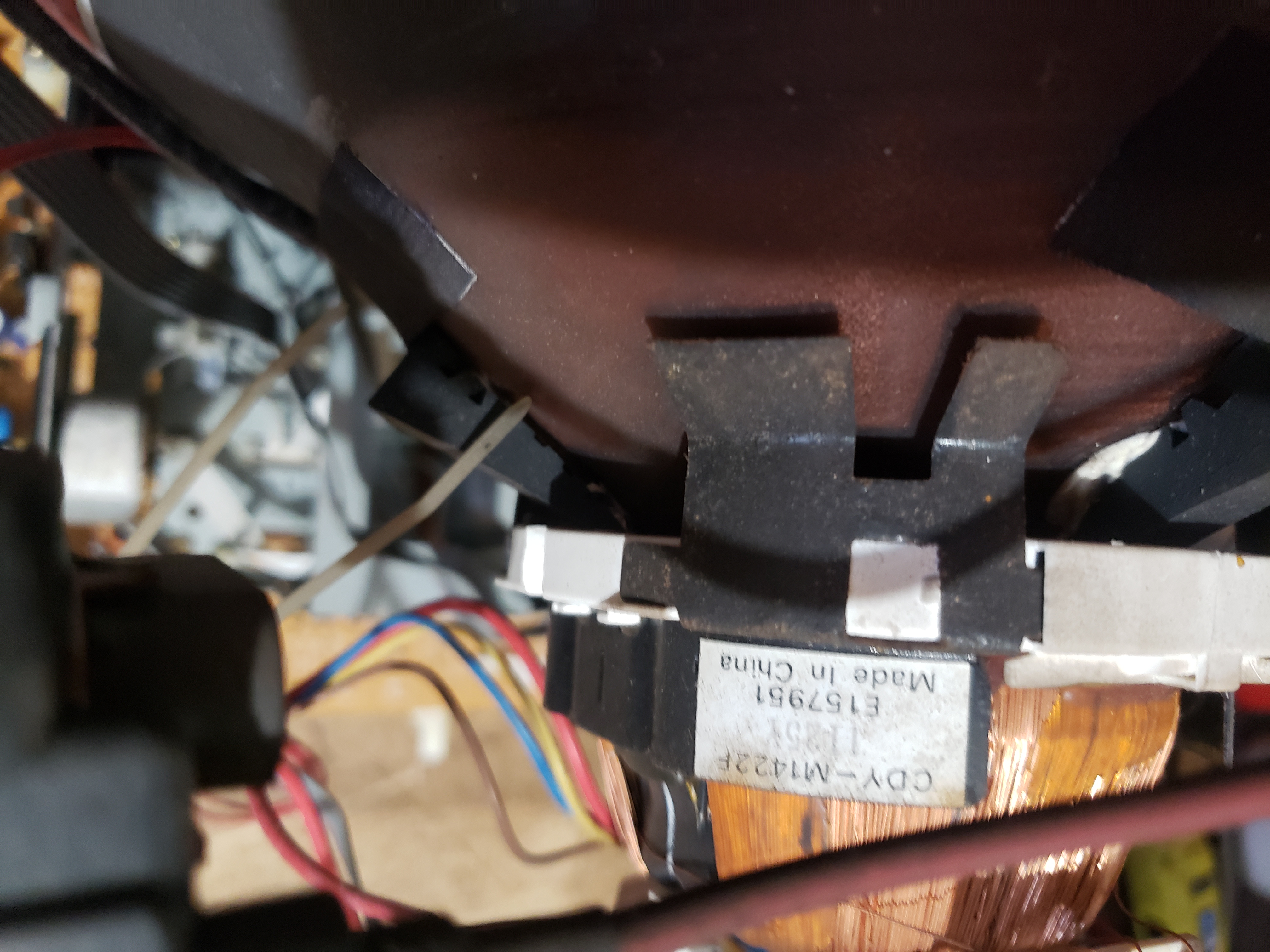

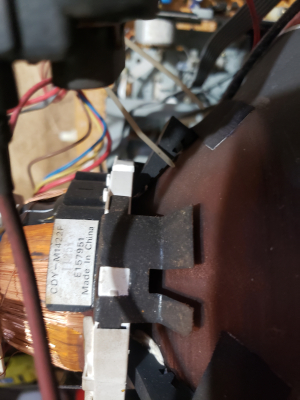

| Yoke: | CDY-M1422F |
| Speakers: | Mono |
| Remote: | N0124UD, N0155UD |
| Weight: | 24.3 lbs (11 kg) |
| Dimensions (W/H/D): |
386 x 400 x 377 mm
(15.2 x 15.7 x 14.8") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| Country of Manufacture: | Malaysia |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), Carrying Handle |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Tube Info, Needs Yoke Info, Needs IC Info |
