Sylvania SSC092
Trixter192, Dani Feng
February 11, 2025, 9:59 pm
June 23, 2025, 12:32 pm
February 11, 2025, 9:59 pm
June 23, 2025, 12:32 pm
Summary

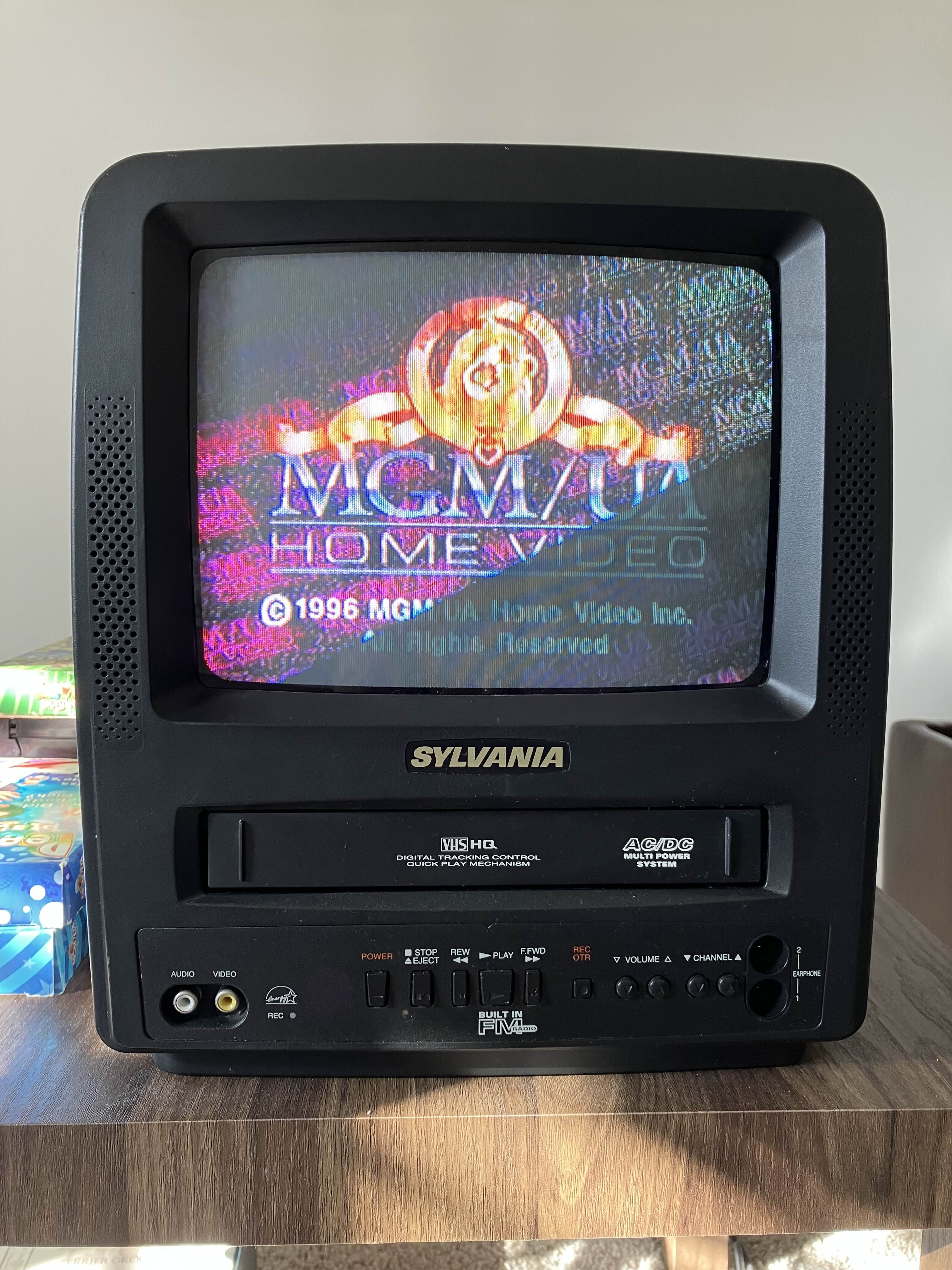

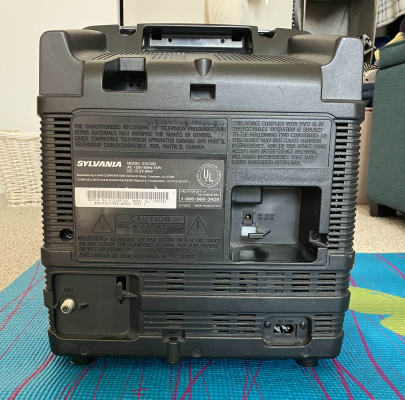

9" TV/VCR combo unit, manufactured by Funai and sold under the Sylvania brand. Features a single mono AV port on the front, and an RF coaxial input on the back.
Literature
Notes
The channel buttons on the set can change to the front input as will as bring up the user menu to change picture settings. Play and Stop move up and down the menu, and Fast Forward selects a menu option.

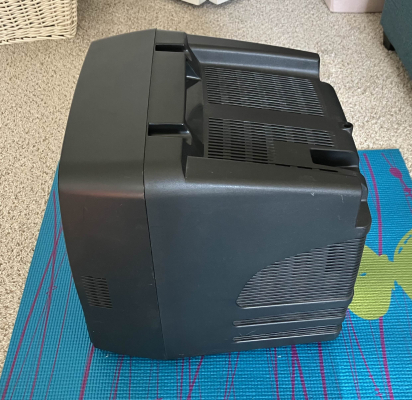

Gallery


Specifications | |
---|---|
Brand: | Sylvania |
Manufacturer: | Funai |
Model: | SSC092 |
Series: | TV/VCR Combo |
Viewable Size: | 9" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | 2SD2627LS-FEC-YB11 |
Vertical Output IC: | AN5522, LA78040A |
Jungle: | M61210FP |
Flyback: | BSC21-2039S, BSC25-0110 |
Focus Type: | Single |
Tube: | A23KQU22X01 |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Removable Glare Film: | No |
Speakers: | Mono, Headphone Jack |
Remote: | NE108UD |
Chassis: | T4300UA |
Weight: | 18.5 lbs (8.4 kg) |
Dimensions (W/H/D): |
330 x 308 x 329 mm
(13 x 12.1 x 12.9") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 2002 |
Country of Manufacture: | Malaysia |
Market: | North America |
Power Standard: | 120v, 12VDC |
Mounting: | Table Surface (Standard), Carrying Handle |
Degaussing: | Automatic on Power-on |
Tag: | Needs Yoke Info, Community Submission |
