Summary

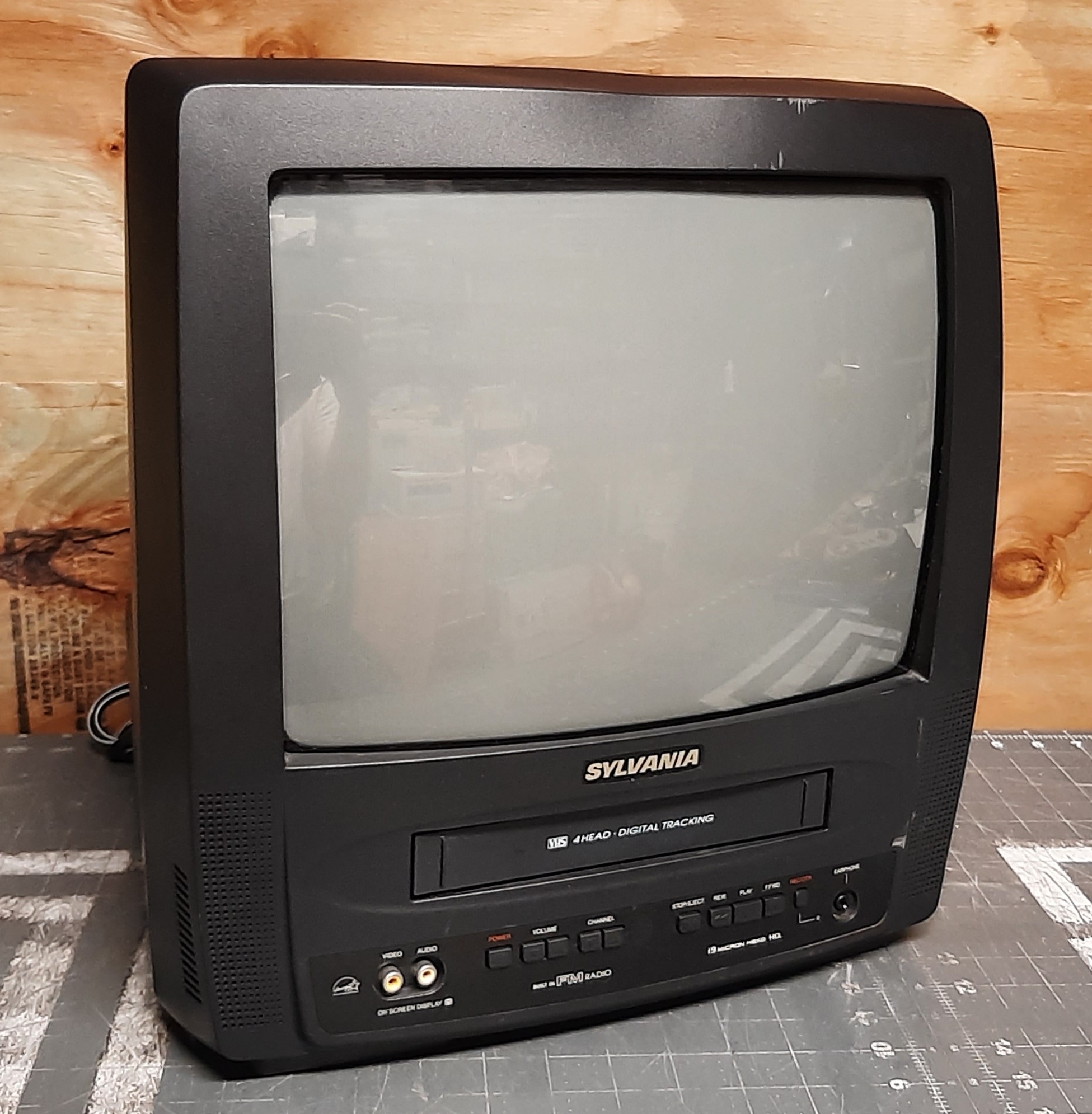

13" TV/VCR combo unit, manufactured by Funai and sold under the Sylvania brand. Features a single mono AV port on the front, and an RF coaxial input on the back.
Literature
Notes
The channel buttons on the set can change to the front input as will as bring up the user menu to change picture settings. Play and Stop move up and down the menu, and Fast Forward selects a menu option.

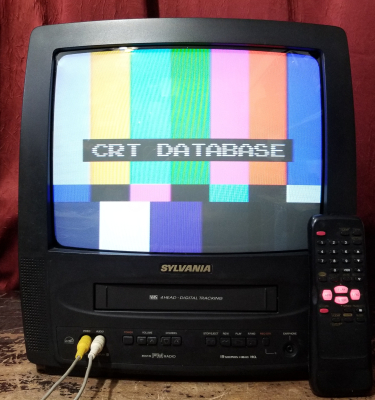

Gallery
| Specifications | |
|---|---|
| Brand: | Sylvania |
| Manufacturer: | Funai |
| Model: | SSC132 |
| Series: | TV/VCR Combo |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD2627LS |
| Vertical Output IC: | AN5522 |
| Jungle: | M61210FP |
| Flyback: | BSC21-2028S |
| Tube: | A34KPU02XX |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Light |
| Yoke: | LLBY00ZMS003 |
| Yoke Horz. Inductance: | 2.719 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 29.56 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 5.128 ohm |
| Yoke Vert. Resistance: | 16.19 ohm |
| Speakers: | Mono |
| Remote: | NO148UD |
| Weight: | 23.1 lbs (10.5 kg) |
| Application: | Consumer |
| Launched: | 2002 |
| Country of Manufacture: | Malaysia |
| Degaussing: | Automatic on Power-on |
