Sylvania SST4132
Eli Krause
June 1, 2025, 4:22 pm
June 1, 2025, 10:11 pm
June 1, 2025, 4:22 pm
June 1, 2025, 10:11 pm
Summary

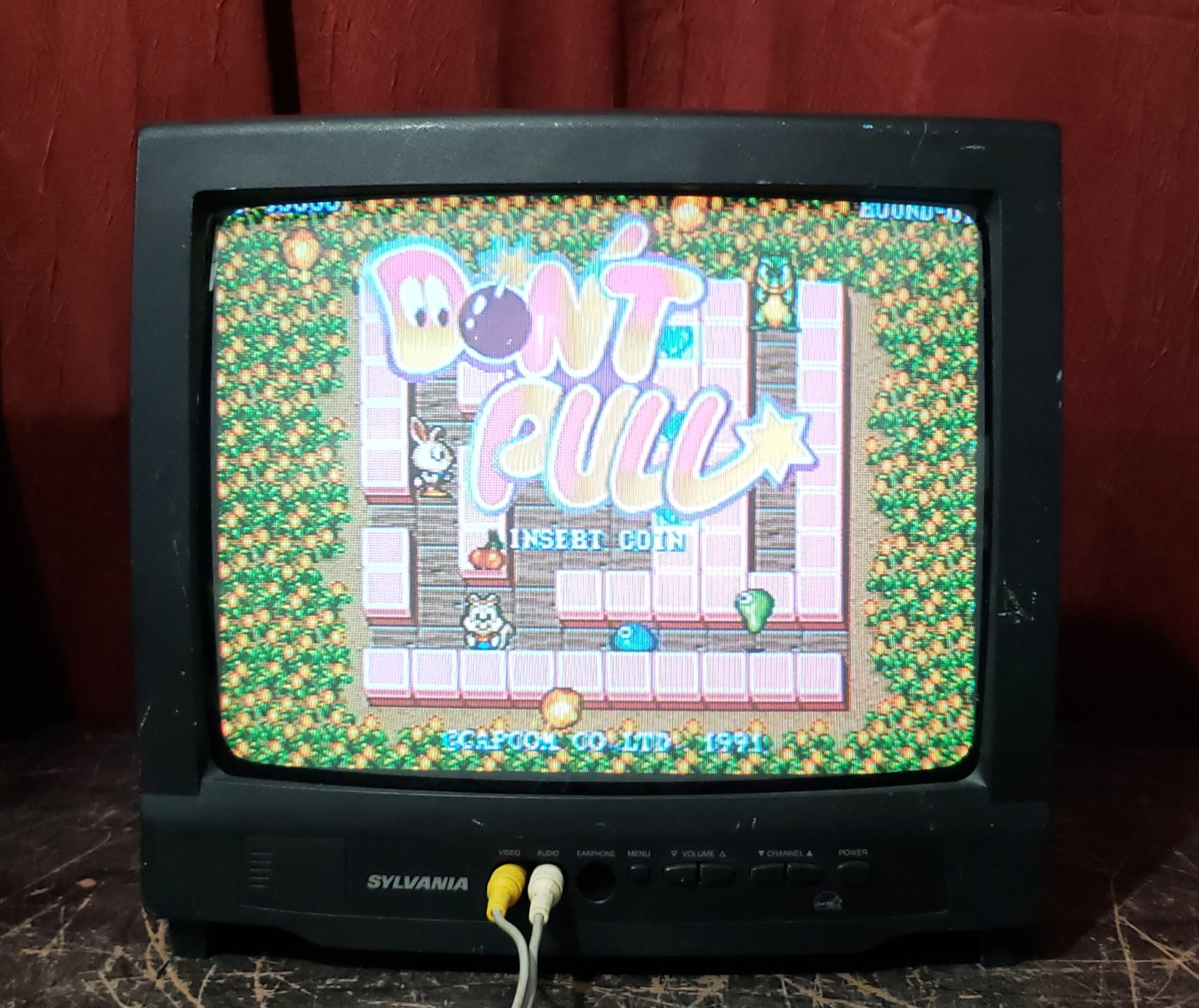

13" color TV made by Funai and sold under the Sylvania brand. Has RF and composite inputs.
Manuals
Notes
A remote is needed to change from the antenna input to the front AV input. But once it has been set on the AV input, it will remember to default to that when unplugged. The OSD menu does not have a sharpness adjust so there will be some sharpness ringing.

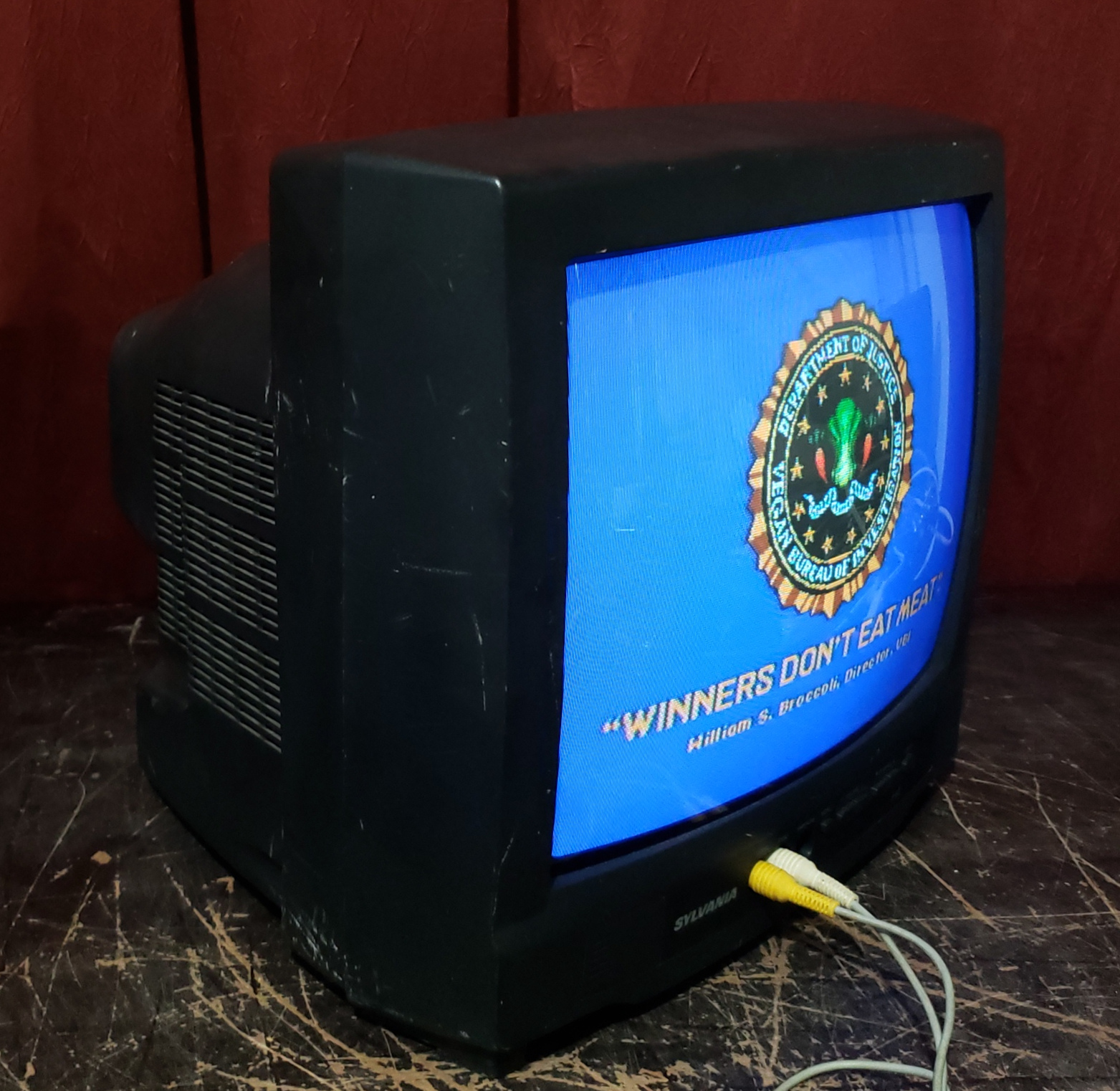

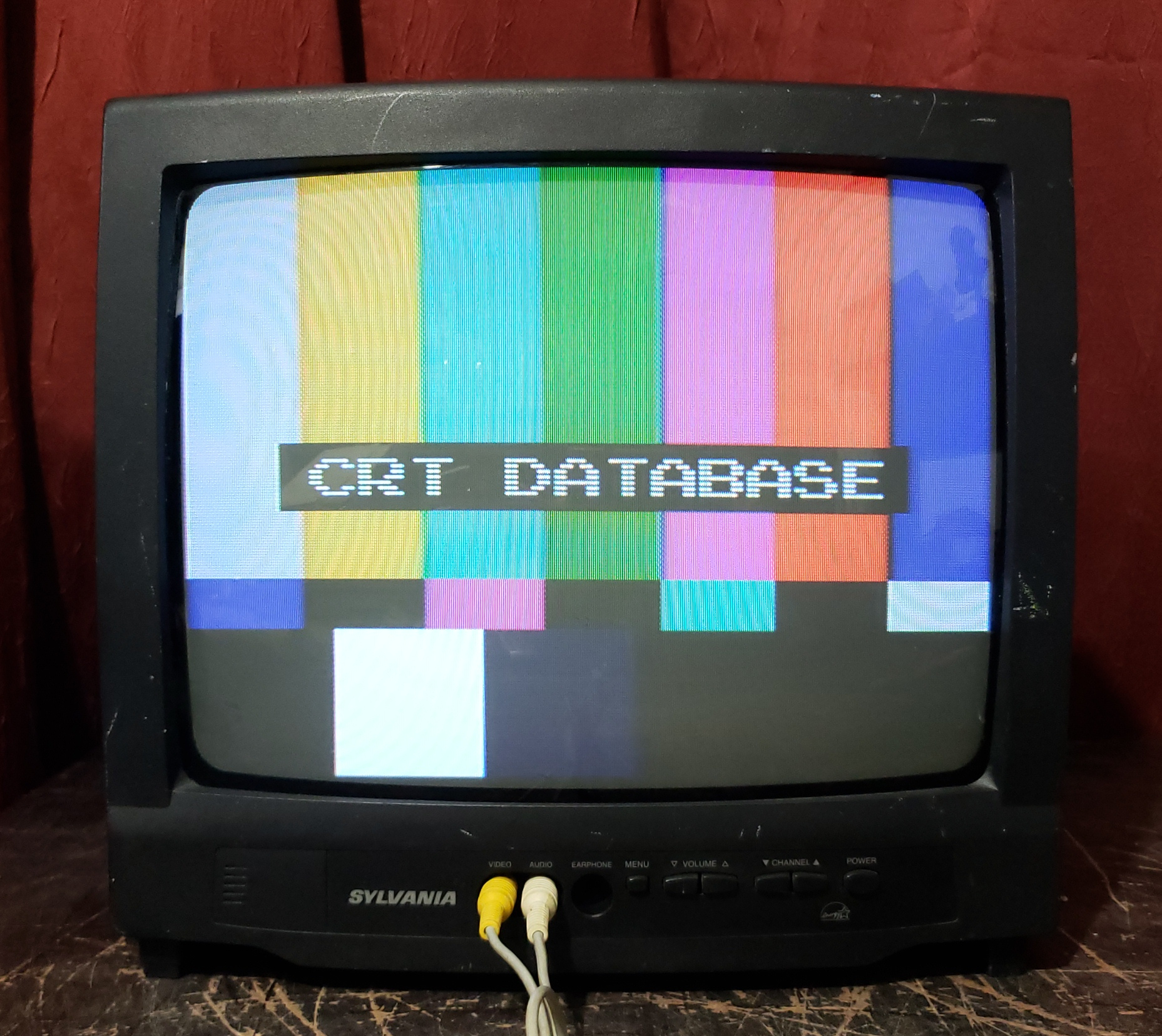

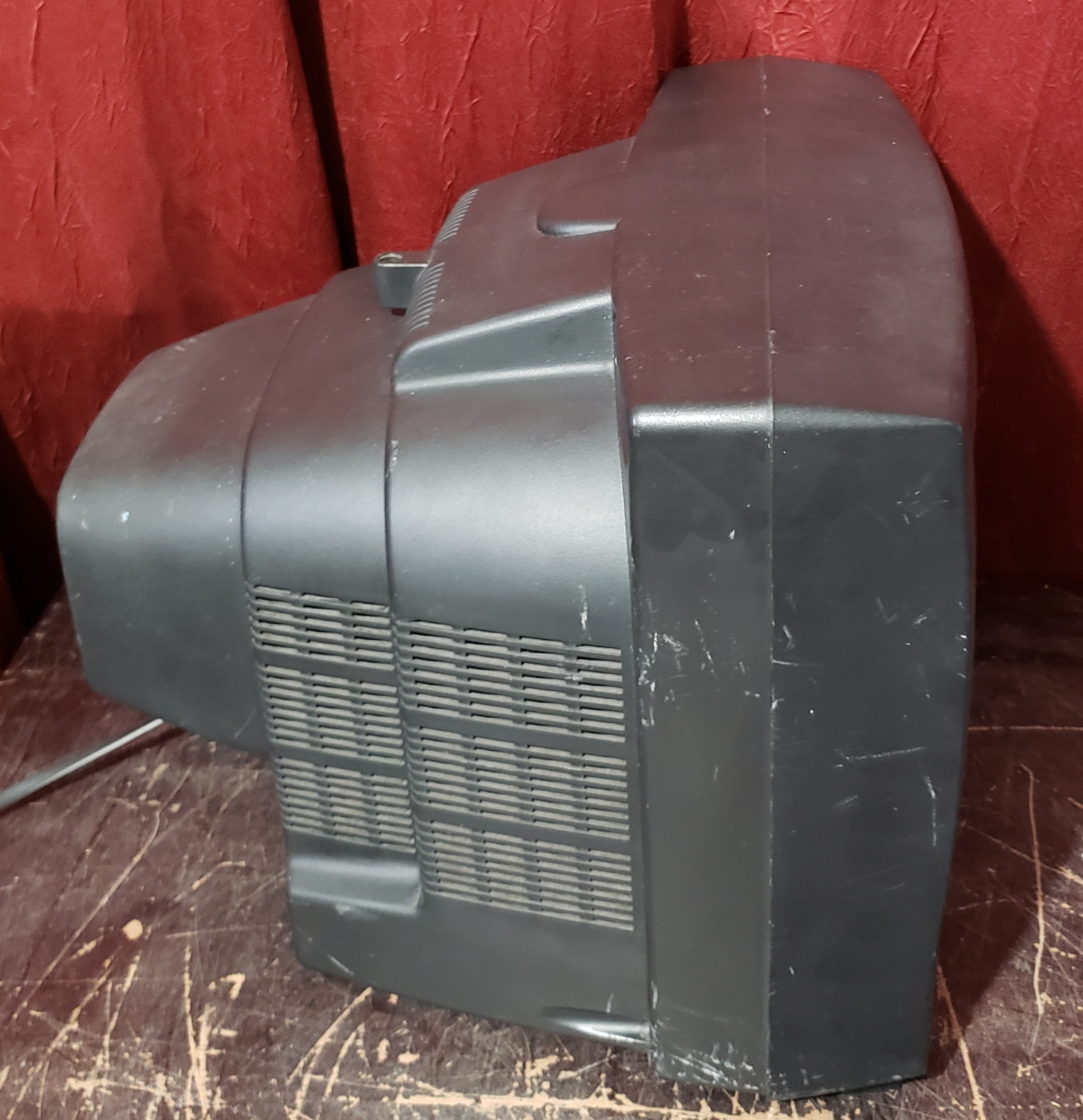

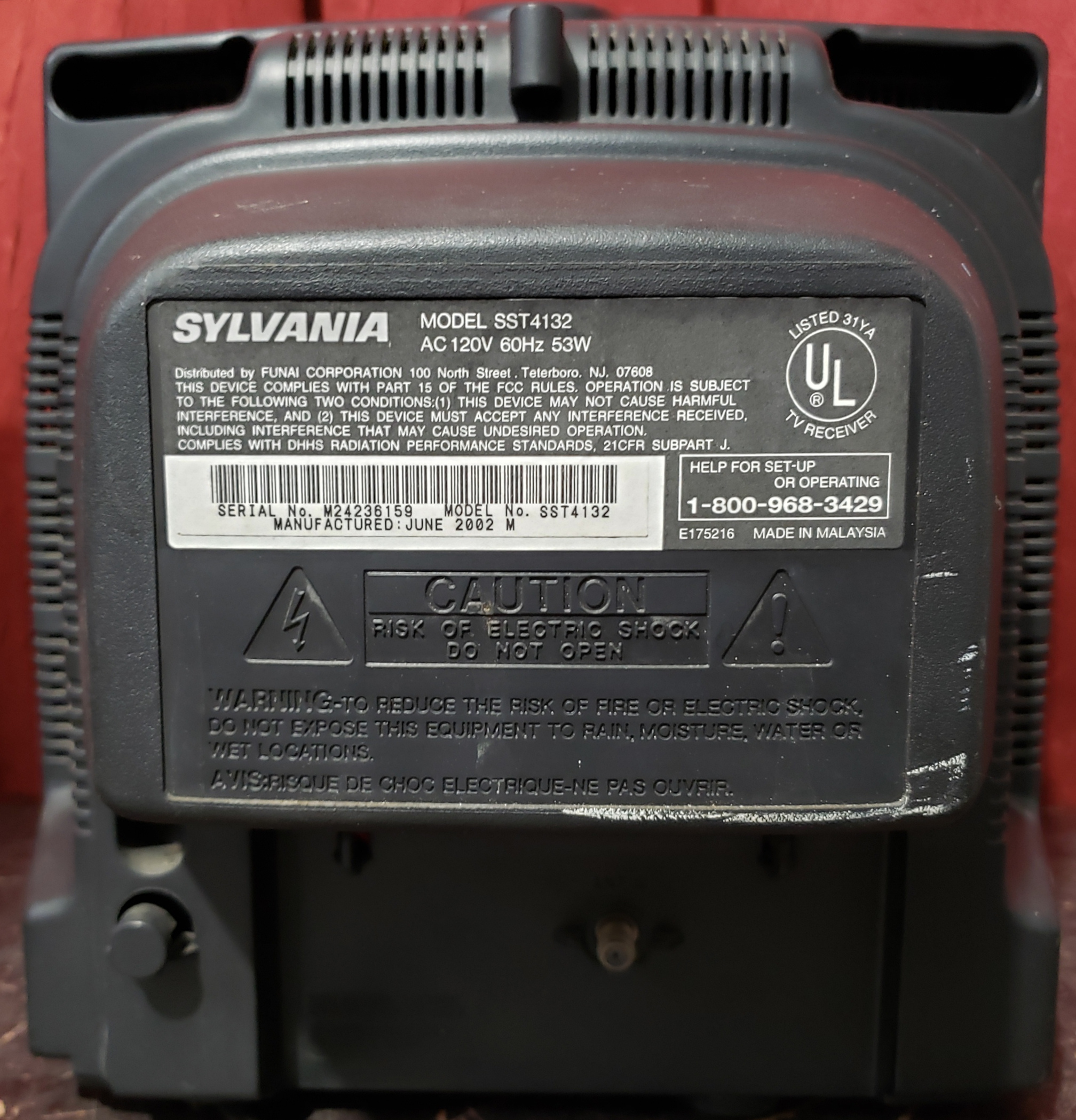

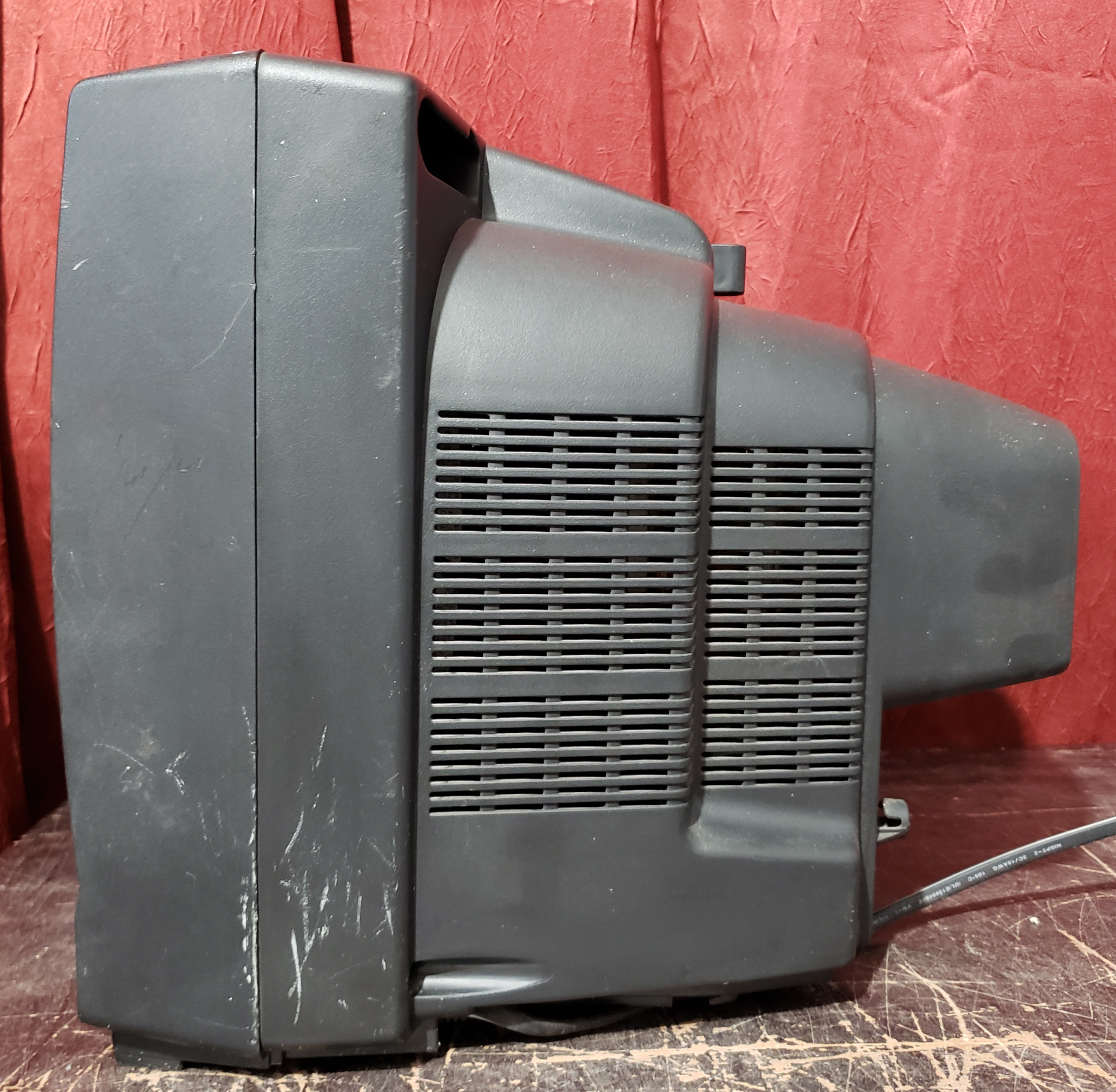

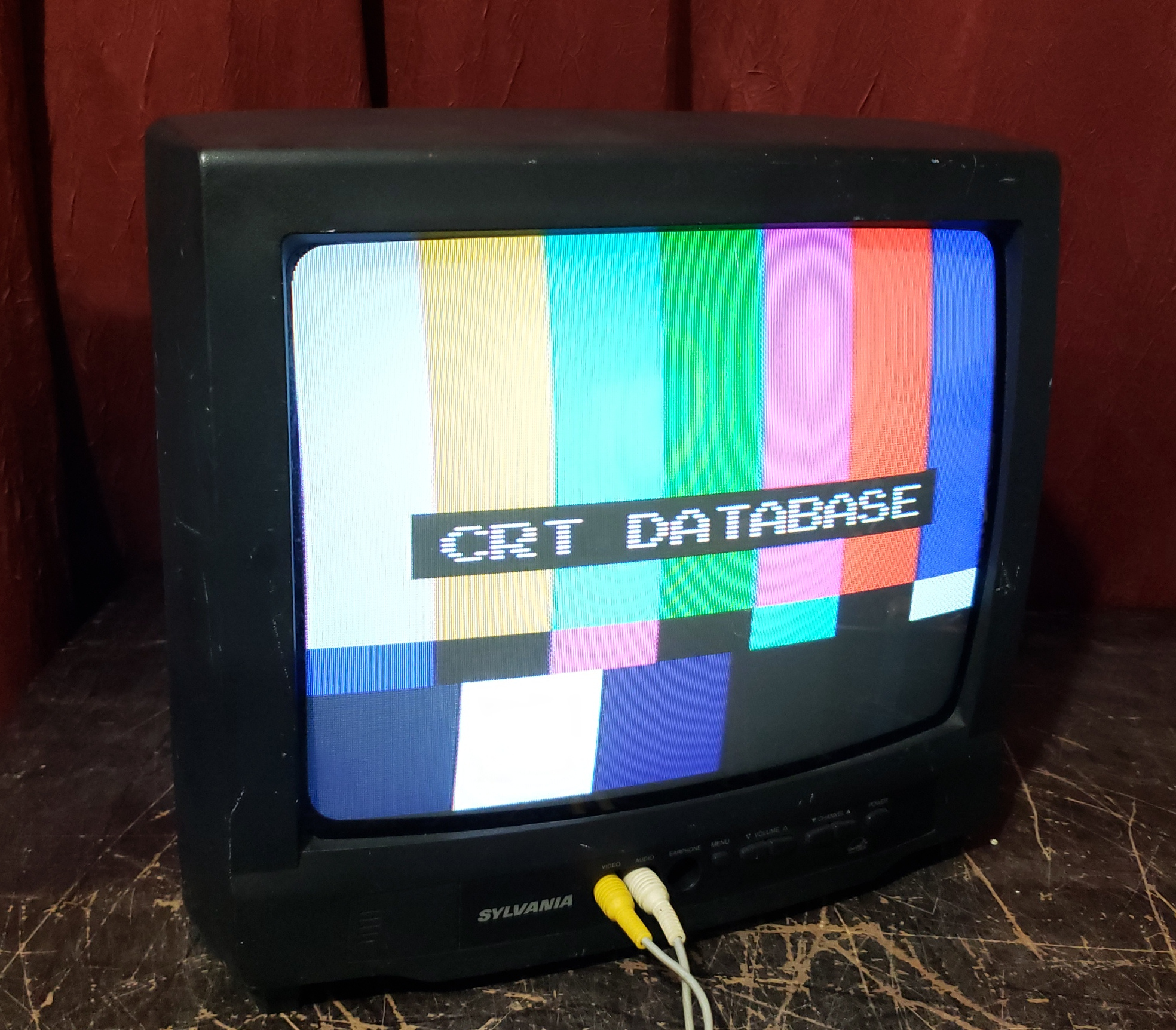

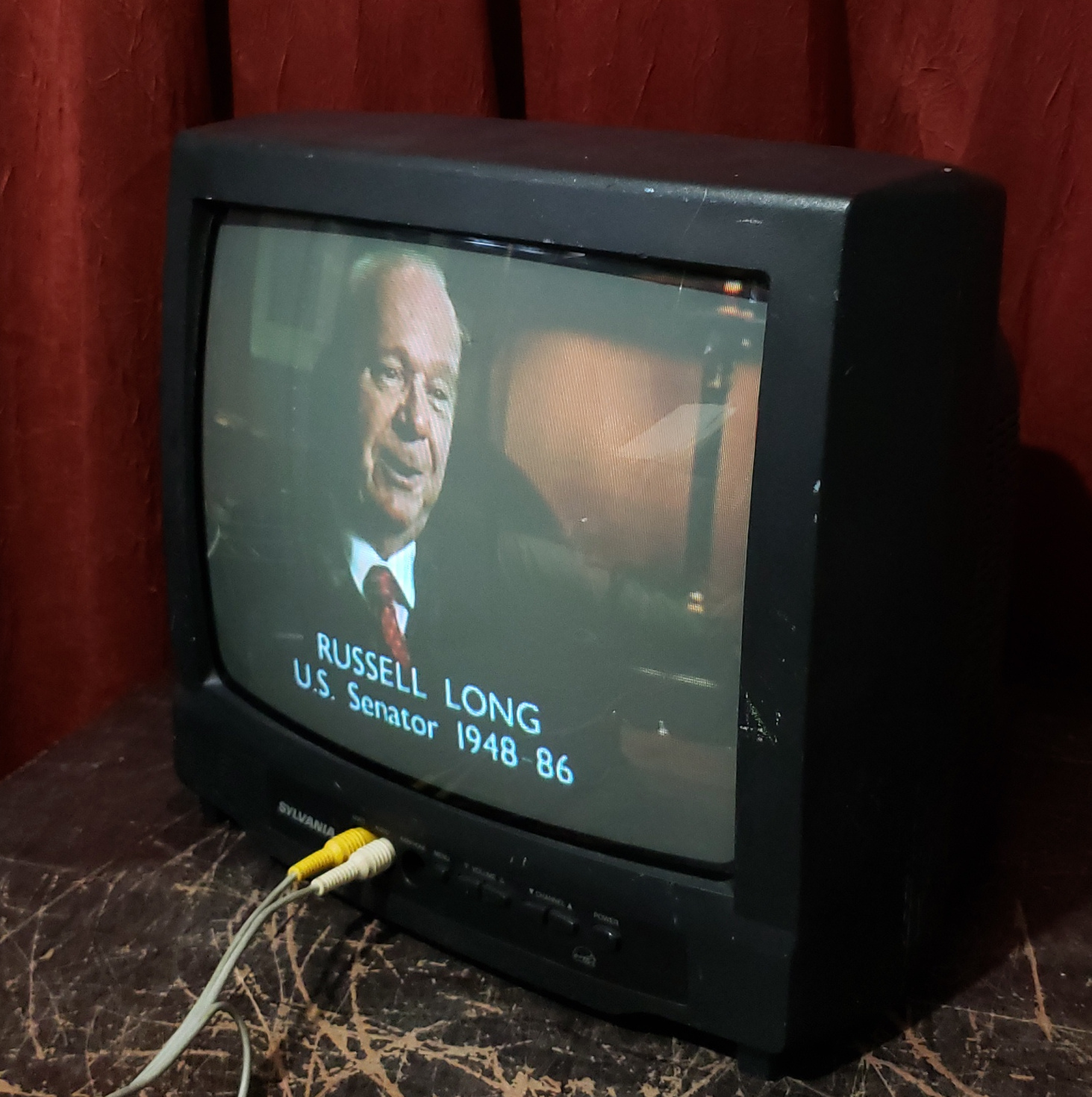

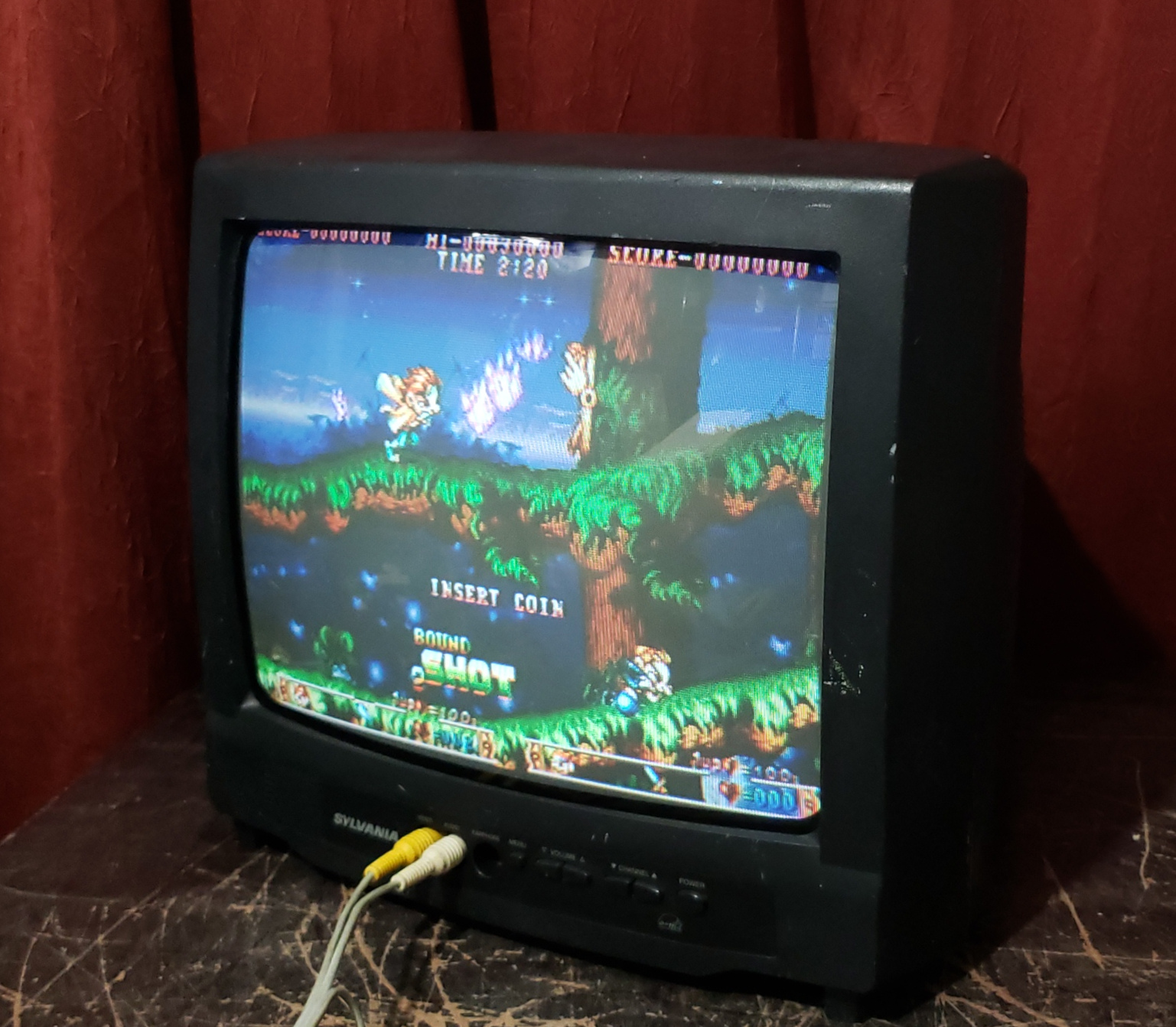

Gallery








Specifications | |
---|---|
Brand: | Sylvania |
Manufacturer: | Funai |
Model: | SST4132 |
Series: | Sylvania |
Viewable Size: | 13" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls |
Comb Filtering: | None |
Tube: | A34KQV42X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |
Speakers: | Mono, 1W |
Remote: | N0132UD |
Weight: | 19 lbs (8.6 kg) |
Dimensions (W/H/D): |
358 x 323 x 355 mm
(14.1 x 12.7 x 14") |
Application: | Consumer |
Launched: | 2002 |
Country of Manufacture: | Malaysia |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard), Carrying Handle |
Degaussing: | Automatic on Power-on |
Tag: | Needs Service Manual, Needs Yoke Info |
